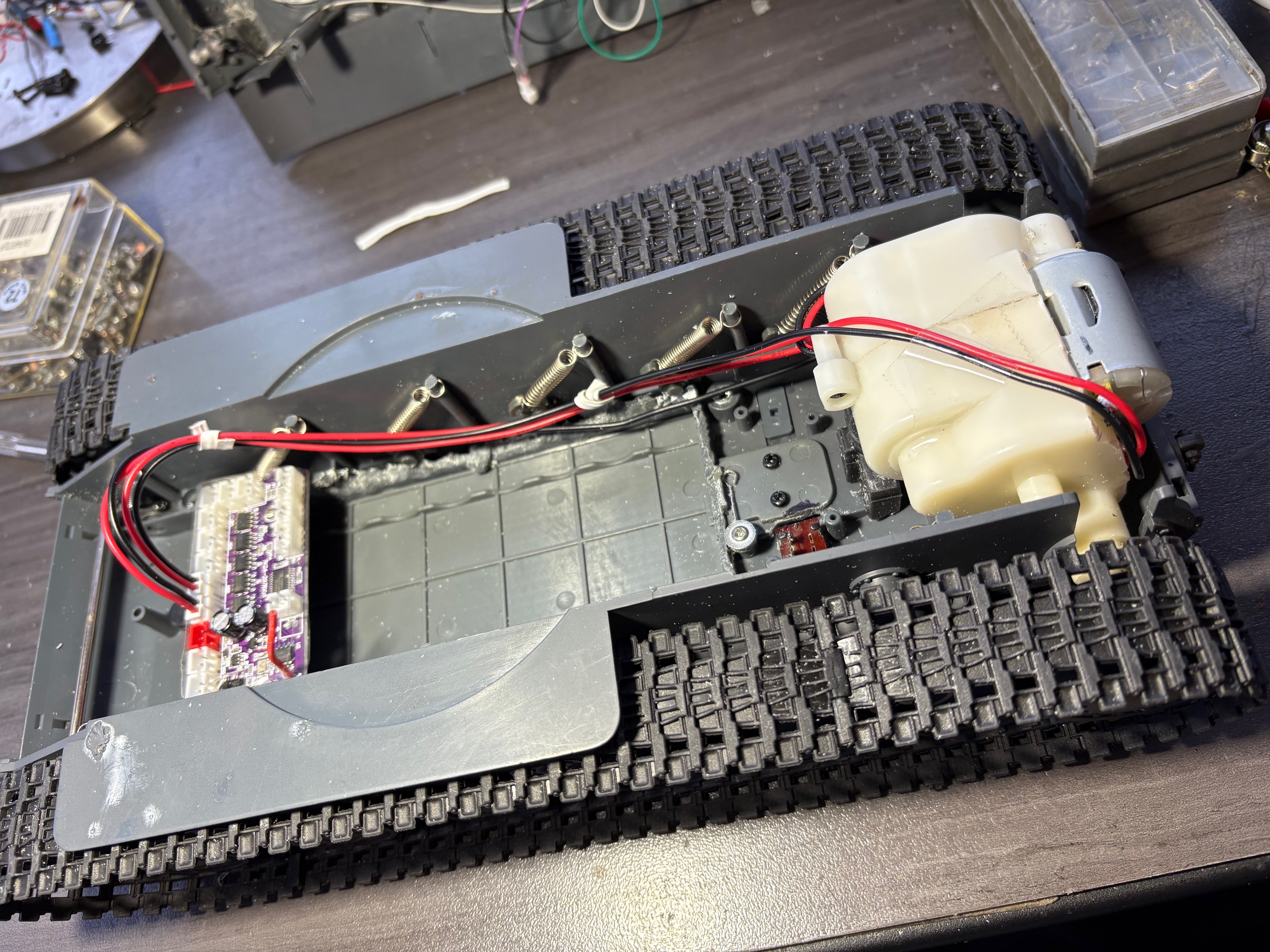

Using the factory gearbox wiring\connectors, L\R motors plugged in to receiver. At this point does not matter if they are in the right slot or not. That will be tested later after 2s lipo input JST, power on switch wiring are completed.
If you buy replacement HL 1/24 gearbox, they come prewired and are set up for PNP for the HL Rx-24 receiver
Next I will be adding a Lipo input JST connector and wire it to the receiver.
Attachments

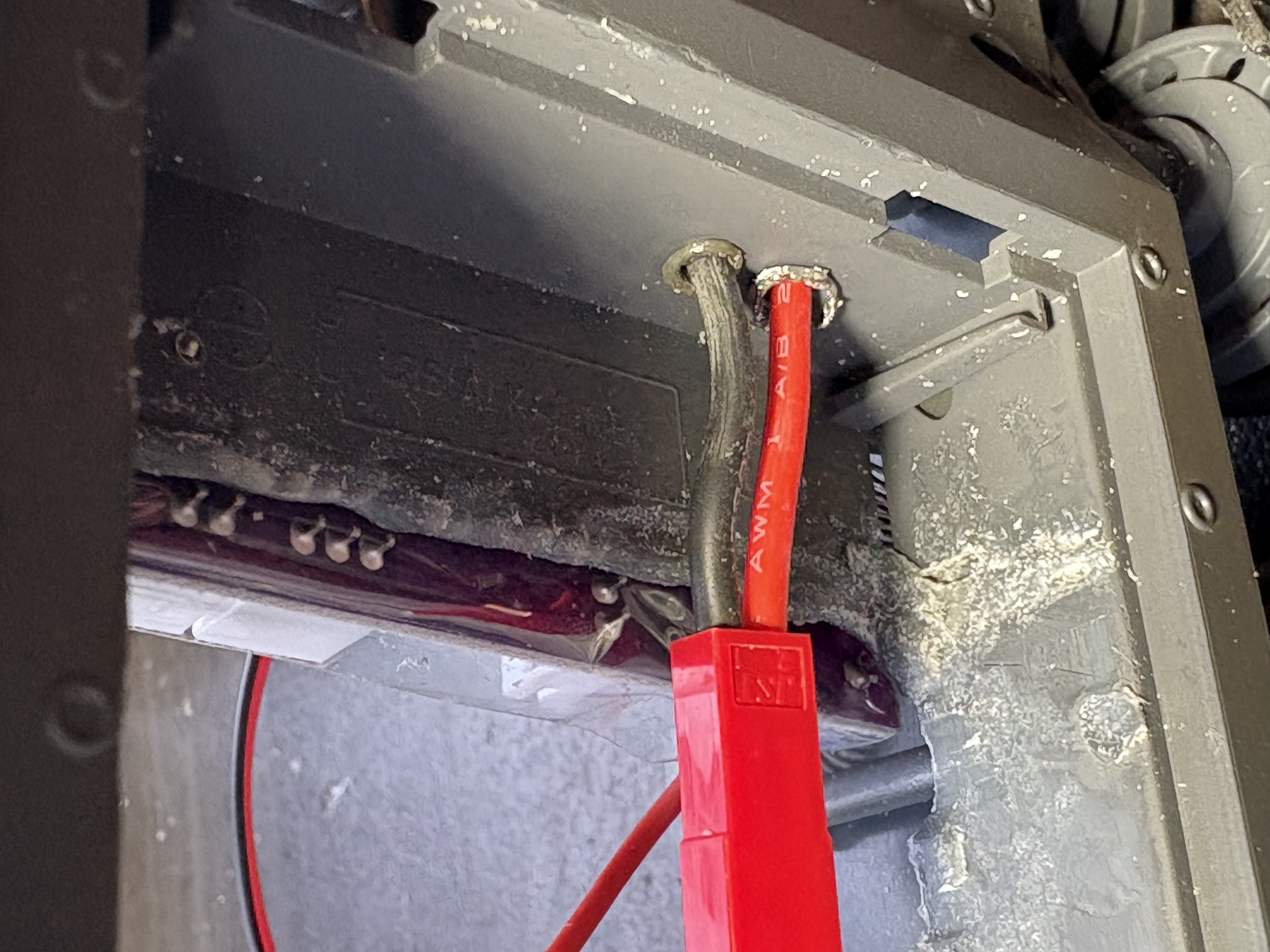

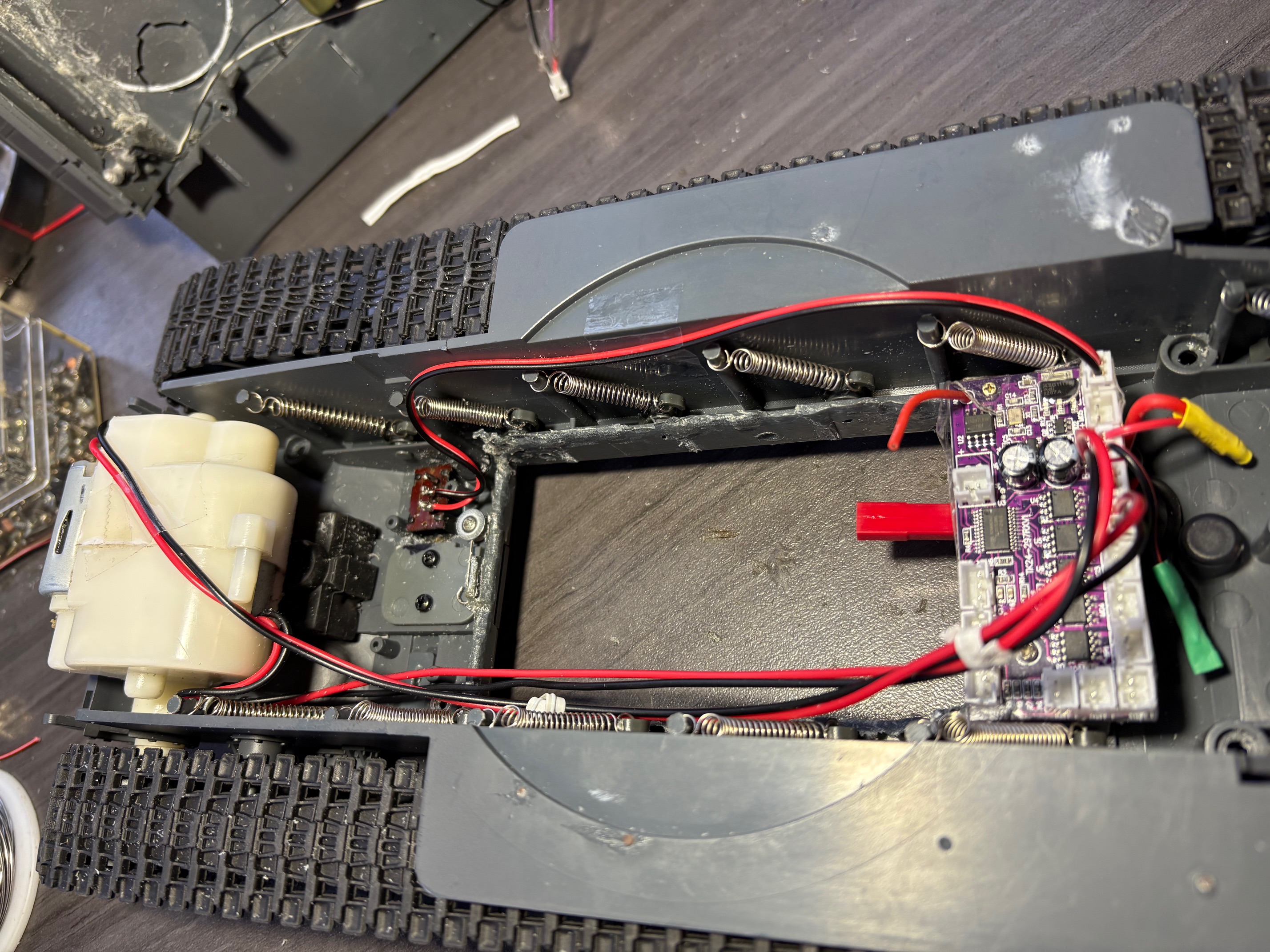

Lipo input JST run through the bulkhead.

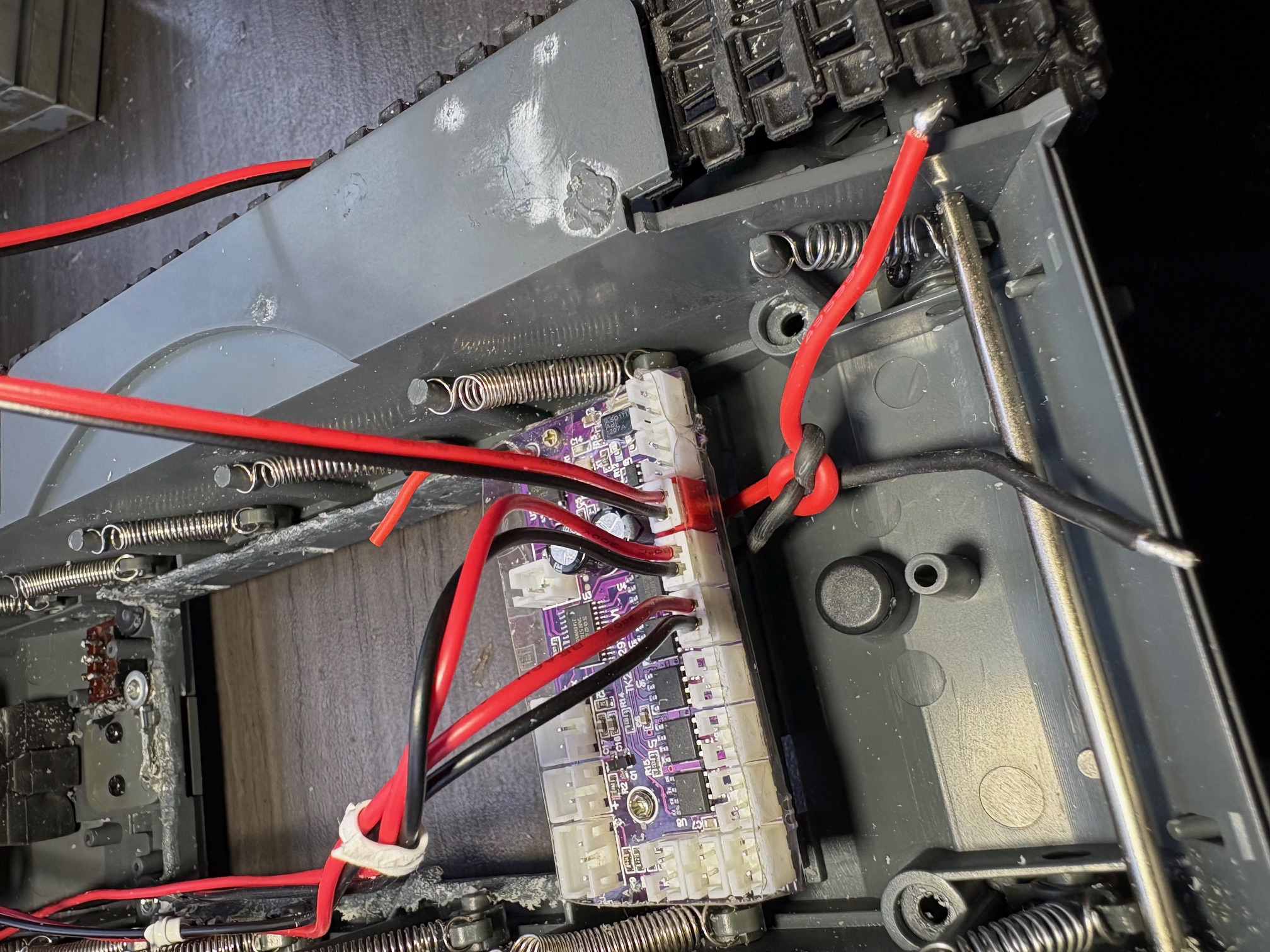

JST input wire strain relief. Yanking on the JST during battery removal can damage the receiver RED battery input on the receiver. Thanks to the strain relief that is not a problem here.
IMG_0288 (1).jpg (1.12 MiB) Viewed 717 times
Ends of the JST red\black wires get a 2.5 mm connector soldered on then plugged into the RED receiver input connector. This is a short high current run wiring technique. Allow maximum current flow from the lipo to the receiver.

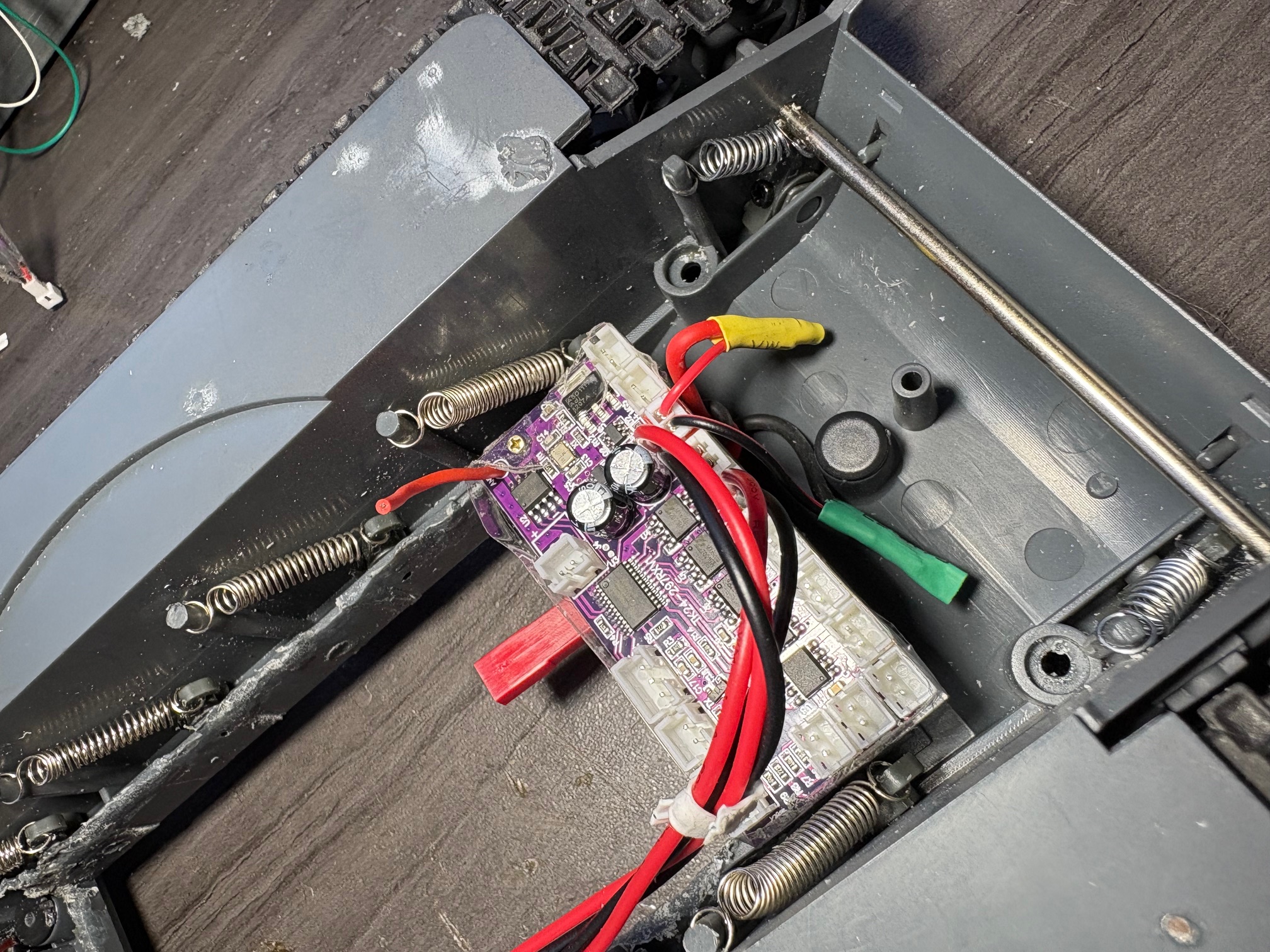

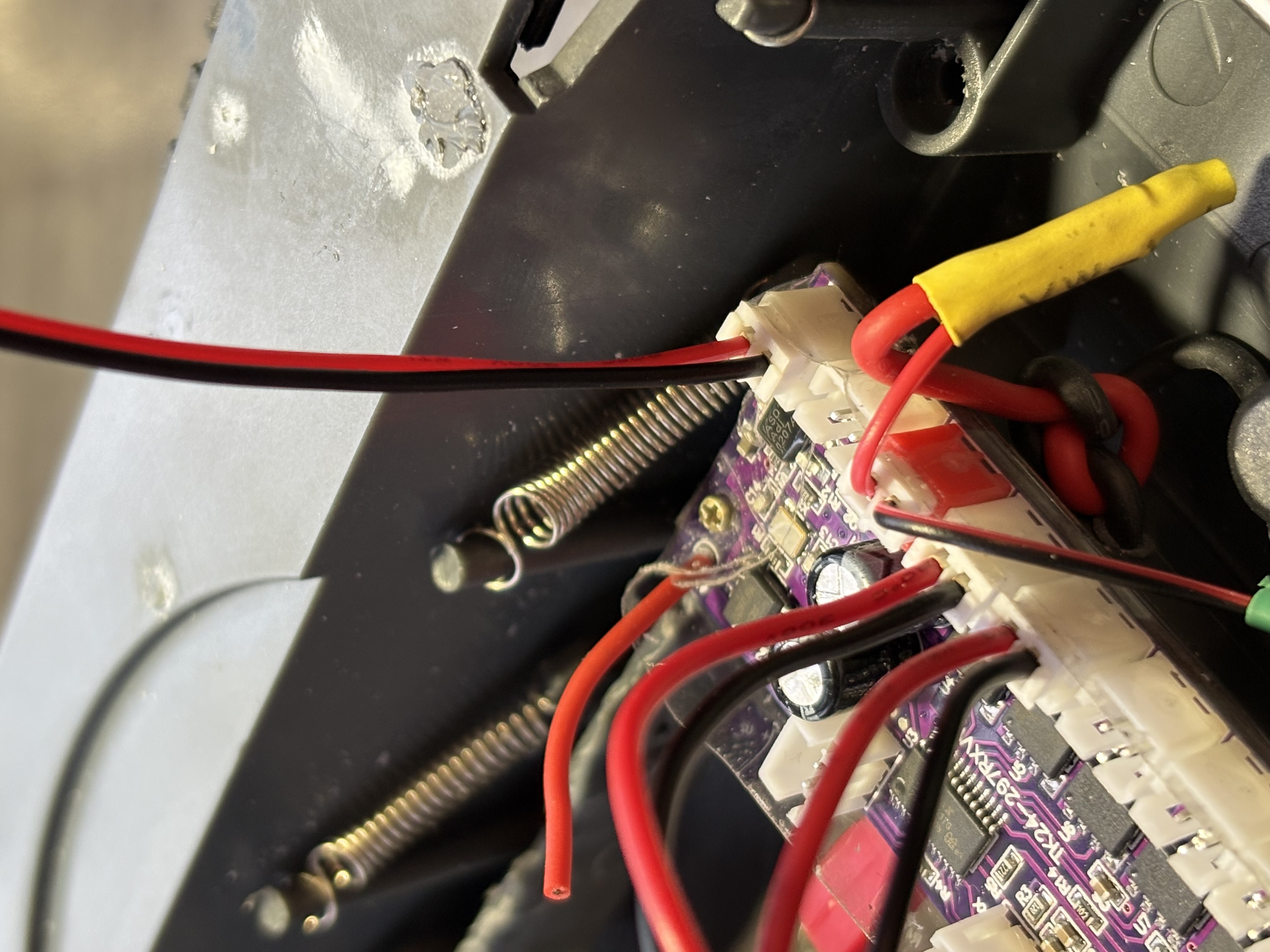

close up of the JST input to the receiver. the last connector on the right is for the power switch. Thats next.
Last edited by modler on Thu Apr 17, 2025 4:07 am, edited 3 times in total.

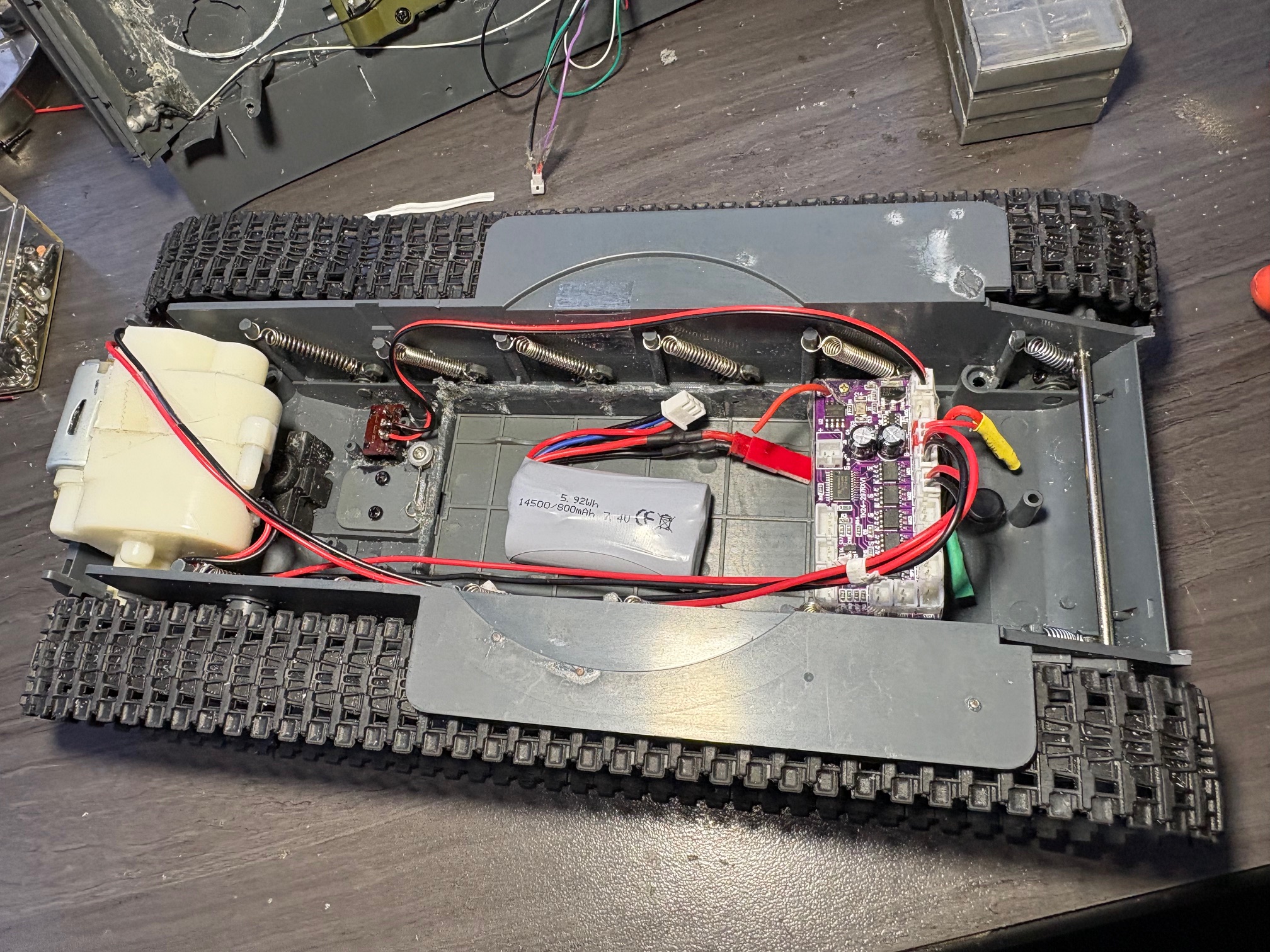

power up test successful. swapped the L\R motor leads to get proper movement F\R.
red and black power on connector to SPDT switch. This can be light gauge wire because the heavy gauge wire has already been done through the JST connector wiring. This is just low power signal switching wiring. This setup is way more advanced than old school tanks from the past. All that power used to run through the on\off switch with long runs of wire. The heavy power run is short and the switching on\off signal is a low power longer run.

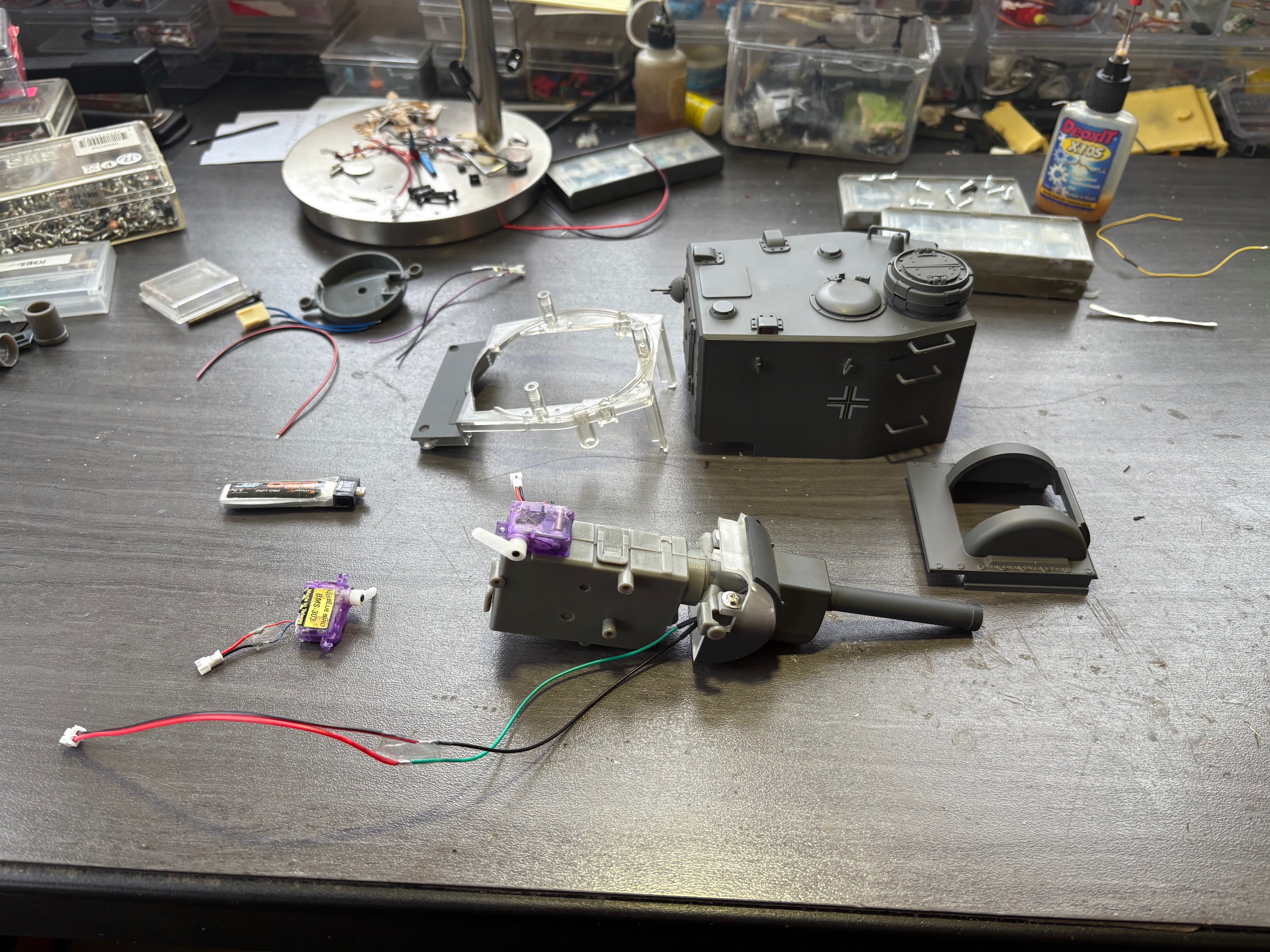

I decided to put the tank in operation even though it still needs some work (main gun up\down, gun recoil, IR transmitter,receiver) are not finished at this point. Need to find a few parts yet. Just bid on a bunch of VsTanks parts here https://www.ebay.com/str/shipsfromhongk ... 39.l149086
Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. )
Herr Dr. Professor wrote: ↑Thu Apr 17, 2025 9:28 pm
Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. )
Herr Dr. Professor wrote: ↑Thu Apr 17, 2025 9:28 pm
Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. )
Yes that seller some interesting VARIETY of goods to say the least
Well I won the bid for the parts on ebay. $233 worth. $60 of that is shipping. Should have enough parts to ad main gun up\down plus recoil. Plus more parts for other projects. Several gearboxes for turret L\R and turret main gun U\D. Plus recoil gearbox's. IR LEDS and more.
No money left to buy those pretty panties at that site
Attachments
KV-2 parts. These are hard to find.
IMG_0315 (2).jpg (1.62 MiB) Viewed 528 times
lot of small gearboxes with motors for various VsTanks.
)
