Re: 1/24 Pz.754(p) captured Soviet KVII tank - connecting drive motor connectors to receiver

Post by modler »



Using the factory gearbox wiring\connectors, L\R motors plugged in to receiver. At this point does not matter if they are in the right slot or not. That will be tested later after 2s lipo input JST, power on switch wiring are completed.

If you buy replacement HL 1/24 gearbox, they come prewired and are set up for PNP for the HL Rx-24 receiver :D
Attachments
IMG_0287 (1).jpg
IMG_0287 (1).jpg (1.91 MiB) Viewed 797 times
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII- battery chassis wiring

Post by modler »



Next I will be adding a Lipo input JST connector and wire it to the receiver.
Attachments
Lipo input JST run through the bulkhead.
Lipo input JST run through the bulkhead.
JST input wire strain relief. Yanking on the JST during battery removal can damage the receiver RED battery input on the receiver. Thanks to the strain relief that is not a problem here.
JST input wire strain relief. Yanking on the JST during battery removal can damage the receiver RED battery input on the receiver. Thanks to the strain relief that is not a problem here.
IMG_0288 (1).jpg (1.12 MiB) Viewed 792 times
Ends of the JST red\black wires get a 2.5 mm connector soldered on then plugged into the RED receiver input connector. This is a short high current run wiring technique. Allow maximum current flow from the lipo to the receiver.
Ends of the JST red\black wires get a 2.5 mm connector soldered on then plugged into the RED receiver input connector. This is a short high current run wiring technique. Allow maximum current flow from the lipo to the receiver.
close up of the JST input to the receiver. the last connector on the right is for the power switch. Thats next.
close up of the JST input to the receiver. the last connector on the right is for the power switch. Thats next.
Last edited by modler on Thu Apr 17, 2025 4:07 am, edited 3 times in total.
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII Power switch wiring

Post by modler »



After this step, tank will be ready to fire up
Attachments
power up test successful. swapped the L\R motor leads to get proper movement F\R.
power up test successful. swapped the L\R motor leads to get proper movement F\R.
red and black power on connector to SPDT switch. This can be light gauge wire because the heavy gauge wire has already been done through the JST connector wiring. This is just low power signal switching wiring. This setup is way more advanced than old school tanks from the past. All that power used to run through the on\off switch with long runs of wire.<br />The heavy power run is short and the switching on\off signal is a low power longer run.
red and black power on connector to SPDT switch. This can be light gauge wire because the heavy gauge wire has already been done through the JST connector wiring. This is just low power signal switching wiring. This setup is way more advanced than old school tanks from the past. All that power used to run through the on\off switch with long runs of wire.
The heavy power run is short and the switching on\off signal is a low power longer run.
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank now running

Post by modler »



I decided to put the tank in operation even though it still needs some work (main gun up\down, gun recoil, IR transmitter,receiver) are not finished at this point. Need to find a few parts yet. Just bid on a bunch of VsTanks parts here
https://www.ebay.com/str/shipsfromhongk ... 39.l149086

Put the tank together and a short video of it running here.
https://youtu.be/h8MYNEAueUE
Attachments
Front, rear tail lights wired, as well as turret traverse L\R.
Front, rear tail lights wired, as well as turret traverse L\R.
IMG_0306 (1).jpg (1.95 MiB) Viewed 712 times
wired the machine gun LED in the turret. Still trying to work out how to move the main gun up\down and recoil the metal barrel.
wired the machine gun LED in the turret. Still trying to work out how to move the main gun up\down and recoil the metal barrel.
IMG_0305 (1).jpg (2.11 MiB) Viewed 712 times
Top
User avatar
Herr Dr. Professor
Major
Posts: 5358
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank display model to R\C

Post by Herr Dr. Professor »

Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. :P :haha: )
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank display model to R\C

Post by modler »

Herr Dr. Professor wrote: ↑Thu Apr 17, 2025 9:28 pm Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. :P :haha: )
:haha: :thumbup:
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank display model to R\C

Post by modler »

modler wrote: ↑Fri Apr 18, 2025 12:18 am
Herr Dr. Professor wrote: ↑Thu Apr 17, 2025 9:28 pm Gee, if you don't "win" the tanks, you might be able get some of those great undies in the listing--that is, if you want your wife to die laughing. (uh-oh, now I'm in trouble. :P :haha: )
:haha: :thumbup: Yes that seller some interesting VARIETY of goods to say the least 8)
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank NEW PARTS to finish upgrade

Post by modler »



Well I won the bid for the parts on ebay. $233 worth. $60 of that is shipping. Should have enough parts to ad main gun up\down plus recoil. Plus more parts for other projects. Several gearboxes for turret L\R and turret main gun U\D. Plus recoil gearbox's. IR LEDS and more.

No money left to buy those pretty panties at that site :O
Attachments
KV-2 parts. These are hard to find.
KV-2 parts. These are hard to find.
IMG_0315 (2).jpg (1.62 MiB) Viewed 603 times
lot of small gearboxes with motors for various VsTanks.
lot of small gearboxes with motors for various VsTanks.
IMG_0314 (1).jpg (2.84 MiB) Viewed 603 times
VsTank M4A3 Sherman parts.
VsTank M4A3 Sherman parts.
IMG_0313 (1).jpg (1.52 MiB) Viewed 603 times
Top
User avatar
modler
Sergeant
Posts: 616
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: 1/24 Pz.754(p) captured Soviet KVII tank NEW PARTS to finish upgrade

Post by modler »

modler wrote: ↑Fri Apr 18, 2025 1:50 pm

Well I won the bid for the parts on ebay. $233 worth. $60 of that is shipping. Should have enough parts to ad main gun up\down plus recoil. Plus more parts for other projects. Several gearboxes for turret L\R and turret main gun U\D. Plus recoil gearbox's. IR LEDS and more.
:O
Got the main gun recoil working as a stand alone using 1 SPDT relay. This will make it easy to interface to any electronics. I did this this way as I want to update 2 other 1/24 tanks in my collection with main gun recoil oh, and muzzle flash which is next.

For this upgrade, 4 wires are used with a SPDT relay with SPST switch, 2 for the recoil motor\GB, 2 for the recoil position limit switch.

Here is a shot video showing the main gun recoil relay.
https://youtu.be/DICeTvajlMg

Here is a video of the muzzle flash unit
https://youtu.be/DICeTvajlMg

Video of muzzle flash inside the barrel of the KV-2
https://www.youtube.com/shorts/1aGGWZS8 ... ture=share

Next thing to do is get the main gun up\down GB installed .
Attachments

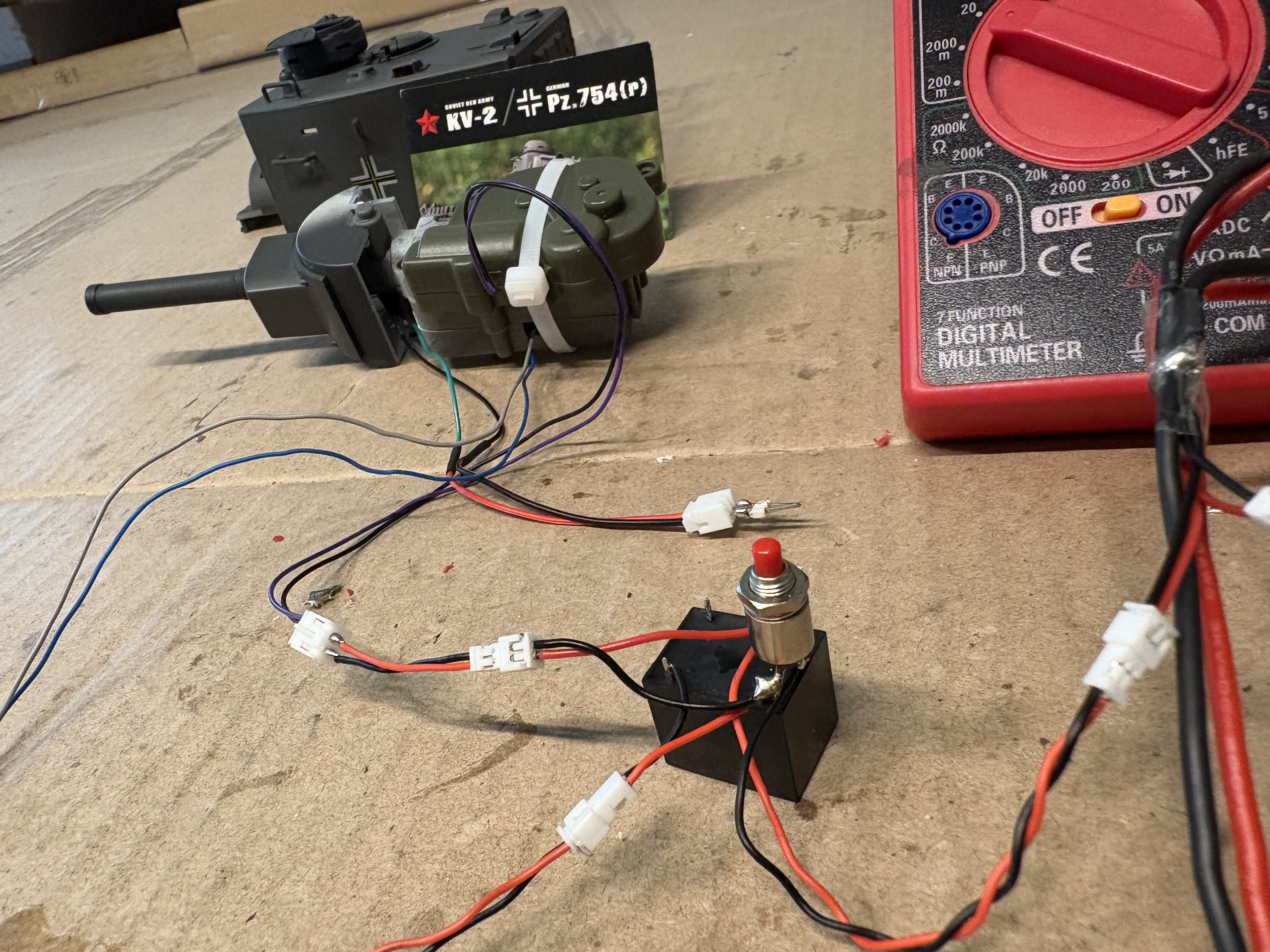

Manual RED fire button. A connector will be added here to interface with HL circuit board.
Manual RED fire button. A connector will be added here to interface with HL circuit board.

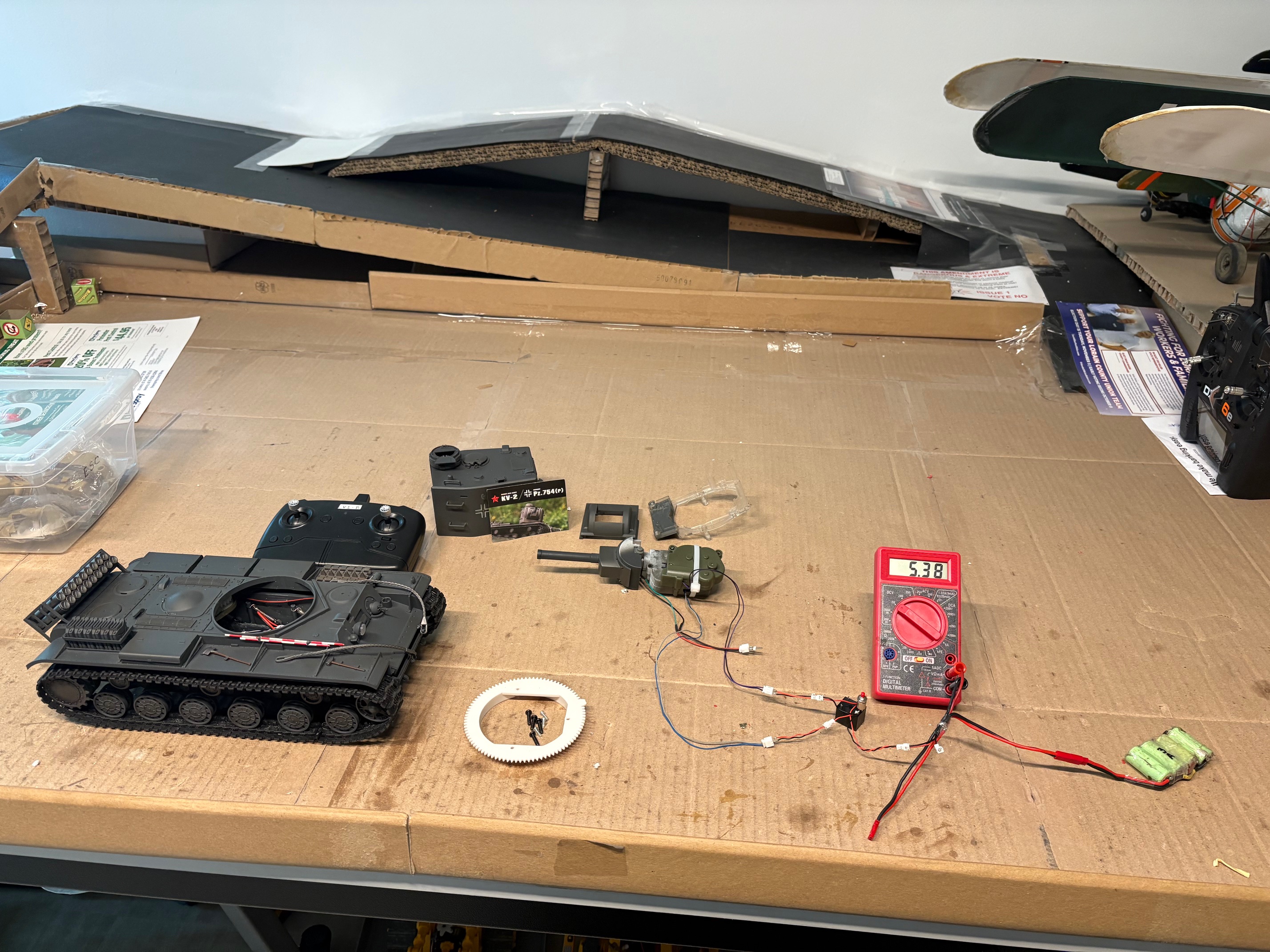

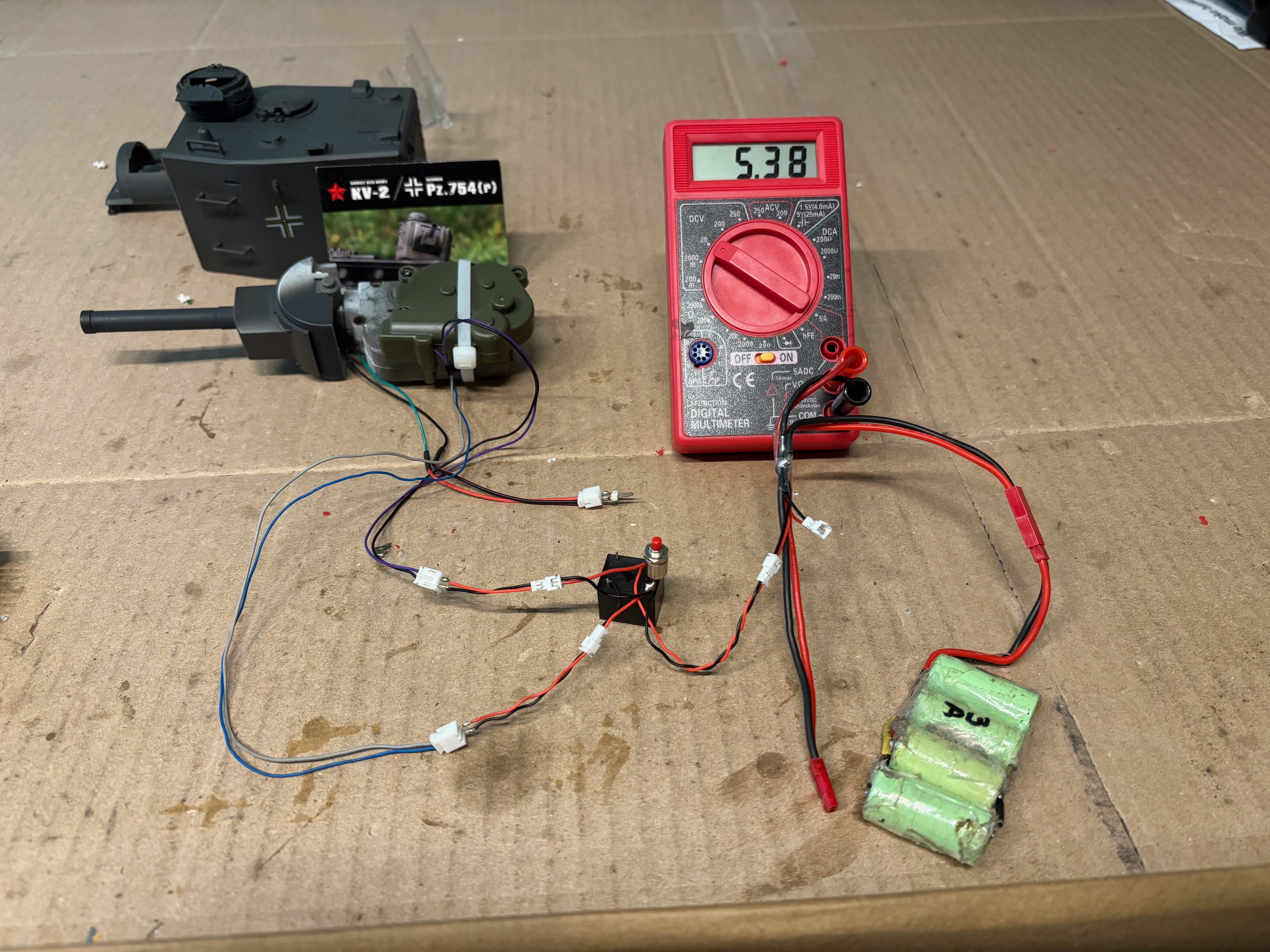

This picture shows a 4 cell niMh battery for the power supply. 1 cell ~ 100mAh Lipo can also be used. 2s Lipo also works. So minimum 1s Lipo to 2s lipo can be used. The speed of the recoil function increases with more voltage.
