new to tanks just purchased a Can Shou all metal M1A2 1/16 Abrams , working on scale details and in process of attempting adding barrel smoke ,
- ccrop abrams 230826.jpg (1.34 MiB) Viewed 2289 times
Hello from South Florida
Hello from South Florida
Longtime Scale RC Enthusiast , Planes, trains, Helicopters and trucks, really like the scale side of the hobby of making the project look and act as real as possible
new to tanks just purchased a Can Shou all metal M1A2 1/16 Abrams , working on scale details and in process of attempting adding barrel smoke ,
new to tanks just purchased a Can Shou all metal M1A2 1/16 Abrams , working on scale details and in process of attempting adding barrel smoke ,
- Attachments
-
- crop 2 abrams 2308026 20230823_153024.jpg (2.41 MiB) Viewed 2289 times
"Never interrupt your enemy when he is making a mistake."
— Napoleon Bonaparte
— Napoleon Bonaparte
-
Ecam
- Warrant Officer 1st Class
- Posts: 2198
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: Hello from South Florida
Killer looking Abrams! Welcome aboard. That's two from Florida in two days. Did the power just come back on?
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
-
ColemanCollector
- Warrant Officer 2nd Class
- Posts: 1057
- Joined: Sat Jan 14, 2023 8:50 pm
- Location: Ontario, Canada
Re: Hello from South Florida
Welcome from Ontario, Canada! What do you feed your hockey teams down there?!
Mike.
Mike.
Elbows up
Re: Hello from South Florida
thanks , now I have to figure how to connect the barrel smoke unit to the CS TK-16/TK-SWB board, this whole thing came without any documentation .and there is not much I can find online , I guess not many of these around .
Allan
Allan
"Never interrupt your enemy when he is making a mistake."
— Napoleon Bonaparte
— Napoleon Bonaparte
Re: Hello from South Florida
Welcome Sir!
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
Leonardo Da Vinci
Re: Hello from South Florida

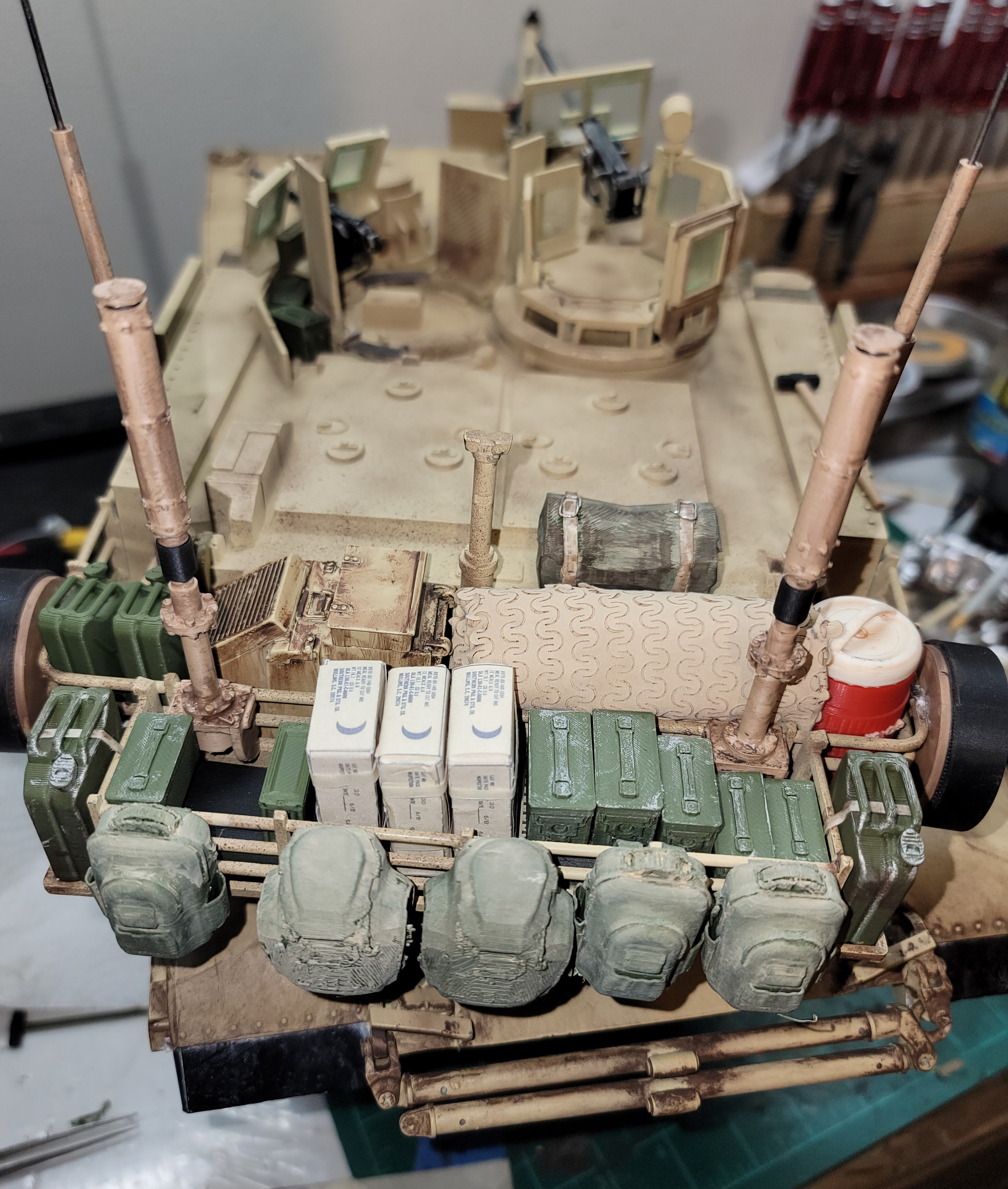

Nice Abrams. Sorry, one little thing...the Vapor Compression Unit (VCU - A/C Compressor) in the rear turret bustle basket needs to be facing the other direction.
And for the TK16...here ya go:

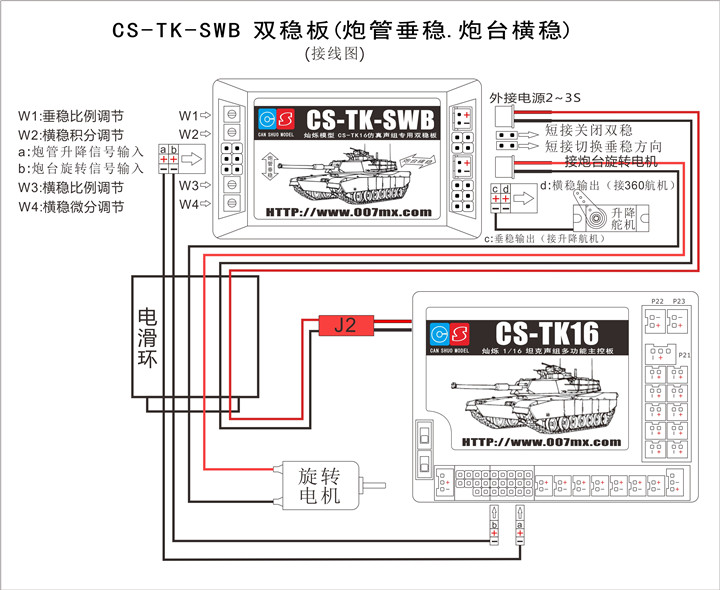

SWB wiring, but unfortunately I don't have it in English:
And for the TK16...here ya go:
- CS TK16 English.png (746.28 KiB) Viewed 2250 times
- Gun-Stabilizer-System-For-Scale-Model-Remote-Control-Tanks-Heng-Long-RC-Tank-Mato-RC-Tank-Upgrade-Parts-CS-TK-SWB-Control-Board-Interface-Description.jpg (121.48 KiB) Viewed 2250 times
Derek
Too many project builds to list...
Too many project builds to list...
-
Ecam
- Warrant Officer 1st Class
- Posts: 2198
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: Hello from South Florida
Well Saddleup, looks like you came to the right place!
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
Re: Hello from South Florida
Thanks for the input Derek, will remedy the VCU A/C unit and study the diagram , still would like to hear from someone that has installed the barrel smoke unit to make sure i get it right also ,Should I take this to somewhere else in the forum , if so where .
Thanks
Allan
Thanks
Allan
"Never interrupt your enemy when he is making a mistake."
— Napoleon Bonaparte
— Napoleon Bonaparte
Re: Hello from South Florida
Can't give any other advice than that as I don't use smokers at all. More trouble than they are worth IMO. Good luck figuring it out though.
Derek
Too many project builds to list...
Too many project builds to list...
