M3 and RAM style early bogies

Post by **dgsselkirk** » Sat Jun 06, 2020 6:15 pm

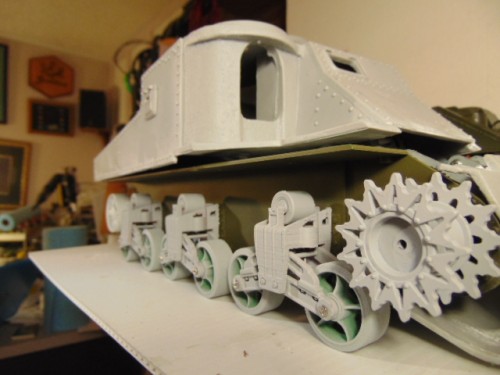

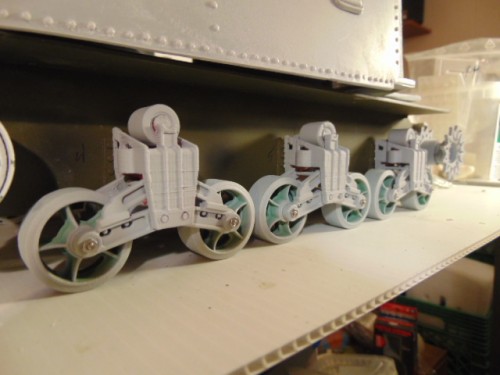

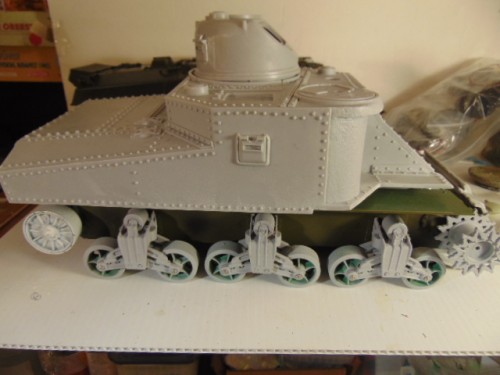

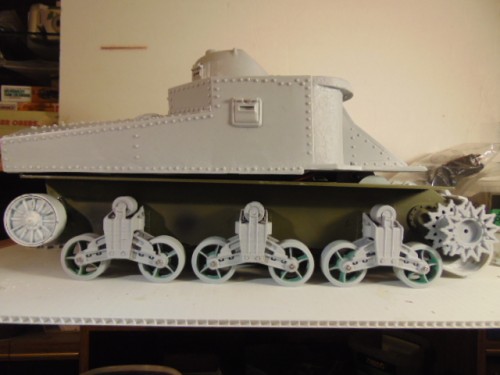

Testing out a new 3D printed M3 running gear. This may become a kit I sell. It uses the Henglong M4A3 running gear parts and is a fairly easy swap to do. The bogies are 3D printed and equipped with bearings running on an 1/72 (1.8mm) x 1" screw and nut which works out almost to scale for the nut on the outside. These wheels are Shapeways but I prefer my own 3D printed where the tire is seperate from the wheel. Also a hell of a lot cheaper!!! Going to have to wait a bit for actual testing...

Exhibitedbrute · Post by **Exhibitedbrute** » Sat Jun 06, 2020 6:49 pm

Yeah shapeways are expensive which is why I will just drill the a3 wheels. It won’t be exact but close enough for me.

The bogies cost enough with out buying wheels aswell

Post by **Son of a gun-ner** » Sun Jun 07, 2020 12:22 am

So, you finally got there then Dean

They look great

Post by **dgsselkirk** » Sun Jun 07, 2020 2:01 pm

Yes, finally! LOL! Now we will see if they work!

Estnische · Post by **Estnische** » Sun Jun 07, 2020 11:05 pm

Nice work Dean! Good to see some love for Allied equipment.

Jarlath · Post by **Jarlath** » Mon Jun 08, 2020 4:22 am

Hoping that they will take some decent abuse...
