Tamiya IR Led

Post by Warhawkone »

Has anyone placed an IR LED in a tamiya sherman firefly barrel with the flash unit behind it. Having problem of wires fitting to tight.HELP. Thanks Warhawkone.
Top
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Tamiya IR Led

Post by ALPHA »

Hey Warhawk... I've never seen both hooked up in such close proximity usually the flash is in the barrel.. and the IR is in the mandrel or somewhere else that is strategically advantageous

ALPHA
Top
User avatar
Dietrich
Staff Sergeant
Posts: 973
Joined: Thu Aug 13, 2009 10:29 am
Location: England and Aquitaine,France

Re: Tamiya IR Led

Post by Dietrich »

ALPHA wrote:Hey Warhawk... I've never seen both hooked up in such close proximity usually the flash is in the barrel.. and the IR is in the mandrel or somewhere else that is strategically advantageous

ALPHA
Hi ALPHA,
Sorry mate, the sunny weather over there must be getting to you!
......I have to say it, and I know that you won't be offended......Whats a 'mandrel' ?..... :haha: ..I think that you mean the Mantle..or the Mantlet...... :thumbup:
Never Forget......
   The Propaganda of the Victors....... becomes the History of the Vanquished
Top
User avatar
tomhugill
Captain
Posts: 4881
Joined: Thu Apr 15, 2010 11:21 am

Re: Tamiya IR Led

Post by tomhugill »

Got any pics of the firefly? Would love to see!
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Tamiya IR Led

Post by MichaelC »

Warhawkone wrote:Has anyone placed an IR LED in a tamiya sherman firefly barrel with the flash unit behind it. Having problem of wires fitting to tight.HELP. Thanks Warhawkone.
I know it can be done if you get thin enough wires. The only attempt I have is on my SU-152 but the big hunky muzzle brake is large enough to have the IR and the flash side by side.

You will have to use 3mm flash LED for sure, and you can forget about using high intensity flash unit.

MichaelC
Top
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Tamiya IR Led

Post by ALPHA »

Dietrich wrote:
ALPHA wrote:Hey Warhawk... I've never seen both hooked up in such close proximity usually the flash is in the barrel.. and the IR is in the mandrel or somewhere else that is strategically advantageous

ALPHA
Hi ALPHA,
Sorry mate, the sunny weather over there must be getting to you!
......I have to say it, and I know that you won't be offended......Whats a 'mandrel' ?..... :haha: ..I think that you mean the Mantle..or the Mantlet...... :thumbup:
:haha: :haha: You got me Dietrich :haha: .....though I don't think it's the sun... but the lack of it... been pretty chilly.. and very much on the cloudy side lately... though today looks to be a very nice day :D

but just for the sake of conversation... these are MANDRELS


and as you can clearly see... the LED and flash units aren't placed in close proximity :haha: ............... ;)

ALPHA
Top
Warhawkone
Recruit
Posts: 27
Joined: Sun Oct 06, 2013 12:28 am

Re: Tamiya IR Led

Post by Warhawkone »

Thanks Alpha :P

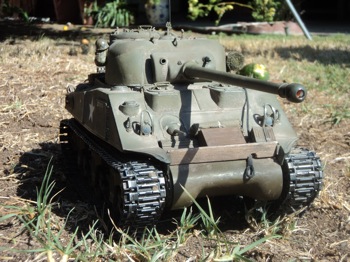

Attachments
Top
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Tamiya IR Led

Post by ALPHA »

Hi Warhawk....I don't know what I did or said to warrant any thanks... but you are welcome.... looks like you got things sorted out... she's a real beauty :thumbup:


ALPHA
