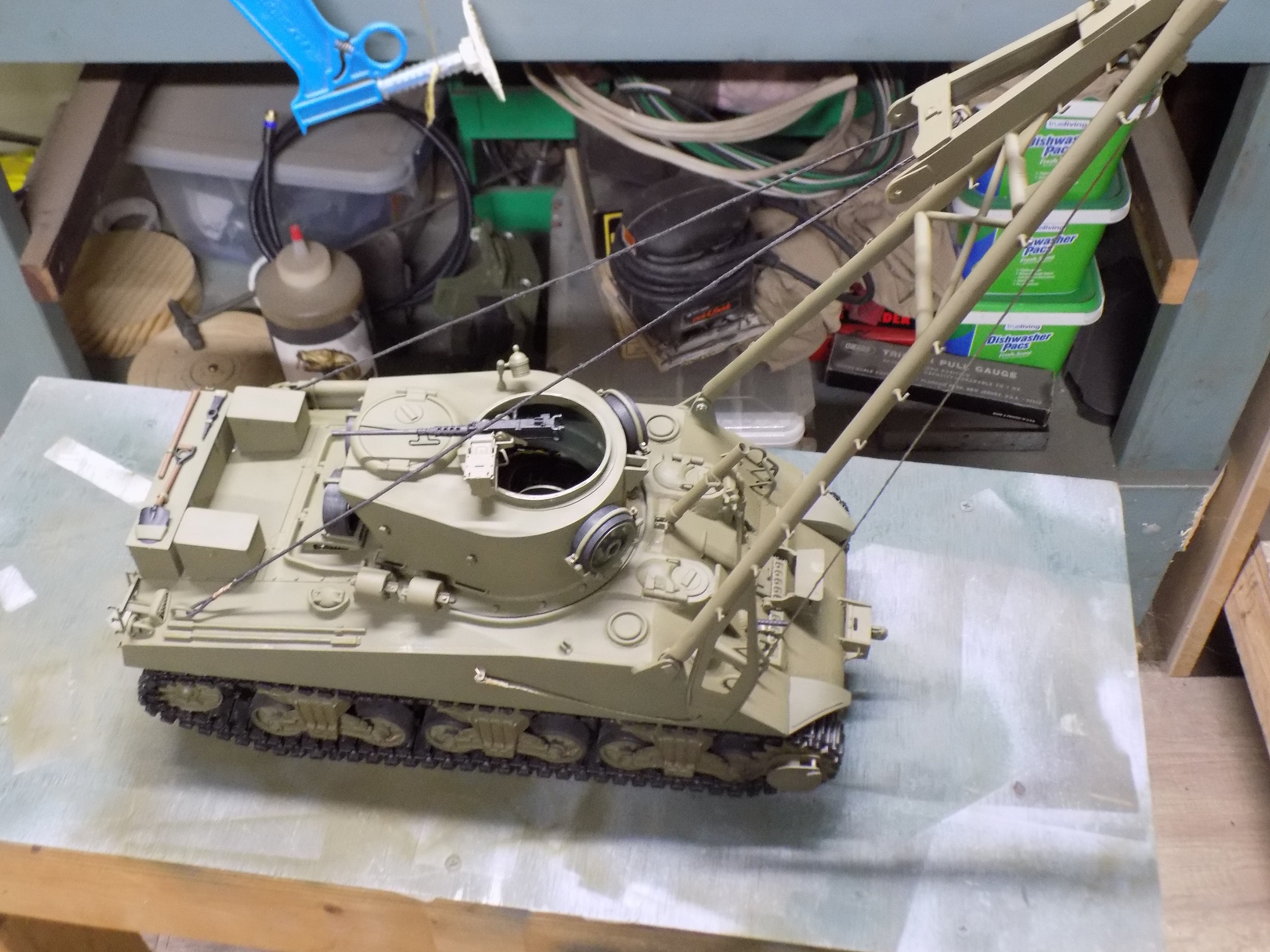

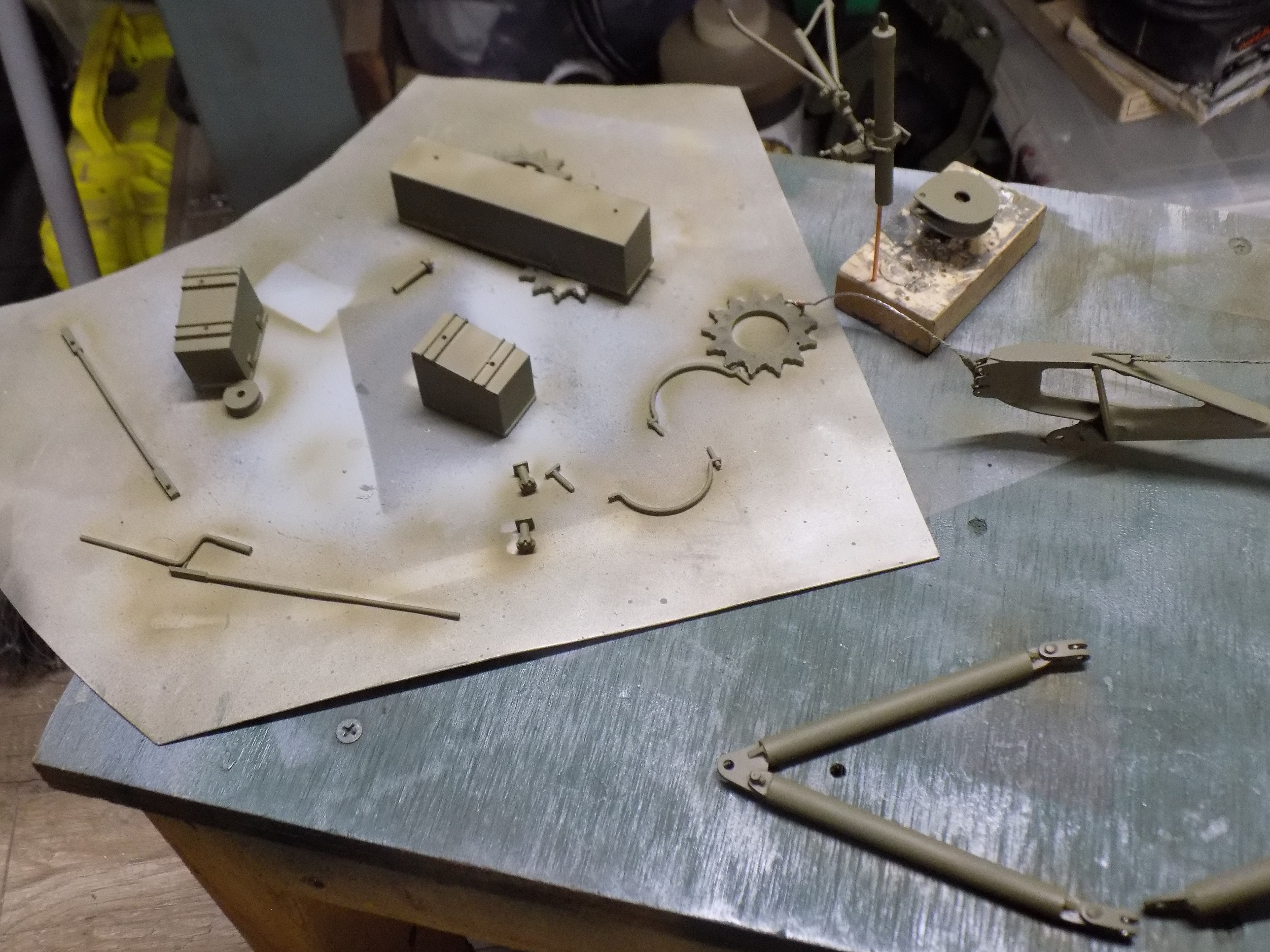

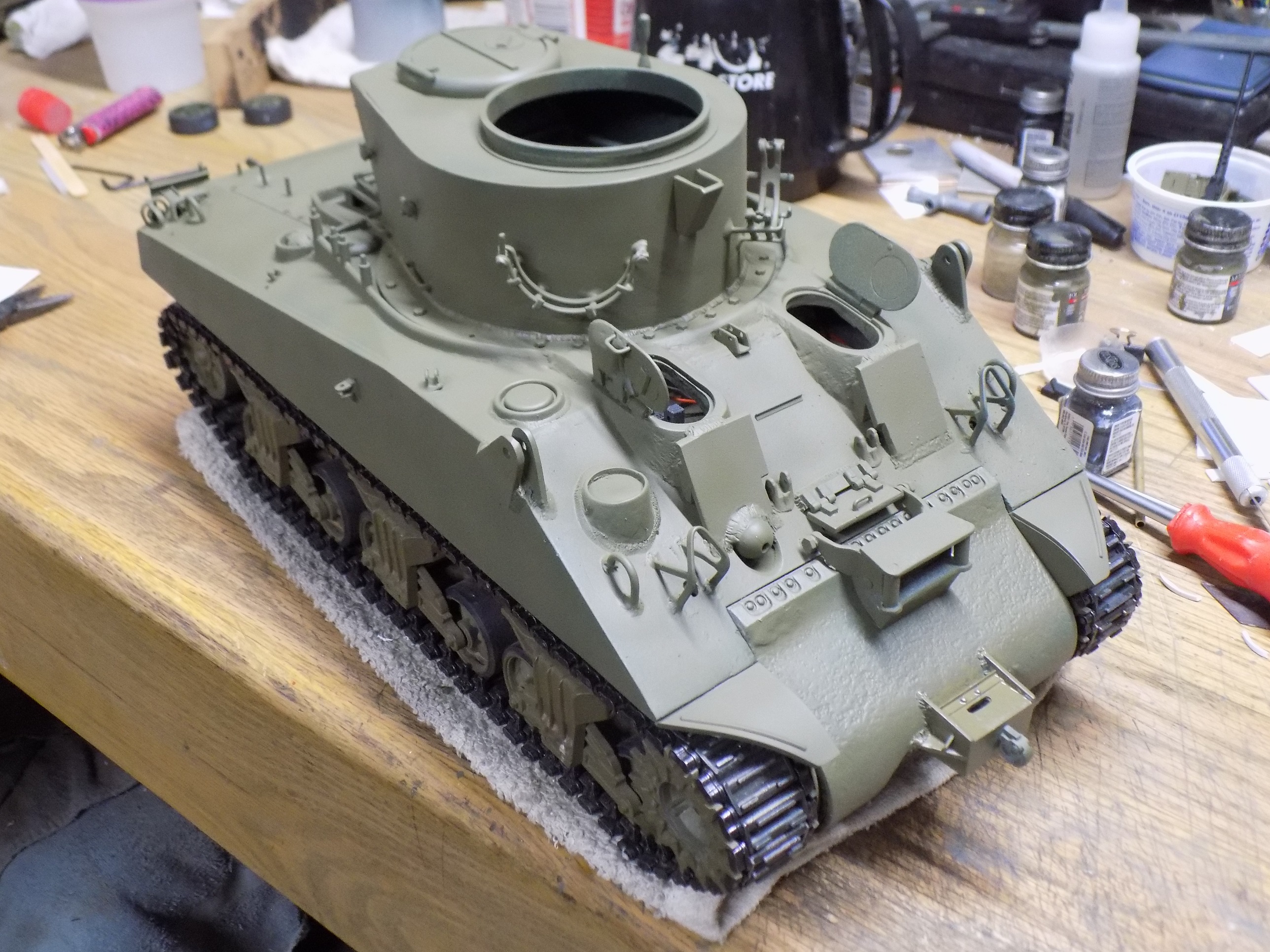

First coat of paint.
Boy there are a bunch of parts to paint.
Boy there are a bunch of parts to paint.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Ecam
- Warrant Officer 1st Class
- Posts: 1589
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: [D-Day] M32 ARV

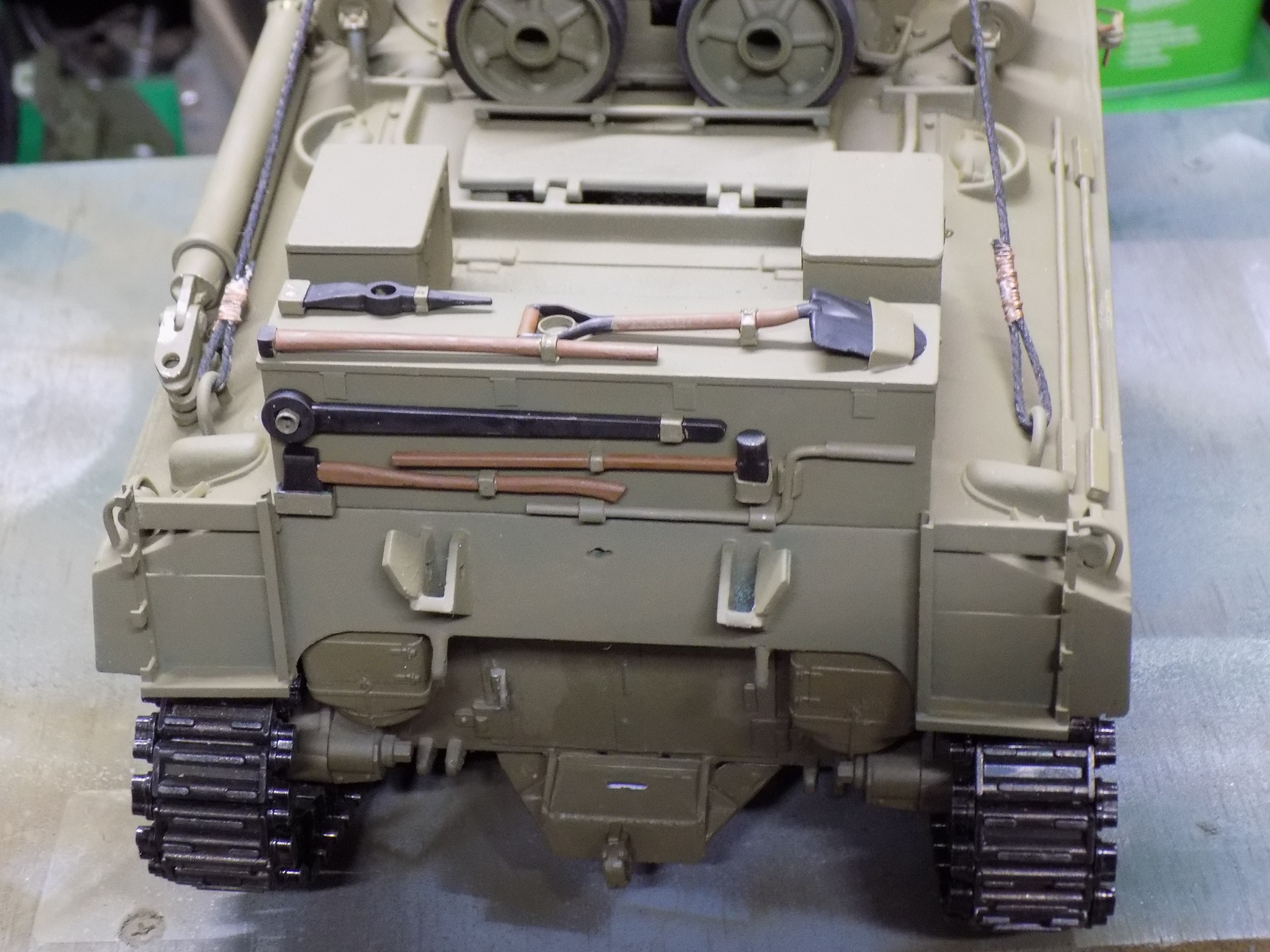

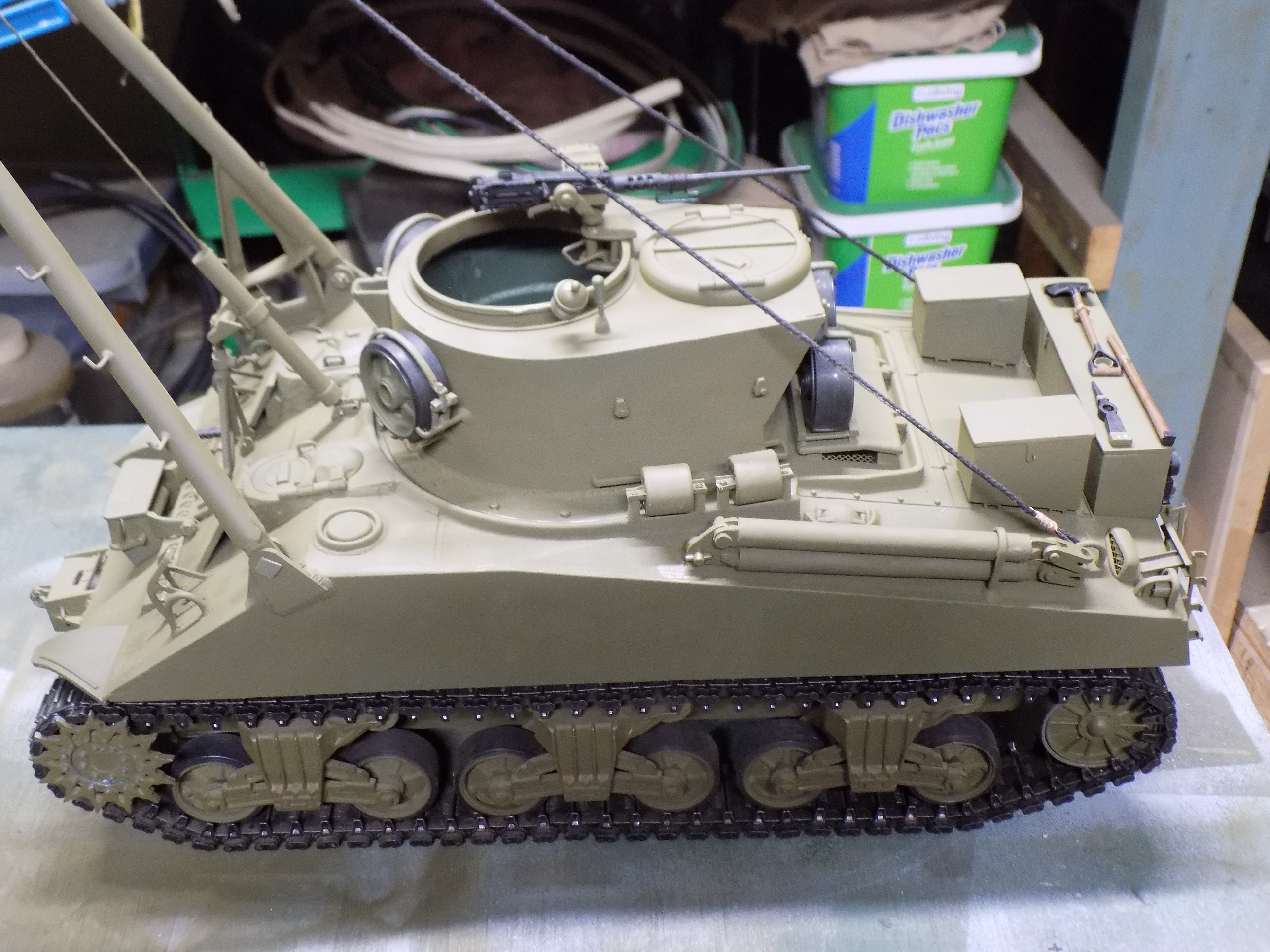

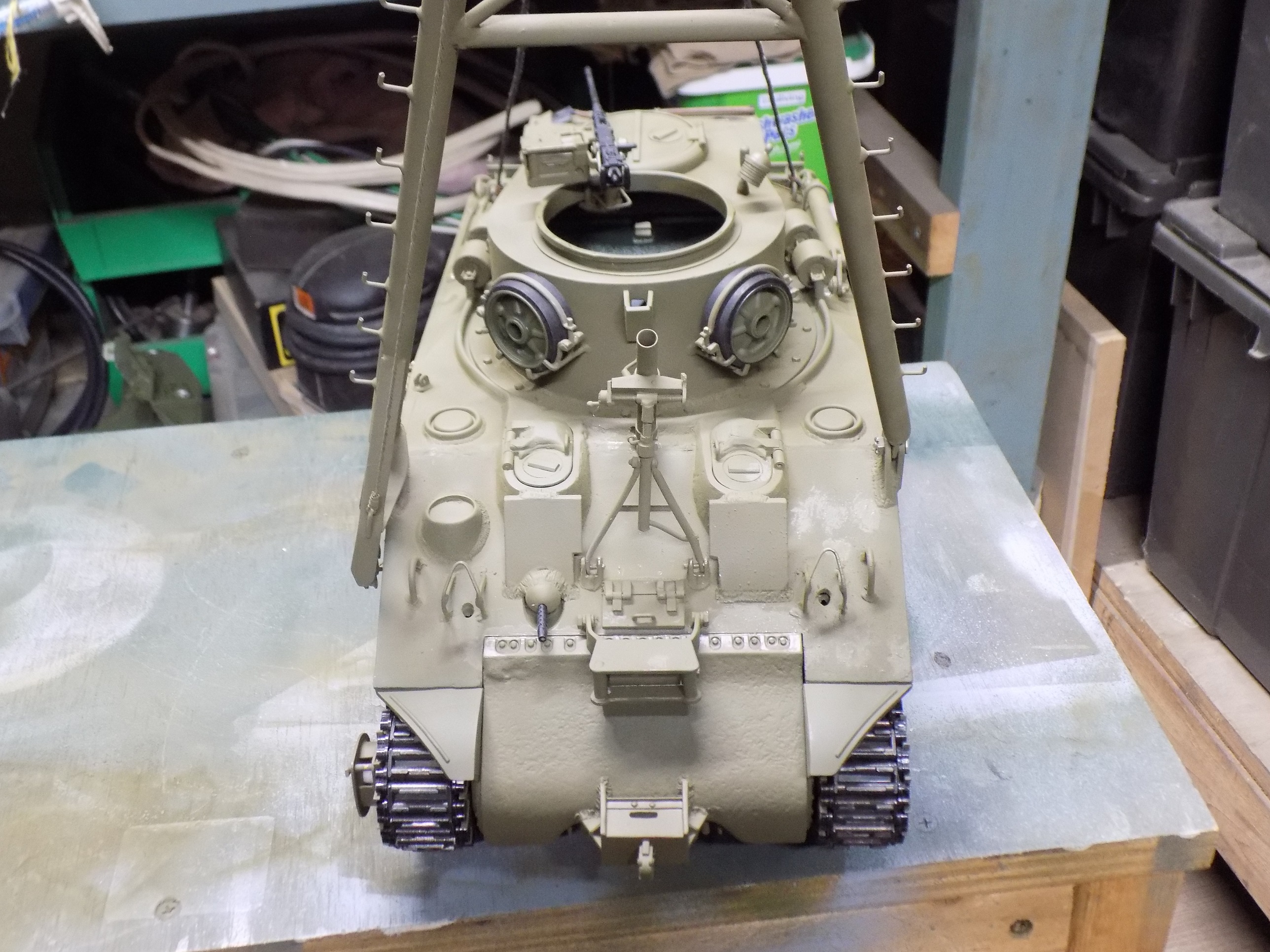

Still have a bit to go. Chock blocks, snatch block pulleys, stand off bar, vise, head lights and a few other things.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Herr Dr. Professor
- Lieutenant
- Posts: 3896
- Joined: Mon Apr 22, 2019 10:48 pm
- Location: Southern Wisconsin USA
Re: [D-Day] M32 ARV
Eric, this is an amazing accomplishment, so interesting, unique--and the dang thing works, too! I am dumbfounded, lost for words to adequately applaud your success.
- Panzermechaniker
- Lance Corporal
- Posts: 184
- Joined: Wed Feb 08, 2023 1:04 am
- Location: Toronto
Re: [D-Day] M32 ARV
That looks just amazing
- Ecam
- Warrant Officer 1st Class
- Posts: 1589
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: [D-Day] M32 ARV
Thanks Doc and Panzermechaniker (in the future P.M).

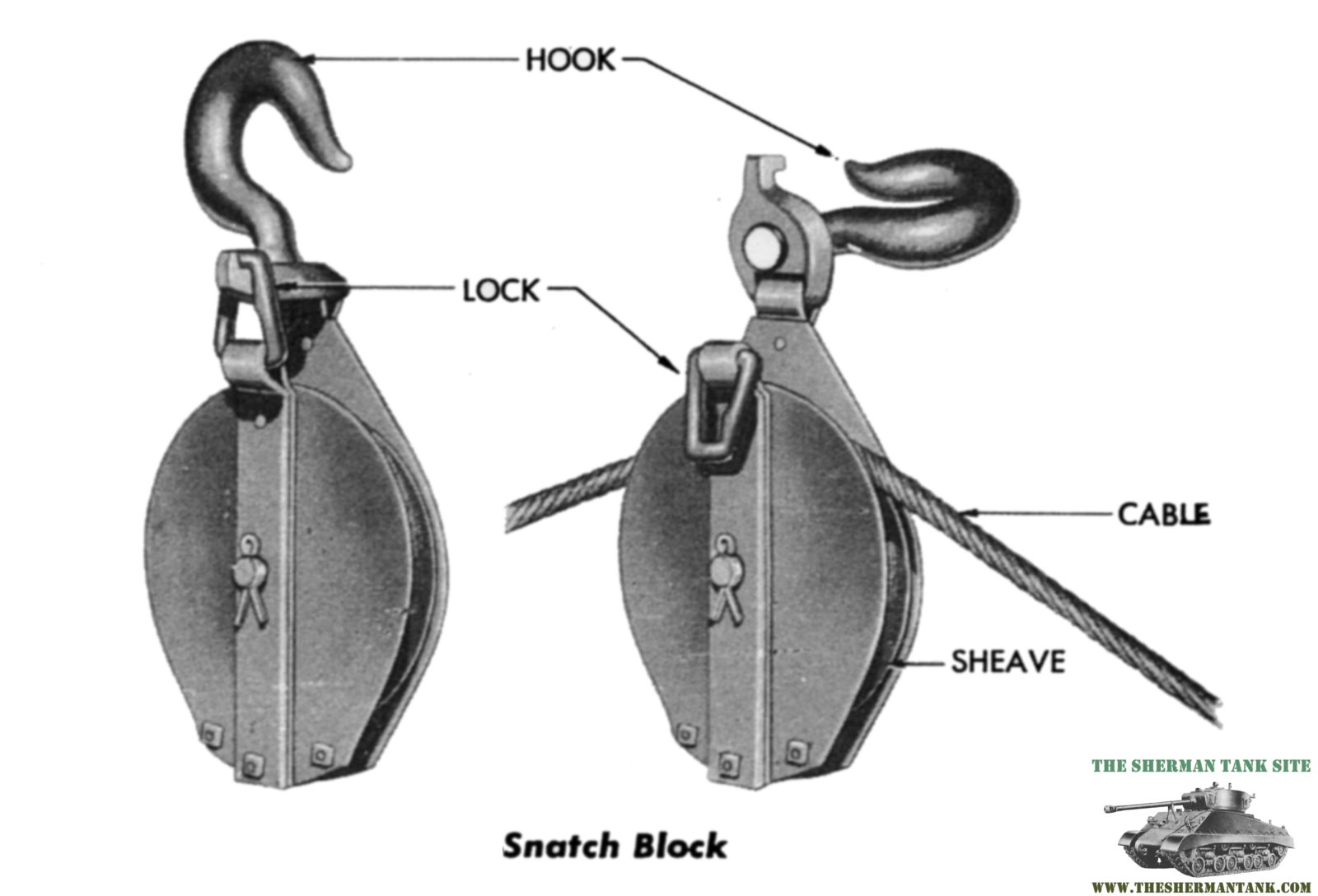

These may take a couple days. Some pictures show these ARVs with four of the pulleys/snatch blocks and most pictures show just two. If nothing else I may have a spare pair for another build.

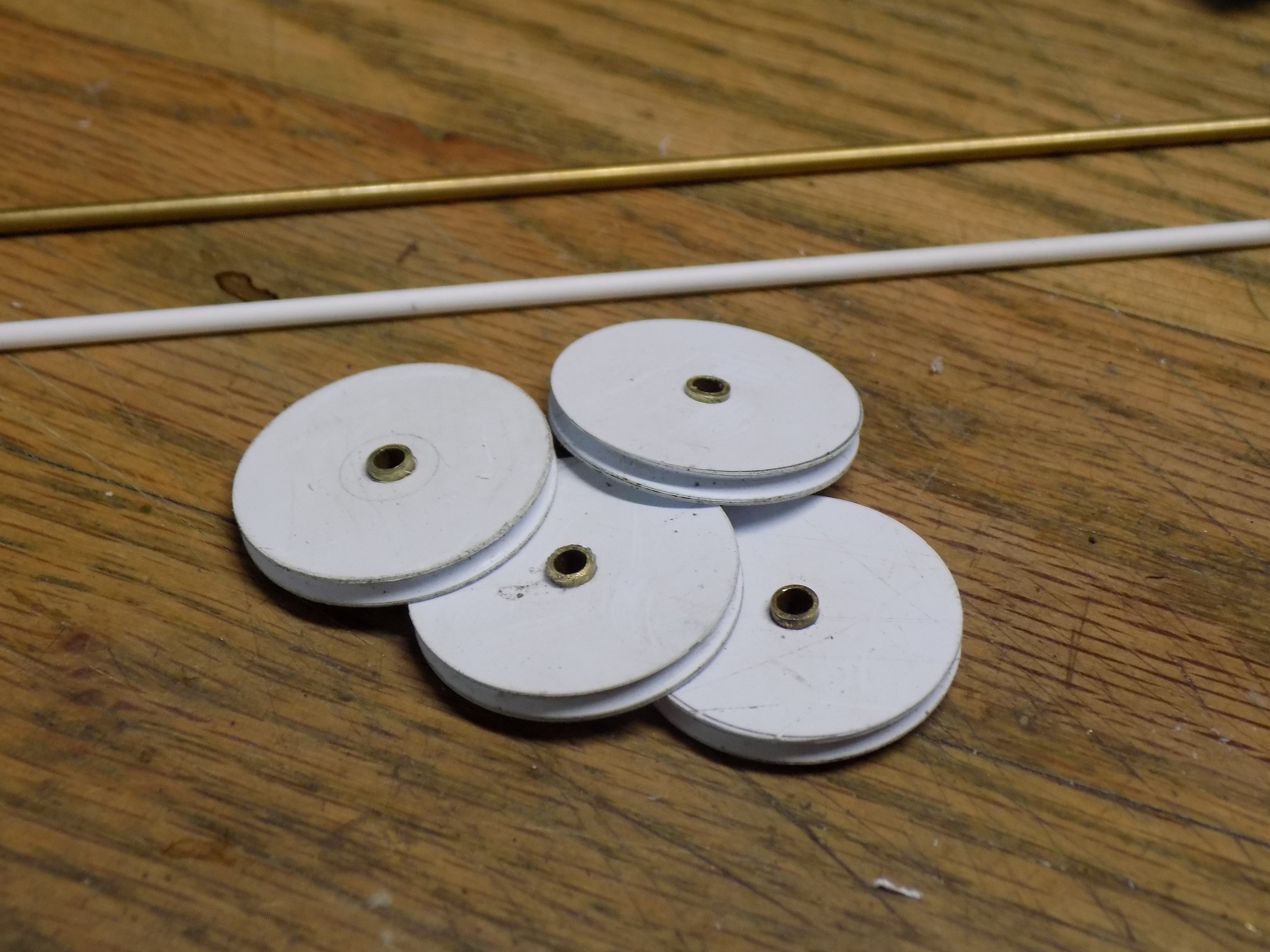

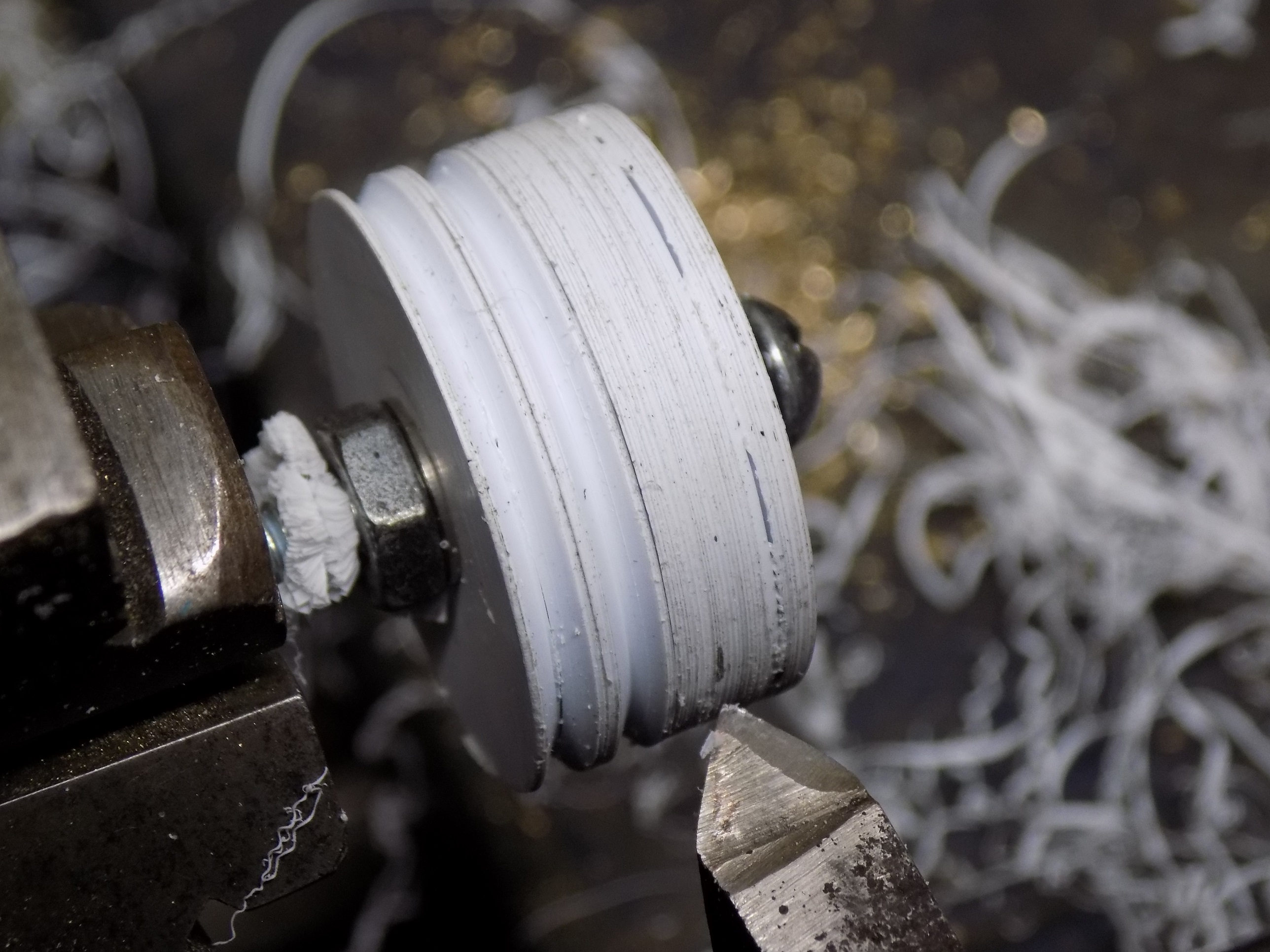

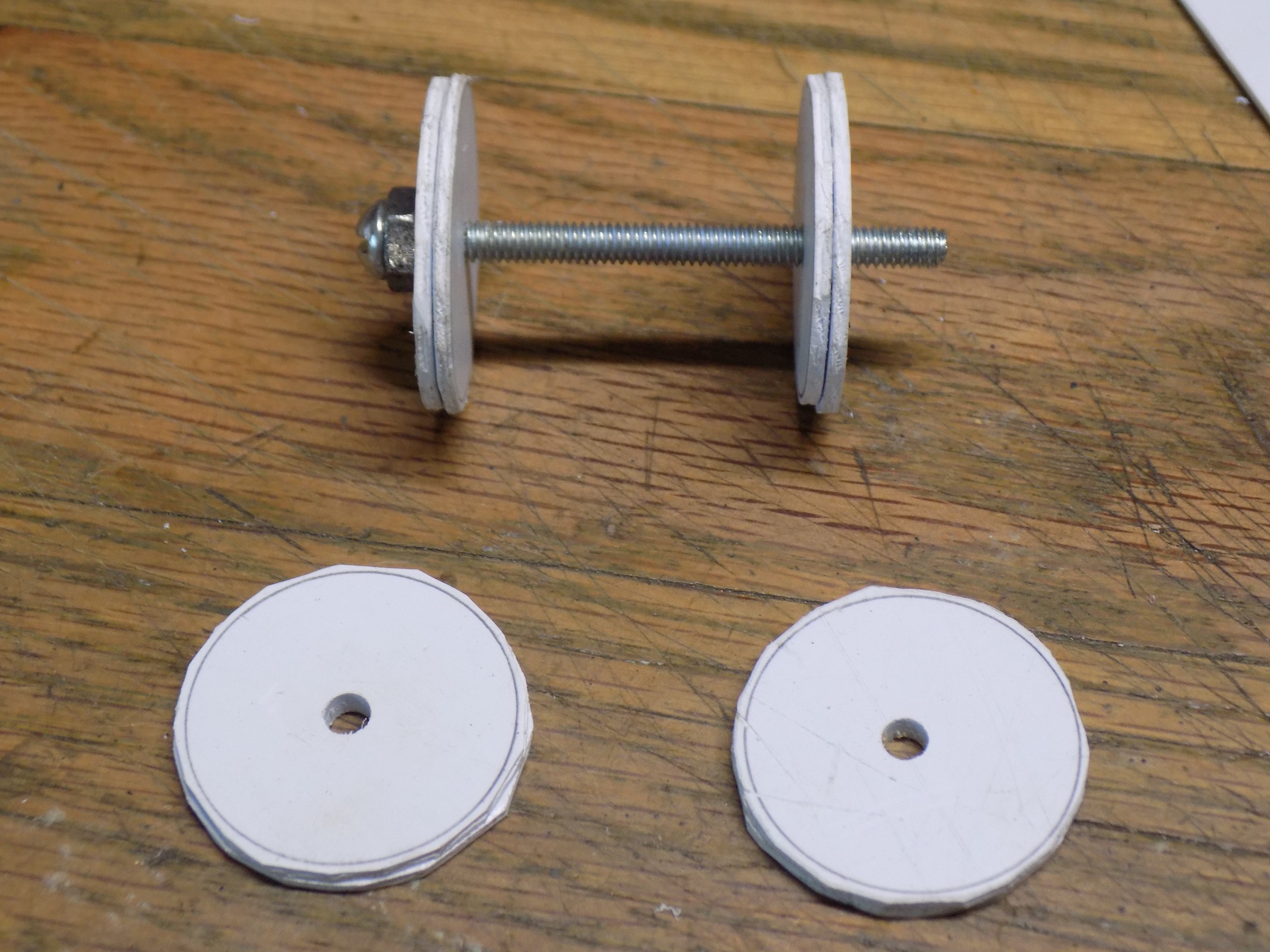

Glued up 4 twin disc .060 (1.5mm) and mounted them on a 4mm screw.
Made them a bit more round and then cut a groove between the glued disc.
Added a 4mm brass bushing to reduce the 2.4mm shaft I plan to use and to add some space between the pulley covers.
These may take a couple days. Some pictures show these ARVs with four of the pulleys/snatch blocks and most pictures show just two. If nothing else I may have a spare pair for another build.
Glued up 4 twin disc .060 (1.5mm) and mounted them on a 4mm screw.
Made them a bit more round and then cut a groove between the glued disc.
Added a 4mm brass bushing to reduce the 2.4mm shaft I plan to use and to add some space between the pulley covers.
Last edited by Ecam on Fri Dec 22, 2023 7:03 am, edited 1 time in total.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Ecam
- Warrant Officer 1st Class
- Posts: 1589
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: [D-Day] M32 ARV

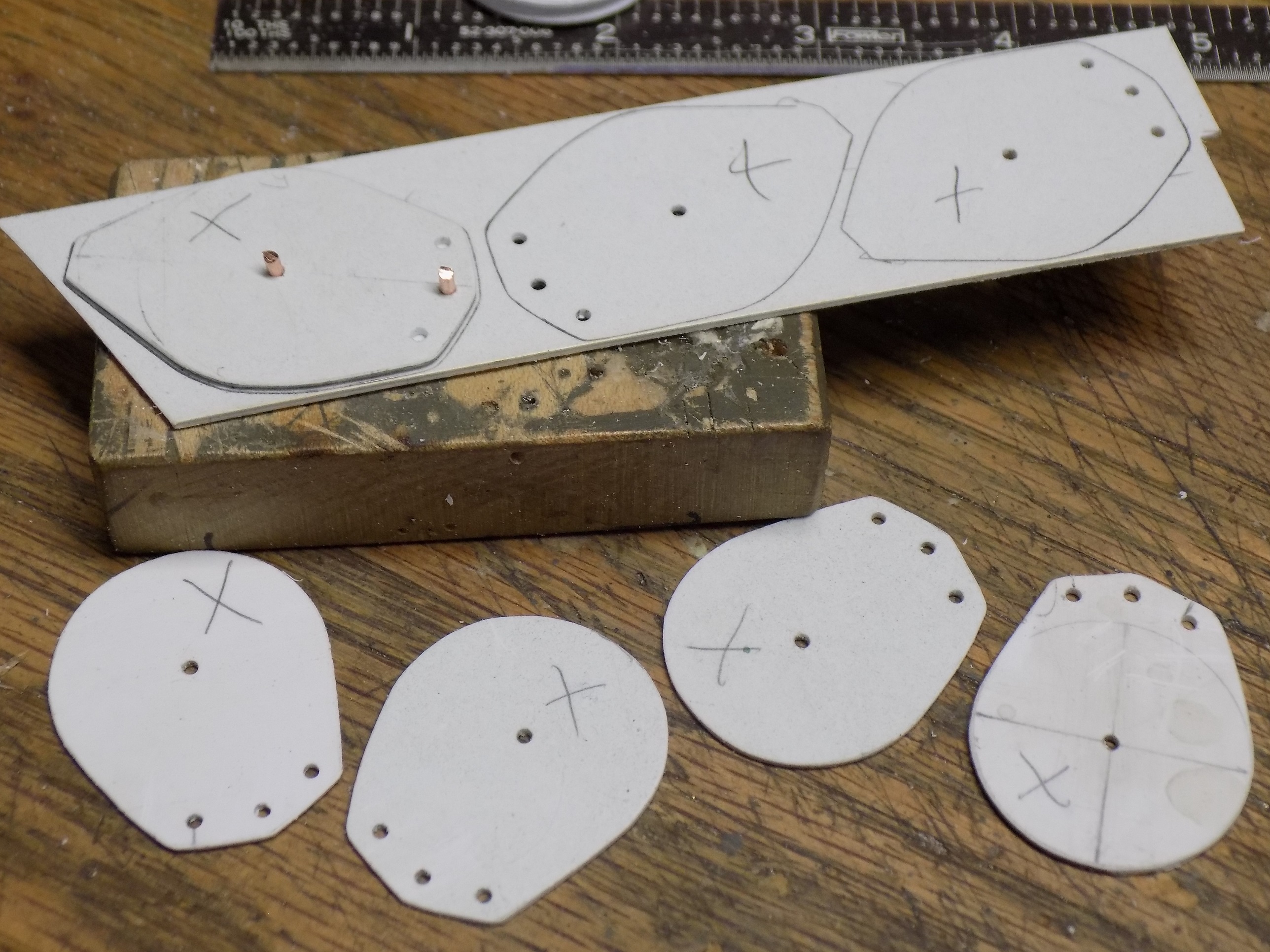

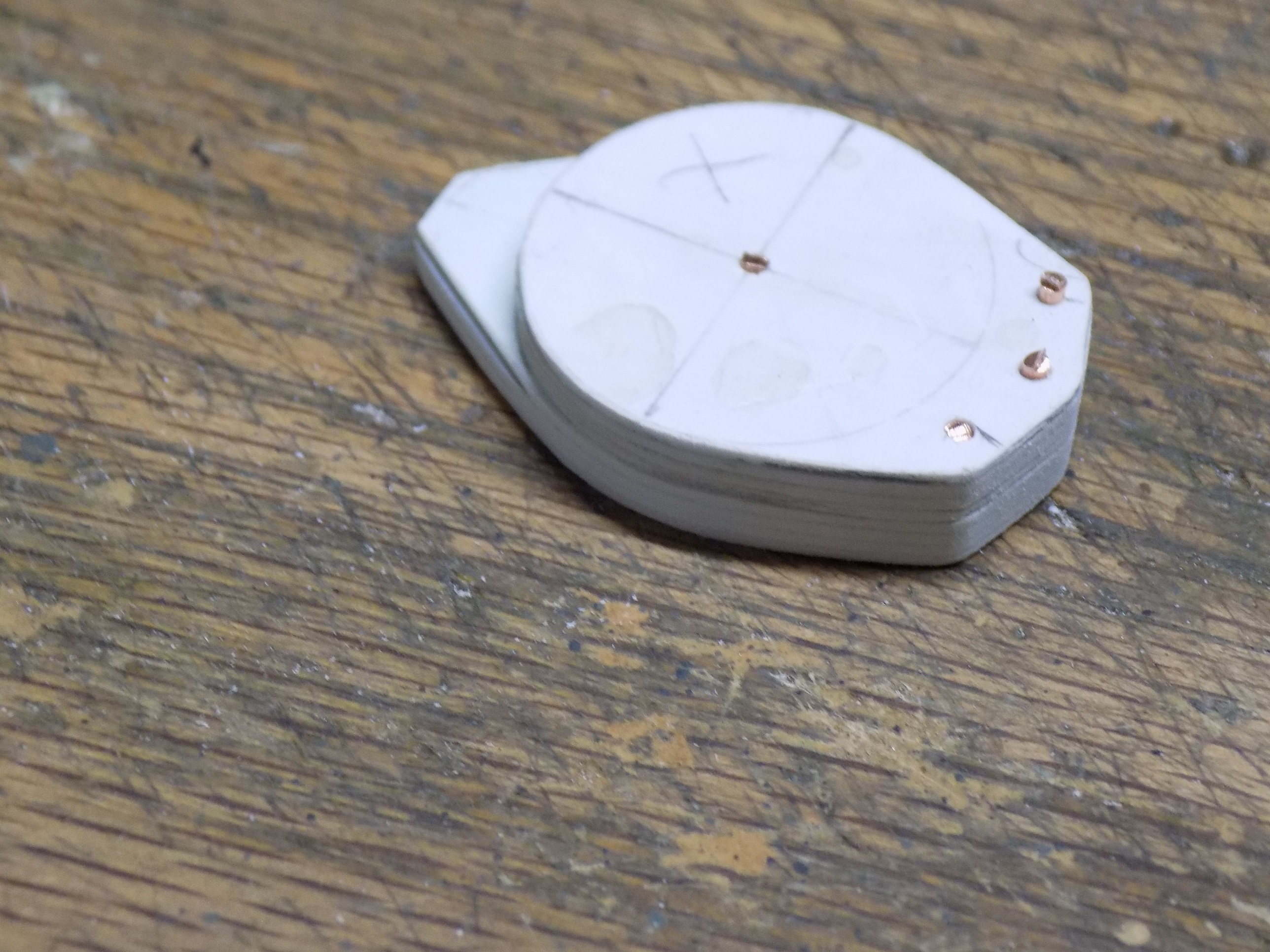

Made one copied it three times then modified the pattern for the back plate. The "X" gives me reference to the top side as I assemble them (in case my holes are not perfectly mirrored). Assembled all eight pieces and ran them through the belt sander.
This is as far as I'm going until I work out the front and rear straps and hooks.
Started some brackets. 0.45mm/.018" aluminum.
This is as far as I'm going until I work out the front and rear straps and hooks.
Started some brackets. 0.45mm/.018" aluminum.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Ecam
- Warrant Officer 1st Class
- Posts: 1589
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: [D-Day] M32 ARV

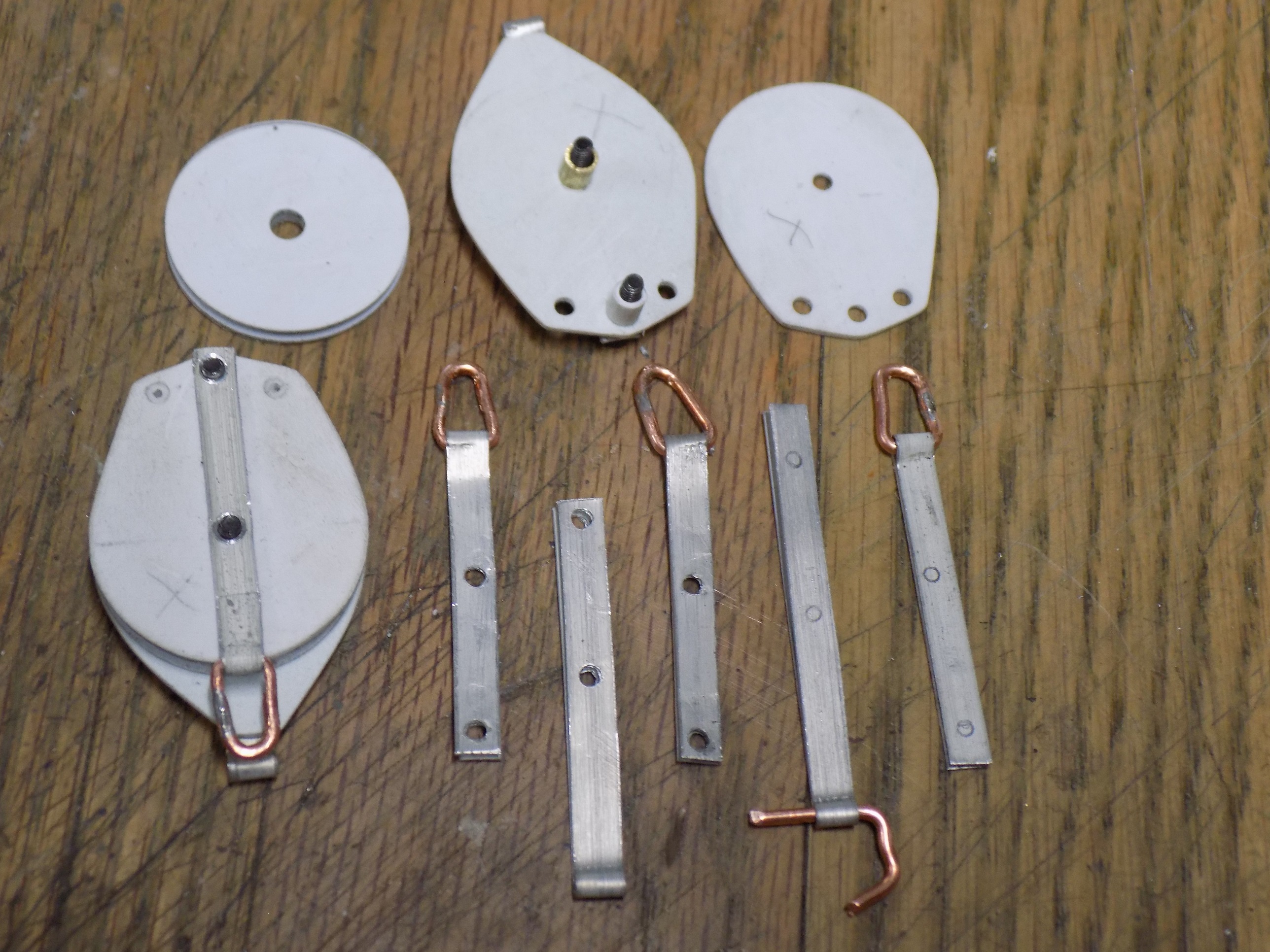

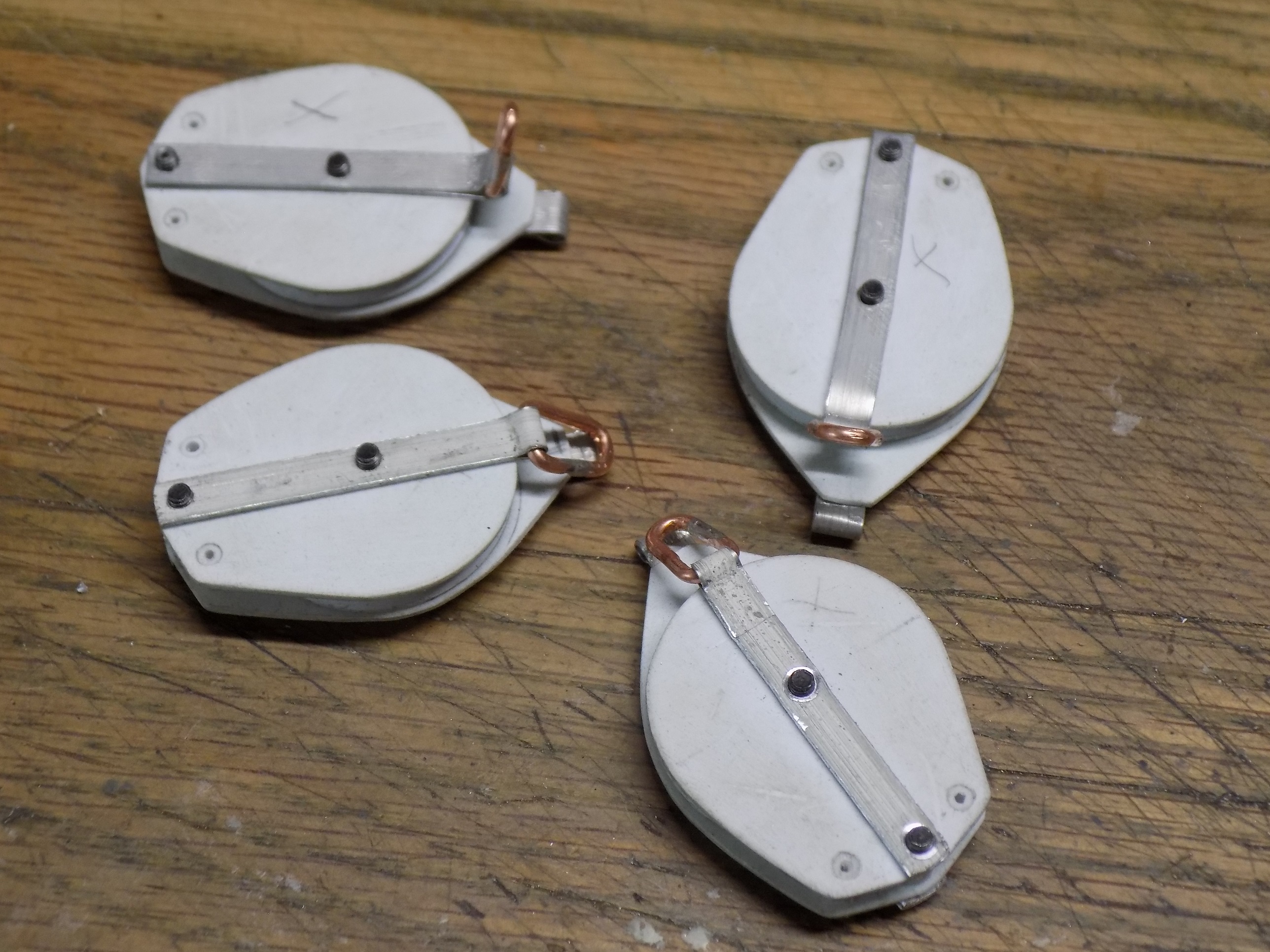

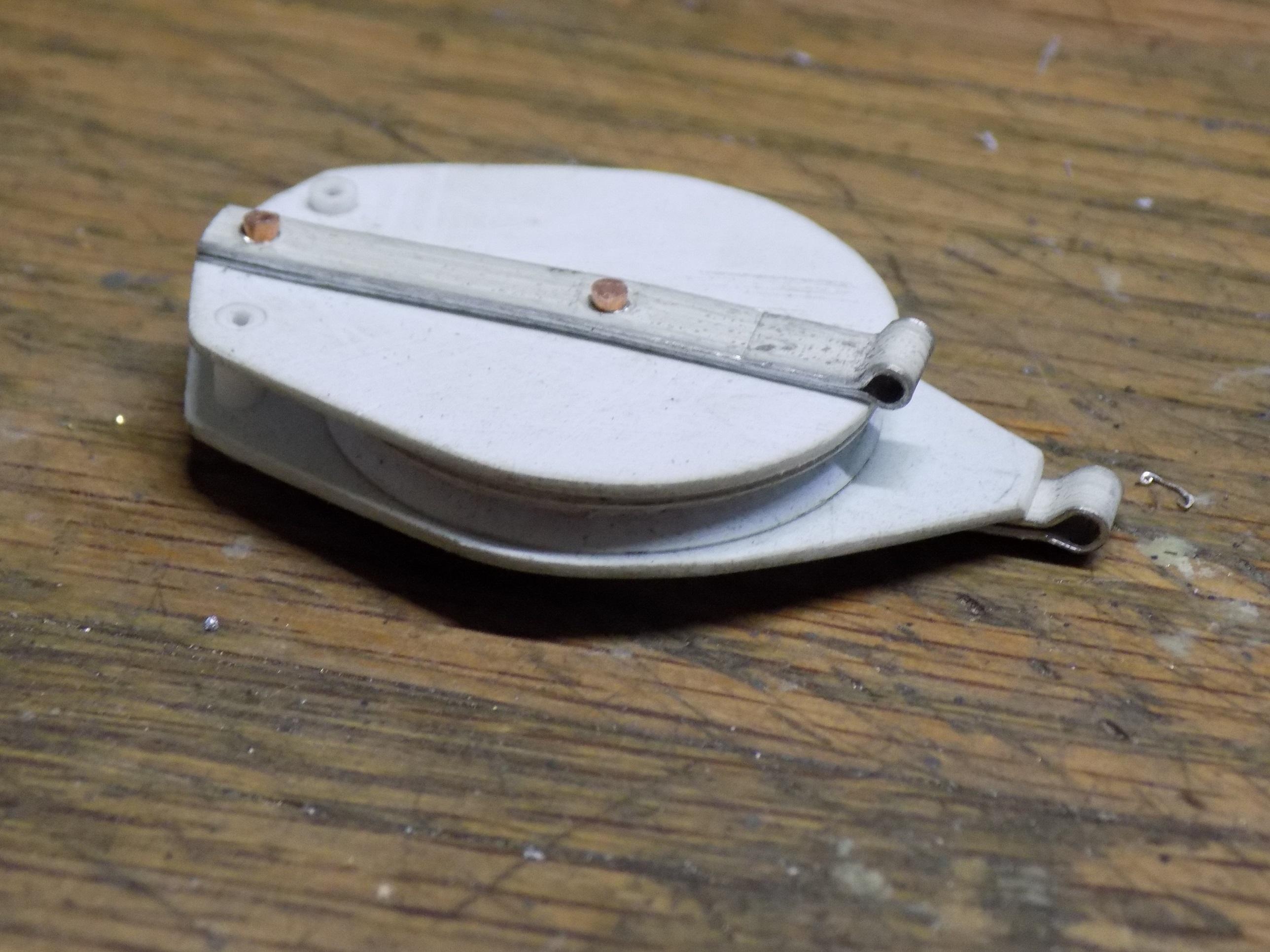

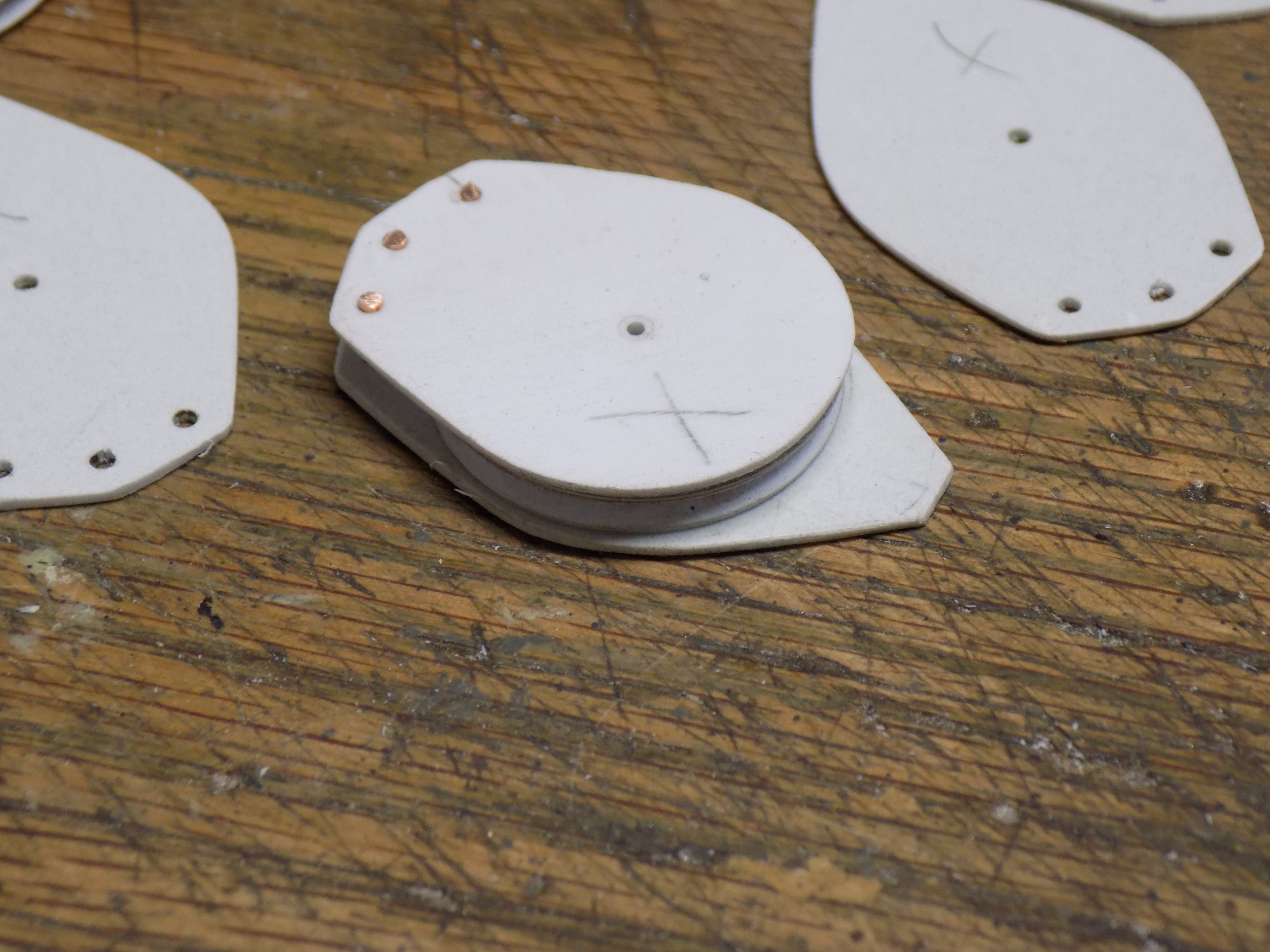

Slight redesign. Shortened the back plate a little. The bushing in the sheave (pulley) is now a spacer and axle. Pulley has been drilled to float on the bushing. A styrene tube is added to the bottom and screws are used to fasten the bits.
Now on to the hook...
Now on to the hook...
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Ecam
- Warrant Officer 1st Class
- Posts: 1589
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: [D-Day] M32 ARV

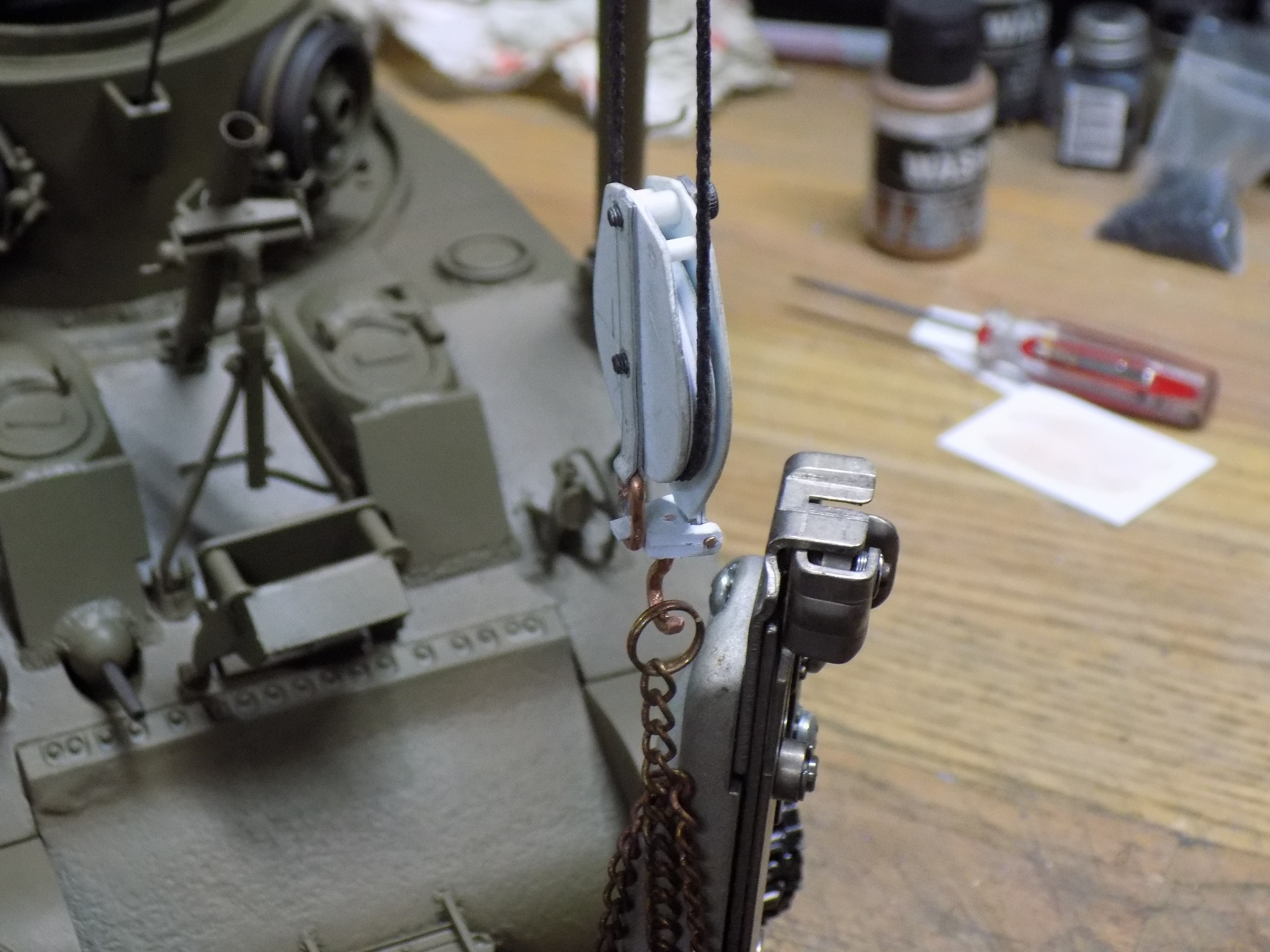

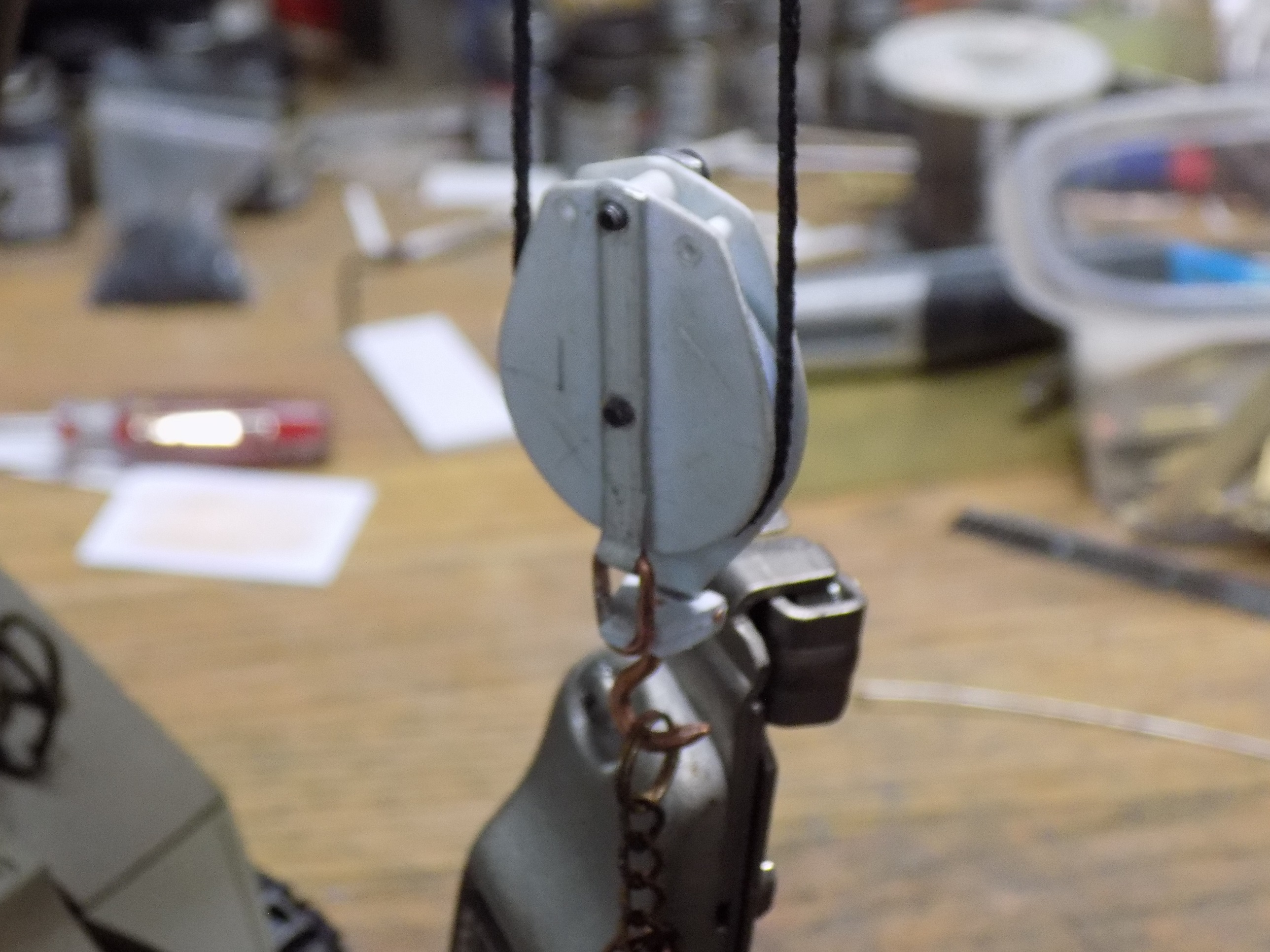

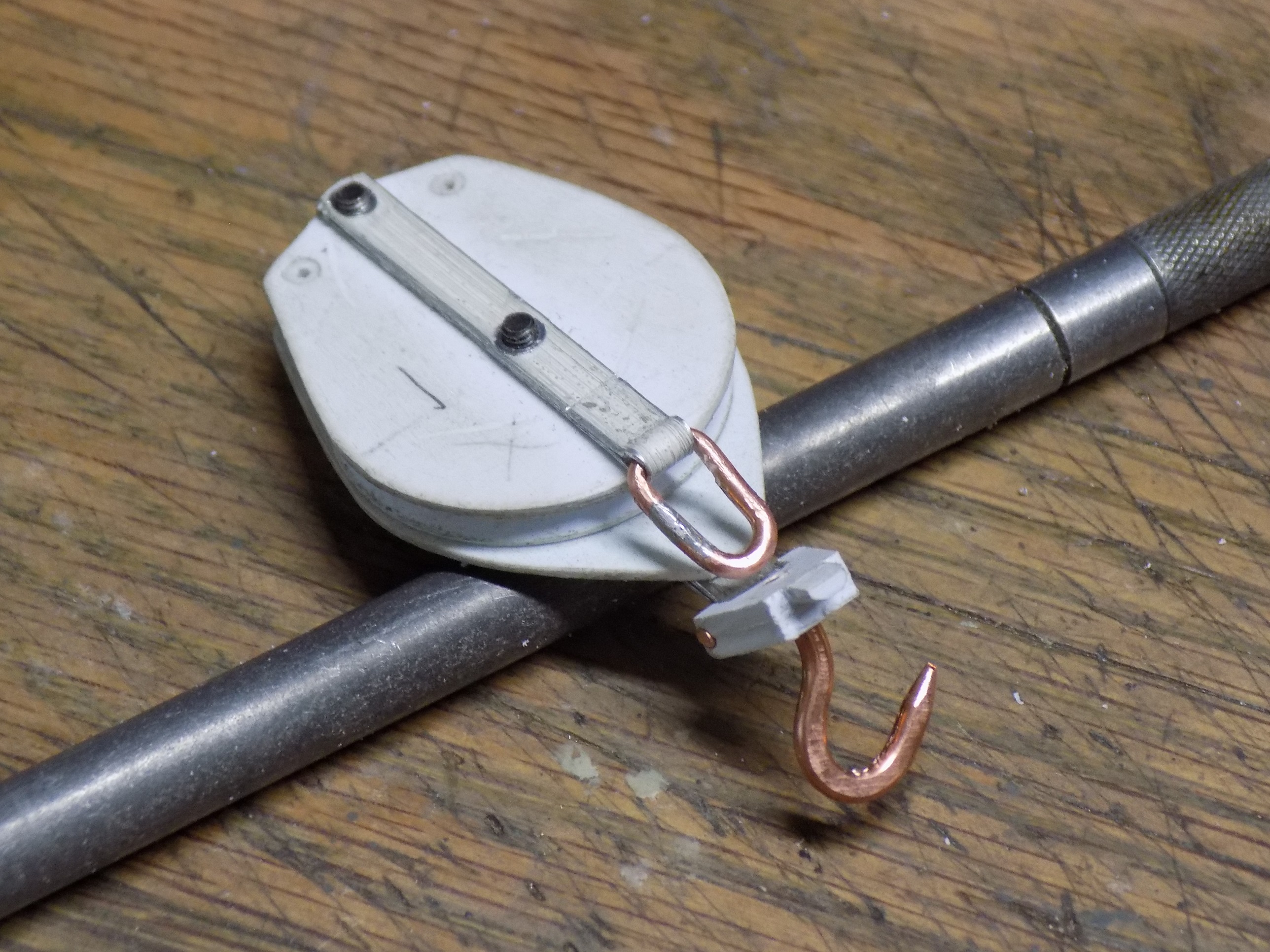

First (and only so far) hook. I'm considering alternatives.
