Decided on a Heng Long ... T-34/85
- PainlessWolf
- Lieutenant-Colonel
- Posts: 7697
- Joined: Sun Feb 26, 2012 9:09 pm
- Location: Southern Colorado Rocky Mountains
Re: Decided on a Heng Long
Puramo,
You're making serious progress. Check out An-Bri-RC.de if you want some great, inexpensive metal bits for your T-34. This guy has drawers full of odds and ends for tanks. A little cleanup is required at times but for the price, they cannot be beat. I used a fair amount of his stuff on my 'capture' KV-2. Following along.
regards,
Painless
You're making serious progress. Check out An-Bri-RC.de if you want some great, inexpensive metal bits for your T-34. This guy has drawers full of odds and ends for tanks. A little cleanup is required at times but for the price, they cannot be beat. I used a fair amount of his stuff on my 'capture' KV-2. Following along.
regards,
Painless
...Here for the Dawn...
Re: Decided on a Heng Long
painless
thanks for the tip,
https://www.youtube.com/watch?v=hNxgjdoIoxU
Spider Man and Venom Maximum Carnage
thanks for the tip,
https://www.youtube.com/watch?v=hNxgjdoIoxU
Spider Man and Venom Maximum Carnage

- Attachments
-
- had to bend the hatch opening tool down a bit as it catches on the turret
- CIMG2100.JPG (31.55 KiB) Viewed 3648 times
-
- CIMG2099.JPG (36.29 KiB) Viewed 3648 times
-
- quick release pins should be on the floor but left them in for detail
- CIMG2098.JPG (36.5 KiB) Viewed 3648 times
-
- more sprue
- CIMG2096.JPG (33.01 KiB) Viewed 3648 times
-
- In Russia we have a little snow
- CIMG2095.JPG (35.92 KiB) Viewed 3648 times
-

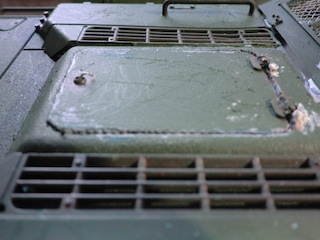

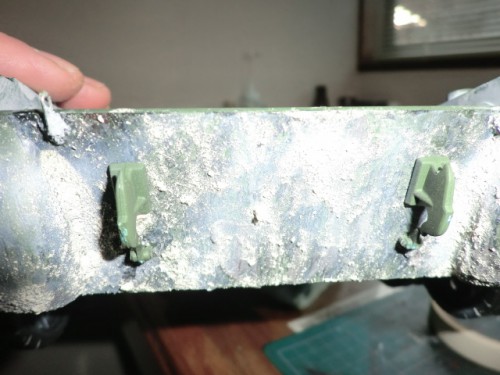

- haha all went well but somehow I ended up ripping the hinges off, too bad
- CIMG2092.JPG (42.2 KiB) Viewed 3648 times
-
- CIMG2091.JPG (21.17 KiB) Viewed 3648 times
-
- CIMG2088.JPG (29.75 KiB) Viewed 3648 times
-
- CIMG2087.JPG (34.24 KiB) Viewed 3648 times
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
-
- Recruit
- Posts: 36
- Joined: Thu Nov 06, 2014 12:51 pm
- Location: Brisbane, Australia
- Contact:
Re: Decided on a Heng Long
I'm loving the work you're doing. I have the T 34 to do also, so I'm watching with great interest.
Tiger 1. KV1, T34/85 and PkzIII all by Heng Long, painted and moded by me. It's fun and tricky stuff.
Re: Decided on a Heng Long
Cheers busy
working too fast really as always pressed for time
I did the Dr Phil suspension spring swap (you can see it all on Dr Phil's web page, the other T-34 Heng Long build thread), but I found it's better not to mod the springs on the rear wheel set under the motors as the weight of the motors makes the suspension sag too much, so the rear wheel set has full spring tension the others are swapped for low spring tension)
I cut the very hard plastic tubes off the smoker and replaced with softer tube ( I saw some people used McDon*** wibbly wobbly straws to great effect here, the smoker is a pain to sit between the motors)

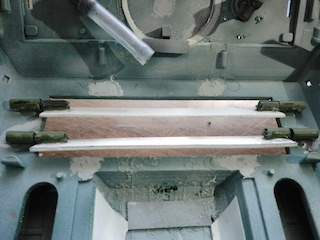

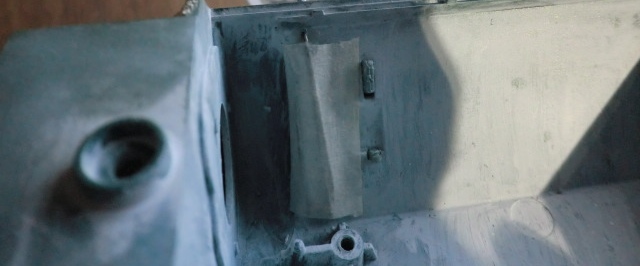

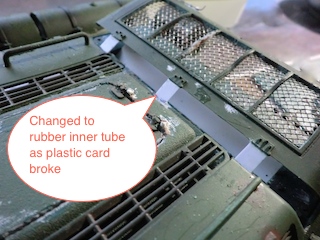

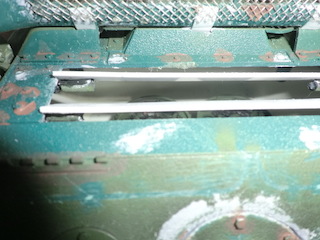

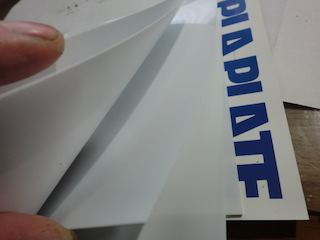

I hinged the rear section and it now pivots up like the Flakpanzer model. Working on putting a plasti card strip in front to hold the speaker (ditched the speaker box tub thingy...) and the switch under the front hatch.

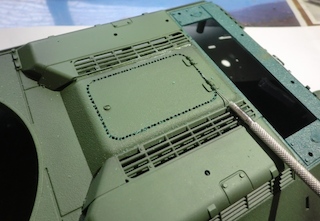

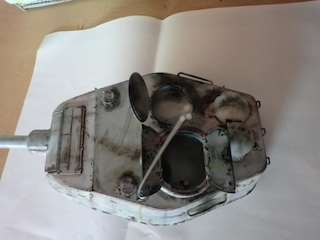

Mainly working on texturing the turret and adding small details here and there before I begin painting the lighter green base colour.
Again many thanks for the thumbs up
working too fast really as always pressed for time
I did the Dr Phil suspension spring swap (you can see it all on Dr Phil's web page, the other T-34 Heng Long build thread), but I found it's better not to mod the springs on the rear wheel set under the motors as the weight of the motors makes the suspension sag too much, so the rear wheel set has full spring tension the others are swapped for low spring tension)
I cut the very hard plastic tubes off the smoker and replaced with softer tube ( I saw some people used McDon*** wibbly wobbly straws to great effect here, the smoker is a pain to sit between the motors)
I hinged the rear section and it now pivots up like the Flakpanzer model. Working on putting a plasti card strip in front to hold the speaker (ditched the speaker box tub thingy...) and the switch under the front hatch.
Mainly working on texturing the turret and adding small details here and there before I begin painting the lighter green base colour.
Again many thanks for the thumbs up
- Attachments
-
- CIMG2110.JPG (55.15 KiB) Viewed 3613 times
-
- CIMG2106.JPG (57.98 KiB) Viewed 3613 times
-
- CIMG2104.JPG (97.64 KiB) Viewed 3613 times
-
- CIMG2103.JPG (84.6 KiB) Viewed 3613 times
-
- CIMG2102.JPG (32.29 KiB) Viewed 3613 times
-
- CIMG2101.JPG (32.28 KiB) Viewed 3613 times
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Re: Decided on a Heng Long
Got up to the testing stage whilst doing undercoats and prepping.
I am getting nearly one hour
out of my 1700Mah NiCd that came with the tank, no seriously. Everything works flawlessly. I hate some of the solder points and some of the quality issues, but the barrel is aluminium which is impressive and the 2.4G system (after initial hassles) works super smoothly, from really slow crawling to full throttle, all functions work excellently, so far so good
(there is a constant trickle of non functioning units on my local auction site, so I might start stocking up on parts and knocked out panzers
)
I am getting nearly one hour


(there is a constant trickle of non functioning units on my local auction site, so I might start stocking up on parts and knocked out panzers

- Attachments
-
- CIMG2139.JPG (31.53 KiB) Viewed 3550 times
-
- CIMG2133.JPG (37.61 KiB) Viewed 3550 times
-
- CIMG2132.JPG (45.46 KiB) Viewed 3550 times
-
- CIMG2131.JPG (42.38 KiB) Viewed 3550 times
-
- CIMG2130.JPG (37.76 KiB) Viewed 3550 times
-
- CIMG2123.JPG (49.83 KiB) Viewed 3550 times
-
- CIMG2116.JPG (30.55 KiB) Viewed 3550 times
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Re: Decided on a Heng Long ... T-34/85

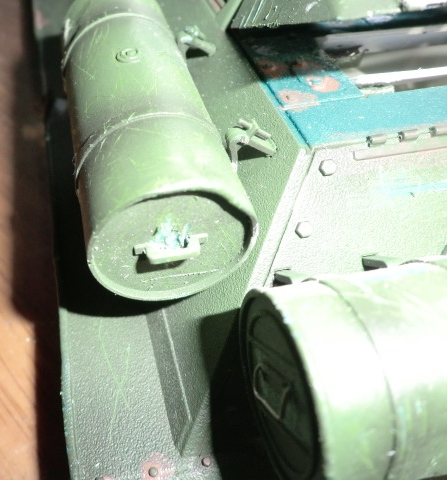

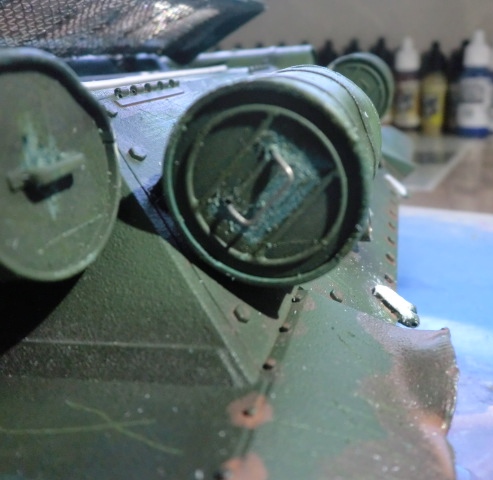

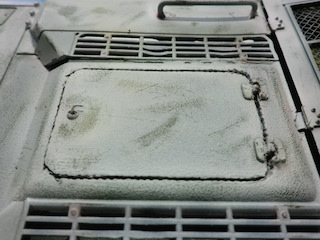

Did a little detail painting and started adding winter wash, I'm not so good at doing realistic dents or the weathering patches but it's steps in the right direction
- Attachments
-
- CIMG2171.JPG (32.54 KiB) Viewed 3508 times
-
- CIMG2170.JPG (29.93 KiB) Viewed 3508 times
-
- CIMG2169.JPG (33.06 KiB) Viewed 3508 times
-
- CIMG2168.JPG (35.03 KiB) Viewed 3508 times
-
- CIMG2167.JPG (34.43 KiB) Viewed 3508 times
-
- CIMG2166.JPG (31.07 KiB) Viewed 3508 times
-
- CIMG2165.JPG (36.75 KiB) Viewed 3508 times
-
- CIMG2148.JPG (45.01 KiB) Viewed 3508 times
-
- CIMG2145.JPG (45.95 KiB) Viewed 3508 times
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Re: Decided on a Heng Long ... T-34/85

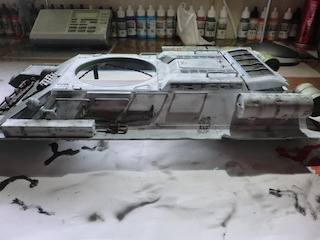

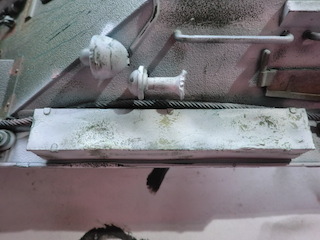

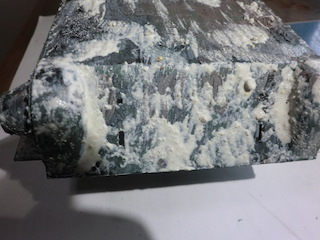

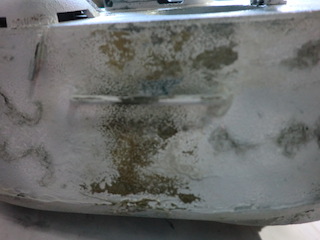

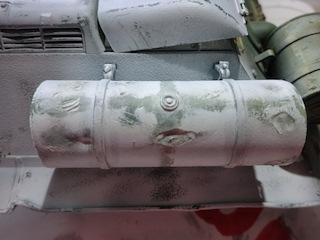

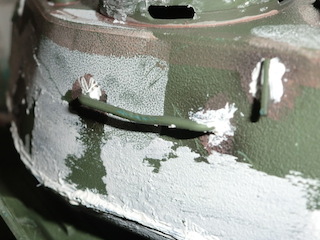

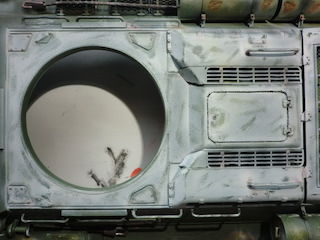

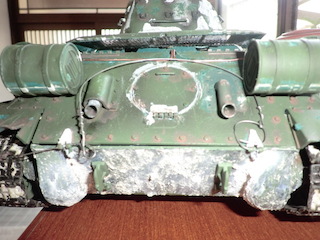

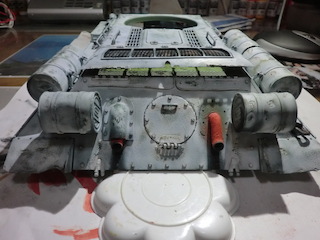

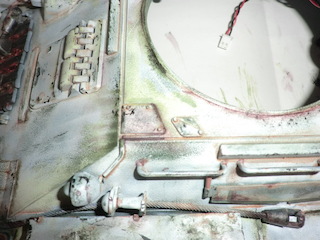

I didn't repaint the original HL so using that as a base I added hairspray then white then rubbed some off with water and brush
then started adding shades and highlights and weathering with thinned oils
(I did the pipe with powdered chalk and varnish)
then started adding shades and highlights and weathering with thinned oils
(I did the pipe with powdered chalk and varnish)
- Attachments
-
- CIMG2190.JPG (37.25 KiB) Viewed 3470 times
-
- CIMG2189.JPG (33.24 KiB) Viewed 3470 times
-
- CIMG2187.JPG (31.63 KiB) Viewed 3470 times
-
- CIMG2186.JPG (34.06 KiB) Viewed 3470 times
-
- CIMG2183.JPG (27.54 KiB) Viewed 3470 times
-
- CIMG2176.JPG (23.15 KiB) Viewed 3470 times
-
- CIMG2175.JPG (27.66 KiB) Viewed 3470 times
-
- CIMG2174.JPG (35.93 KiB) Viewed 3470 times
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
- blimp
- Sergeant
- Posts: 727
- Joined: Sat Dec 11, 2010 12:29 am
- Location: Watford , NW Londonistan . U.K.
Re: Decided on a Heng Long ... T-34/85
That's brill ! Lovely worn effect - novel use of chalk too




to the bouncy room ! Yay !
-
- Warrant Officer 2nd Class
- Posts: 1317
- Joined: Tue Jan 06, 2015 9:59 pm
- Location: Peterborough Cambridgeshire UK
Re: Decided on a Heng Long ... T-34/85
Wow that looks great if mine turns out half as good I'll be happy nice work
Taigen Tiger 1 full option rctank.de special edition airbrush paint IR equipped
Type 90 1/24
WSN T34
Heng long leopard 2a6
Heng long panzer 4 platinum
Heng long sherman
Grantham Light Armoured Division RCTC
Type 90 1/24
WSN T34
Heng long leopard 2a6
Heng long panzer 4 platinum
Heng long sherman
Grantham Light Armoured Division RCTC

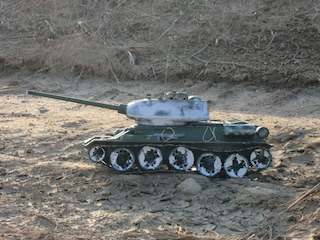

Re: Decided on a Heng Long ... T-34/85

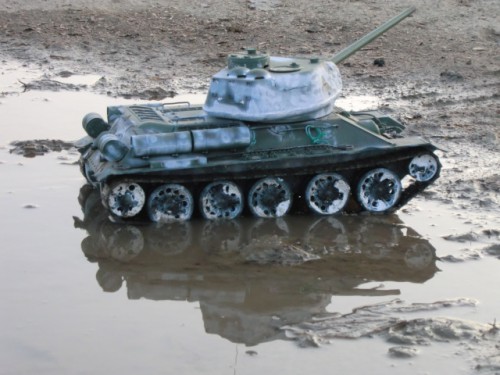

You guys are too generous in praise
looks like it was painted by a four your old
and here is a bloke who hasn't got a clue about how to use imovie...

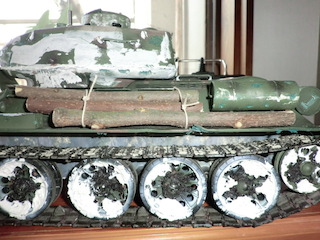

(it still needs rain streaking, a lot of tidying up and the logs, bags and tarps haven't been added yet, like
everyone else it's a work in progress)
How not to make a video, camera strap, wibbly wobbly, dark light etc. just rushed it off as the weather was good...
this video is dedicated to my furry friends, antenna eaters, garden guerillas, foulers, T-34 destroyers

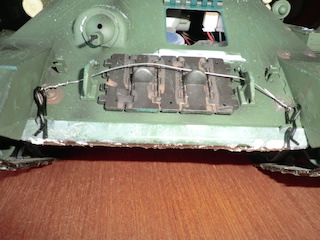

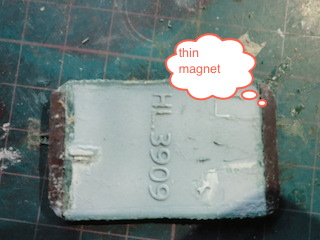

(I bust up my rear hinges so rubber bands saved the day, I'm going to do the neodymium magnet mod when they arrive, lol how do you pronounce neodymium properly
)
https://www.youtube.com/watch?v=Y2XE5bnbjlc

looks like it was painted by a four your old
and here is a bloke who hasn't got a clue about how to use imovie...
(it still needs rain streaking, a lot of tidying up and the logs, bags and tarps haven't been added yet, like
everyone else it's a work in progress)
How not to make a video, camera strap, wibbly wobbly, dark light etc. just rushed it off as the weather was good...
this video is dedicated to my furry friends, antenna eaters, garden guerillas, foulers, T-34 destroyers
(I bust up my rear hinges so rubber bands saved the day, I'm going to do the neodymium magnet mod when they arrive, lol how do you pronounce neodymium properly

https://www.youtube.com/watch?v=Y2XE5bnbjlc
