M551A1 TTS Sheridan

Snipermadrid
Private
Posts: 52
Joined: Sat Jul 24, 2010 10:42 pm

Re: M551A1 TTS Sheridan

Post by Snipermadrid »

Meter rat wrote: Tue Jul 23, 2024 7:35 am Exquisite. The one word says it all.
Thanks a lot Meter Rat for your word, it´s a great incentive for me :thumbup:
Snipermadrid
Private
Posts: 52
Joined: Sat Jul 24, 2010 10:42 pm

Re: M551A1 TTS Sheridan

Post by Snipermadrid »

Hello everyone!

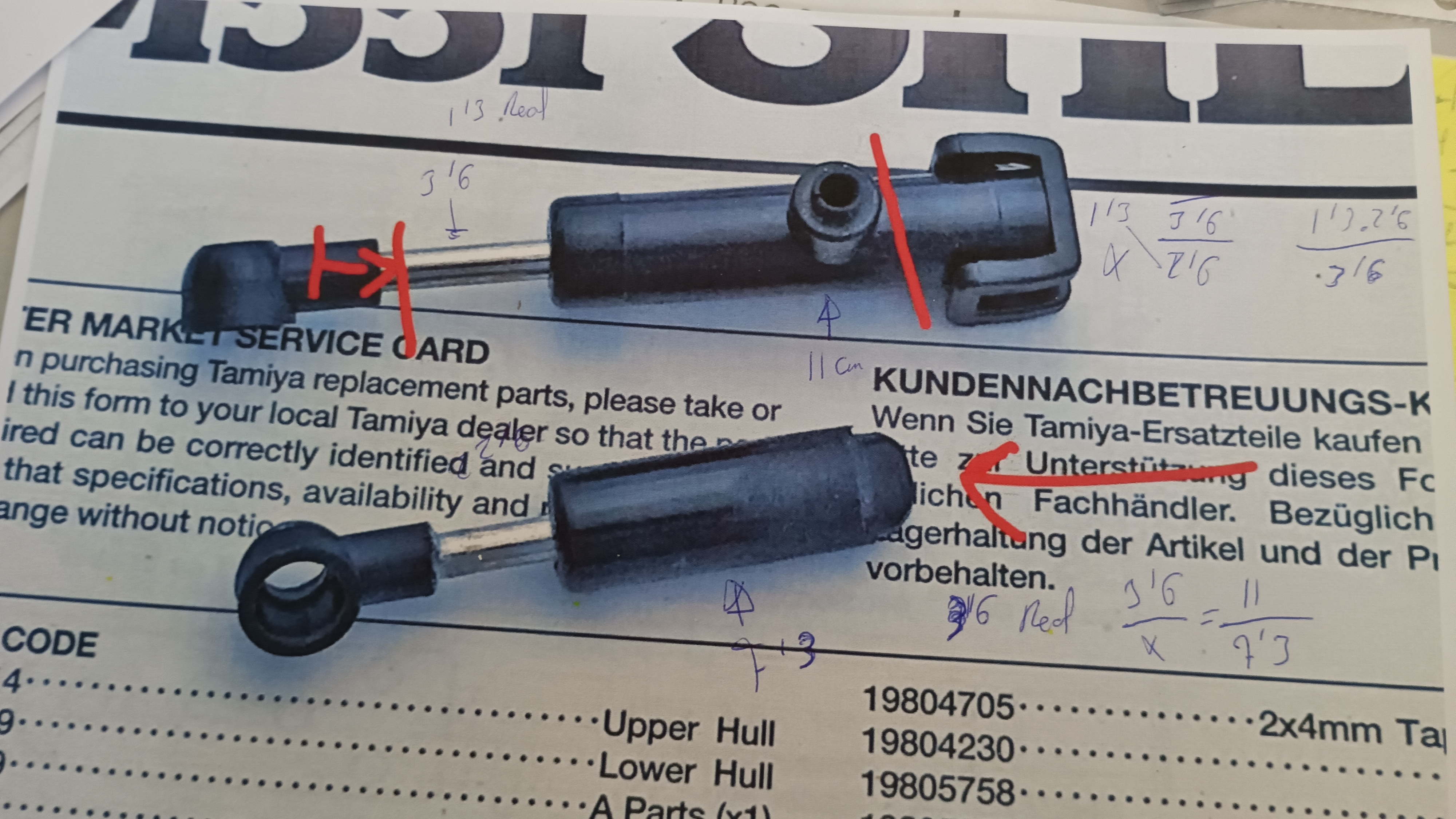

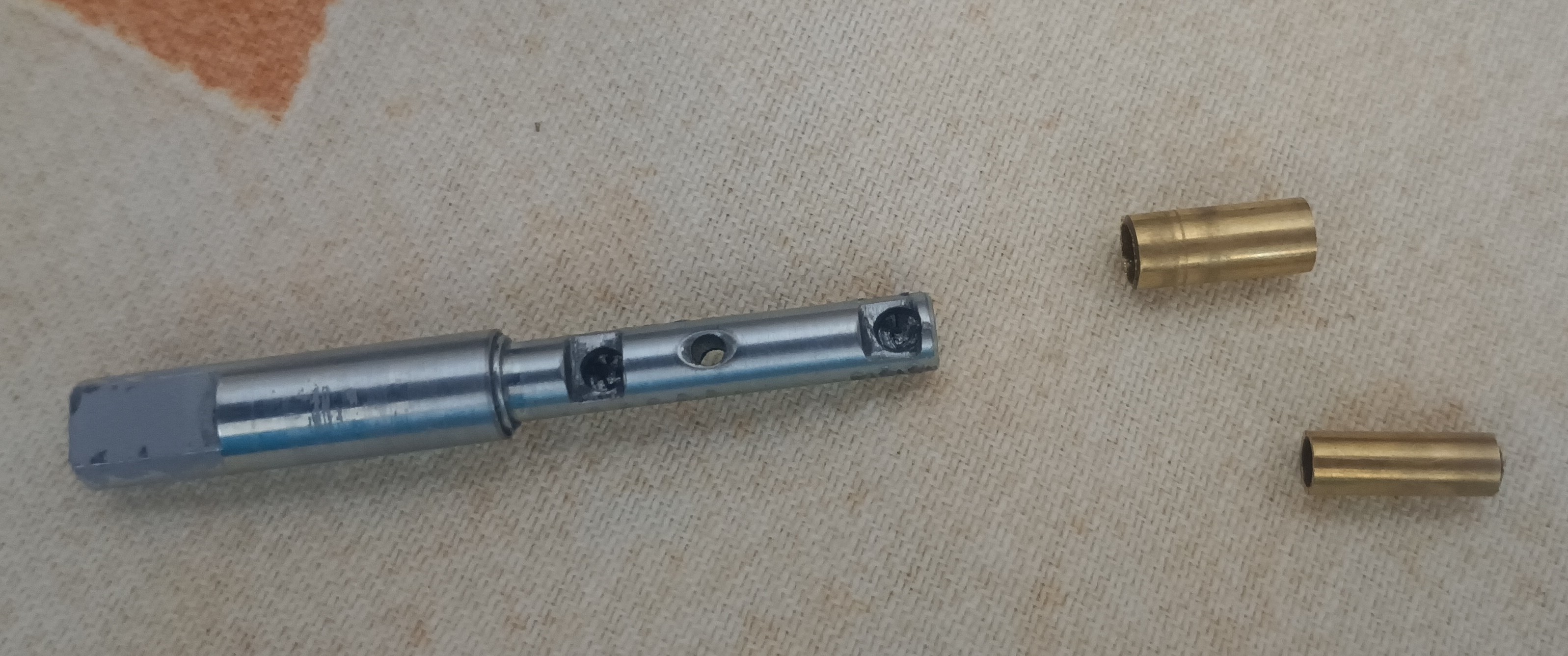

A little advance on the subject of shock absorbers. Seeing the photo of our colleague Lmcq11 (Louis) and having printed it.
I made the following rule of 3 directly with the dimensions taken from this and taking the same measurement of the real one and I got from this that the element to cut in the stem is 0'9cm to leave that size that he left.
The other size to shorten that he gave me is 2'389cm, let's say 2'4cm rounding.
This afternoon I will cut the stems and shape the bodies of the shock absorbers to leave them and test the assembly of these. I will see if I can make some modification as Louis says to leave them a little functional to adjust possible movements of these.
Snipermadrid
Private
Posts: 52
Joined: Sat Jul 24, 2010 10:42 pm

Re: M551A1 TTS Sheridan

Post by Snipermadrid »

Hi everyone!

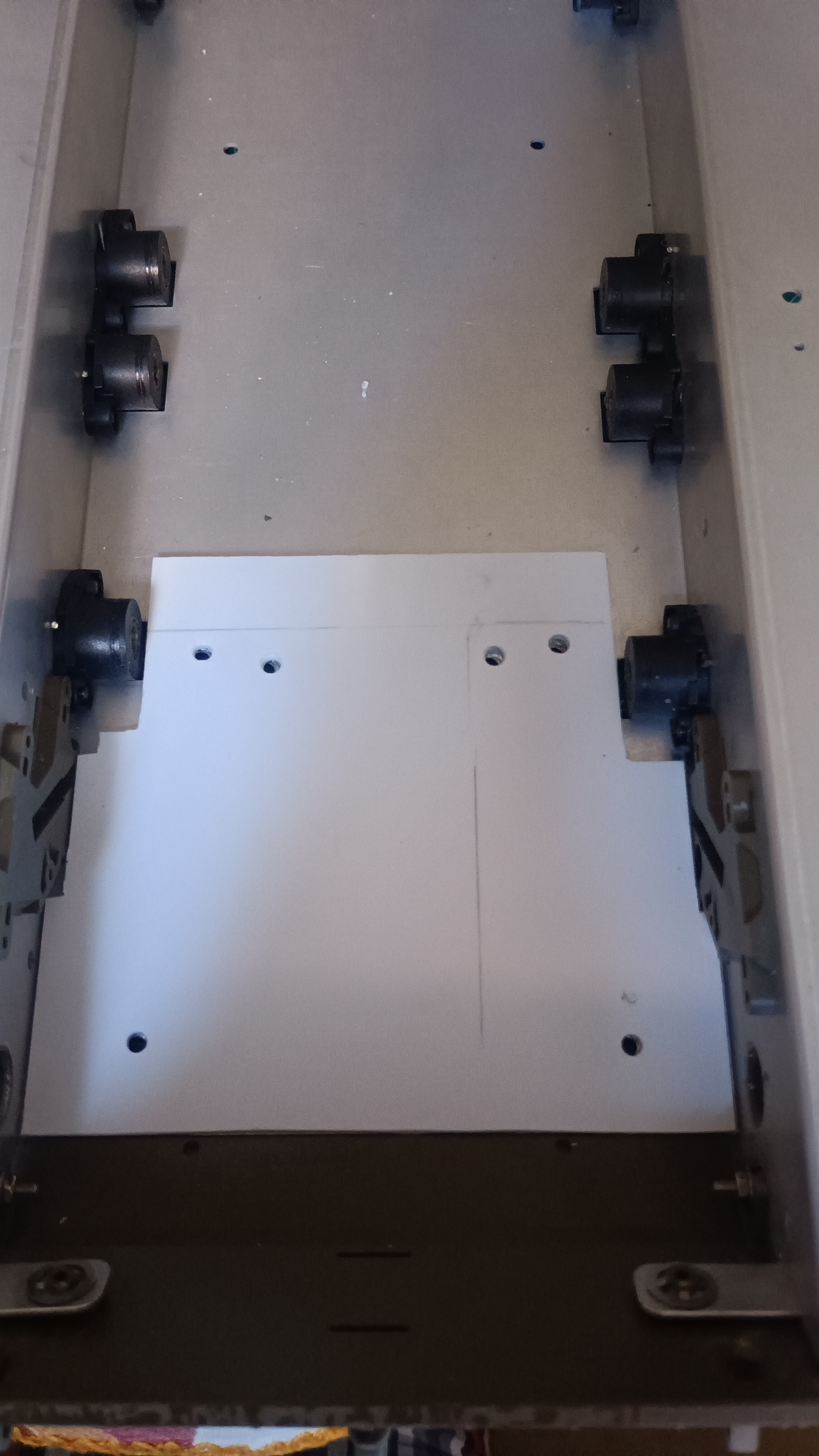

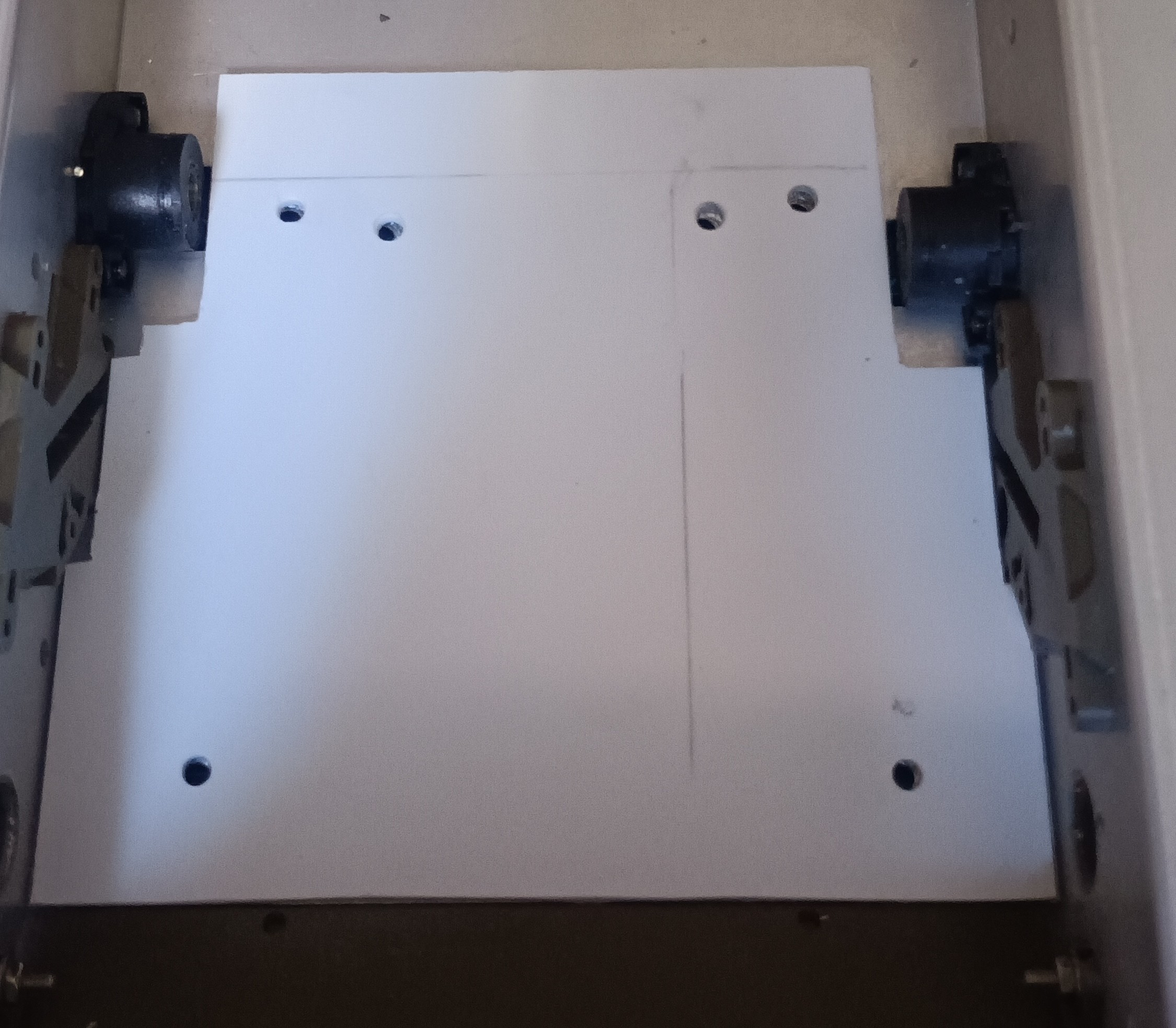

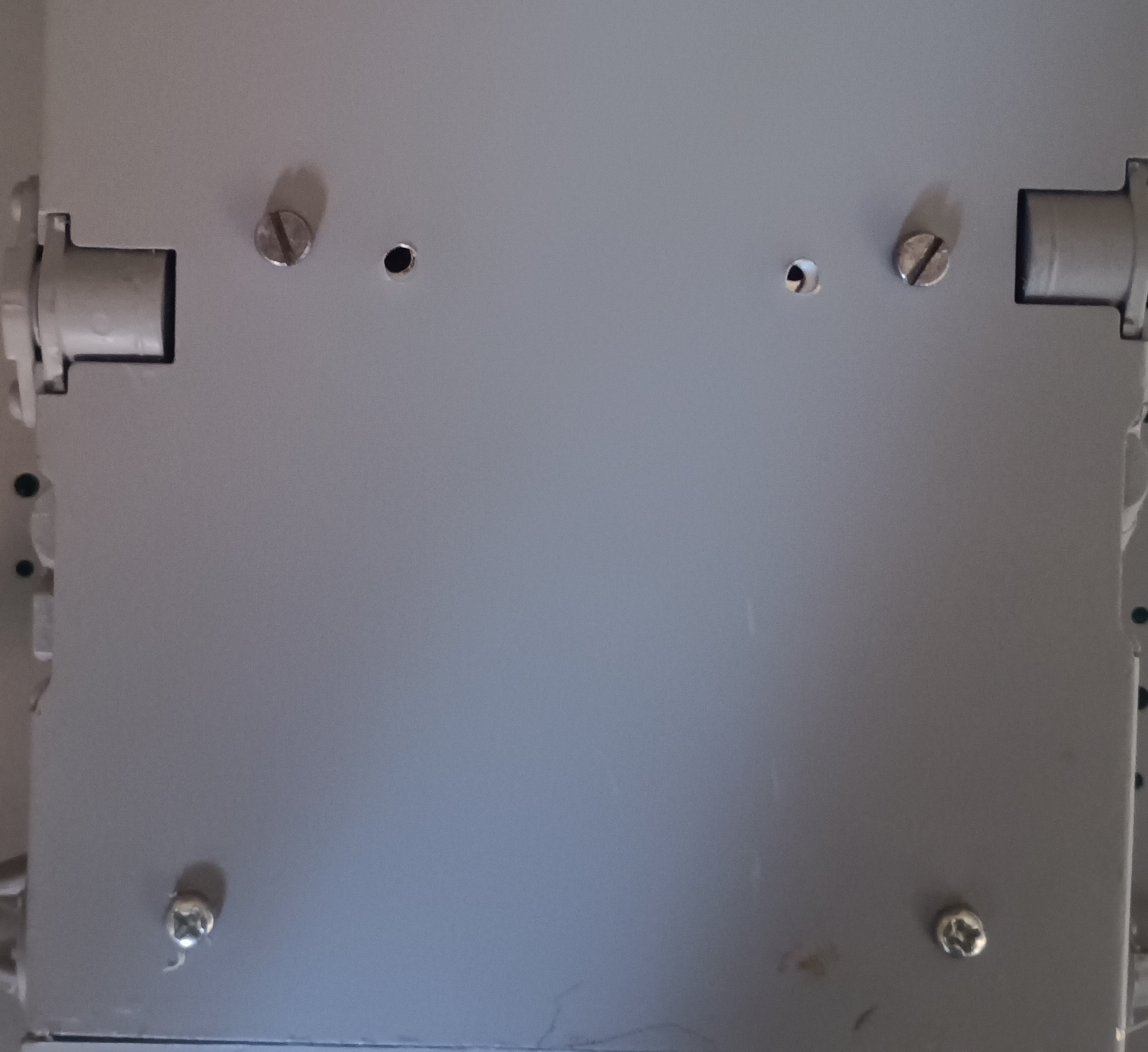

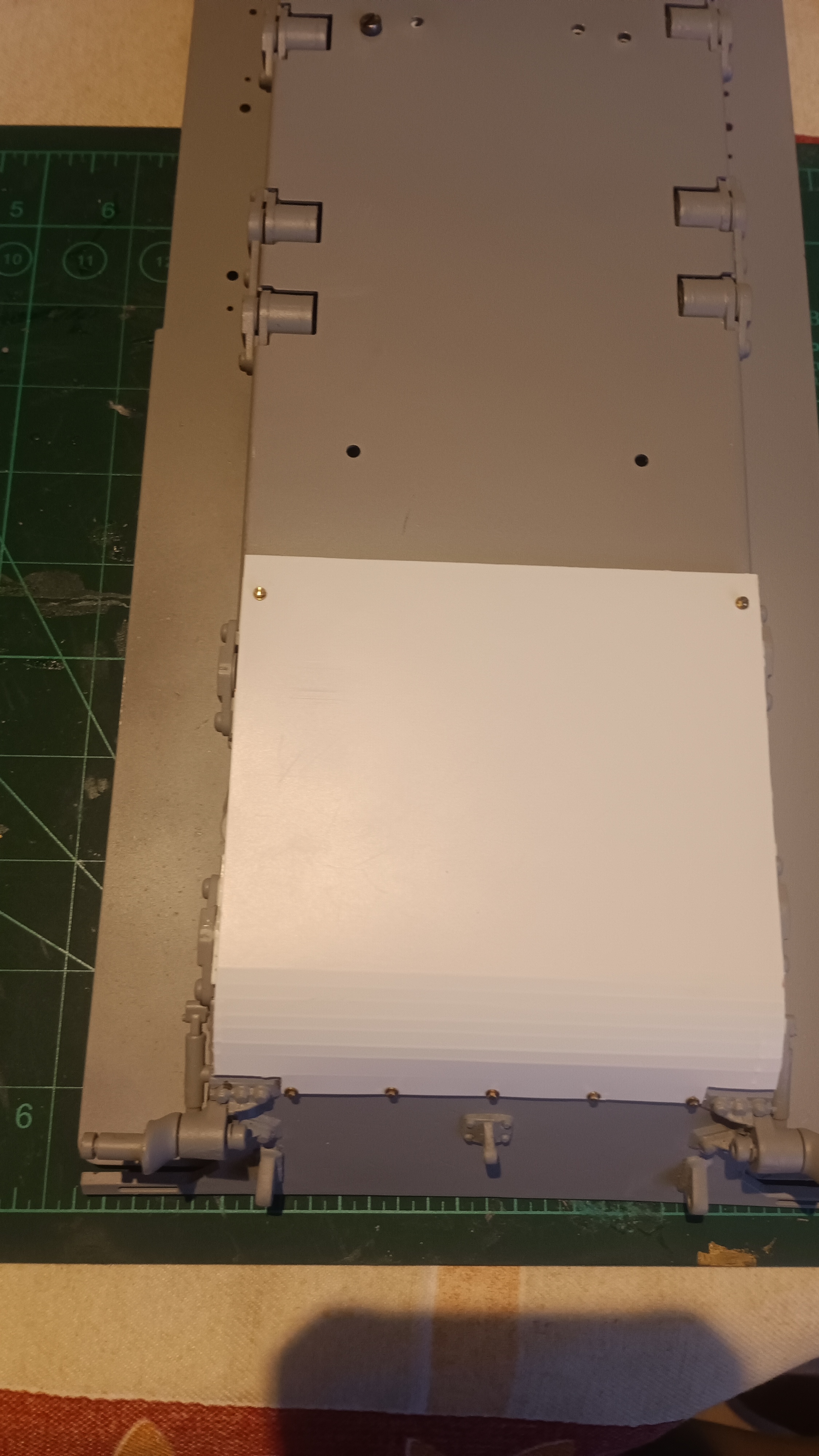

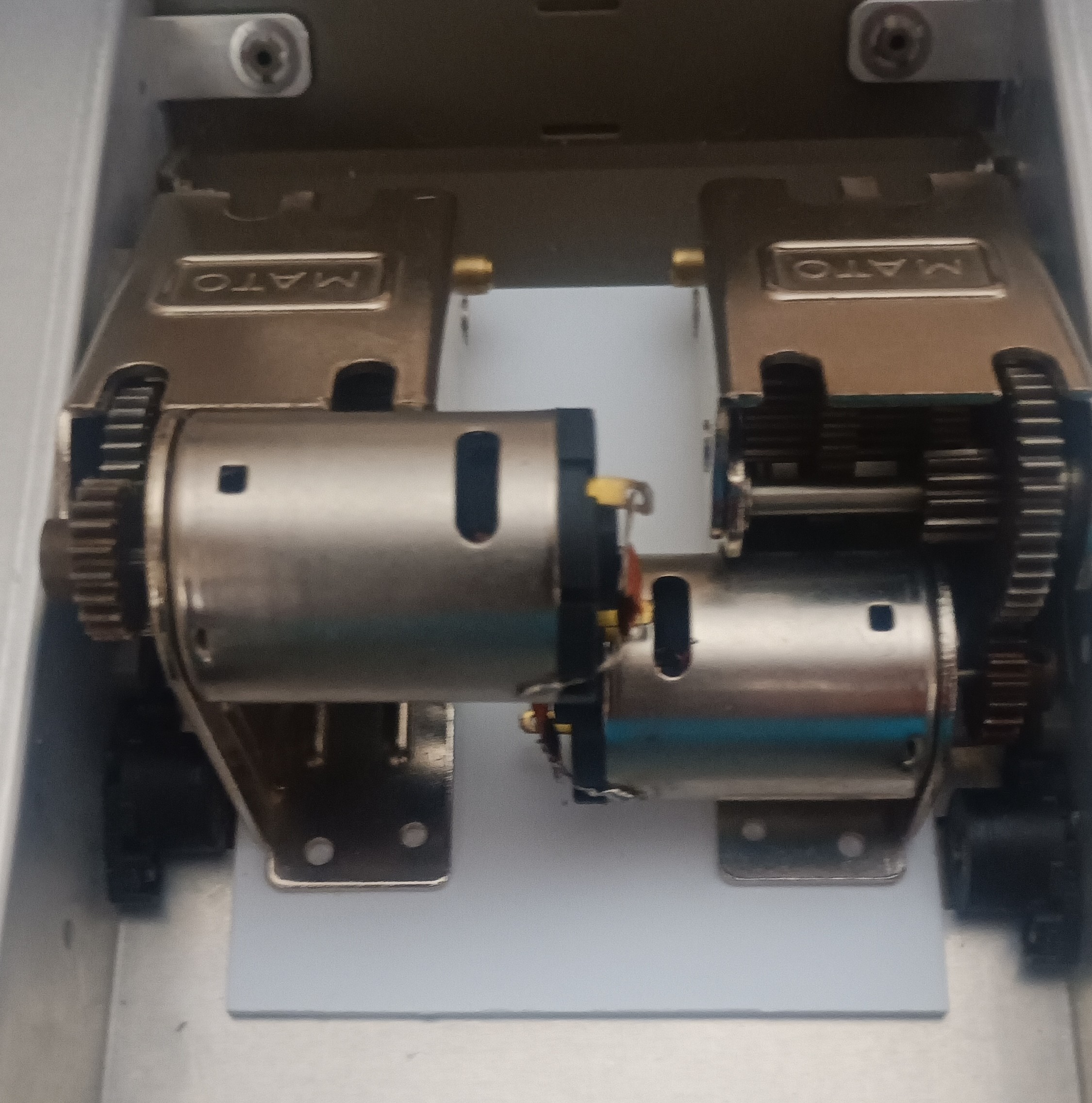

Small progress. I have made the platform as our colleague Louis did and adjusted it to the Gearbox and drilled the three holes in the lower hull to mount these.

I would have liked to do the shock absorbers as I said. I am still thinking about designing the cylinder from scratch with its threaded top.
Attachments
User avatar
Ecam
Warrant Officer 1st Class
Posts: 2184
Joined: Sun Jul 13, 2014 6:30 pm
Location: Lake of the Ozarks, USA

Re: M551A1 TTS Sheridan

Post by Ecam »

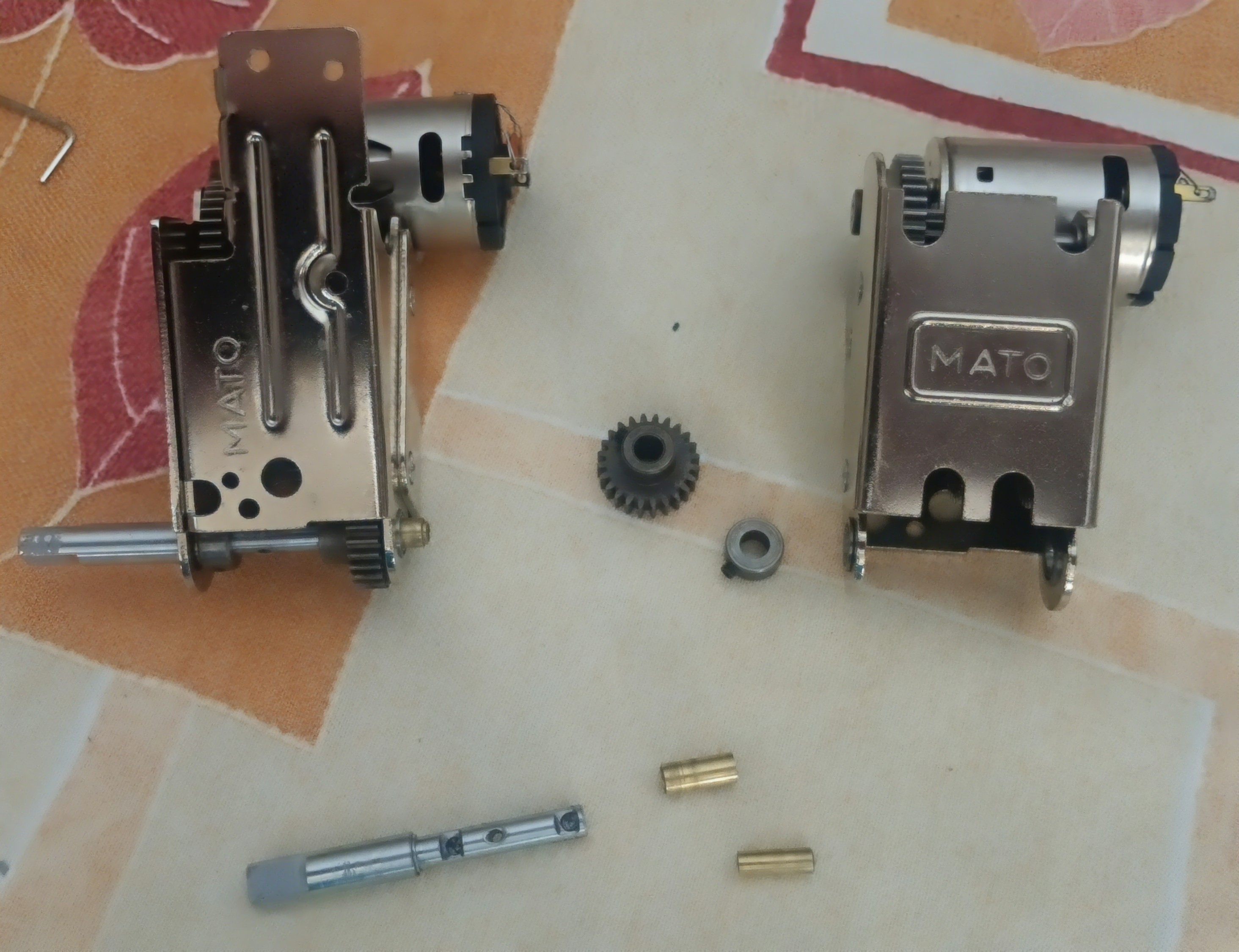

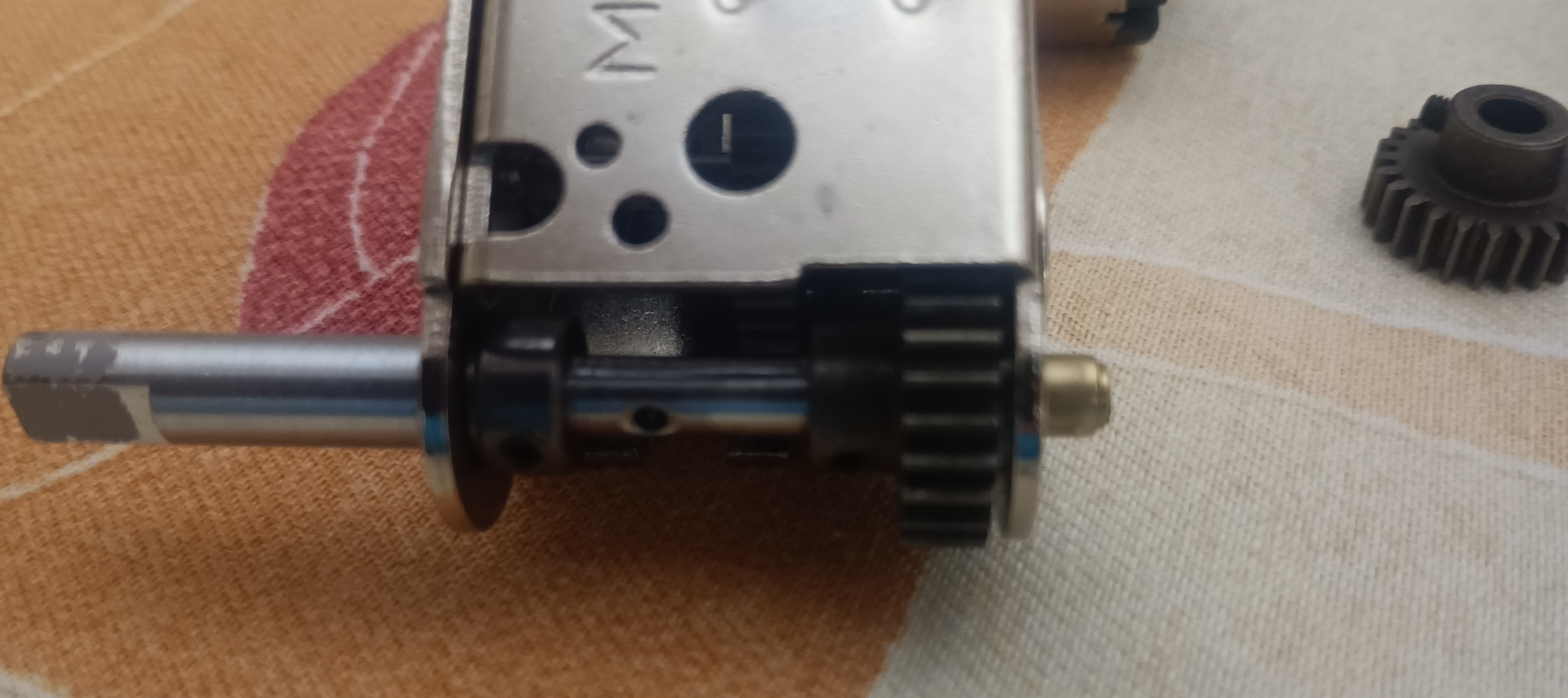

Platform/spacer came out great! Those Mato gearboxes look wonderful, I'm going to have to try a Mato and a Taigen offering.
"Don't believe everything you see on the internet" - George S. Patton

Eric
Snipermadrid
Private
Posts: 52
Joined: Sat Jul 24, 2010 10:42 pm

Re: M551A1 TTS Sheridan

Post by Snipermadrid »

Hello everyone!
Thanks so much ECam.

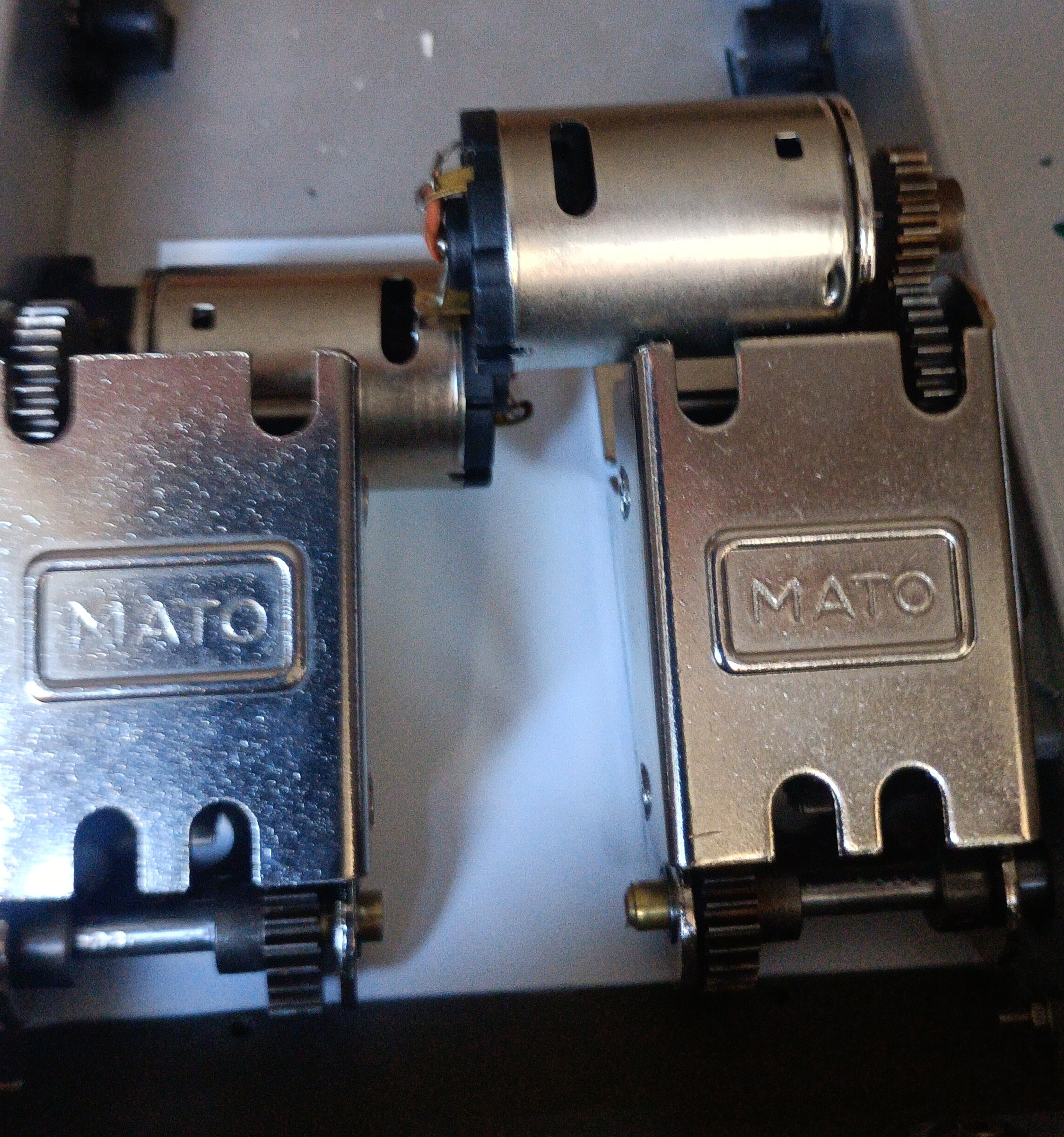

Yes the gearbox they fit perfectly, as has already been proven in the work of our colleague Louise. The truth is that they have a perfect height for this model.
It leaves enough space to work on other elements such as smoke and other elements.

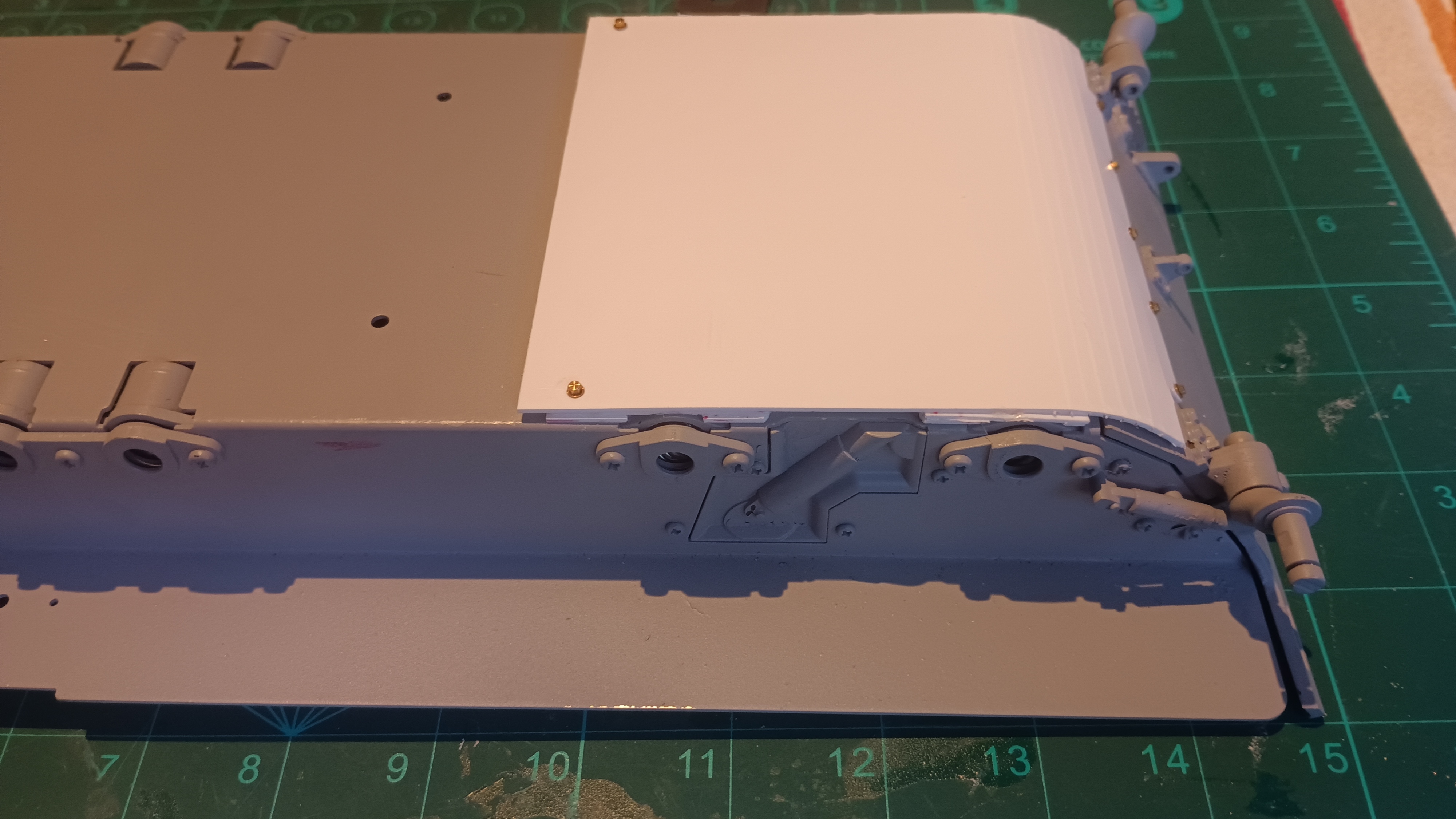

A little advance in the build, the add armour of antimine used and designes in the Vietnam War.
Attachments
