Tiger 1- a question of lights......

[ALPHA]

hi, my tiger is wired with the blue in pin 8, green in pin 7 & yellow in pin 6

good luck
lister

Thanks for the jump in lister fiend. ....and just when I had time to take this lol
Red hot.. Yellow ground... Black machine gun ground

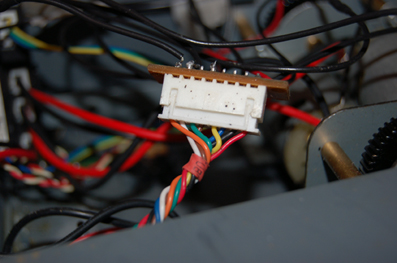

By the way lister fiend... I don't know how you could tell the colors on Intruders 8 pin

everything looks black



ALPHA

[INTRUDERM800]

hello

the problem was the wiring diagram I used was showing a white cable which threw me!
The reason there are so many black wires is because black is all I had at the time! and most had broken away from the 8 pin connector anyway. I also made them longer to avoid tension when I take the top off the tank. I did label the colours on the black wires.

My next quest is the smoke generator......thats never worked properly - and most don't from what i have seen!

Thanks again to you all for your help.
