Hi All
I joined the forum for about a month now. I find it very informative and useful.
I am scratch building a 1/8th scale M26 Pershing. (I posted a question about the side skirts on these tanks on another part of the forum recently).
I have a fully mobile chassis with homemade smoker so far, which I have taken out in the snow again today. It performs very well!
It is nice to know that there are you guys with your wealth of knowledge and experience on here to help out with any problems that may arise.
Cheers
Phil
Hello
-
[ICE]monkey
- 2nd Lieutenant
- Posts: 2669
- Joined: Wed Sep 10, 2008 5:58 pm
- Location: pluckley ,ashford ,kent
Re: Hello
hi phil , and welcome to the forum
regards, ice
regards, ice
-
Wizzard033
- Corporal
- Posts: 339
- Joined: Thu Sep 30, 2010 4:51 am
- Location: Lubbock, Texas
Re: Hello
Hi

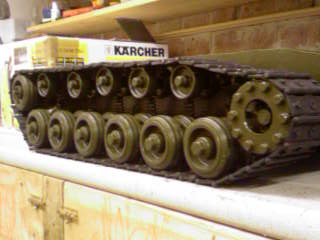

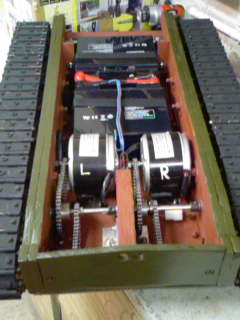

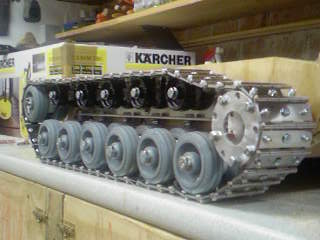

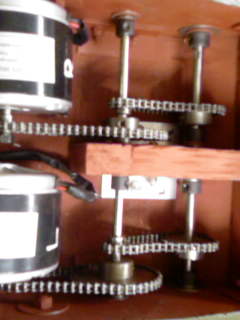

Here are some older pictures of my 1/8th M26. I have redesigned the back end and added a smoker since. I am also redesigning the final drive train (Tracks and sprockets) to use bycycle chain and Sturmey Archer 20 Tooth (86mm Dia) sprockets. This should give a smoother drive and stop the road wheels from rubbing against the suspension springs.
Cheers
Phil
Here are some older pictures of my 1/8th M26. I have redesigned the back end and added a smoker since. I am also redesigning the final drive train (Tracks and sprockets) to use bycycle chain and Sturmey Archer 20 Tooth (86mm Dia) sprockets. This should give a smoother drive and stop the road wheels from rubbing against the suspension springs.
Cheers
Phil
- Attachments
-
- Photo-0020.jpg (11.58 KiB) Viewed 1506 times
-
- Photo-0009.jpg (13.24 KiB) Viewed 1506 times
-
- Photo-0018.jpg (12.74 KiB) Viewed 1506 times
-
- Photo-0021.jpg (14.34 KiB) Viewed 1506 times
Last edited by Storky on Sun Dec 19, 2010 10:24 pm, edited 1 time in total.
If you are not living on the edge, then you are taking up too much room.
looking at what you have all ready done you should be asset to the forum
.Re: Hello
Hi All
Here are a few more pictures of my M26 out in the snow yesterday. I have only made the chassis as shown so far. The 12V smoker is made by wrapping a piece of nichrome wire around a piece of fire rope. (For AGA door seals etc). The rope acts as a wick. Then the smoke gets blown out through the exhaust by a 40mm computer fan. It is wired to the control board that I made so that it operates when I move the tank in any direction.
Hopefully, I will be an asset to the forum, Thanks Gerwyn.
Cheers
Phil
Here are a few more pictures of my M26 out in the snow yesterday. I have only made the chassis as shown so far. The 12V smoker is made by wrapping a piece of nichrome wire around a piece of fire rope. (For AGA door seals etc). The rope acts as a wick. Then the smoke gets blown out through the exhaust by a 40mm computer fan. It is wired to the control board that I made so that it operates when I move the tank in any direction.
Hopefully, I will be an asset to the forum, Thanks Gerwyn.
Cheers
Phil
- Attachments
-

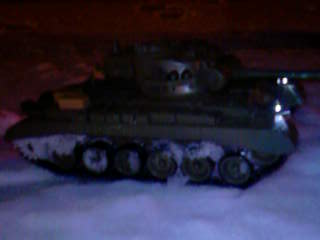

- This is a picture of my Heng Long M26 out in the snow last January. Sorry it is a bit dark.
- Photo-0006.jpg (6.66 KiB) Viewed 1500 times
-

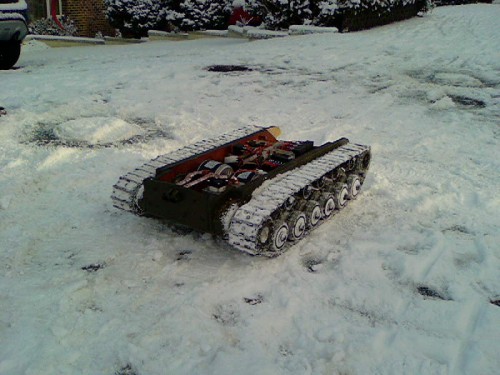

- A brief stop for a photo opportunity. She was rolling through the snow with no trouble at all. The circle in the snow just above her, was made when I did several neutral turns in succession, OK! I was showing off to my 2 boys!!
-

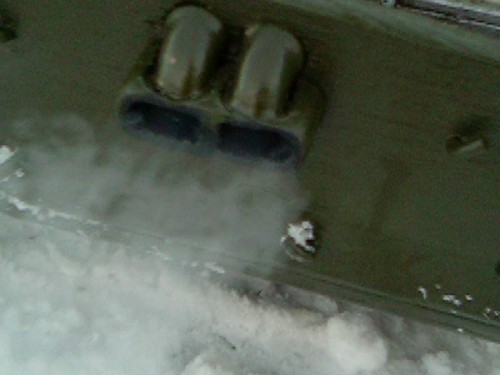

- This one shows the smoke exiting the exhaust. Yes that is 15mm pipe elbows moulded into the twin outlets.
-

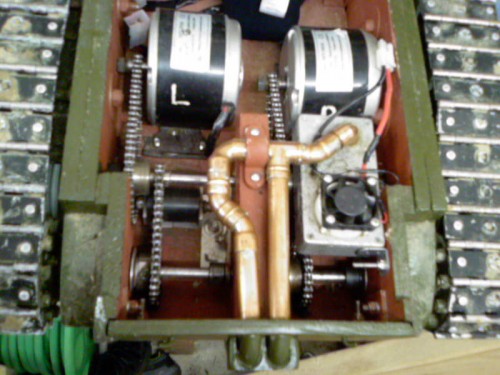

- This picture shows my homemade 12V smoker using a piece of nichrome wire and a 40mm computer fan. The smoke fluid is fog fluid as used by DJ's etc. £15 for 5 litres.
