Tiger 1 & Panzerkampfwagon

[oldfeller]

Hi All

I have a H L Tiger 1 which I have taken the track and all the wheels off, and the halve's are separate,
I'm now left with the wires holding it together.

The one going to the arial is easy, but I would like to seperate the wires coming off the
circuit board, they go through a loop and then into a connector before going to the turret?,
I want to know if this connector pulls off, or have I got to disconnect all the wires to the turret.

I've also got a new Panzerkampfwagon, which at the moment I have not touched apart from running it,
any body got any thing on this tank?.

Regards.
oldfeller

[jrc]

hi
the connector pulls apart

Ross

[Saxondog]

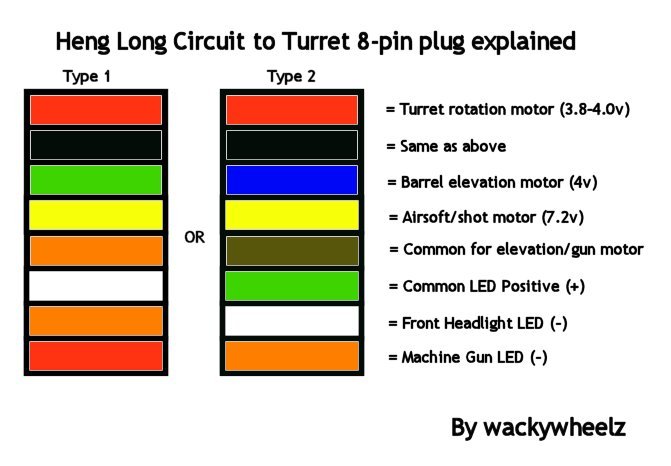

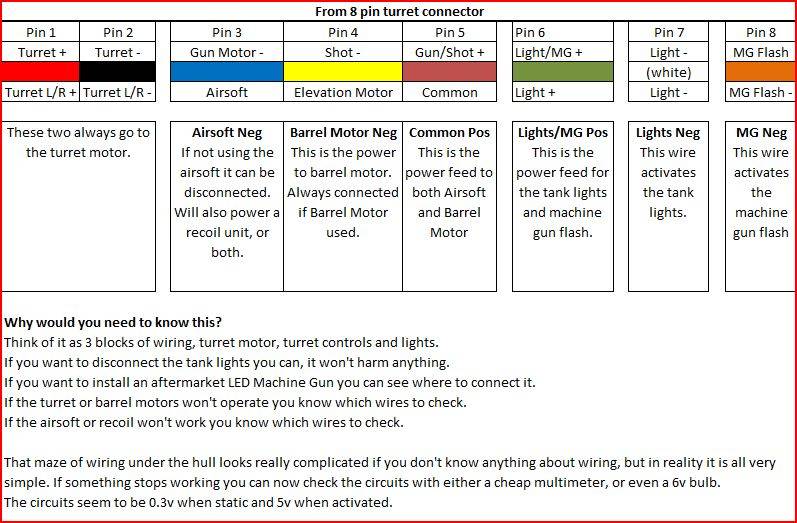

This may help,the 8 wire plug schematic. Sax

8 Pin connector Detailed.jpg (91.34 KiB) Viewed 465 times

8-PLUG WIRING SCHEM..jpg (49.29 KiB) Viewed 465 times

[oldfeller]

hi
the connector pulls apart

Ross

Hi Ross

Thank you, I will now put a bit more pressure on it.

Regards
Gerwyn
