LVTP-7 Build Pictures

Post by GreenAmphibian »

These are the pictures of how it was put together.
Attachments
The hatch for the rear compartment is fabricated. It is held on with magnets.
The hatch for the rear compartment is fabricated. It is held on with magnets.
LVTP7 010.jpg (32.38 KiB) Viewed 4187 times
Starting to fit the road wheels and suspension.
Starting to fit the road wheels and suspension.
LVTP7 009.jpg (41.4 KiB) Viewed 4187 times
Gear boxes fitted. They are from a HL Snow Leopard.
Gear boxes fitted. They are from a HL Snow Leopard.
LVTP7 008.jpg (42.58 KiB) Viewed 4187 times
Graupner Mini Water Jets are installed.
Graupner Mini Water Jets are installed.
LVTP7 007.jpg (40.69 KiB) Viewed 4187 times
LVTP7 006.jpg
LVTP7 006.jpg (34.87 KiB) Viewed 4187 times

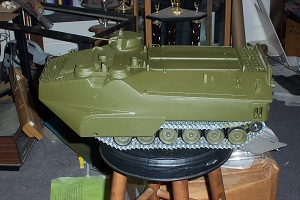

Starting to look like something now.
Starting to look like something now.
LVTP7 005.jpg (39.58 KiB) Viewed 4187 times
Just a little bit farther along.
Just a little bit farther along.
LVTP7 004.jpg (40.53 KiB) Viewed 4187 times
First stages of the hull with my "helper."
First stages of the hull with my "helper."
LVTP7 003.jpg (40.59 KiB) Viewed 4187 times

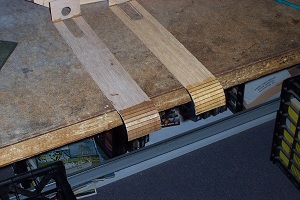

Track channels.
Track channels.
LVTP7 002.jpg (36.63 KiB) Viewed 4187 times
The first piece of the puzzle.
The first piece of the puzzle.
LVTP7 001.jpg (36.53 KiB) Viewed 4187 times
Death smiles at everyone, Marines smile back!
Top
User avatar
GreenAmphibian
Lance Corporal
Posts: 187
Joined: Thu May 06, 2010 2:13 am
Location: Northern Triad area of North Carolina

Re: LVTP-7 Build Pictures

Post by GreenAmphibian »

These are the last of the build pictures.
Attachments
LVTP7 016.jpg
LVTP7 016.jpg (37.69 KiB) Viewed 4184 times
Base coat of Forest Green is ON!
Base coat of Forest Green is ON!
LVTP7 015.jpg (38.33 KiB) Viewed 4184 times

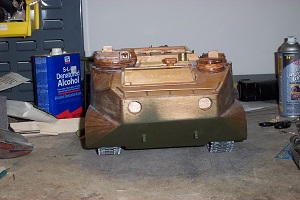

Front view before lights were installed. Three LED light systems, white, blue (infra red), and blackout (red).
