Nifty Fifty

Post by torpedochief »

I modified a 50 cal MG. to make it a working unit. It now flashes.

Pretty easy. Take you gun and cut it apart as shown. Drill the easy parts Reciever, flash suppresor, mid section.

For the barrel. Find the mold seem and ever so carefully use a #11 blade to slice along the line. Now use a metal coping saw blade to cut half way through.

Two strands of Fiber optics are then lay inside theslice and secured with CA. Be sure you leave a good amount of the optics at the business end.

Putty up the slice, then sand smooth.

Reassemble the gun using CA

Take an LED. REMEMBER LEDs OPERATE ON DIFFERENT VOLTAGES DEPENDING ON THE COLOR!

I recommend using on that is already in the tank.

Connect your wires to the LED. Use a small bit of tube Brass or Plastic, but with enough inside diameter to hold you two strands of Fiber Optics. Wrape black tape around the tubes until it will fit tight inside a bit of Heat Shrink.

Place the heat shrink over the led and then insert the wraped tube so the end contacts the tip of the LED

Shrink it tight.

Now insert your Fiber optics and securethem with CA.

Connect your LED to an MG Circuit in your tank and there you go!

Enjoy

Don
Attachments

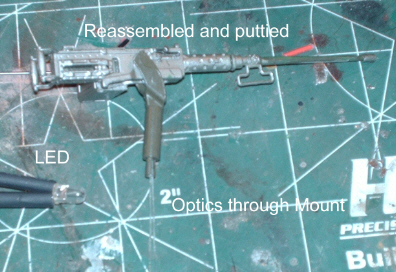

Drill a hole in the mount and feed the Optic Fibers through, then secure in the tube so so ends ofthe fibers sit on top of the LED. Putty up the cut area of the barrel. Sand and paint!
Drill a hole in the mount and feed the Optic Fibers through, then secure in the tube so so ends ofthe fibers sit on top of the LED. Putty up the cut area of the barrel. Sand and paint!
MG 7.jpg (93.96 KiB) Viewed 871 times
Wire your LED and with a narrow bitof tube shrink wrap the tube to the tip ofthe LED
Wire your LED and with a narrow bitof tube shrink wrap the tube to the tip ofthe LED
MG 6.jpg (79.63 KiB) Viewed 871 times
Reassemble the gun using CA
Reassemble the gun using CA
MG 5.jpg (97.19 KiB) Viewed 871 times

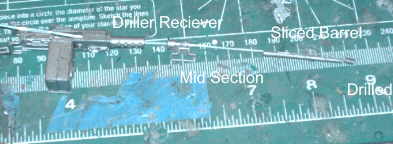

Secure two or three lengths of Optic Fibers into the barrel and run the rest through the drilled parts
Secure two or three lengths of Optic Fibers into the barrel and run the rest through the drilled parts
MG 4.jpg (66.29 KiB) Viewed 871 times
Use A fine tooth metal saw to slice the long barrel half way through
Use A fine tooth metal saw to slice the long barrel half way through
MG 3.jpg (66.37 KiB) Viewed 871 times

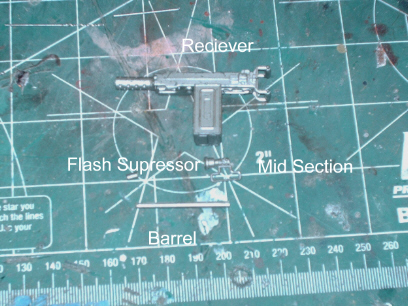

Cut The weapon as shown. Drill the small easy to reach places to accept two or three Optic Fibers
Cut The weapon as shown. Drill the small easy to reach places to accept two or three Optic Fibers
As the MG Comes From The Box
As the MG Comes From The Box
D. Clayton Meadows
Author of
OF ICE AND STEEL
EPITAPH
TIGER!
Top
User avatar
torpedochief
Lance Corporal
Posts: 194
Joined: Fri Oct 30, 2009 12:47 am
Location: Charleston SC USA
Contact:
Contact torpedochief

Re: Nifty Fifty

Post by torpedochief »

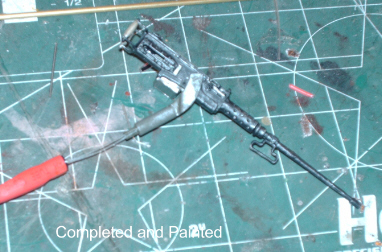

Last Picture
