Im going to do proper build log on this for a change ( my previouse ones have been a bit lacking in content). Here's the first couple of pics.New project started in earnest. Japanese type 95(ish)
-
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
New project started in earnest. Japanese type 95(ish)
RIGHT! Im going to do proper build log on this for a change ( my previouse ones have been a bit lacking in content). Here's the first couple of pics.
Im going to do proper build log on this for a change ( my previouse ones have been a bit lacking in content). Here's the first couple of pics.- Attachments
-

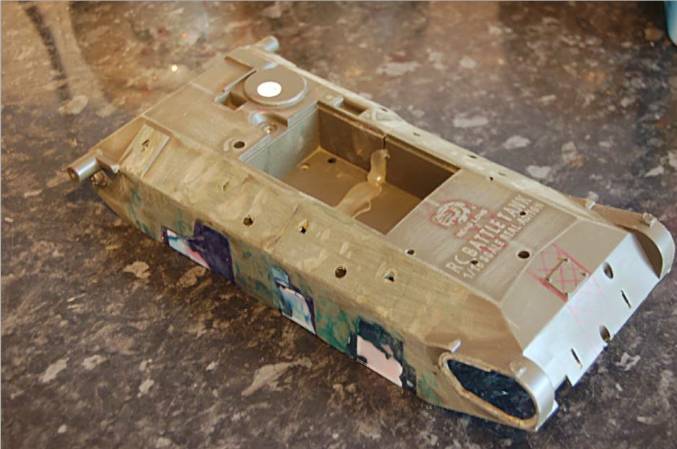

- Here's the hull smoothed out and short'nd. It's now 27cm's long, which is equivelent to around 4mtrs in real life.
-

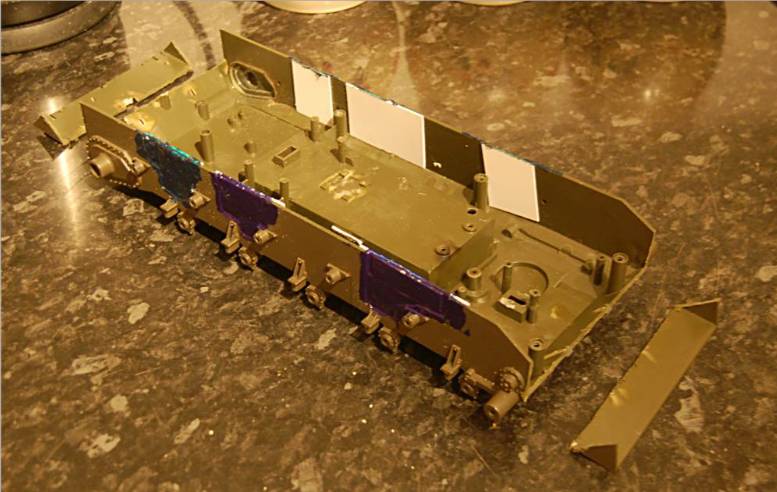

- Here's the scrap Bull dog hull from my M-75 build. Ive started to alter it.
Last edited by vonrundstedt on Tue Apr 13, 2010 8:31 pm, edited 1 time in total.
-
mcevoyi
- 2nd Lieutenant
- Posts: 2294
- Joined: Fri Sep 26, 2008 11:24 pm
- Location: Now Living in Cyprus .... Modellers desart ...
Re: New project started in earnest.
chop chop!
busy busy!
work work!
bang bang !
you have been busy !
busy busy!
work work!
bang bang !
you have been busy !
-
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
Re: New project started in earnest.
Ive got to narrow it yet!!
Before i do that, ive got to completeley re-design the gear box's
There going to be quite a bespoke fit.
Before i do that, ive got to completeley re-design the gear box's There going to be quite a bespoke fit.
Re: New project started in earnest.
Great start luke are we going to see it at a meet?
and any clues as to what its going to be
and any clues as to what its going to be
-
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
Re: New project started in earnest.
It might be ready for septons scout hut meet, if its still on, im just not sure how long its going to take. Only one person on here knows what it is intended to be, and im not saying anything, at least untill the lower hull is done, so ill just keep you all guessing
Got some more pics coming soon.
Got some more pics coming soon.
-
wmikewoods
- Recruit
- Posts: 11
- Joined: Sat Feb 06, 2010 8:52 pm
Re: New project started in earnest.
well the jpg is called Ha-Go Build XXXX.jpg so.... is it an E-100?
hehe
hehe
-
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
Re: New project started in earnest.
DOH!!!!! Well thats nackered that then. Yes, its a HA-GO, Type 95 japanese tank, well, as close as i can get it. Hopefully, when its finished, it will be a fair representation of a japanese tank.
Well thats nackered that then. Yes, its a HA-GO, Type 95 japanese tank, well, as close as i can get it. Hopefully, when its finished, it will be a fair representation of a japanese tank. -
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
Re: New project started in earnest.
Well, its been a while since I did any work on this, but the lower hull is starting to take shape.
- Attachments
-

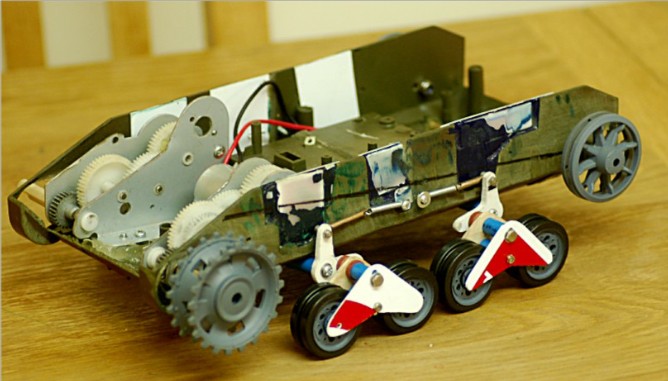

- The rudimentry spring set up, though looking flimsey, works and will be fitted with a half tube shape cover.
-

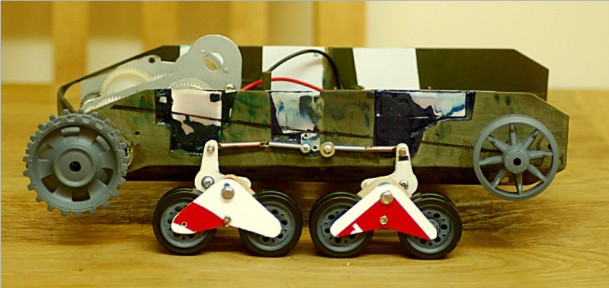

- Suspension units made and fitted. They are constructed from Pzr III wheels, air tubing, thick, strip balsa and plastic sheet. The axels are made from the stainless steal posts that are used on HL gear box's. You can also see that the sides of the gear box's have been shaved right down to give me a lower profile.
Last edited by vonrundstedt on Wed Mar 17, 2010 1:40 am, edited 2 times in total.
Re: New project started in earnest.
Looking really good. Clever use of servo horns to hold the suspension units.
Cheers
Chris
Cheers
Chris
-
vonrundstedt
- Staff Sergeant
- Posts: 994
- Joined: Mon May 18, 2009 12:25 am
- Location: Northampton, UK
Re: New project started in earnest.
, That would have been a clever idea, Unfortunately I did'nt think of that at the time. The suspension units are all home made, apart from the wheels. the 'horns' being cut from an office door sign.
