King Tiger convoy light

Post Reply
User avatar
Stormbringer
Sergeant
Posts: 743
Joined: Wed Aug 06, 2025 8:24 am
Location: Near Edinburgh Scotland

King Tiger convoy light

Post by Stormbringer »

Hi all
As mentioned in the Jagdpanther build thread
viewtopic.php?t=37728&start=100
Here is how will be doing the convoy light on the KT
I am using 2mm 5-12v 2mm blue leds

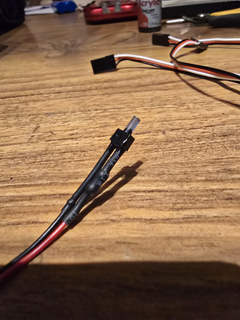

1st I paint the led matt black and gave it 2 coats leaving the 2mm tip unpainted
this is to stop light bleeding into the tank and giving the engine bay an eerie blue glow
CV 1.png
CV 1.png (147.78 KiB) Viewed 118 times

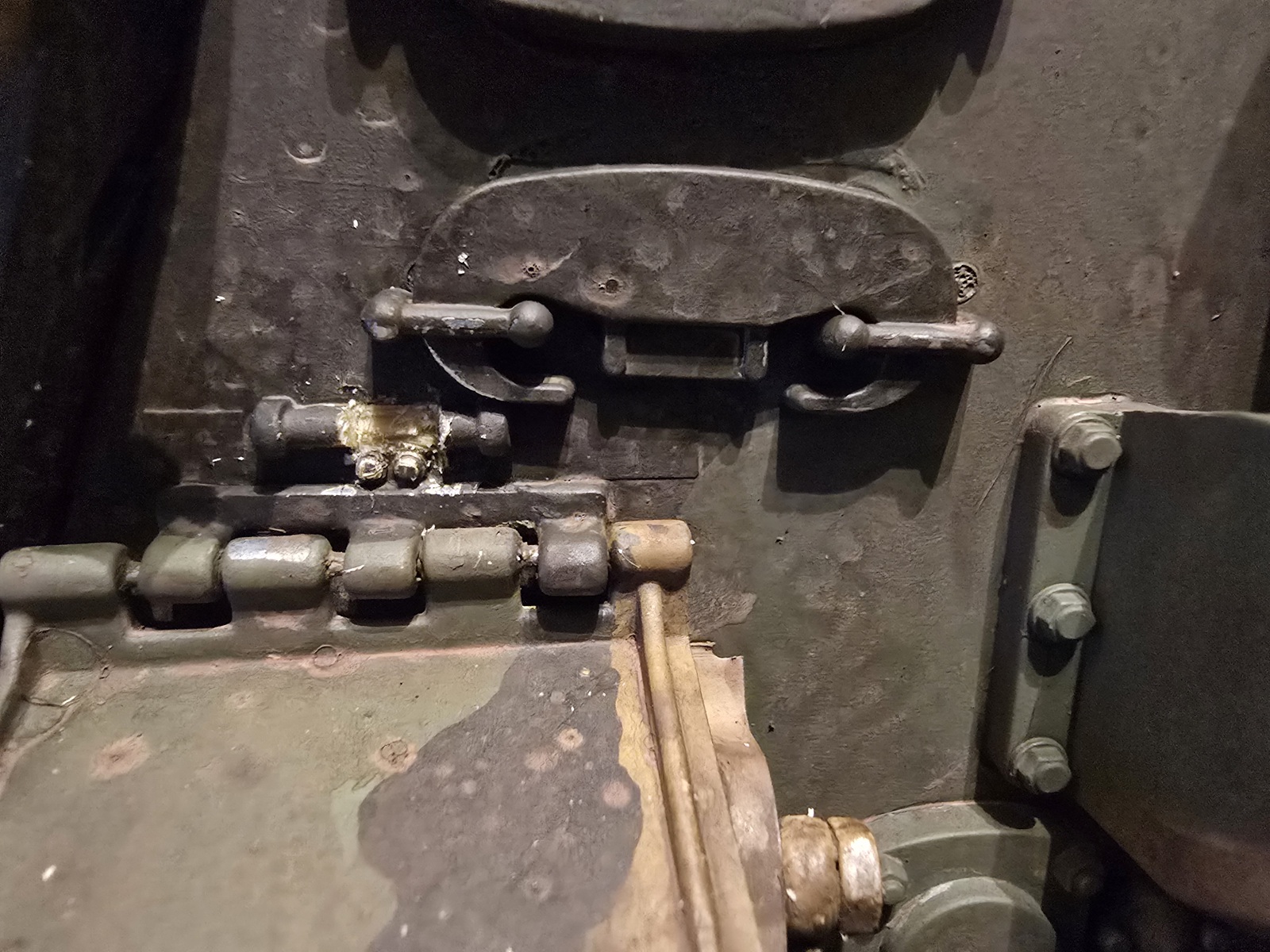

Then I removed part of the convoy light as shown
CV 2.jpg
CV 2.jpg (591.71 KiB) Viewed 118 times

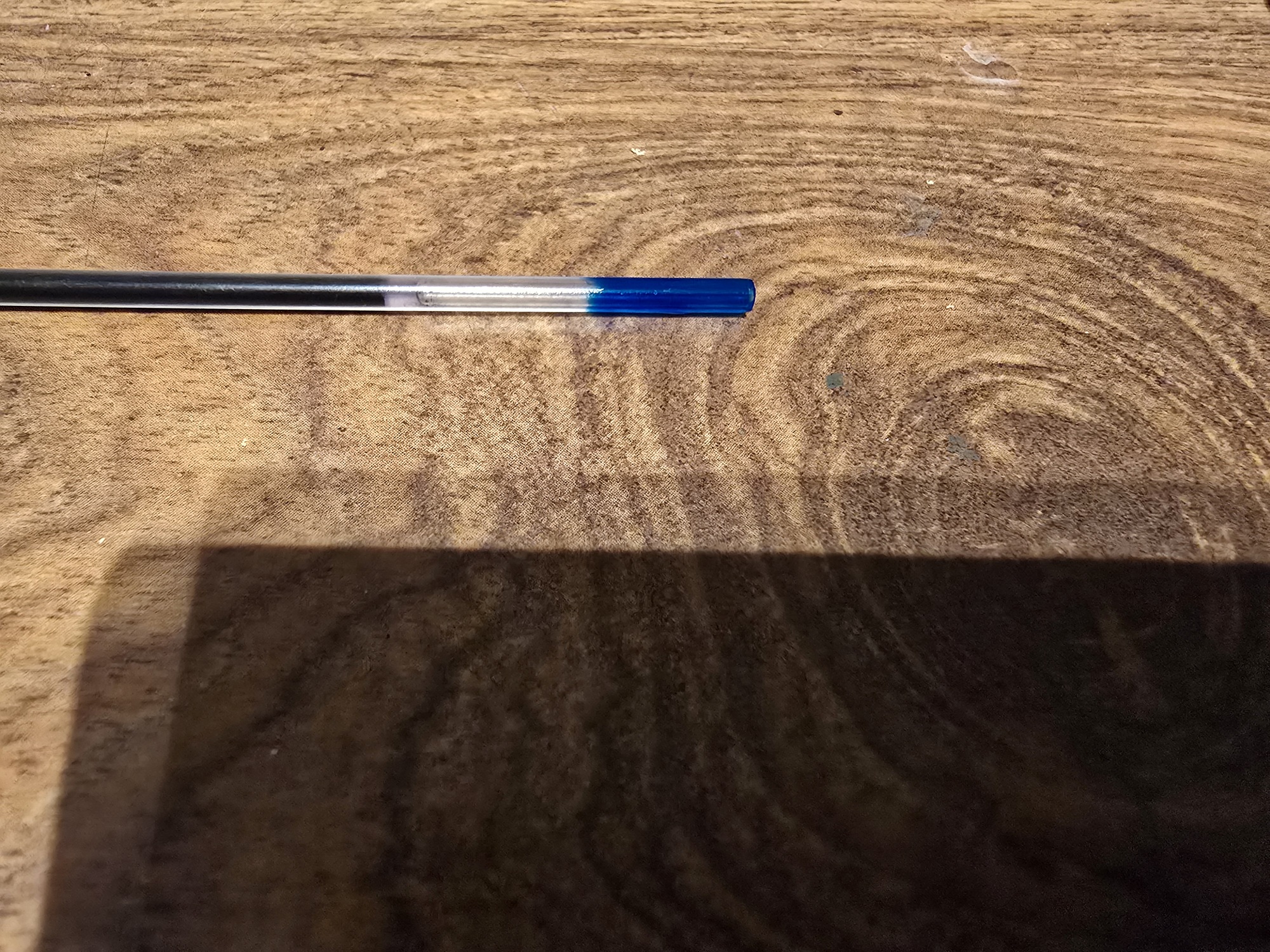

I will be using the ink holding part of a ballpoint pen as the light cover which is painted Tamiya transparent blue
CV 3.jpg
CV 3.jpg (1.21 MiB) Viewed 118 times

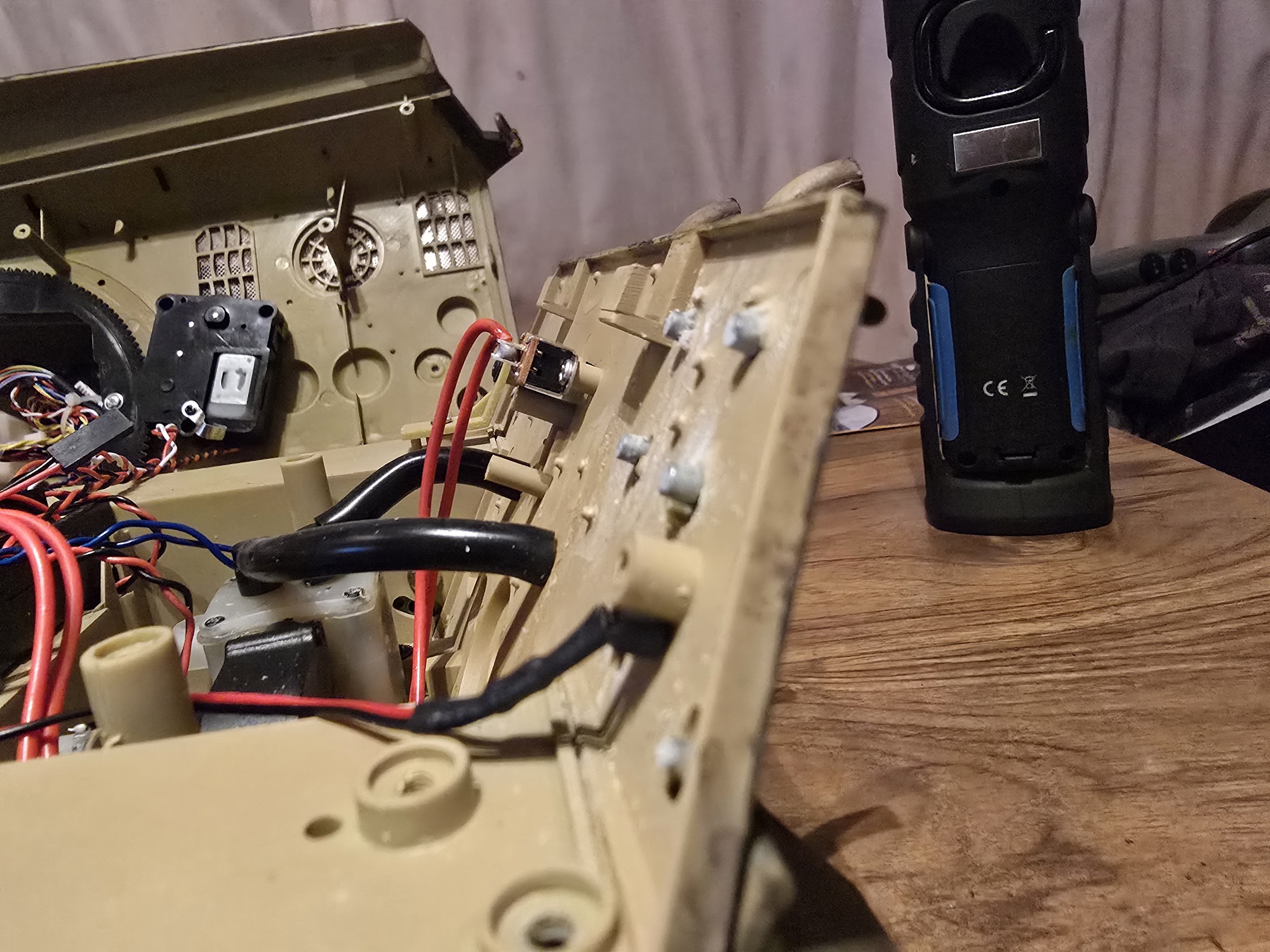

Hit a little problem when drilling the 2mm hole for the led it was hitting the back panel support
Removed support then glued led in place
CV 4.jpg
CV 4.jpg (813.67 KiB) Viewed 118 times

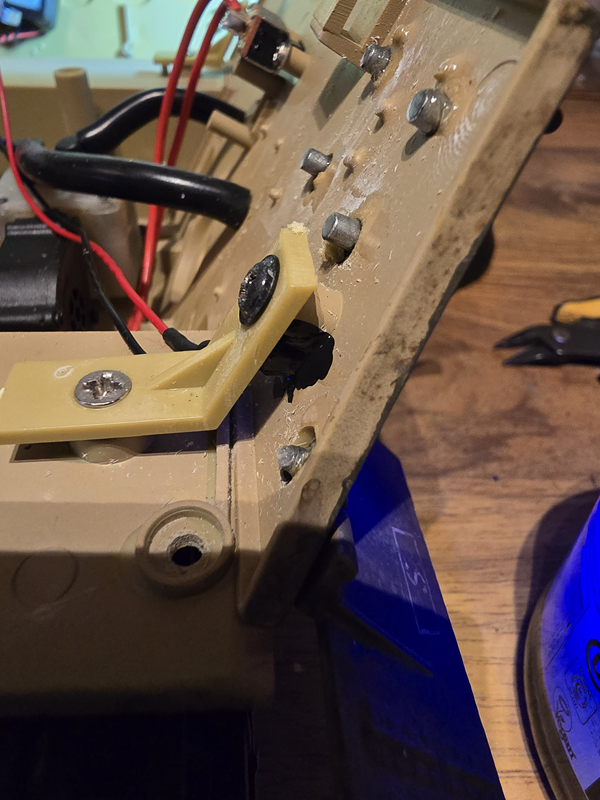

after gently bending the led wires down a bit i was able to refit the support
CV 5.png
CV 5.png (764.42 KiB) Viewed 118 times

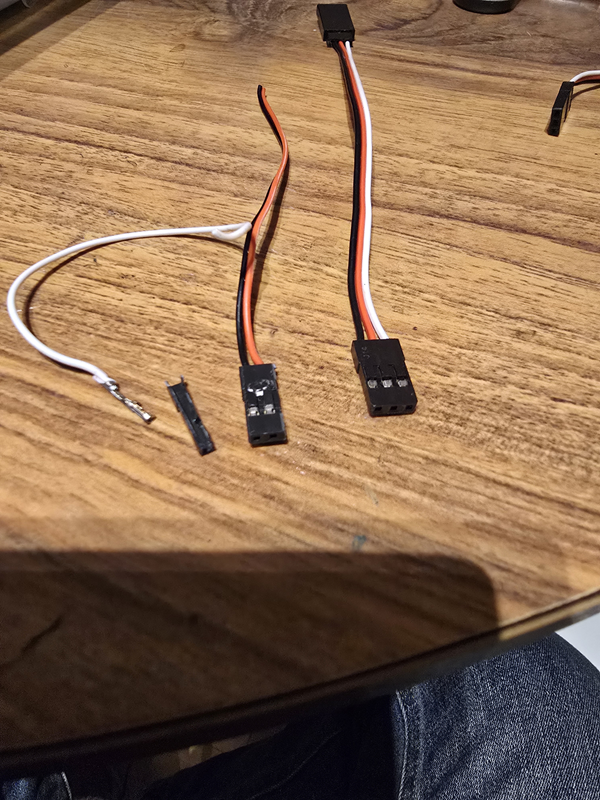

I then used a normal 3 wire servo to rx plug with the white wire and plastic removed
CV 6.png
CV 6.png (904.78 KiB) Viewed 118 times
Soldered the plug to the led wires and plugged it into led port 3 on the mfu and it can now be switched on off from the tx

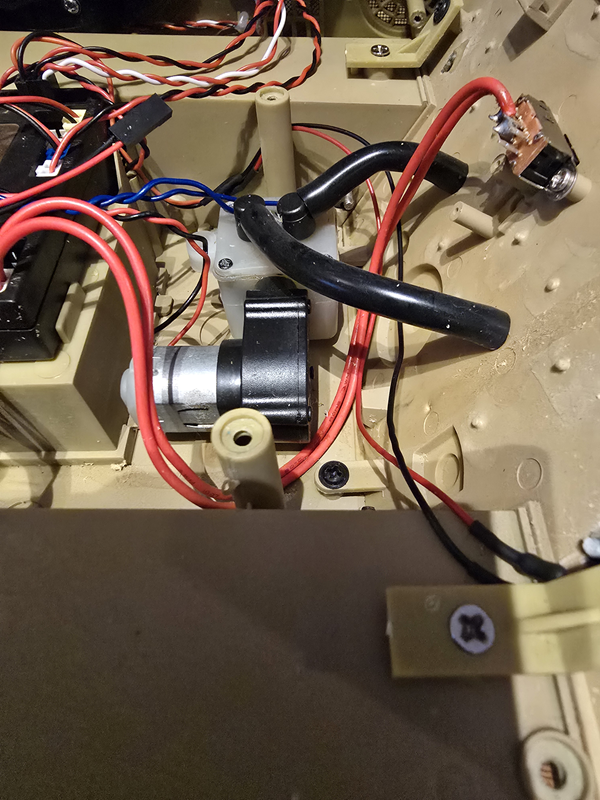

routed the wiring so it wont foul anything in hull
CV 7.png
CV 7.png (807.61 KiB) Viewed 118 times

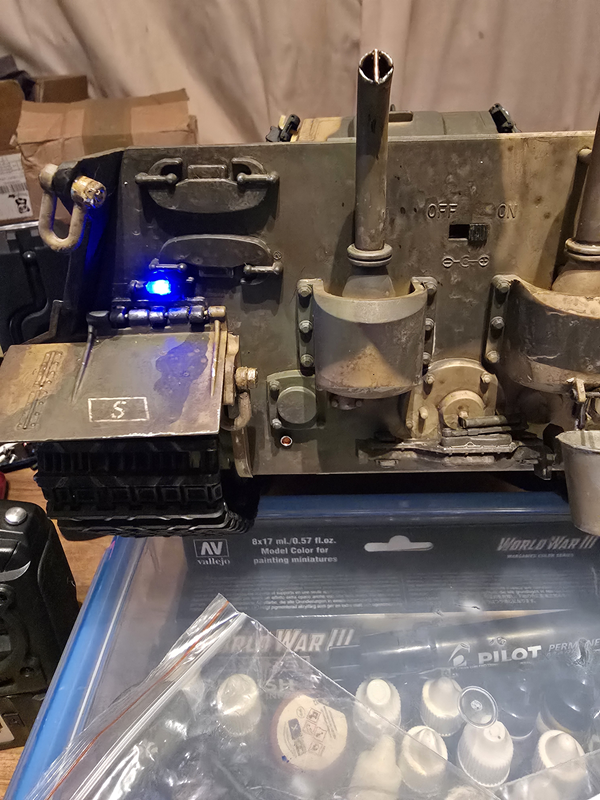

and finished light
CV 8.png
CV 8.png (805.25 KiB) Viewed 118 times
oops forgot to mention i had to cut a bit of the led tip to fit the tubing as it protruded a good bit through the rear panel
Cheers
Alan

Let slip the cats of war!!!!

Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
Arffchief
Recruit
Posts: 4
Joined: Fri Dec 05, 2025 2:25 pm
Location: USA-MARYLAND

Re: King Tiger convoy light

Post by Arffchief »

Hi Alan. Nice work. It looks great.
User avatar
Stormbringer
Sergeant
Posts: 743
Joined: Wed Aug 06, 2025 8:24 am
Location: Near Edinburgh Scotland

Re: King Tiger convoy light

Post by Stormbringer »

Cheers mate :thumbup:
Cheers
Alan

Let slip the cats of war!!!!

Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
User avatar
STHV
Corporal
Posts: 273
Joined: Thu May 17, 2018 9:47 pm
Location: Hertfordshire, UK

Re: King Tiger convoy light

Post by STHV »

German convoy lights were green
Panther D (WIP)
Panther A
Panther G
Jagdpanther G2
Tiger II
Pz.Kpfw. VIII Maus V2
Pz.Kpfw. II Ausf L
Sd.Kfz. 222
Sd.Kfz. 234/2
Leopard 1A1A1
Turm III
VK 45.01 (H)
Churchill VII
Chieftain Mk 3
Gepard 1A2
OF-40 Mk.2
M4A3 (76) W HVSS
User avatar
Stormbringer
Sergeant
Posts: 743
Joined: Wed Aug 06, 2025 8:24 am
Location: Near Edinburgh Scotland

Re: King Tiger convoy light

Post by Stormbringer »

well books ive read said either green or blue as they werent sure on colour
anyway I prefer the blue
Cheers
Alan

Let slip the cats of war!!!!

Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
User avatar
PainlessWolf
Colonel
Posts: 7860
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: King Tiger convoy light

Post by PainlessWolf »

Alan!
I had been thinking about how to connect the Convoy Light to the 7.0 MFU and you provided the answer before I asked any questions. Solid! Once again, some very well done scratch building.
regards,
Painless
...Money!? What's that!?...
User avatar
Stormbringer
Sergeant
Posts: 743
Joined: Wed Aug 06, 2025 8:24 am
Location: Near Edinburgh Scotland

Re: King Tiger convoy light

Post by Stormbringer »

Thx Painless and glad to be of help :thumbup:
Cheers
Alan

Let slip the cats of war!!!!

Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
