(SELF PROPELLED ARTILLERY) FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

This section is for builds done in groups and collaboration on projects!
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

(SELF PROPELLED ARTILLERY) FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

https://mikesresearch.com/2020/05/24/fe ... ern-front/

Well folks, its been a decade since I got this into my life & its been scaring the :poop: out of me since!
As it has the worst reputation as a kit of all makes, this is no doubt going to be a mission of frustration and relief.
When/if it gets done I intend to run it less than any of the others, & thats RARE !!
I dont have a 184 of my own, but have repaired one of a mates that I damaged ages ago, and rather than the next project being a simple get it done thing, this is a proper project.................... :problem:

As Im also a PITA & cant just do a thing as it was meant to be out of the box, I have a plan to backdate this Elephant to a correct early Kursk Ferdinand.
I even have early tracks for it with the plain treads that came from Rome as a fluke deal again years ago.
I have a donor upper casemate that was accumulated some years ago from a very benevolent and philanthropic Gent that prefers not to have the attention but he knows well enough that I humbly appreciate his gratuity and hope I can do his parts justice.

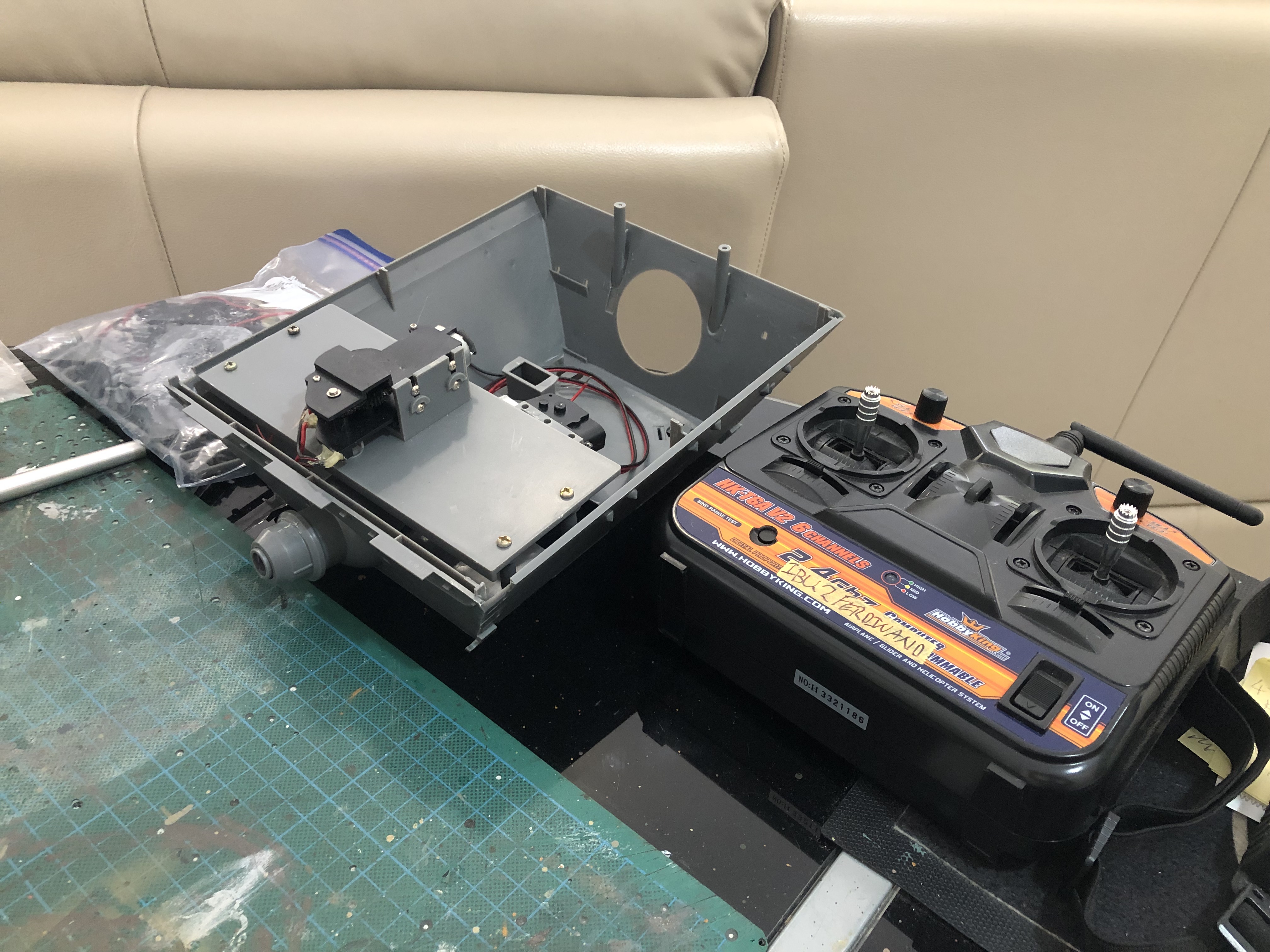

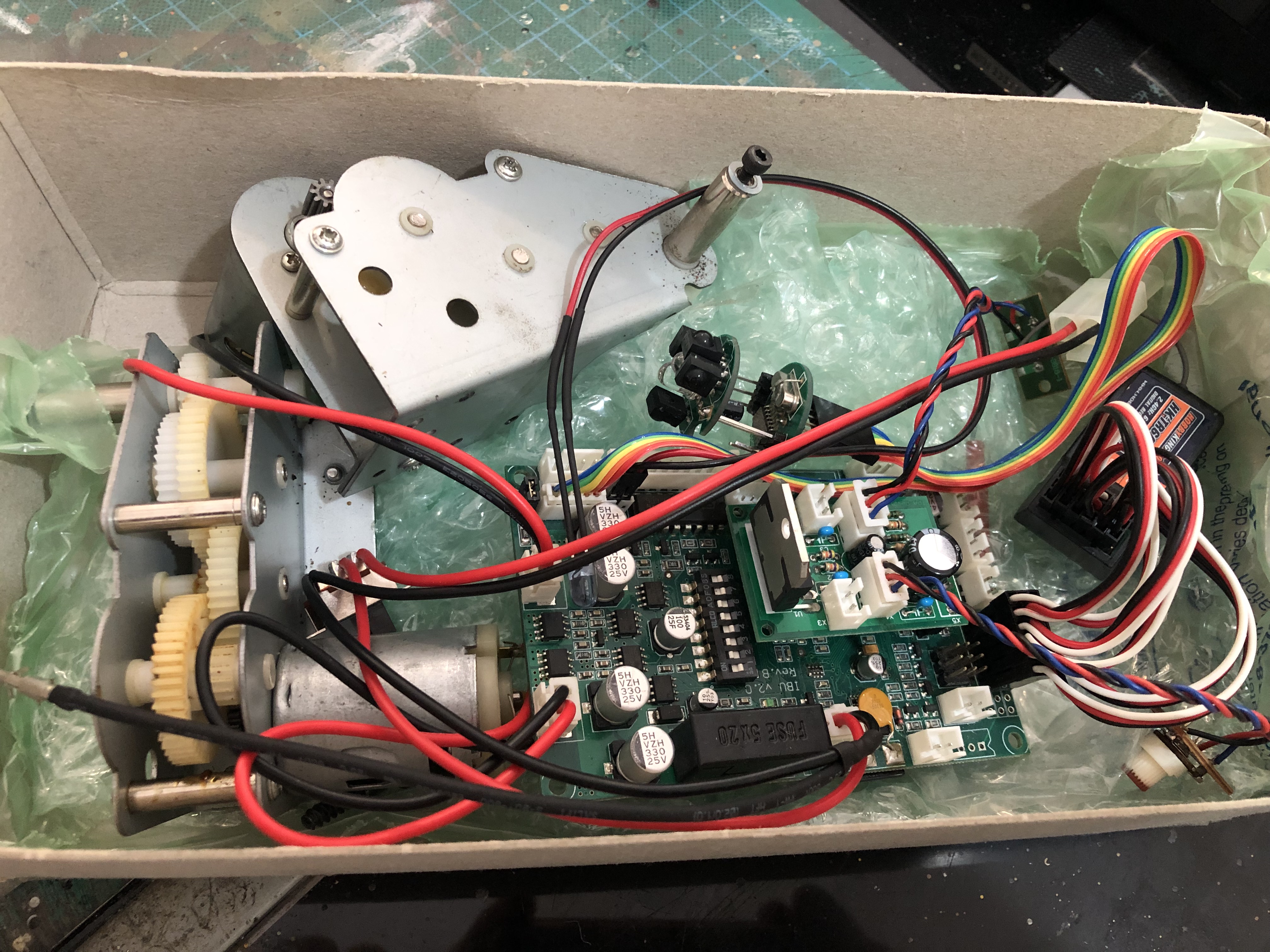

I have an old IBU2 with an amp that has been set up but never switched on since 2017 that was got just for this. I need speakers though.
There will be a fair ole bit of work to get this thing backdated & right to be an actual Ferdinand rather than an Elephant, so its not without trepidation that I embark on this certain long mission.

The link above is the fountain of info I am tapping into & after toying with the one that has the skull & crossbones on the front, decided to do this one instead.
Right front guard missing, seemingly 2 toolboxes on the right side one partially covering the Balkankreuz,, no rear guards and camo netting on the right front corner of the casemate.

Even the box is imposing :crazy:

"Got Mit Uns"& away we go ;)
Attachments
FERDINAND 3.jpg
FERDINAND 3.jpg (84.01 KiB) Viewed 719 times
FERDINAND 722.jpg
FERDINAND 722.jpg (59.43 KiB) Viewed 719 times
FERDINAND 2 Oberfeldwebel Klarmeyer.jpg
FERDINAND 2 Oberfeldwebel Klarmeyer.jpg (35.15 KiB) Viewed 719 times
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: FERDINAND 722, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: FERDINAND 722, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

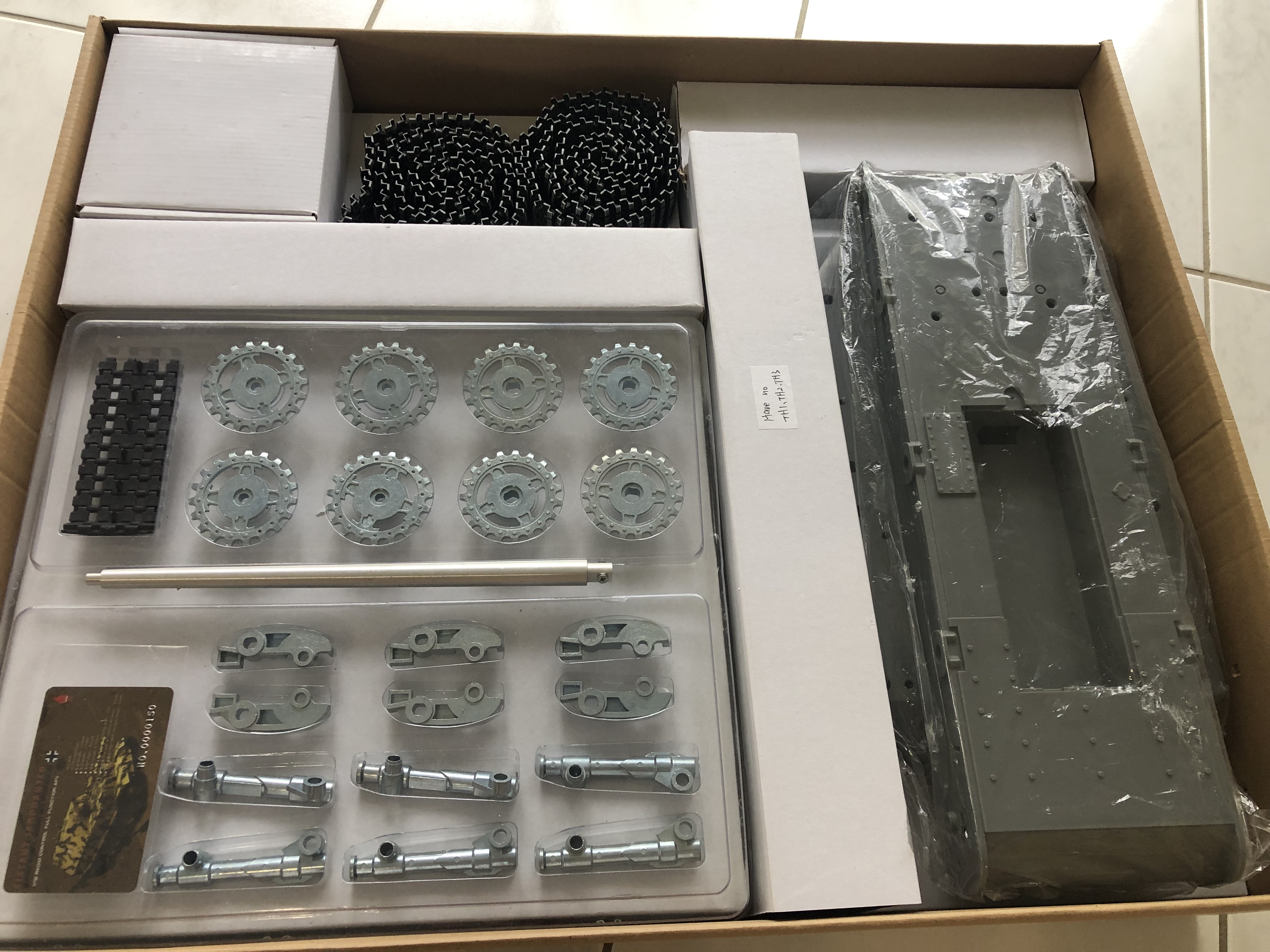

And on opening the lower hull out of the plastic bag I see its dated 2010.
Let the games begin !!
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

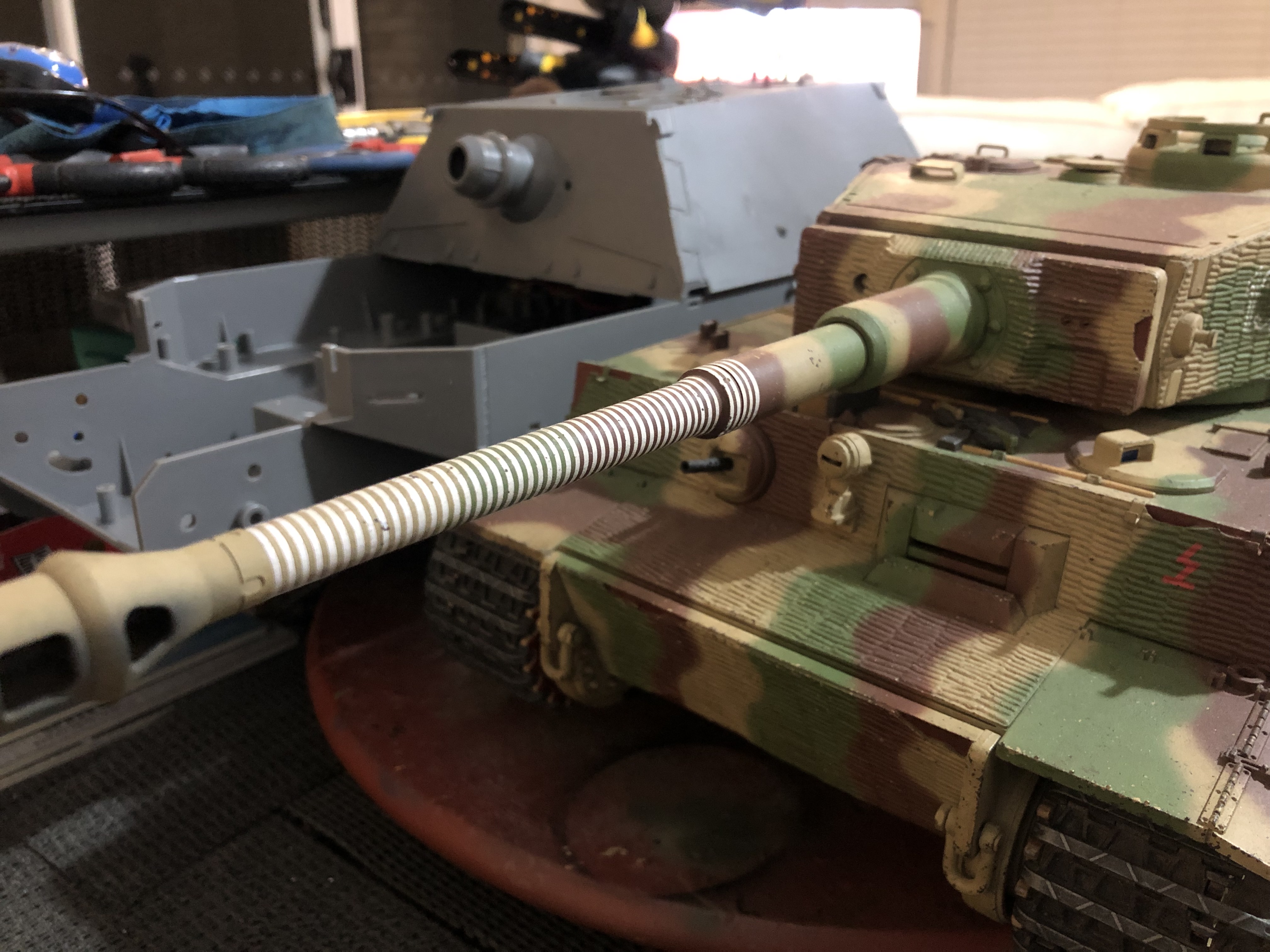

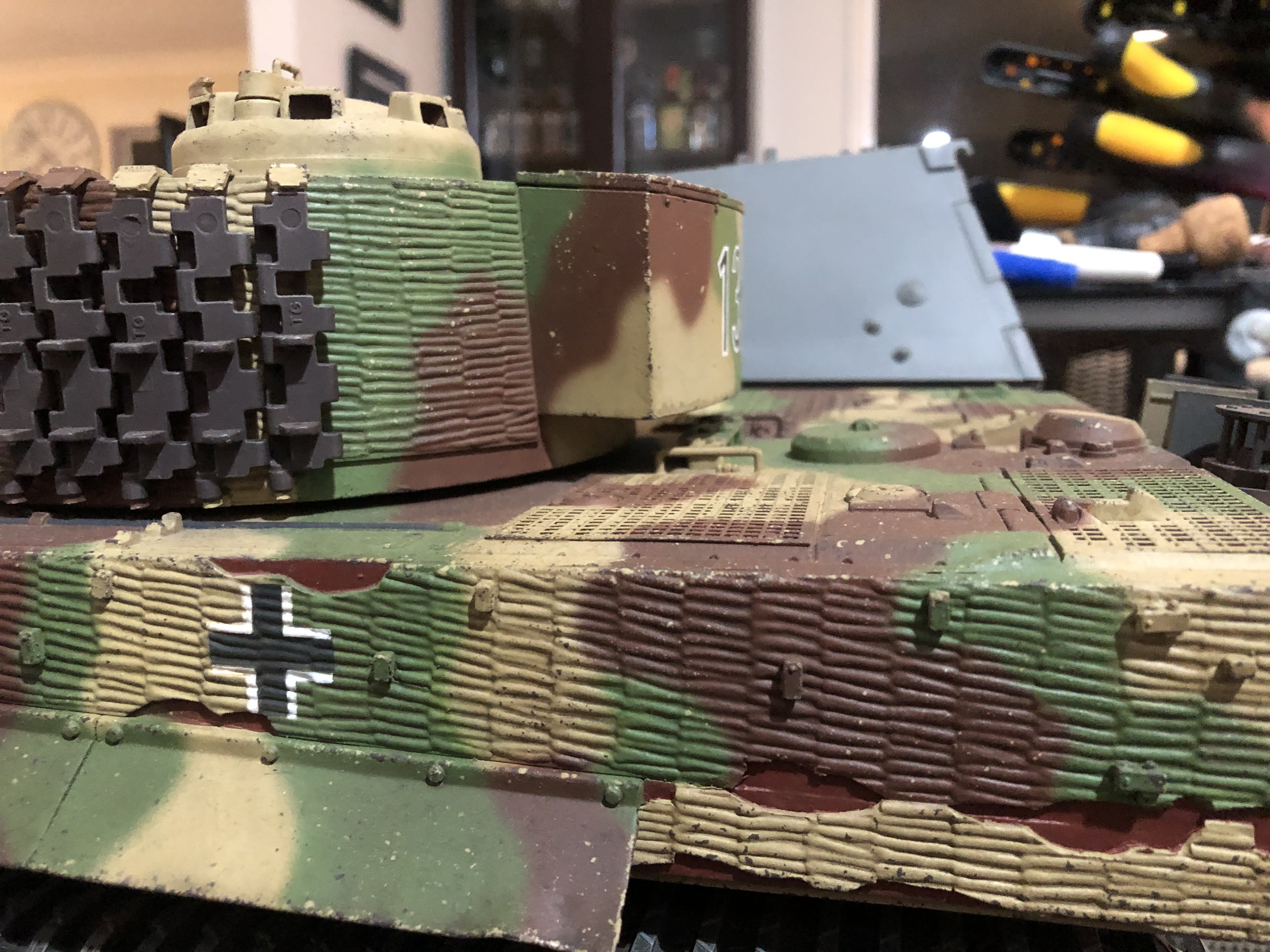

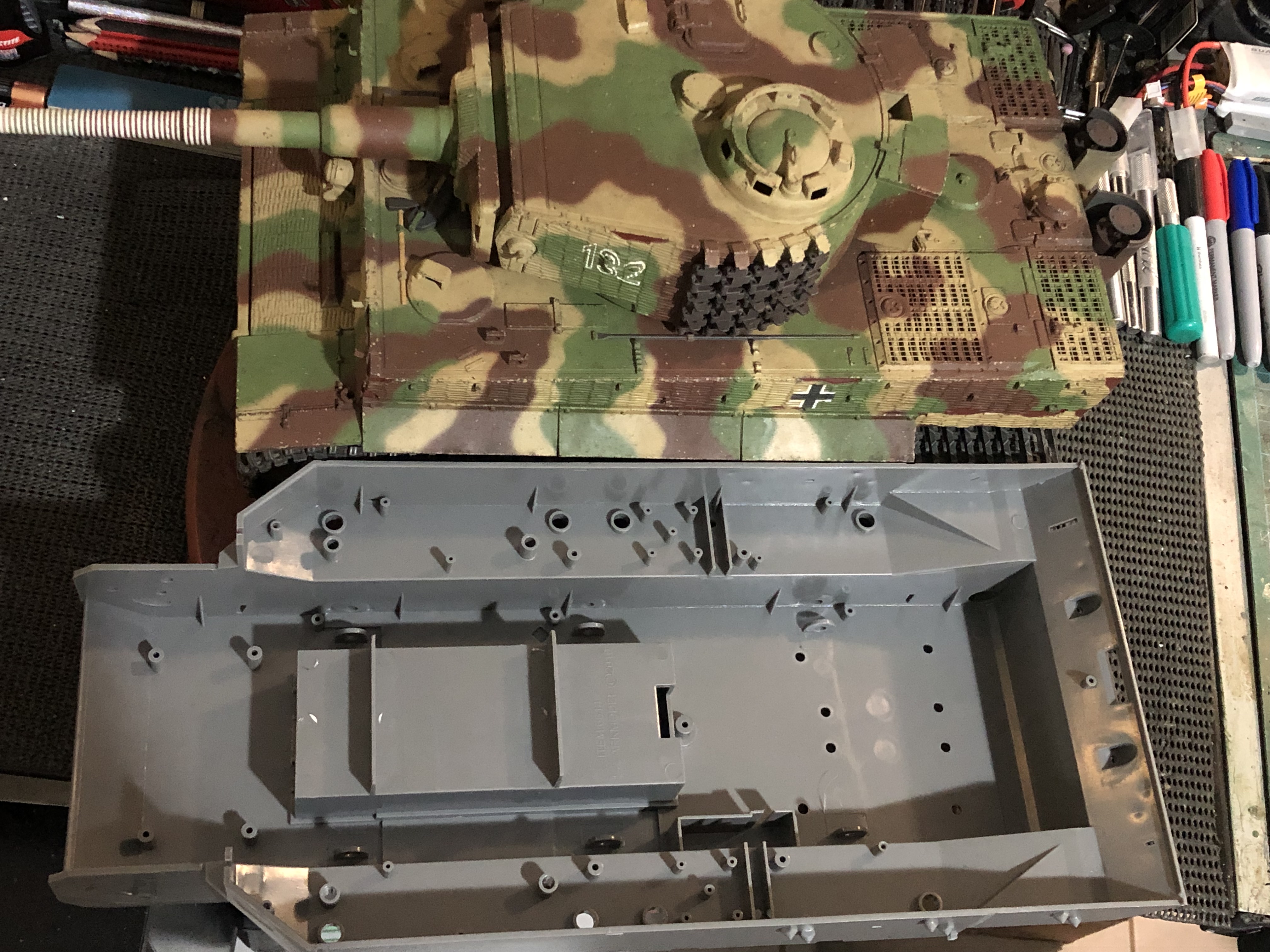

For those that have not seen a 16th Elefant at all, heres a scale comparrison...........

Taigen Tiger 1

Hooben Elefant lower hull

A fearsome weapon in its day, but jeez, no wonder they were shell magnets :/
Attachments
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
AlanWhite
Lance Corporal
Posts: 115
Joined: Wed Aug 06, 2025 8:24 am
Location: Near Edinburgh Scotland

Re: FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by AlanWhite »

this looks like an interesting build :thumbup:
Cheers
Alan

Let slip the cats of war!!!!

Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
User avatar
Herr Dr. Professor
Major
Posts: 5565
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by Herr Dr. Professor »

I will be cheering for you, Bix! About 2010, Andrew Haya was selling built-up Hooben Elefants with then-current (now obsolete) HengLong electronics. I am quite careful, perhaps too careful, with all my RC AFVs, so the old Elefant is still trumpeting. Somewhere among the array of AFV information on this PC, I have the downloaded instructions for the Hooben Elefant because all along I wanted to be ready should repairs be needed.
User avatar
Kaczor
2nd Lieutenant
Posts: 2267
Joined: Fri May 18, 2018 9:58 am
Location: Ciechanow, Poland
Contact:

Re: FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by Kaczor »

Good luck! I still have this set collecting dust on my "shelf of shame" ;)
User avatar
MrChef
Warrant Officer 1st Class
Posts: 2126
Joined: Sat Jan 28, 2023 2:58 am
Location: York of New

Re: FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by MrChef »

-breaks out the popcorn...

Mr. B. if for anything please share all the highs and lows...
"Charlie don't surf"- Lt. Col. Bill Kilgore
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: (SELF PROPELLED ARTILLERY) FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

(Breaks out the hard Liquor)

Oh there will be plenty of those mate :/
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
HERMAN BIX
Major-General
Posts: 11484
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: (SELF PROPELLED ARTILLERY) FERDINAND 722, Kursk, Sch.Pz.Jg.Abt. 654, Oberfeldwebel Klarmeyer

Post by HERMAN BIX »

AAAAaaaaaaannnnnd heres the first one :'(

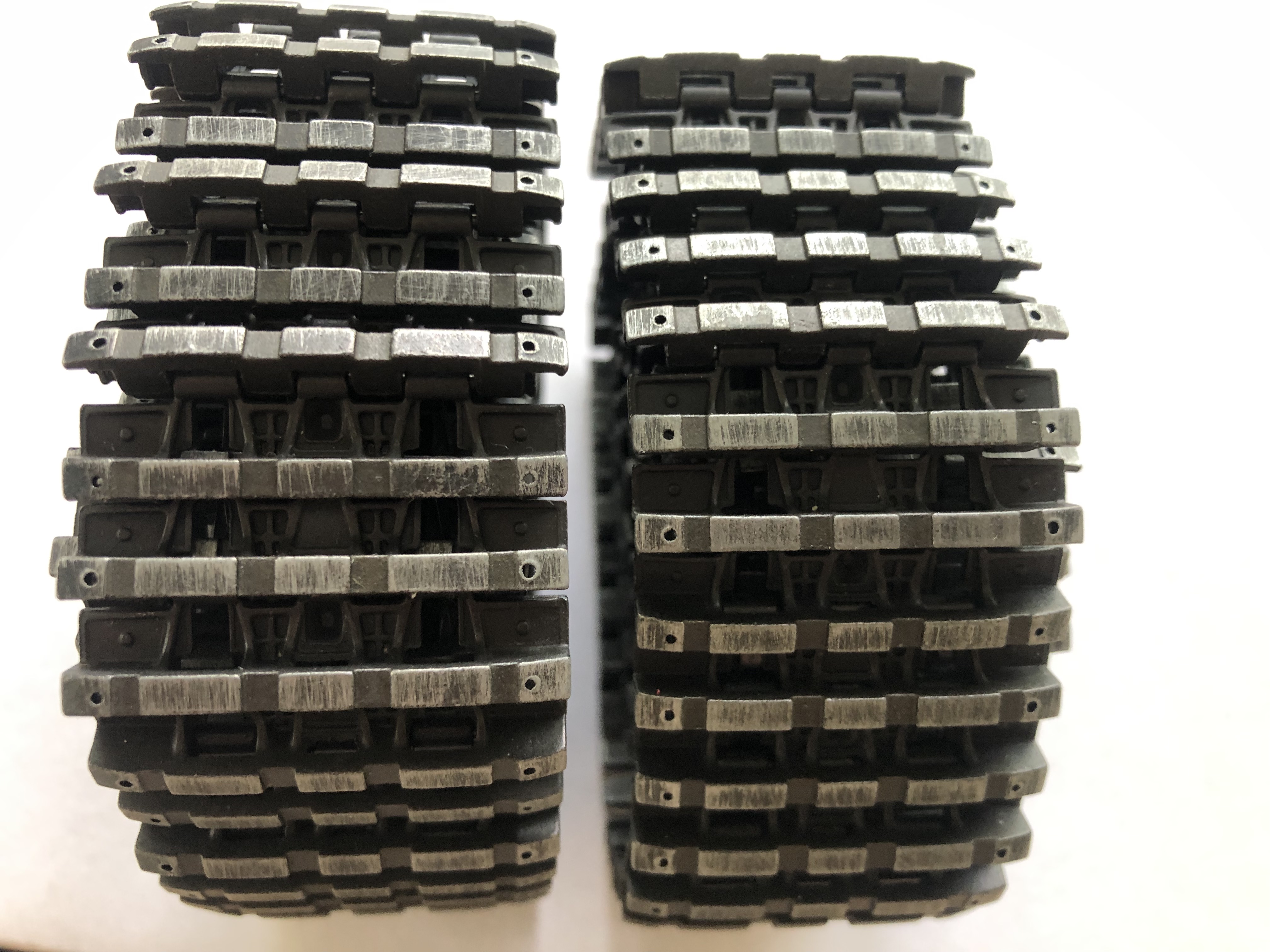

The precious tracks I got years ago from a guy in Rome, the early ones that turn out to be Asiatam...............
Dont fit the sprockets :headbang: :headbang:

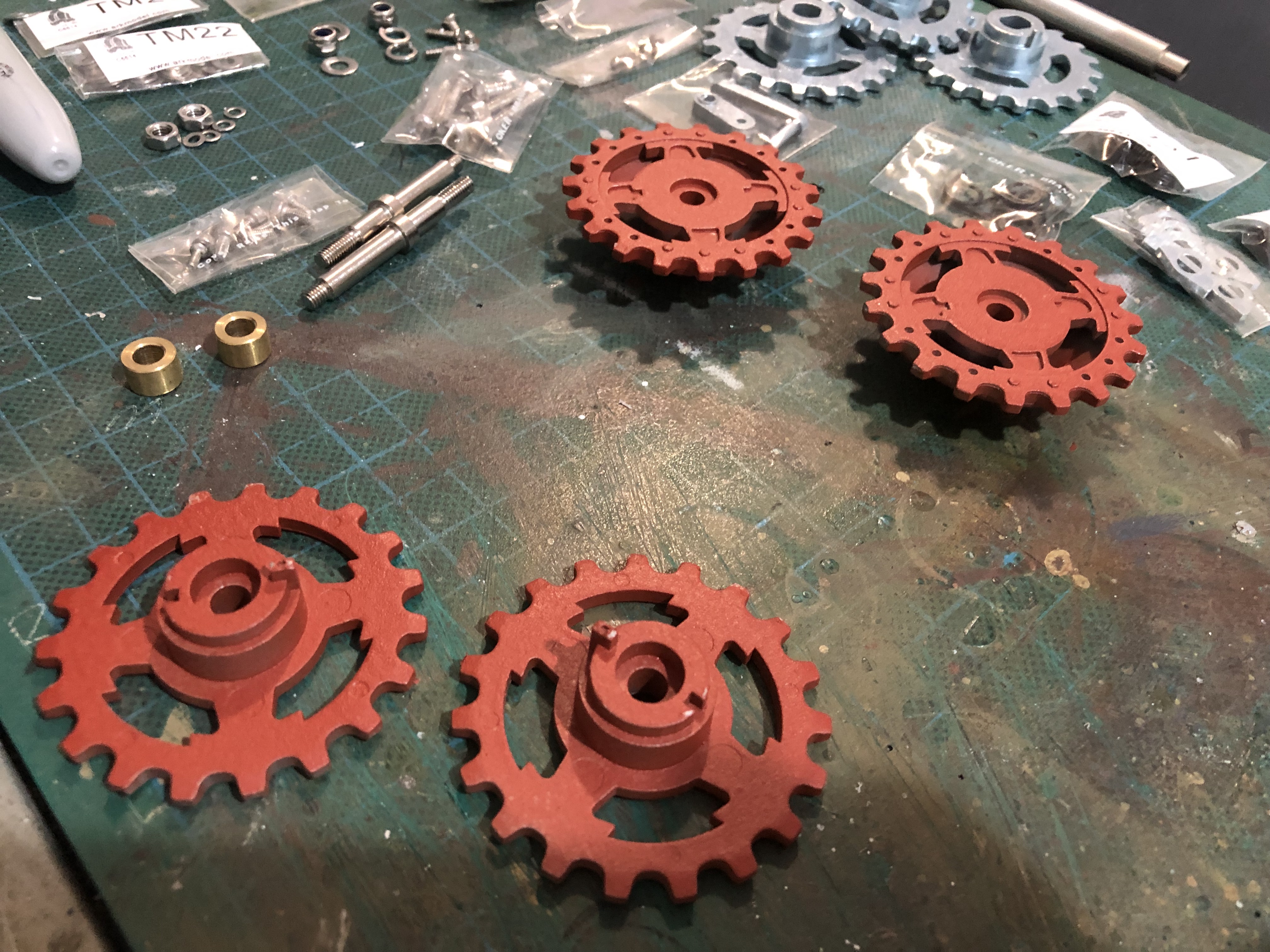

The sprockets are too wide.

I will need to delicately machine the tooth rings thinner on the inner and outer faces or each set to fit the track drive slots.
I can do/get this done, luckily, as aside from some minor nuances between turning a later Elefant into an early Ferdinand, if the tracks aint early, its not a Ferdinand & thats a non-negotiable for me.
There appears to be enough meat in the sprockets to allow sufficient thinning without risking failure, but again, the amount of use this thing is likely to see will negate the risk of wearing them out !!

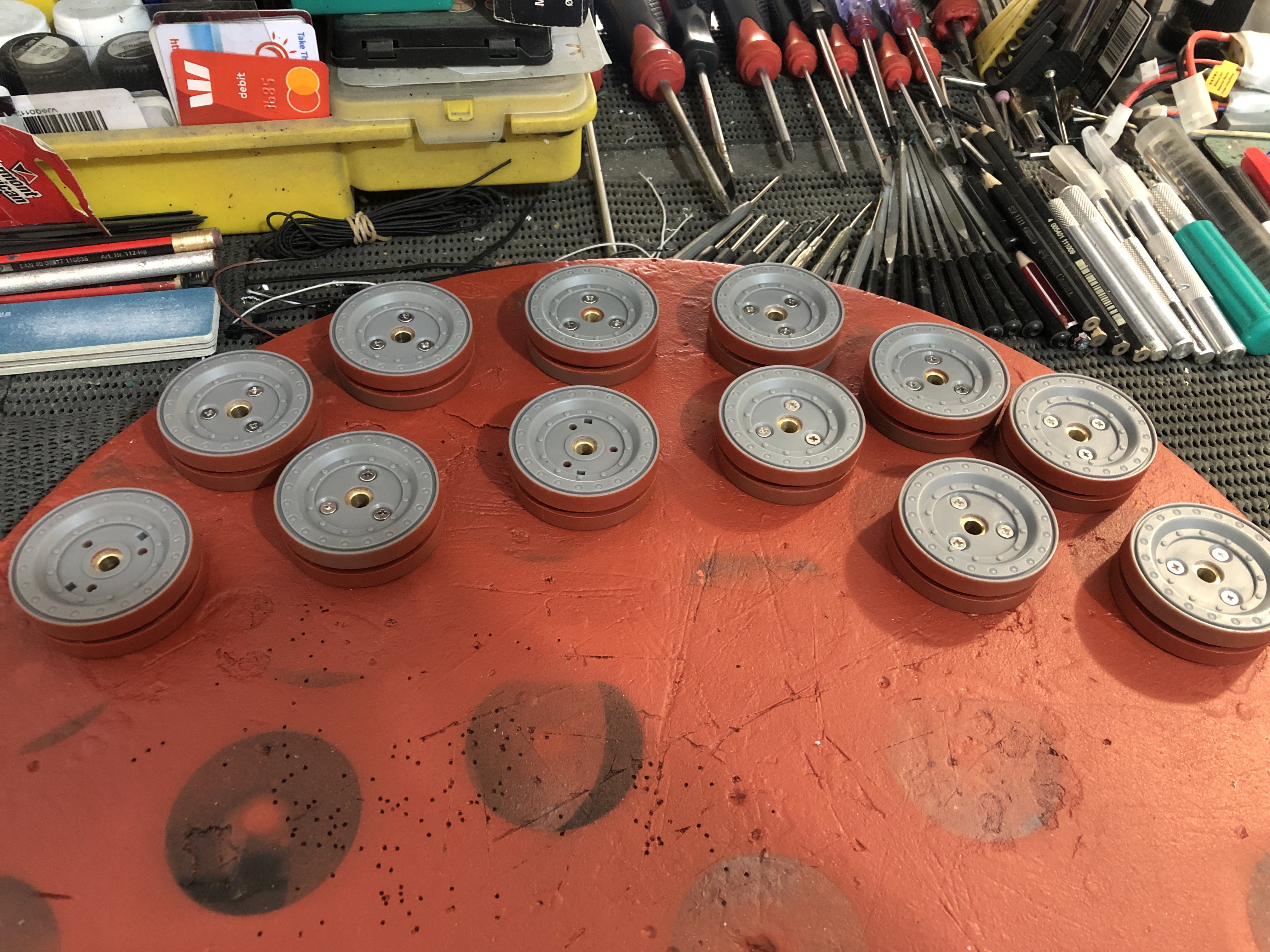

Another surprise :O was finding out that the gap in between the roadwheels of the stock set is too tight to go over the Asiatam track guide horns :-< Another punch in the face, but one I can wipe the blood off & go again next round....

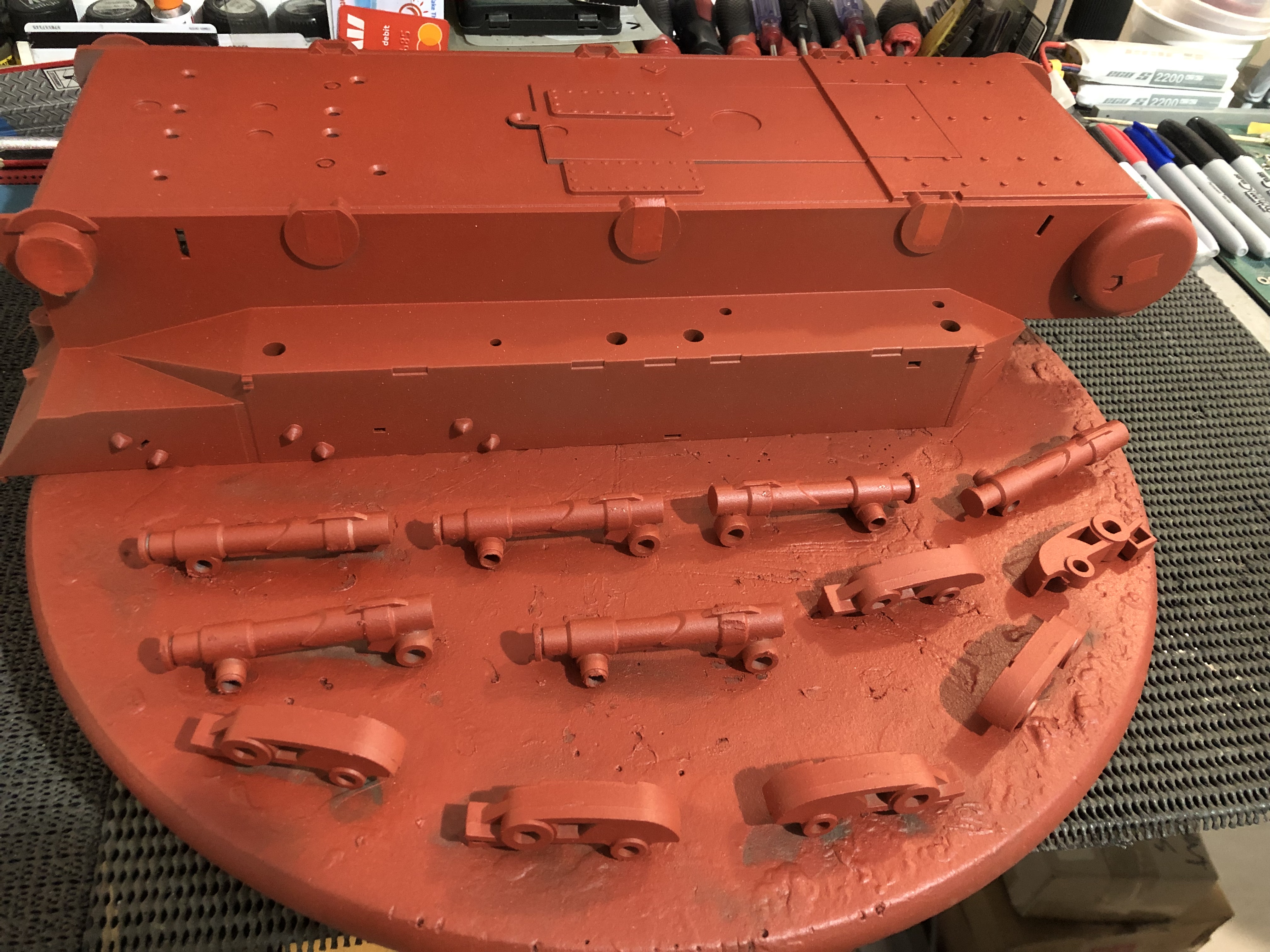

I even managed to get primer on the lower bits I need to fit that wont take paint real well, nah, I just needed some semblance of progress to offset the hassles i've highlighted.
Bloody thing is like a PzIV :/
Attachments
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
