Torro Barrel recoil-IBU2 Ultimate

[zippersnapper]

Can anyone help me with this Torro Barrel recoil/elevation unit? The elevation I have figured out as its pretty straight forward, but the recoil leaves me sratching my head.


I stumbled across this video, and thought this may be the answer even though it was for another board, but Im stuck without knowing where to plug into the IBU2. 3 pin JST into the Taigen recoil port maybe? My pinout diagram has all polarity markings with the exception of the before mentioned Taigen recoil port.
https://www.youtube.com/watch?v=lFB5zhplN2Q&t=403s

I can solder everything back to stock if need be, so thats no worry, and I do have everything to make up JST & Dupont connectors. This is my 3rd IBU2 and I love them, but the other 2 went into servo driven recoils not motor driven. This Torro unit has 2 sets of contact switches thats throwing me for a loop as well. This tank is IR, not airsoft.

I even tried setting the .ini for a 1725 millisecond pulse and its super close, but quickly gets out of time so thats a no go.
Please help?

[john1970]

You will need to rewire it the way it was the red wire in the 3 pin plug supplies a live for both motors if you have a blue wire and a white wire that went to a switch in the turret you will need to join them together. it is wired the same way as a bb gun and elevation unit is the only difference is the black wire with the bullet connector, that needs to connect to a permanent earth to the battery negative or the negative on the on/off switch

As far as i can tell by the manual the IBU2 boards still use the 8 pin turret connector so the 3 pin plug from the unit will plug back into the 8 pin daughter board

[zippersnapper]

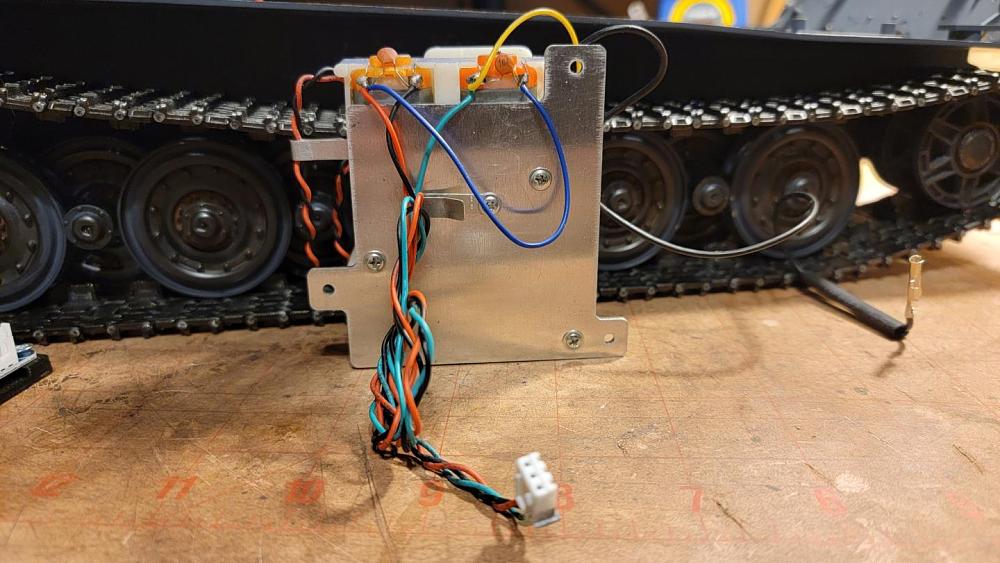

John you are SO very helpful, and I cant tell you how much its appreciated. OK, let me make sure I undertand. Yes, The IBU2 still has the 8 pin Henglong port, and I undestand the positive of both motors ties into the +Barrel/Recoil pin position. The negatives on that same 8 pin JST for EACH individual motor reside just below the common positve. The daughter board has been removed completly though. The limit swtch with the black/red wires is not used? and the limit switch with yellow/black wth bullet is used and that black wire goes to ground-got it. Here is what the back of the unit looks like, with the 3 pin JST.


[zippersnapper]

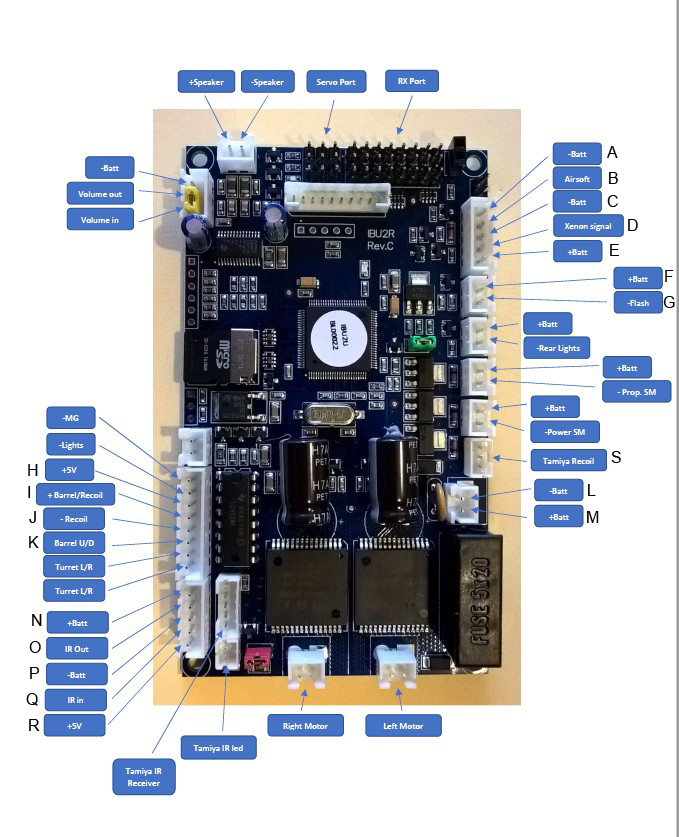

Here is the Board pinout

[john1970]

so you know where to plug in the 2 negative wires for the recoil unit?
The red/black microswitch wires should plug in with the xenon flash unit
The flash unit has 3 wires going into a 5 pin plug the other 2 wires on the 5 pin plug should have a female jst connector on them this is where the red/black plug goes. on the top right of your diagram there is a 5 pin socket with -batt/airsoft/-batt/xenon signal/+batt that is for the xenon flash try it with out the red/black socket plugged in if you get no gun fire noise or flash then plug it in

[Jofaur86]

For more info, here is the connection diagram on the 8-pin plug, with the existing colors of the connecting cable !!
upper chassis and plate,Ibu


[zippersnapper]

MOST appreciated kind sir !!

[zippersnapper]

Just so I dont screw up a rather pricey board, and to make everything pefectly clear (yes, Im stupid), Can you please tell me what ports I tie into? Such as #1 goes to A, so forth and so on.


Screenshot 2022-10-14 223857.jpg (350.56 KiB) Viewed 2827 times

PIns C,D,E,F,G will be used for a barrel flash/smoke unit as is the case in my other tanks. John & Jofaur86 thank you so much for gettimg me out of this bind. This tank has me somewhat worried as it will work or not...

[Jofaur86]

Hello,
if you did not touch the wiring? difference with mine? it should be like this with your current colors:
blue with yellow
black with blue
the red (common) with the brown of the 8-pin plug, and unless I am mistaken!! in reality, there is a common wire, (the red in your case, and the other two returns, a for each engine. Keep us informed of the result

[Jofaur86]

if can help even better ...here are the colors at my place
