HL/Trumpeter Panzer IV Beob ausf J Hybrid
Hey guys,
As I am building a Hummel, I am in need of a reco tank for it ! This was the role of Panzer IV beob, which was fitted with a StuG III commander cupola, lots of radios and antenaes !

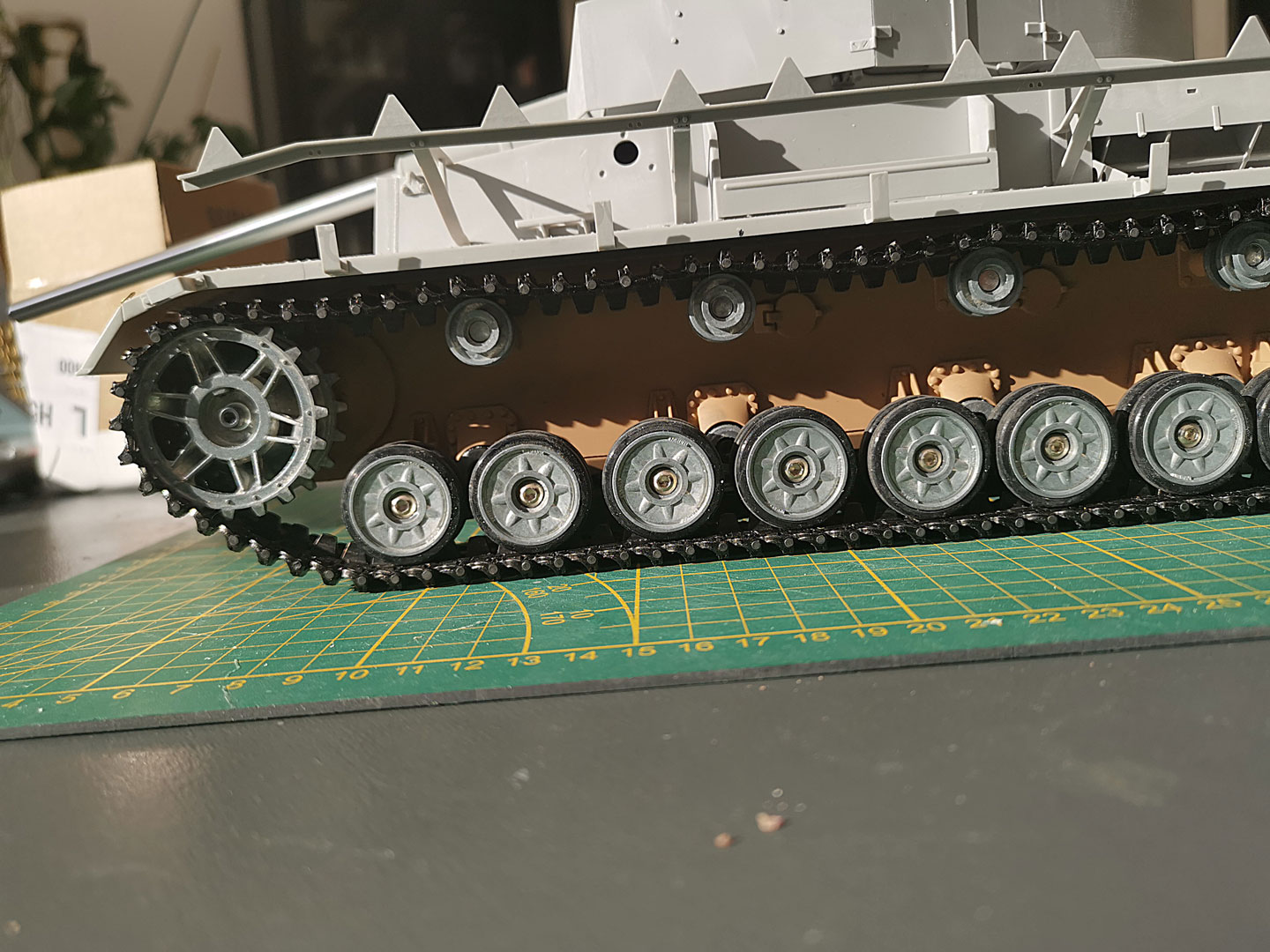

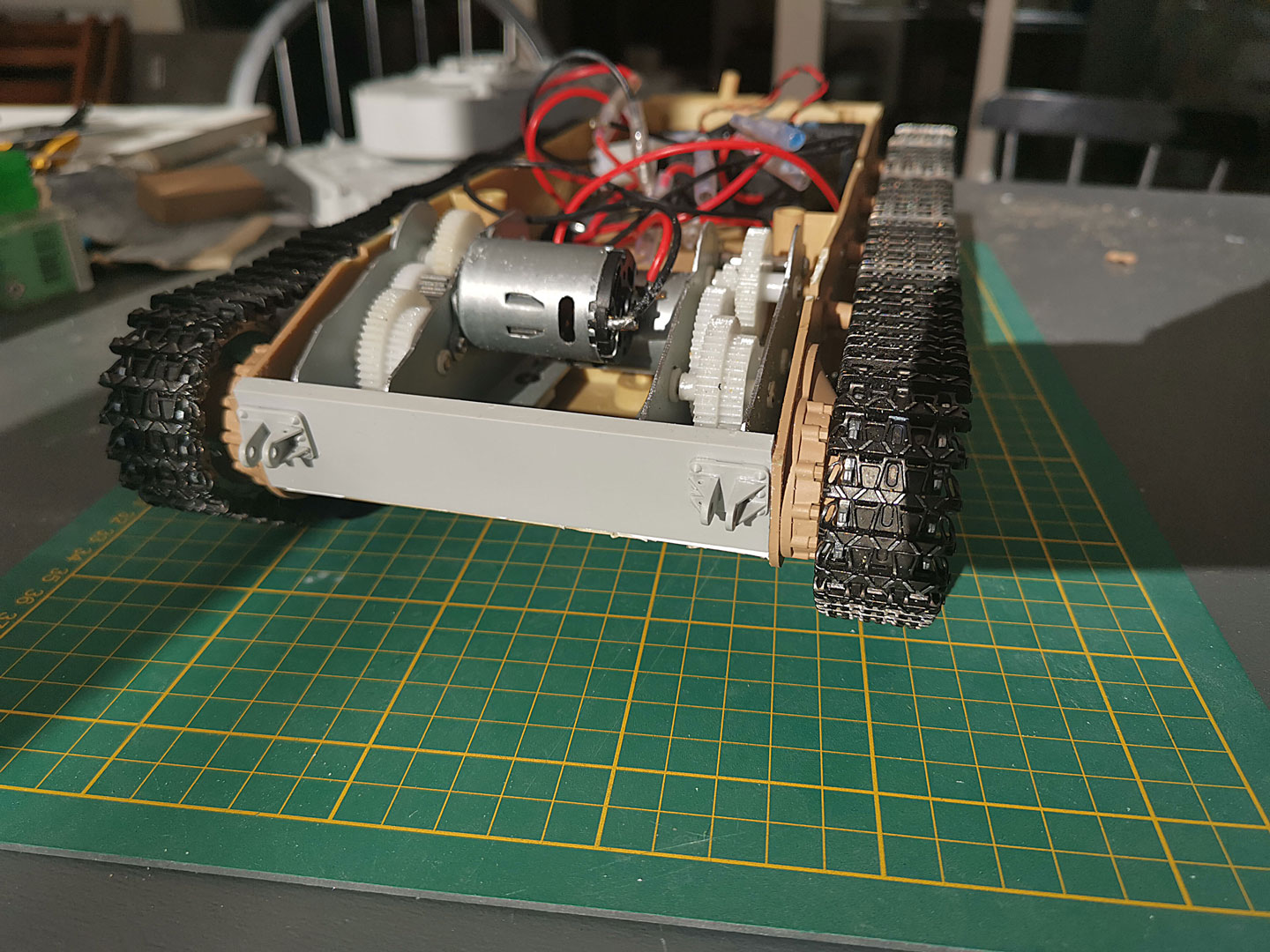

I thought I would have had a hard time trying to mate the Trumpeter upper hull on the HL chassis but it was actually a pretty straight forward job. I had to grind the inside of the hull though to make more room for the gearboax that I moved up by 3mm to get the sprocket top in line with the first return roller top.
I havent lowered the 4th return roller yet. I will build a custom track tensioner like I did for the Hummel too.
I used a Mato set of metal wheels and late all steel return rollers. I must say I am very disappointed by quality and poor design of them. The Taigen wheels I used on the Hummel are much better but unfortunatly they come with early rubber/metal return roller. If you put the mato wheels on the metal HL or Taigen suspensions, they are not aligned with the sprocket/idler/return roller. I fixed the issue but I may consider buying another set of Taigen wheel at some point.
I have the Mato metal sprockets and idler, and the metal tracks as well. Here's again the sprockets teeth need a lot of fine tuning so the tracks can work well.

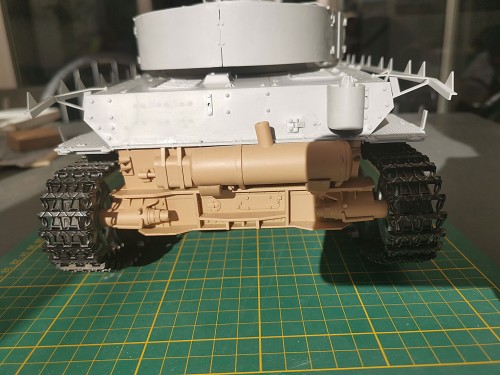

I'm going to chopped of the details of the HL rear chassis blukhead and replace them with the HL details.
Room is limited in the turret, since the rear basket is a separate parts like on the original, it cant be used for the recoil and elevation system. I'll see what I can do here.
I've remade the chassis Schürzen with 0.5mm styrene (not pictured here). I'm not sure I'll put them on or not, they are removable anyway.

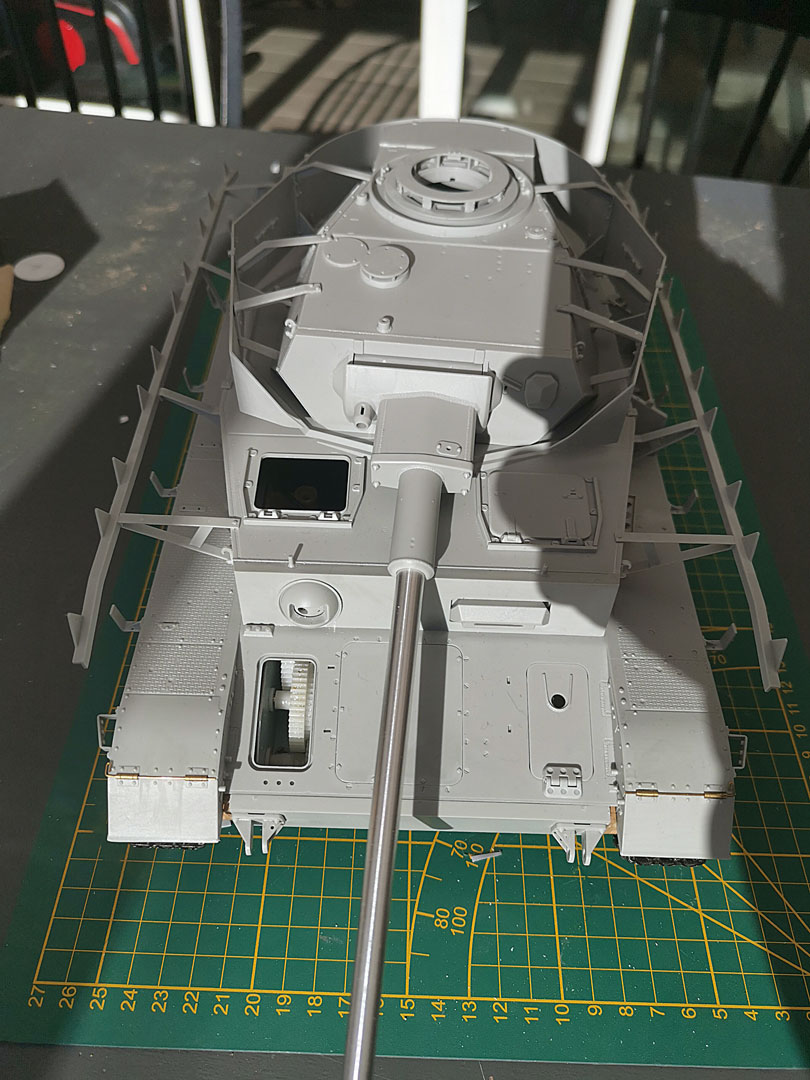

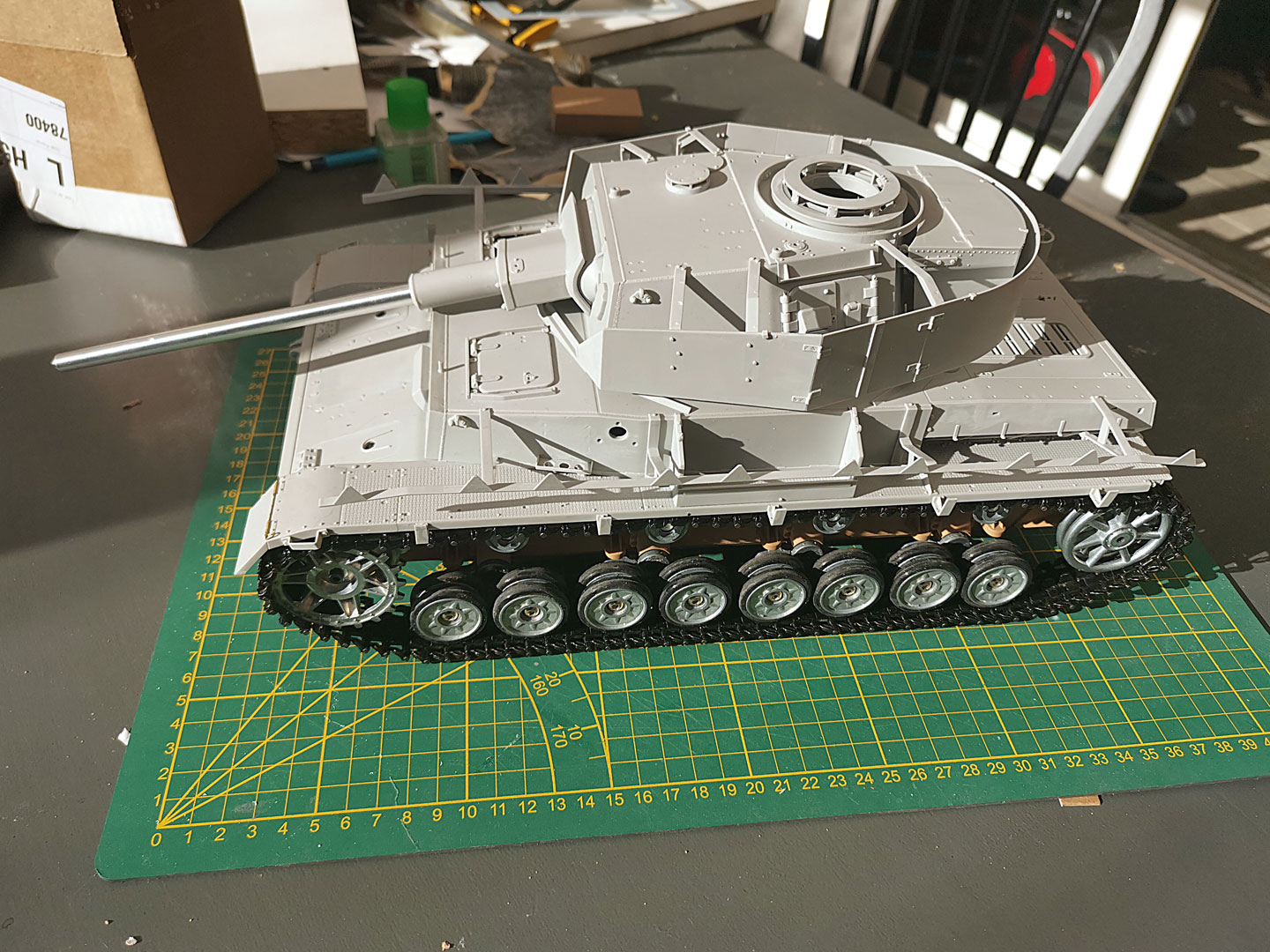

I love the menacing look of it with the support brackets though.
Next job will be to grind all the details of the chassis (dampers, suspension supports) and replace them with Trumpeter details and move down the last return roller.
As I am building a Hummel, I am in need of a reco tank for it ! This was the role of Panzer IV beob, which was fitted with a StuG III commander cupola, lots of radios and antenaes !
I thought I would have had a hard time trying to mate the Trumpeter upper hull on the HL chassis but it was actually a pretty straight forward job. I had to grind the inside of the hull though to make more room for the gearboax that I moved up by 3mm to get the sprocket top in line with the first return roller top.
I havent lowered the 4th return roller yet. I will build a custom track tensioner like I did for the Hummel too.
I used a Mato set of metal wheels and late all steel return rollers. I must say I am very disappointed by quality and poor design of them. The Taigen wheels I used on the Hummel are much better but unfortunatly they come with early rubber/metal return roller. If you put the mato wheels on the metal HL or Taigen suspensions, they are not aligned with the sprocket/idler/return roller. I fixed the issue but I may consider buying another set of Taigen wheel at some point.
I have the Mato metal sprockets and idler, and the metal tracks as well. Here's again the sprockets teeth need a lot of fine tuning so the tracks can work well.
I'm going to chopped of the details of the HL rear chassis blukhead and replace them with the HL details.
Room is limited in the turret, since the rear basket is a separate parts like on the original, it cant be used for the recoil and elevation system. I'll see what I can do here.
I've remade the chassis Schürzen with 0.5mm styrene (not pictured here). I'm not sure I'll put them on or not, they are removable anyway.
I love the menacing look of it with the support brackets though.
Next job will be to grind all the details of the chassis (dampers, suspension supports) and replace them with Trumpeter details and move down the last return roller.
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Greeting Sir,
I have nearly the exact build planned. I will be using a complete Taigen lower, metal wheels and tracks.
I'll be following along withe great interest!
Barry
I have nearly the exact build planned. I will be using a complete Taigen lower, metal wheels and tracks.
I'll be following along withe great interest!
Barry
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
Leonardo Da Vinci
-
- Corporal
- Posts: 385
- Joined: Thu Nov 04, 2021 4:30 pm
- Location: Paris
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Hello Barry ! Which Panzer IV Trumpeter kit do you have ?BarryC wrote:Greeting Sir,
I have nearly the exact build planned. I will be using a complete Taigen lower, metal wheels and tracks.
I'll be following along withe great interest!
Barry
Not sure about the Taigen chassis measurements, I hope it'll be as easy than with the HL chassis !
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Pz.Beob.Wg. IV Ausf.JMonsieurTox wrote:Hello Barry ! Which Panzer IV Trumpeter kit do you have ?BarryC wrote:Greeting Sir,
I have nearly the exact build planned. I will be using a complete Taigen lower, metal wheels and tracks.
I'll be following along withe great interest!
Barry
Not sure about the Taigen chassis measurements, I hope it'll be as easy than with the HL chassis !
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
Leonardo Da Vinci
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Nice. One of my projects is a Panzer IV Ausf. H. I'm combining the Tamiya Ausf. J and the Trumpeter Ausf. H kits. The H is my favorite German tank of WW2.
-
- Corporal
- Posts: 385
- Joined: Thu Nov 04, 2021 4:30 pm
- Location: Paris
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Nice !BarryC wrote:
Pz.Beob.Wg. IV Ausf.J
That's great, Tamiya chassis is very nice but unfortunatly the upper hull, details on their 1/16 tanks are a bit rough (even more considering the price). Trumpeter's kits are not perfect either but they are much more detailled.Maccrage wrote:Nice. One of my projects is a Panzer IV Ausf. H. I'm combining the Tamiya Ausf. J and the Trumpeter Ausf. H kits. The H is my favorite German tank of WW2.
- c.rainford73
- Major
- Posts: 6104
- Joined: Thu Aug 25, 2016 7:34 pm
- Location: Connecticut USA
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Just pulled them out of storage this morning.MonsieurTox wrote:Nice !BarryC wrote:
Pz.Beob.Wg. IV Ausf.J
That's great, Tamiya chassis is very nice but unfortunatly the upper hull, details on their 1/16 tanks are a bit rough (even more considering the price). Trumpeter's kits are not perfect either but they are much more detailled.Maccrage wrote:Nice. One of my projects is a Panzer IV Ausf. H. I'm combining the Tamiya Ausf. J and the Trumpeter Ausf. H kits. The H is my favorite German tank of WW2.
-
- Corporal
- Posts: 385
- Joined: Thu Nov 04, 2021 4:30 pm
- Location: Paris
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Great collection you have there!
What is the Trumpeter kit next to the Abrams?
Can't wait to see you start your Tamiya/Trumpeter build.
It seems like it may happen any time soon now!
What is the Trumpeter kit next to the Abrams?
Can't wait to see you start your Tamiya/Trumpeter build.
It seems like it may happen any time soon now!
- HERMAN BIX
- Brigadier
- Posts: 10411
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: HL/Trumpeter Panzer IV Beob ausf J Hybrid
Good Day Mr Tox
Wondering if you could expand on your method you used to raise the H/L gearboxes in the H/L hull to get the drive sprocket height right ?
That is an ongoing issue for anyone that wants to build a half -descent Pz4 , with our without a Trumpeter upper !
Could you explain how you did that please Sir.
Cheers
Wondering if you could expand on your method you used to raise the H/L gearboxes in the H/L hull to get the drive sprocket height right ?
That is an ongoing issue for anyone that wants to build a half -descent Pz4 , with our without a Trumpeter upper !
Could you explain how you did that please Sir.
Cheers
