Hello everyone,
So I'll show you, my modest transformation from a 1st generation KT Tamiya.
Here is what I started from !!

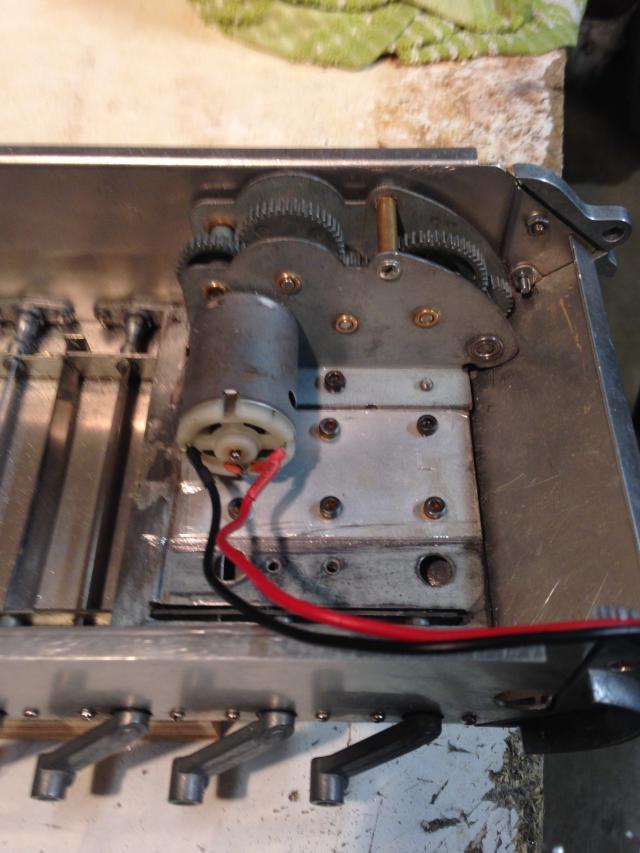

engine adaptation, Heng Long



running gear, bronze bushings, replaced by ball bearings,

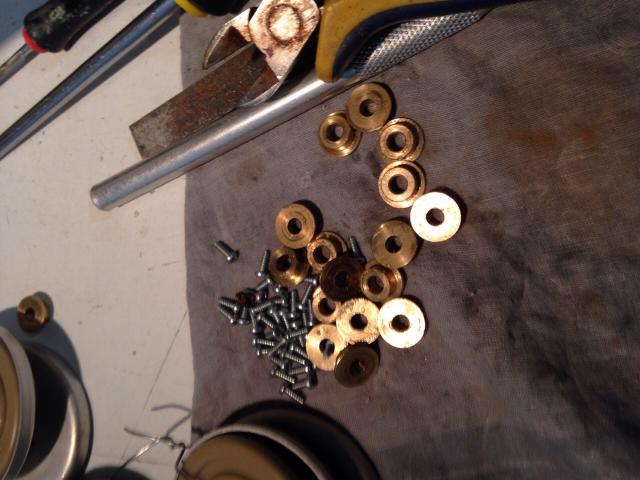

Realîstion (by a friend) of brass spacers rings, and bearings supports, axles outputs boxes




to be continued .....

[Jarlath]

I need to do this as well to a Gen 1 KT hull.

What were your bearings used on the running gear?
For the axle shaft assemblies, is the flanged bearing on the inside and with flanged side towards the hull?

[Jofaur86]

Hello Jarlath
I had found these bearings on Ebay (china) but dating from 2015, the link in my possession is no longer valid, sorry. I will try to find it differently.

[Jofaur86]

Hello
https://www.utaharat.com/36pcs-tamiya-1 ... 836876.htm
https://www.rcscrapyard.net/fr/tamiya-k ... -56004.htm
https://www.motomaxq.com/index.php?main ... id=497929m
For info,désolé in French
https://www.rcscrapyard.net/fr/tamiya-k ... -56004.htm

[Jofaur86]

Hello everyone,
fitting the brass spacer rings on the roller axes

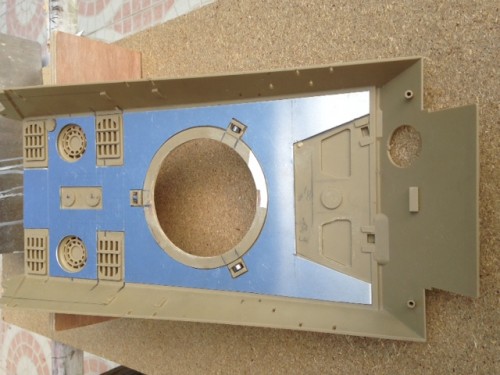

reinforcement of the upper frame

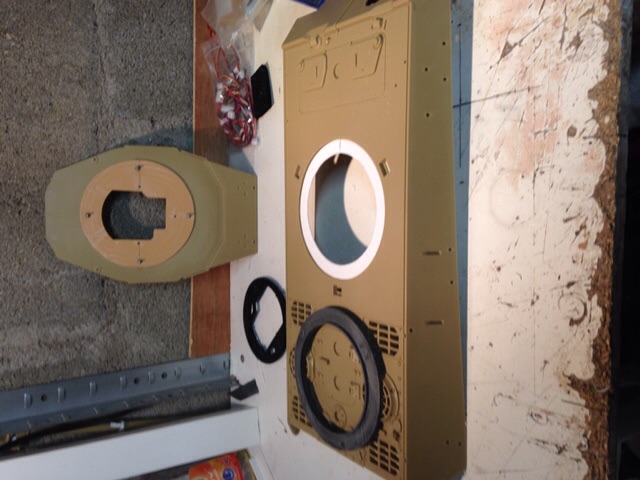

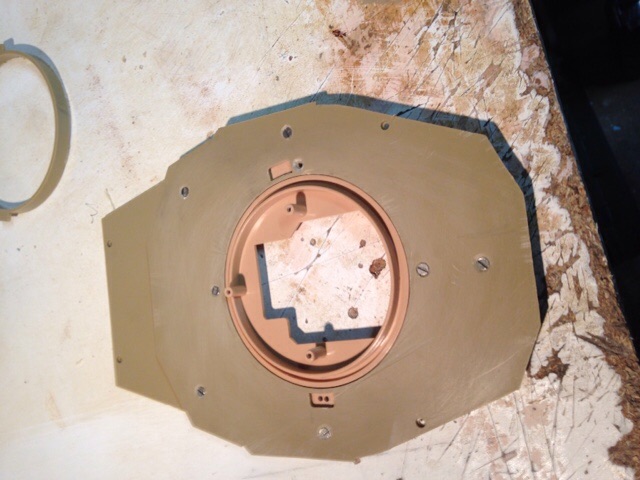

HL crown adaptation on upper frame, and turret well base plate
