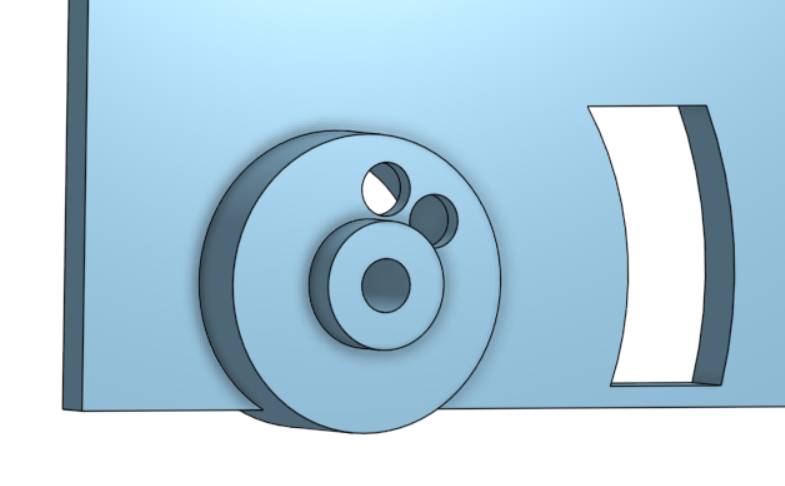

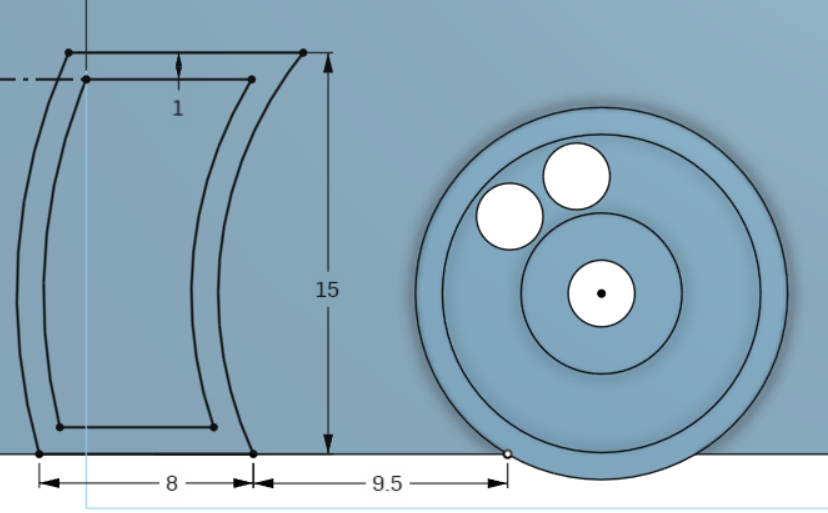

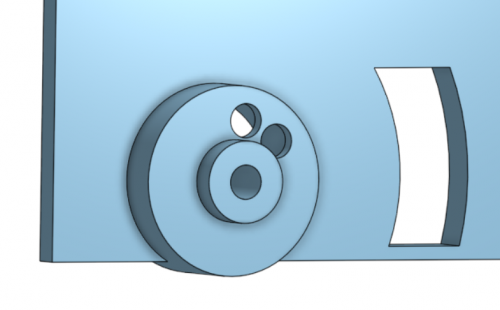

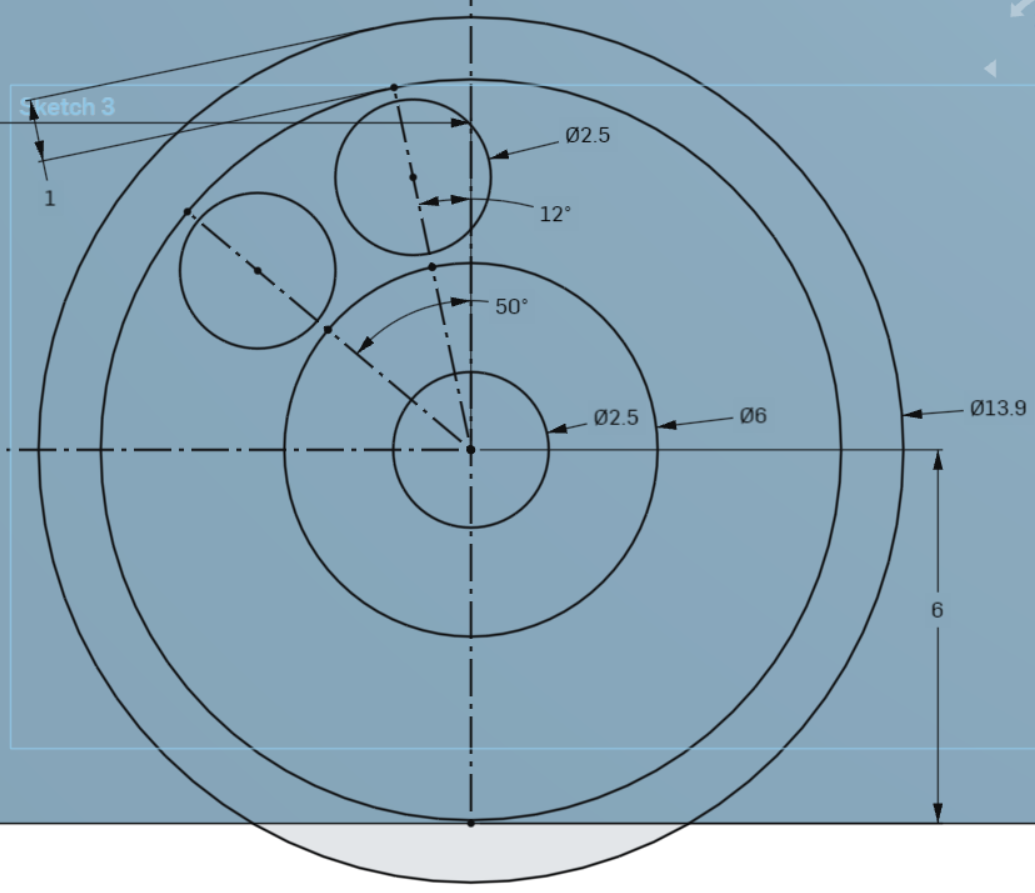

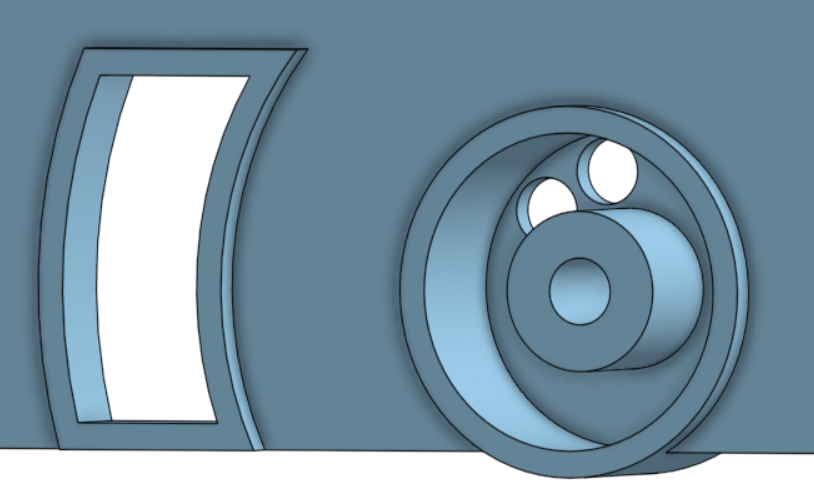

I have a Heng long panther ausf G and I needed to get the measurements of the swing arm support, both the hole with screw and spring and the rectangle to simulate the torsion bar effect. Since I am learning CAD, I have done a model as exact as possible.
Maybe it can be useful if you plan to build from scratch using the heng long suspension system, like me
.You can view online here.
