Useful accessories- miscellany

Post by 43rdRecceReg »

Rooting around for parts, you come across bits that might 'come in handy' later. Or, maybe just fill that one remaining (therefore lonely) unoccupied space in the house :lolno:
I saw these press-fit drive shaft supports at Haya's, and thought that they might have passed unnoticed by some forum members:
Then, I noticed this new-fangled recoil from HL on Forgebear's site:
It works with the TK6.1 series of MFU's. I like the look of it, as it's possible to use the Panther/Sherman elevation unit with it, because it incorporates an elevation guide on the side of the unit. Servo recoil is also catered for, and looks like a doddle to set up. So much so, that I think I'll try to fit it into my Comet. (Famous last words... ;) )
Curiously, the guides themselves are available from rctank.de and can be used to adapt Airsoft guns, as well as the older HL recoil unit, to use the Sherman/Panther- style elevation unit. Or, perhaps even a servo arm.
These are the elevation motor arm guides You can see one fitted to the side of the metal recoil unit (above):
If you check the StuG 111, Sherman of Jagdpanther Airsoft units out, you'll see that the guns gave these channels attached to the sides.
This is the elevation unit:
Then, given the fickle nature of some Airsoft units, it's always handy to have a few of these units to hand- when the gun's 'firing blanks'
Given the cost, it's economic prudence to keep a spare, or two.
In the unlikely event, you're not familiar with Forgebear's website, it's:
https://www.forgebeartanks.com/store/c1 ... ducts.html
Then I chanced upon a neat it of improvisation in the archive here. It's a new take on using parts from an aquarium shop to rejig the stock smoker arrangement, courtesy of 'Evad' (I'm guessing that's an anagram of 'Dave').
Anyone else who's seen useful bits and bobs, or even clever solutions, is welcome to post them here. :thumbup:
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: Useful accessories- miscellany

Post by 43rdRecceReg »

Oh, yes... I forgot to include this UK source I found, for all things LED. It's run by a lady (Jennifer) who clearly likes her chosen area of expertise, and has even written a book on the topic, apparently :thumbup:
https://www.smallscalelights.co.uk/prod ... connectors
I'm going to wire up blue/green (take your pick!) Convoy Light to my Panther, and came across this site when looking for micro connectors.
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
Rad_Schuhart
Warrant Officer 1st Class
Posts: 2089
Joined: Tue Jan 19, 2016 9:22 am
Location: Spanish living in Graz, Austria. Heart in UK.
Contact:

Re: Useful accessories- miscellany

Post by Rad_Schuhart »

43rdRecceReg wrote:Oh, yes... I forgot to include this UK source I found, for all things LED. It's run by a lady (Jennifer) who clearly likes her chosen area of expertise, and has even written a book on the topic, apparently :thumbup:
https://www.smallscalelights.co.uk/prod ... connectors
I'm going to wire up blue/green (take your pick!) Convoy Light to my Panther, and came across this site when looking for micro connectors.
I am looking for those connectors for a year or so, but I cannot find the name! I just want to get the connectors and wire my own stuff.

EDIT: FOUND IT! "Machined pin header"
Last edited by Rad_Schuhart on Thu Jul 30, 2020 7:58 pm, edited 1 time in total.
My RC tanks website, loads of free info for everybody:
https://radindustries.wordpress.com/
User avatar
Model Builder 4
2nd Lieutenant
Posts: 2426
Joined: Sun Jul 26, 2015 3:46 pm
Location: South Wales valleys
Contact:

Re: Useful accessories- miscellany

Post by Model Builder 4 »

Very useful links thank you Roy :thumbup:

Cheers, Lee.
Me ? Addicted ? Never !! :crazy:
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: Useful accessories- miscellany

Post by 43rdRecceReg »

Thanks, Rad and Lee :wave: If you spot any interesting new bits and parts, or solutions to age-old problems, do post them here :thumbup:
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: Useful accessories- miscellany

Post by 43rdRecceReg »

I thought it worthwhile buying the new Heng Long servo recoil. For one thing, it's much more compact than the Taigen all-in-one recoil and elevation unit (see pic below for comparison). For another,
It's compatible with the TK 6.1s units (Haya's 6.3 and 6.4 iterations), and the recent 'smoking barrel' revelation. You'll see a good example of the barrel smoker in MichaelC's recent post:
viewtopic.php?f=1&t=30256
If you look at this diagram, you'll see how it all connects up (yes, apparently, a 'Cannon' is a 'Connon' in China :lolno: ):
I have the smoke unit that goes with the recoil. I'm not yet sure which tank in the collection is going to be blessed with it. :think: However, I'm intending to use the recoil, and the Panther/Sherman elevation unit (see pic) in my Comet project.
New Hl servo recoil unit with Panther/StuG/Sherman type elevation unit.
HL unit compared with Taigen recoil. Clearly, even with the Sherman elevation unit, the HL type gives greater scope for positioning in smaller turrets, I think, than the Taigen. :)
HL unit- bottom view (I think :eh: )
and seen from the top
Sorry about the slight overexposure on lighter (white and metallic) components. :D Anyway, I think you'll see how it's configured.
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
Son of a gun-ner
Lieutenant-Colonel
Posts: 7533
Joined: Sun May 07, 2017 8:49 pm
Location: Lancashire UK

Re: Useful accessories- miscellany

Post by Son of a gun-ner »

Thanks for all that Roy :thumbup:

Hmm, so, let me get this straight, the aluminium tube that connects to the end of the barrel, is guided as it slides back and forth by the hole in the aluminium plate :think:

Aluminium sliding against aluminium, sadly the worse kind of scenario, aluminium probably has one of the worse friction coefficients out of any metal that could be used for such sliding parts. You could lube it up, but even a high performing silicon grease would struggle to stay in place. Or am I missing something.
I'd be very interested in how this performs compared to the plastic ones.
Mick - The grit in the underpants of life!
Always happy to spare the bytes
Apparently my mind works in mysterious ways :think:

TOTM needs YOU :thumbup: support YOUR TOTM competition, I'm doing my part, are YOU?
User avatar
Model Builder 4
2nd Lieutenant
Posts: 2426
Joined: Sun Jul 26, 2015 3:46 pm
Location: South Wales valleys
Contact:

Re: Useful accessories- miscellany

Post by Model Builder 4 »

Thank you for the diagrams and pictures Roy, very helpful indeed :thumbup:

Cheers, Lee.
Me ? Addicted ? Never !! :crazy:
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: Useful accessories- miscellany

Post by 43rdRecceReg »

Son of a gun-ner wrote:Thanks for all that Roy :thumbup:

Hmm, so, let me get this straight, the aluminium tube that connects to the end of the barrel, is guided as it slides back and forth by the hole in the aluminium plate :think:

Aluminium sliding against aluminium, sadly the worse kind of scenario, aluminium probably has one of the worse friction coefficients out of any metal that could be used for such sliding parts. You could lube it up, but even a high performing silicon grease would struggle to stay in place. Or am I missing something.
I'd be very interested in how this performs compared to the plastic ones.
If you look at the closeup of the servo arm, Mick, you'll see that there's actually a bronze bush in the slot, and there are also washers either side of the pivot pin (though they're not evident here).
In reality, the action is very smooth. This is the unit used on Haya's Chieftain, and I've heard no complaints about it....yet. :D
...and here is the unit on full recoil:
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
Son of a gun-ner
Lieutenant-Colonel
Posts: 7533
Joined: Sun May 07, 2017 8:49 pm
Location: Lancashire UK

Re: Useful accessories- miscellany

Post by Son of a gun-ner »

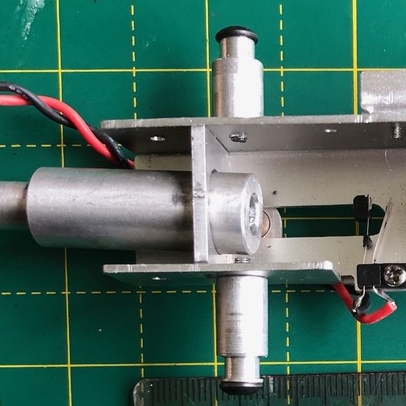

I meant this place Roy (picture below), where the aluminium barrel extension slides through the hole in the bit that's like a bulkhead. If they rub together, I'm surprised it runs so smoothly. But that is good news if it's not affecting its running :thumbup:
