Missing Wire

[PershingLover]

My Pershing came with a wire that had unsoldered itself from the turret.

Unfortunately, I can't find it right now, but it is a 2 pin, red and white wire.

I suspect it might be the linkage for track recoil, as my tank has never done that.

Any idea where it goes, and how to reattach it? Thanks!

[43rdRecceReg]

To reduce the amount of guessing needed, and queries, it's always better to mention which manufacturer's model this is, and which version you have (Airsoft, IR, V6.0 or combi.and so on)
There's a red and white connector that runs from the airsoft unit, to the MFU, in Taigen models. If it becomes detached, there'll be no recoil- and probably no shot either.

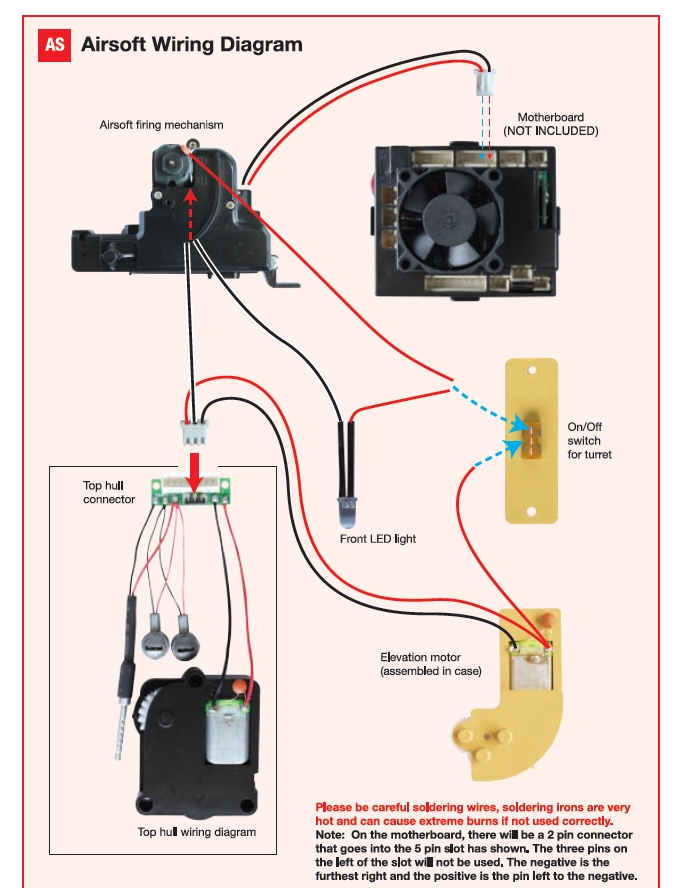

Wiring diagram for airsoft

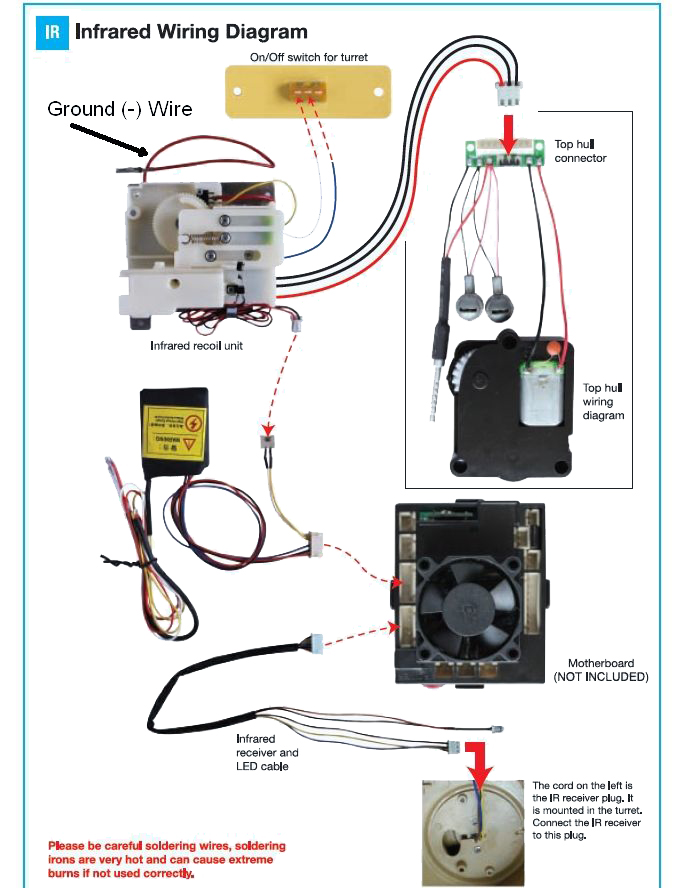

Wiring diagram for IR

Here's one for IR. Without knowing what you have, and what vintage it is, it's hard to be of much help.

[jarndice]

I was under the impression that Pershinglovers Tank was a Heng Long example.
Of course not for the first time I stand to be corrected

[43rdRecceReg]

I was under the impression that Pershinglovers Tank was a Heng Long example.
Of course not for the first time I stand to be corrected

The point I'm trying to make, Shaun, is that it's much easier to make helpful suggestions if we have the relevant facts to go on. If it's from the Heng Long stable, for instance, there's a big difference between
5.3 electronics versions, and version 6.0. Taigen also produce the M26. Incidentally, the airsoft wires on my Tiger are orange and white, so I may have made an error there.

[PershingLover]

Sorry guys, it is a Heng Long, airsoft, and 2.4 ghz. The wire seems to come off the airsoft assembly.

[PershingLover]

Whoops, missed some info. I think it is 6.0? It has the color coded receivers on the board.

[43rdRecceReg]

I don't think it could be V6.0 electronics, as HL have only installed the new system in the M41 Bulldog, the Tiger 1, and the M4A3 Sherman, as yet. I'm guessing yours must be the earlier 5.3 system
Here's an earlier wiring diagram for HL tanks:

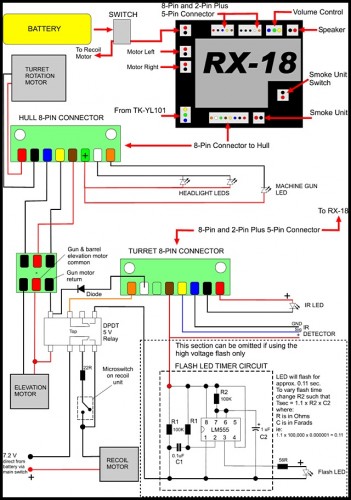

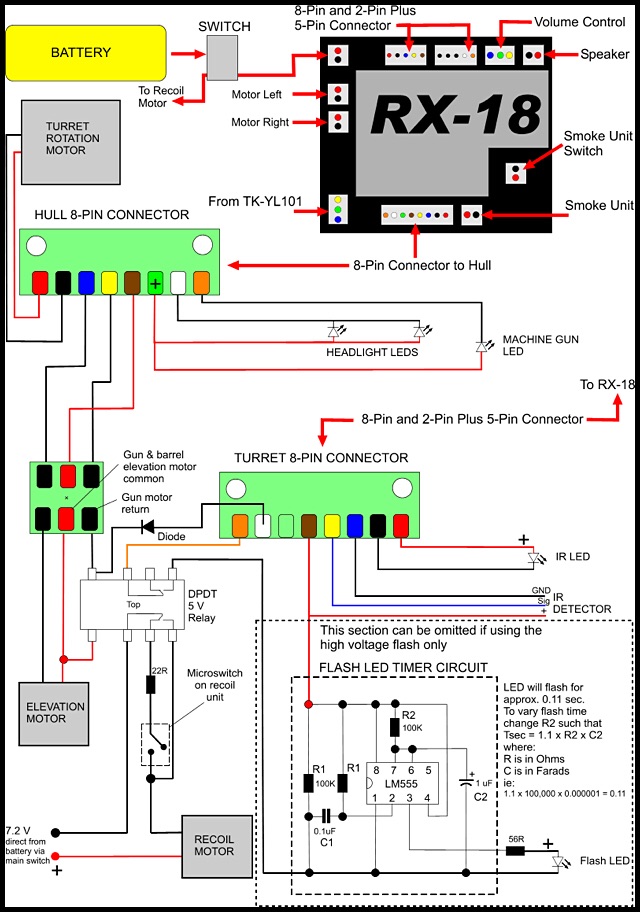

Heng Long 2.6G wiring 2016

Click on pic to ENLARGE it.

One expedient would be to post photos of the tank interior, so we can see the wiring layout and MFU connectors (MFU= Multi Function Unit. On a bad day, it can be the Multi Disfunction Unit. )

[PershingLover]

Pictures will come.
Does the wire matter? Or could I just throw a replacement one in?

[43rdRecceReg]

Pictures will come.
Does the wire matter? Or could I just throw a replacement one in?

Hmmm...what is it, exactly, that isn't working on your tank? It's not at all clear. If it's only track recoil, I wouldn't worry about that. Clearly, the wires are put there for a purpose. The tank should run, reverse, and swivel on the spot. The turret should turn L & R; the gun should elevate/depress, and BBs should be shot out of it with an accompanying sound effect (There should, of course, be sound effects for other functions too,). The smoker should smoke. If one of these functions is absent, then you'll know which component the wires have fallen off.

[PershingLover]

I'm almost entirely sure it is track recoil, because everything else works. How does it work? Is it automatic when a BB is fired?
