US Army WW2 Field Kitchen set

[Tiger6]

Moving this one over from the Truck thread...

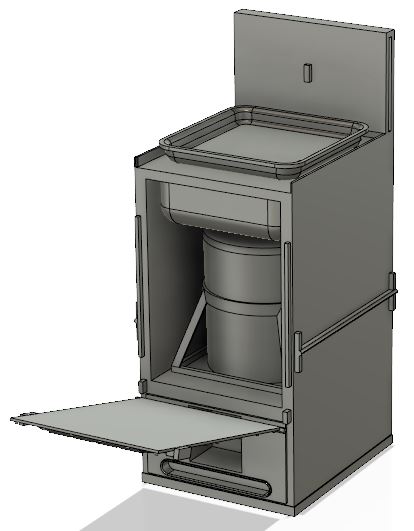

The M1937 Field Range:

field range 3.JPG (29.34 KiB) Viewed 1549 times

Info here:
https://www.skylighters.org/encyclopedia/m1937.html
https://forums.g503.com/viewtopic.php?t=208245

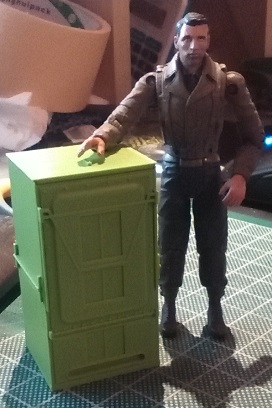

Here is the first Trial print - I eyeballed the size off of the photos in the top link, and didn't find the second link with the correct dimensions on before I'd printed it...


3mm too short, 0.075mm too wide, and 6mm too small in depth - but depth is hard to guage from a photo, right?
(The beauty of parametric sketch based CAD is that it took longer for me to type this than it did to make the necessary changes to the model!)

I'll be doing more versions as I get time to play around with it - this one is in travelling config with the lid shut and the burner not fitted, I'm thinking I'll probably do a version with the lid and oven door open, and atleast another one with just the lid open and the burner installed.

[Model Builder 4]

Looks great Martin any plans on making the towable German ' goulash cannon ' field kitchen

Cheers, Lee.

[Tiger6]

I think Will's got that one covered
(No pressure Will...)

[Tiger6]

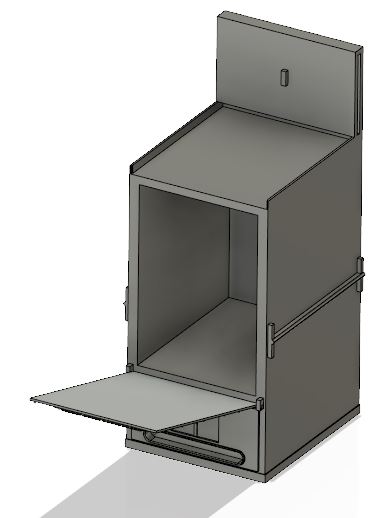

field range 4.JPG (24.06 KiB) Viewed 1512 times

I guess I'm going to need some pots and pans now

[Tiger6]

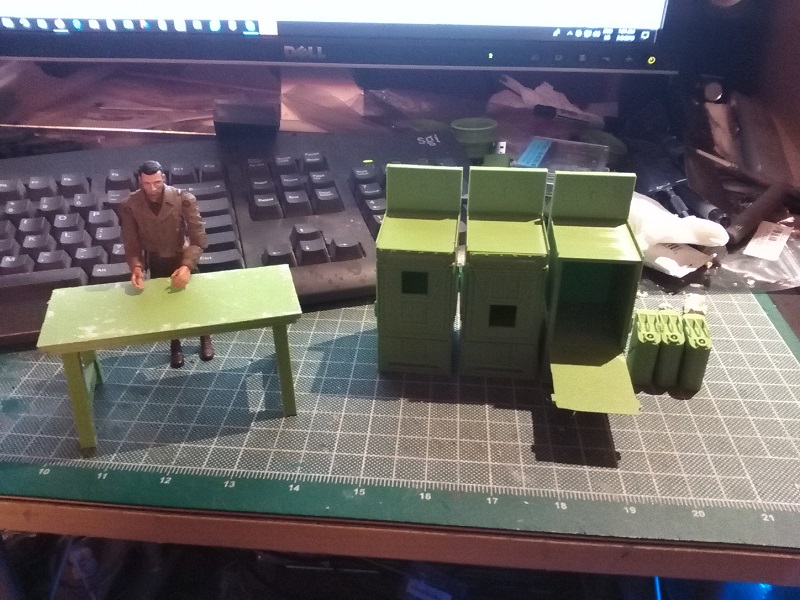

field range 5.JPG (30.85 KiB) Viewed 1506 times

[Manu-Military]

Very cool series of accessories.
Will you eventually make them available for sale?

[Tiger6]

I was not planning on selling them, I was simply going to post the files here and let people help themselves

If you want a set printing then I'm sure we could come to an arrangement.

[Will01Capri]

I think Will's got that one covered
(No pressure Will...)

Waiting for the 1/35 kit in the post haha

[Tiger6]

Still no pressure Will...

[Tiger6]

Download link for the files:
https://drive.google.com/open?id=1Yb7G3 ... fXRQZ4FWKa
