Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by lmcq11 »

Hi,

Shown here for the benefit of modellers who check the Show Off section is my 1/16 scale RC M-113 A2 with Tow Missile Launcher from the Modern build section at viewtopic.php?f=202&t=25541

The model is made of the following components and features;

- Ludwigs Hobby M-113 plasticard basic kit lower tub and rear external fuel cells
- Taigen suspension
- Verlinden M-113A2 resin details and road wheels (the Verlinden kit is actually 1/16, not 1/15 as advertized)

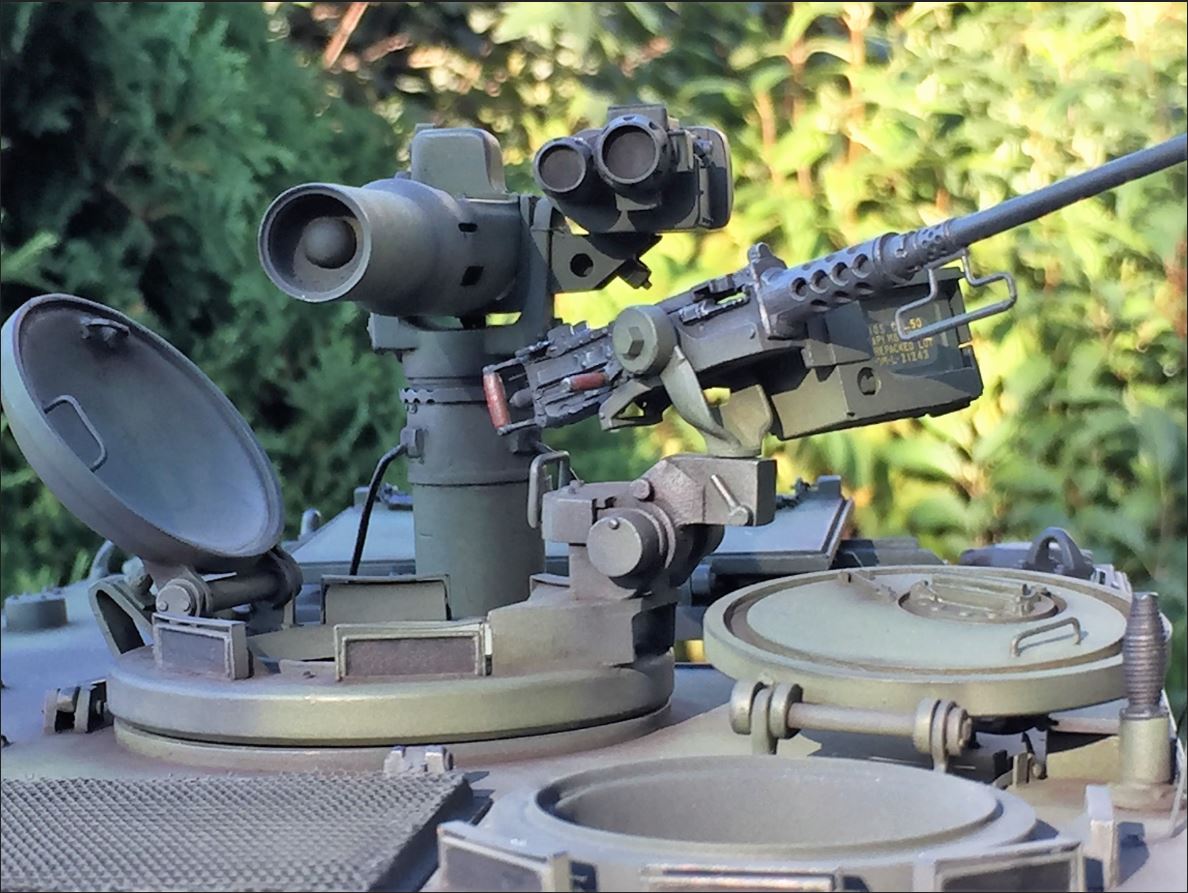

- Verlinden Tow missile launcher with front and rear gun flash

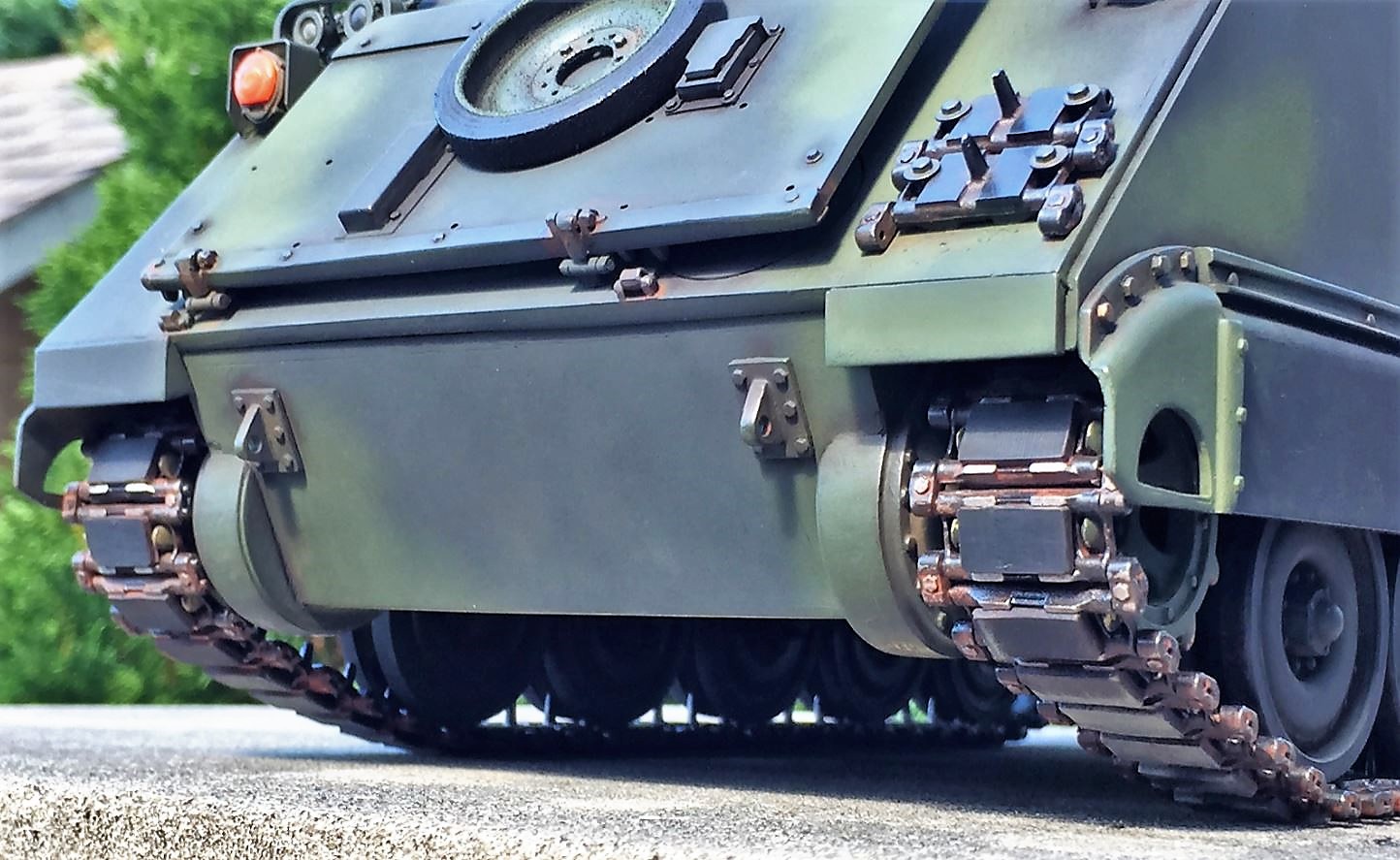

- Tank Modellbau metal tracks, sprocket and idler
- Clark TK-22 control board with Flysky remote
- 25GA370 motors with planetary gearbox
- Full interior details, including driver compartment using Verlinden, shapeways and scratch built items

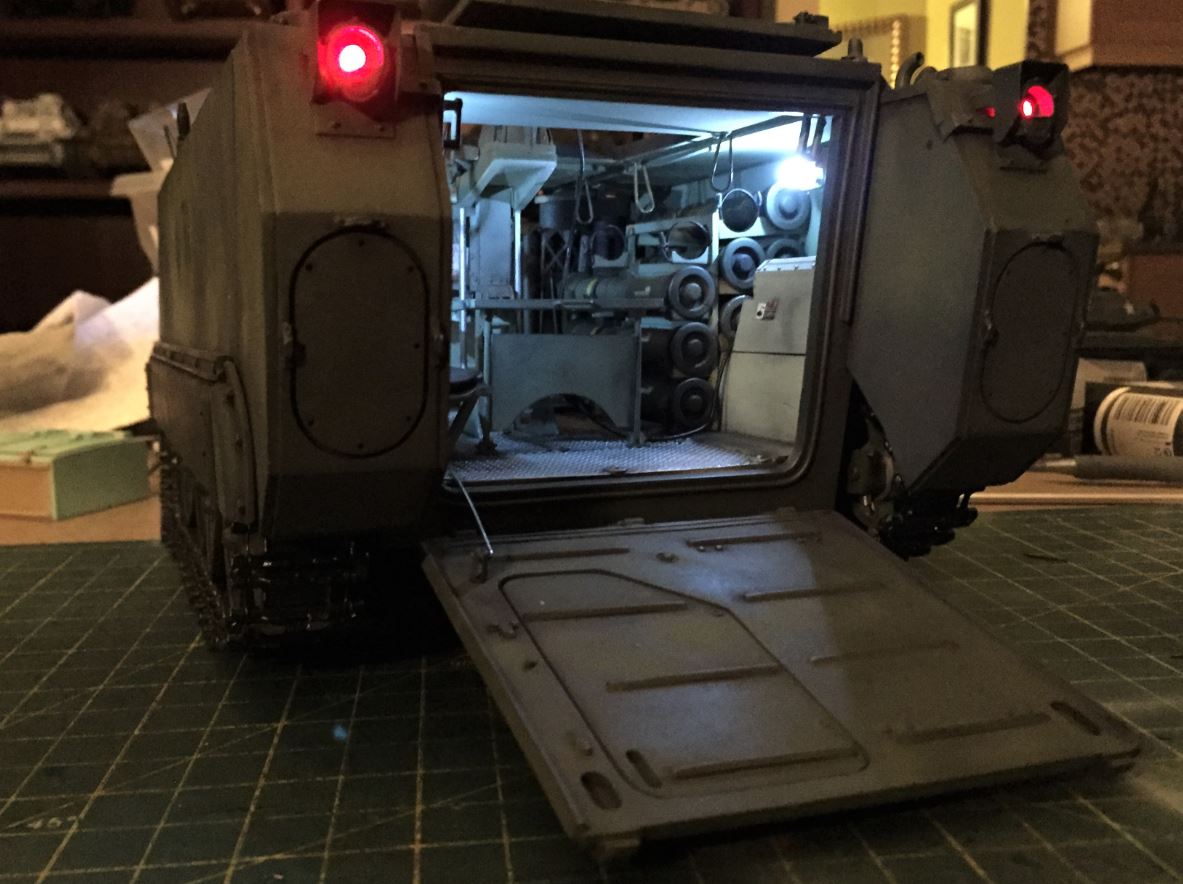

- Head lights, tail lights and interior lighting

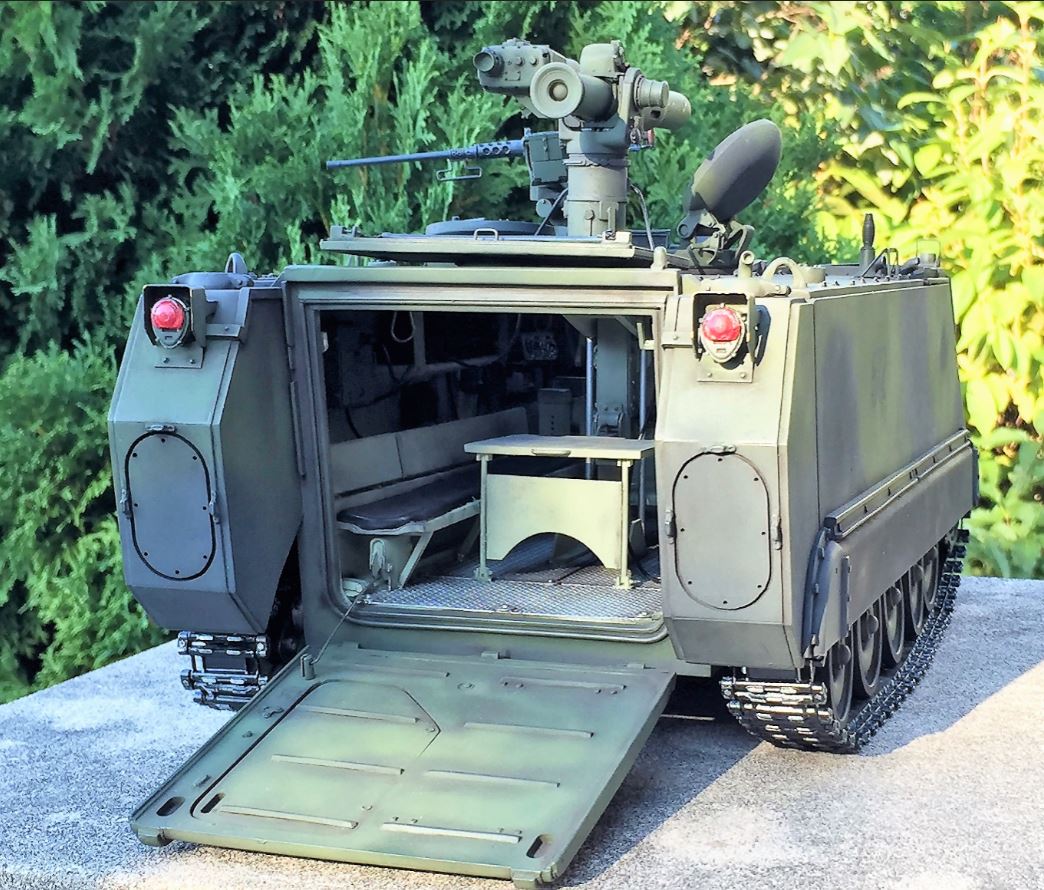

- Servo operated opening and closing rear ramp
- Opening and closing hatches
- Engine sound
- Folding machine gun mount
- Shapeways spare road wheel
- Some metal parts from AFV-Model

Regards, Louis

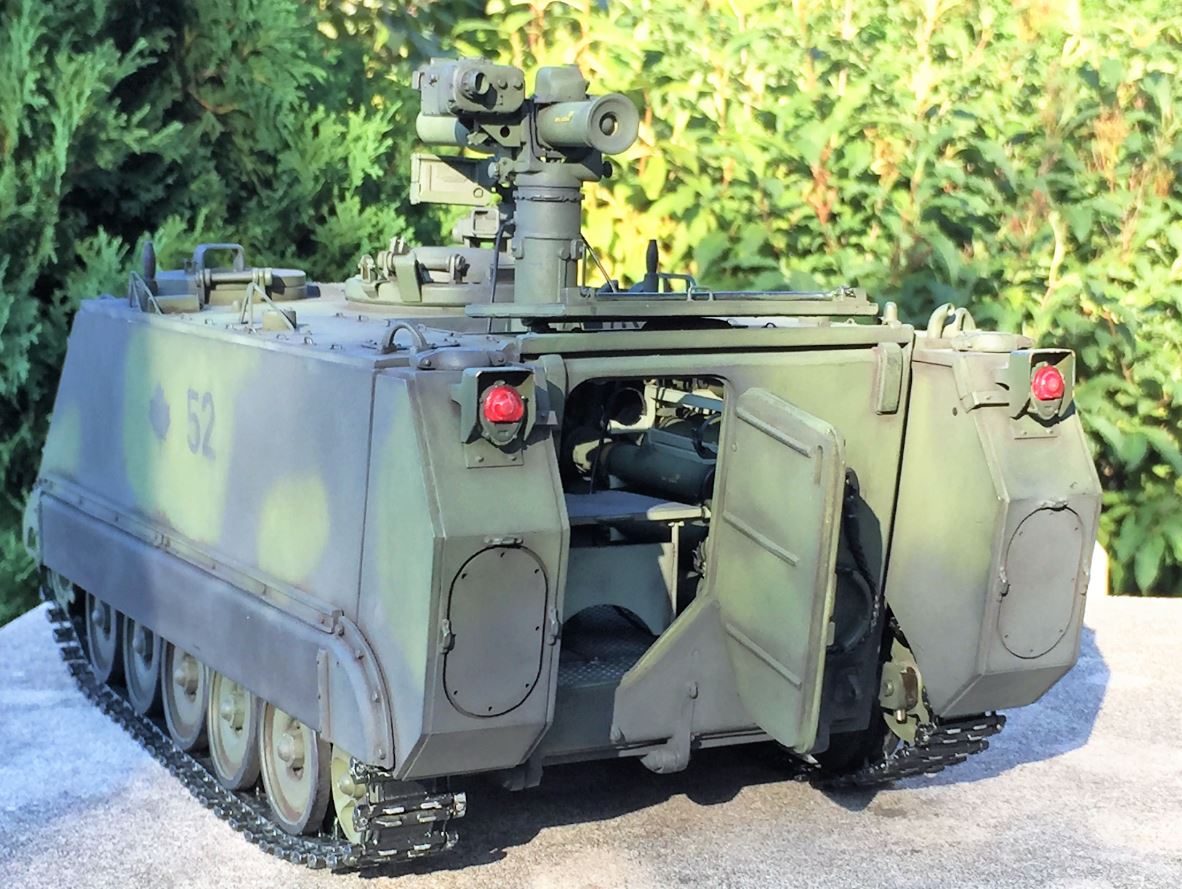

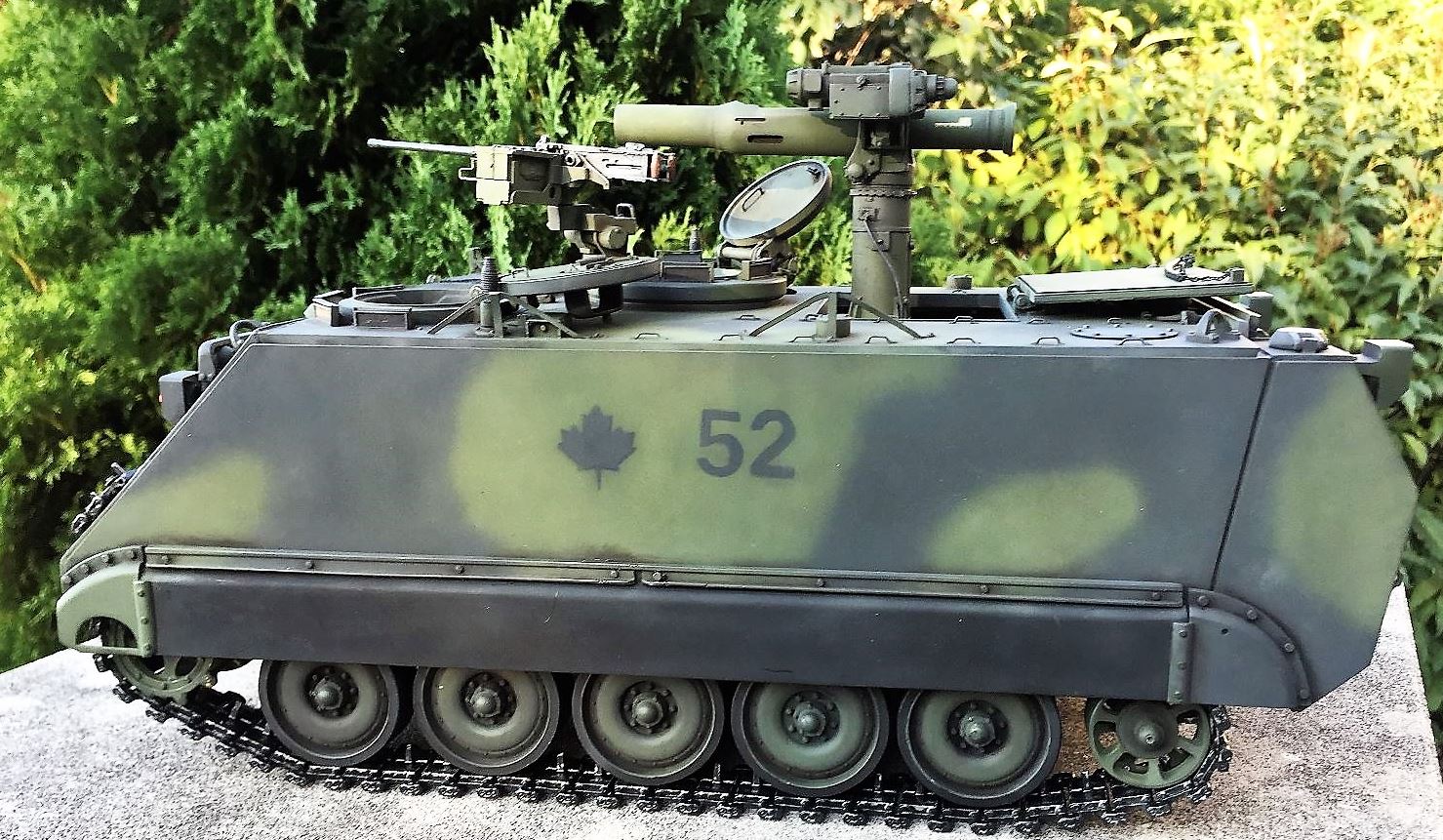

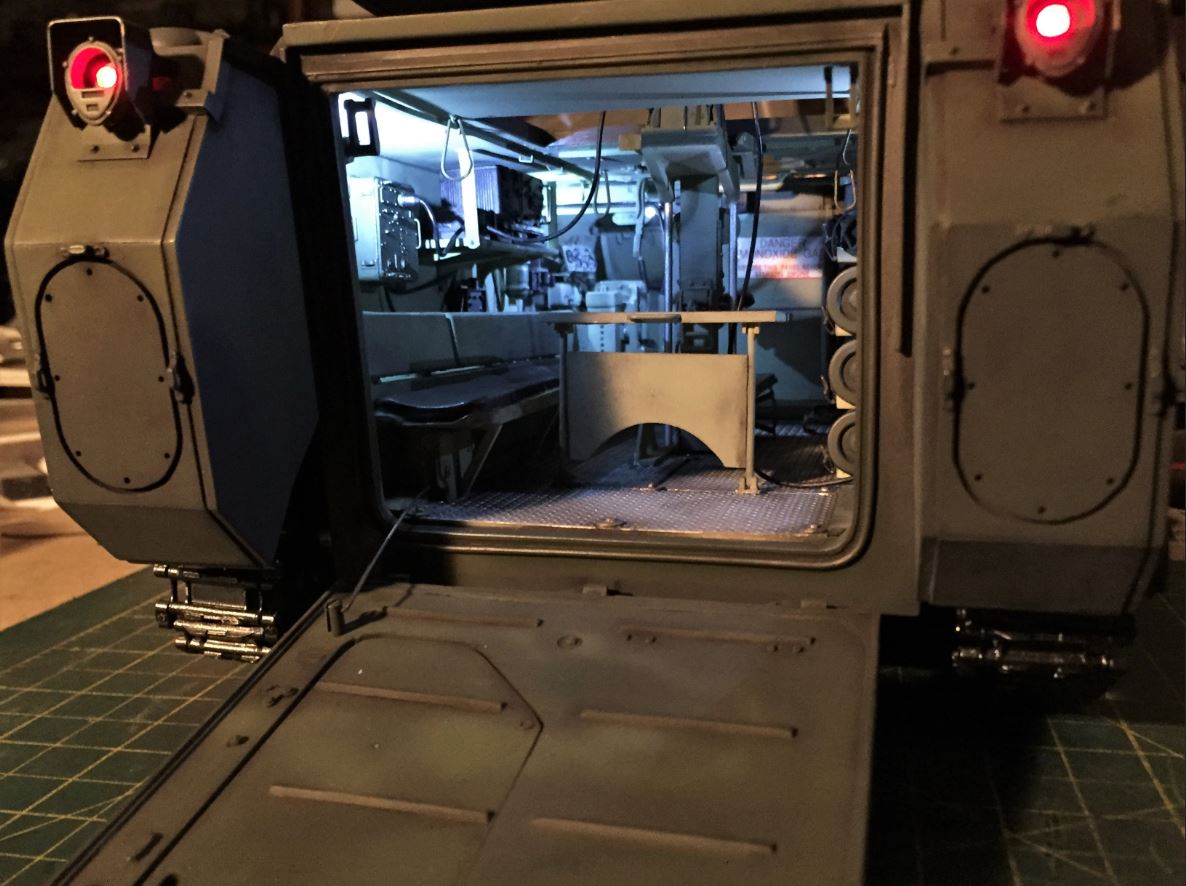

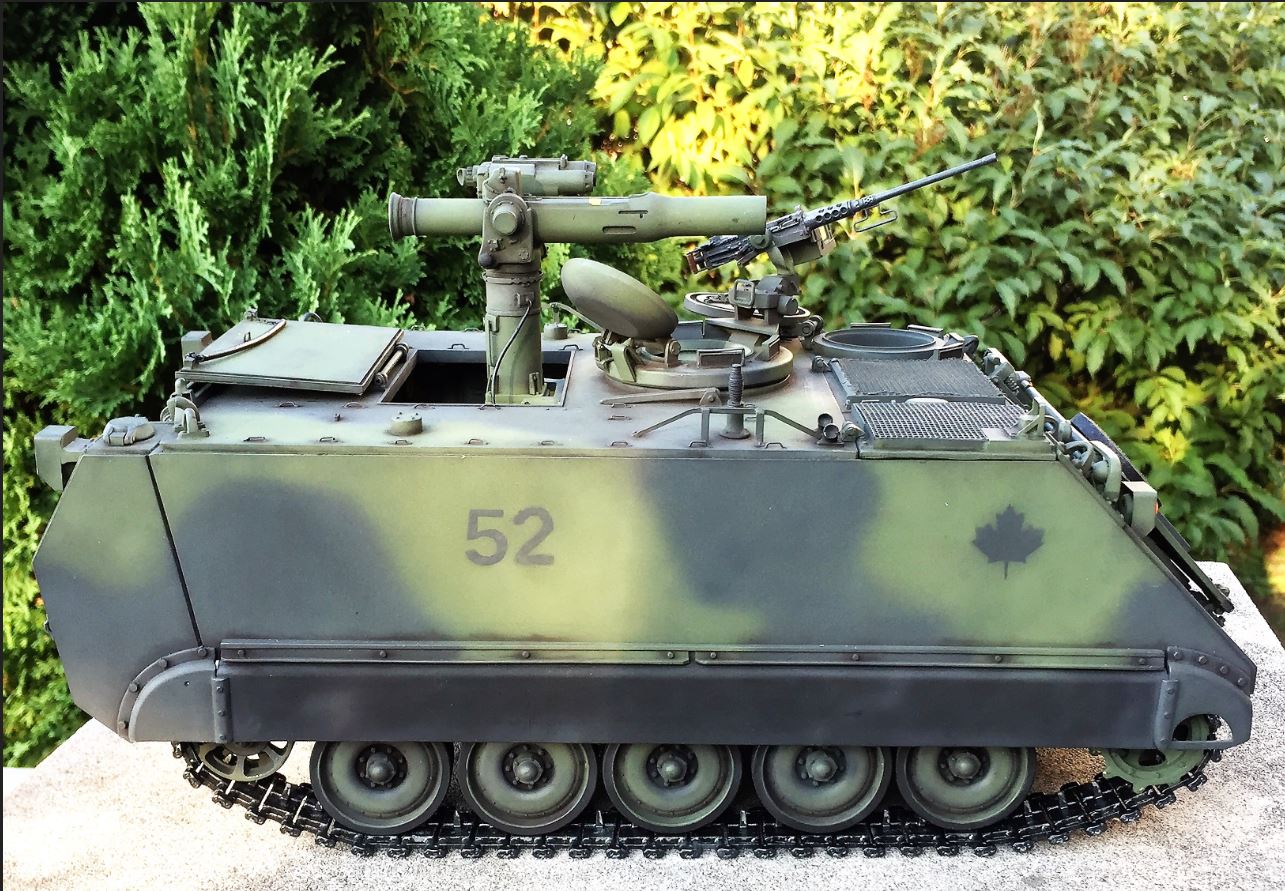

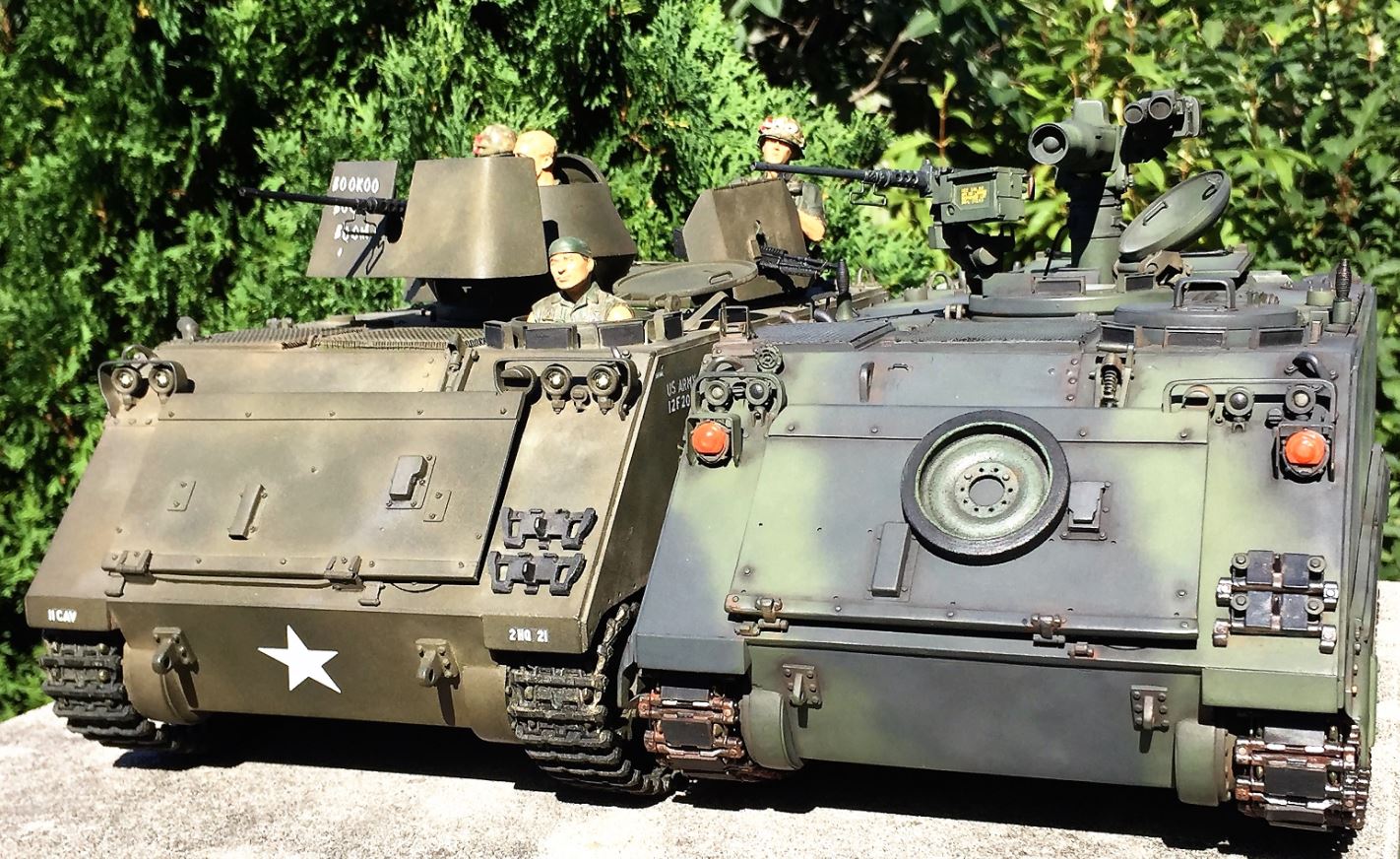

1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
1/16 RC M-113 A2 with Tow missile launcher and interior details
User avatar
Ad Lav
Captain
Posts: 4141
Joined: Tue Sep 01, 2009 4:44 pm
Location: Kent

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by Ad Lav »

Smashing work as usual!!
User avatar
MichaelC
2nd Lieutenant
Posts: 2448
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by MichaelC »

Amazing work. Where do you find room for all the running gears and electronics ? Can we get a peek of that as well ?
User avatar
lmcq11
2nd Lieutenant
Posts: 2576
Joined: Mon Dec 19, 2016 7:42 pm
Location: Quebec, Canada

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by lmcq11 »

MichaelC wrote:Amazing work. Where do you find room for all the running gears and electronics ? Can we get a peek of that as well ?
Hi,

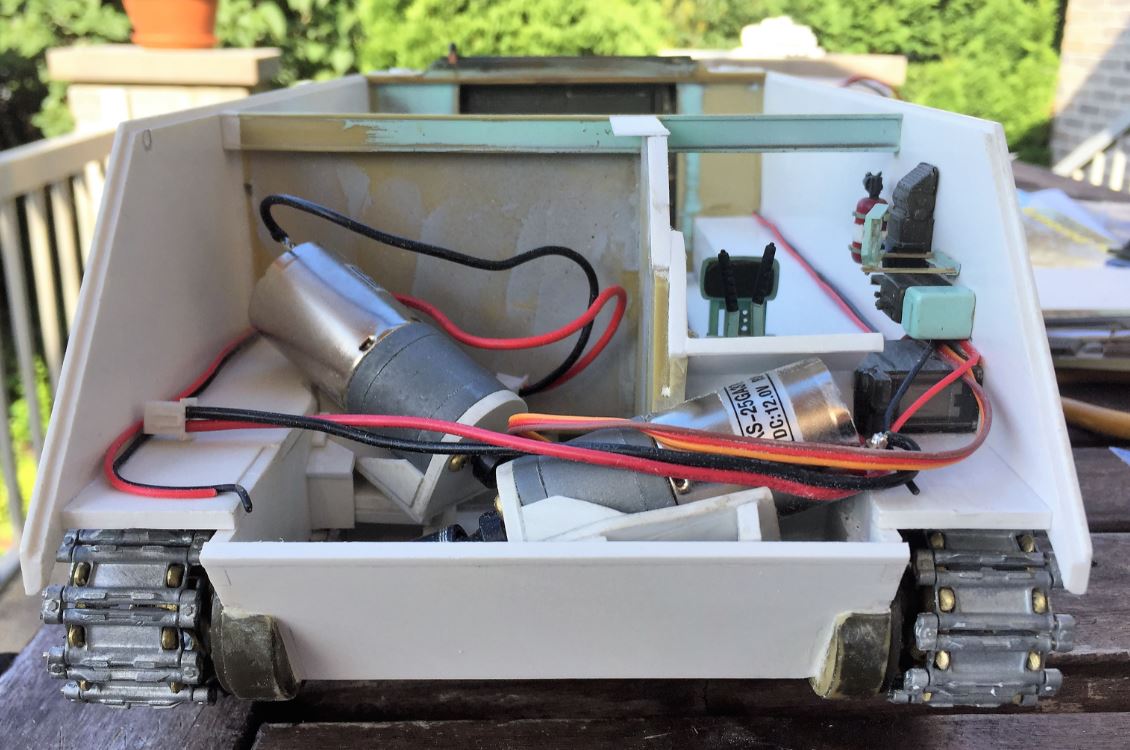

It is quite an unorthodox arrangement and was a good challenge. The motors with planetary gearbox are linked to the sprockets using a "GPM HARD STEEL MAIN DRIVE SHAFT CVD TRAXXAS" sold on ebay, with 4mm shaft positioned in a way that frees up most of the front driver area. Some adjustments were required to get to the best performance out of this setup.
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements

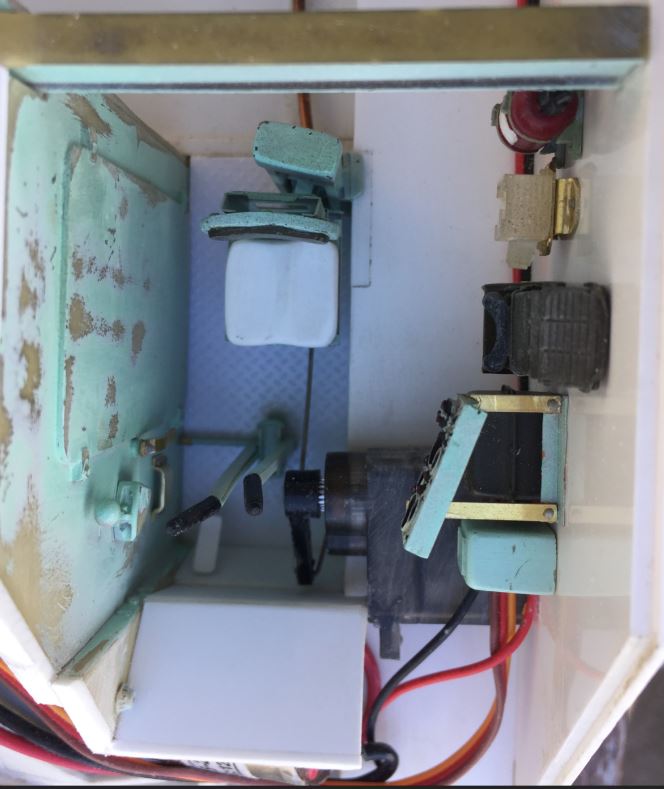

At first, the ramp servo was positioned inside the engine compartment, but there were too much friction on the push rod due to twisting and turning and I had a failure during testing. A smaller servo and push rod more in line with the ramp was positioned way up front in the driver area. It does not show too much from the rear ramp or hatch, which is what is important. You can see part of the engine hidden behind the front panel. It works perfectly.
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements

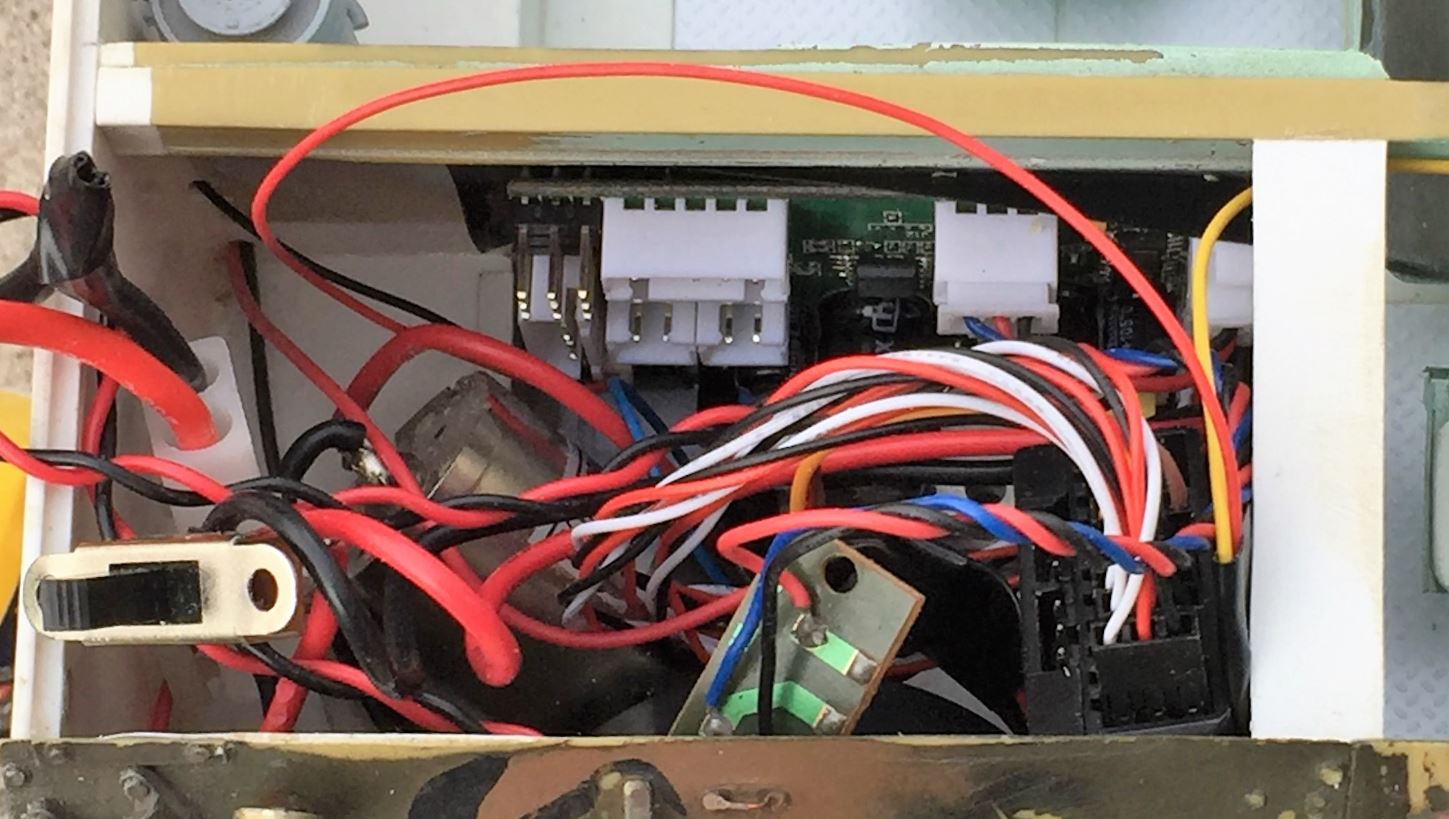

TK-22 control board is fitting against the engine bulkhead, Flysky receiver on the right.
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements

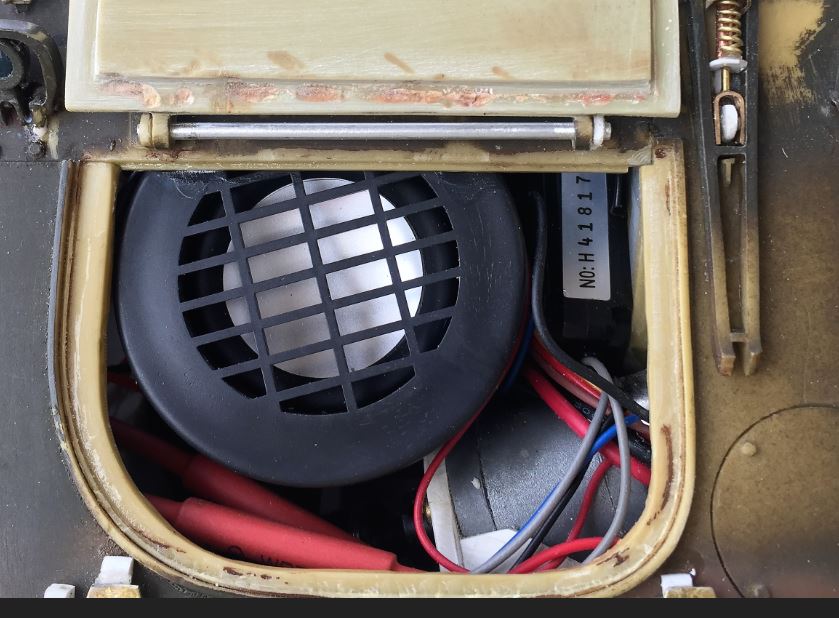

HL small speaker in the front
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements

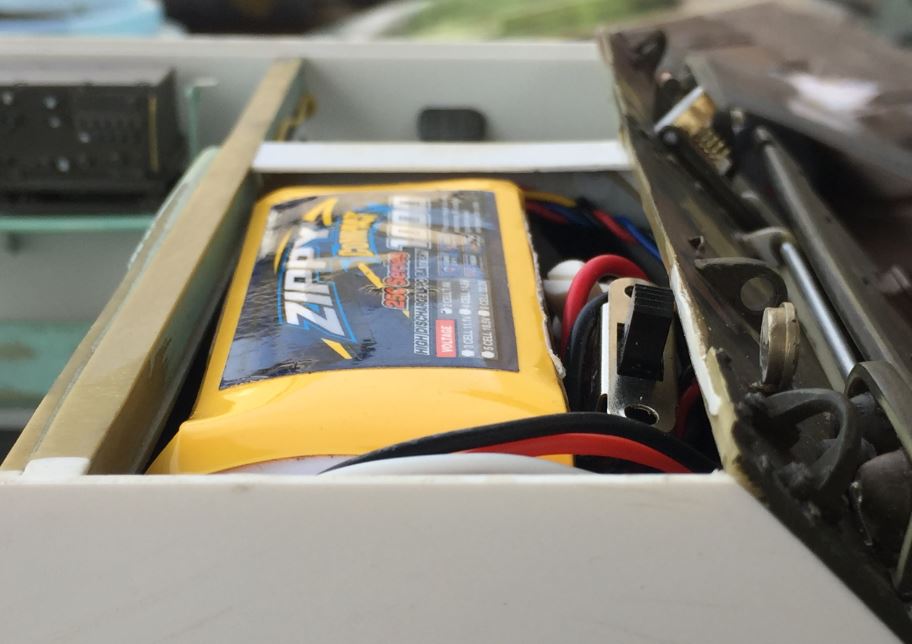

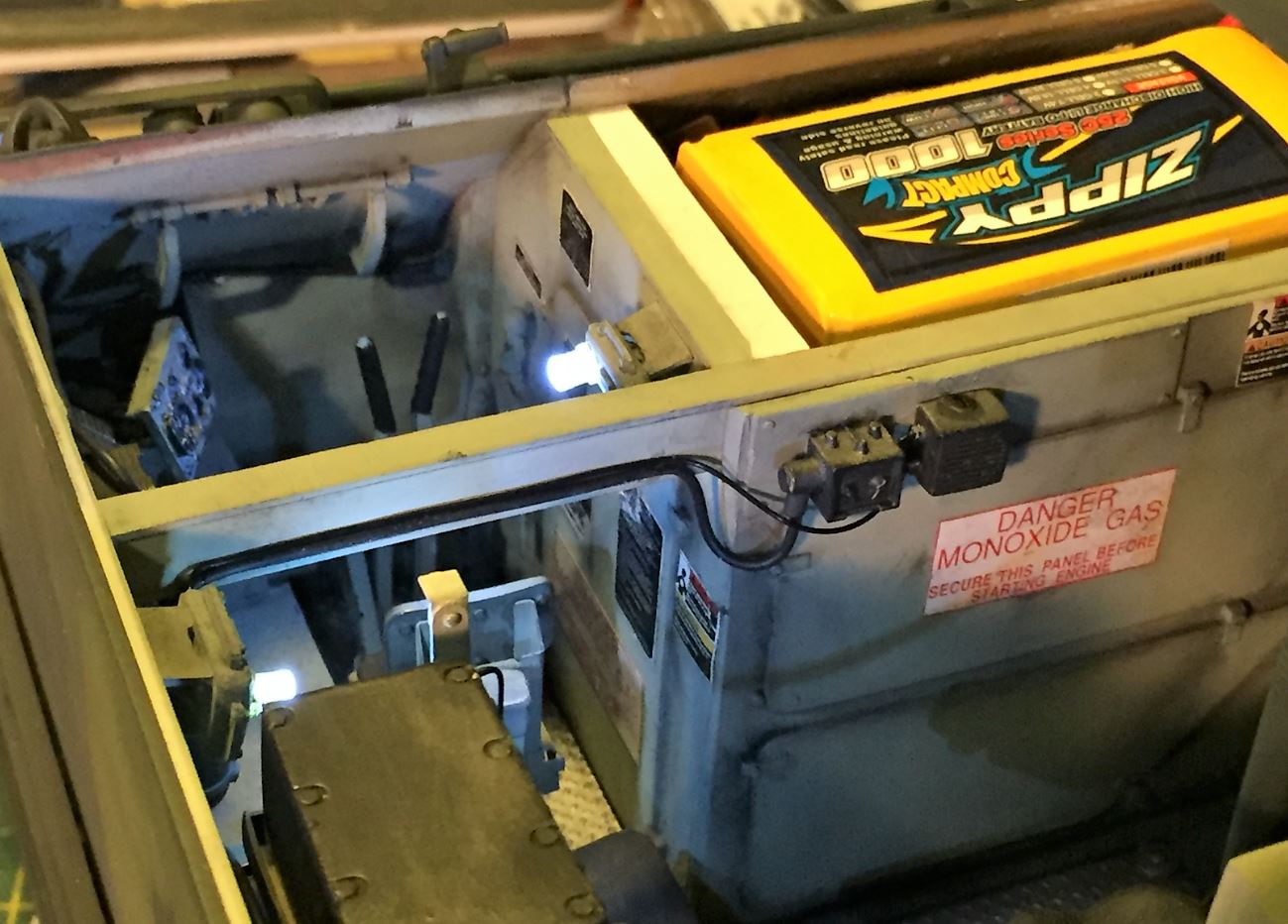

Small Zippy 1000 Battery on top, with loose main switch and volume control with no more room for anything else...
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements
M-113 RC 1/16 motor and electronics arrangements
Regards, Louis
User avatar
MichaelC
2nd Lieutenant
Posts: 2448
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by MichaelC »

That works ! ingenious.
User avatar
c.rainford73
Major
Posts: 6104
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by c.rainford73 »

Louis that is simply amazing work. Your engineering skills are exceptional.
Tanks alot.... :wave:
User avatar
Model Builder 4
2nd Lieutenant
Posts: 2328
Joined: Sun Jul 26, 2015 3:46 pm
Location: South Wales valleys
Contact:

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by Model Builder 4 »

That is one nice build Louis 8O the use of every millimetre of space is just brilliant , ingenuity of the highest order :thumbup:

Cheers, Lee.
Me ? Addicted ? Never !! :crazy:
User avatar
silversurfer1947
Lieutenant
Posts: 3338
Joined: Tue Oct 27, 2015 9:54 pm
Location: Bristol, UK

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by silversurfer1947 »

If it weren't for the battery, I would swear I was looking at a real vehicle.
Richard
Tamiya Tiger 1, Taigen FlakPanzer IV,Torro M16 half-track, Tamiya Panther,WSN/Torro T34,Taigen M41 Bulldog,H/l/Taigen Sherman M4A3,H/L T90, Haya M3 Grant, Metal Origins 234/2 Puma, Nashorn by Alwyn. I was only going to have one tank - honest! :D
User avatar
B_Man
Corporal
Posts: 480
Joined: Fri Apr 03, 2009 1:23 pm
Location: Yass, NSW, Australia

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by B_Man »

:thumbup:
User avatar
greengiant
Warrant Officer 2nd Class
Posts: 1139
Joined: Tue Jun 26, 2012 12:15 am

Re: Canadian 1/16 M-113A2 w TOW launcher -1980s

Post by greengiant »

That is one very cool build.
