1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by MichaelC »

Hi all,

I have always interested in the Trumpeter 1/16 M-ATV MRAP but didn't have a suitable RC platform to kit bash it until the very flexible, Lego like HL Truck came along. So here is some before and after pics so far. I have managed to get everything to fit together, and just waiting for some electronics to show up to have it running.
Attachments

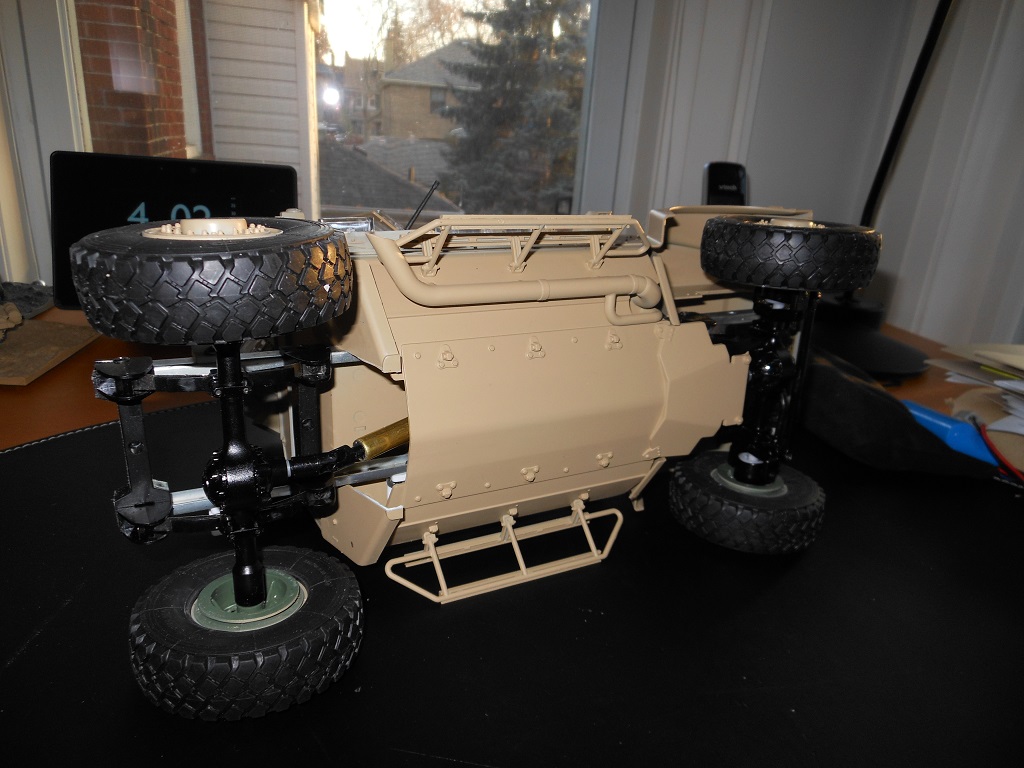

Amazingly enough even the mine resistance armour underneath is a fit. You can also see the brass tubing extension for the drive linkage.
Amazingly enough even the mine resistance armour underneath is a fit. You can also see the brass tubing extension for the drive linkage.

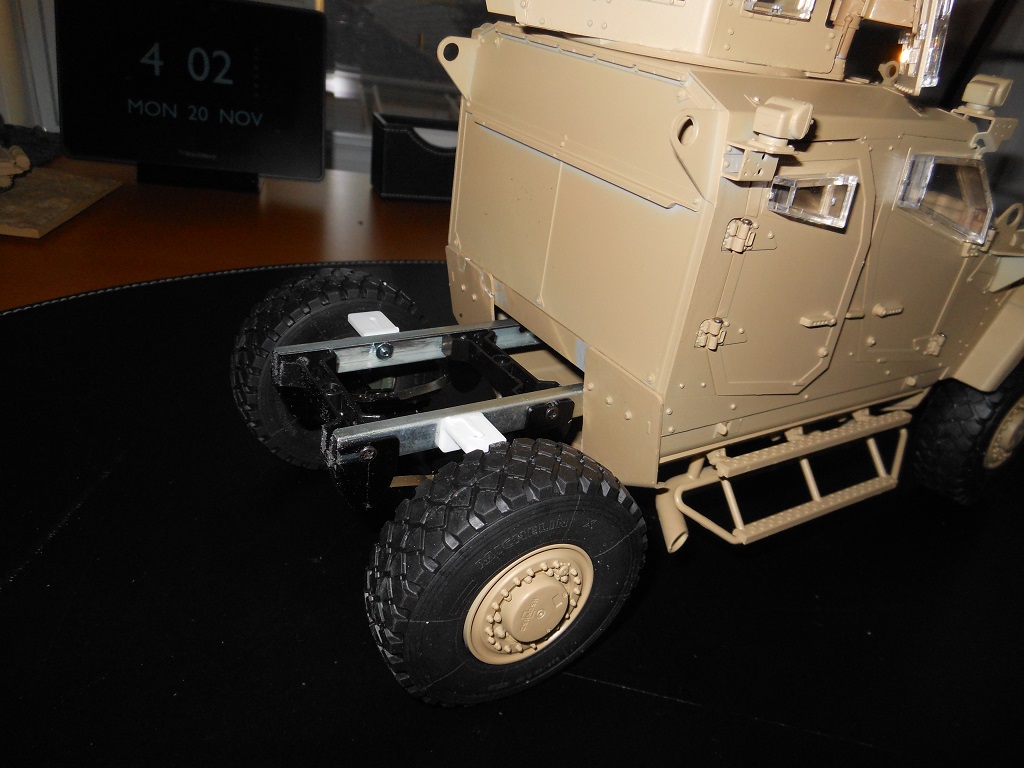

Remove rear cab to show the underlying HL frame and mount point. The front cab is mounted similarly.
Remove rear cab to show the underlying HL frame and mount point. The front cab is mounted similarly.

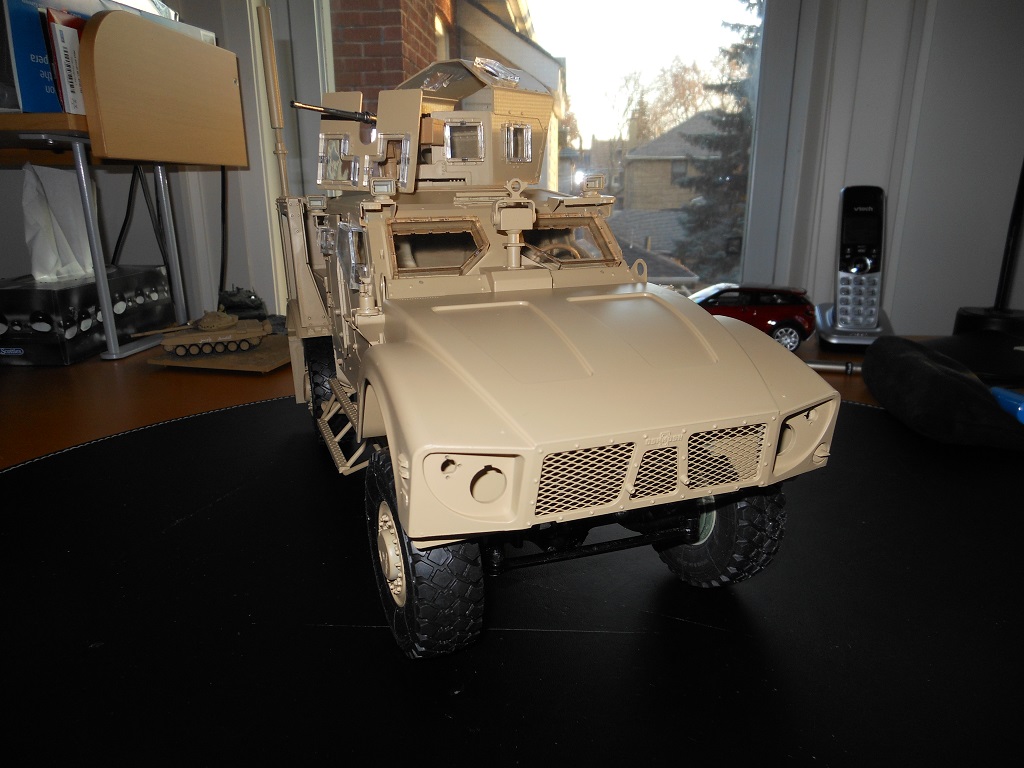

No bumper or headlight yet. Will have working headlight
No bumper or headlight yet. Will have working headlight
Open cab at the back is not mounted yet but front cab is
Open cab at the back is not mounted yet but front cab is

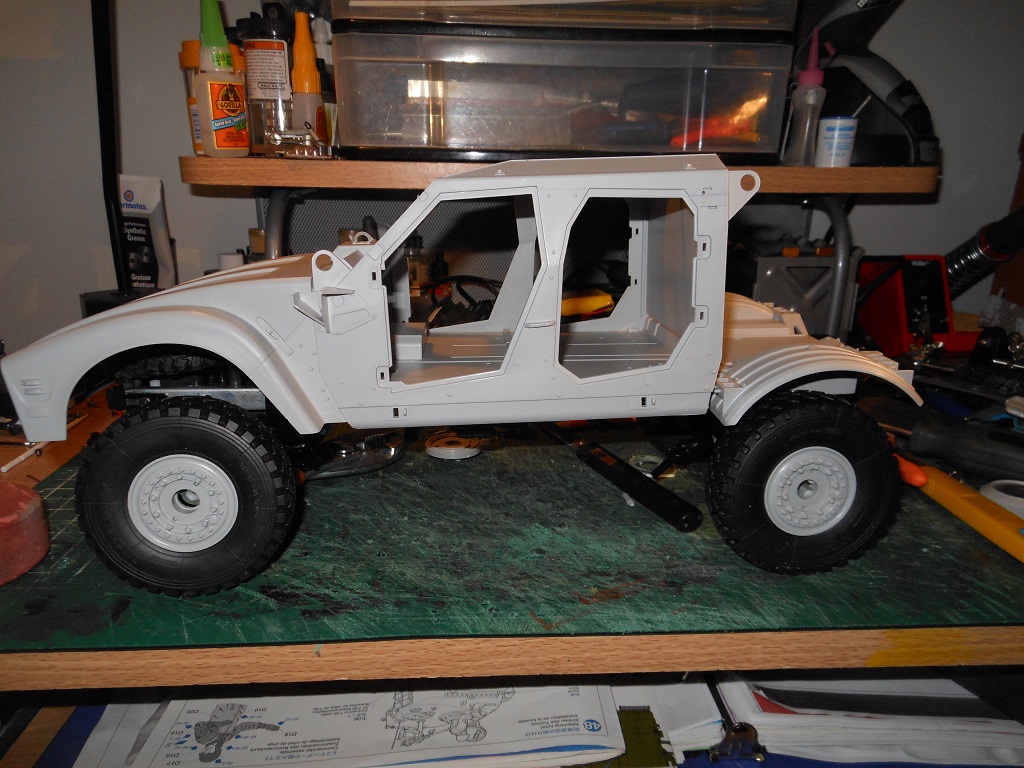

HL frame with M-ATV wheels installed
HL frame with M-ATV wheels installed

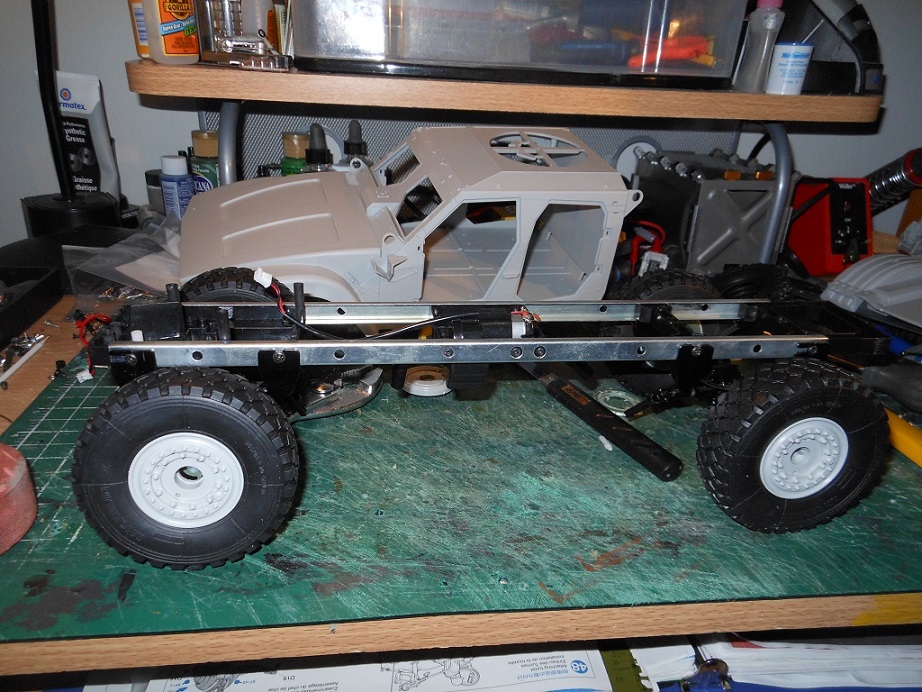

Dry fitting for scale and overall look
Dry fitting for scale and overall look

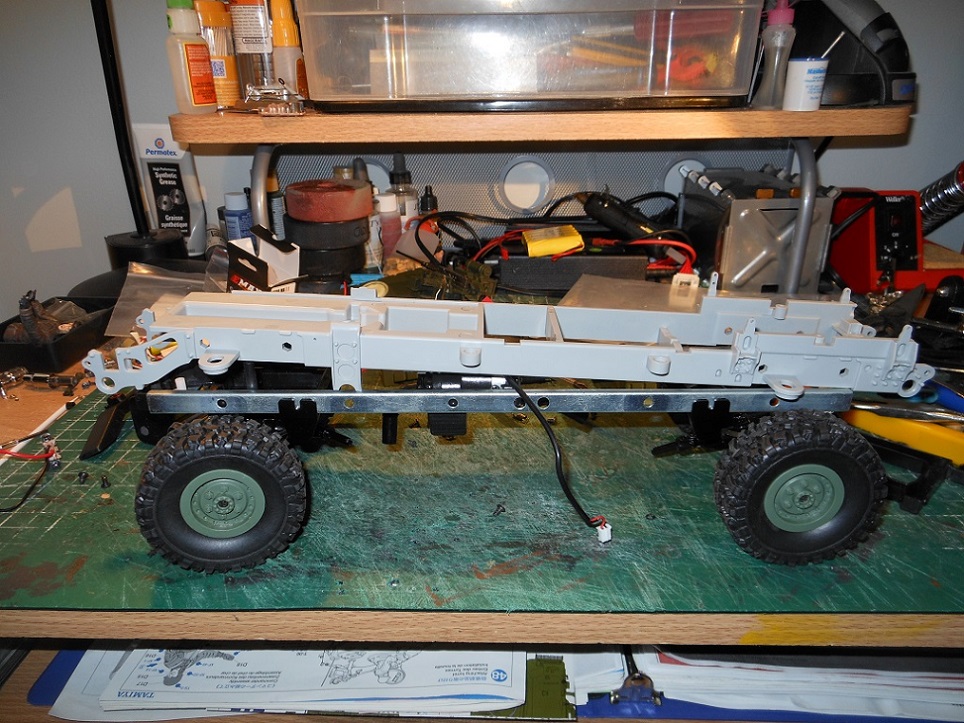

The plastic ladder frame is virtually identical in length and width with the Heng Long metal ladder frame
The plastic ladder frame is virtually identical in length and width with the Heng Long metal ladder frame
Relocate H/L Suspension mount points to fit the M-ATV frame
Relocate H/L Suspension mount points to fit the M-ATV frame
Top
mcevoyi
2nd Lieutenant
Posts: 2294
Joined: Fri Sep 26, 2008 11:24 pm
Location: Now Living in Cyprus .... Modellers desart ...

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by mcevoyi »

Nice one MichaelC

Simple and quick
Top
User avatar
c.rainford73
Major
Posts: 6104
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by c.rainford73 »

Wow my friend that looks super
Tanks alot.... :wave:
Top
User avatar
midlife306
Warrant Officer 1st Class
Posts: 2238
Joined: Sun Aug 27, 2017 10:34 am

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by midlife306 »

Brilliant


Sent from my iPad using Tapatalk
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by MichaelC »

Thanks guys. It was much easier than I expected, just some adjustment and fitting here and there.
Top
User avatar
Will01Capri
2nd Lieutenant
Posts: 2708
Joined: Tue Jul 18, 2017 5:34 pm
Location: South Scotland

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by Will01Capri »

Wow that does look cool, good luck with the rest of the build, but that does look great
HL camo E' Tiger
HL L' Tiger
M26 Pershing WW2 project
Tam K'Tiger project
HL Walker Bulldog project?
HL Panzer IV Munitionsschlepper für Karl-Gerät
HL Sherman project?

1/24 Leopard 2 Custom mod

2 many trucks to list!
Top
User avatar
wibblywobbly
Major
Posts: 6396
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley
Contact:
Contact wibblywobbly

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by wibblywobbly »

Brilliant use of parts from two different sources. :thumbup:
Tiger 1 Late
Panther G
King Tiger
M36 B1
Top
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by 43rdRecceReg »

Cleverly improvised, Michael, and likely to result in a superb model. :thumbup: Somehow, it looks bigger that 1/16...don't know why. Trumpeter certainly produce some highly desirable kits.
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by MichaelC »

Thanks guys..... It is coming along, just waiting for a ESC, but plug in a Clark board today and almost smoke the HL 130 drive motor........ At least the 4x4 brass fitted drive linkage is working !

It does look bigger than 1/16, but then I found this on the web.......
Top
toniolillo
Lance Corporal
Posts: 152
Joined: Sat Sep 20, 2014 9:25 pm

Re: 1/16 M-ATV MRAP/HL M35 kit bashing WIP

Post by toniolillo »

hello, good job, how have you fixed the trumpeter tires to the HL axes?
Top
