Taigen Tiger 1 turret switch

Talk about all other types of electronics here, such as batteries!
Post Reply
User avatar
starktiger 1
Lance Corporal
Posts: 120
Joined: Tue Sep 08, 2009 7:32 pm
Location: Bootle liverpool England UK

Taigen Tiger 1 turret switch

Post by starktiger 1 »

Hi everyone
is there an alternative for this switch

something has burnt out and welded it solid
Attachments
HL S&S Tiger I
HL S&S Panzer IV
HL S&S M26 Pershing
HL IR STuG III
HL IR Panther G
Tamiya M4 105mm Sherman
Torro T34-85 with bed spring armour and HL IR electronics
Heng Feng S&S Jagdtiger
Matto M4A1 76W Sherman
Heng Long Tauch Panzer III
User avatar
43rdRecceReg
Major
Posts: 6295
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Re: Taigen Tiger 1 turret switch

Post by 43rdRecceReg »

Is this the on/ off switch for Airsoft, or IR? The one for airsoft is not strictly necessary, but is there to prevent the gun accidentally firing. You could bypass that. Just make sure no pet eyes are in range or in line with the barrel 8O , nor human ones for that matter....especially toddlers. The one for IR could be dispensed with too, without it being a real problem. Their presence is probably to do health and safety, as well as 'ambulance chasing potential..'.
Have a look at these wiring diagrams:

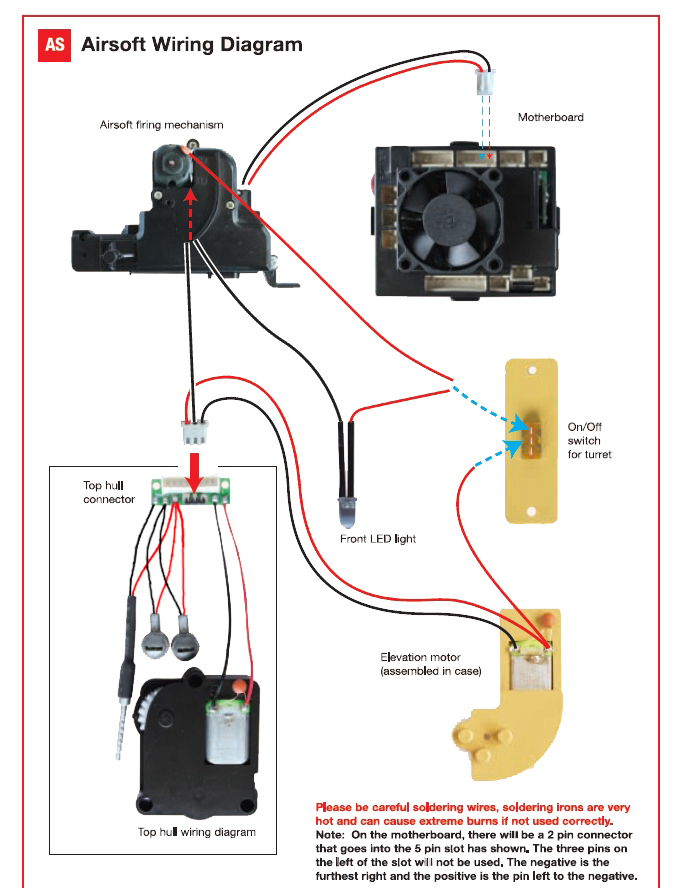

Taigen Airsoft wiring diagram
Taigen Airsoft wiring diagram
and IR:

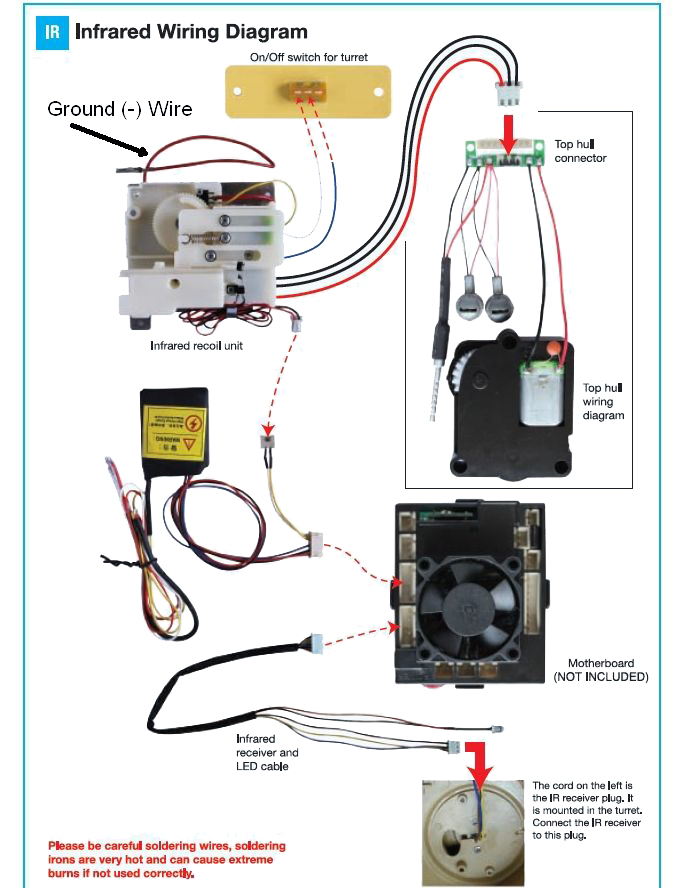

Taigen IR wiring
Taigen IR wiring
Can't imagine how the switch melted, but it must be due to a short somewhere. There should be damage elsewhere, I'd imagine, with an overload on that scale. Look for signs of burning, melted sheathing, or singed contacts..
Best of luck!
"Get your facts first, and then you can distort them as much as you please"- Mark Twain.
User avatar
starktiger 1
Lance Corporal
Posts: 120
Joined: Tue Sep 08, 2009 7:32 pm
Location: Bootle liverpool England UK

Re: Taigen Tiger 1 turret switch

Post by starktiger 1 »

Hi chaps

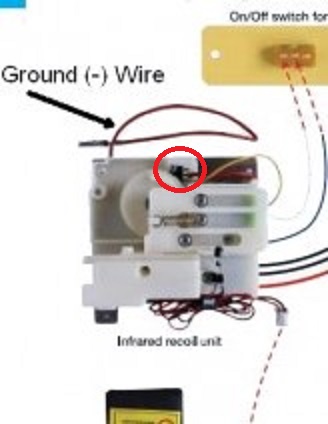

it is the tiny switch in the red circle
