M48 MBT – The Cold War Warrior – scratch built report

[Panzerjaeger66]

Introducing our new Project

Starting development in October 1950, after solving some shortcomings in the early series, the M48 got a successful design later in the 50ties. The M48 was used very successfully 1967 in the 6-Day-War by the IDF and also by US-Troops in Vietnam.

It wasn’t easy to (re-) design this tank in 3D, because almost everything is elliptic or round resp. “hand made” – very less reference planes

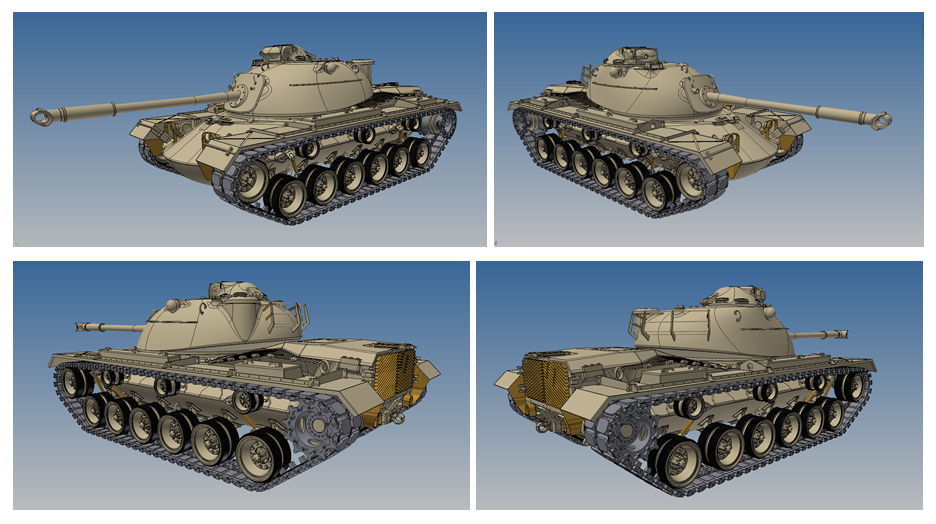

Some pictures of design process:



















The model kit:

Again this kit is developed in cooperation with Christian Ludwig to increase his Portfolio









…recognizing the elliptic section:







Coming up … the assembly report…

Cheers,
Freddy
