Leo2 rewire

[Jimigood]

Decided I wanted to move the on/off switch and I'm now rewiring the tank

[Jimigood]

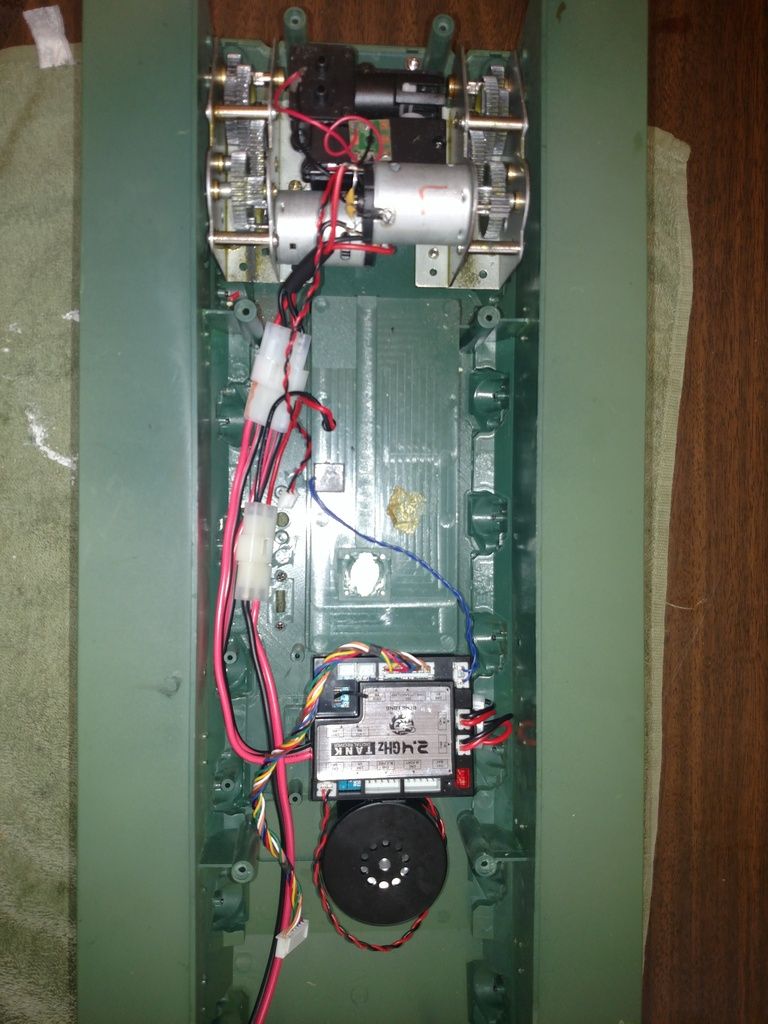

Ok. Cleaned up the internal wiring and move the switch.

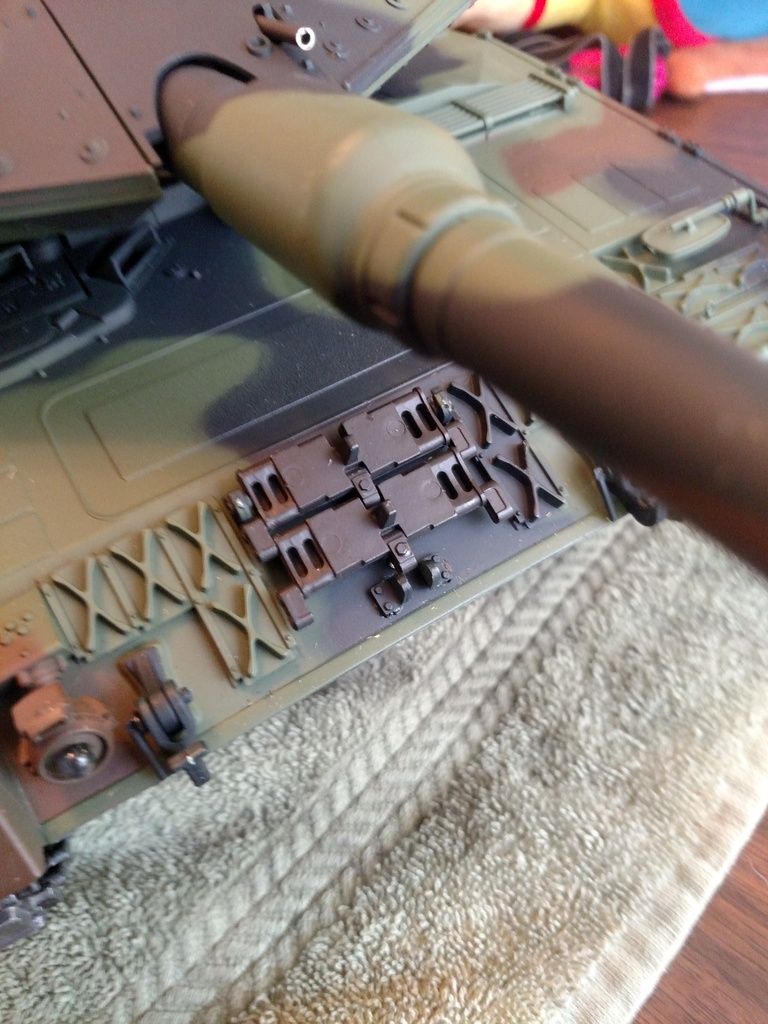

With these spare tracks slide up the tank is off.

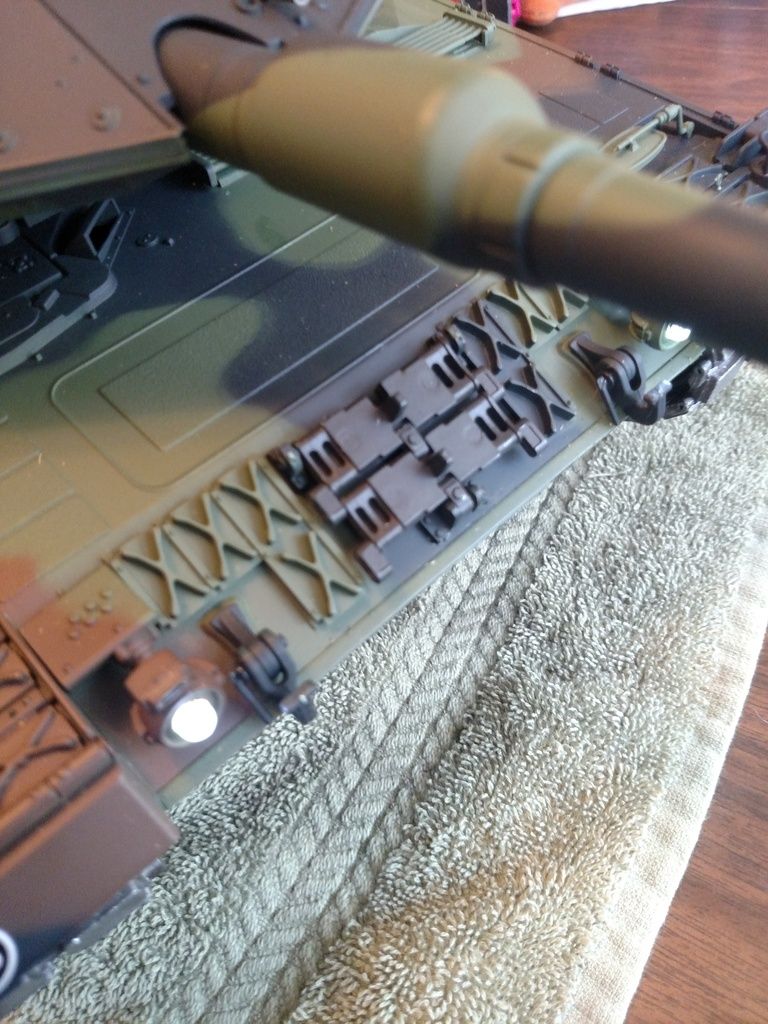

Slide down into place and tank is on.

[tao]

That's great!

[Jimigood]

Thanks! Next is figuring out where to hide a re-charging port.

[Del]

I like that hidden switch,so much I may include the same thing when I get myself a leo

[ThomasT]

Great idea!!! Do you have a photo from inside the tank and the mounted switch?

[Jimigood]

Great idea!!! Do you have a photo from inside the tank and the mounted switch?

I'll get you a pic up later. I honestly didn't think about it while I was doing it. This was actually a little bit time consuming and tedious. I cut the switch down to fit inside the slot that holds the tracks on, took a jig saw blade and cut the slot upwards almost to the point where it would be seen from behind them.
Then on the tab that holds them on i cut a slot to fit over the switch.

[toniolillo]

Very good idea!!! a great job

[Jimigood]

Great idea!!! Do you have a photo from inside the tank and the mounted switch?

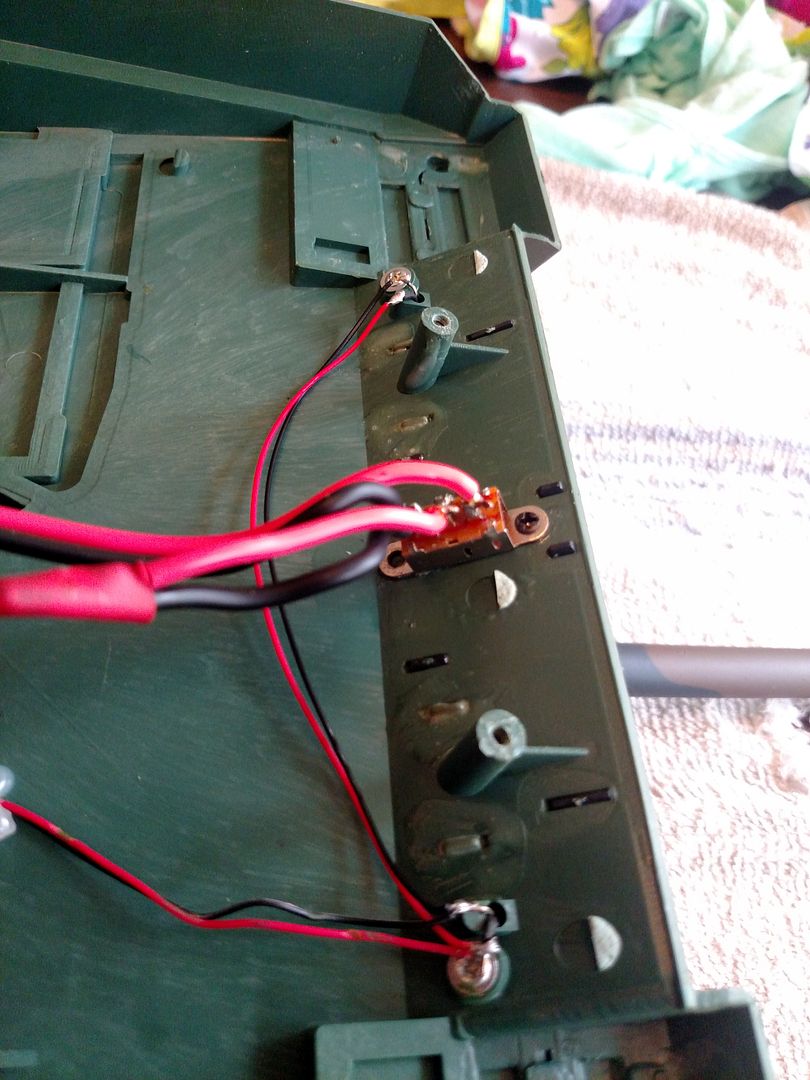

As you can see I used one of the screws from the original mount. It protrudes on the other side so I cut it flush. It then is hidden under the spare tracks. The other side of the switch gets glued, a screw here would be seen on the outer side.

[jackalope]

We all need your address so we can send you a cookie and a gold star! This is a fantastic mod! Sometimes it's the little things that make the biggest difference, and this is a nice mod but it's a great idea!

2 thumbs up!
