IBU3 Firmware update.

[Tankbear]

First update for the IBU3 is now available

http://www.rctankelectronics.com/ibu3.html

Ver 0.12 includes

- Airsoft micro switch to trigger sound and recoil is now supported.
- Clutch style gearboxes (DKLM PDS type, Tamiya Leo2/Type 10) now supported.
- Half track support. Both single and twin gearboxes type supported.

In addition to the new firmware new PC software is available. Please uninstall previous software and install the v0.12 version before doing the firmware update.

New software features include

- Ability to activate the above features
- Revised windows to allow viewing on 7" tablets
- Feature which informs you when radio servo signals are not be received. ie from bad connection or incorrect radio setup.

[maxmekker]

Installed and tested against the DKLM Gearbox. I say

[jackalope]

I hate being computer stupid.

Ian can you explain what I need to do please? Remember I'm a computer moron.

[maxmekker]

Download the
pc_software_v0.12___drivers.zip

from here :
http://www.rctankelectronics.com/ibu3.html

unzip it so that you have the 'DFU' file , and plaze it in a folder ore any Place you like /remember on the computer .

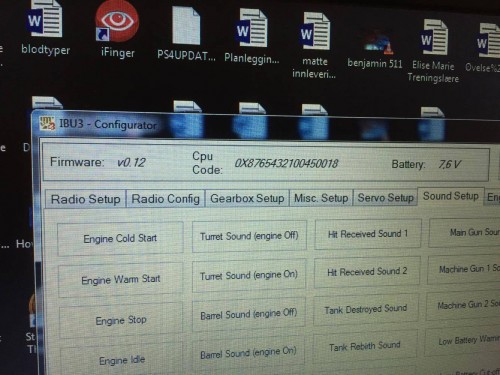

Fire up the ibu configurator ( Connected to the PC ) and press the USB icon and choose COM port , to Connect it the computer .

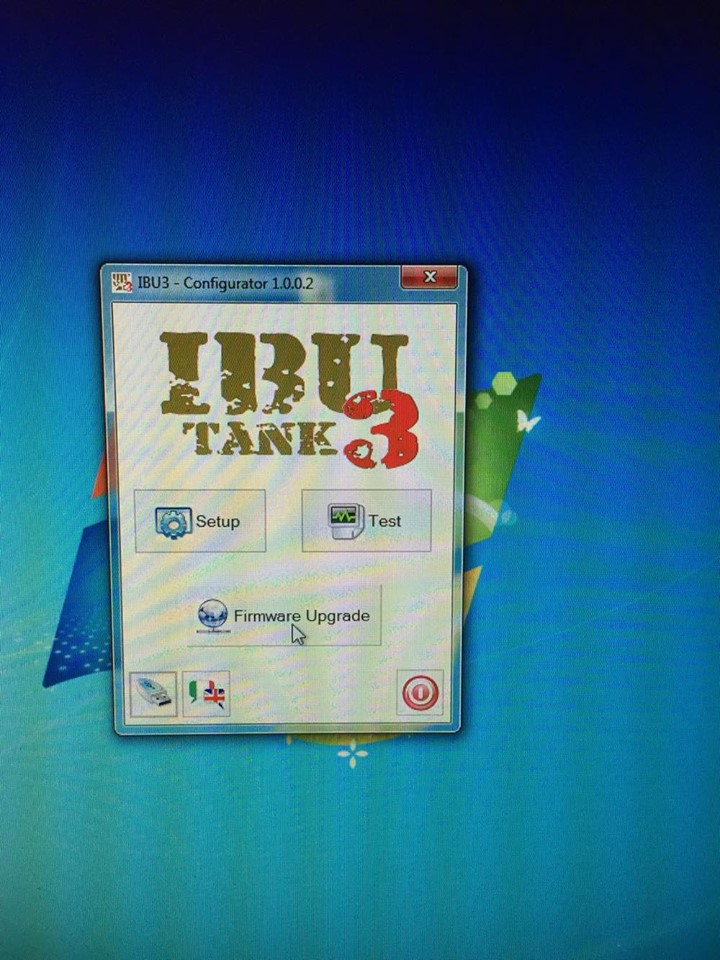

press the firmware uppgrade button

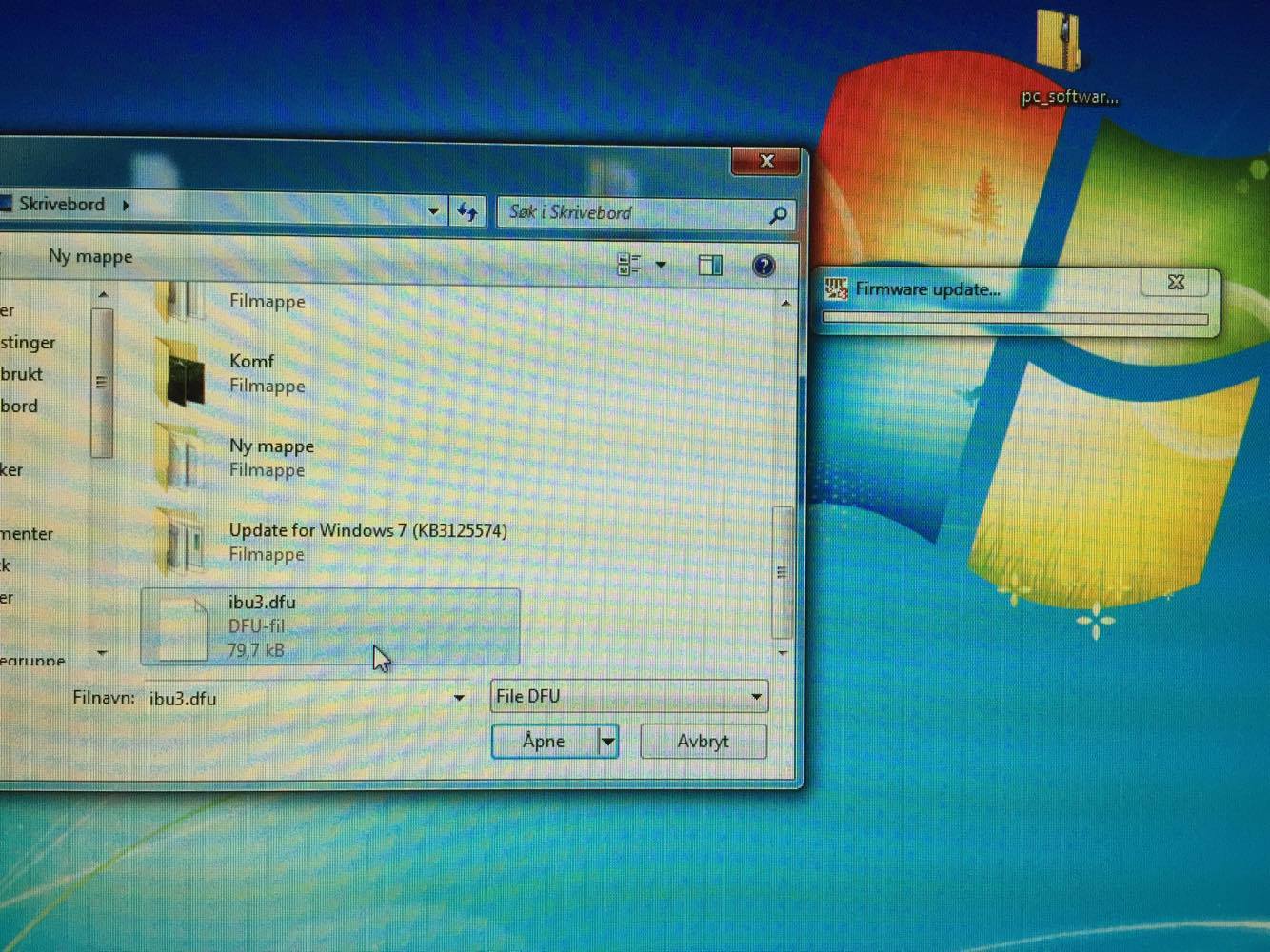

Find you're way to the uppdate DFU file you stored

and Open ore dobb click on it , and the small update prog will do the rest

[Tankbear]

Don't forget to uninstall old program first.

Also after the firmware update it erase your IBU3 settings so you need to redo radio to IBU3 config before using again.

Ian

[jackalope]

How do I un-install the old program?

I hate being computer stupid.

[jarndice]

Jack,
I want your promise that you will at no time in the future become computer literate because it is lonely enough with just the two of us.
I don't think my ego could take solitude.
Shaun.

[jackalope]

Shaun, don't feel bad Max is just as bad as we are.

[jackalope]

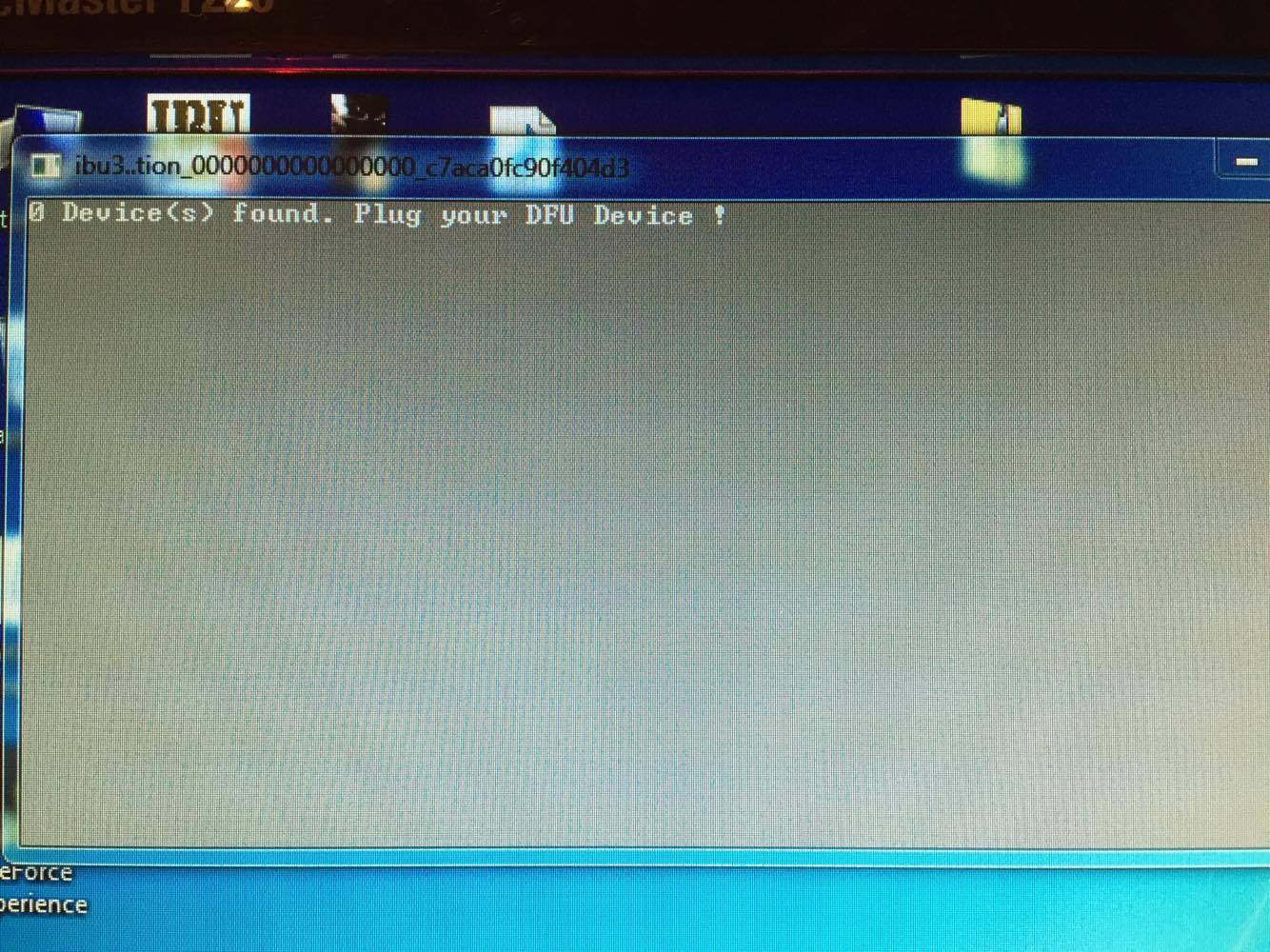

Now the tank won't sync up to even log into the thing, whats wrong? I've had it plugged in for 10min and nothing....YES its turned on.

See THIS is why I HATE this stupid computer bull crap! This hobby is SUPPOSED to be R/C tanks NOT computer programming! Why the hell can't it just plug in and work, whats with this damn synchronizing crap?

If ANYONE can come up with a board that I can plug into my tank that can then either just run it or can be programed by a moron dumb ass like me I have $4000 worth of credit left on my credit cards not to mention whatever I can get for a slightly used IBU3 to buy your new board!

Christ I HATE this!

[Rad_Schuhart]

Now the tank won't sync up to even log into the thing, whats wrong? I've had it plugged in for 10min and nothing....YES its turned on.

See THIS is why I HATE this stupid computer bull crap! This hobby is SUPPOSED to be R/C tanks NOT computer programming! Why the hell can't it just plug in and work, whats with this damn synchronizing crap?

If ANYONE can come up with a board that I can plug into my tank that can then either just run it or can be programed by a moron dumb ass like me I have $4000 worth of credit left on my credit cards not to mention whatever I can get for a slightly used IBU3 to buy your new board!

Christ I HATE this!

I have one RX18, 100% plug and play. You can send me the 4.000 bucks and your IBU 3, I send you the details in a PM.


Nah, just kidding. Relax, it cant be too hard... Maybe you could ask for someone`s help there... Even somebody with no RC tanks knowledge may be able to help you.
