working bridge Layer

Post by 971wright »

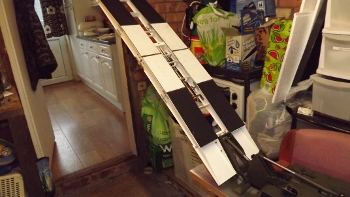

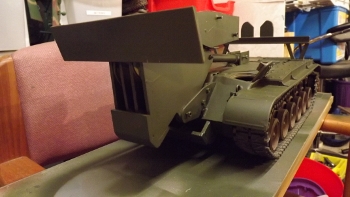

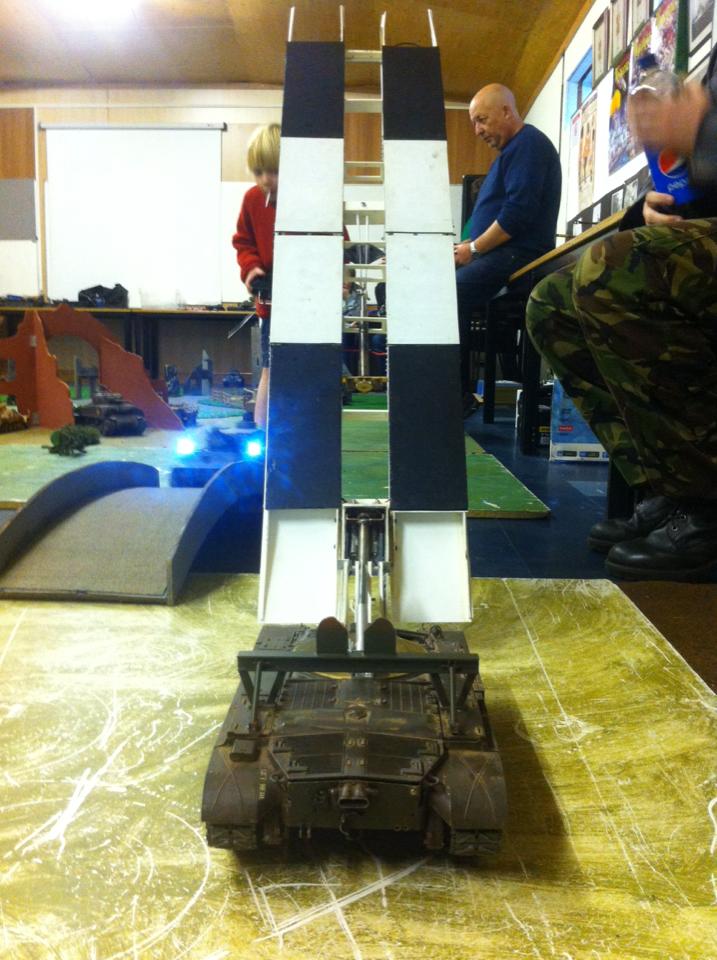

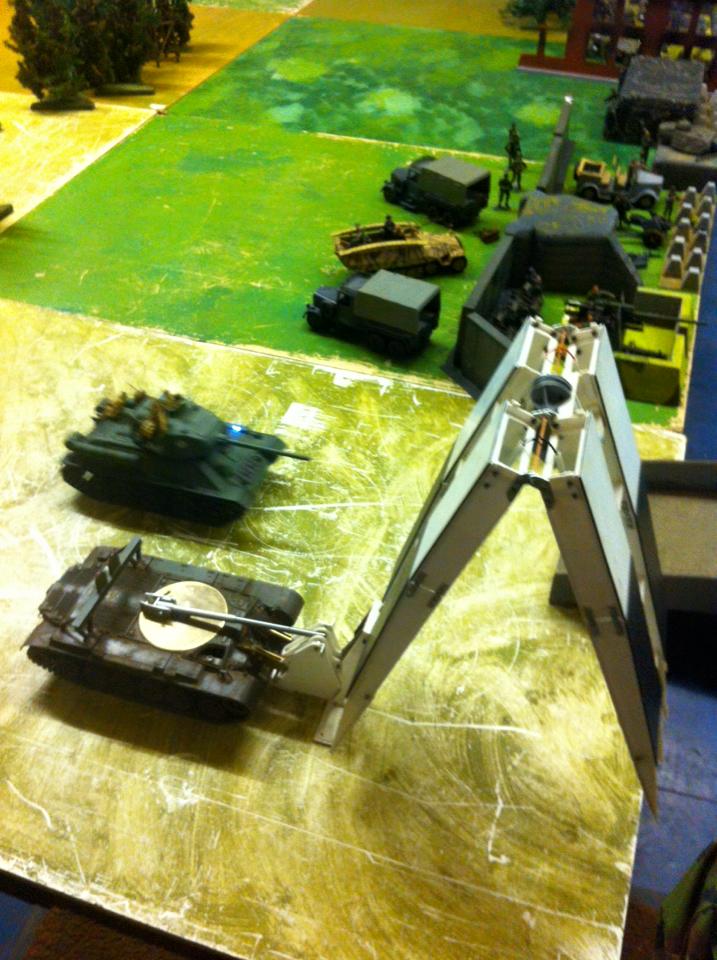

Hi Guys have spent months getting to this point, Have a working bridge layer still have a load of work to do , but finally got it to work , needs a few mods to it but the basics work . Please note that rivet counters there is no point you looking because its miles off. Had to change loads to get it to work , but tried to stay within my tolerance's if it looks right it is right LOL. Need to do a load of work to hide the workings and make it look more like a M48 . Not changing the hull from the Pershing (because if Chris 3 can make a solid Centurion lower will change over to that hull) If this happens can change the pershing to a another model. The Israel's had the M48 bridge layer fitted to the Centurion so did other armies . here are a couple of photos and a video http://youtu.be/tf8vMpUkSZ0


regards pete
Attachments
Top
User avatar
wibblywobbly
Major
Posts: 6396
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley
Contact:
Contact wibblywobbly

Re: working bridge Layer

Post by wibblywobbly »

I know how long and hard you have worked on this one Pete, and the problems that you had to overcome. You finally did it, and it looks really good, all working nicely too. Well done, perseverance pays off! :thumbup:
Tiger 1 Late
Panther G
King Tiger
M36 B1
Top
mcevoyi
2nd Lieutenant
Posts: 2294
Joined: Fri Sep 26, 2008 11:24 pm
Location: Now Living in Cyprus .... Modellers desart ...

Re: working bridge Layer

Post by mcevoyi »

Absolutely SUPERB.....
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: working bridge Layer

Post by 971wright »

Hi Rob Still loads of work to do , but researching next project and collecting bits , while I work on this will be another challenge .

regards pete
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: working bridge Layer

Post by 971wright »

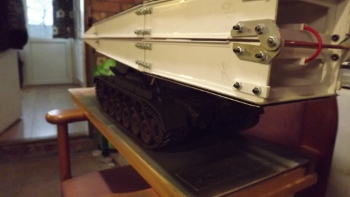

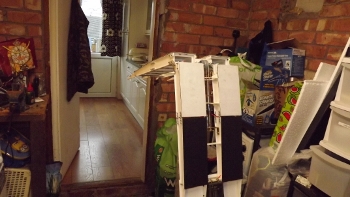

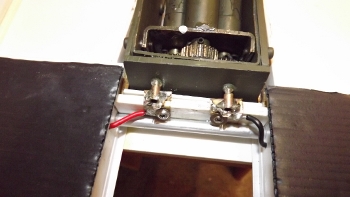

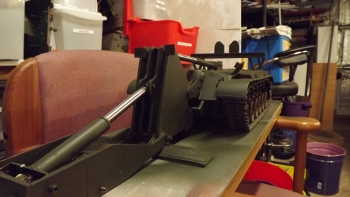

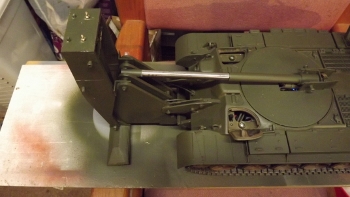

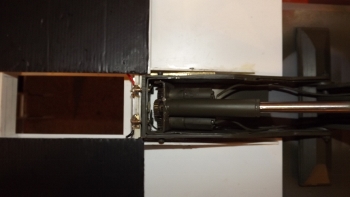

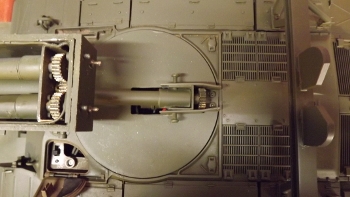

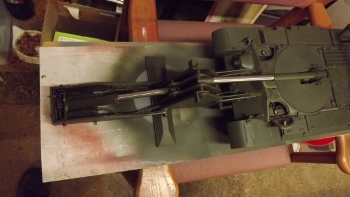

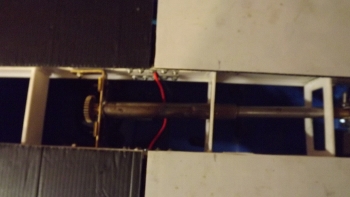

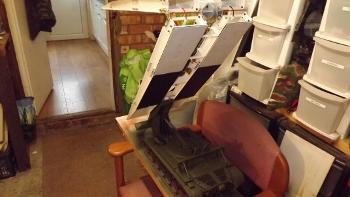

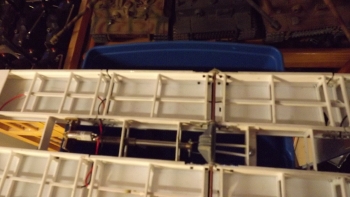

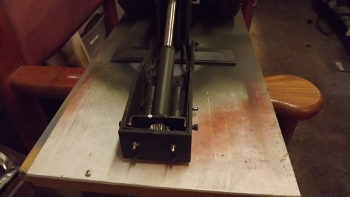

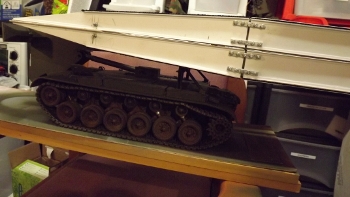

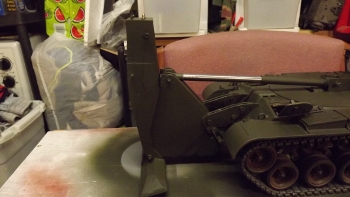

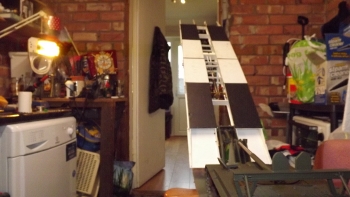

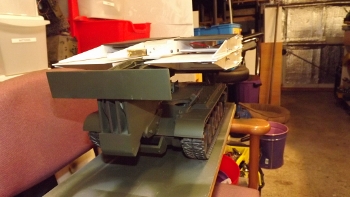

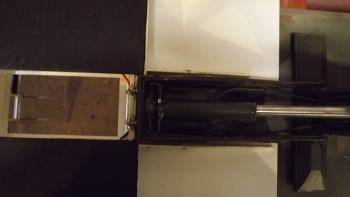

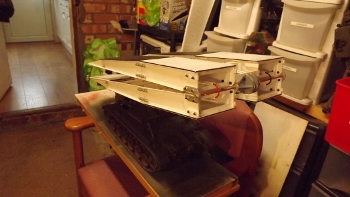

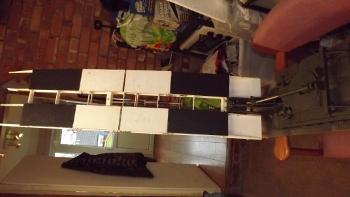

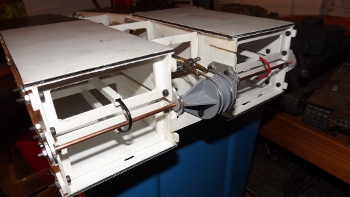

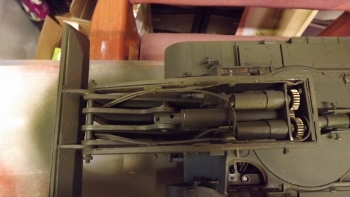

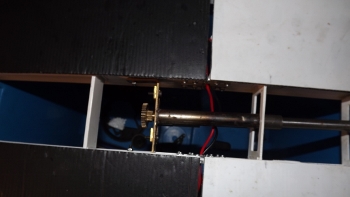

Hi Some photos of how it is put together .
more to follow


regards pete
Attachments
DSCF1161 (350x197).jpg
DSCF1161 (350x197).jpg (143.47 KiB) Viewed 4482 times
DSCF1160 (350x197).jpg
DSCF1160 (350x197).jpg (134.86 KiB) Viewed 4482 times
DSCF1159 (350x197).jpg
DSCF1159 (350x197).jpg (159.39 KiB) Viewed 4482 times
DSCF1158 (350x197).jpg
DSCF1158 (350x197).jpg (149.03 KiB) Viewed 4482 times
DSCF1157 (197x350).jpg
DSCF1157 (197x350).jpg (150.18 KiB) Viewed 4482 times
DSCF1156 (350x197).jpg
DSCF1156 (350x197).jpg (150.52 KiB) Viewed 4482 times
DSCF1155 (350x197).jpg
DSCF1155 (350x197).jpg (145.35 KiB) Viewed 4482 times
DSCF1154 (350x197).jpg
DSCF1154 (350x197).jpg (153.73 KiB) Viewed 4482 times
DSCF1153 (350x197).jpg
DSCF1153 (350x197).jpg (153.14 KiB) Viewed 4482 times
DSCF1152 (350x197).jpg
DSCF1152 (350x197).jpg (147.32 KiB) Viewed 4482 times
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: working bridge Layer

Post by 971wright »

More photos


regards pete
Attachments
DSCF1173 (197x350).jpg
DSCF1173 (197x350).jpg (152.08 KiB) Viewed 4479 times
DSCF1172 (350x197).jpg
DSCF1172 (350x197).jpg (164.72 KiB) Viewed 4479 times
DSCF1171 (350x197).jpg
DSCF1171 (350x197).jpg (161.31 KiB) Viewed 4479 times
DSCF1170 (350x197).jpg
DSCF1170 (350x197).jpg (137.25 KiB) Viewed 4479 times
DSCF1167 (350x197).jpg
DSCF1167 (350x197).jpg (113.6 KiB) Viewed 4479 times
DSCF1166 (350x197).jpg
DSCF1166 (350x197).jpg (119.53 KiB) Viewed 4479 times
DSCF1165 (350x197).jpg
DSCF1165 (350x197).jpg (150.3 KiB) Viewed 4479 times
DSCF1164 (350x197).jpg
DSCF1164 (350x197).jpg (154.85 KiB) Viewed 4479 times
DSCF1163 (350x197).jpg
DSCF1163 (350x197).jpg (114.28 KiB) Viewed 4479 times
DSCF1162 (350x197).jpg
DSCF1162 (350x197).jpg (120.07 KiB) Viewed 4479 times
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: working bridge Layer

Post by 971wright »

Final lot of photos


regards pete
Attachments
DSCF1181 (197x350).jpg
DSCF1181 (197x350).jpg (134.91 KiB) Viewed 4478 times
DSCF1180 (350x197).jpg
DSCF1180 (350x197).jpg (154.38 KiB) Viewed 4478 times
DSCF1179 (350x197).jpg
DSCF1179 (350x197).jpg (136.37 KiB) Viewed 4478 times
DSCF1178 (350x197).jpg
DSCF1178 (350x197).jpg (160.99 KiB) Viewed 4478 times
DSCF1176 (350x197).jpg
DSCF1176 (350x197).jpg (161.22 KiB) Viewed 4478 times
DSCF1175 (350x197).jpg
DSCF1175 (350x197).jpg (167.97 KiB) Viewed 4478 times
DSCF1174 (350x197).jpg
DSCF1174 (350x197).jpg (158.43 KiB) Viewed 4478 times
Top
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: working bridge Layer

Post by atcttge »

OMG... That is so awesome. If I ever get a ton of money, I'd like to pick your brain on how you built this, the mechanism, materials, etc., because I wanna build one too.
Top
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: working bridge Layer

Post by atcttge »

Wot is the design load for this bridge? I mean, wot is the heaviest load it can take? Is it possible for a 20 or so pound tank to run over it over a gap?
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: working bridge Layer

Post by 971wright »

Hi Will take a full metal Tiger without bending . so should take 20lb tank ,the tank it self weighs 11lb the bridge is just over 4lb , Think when finished tank will weigh 12lb and bridge will be 5lb.


regards pete
