Barrel elevation by servo and servo range

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).
Forum rules
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Barrel elevation by servo and servo range

Post by atcttge »

I am going to be using a Tower Pro SG-5010 servo for my M1's barrel elevation. On the real tank, the main gun's elevation/depression range is +20 degrees to -10 degrees. I want my tank to have a similar gun barrel elevation range. How do I do this with the servo? Is there something in the servo that I have to modify? Does it depend on the linkage? How does one connect the servo to the main gun anyway? I will be retaining the airsoft mechanism.

Thank you.
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Barrel elevation by servo and servo range

Post by ALPHA »

atcttge wrote:I am going to be using a Tower Pro SG-5010 servo for my M1's barrel elevation. On the real tank, the main gun's elevation/depression range is +20 degrees to -10 degrees. I want my tank to have a similar gun barrel elevation range. How do I do this with the servo? Is there something in the servo that I have to modify? Does it depend on the linkage? How does one connect the servo to the main gun anyway? I will be retaining the airsoft mechanism.

Thank you.
Tough one ATC...depends on what's on your servo...you have arms or gears....if gears...it's going to be a tough go...as you will have to experiment and block out teeth....if you have arms...it's a little easier as you can use different length connecting rods ;)

Good Luck Buddy :thumbup:

ALPHA
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Barrel elevation by servo and servo range

Post by MichaelC »

As long as the mantlet and the turret allows for the range, you can in theory adjust it via limits on your radio for that channel. Recently I did a servo elevation on my Panther F and dgsselkirk (I sold my F to him) didn't like the fact that servo elevation is alot faster than WWII tanks in general, I just slow down the servo on the radio.
User avatar
hawkeye3guns
Corporal
Posts: 486
Joined: Wed Dec 09, 2009 12:12 pm
Location: Grantham, Lincs, UK

Re: Barrel elevation by servo and servo range

Post by hawkeye3guns »

Hi
its like Alpha said you can either play with the differant holes in your servo arm and the ratio to your gun / mechanism. (most servo's have an operating range of about 50' to 60' (+/- 25 - 30')', or if you have a turnigy radio you can program the operating angle of the servo using the menu controls of the transmitter. Either way its do-able you just need to experiment a little
Denzil
opp's you said get off the road
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: Barrel elevation by servo and servo range

Post by atcttge »

ALPHA: This is the servo I have and the stuff it has:


MichaelC: I think the mantlet and turret will allow the range I need. I don't know how to adjust a servo as this is all new to me. Also, I don't know what to use for linkages and such. Any ideas?
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Barrel elevation by servo and servo range

Post by MichaelC »

This is probably the simplest way to do an elevation:

Last edited by MichaelC on Thu Oct 08, 2015 6:36 pm, edited 1 time in total.
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Barrel elevation by servo and servo range

Post by ALPHA »

atcttge wrote:ALPHA: This is the servo I have and the stuff it has:


MichaelC: I think the mantlet and turret will allow the range I need. I don't know how to adjust a servo as this is all new to me. Also, I don't know what to use for linkages and such. Any ideas?
Comes with everything...think you are set for every thing possible ;)

Michael's mount looks good ...you should try his method

ALPHA
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: Barrel elevation by servo and servo range

Post by MichaelC »

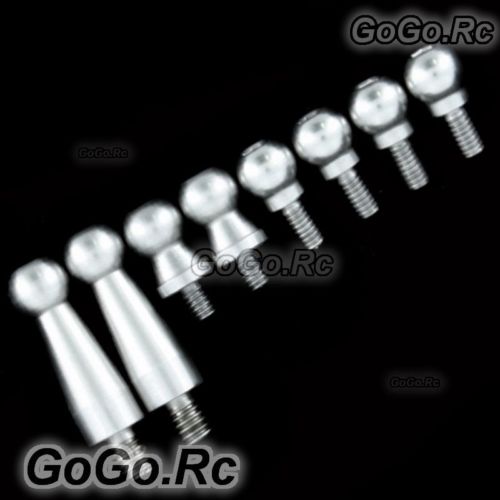

To do it the way I have in my video you will need these and some kind of C Channel. You can either build your own or use the one that comes with some HL tanks.

http://www.ebay.ca/itm/301093132164?_tr ... EBIDX%3AIT
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Barrel elevation by servo and servo range

Post by ALPHA »

Man I haven't seen those since I did rc airplanes ;)

ALPHA
billpe
Warrant Officer 2nd Class
Posts: 1144
Joined: Tue Jan 29, 2013 1:59 pm
Location: The bowels of Kent

Re: Barrel elevation by servo and servo range

Post by billpe »

atcttge wrote:ALPHA: This is the servo I have and the stuff it has:


MichaelC: I think the mantlet and turret will allow the range I need. I don't know how to adjust a servo as this is all new to me. Also, I don't know what to use for linkages and such. Any ideas?
Managing the servos travel and centre point is done on the controller using trim (some servos can be programmed as well). You'll just need to fit it then experiment with arms and such.

You can get new arms if needed. Servos tend to conform to both dimensions and spline types across brands. You just need to find out how many teeth your spline has and then being parts for it is easy enough as they tend to be standardised these days. So if its 25 tooth spline, hitec parts will fit. 24 teeth then futaba etc. That's assuming that servo conforms, is rebranded or a clone.
