British Sherman IIA - Italy 1944

[Swamprat33]

Hi all, just completed my Sherman IIa yesterday, so thought it about time i posted some pix here.
It started out as a standard Mato M4a1(76) with all the usual faults.

Work done on this baby was a little more that i had planned, but worth it.

Replaced the gun barrel.
Replaced the plastic 'ROCKER' suspension with the metal set.
Replaced the hull mg.
Rebuilt the interior, cut out the battery tray and fitted magnets instead of screws to hold the hull together.
Fitted a Tamiya system with recoil and a battle system.
Fixed the front tranny housing.
Lowered the turret to correct height.
Replaced the front light guards and lift hooks with some HL ones which are finer.
Replaced front & rear lights with a metal set.
Designed & printed my own transfers.

This tank is based on a real Sherman IIA called 'CAMERON' from "C" Squadron 2RTR, 7th Armoured Brigade based in Italy in Late1944.

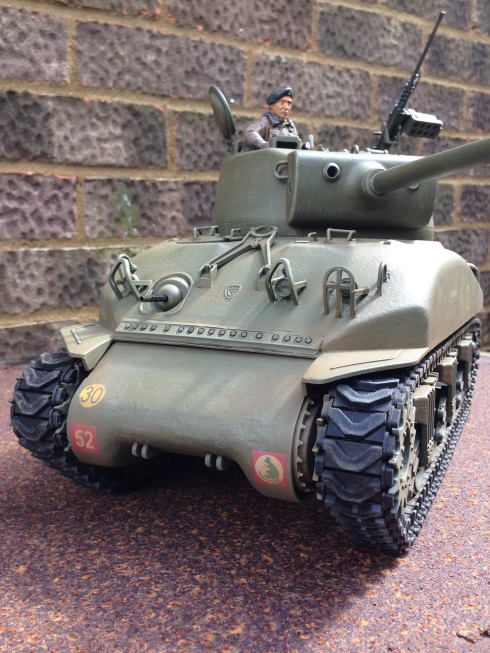

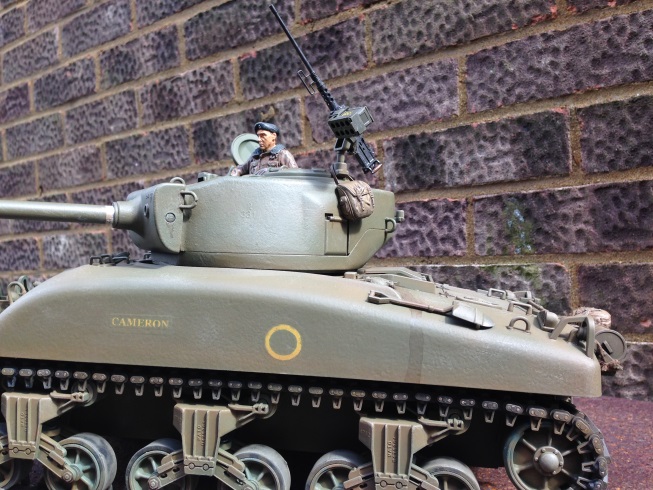

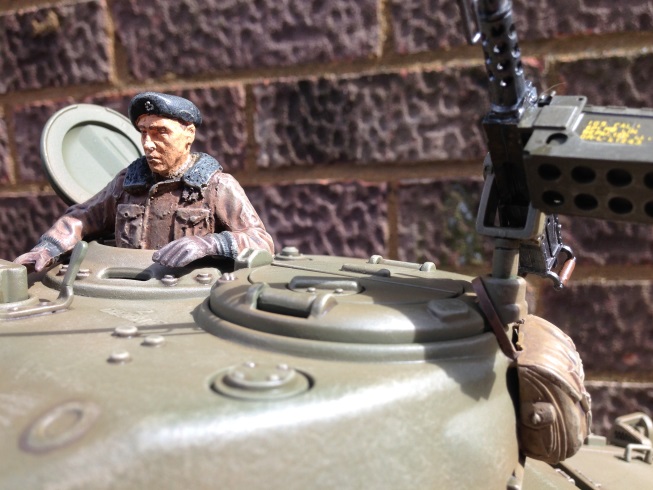

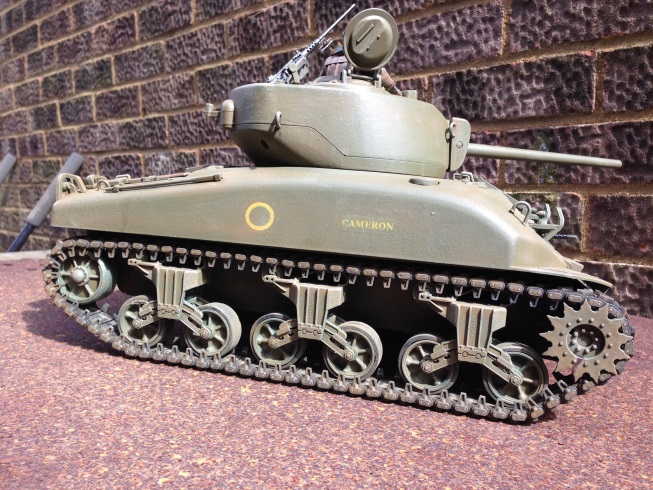

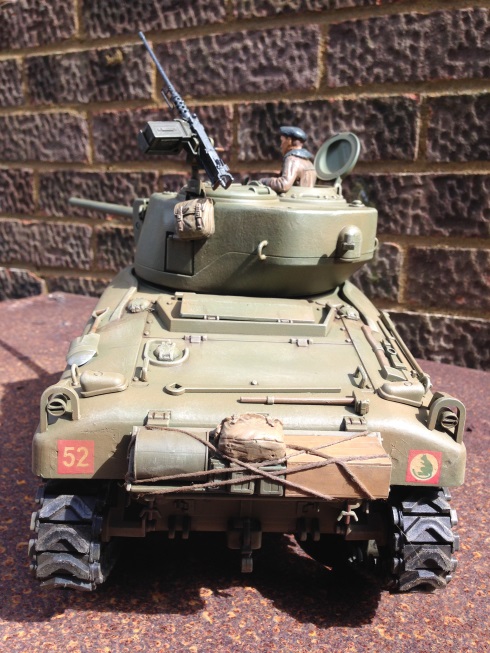

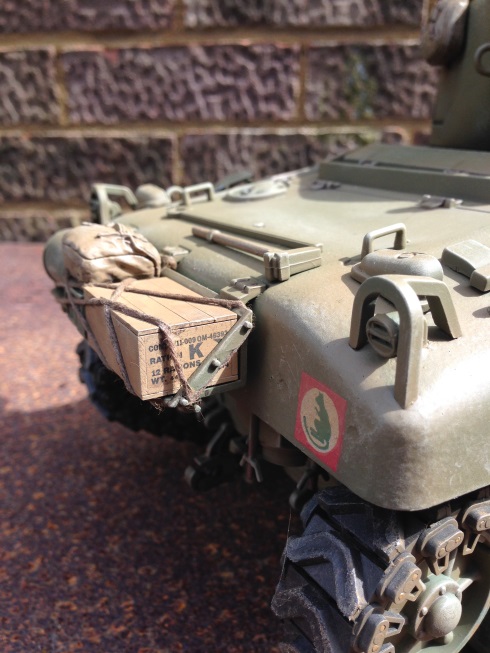

Here are some photos of my completed tank.

Cheers

Tim

[scalawag]

Very nice Tim, That really looks the part.

[LongGoneJohn]

Nice, well done. I'm considering building a firefly, this is just more encouragement. Fine work!

[ALPHA]

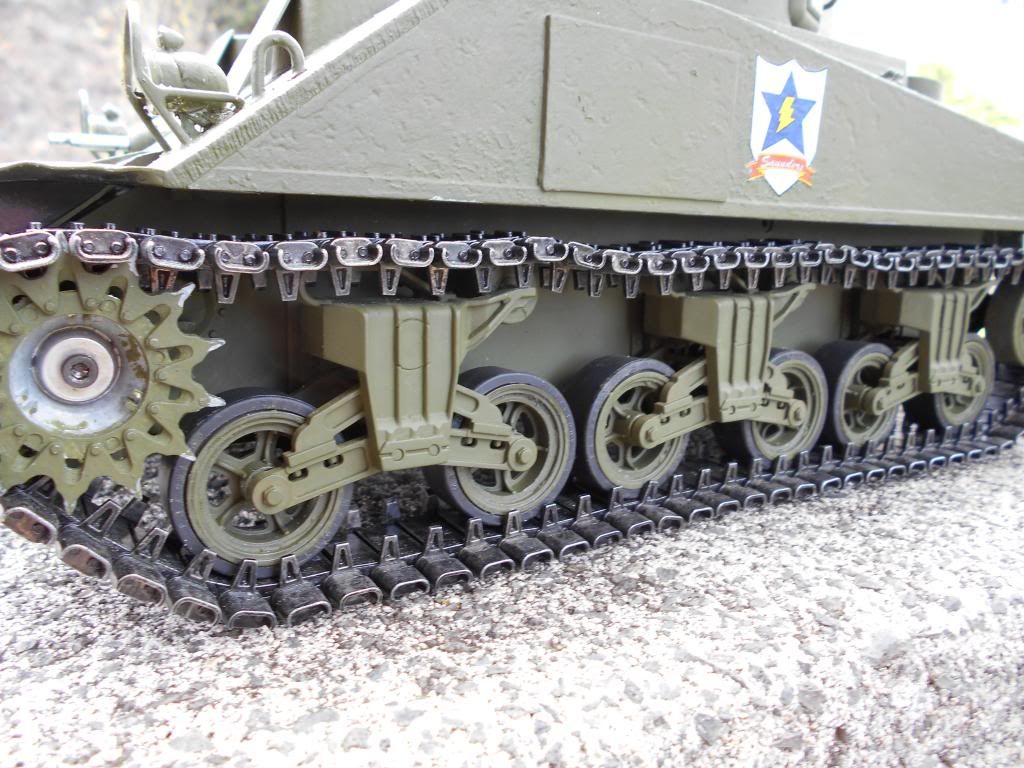

Nice wheels.... did a set of those on my Fov Sherman...

Here's the build
http://www.rctankwarfare.co.uk/forums/v ... &start=180

interesting configuration on the headlights/ horn...hate to sound over critical... but is that separation on the transmission plate intentional? Putting a plate on the upper hull and moving all your magnets to the rear might help for a cleaner look

Over all a decent job... how did you like working with the Mato ?

ALPHA

[Swamprat33]

Hi Alpha, the tranny plate was almost the trickiest bit of the conversion and I am not sure if I'd do it that way again.
The join is only noticeable if you look from a very low angle.

Tim

[ALPHA]

Hi Alpha, the tranny plate was almost the trickiest bit of the conversion and I am not sure if I'd do it that way again.
The join is only noticeable if you look from a very low angle.

Tim

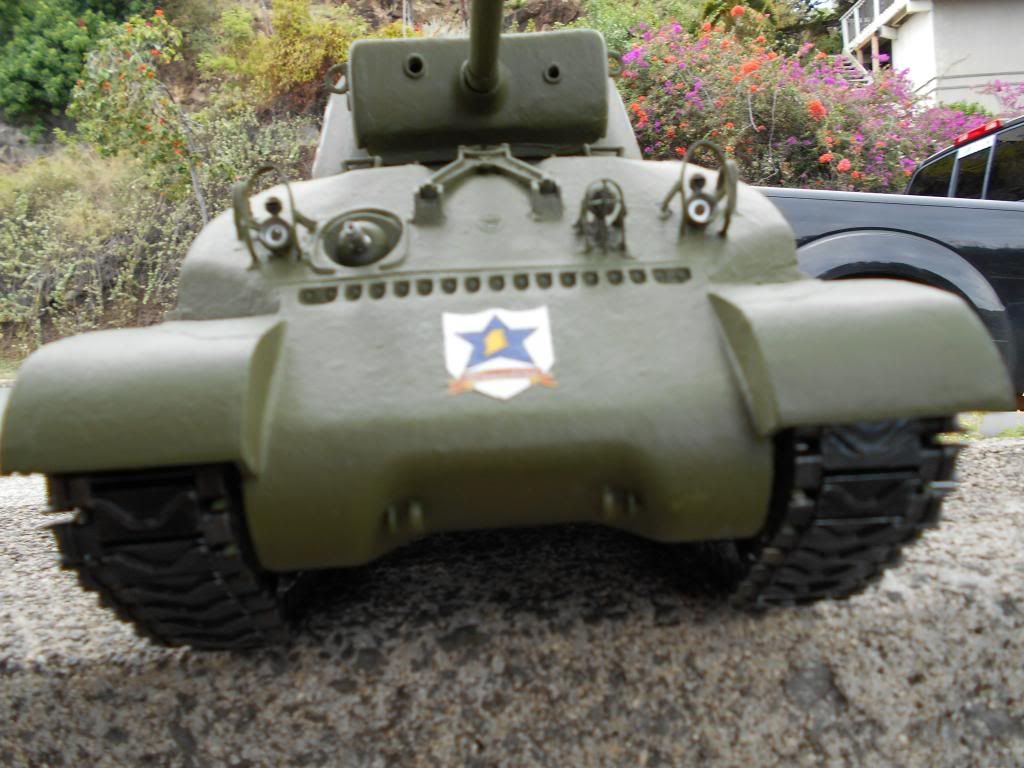

Hi Tim... I merged a Mato to a Heng Long... the transmission cover was complicated... but I did find a viable solution

as you can see there is no gap ...I had to combine the Heng long with the Mato but the merging was perfect and relatively easy

Is it because of your gearboxes or electricals...like I said ...I really don't want to come of as being too critical..but personally I couldn't live with my tank with a gap showing...it kind of takes away from the other labors you put into your model...which I can clearly see has been done

Anyway... no offense meant... just something I rather say than not comment at all

ALPHA

[cannedheat]

nice Sherman old chap....... wot wot ......

[PainlessWolf]

Good Morning,
Shermans always seem to turn into more work than one originally plans for but the results are genuinely satisfying and worthwhile.
Regards,
Painless

[doc larsson]

Brilliant !

[ALPHA]

TOO FUNNY...THANKS FOR THE LAUGH GANG
Sorry couldn't find a matching photo of a Sherman to match the build.... this was the closest I could find...

thing is ...the transmission cover still sits perfectly

Happy Tanking .............

ALPHA
