M36 Jackson Build Report

Post by cfredbandeira »

Two months ago I started to build a M36 Jackson based on Tamiya Lower Hull.
Here are some pictures of the progress of work to date.
Attachments

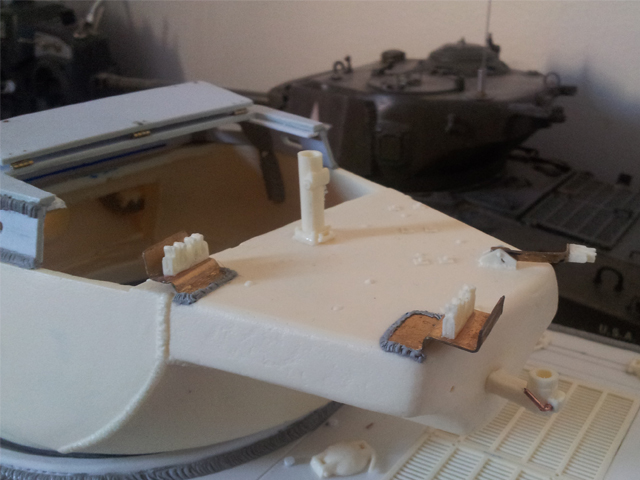

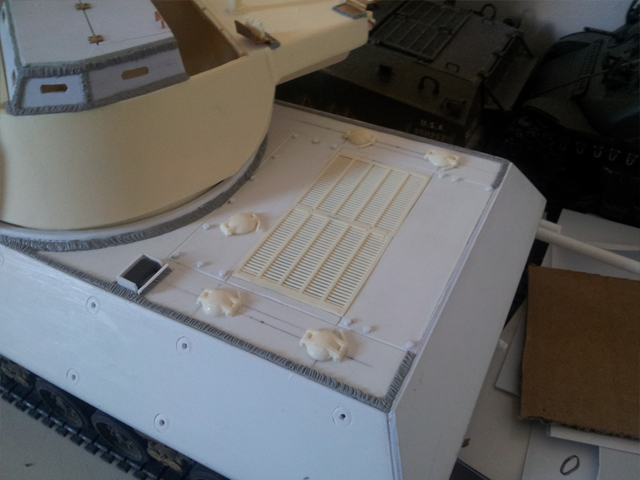

Detailing the rear deck.
Detailing the rear deck.

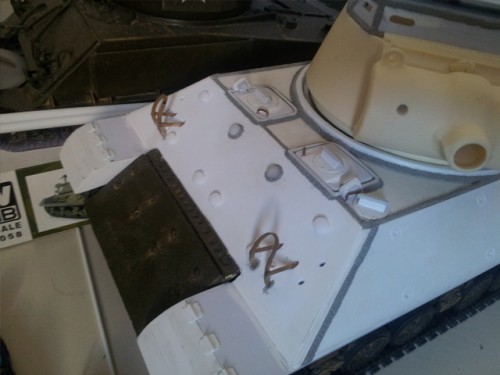

Starting the detailing of the glacis.
Starting the detailing of the glacis.

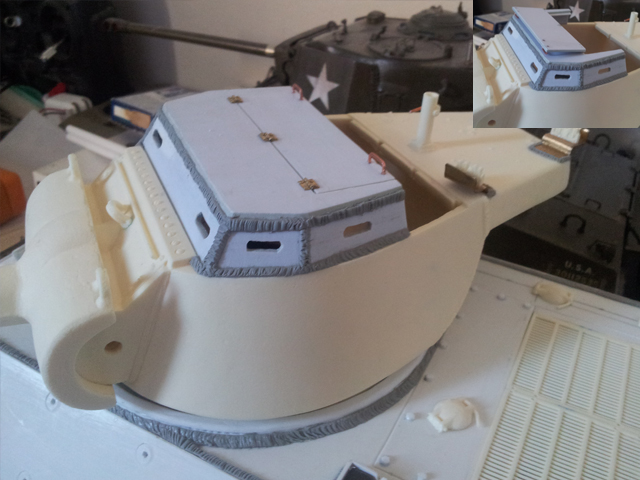

The roof field patch on the turret. I made it removable, to easy access to the lifting mechanism.
The roof field patch on the turret. I made it removable, to easy access to the lifting mechanism.
Using brass where is possible.
Using brass where is possible.

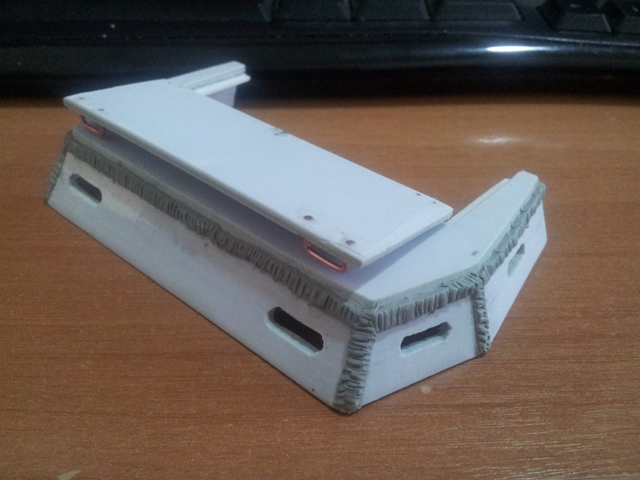

Here in opened position. I use real 4mm brass hinges.
Here in opened position. I use real 4mm brass hinges.

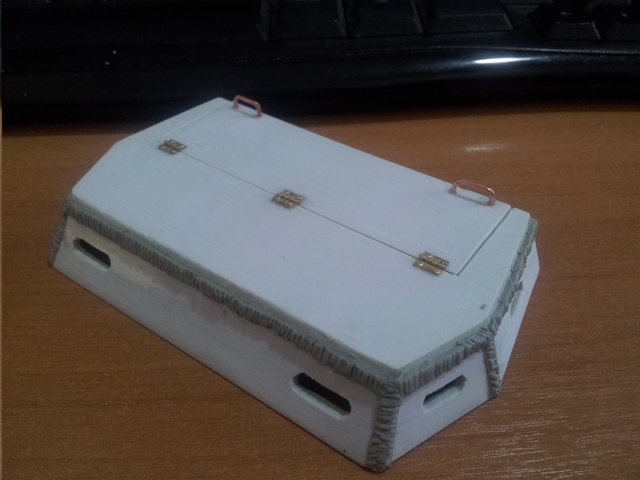

Decided to build the roof patch field to help hide the lifting mechanism of the gun ... and because it is pretty cool too!<br />Here in closed position.
Decided to build the roof patch field to help hide the lifting mechanism of the gun ... and because it is pretty cool too!
Here in closed position.

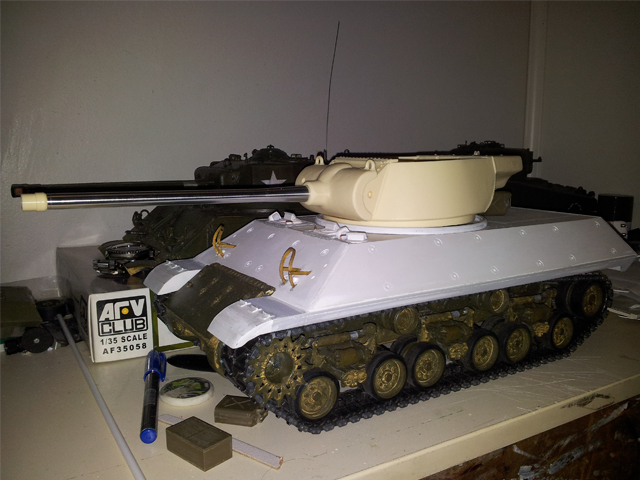

Testing Nick Aguilar's parts. Perfect, as usual!
Testing Nick Aguilar's parts. Perfect, as usual!

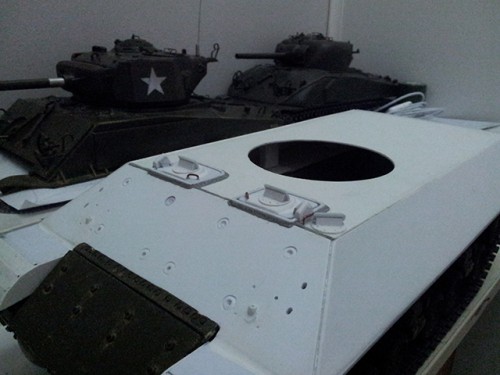

I mounted the periscopes in the open position.
I mounted the periscopes in the open position.

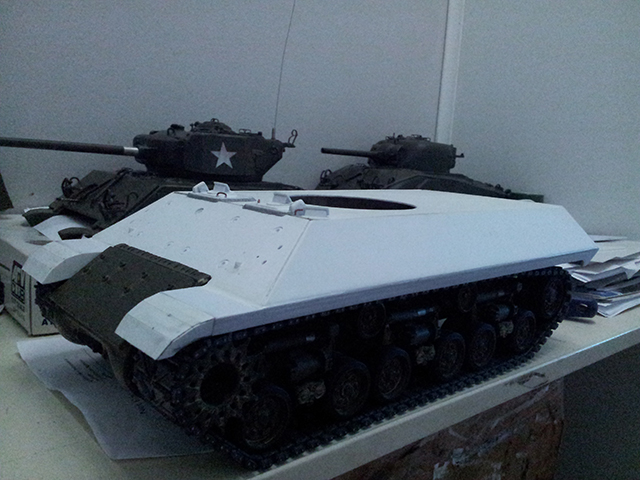

I built the upper hull with 2mm polyestiren.
I built the upper hull with 2mm polyestiren.
