My plywood 12th scale "Cromwell Mk.4" tank.

Post by Geoff C. »

Hi, Here's some pics of my latest tank build. The hull and turret are made from 3mm ply from stermat stores, and the wheels from 8mm ply. There's a few more pics yet to come. Regards Geoff C.
Attachments

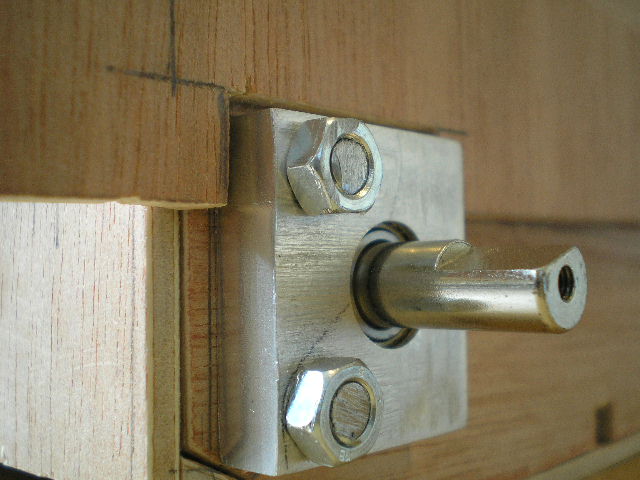

6mm track tensioning bolts.
6mm track tensioning bolts.
turret bearing and plastic gear for H/L turret drive unit.
turret bearing and plastic gear for H/L turret drive unit.

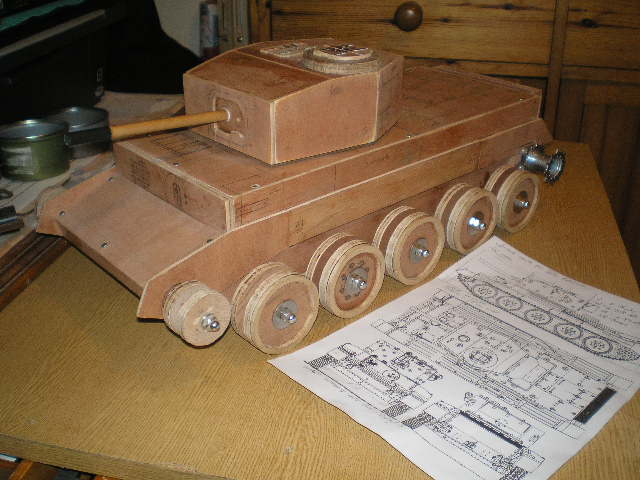

Hull, wheels and turret.
Hull, wheels and turret.

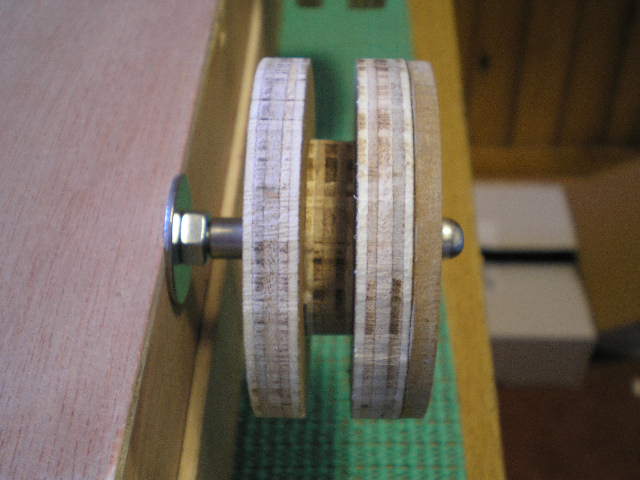

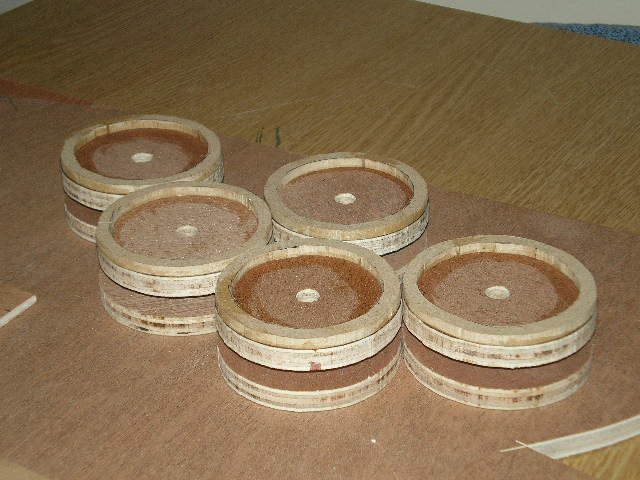

Double wheels in ply
Double wheels in ply
Wheels made from 8mm ply.
Wheels made from 8mm ply.
8mm pillow bearing from Motionco.
8mm pillow bearing from Motionco.
8mm bearing.JPG (69.69 KiB) Viewed 1855 times
Heng Long Sprocket for Walker Bulldog.
Heng Long Sprocket for Walker Bulldog.

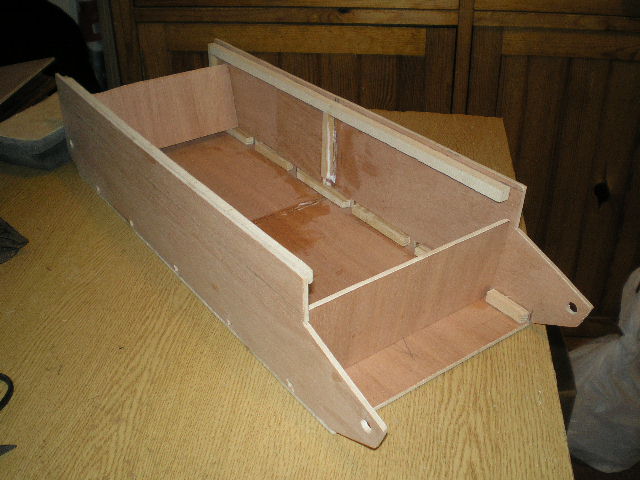

Basic box hull.
Basic box hull.
All my senior moments seem joined together these days.
Top
User avatar
Geoff C.
Recruit
Posts: 13
Joined: Sun Jan 06, 2013 6:36 pm
Location: Anglesey, N.Wales, UK.

Re: My plywood 12th scale "Cromwell Mk.4" tank.

Post by Geoff C. »

Hi, A few more pics of the build.
Attachments
Side view showing weathering effect.
Side view showing weathering effect.

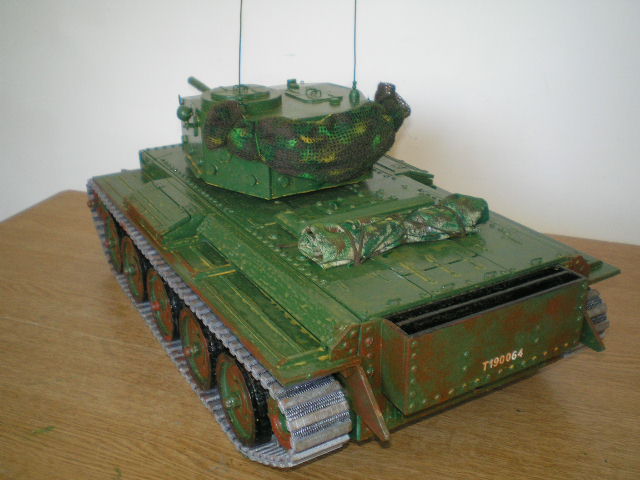

Rear view with Cammo nets.
Rear view with Cammo nets.

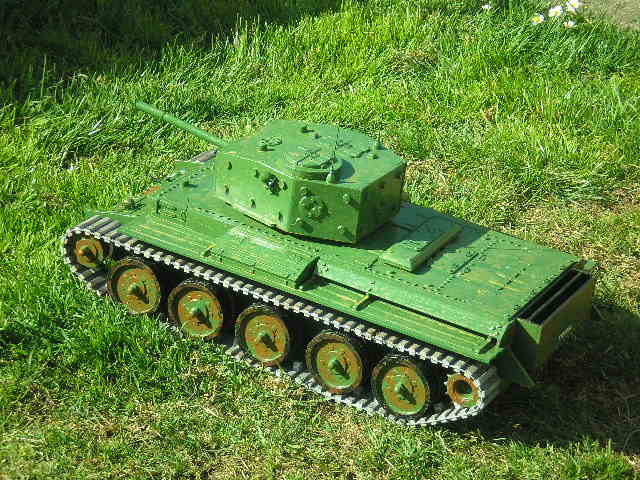

Grass trials
Grass trials

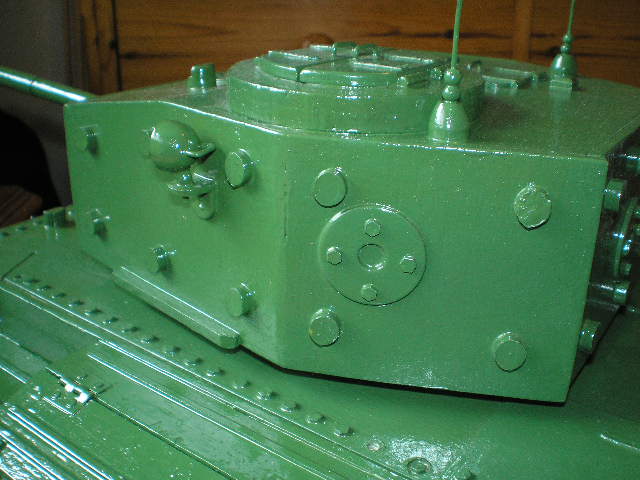

Turret details.
Turret details.
Front rivet detail.
Front rivet detail.

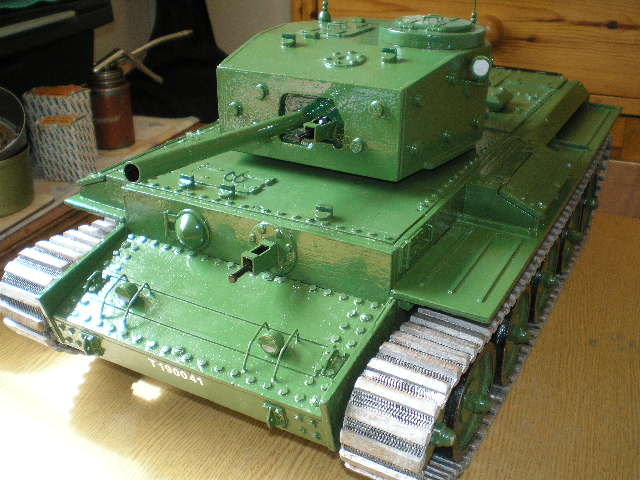

Front view.
Front view.

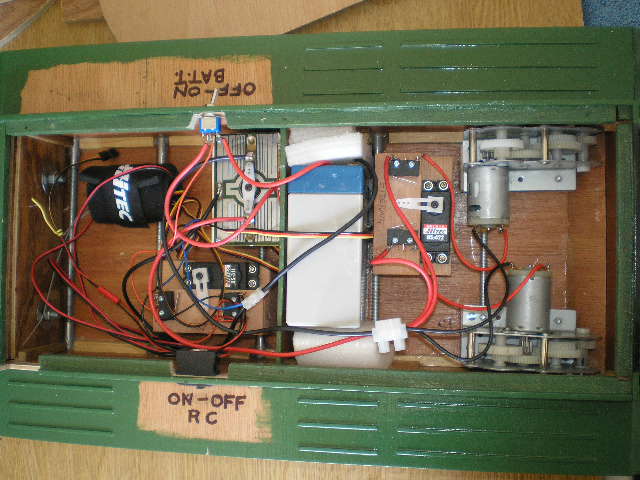

Interior layout.
Interior layout.
All my senior moments seem joined together these days.
Top
User avatar
lliw180
Lance Corporal
Posts: 111
Joined: Thu Jul 18, 2013 2:25 am
Location: Adelaide South Australia

Re: My plywood 12th scale "Cromwell Mk.4" tank.

Post by lliw180 »

nice work mate i like the 2 switch 1 servo speed controllers set up
scratch building is more fun
Top
User avatar
Geoff C.
Recruit
Posts: 13
Joined: Sun Jan 06, 2013 6:36 pm
Location: Anglesey, N.Wales, UK.

Re: My plywood 12th scale "Cromwell Mk.4" tank.

Post by Geoff C. »

The two switches in the front half are for left and right Turret, and the two switches in the rear are kill switches for each motor for steering. The forwards and back is controlled by Bobs Board and servo. Regards, Geoff.
All my senior moments seem joined together these days.
Top
User avatar
Panther Ausf G
Corporal
Posts: 457
Joined: Tue Sep 13, 2011 1:18 pm
Location: Bournemouth, Dorset. UK.

Re: My plywood 12th scale "Cromwell Mk.4" tank.

Post by Panther Ausf G »

A very nice Cromwell Geoff C. :clap: :clap: :clap:
Keep the piccy's and build info going. :thumbup:
We do not stop playing because we grow old.
We grow old because we stop playing.
