mato sherman internal pics

Post by doug838tiger »

Does anyone have any internal picks of the mato Sherman it would be greatly appreciated mainly the actual wiring so I can get mine up .and running thanks
Doug ;D
Top
User avatar
Dietrich
Staff Sergeant
Posts: 973
Joined: Thu Aug 13, 2009 10:29 am
Location: England and Aquitaine,France

Re: mato sherman internal pics

Post by Dietrich »

Hi,

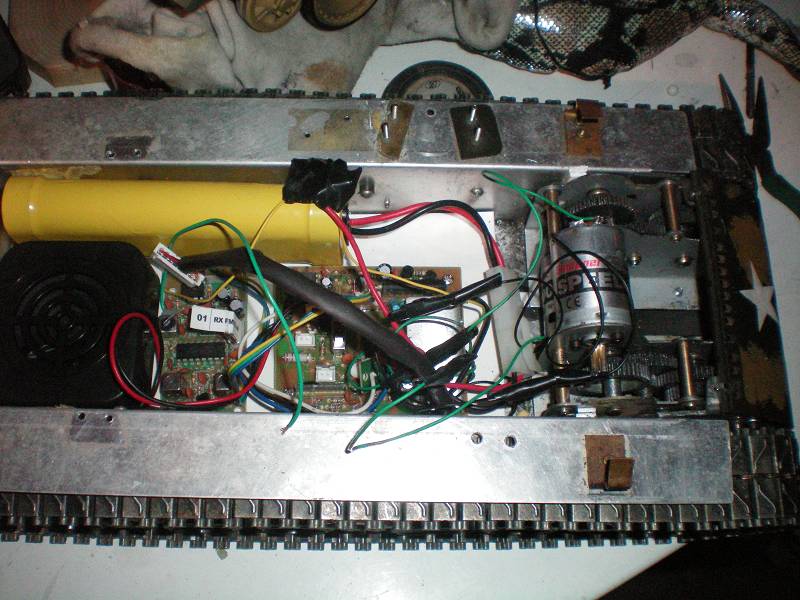

Is this what you are seeing inside the Sherman ??
Alb.
