lmcq11 · Post by **lmcq11** » Wed Aug 25, 2021 6:52 pm

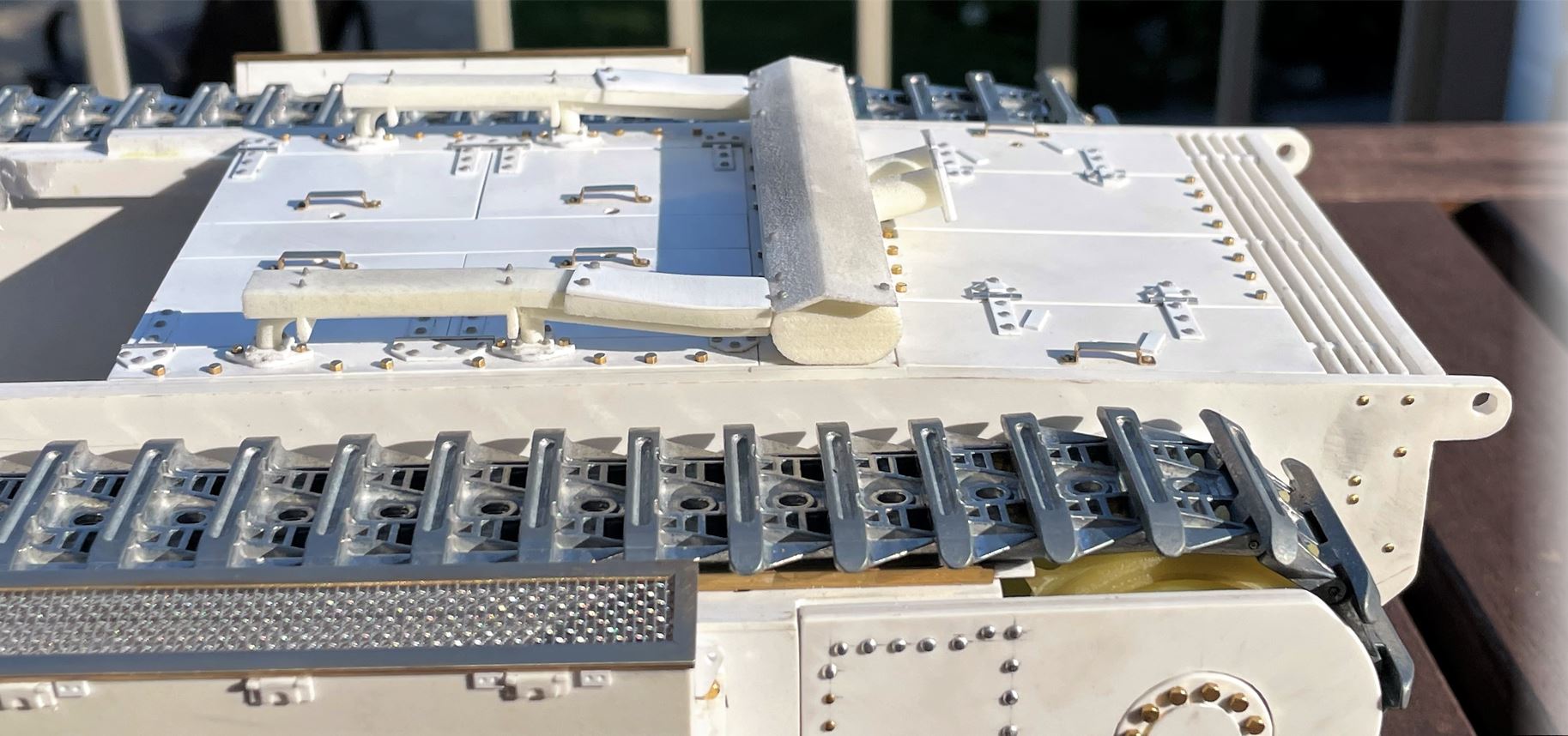

Exhaust pipes are installed permanently.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

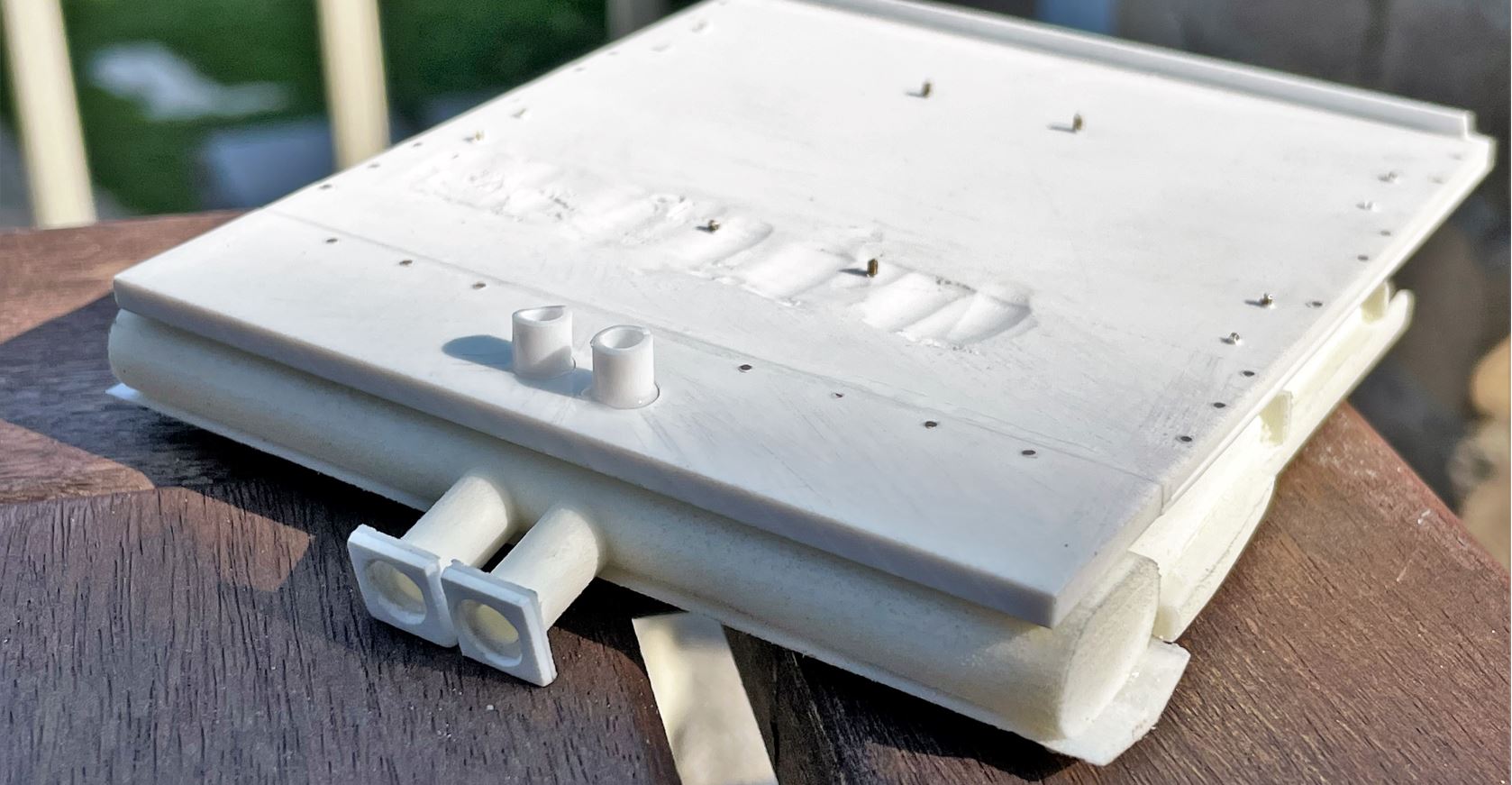

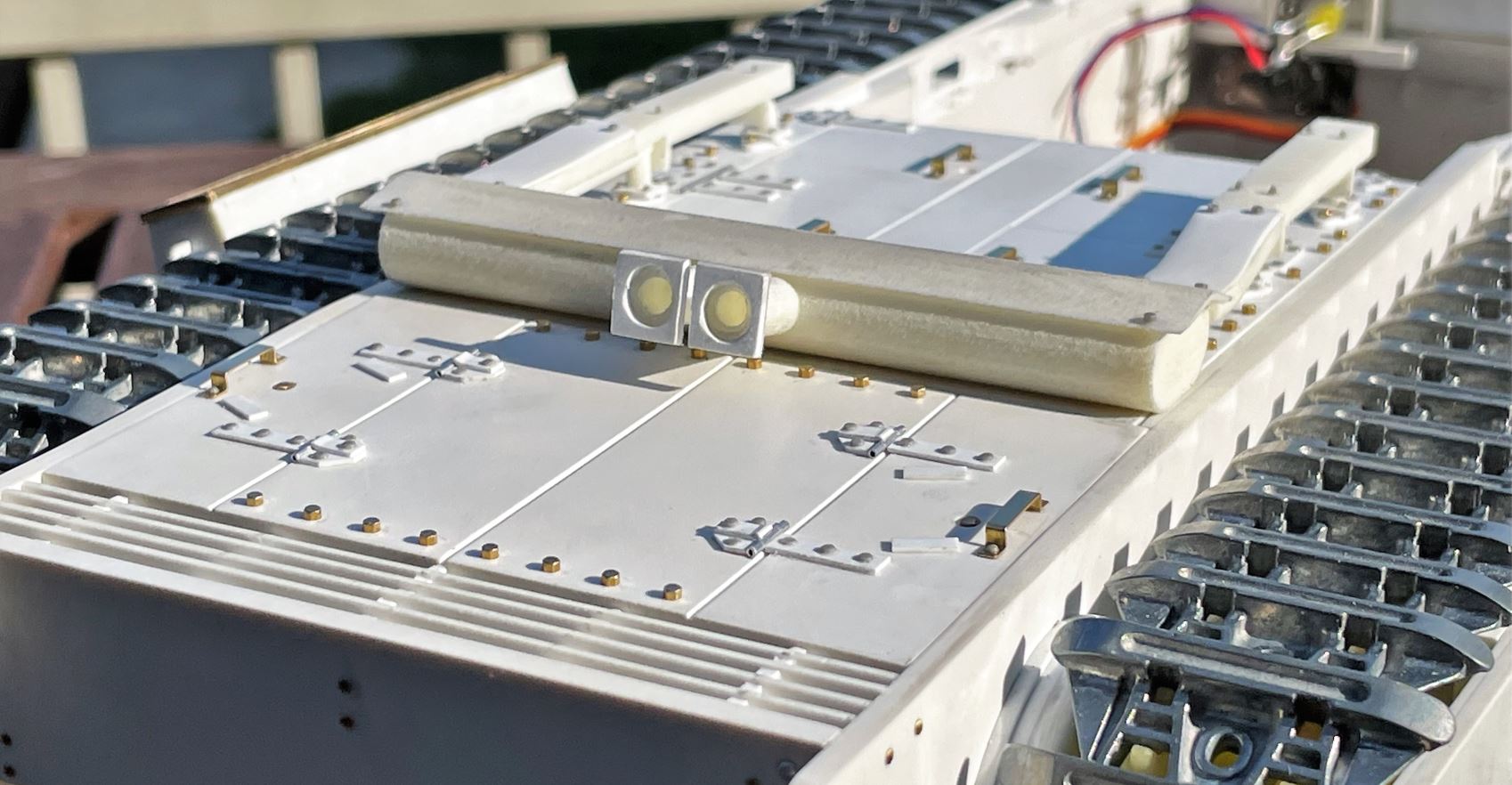

Under the engine deck, arrangements are made to later connect a smoke unit.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

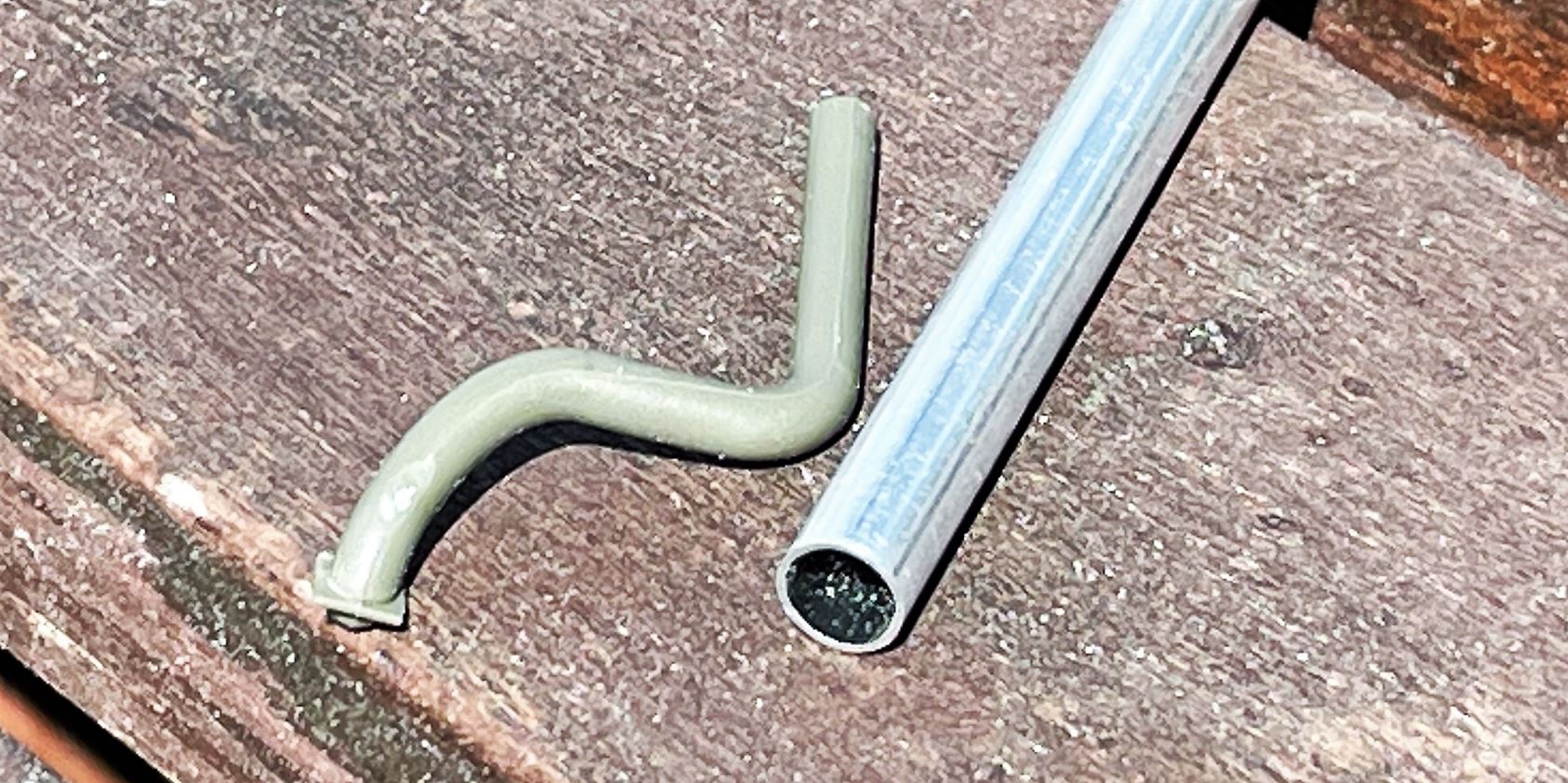

For the deep wading exhaust stack, a 6mm aluminum pipe is selected. I am using the AFV Club part as a model for dimensions and shapes.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

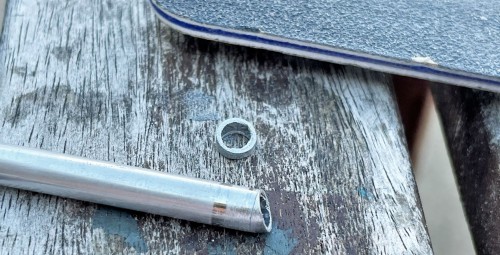

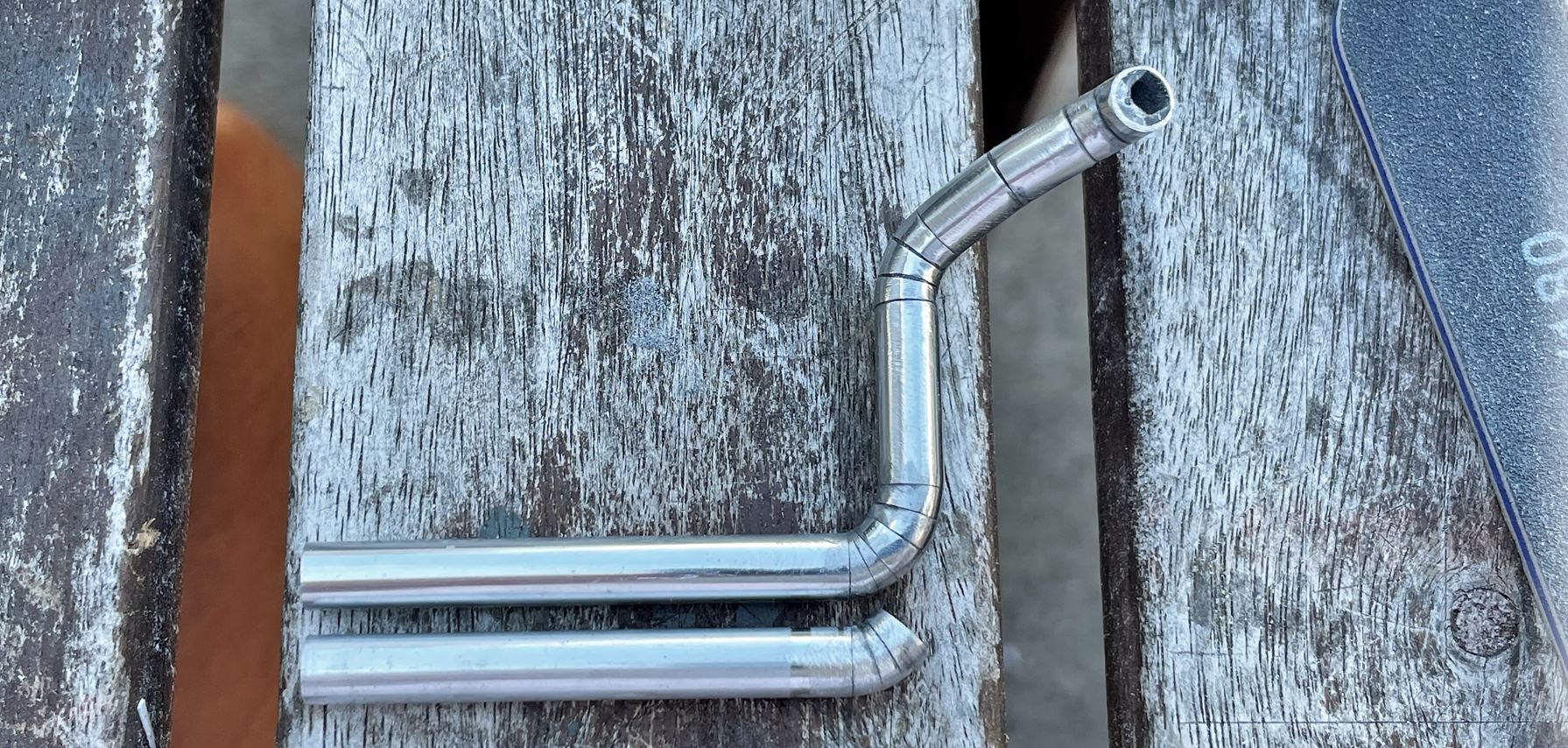

The stacks are created telescopically. Parts are cut and superglued. Angles are made with a nail file. Then the pipes are filed to smoothen the curves. Superglue mixed with aluminum dust is then used as filler, filed and polished. When an issue is found with a specific joint, such as wrong dimension or angle, it can be broken with a blade, reworked and re-glued. Each stack has a total of 14 sections.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

One of the challenge is to create two stacks exactly alike in shapes and dimensions, but also in reverse position.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

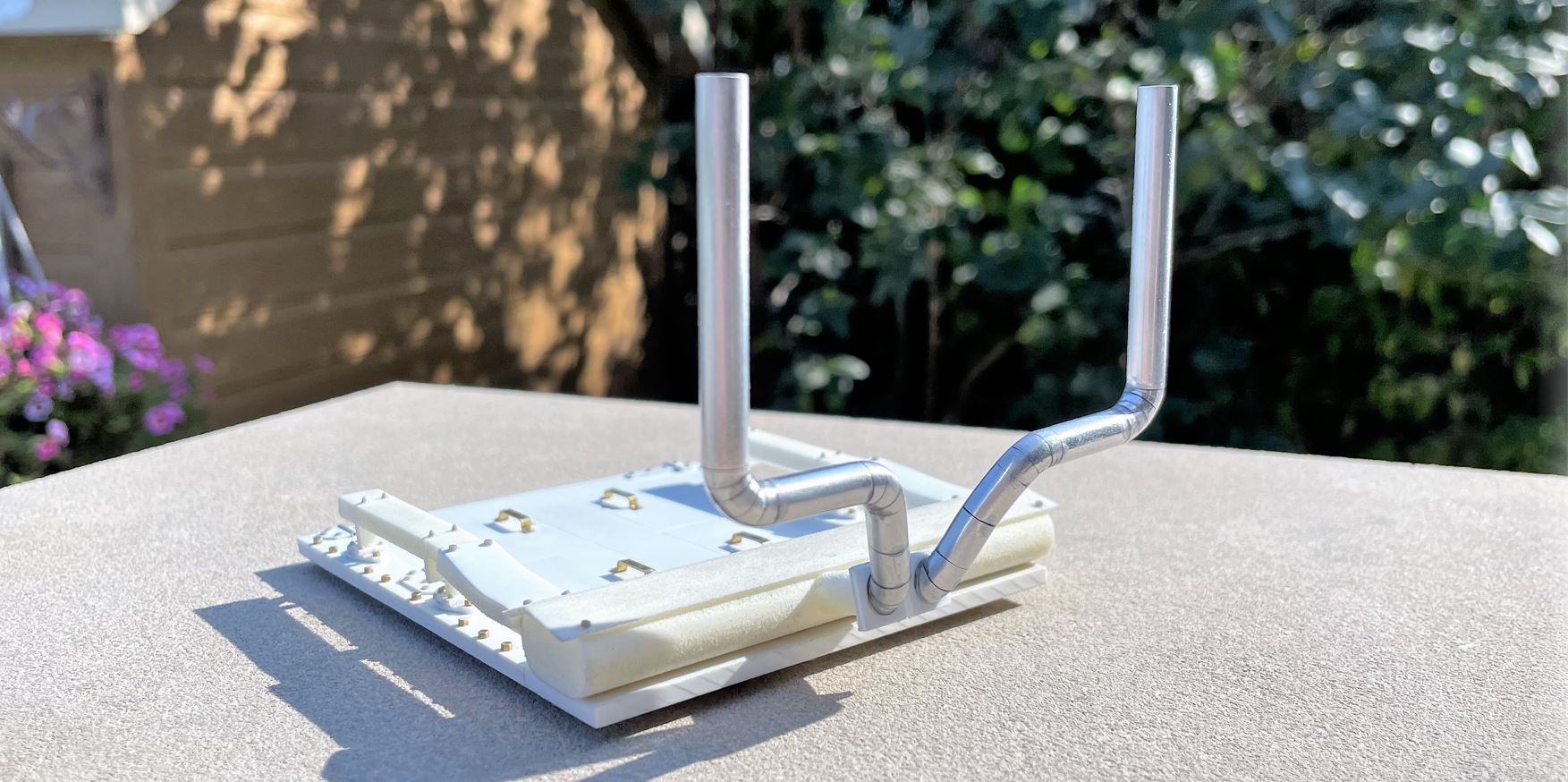

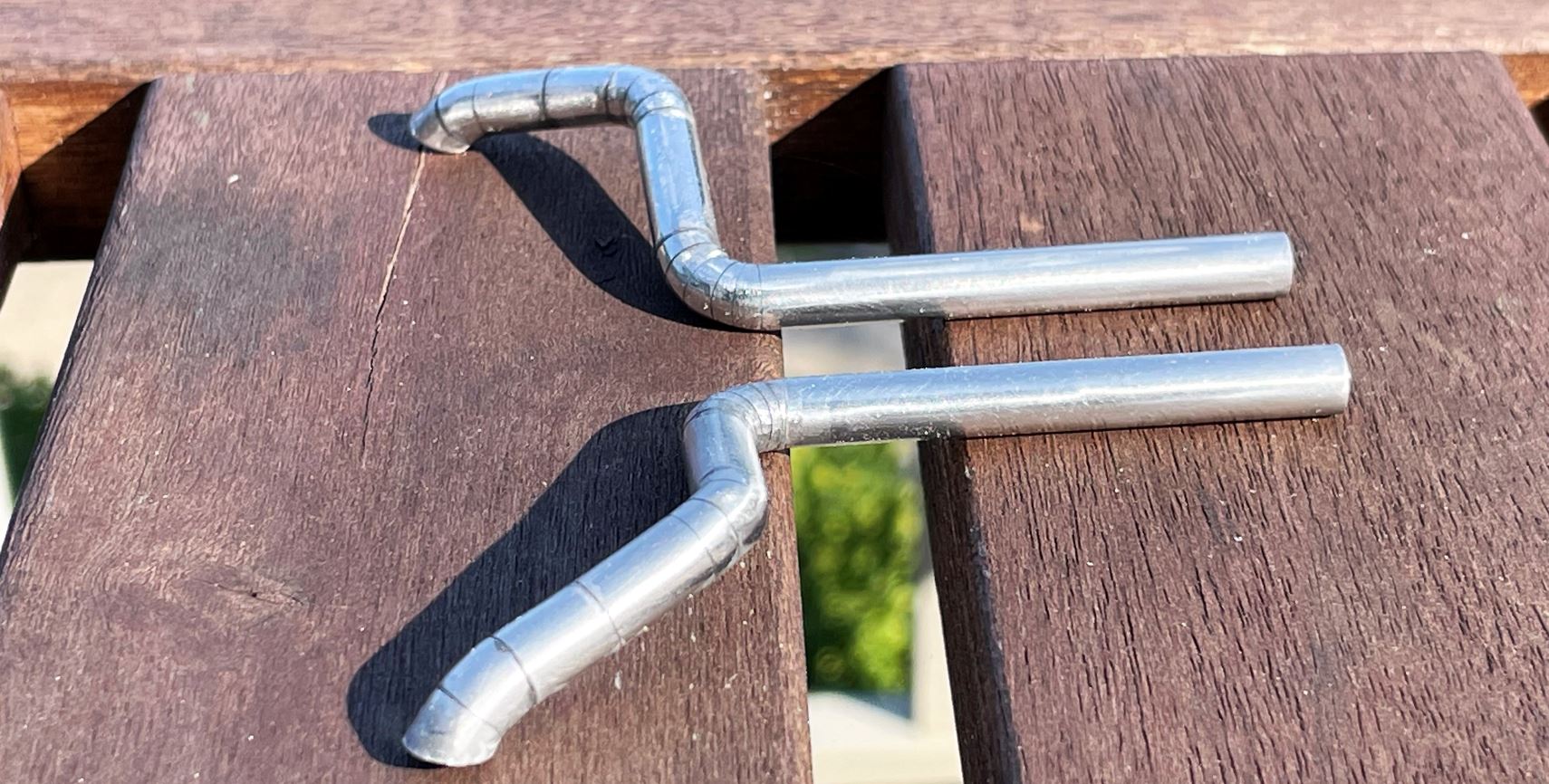

The completed stacks.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

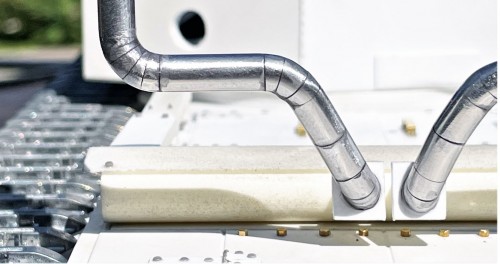

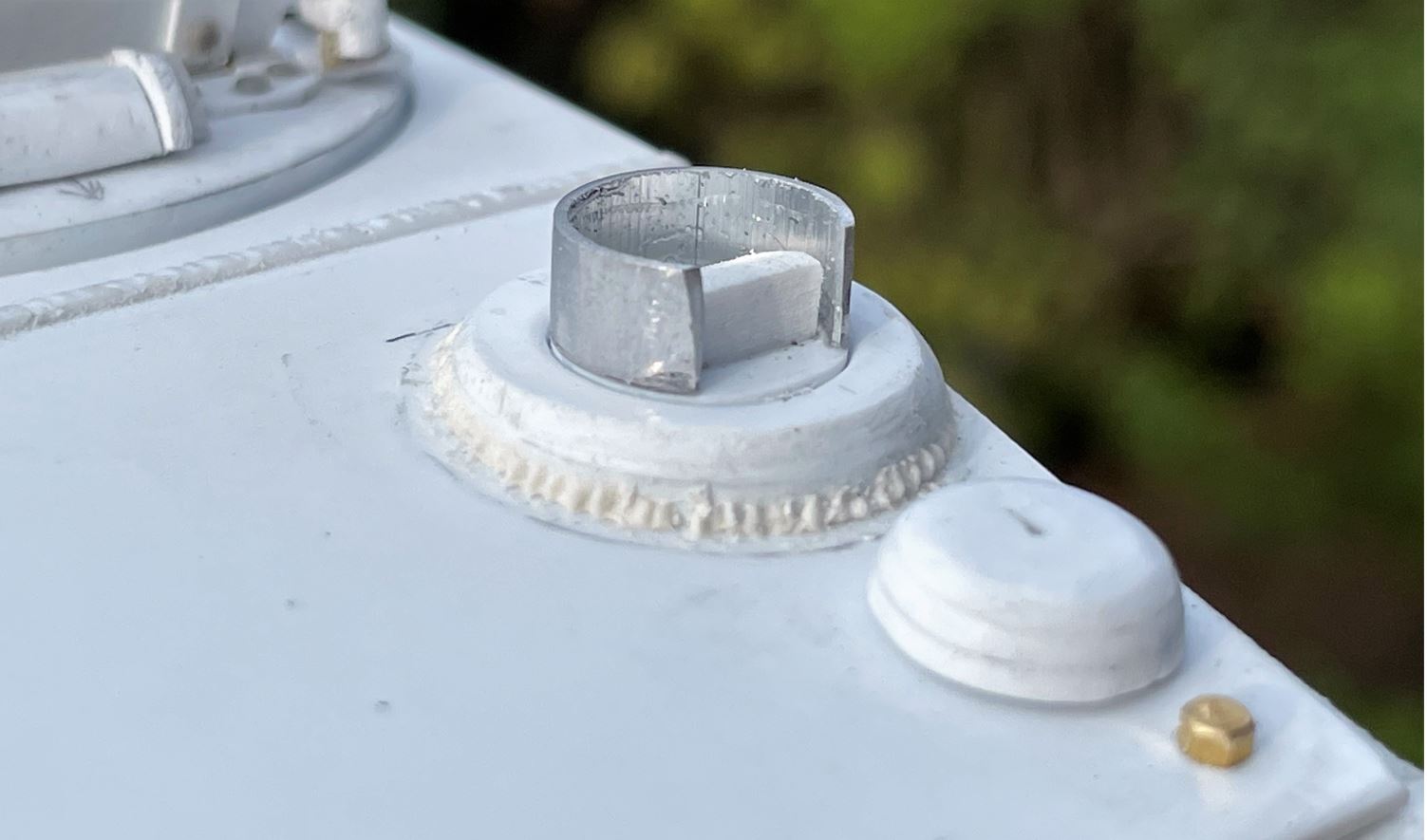

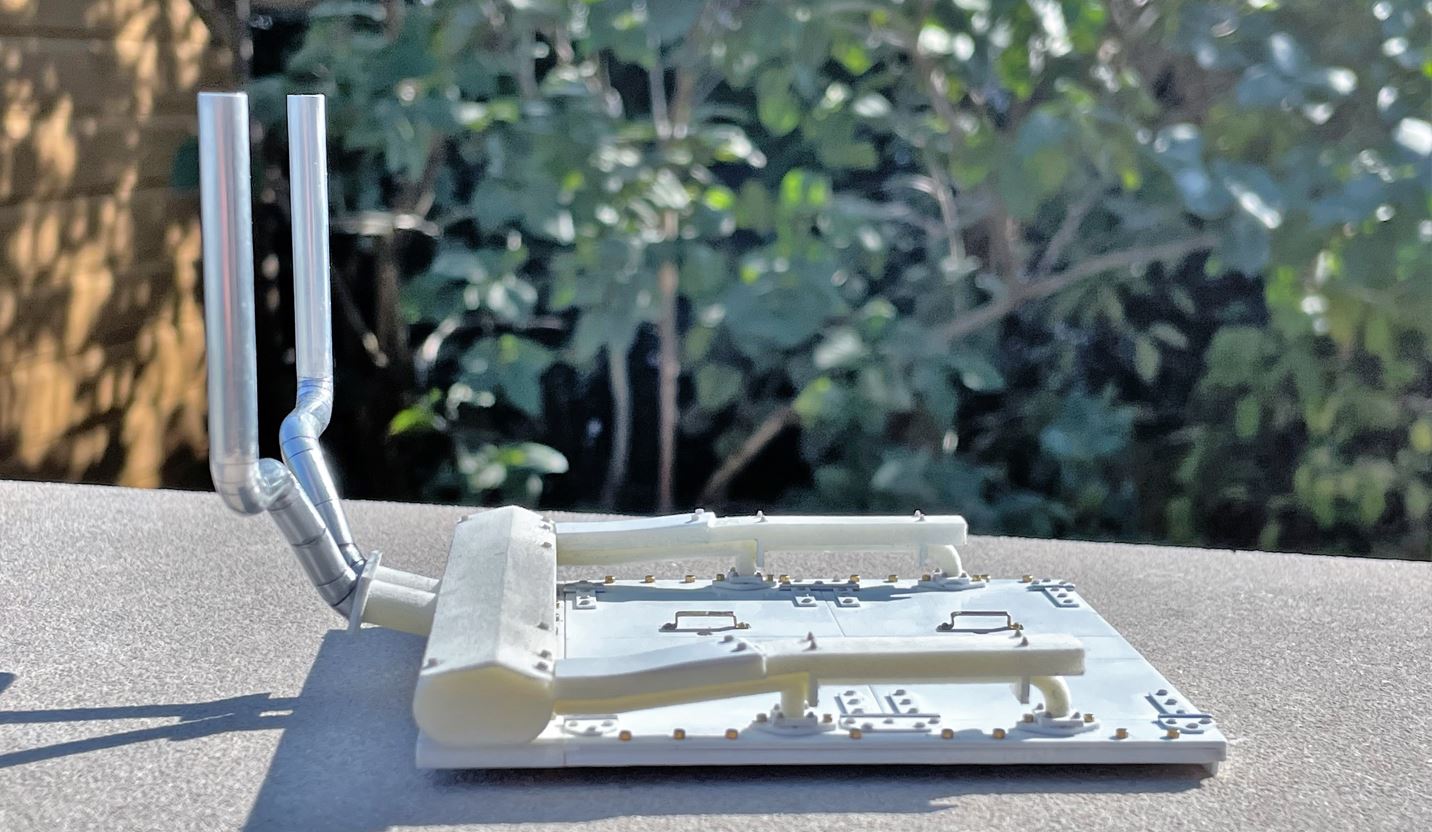

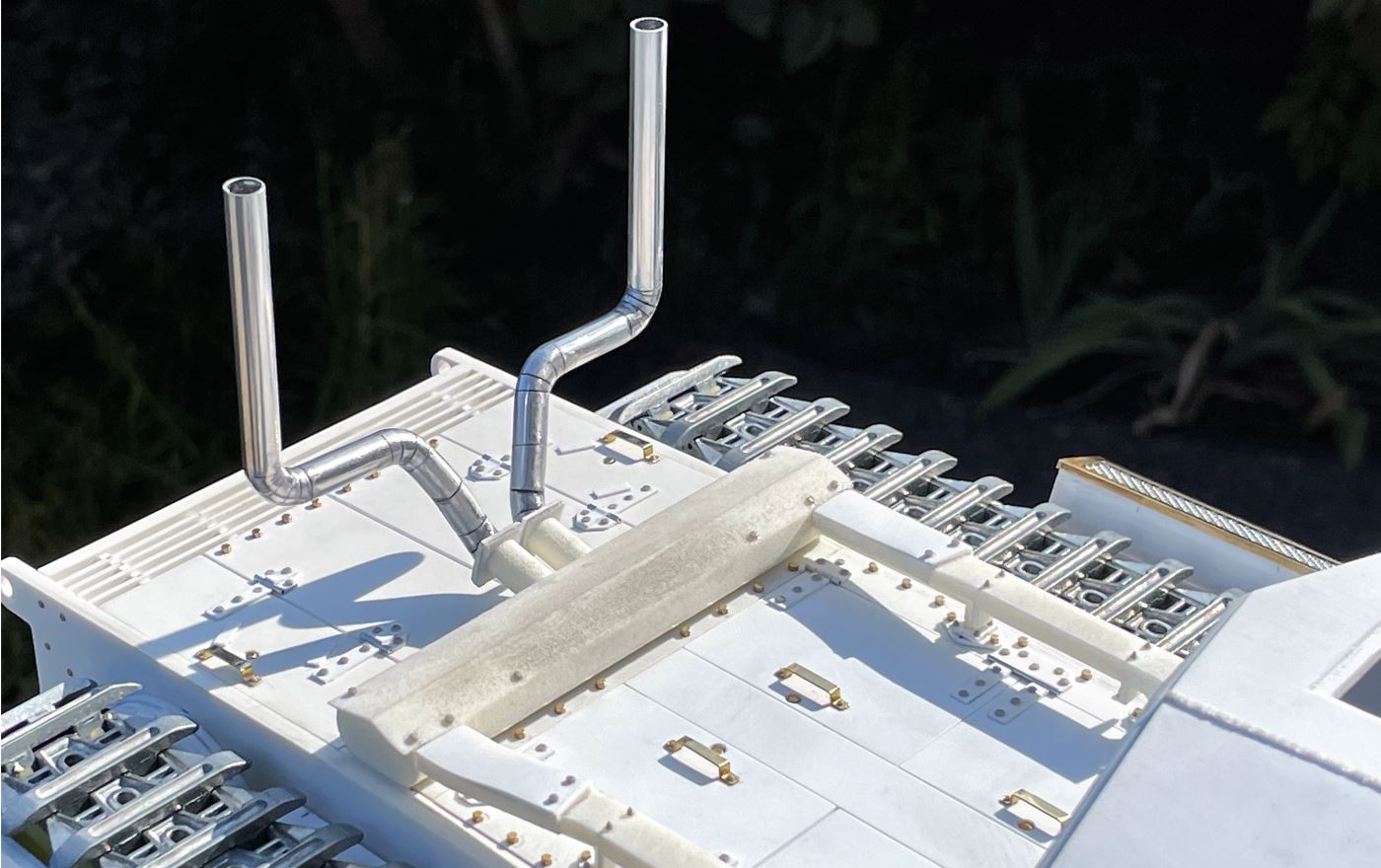

Installing the stacks on the exhaust. Looking ok but as i used the AFV Club 1/35 model as reference, any issue with them were reproduced here, such as the missing slope that i will have to repro on the next accuracy exercise.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

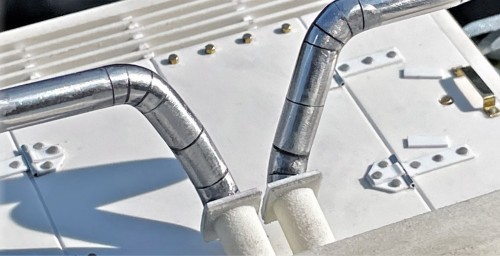

They look convincing.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

continuing on following post

lmcq11 · Post by **lmcq11** » Wed Aug 25, 2021 6:57 pm

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

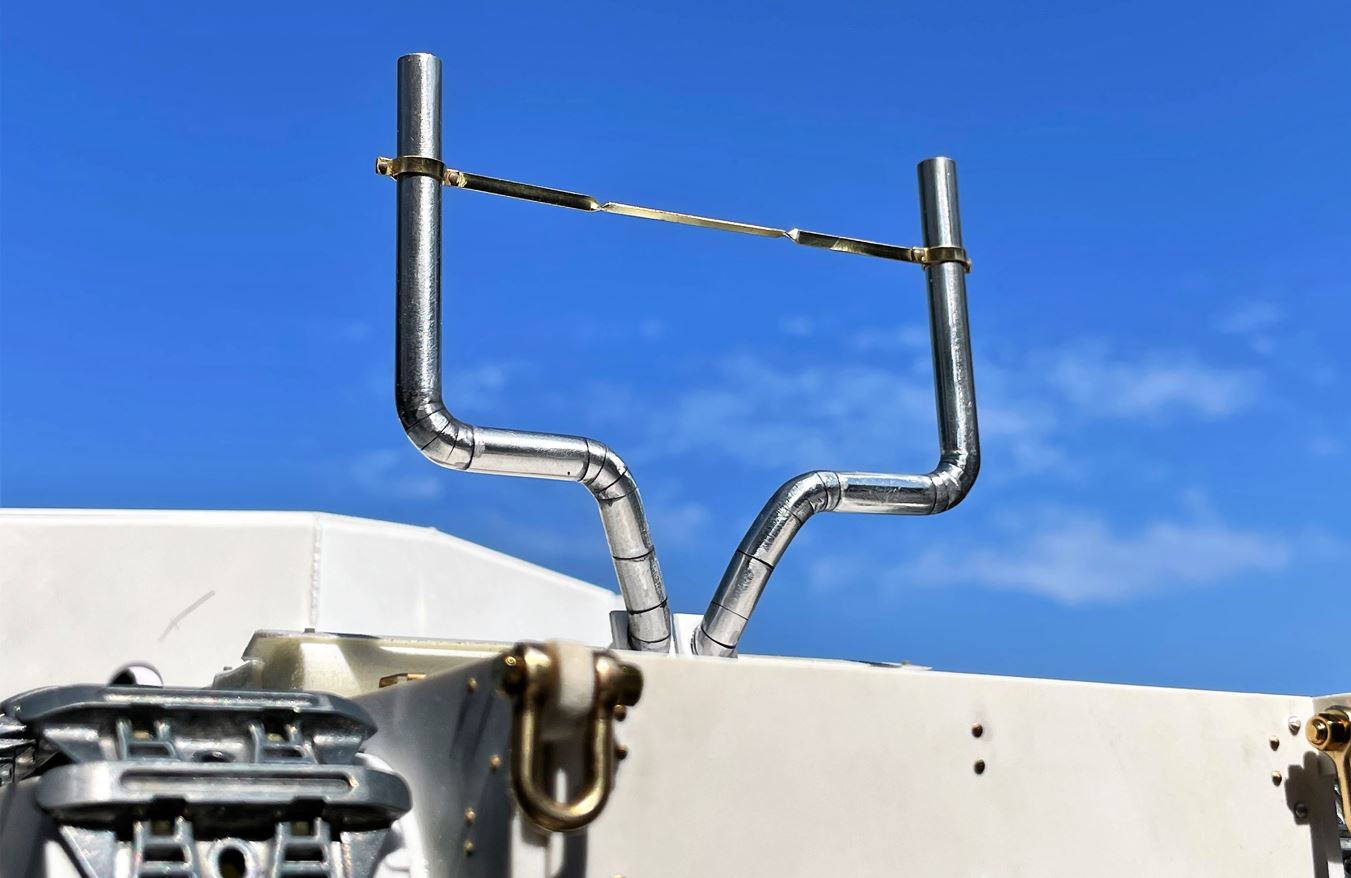

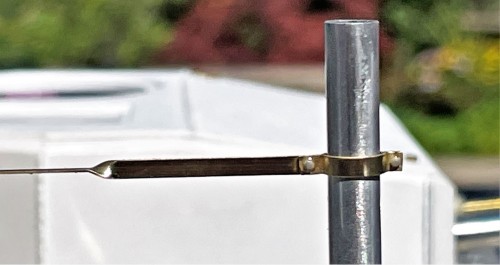

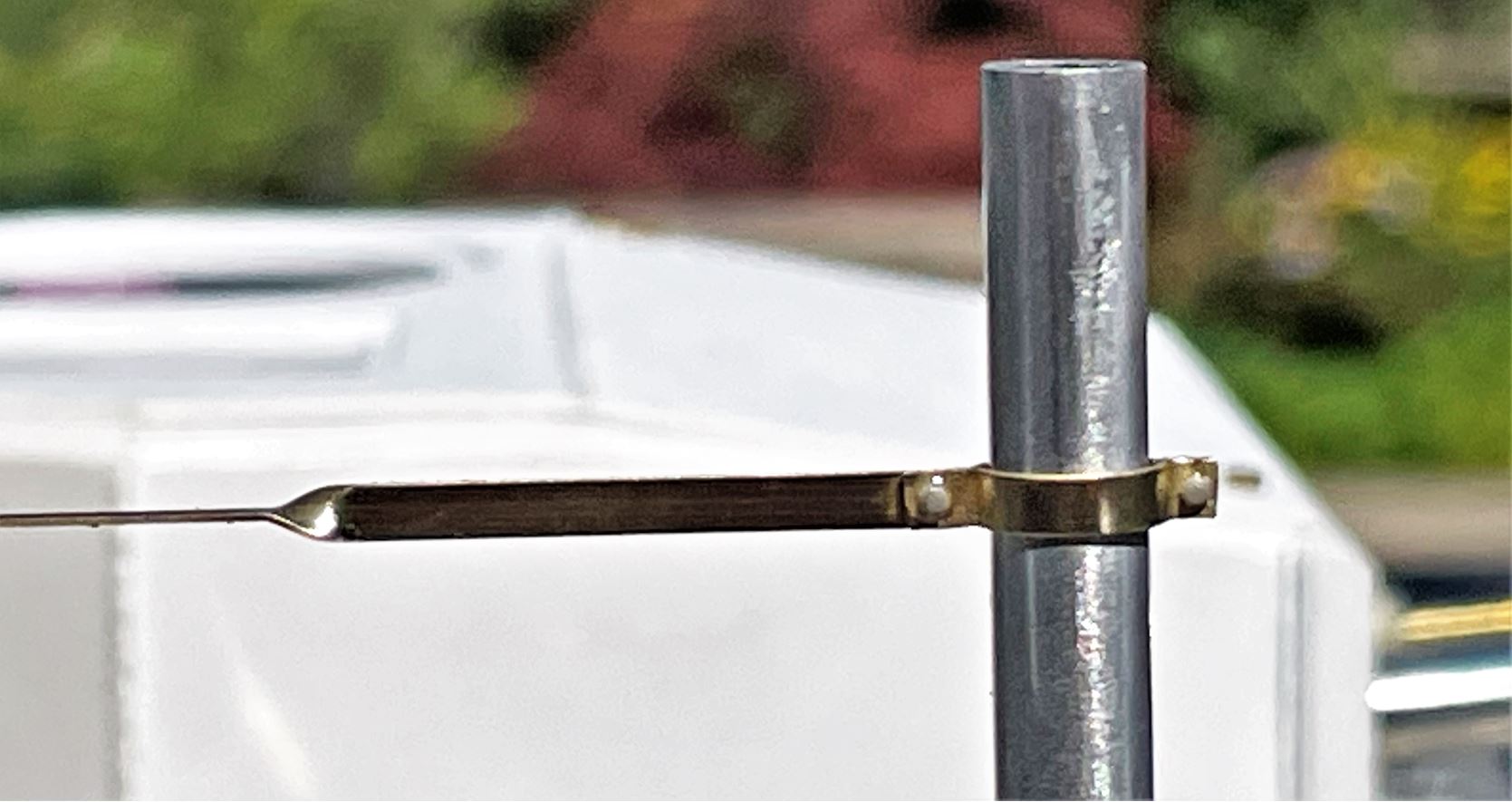

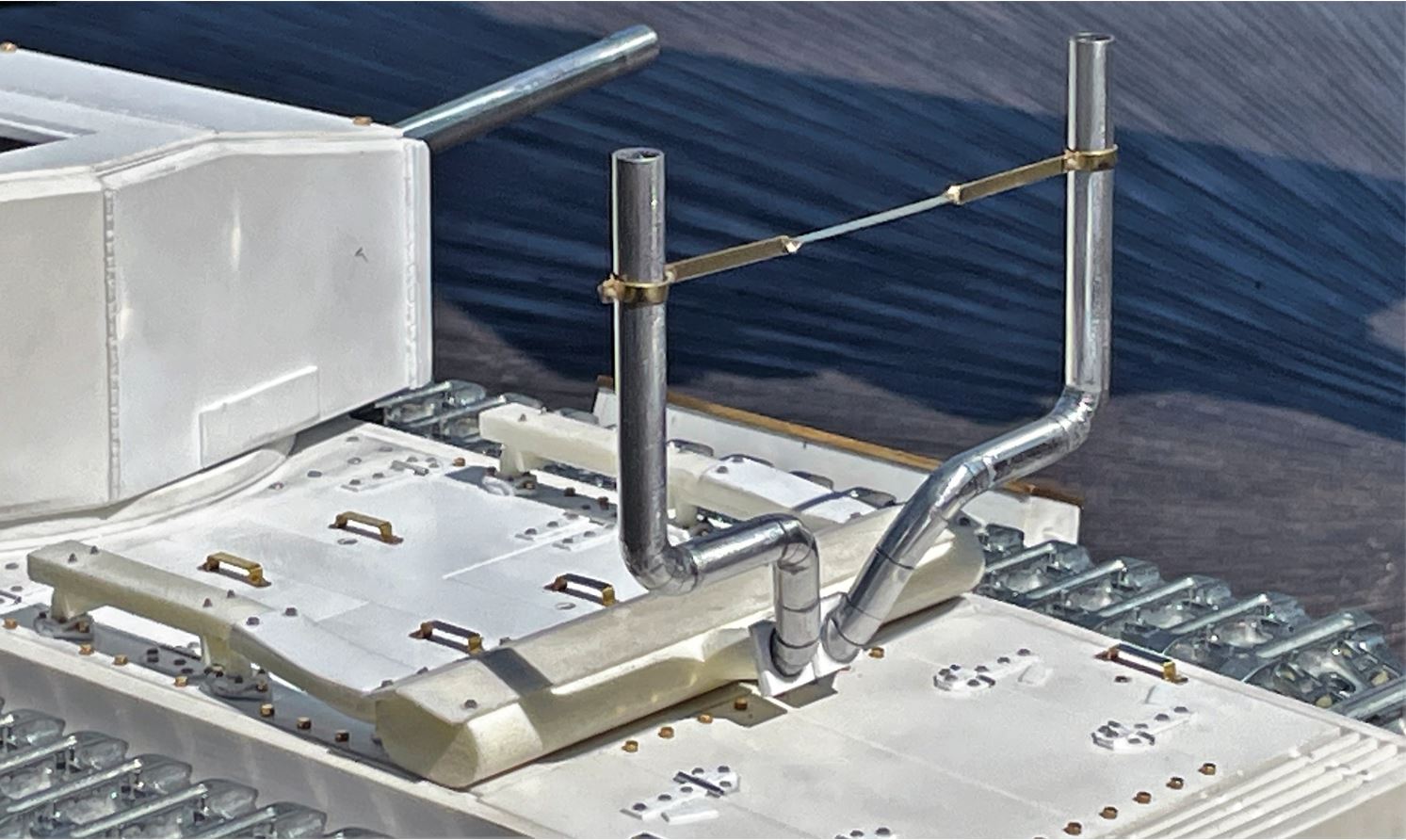

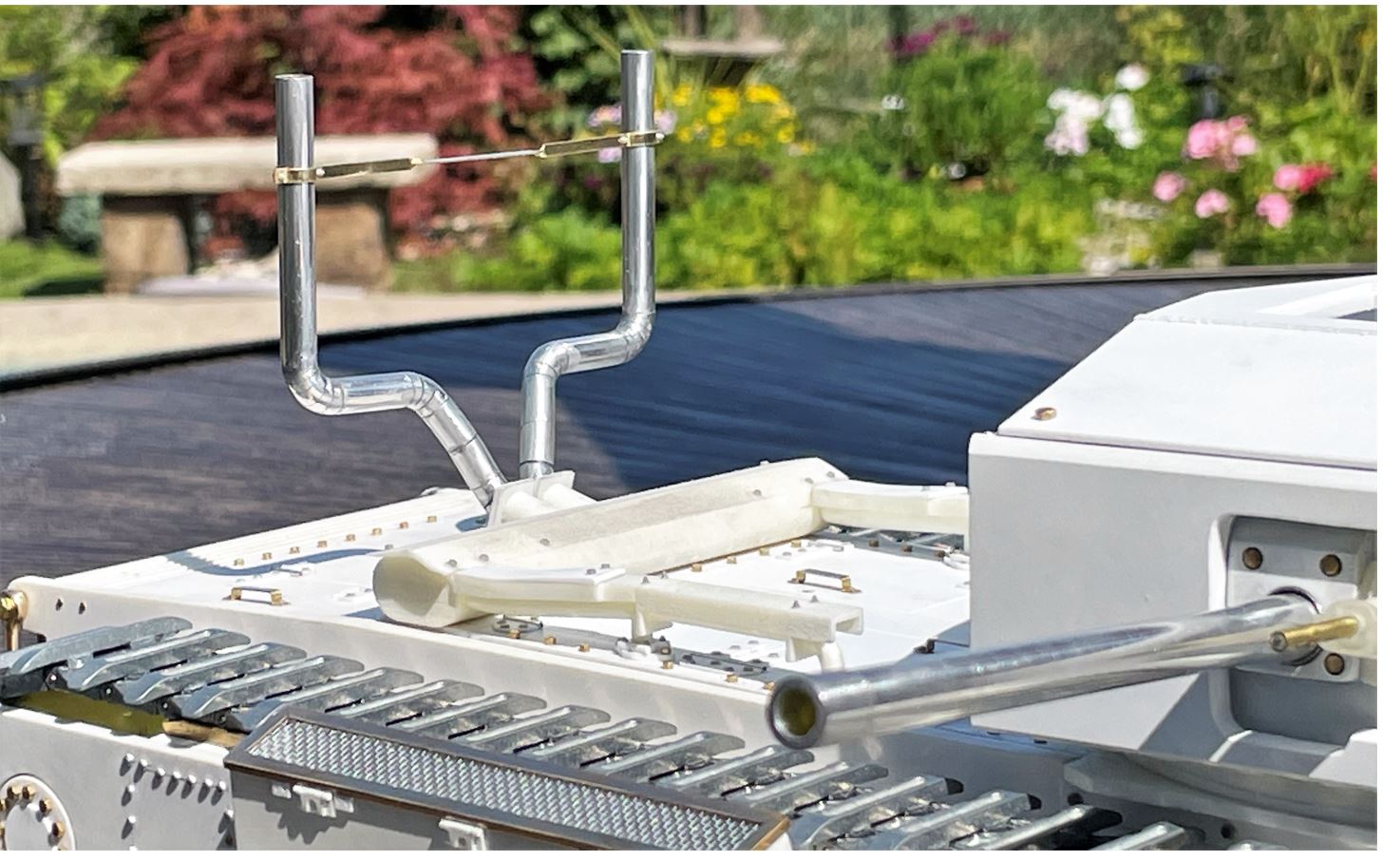

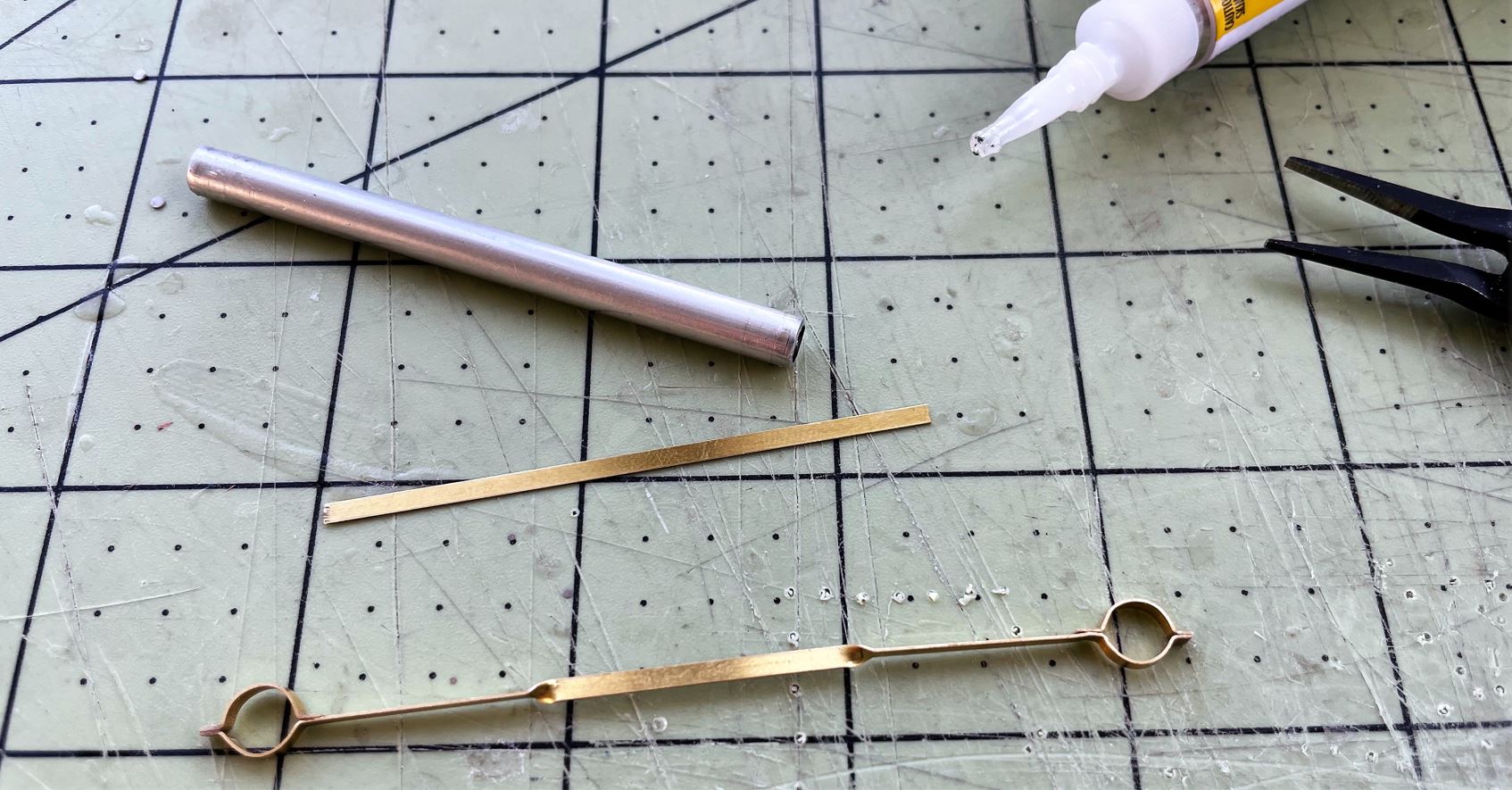

There is a brace between the two stacks that was made using a 2mm brass strip.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

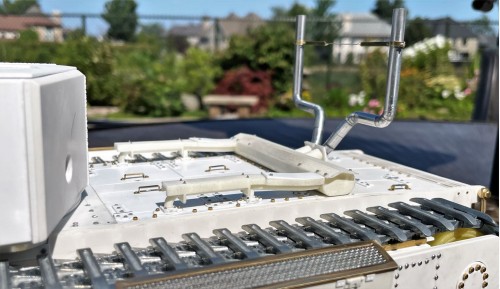

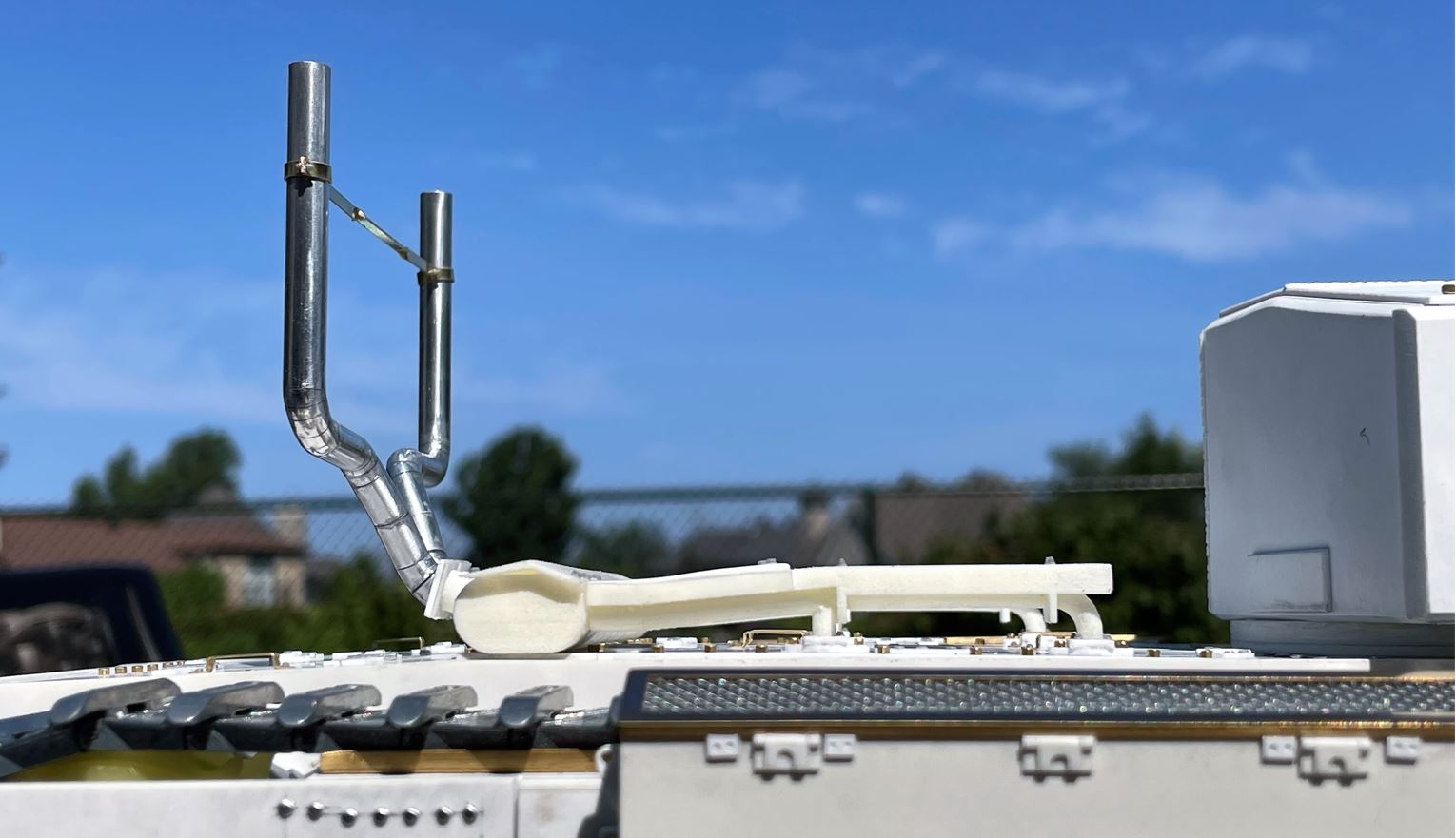

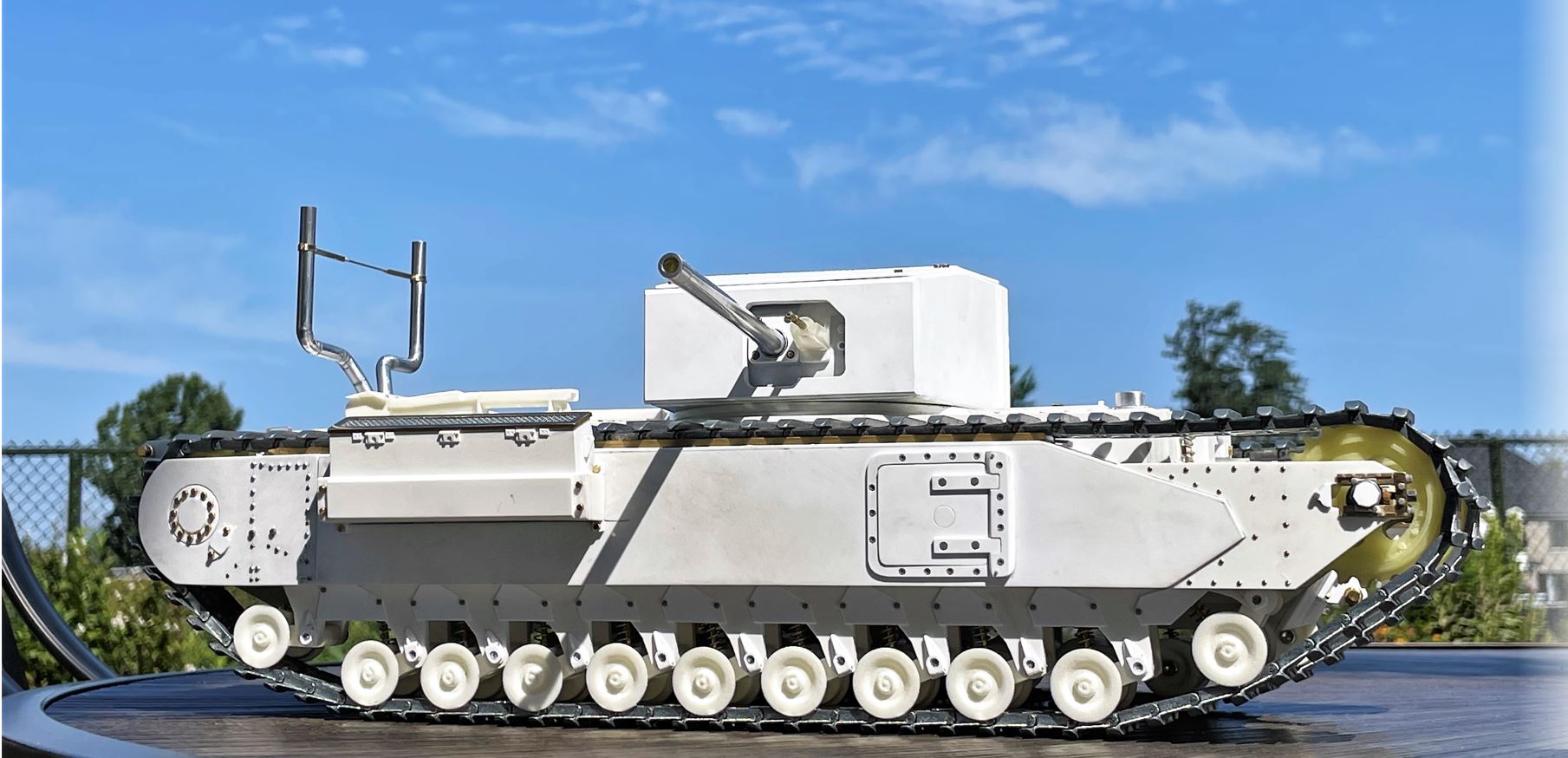

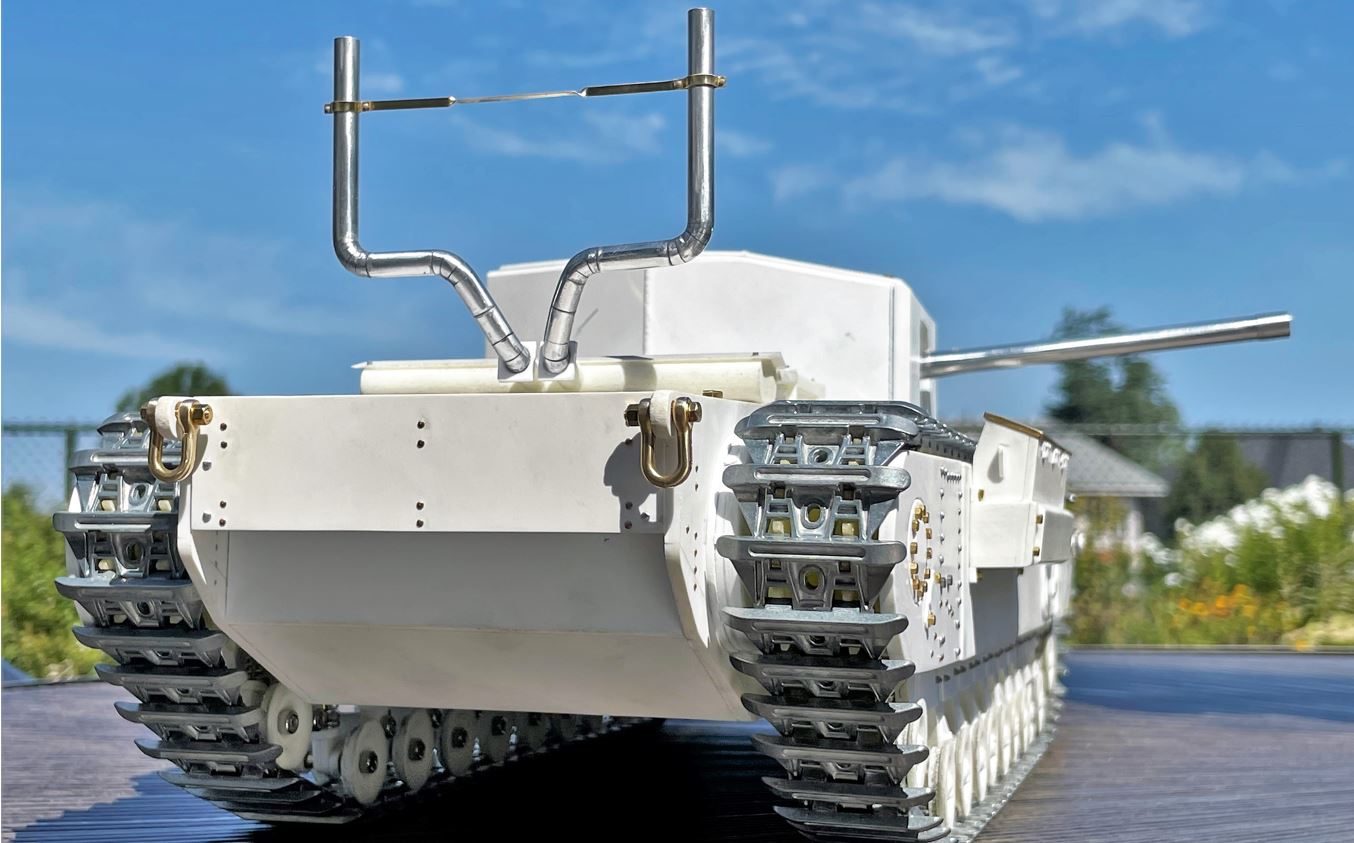

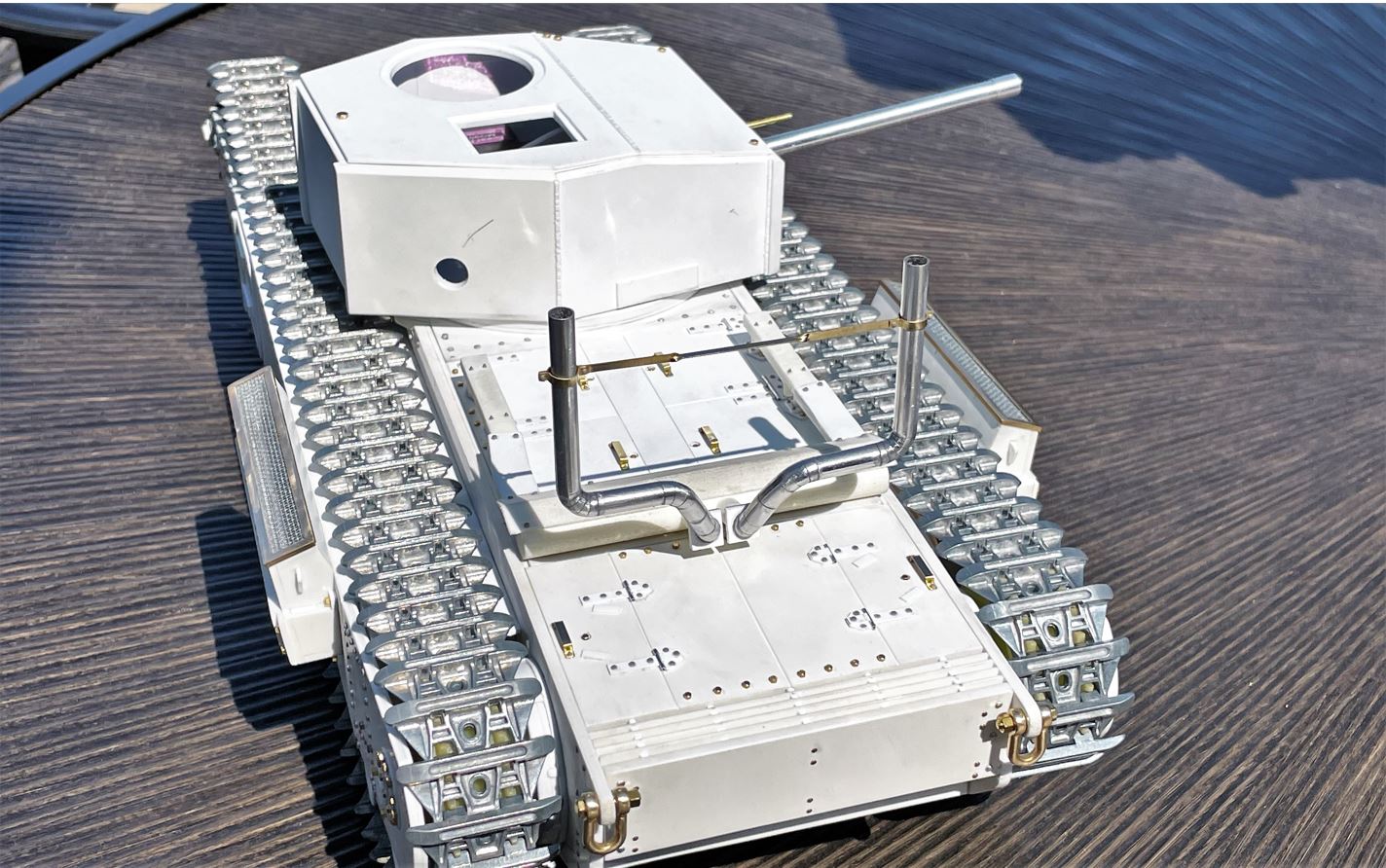

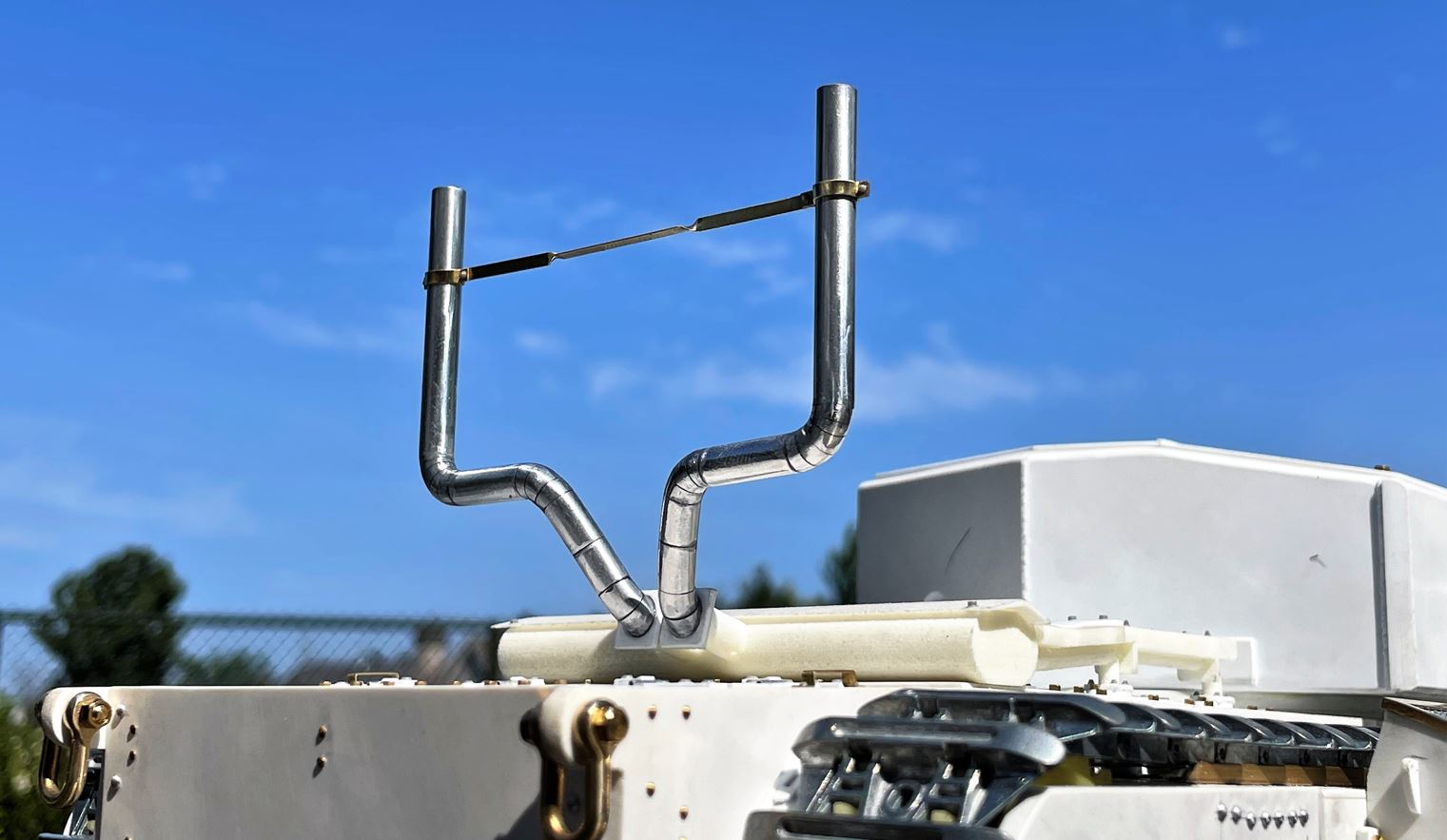

And here are the first views of the Churchill Mk III with its rear deck, exhaust and stacks as it stands today.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build; Capture32b.JPG (92.69 KiB) Viewed 1363 times

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

lmcq11 · Post by **lmcq11** » Wed Aug 25, 2021 7:00 pm

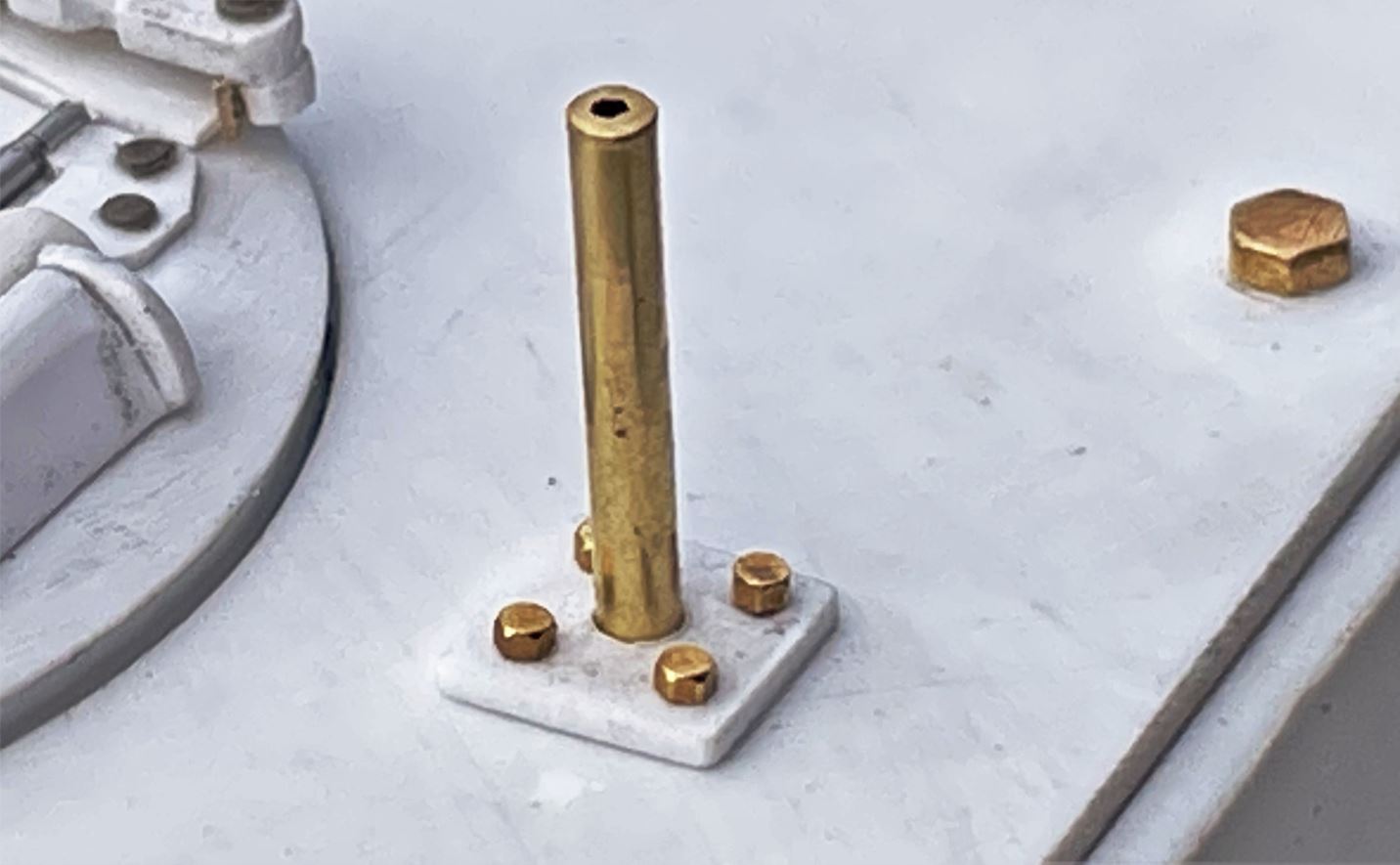

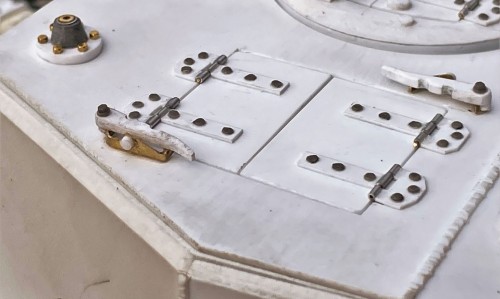

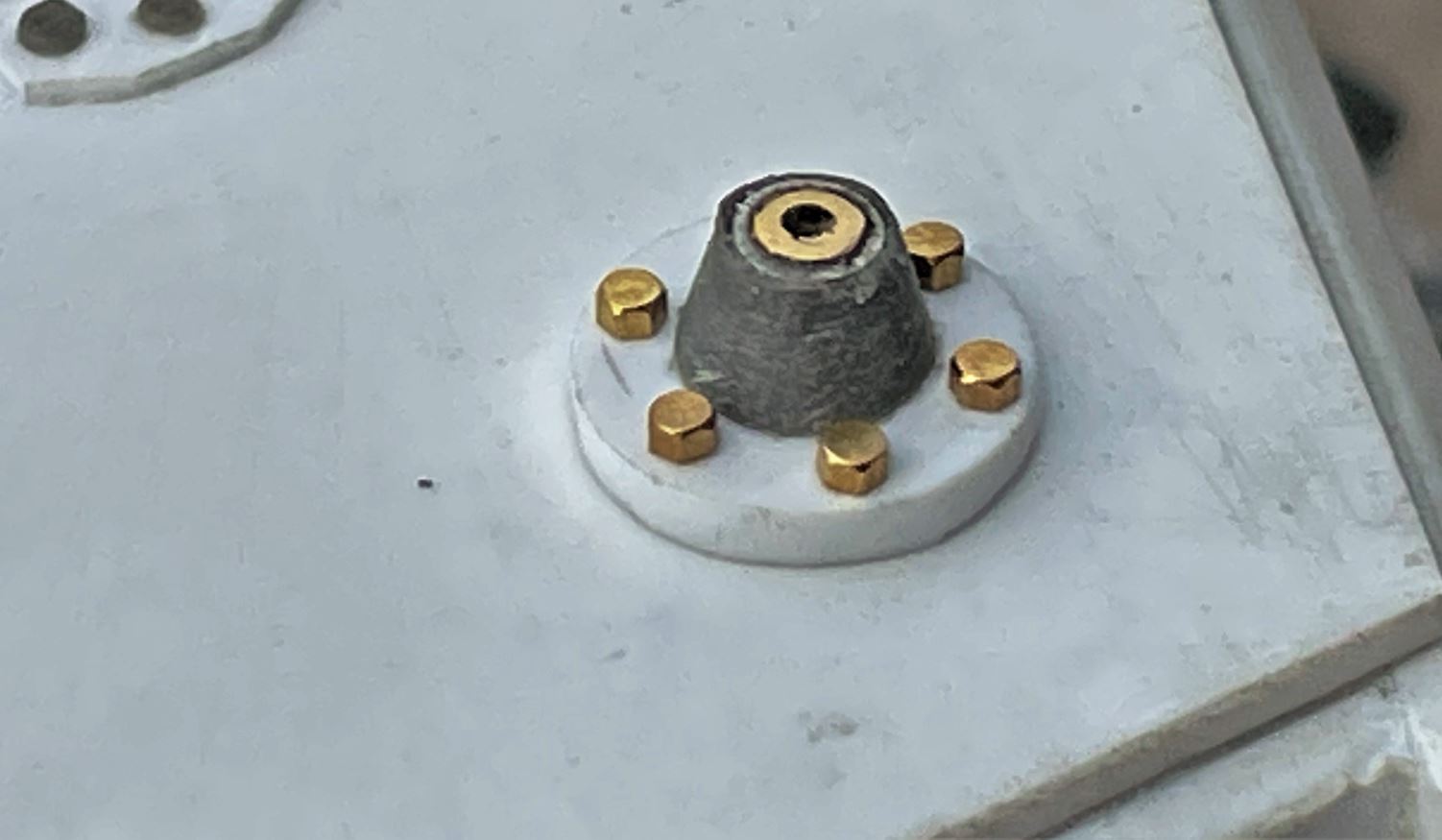

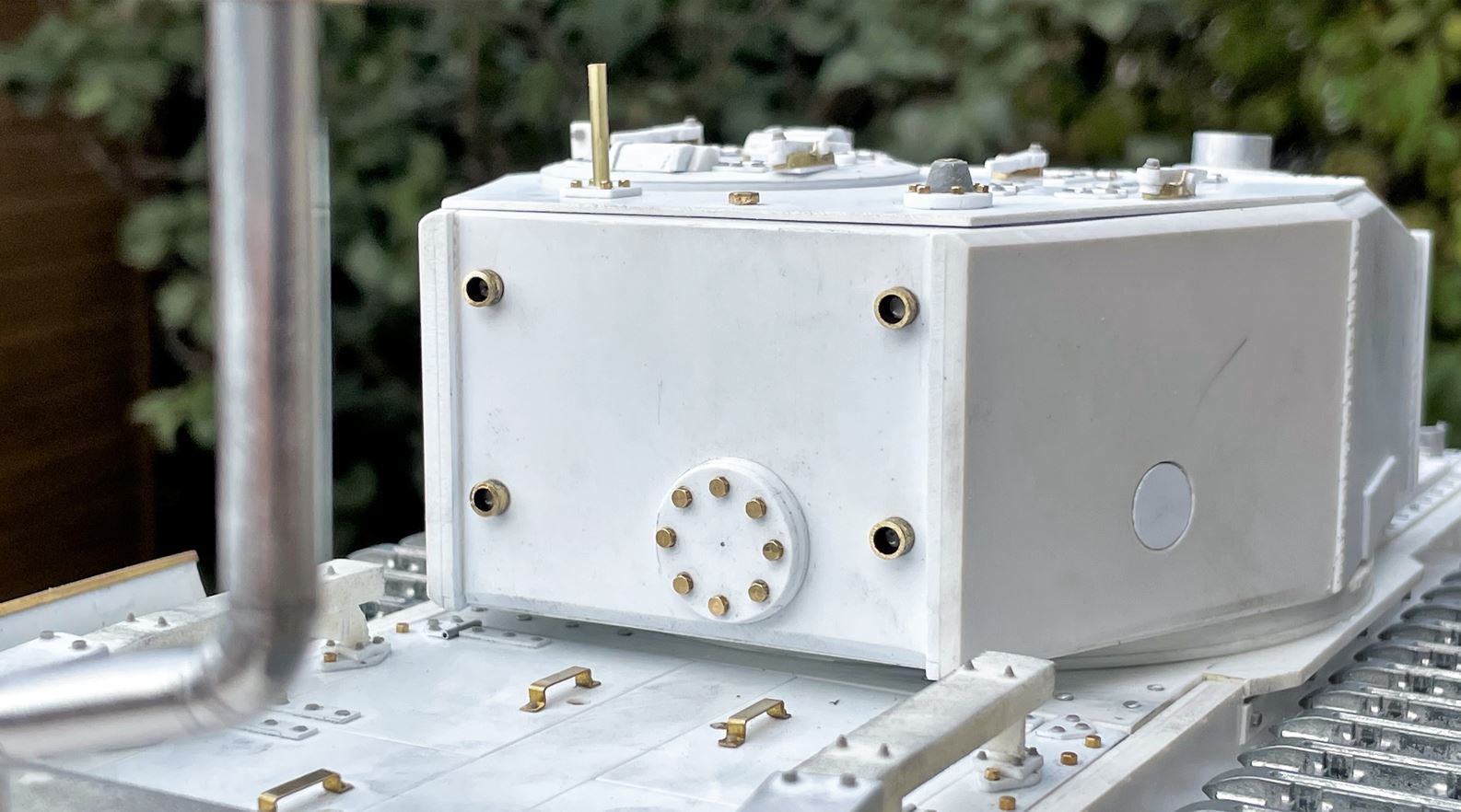

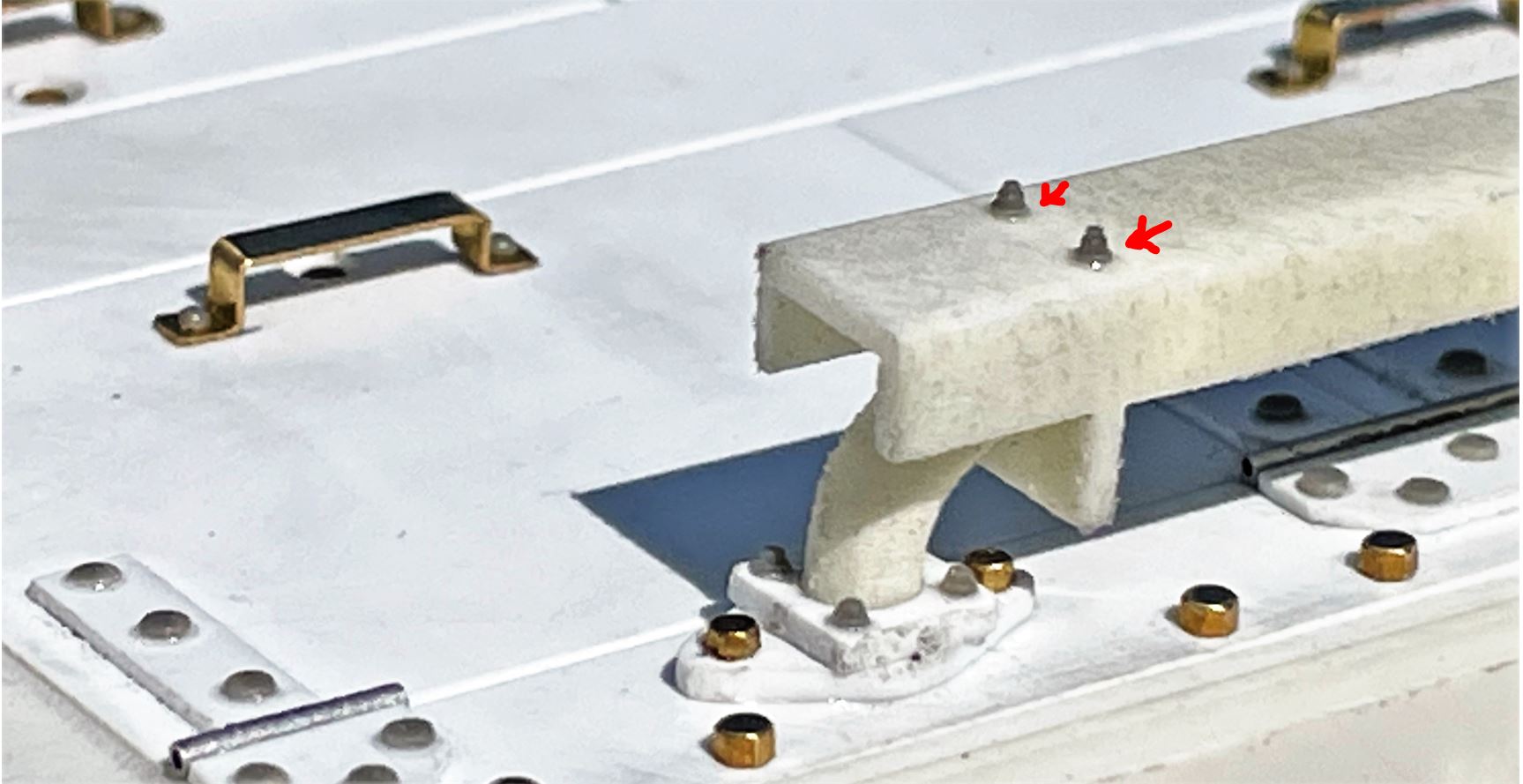

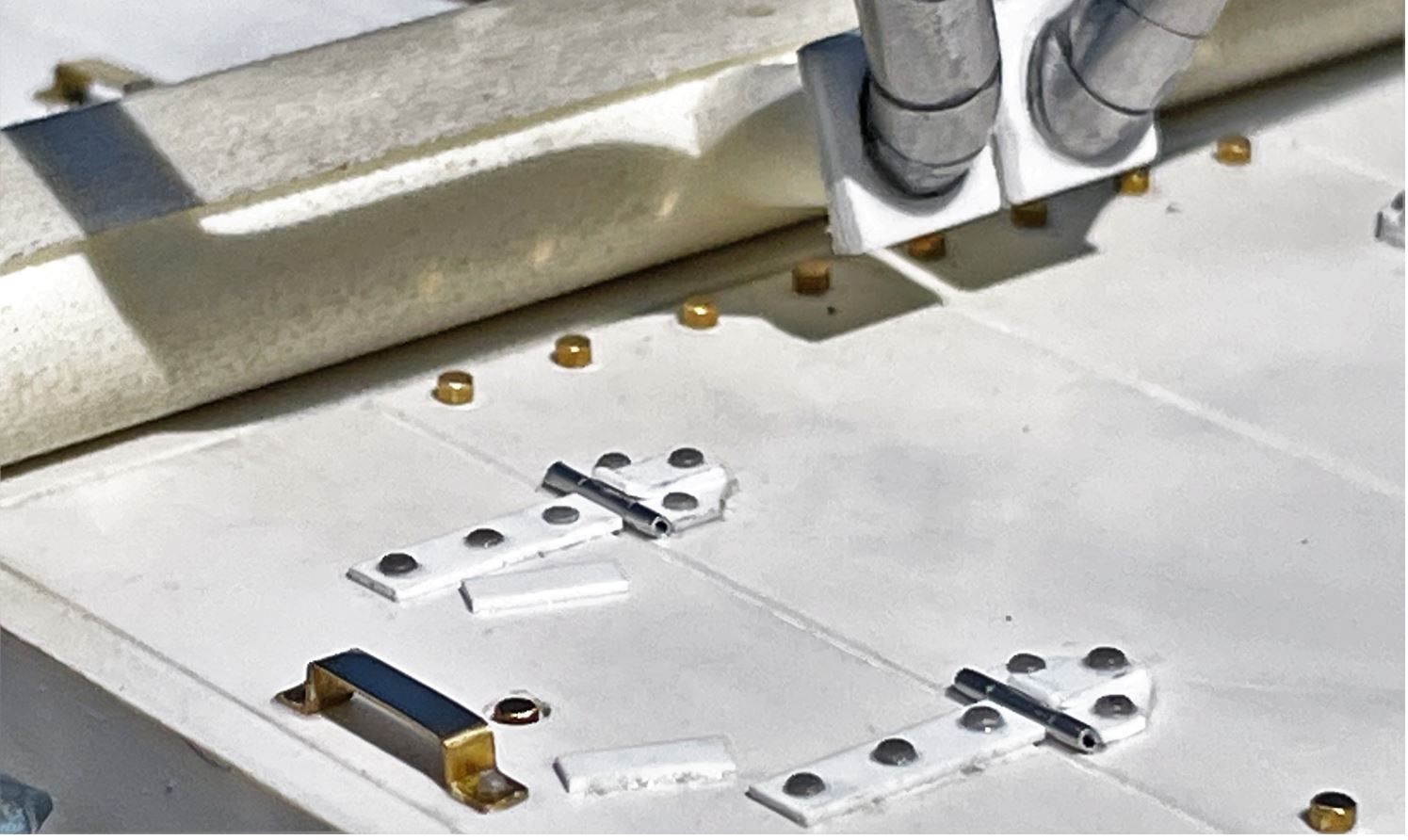

Bolt heads installed earlier were replaced by bolt tips and nuts, as seen in a ref picture.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

Next step, detailing the turret.

Regards, Louis

EAO · Post by **EAO** » Thu Aug 26, 2021 3:13 pm

Louis,

Your deep wading exhaust stacks are pure eye candy! WOW!

Cheers,
Eric.

Post by **Jimster** » Thu Aug 26, 2021 10:21 pm

Speaking of Elmod Fusion Pro and Beier boards, I have both and my humble opinion is that the Elmod is more suitable for WW2 tanks as the Beier is overkill for the old tanks. The Beier has tons of lighting features and other extras but I ended going back to the Fusion for my Tiger1. The Beier will control my 1/48 Civil War gunboat (one of these days). Both are excellent boards in their own right and worth every penny.

PainlessWolf · Post by **PainlessWolf** » Fri Aug 27, 2021 12:58 am

Louis,
Beautiful work, my Friend. The careful craftsmanship is evident as always. I was reading through and catching up on the Thread. It struck me that those Churchill headlamps ( at their base form ) look an awful lot like early Panzer III and IV headlamps. Some modification would be needed to create the long shields on the face but then you would have working lights up front ( if you wanted them ) Anyway, following along and looking forward to paint and the crew.
regards,
Painless

lmcq11 · Post by **lmcq11** » Sat Aug 28, 2021 12:33 am

Jimster wrote:Speaking of Elmod Fusion Pro and Beier boards, I have both and my humble opinion is that the Elmod is more suitable for WW2 tanks as the Beier is overkill for the old tanks. The Beier has tons of lighting features and other extras but I ended going back to the Fusion for my Tiger1. The Beier will control my 1/48 Civil War gunboat (one of these days). Both are excellent boards in their own right and worth every penny.

Thank you Jimster, I do not know either boards so i could not comment. As i am definitely more a builder than an electronic guy, i like to keep my electronics simple.

PainlessWolf wrote:It struck me that those Churchill headlamps ( at their base form ) look an awful lot like early Panzer III and IV headlamps. Some modification would be needed to create the long shields on the face but then you would have working lights up front

You're right, i did cut a corner here by using these solid metal headlights. I'll put that on the plan to relook at them.

Continuing with the detailing of the turret.

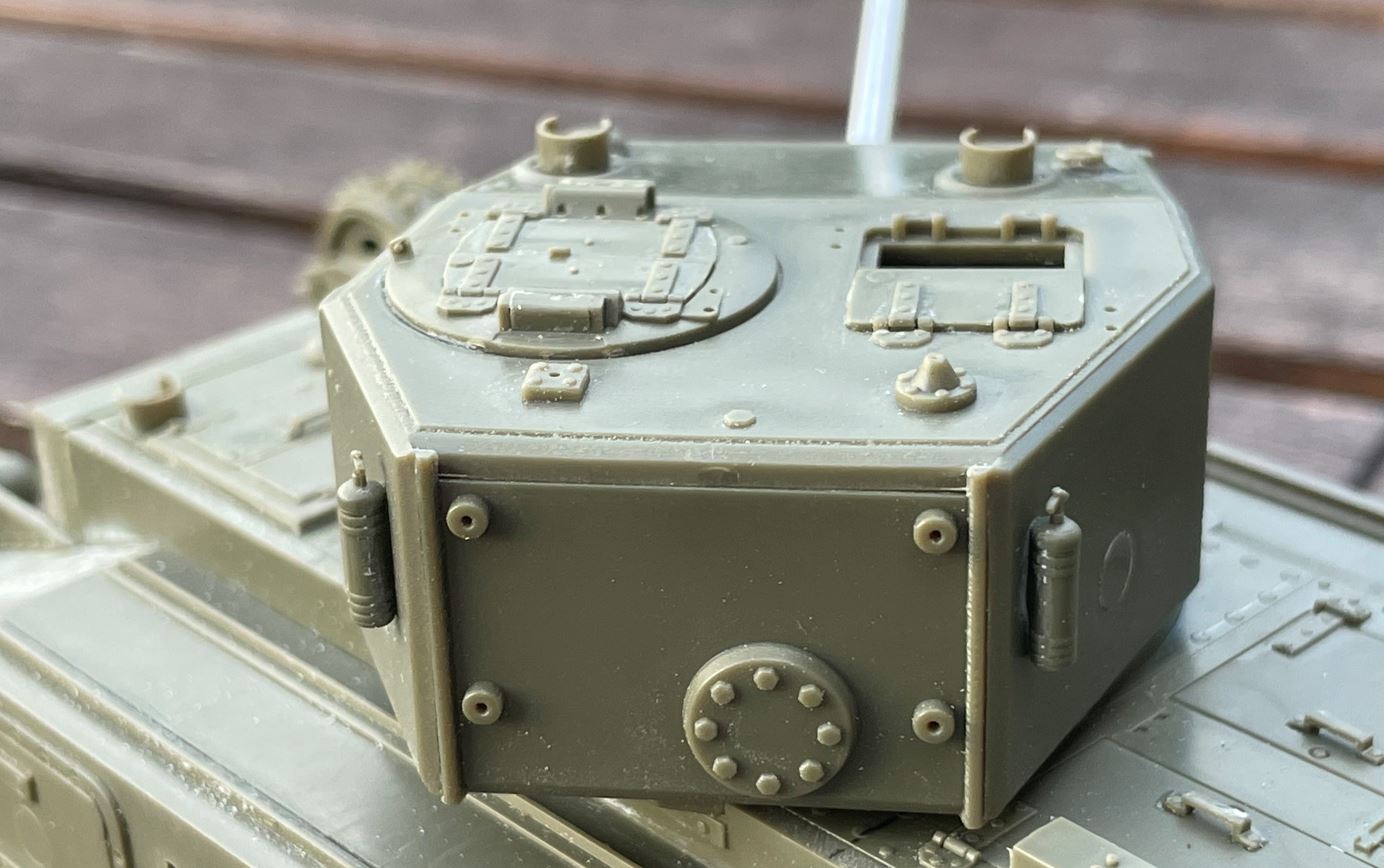

View of the 1/35 Churchill Mk III turret from AFV Club. It is only now that i realize that the Canadian removed the rear turret bin from their tank, reason unknown.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

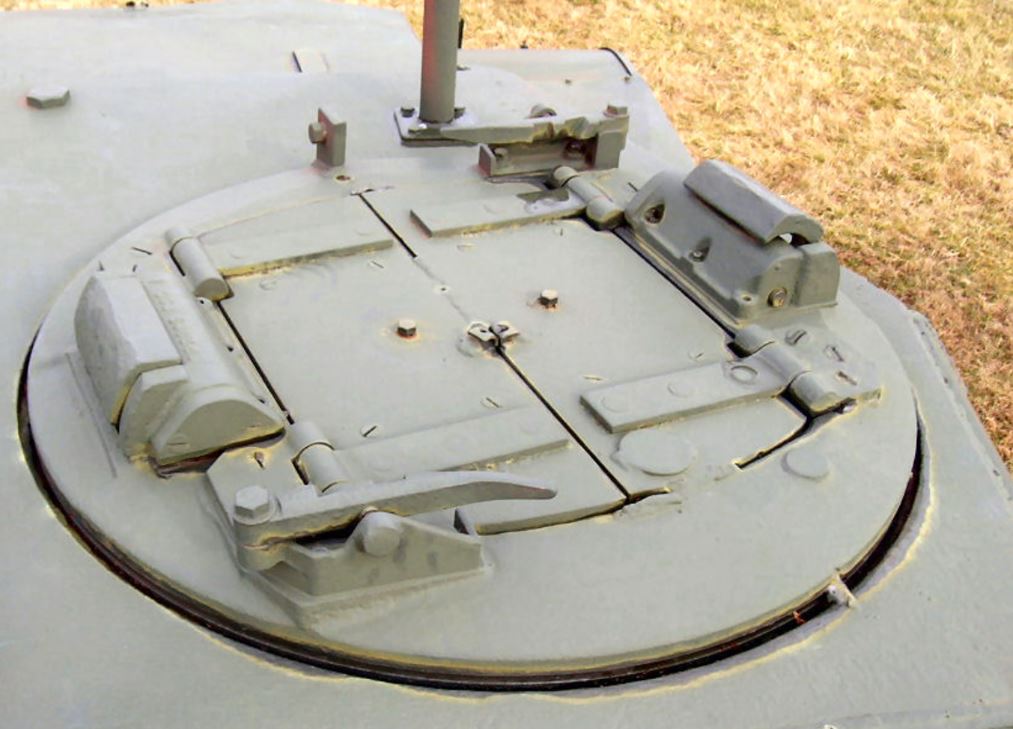

The MK III is equipped with a rotating commander cupula with only two periscope. Vision was later enhanced with all around periscope on later variants. Although i thought it would be simple, the Mk III cupula is actually quite rich in features not easy to repro.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build; Capture2.JPG (95.43 KiB) Viewed 1258 times

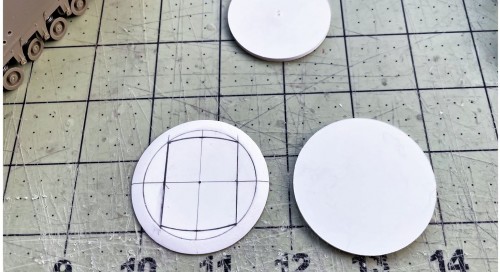

The cupola is made to rotate. It is composed of 2 roundels, a base of 2mm thick and an overlay of 1mm for the top with the embedded hatches. All shapes and dimensions are taken from the 1/35 kit.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

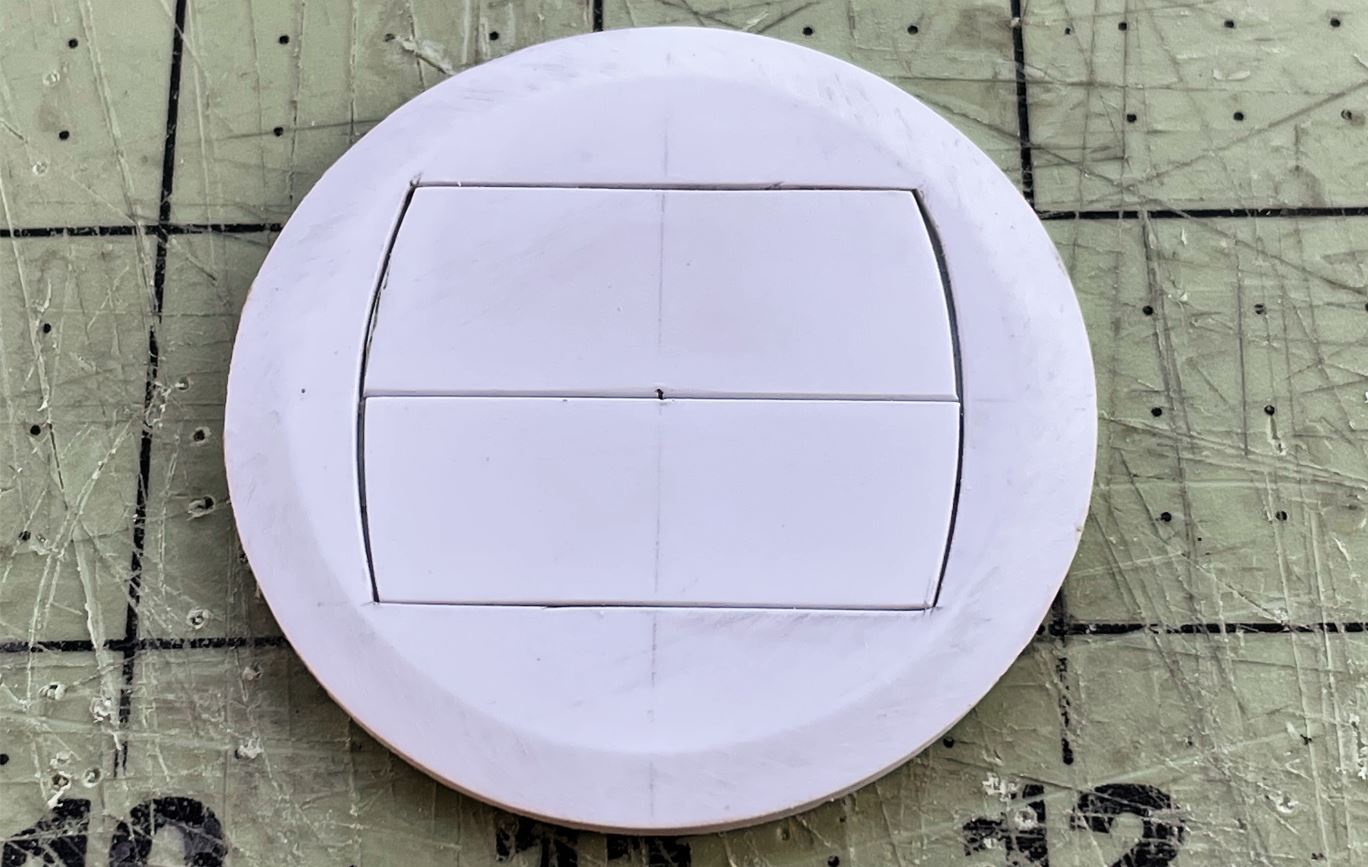

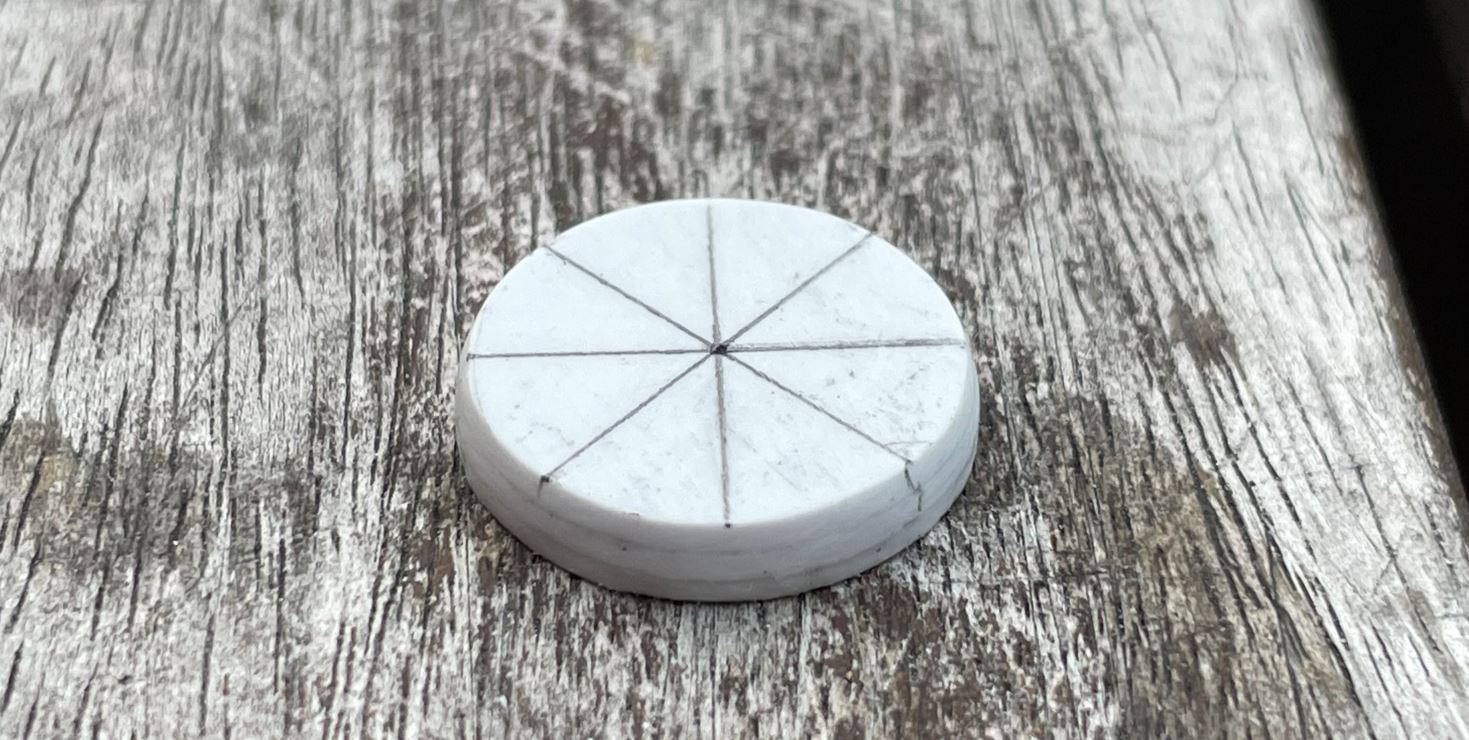

The cupola core.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

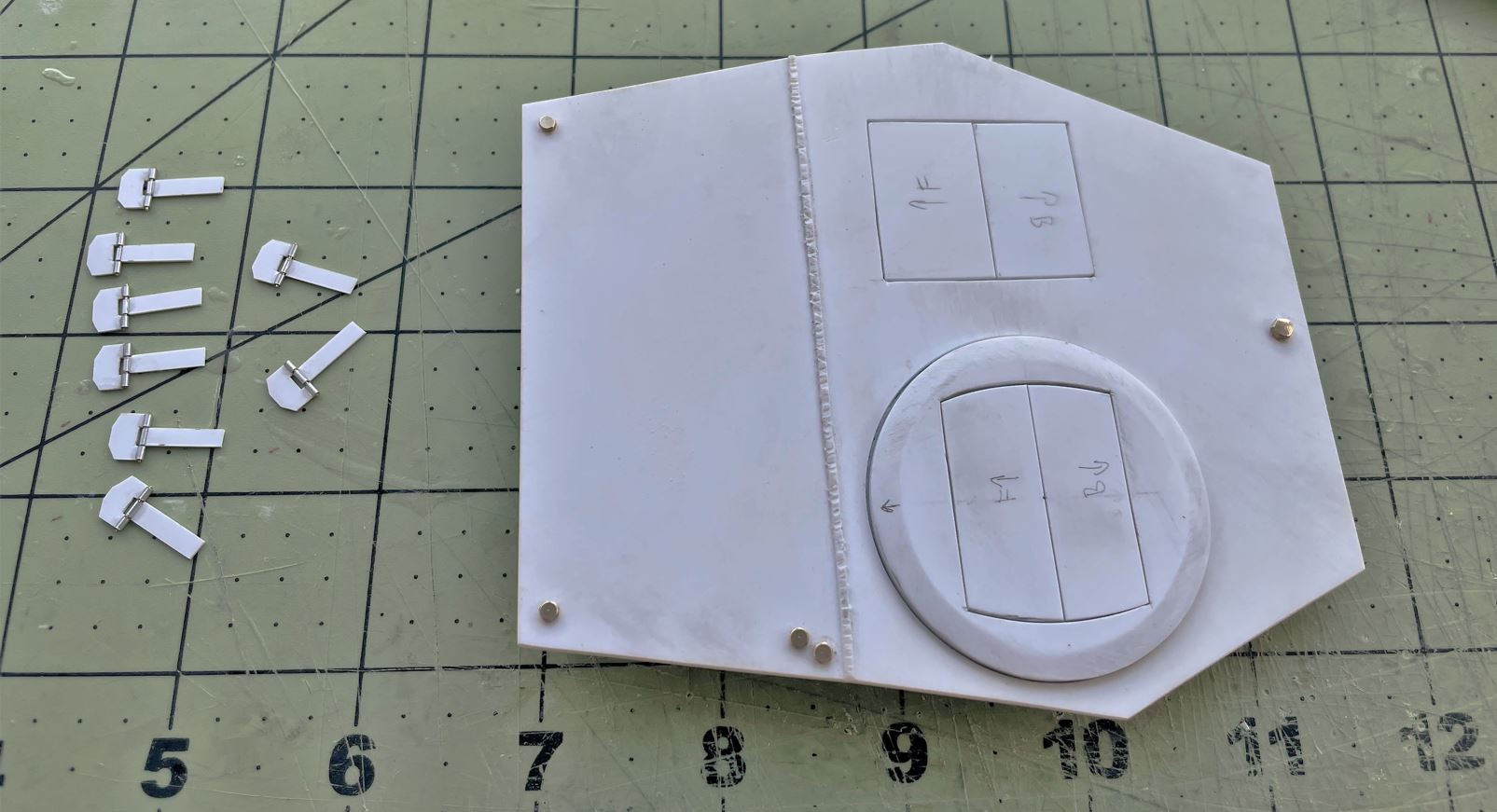

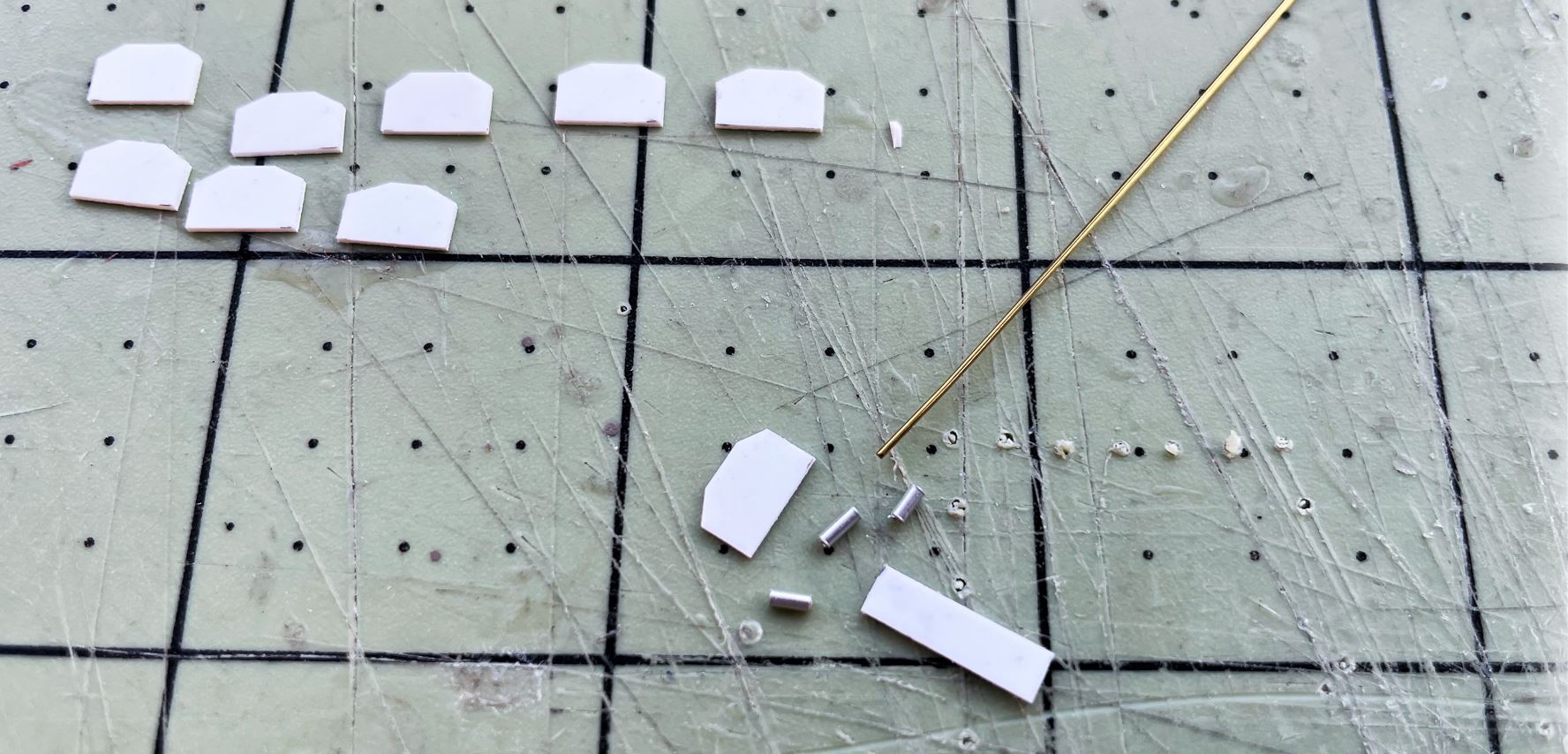

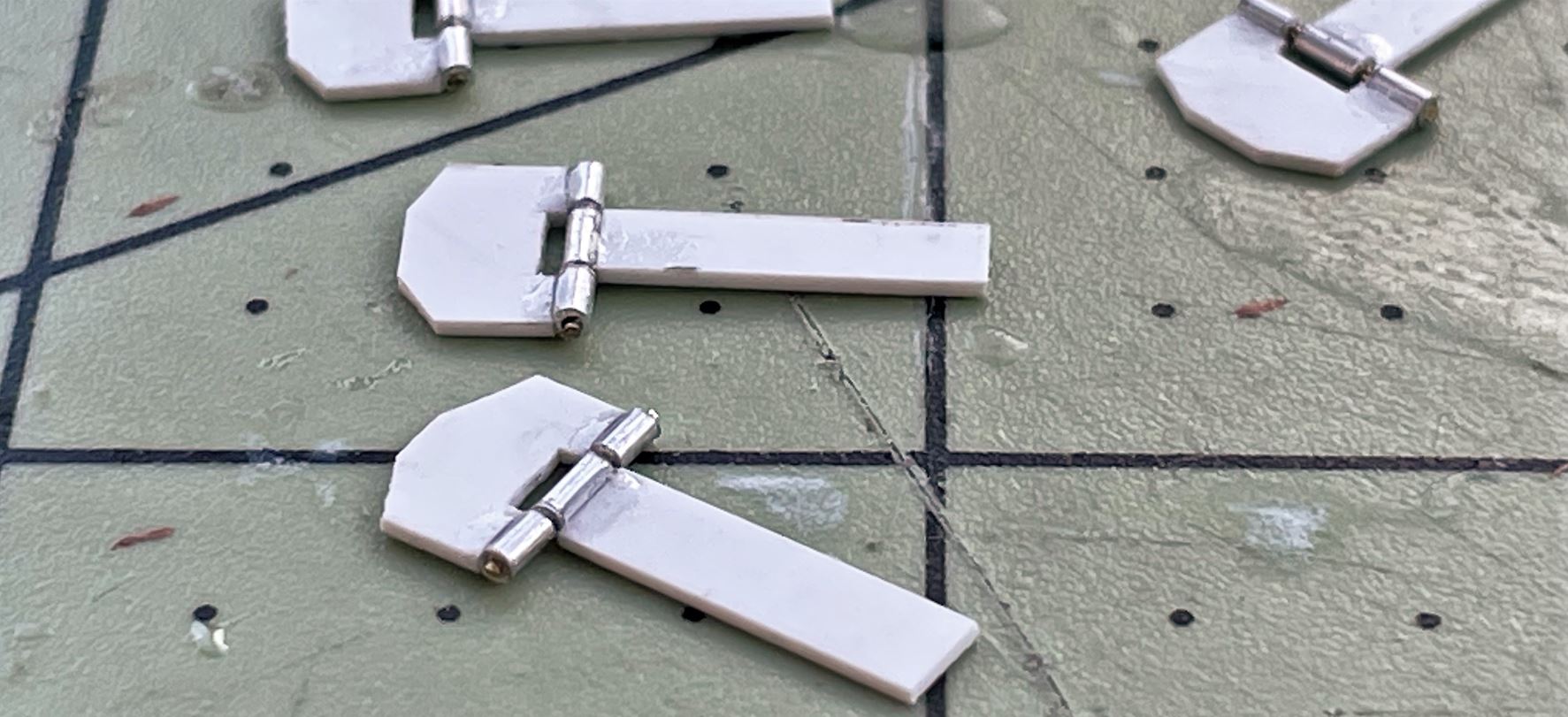

For the cupola and the gunner's hatch, i need 8 working hinges of a specific design. Scratch built like everything. The body of the hinges is made of 0.5mm plasticard, with 1mm aluminum tube and 0.5mm brass rod.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

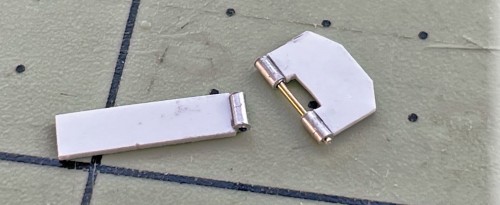

View of the Churchill prototype working hinge. These are stronger than they seem.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

Hinges are assembled using superglue, careful not to get any glue near the working mechanism. Superglue can be made to resemble the welding.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

View of the gunner's hatch.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

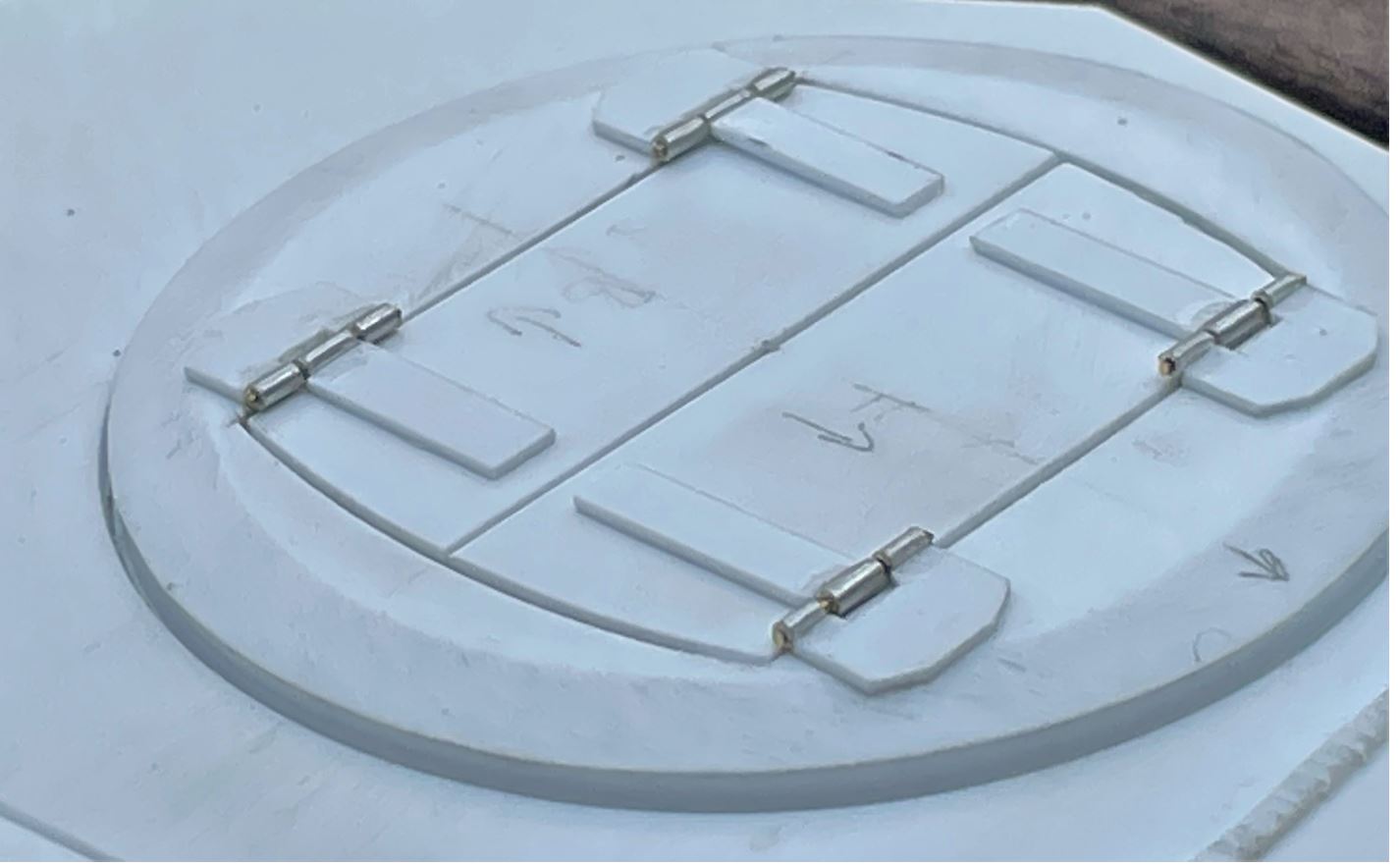

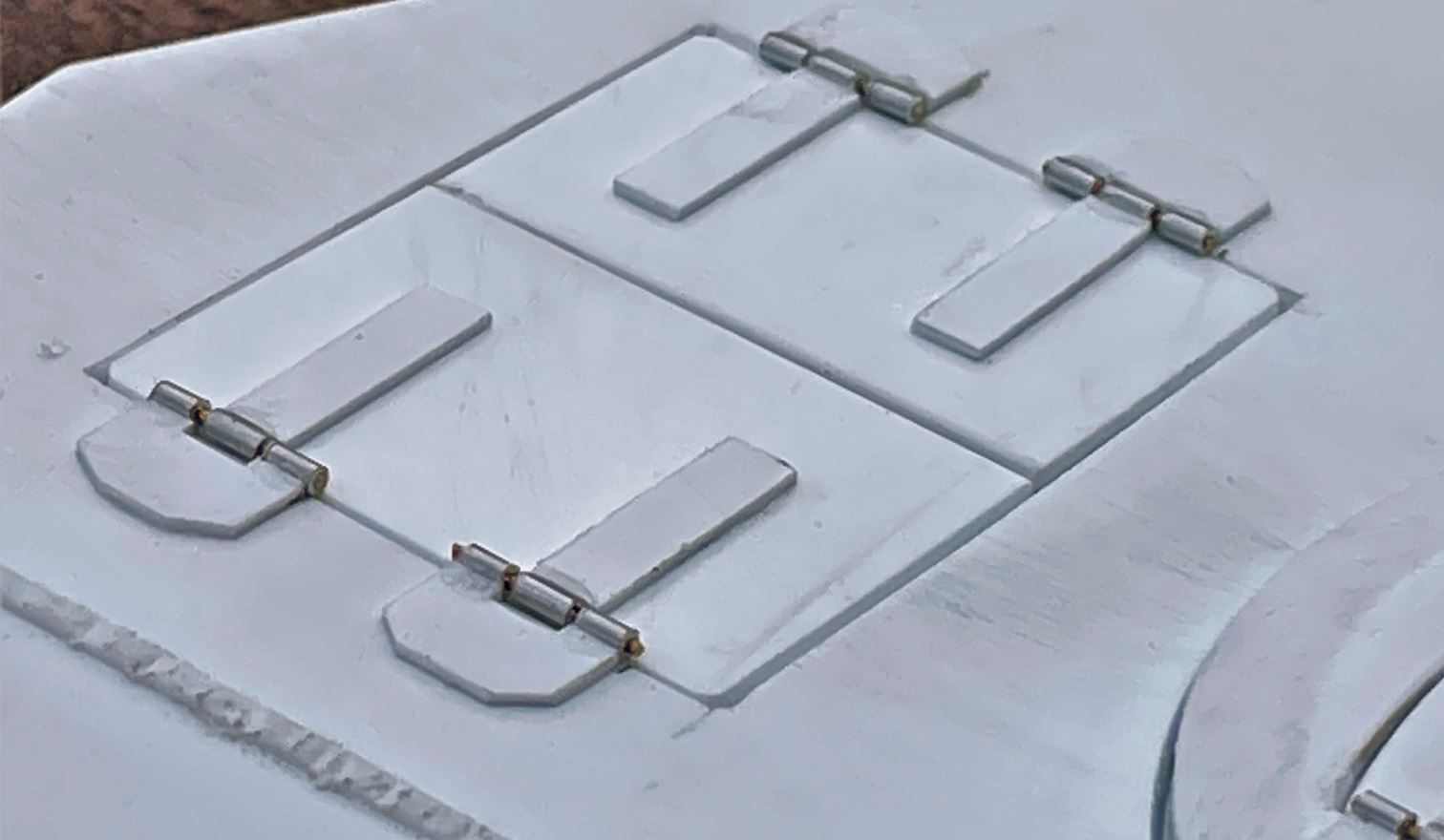

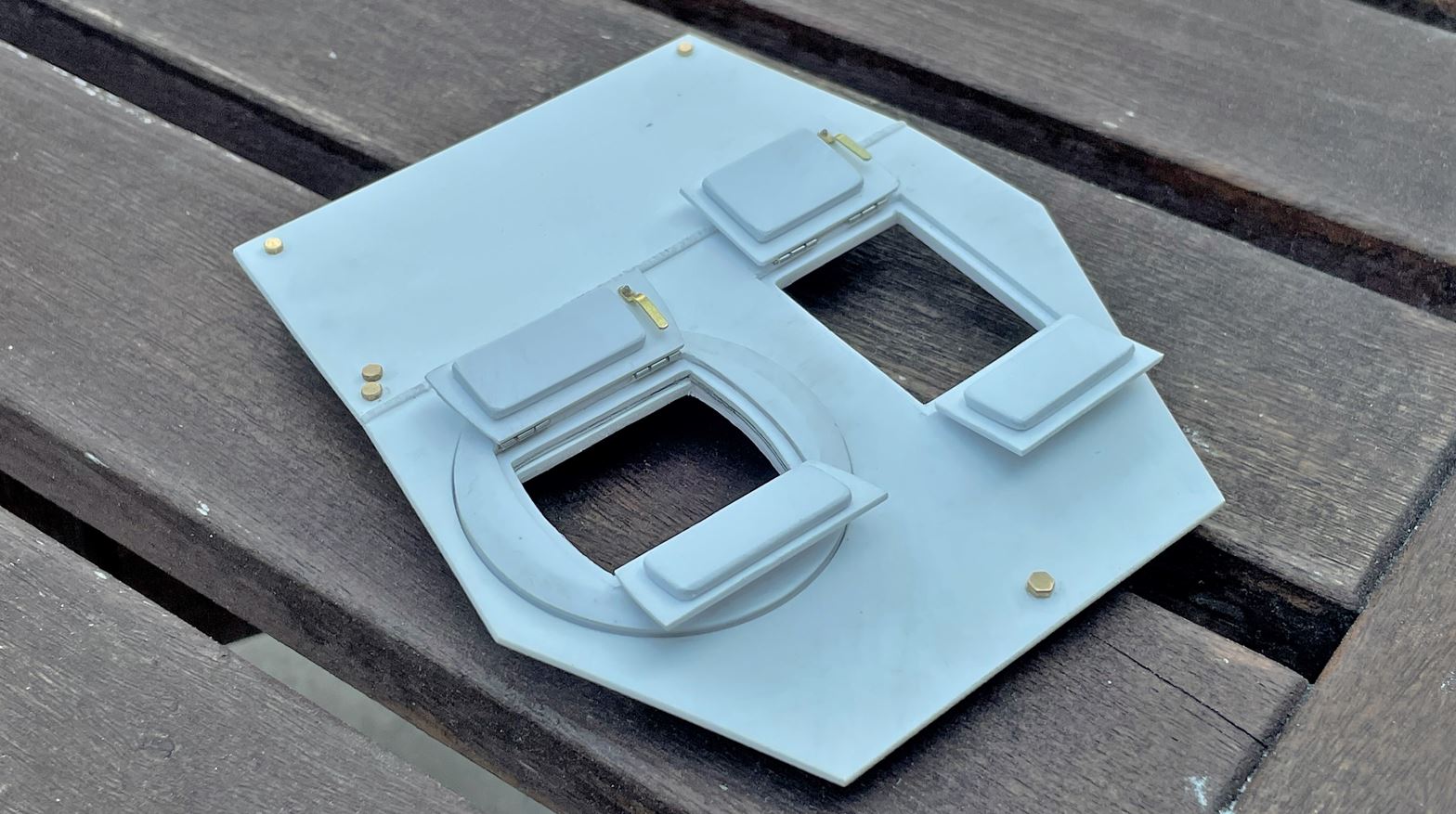

Hatches are ready to be hinged.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

This is a picture of the German fighter ace Adolf Galland visiting the DIeppe battlefield and inspecting the Churchill tank. This picture provides a wealth of information on the hatches.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

Continuing on following post.

inger · Post by **inger** » Sat Aug 28, 2021 12:38 am

Really inspiring work! Every time enthusiasm for my own project flags, a quick look through your work gets me back on track (no pun intended).

lmcq11 · Post by **lmcq11** » Sat Aug 28, 2021 12:42 am

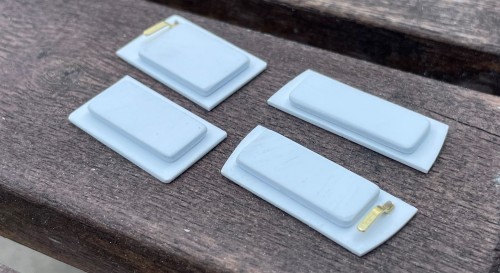

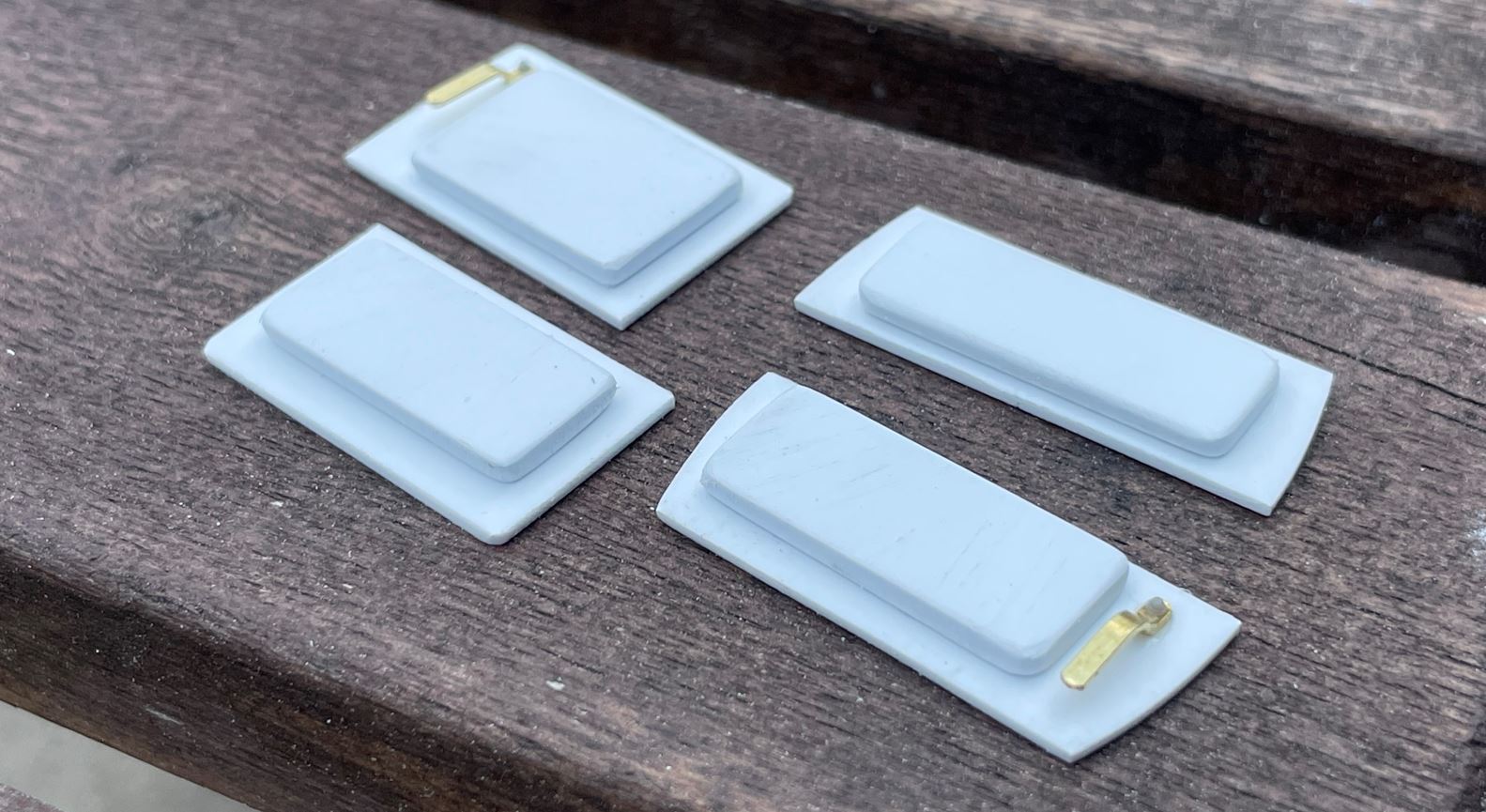

Interior cushions are installed.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

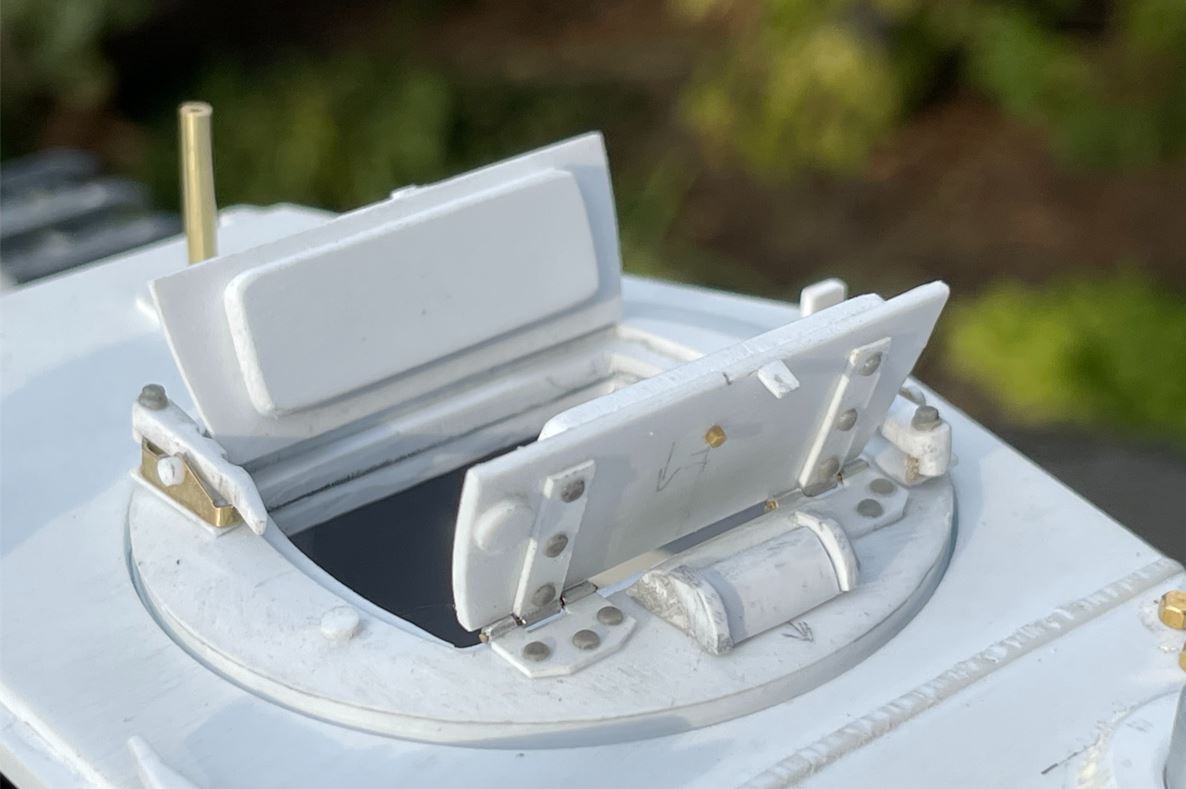

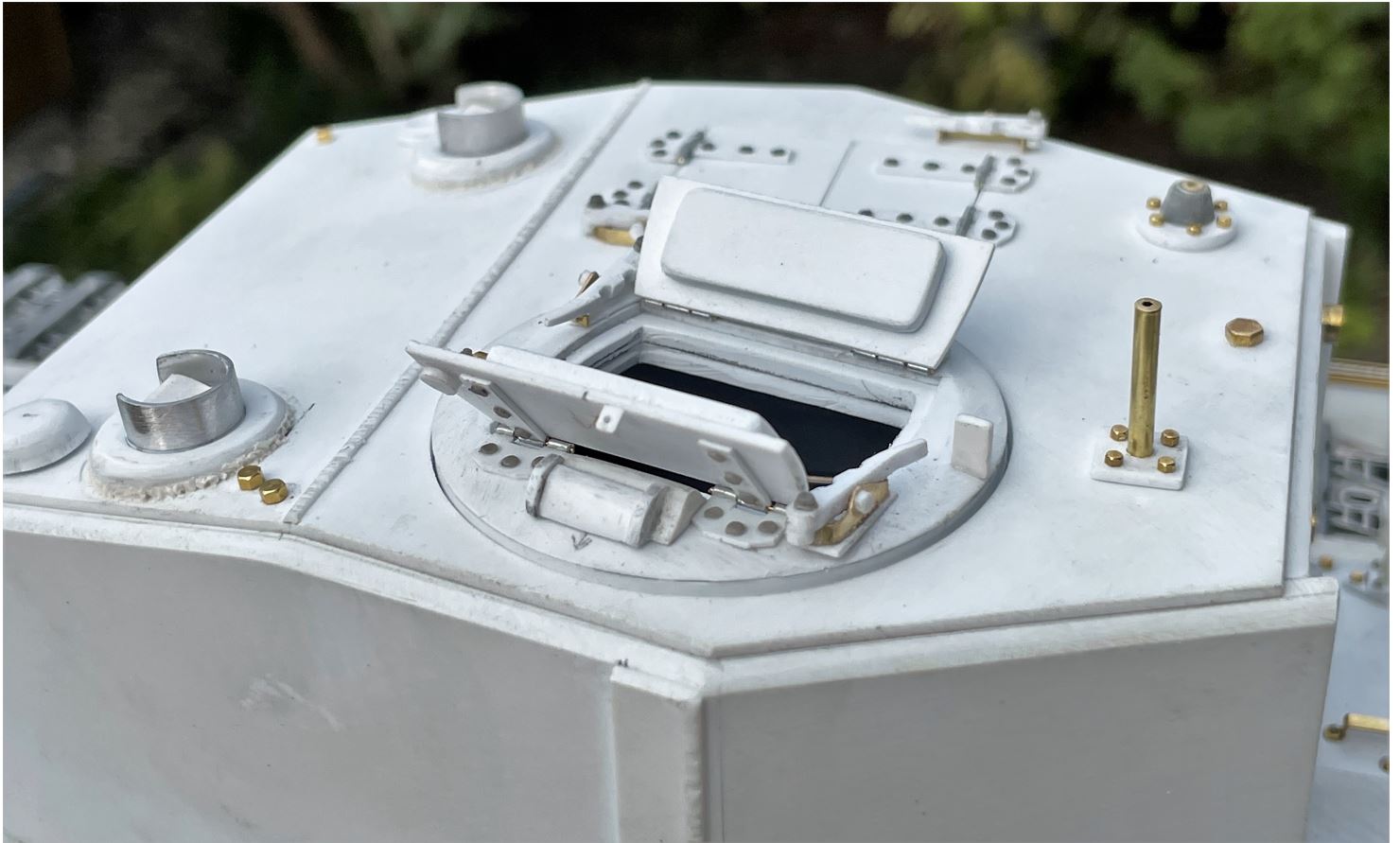

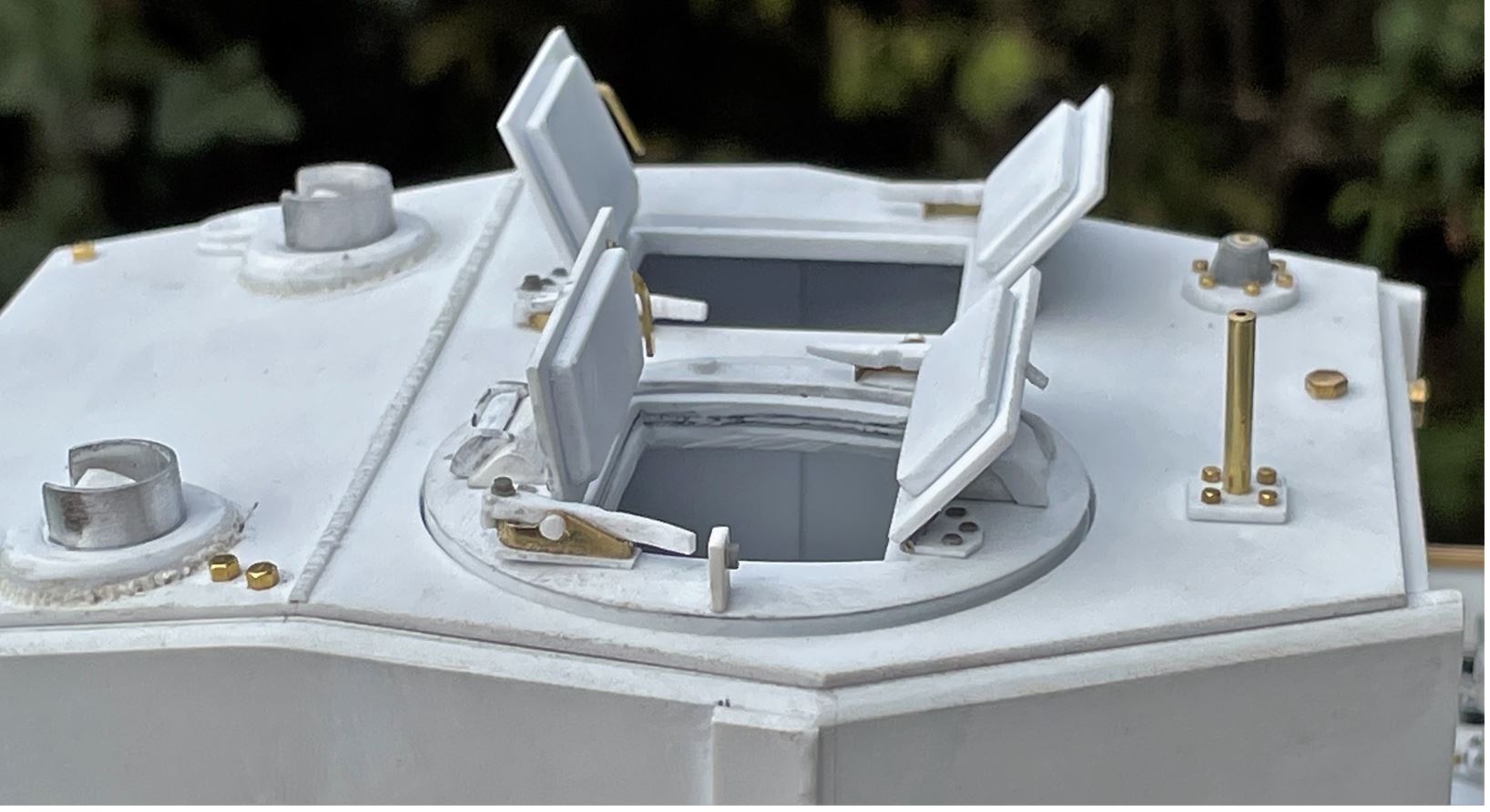

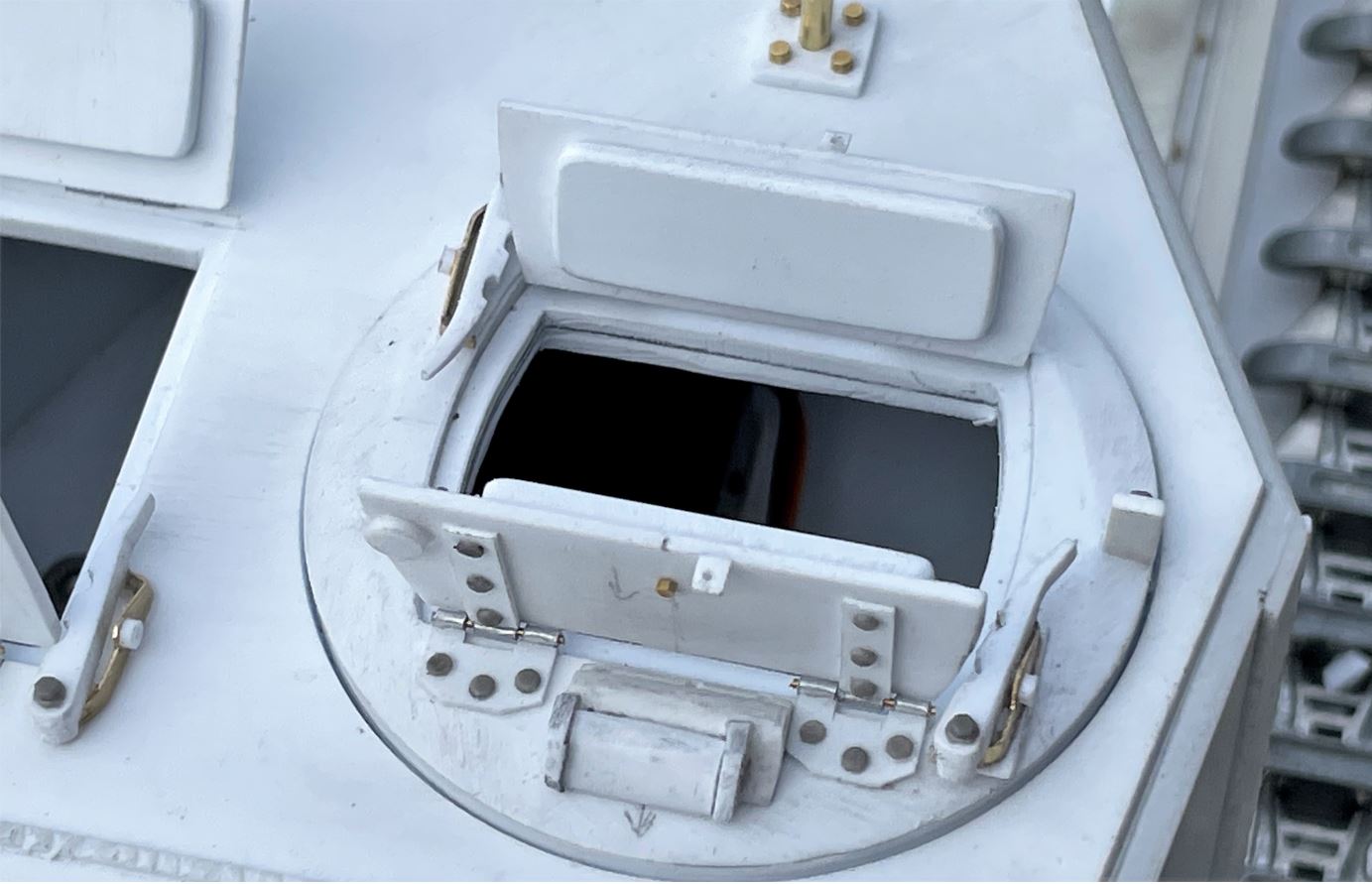

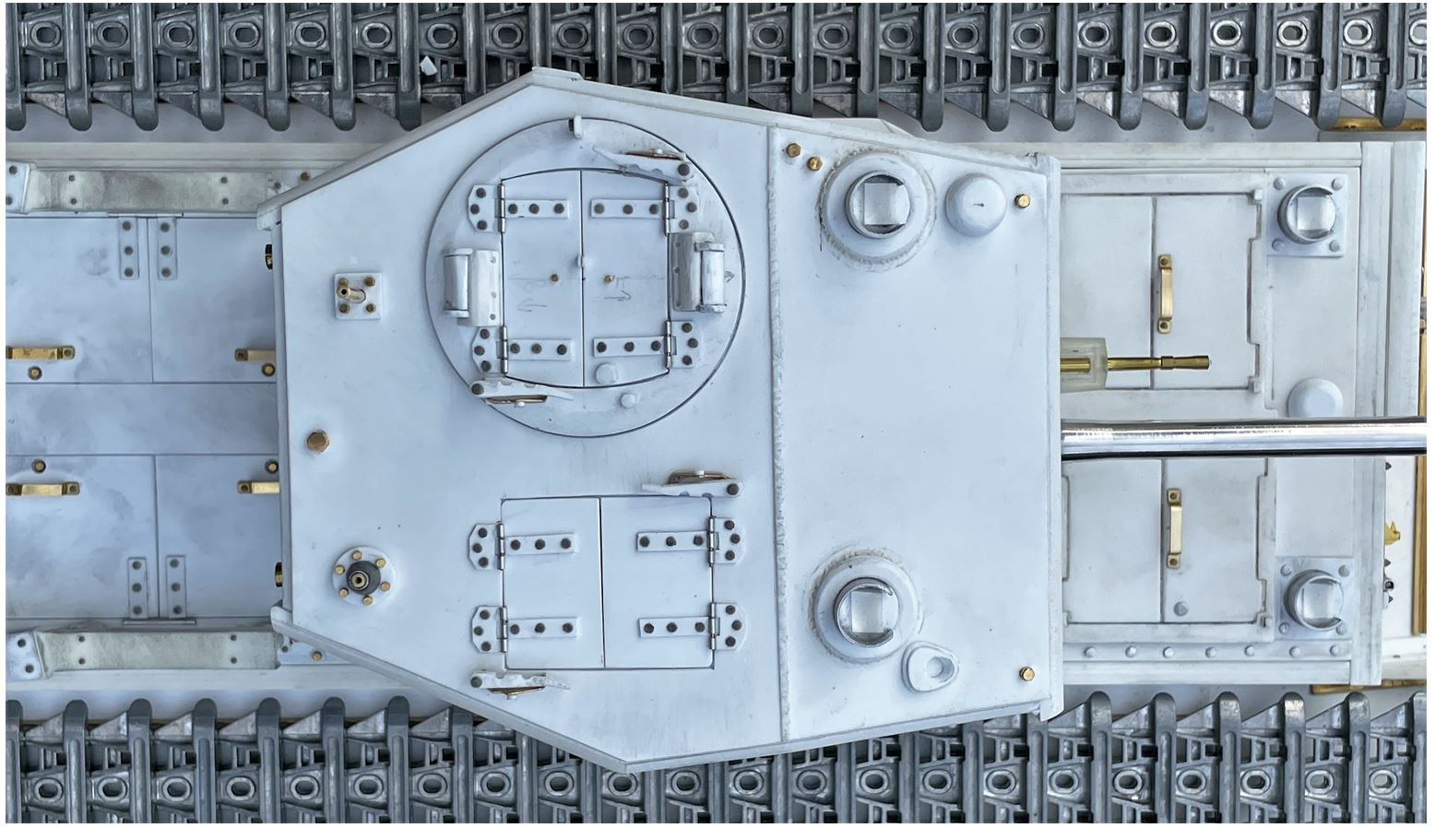

Hinges are installed on the gunner's hatch and commander's cupola.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build; Capture11a.JPG (91.33 KiB) Viewed 1255 times

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build; Capture11b.JPG (87.57 KiB) Viewed 1255 times

And working extremely well.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

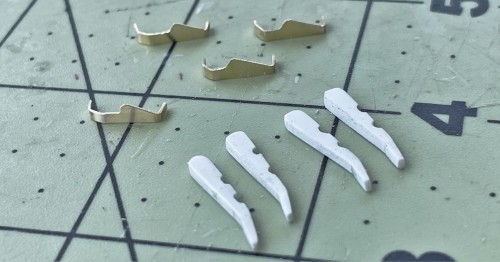

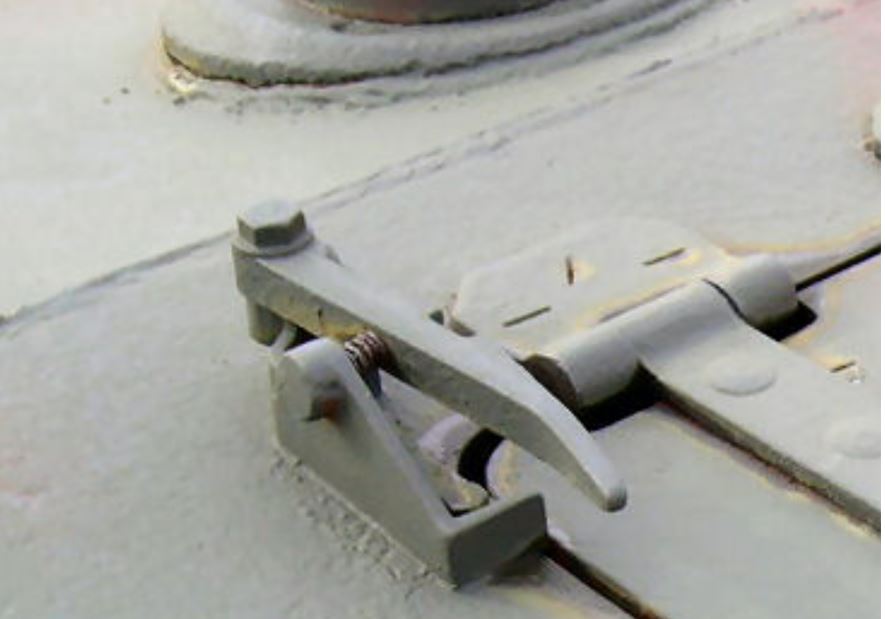

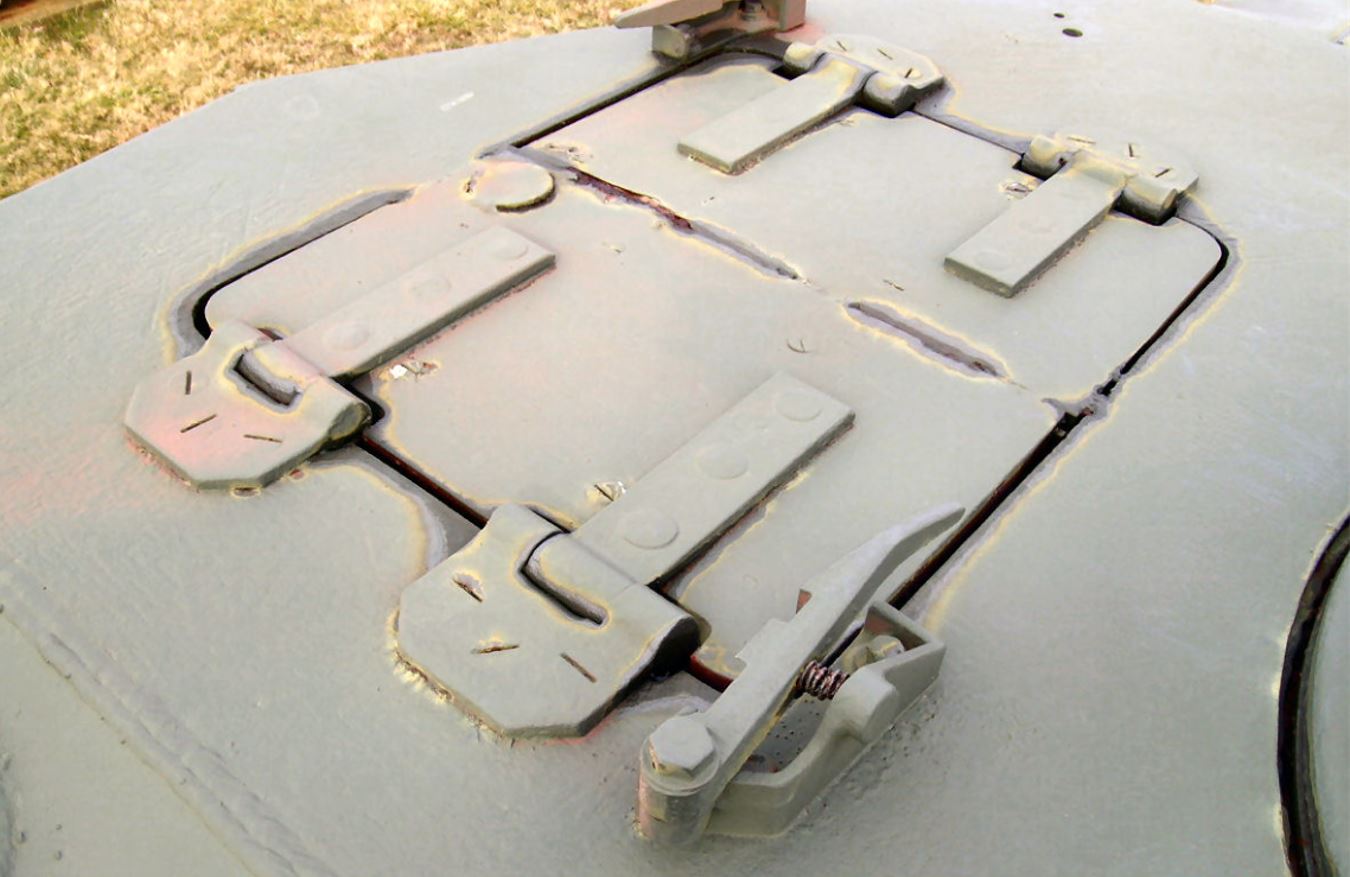

The hatches have a complicated locking mechanism.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build; Capture13.JPG (47.56 KiB) Viewed 1255 times

Need four locking mechanism, one per hatch.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

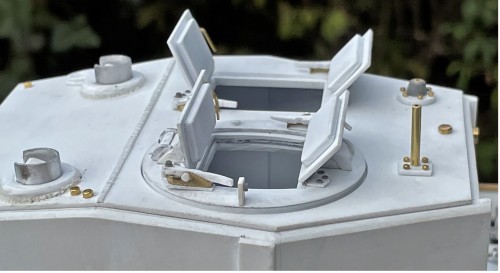

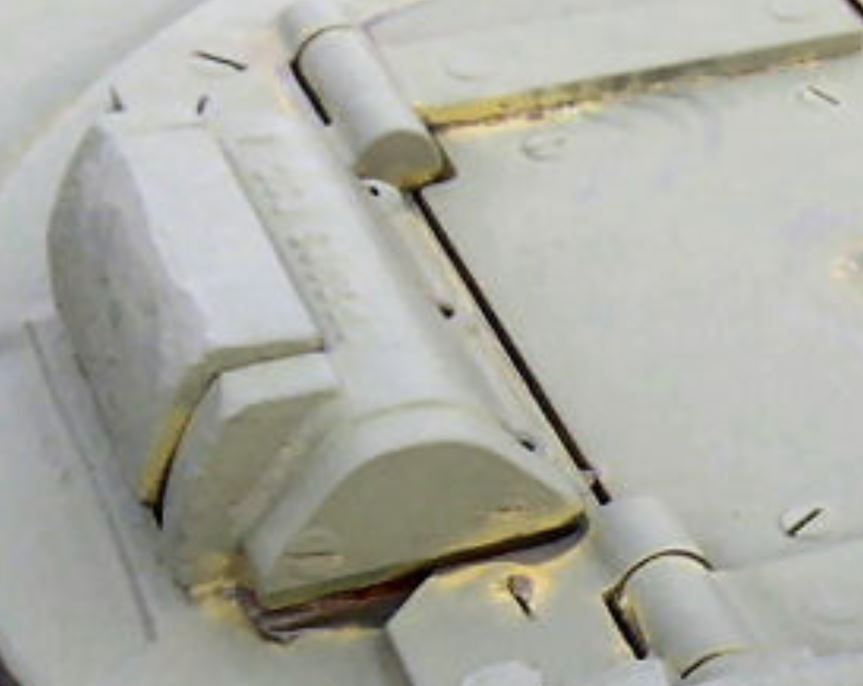

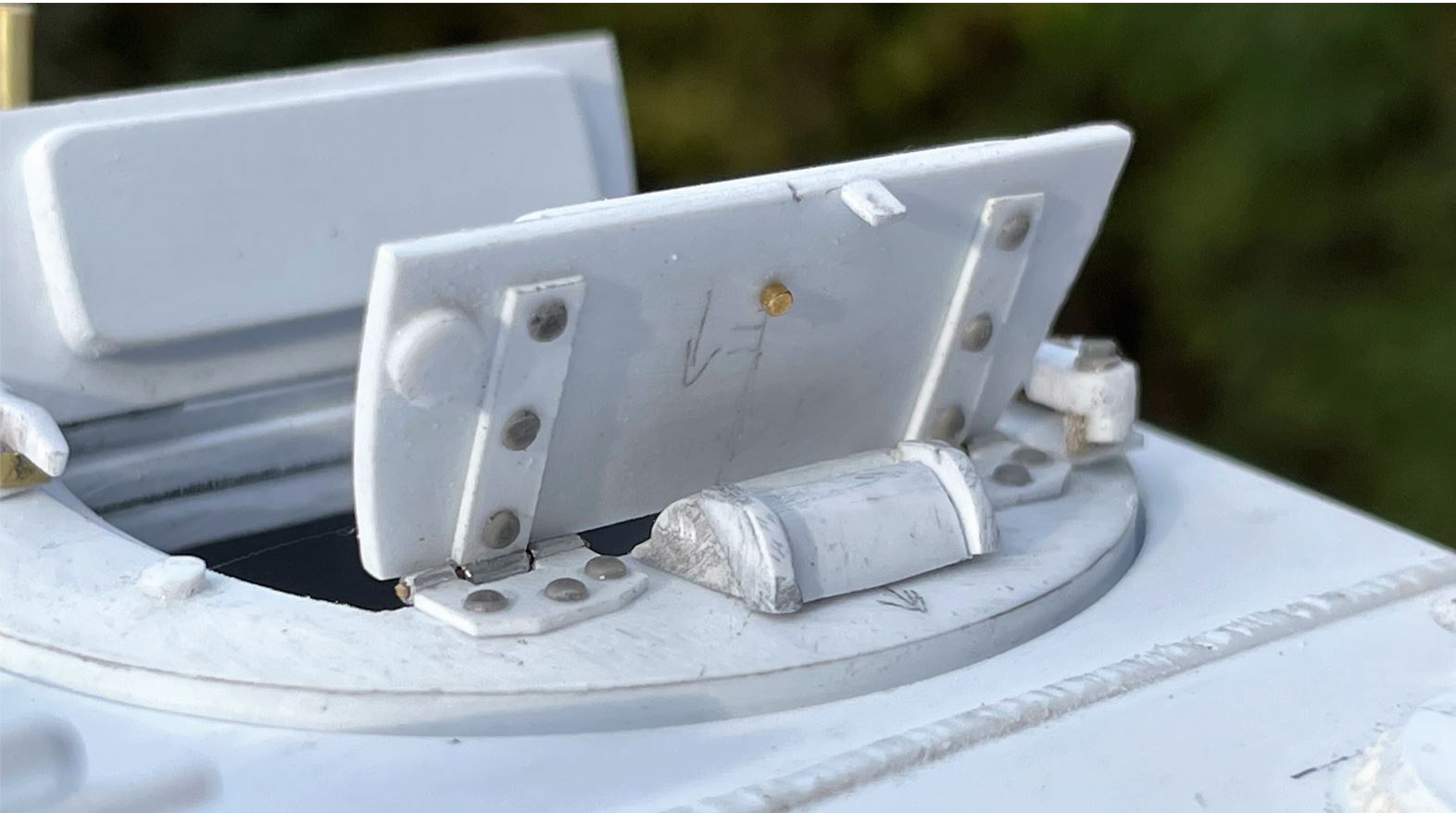

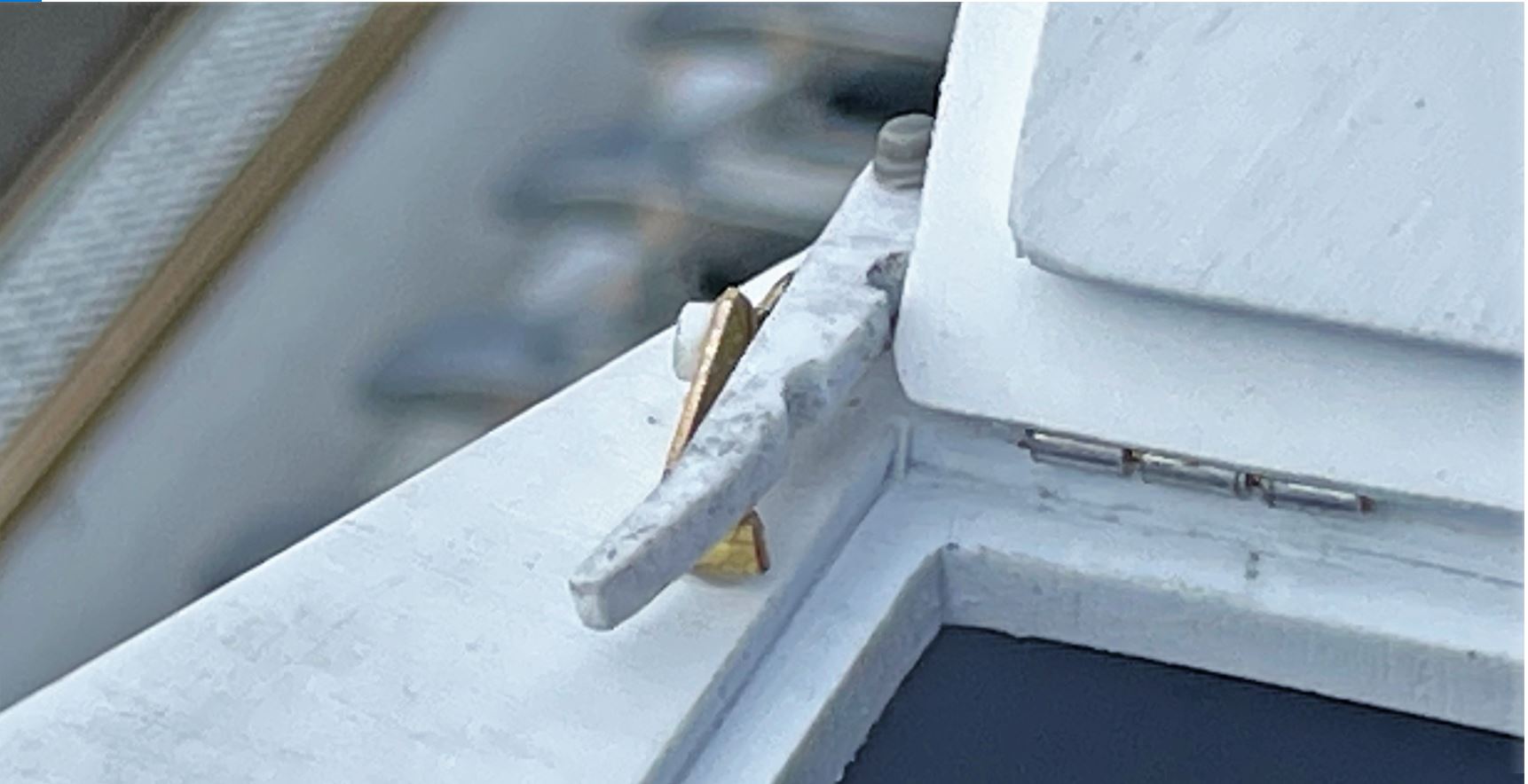

Installed locking mechanism and i also added the flat headed bolts on the hinges.

: RC 1/16 Churchill Mk III - Dieppe Raid 1942 - Build

They are not made functional but i understand that the hatch corner can fit into 2 available position slots on a latch and held in place with a spring.
