lmcq11 · Post by **lmcq11** » Sat Jun 09, 2018 12:20 am

Hi,

Here is a quick status on the painting job.

It is Work In Progress but it provides a good preview of how it is going to look like.

: Ludwigs Marder 1A1 MICV

: Ludwigs Marder 1A1 MICV

: Ludwigs Marder 1A1 MICV

Regards, Louis

c.rainford73 · Post by **c.rainford73** » Sat Jun 09, 2018 12:21 am

Beautifully designed Louis I compliment your work

Soeren · Post by **Soeren** » Sat Jun 09, 2018 11:52 am

The amount of Detail you put into this is astonishing and it is still fully rc, crazy cool.

lmcq11 · Post by **lmcq11** » Sat Jun 09, 2018 11:22 pm

Thank you,

I am almost there, I can feel it.

Some more finishing work today. Side view. I was sure I had Bundeswehr markings in my inventory but sadly I do not. I had to order a set and it will take a week or two to get them.

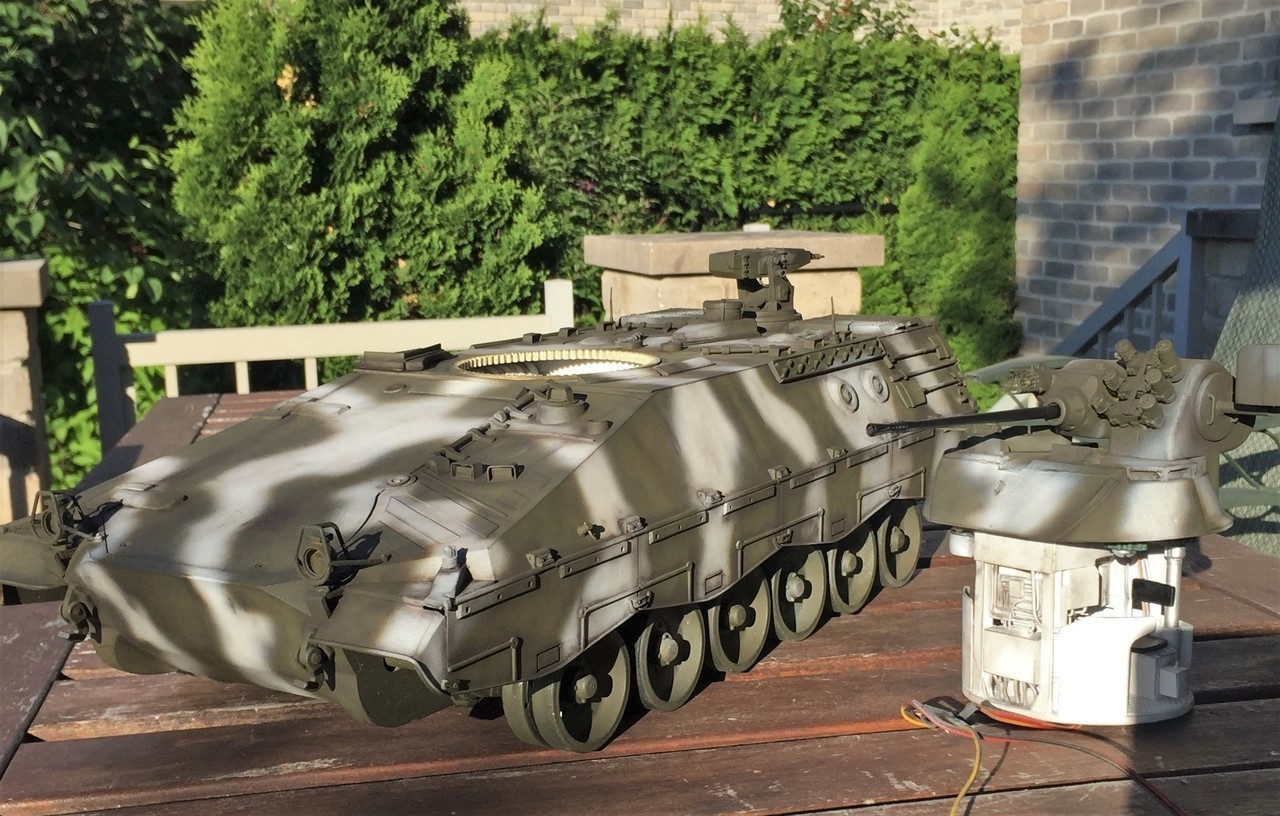

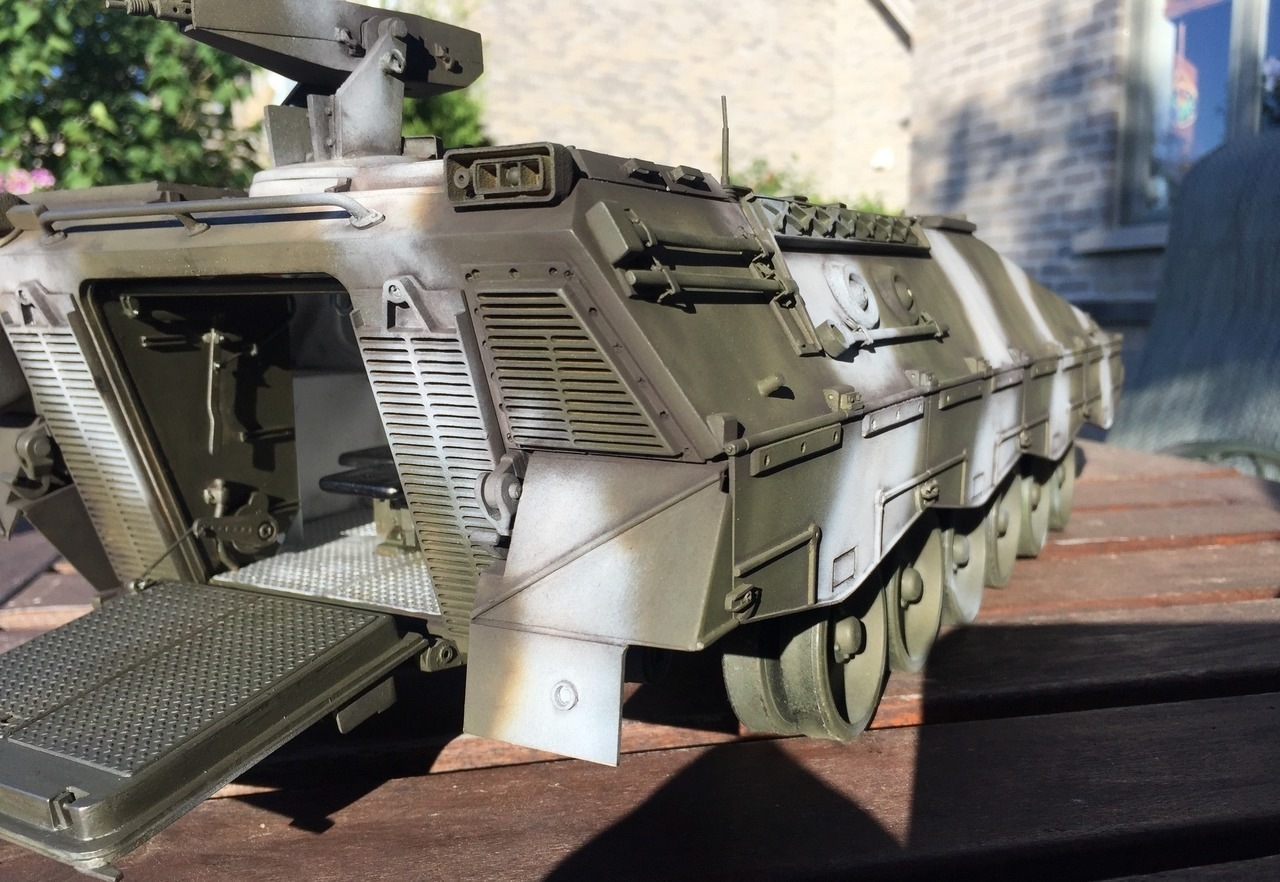

: Ludwigs 1/16 RC Marder 1A1 MICV

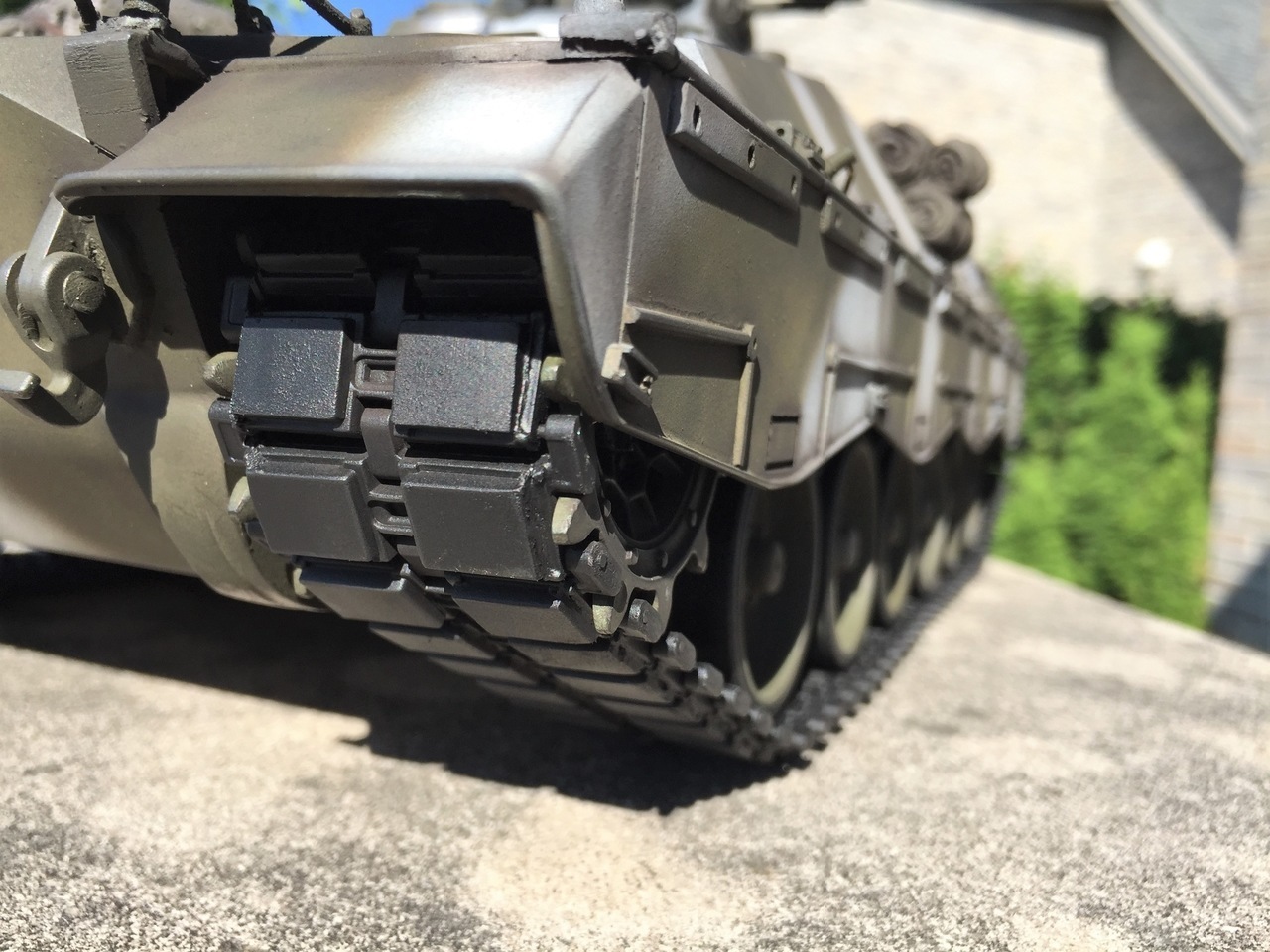

The model is sporting its demonstration Diehl tracks, good for demo and some trial only, just too fragile. Just noticed my M26 running track set are too short and I will need to buy another set to extend them. The sprockets will also need work to adapt to the Leopard gearbox shaft.

: Ludwigs 1/16 RC Marder 1A1 MICV

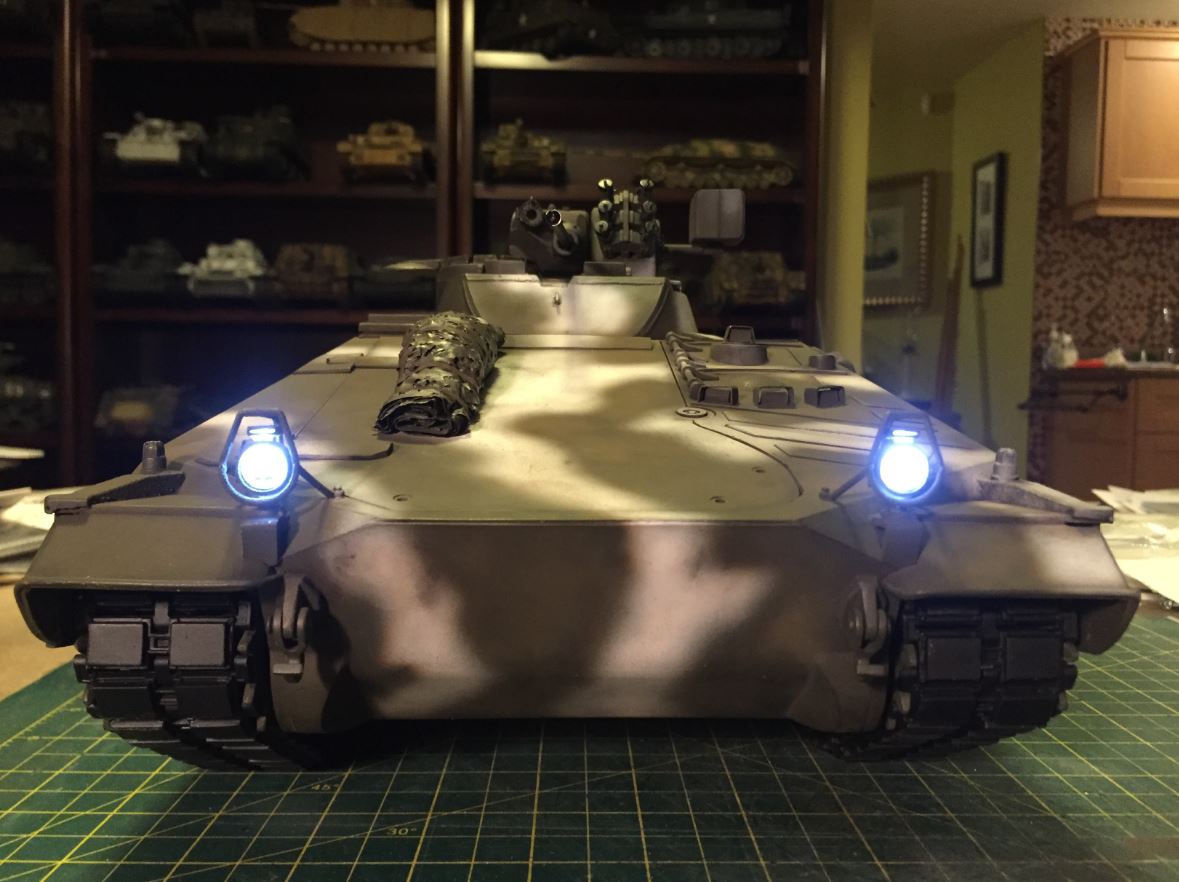

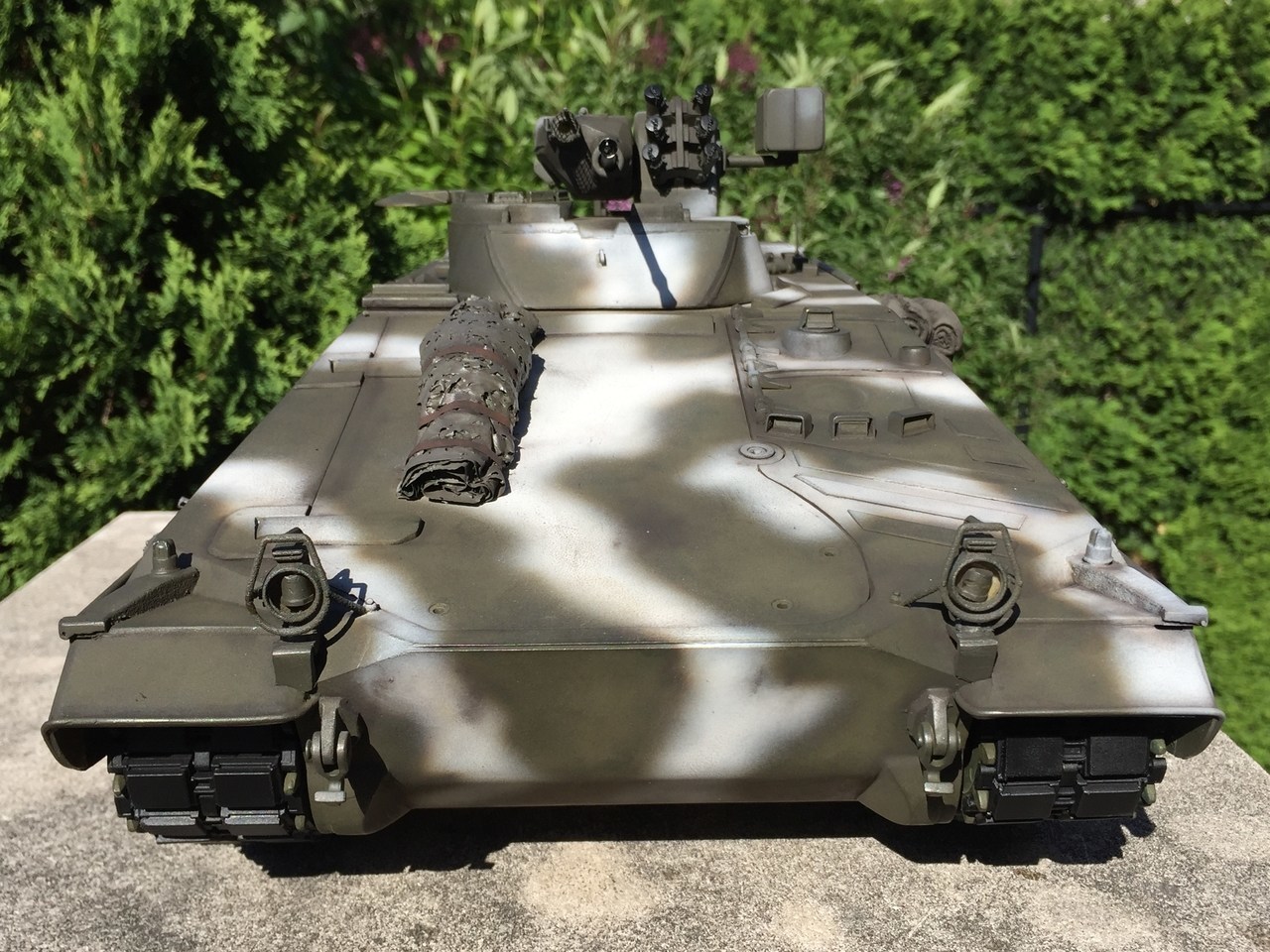

Front view. Despite all my precautions, I lost the lens for the headlights during the building and will need to procure new ones.

: Ludwigs 1/16 RC Marder 1A1 MICV

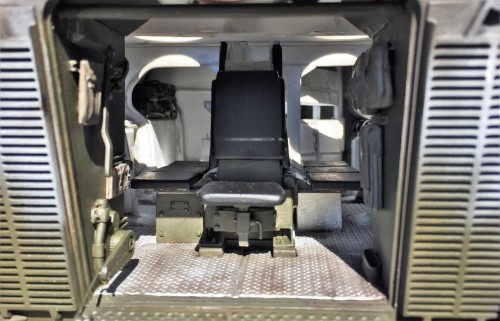

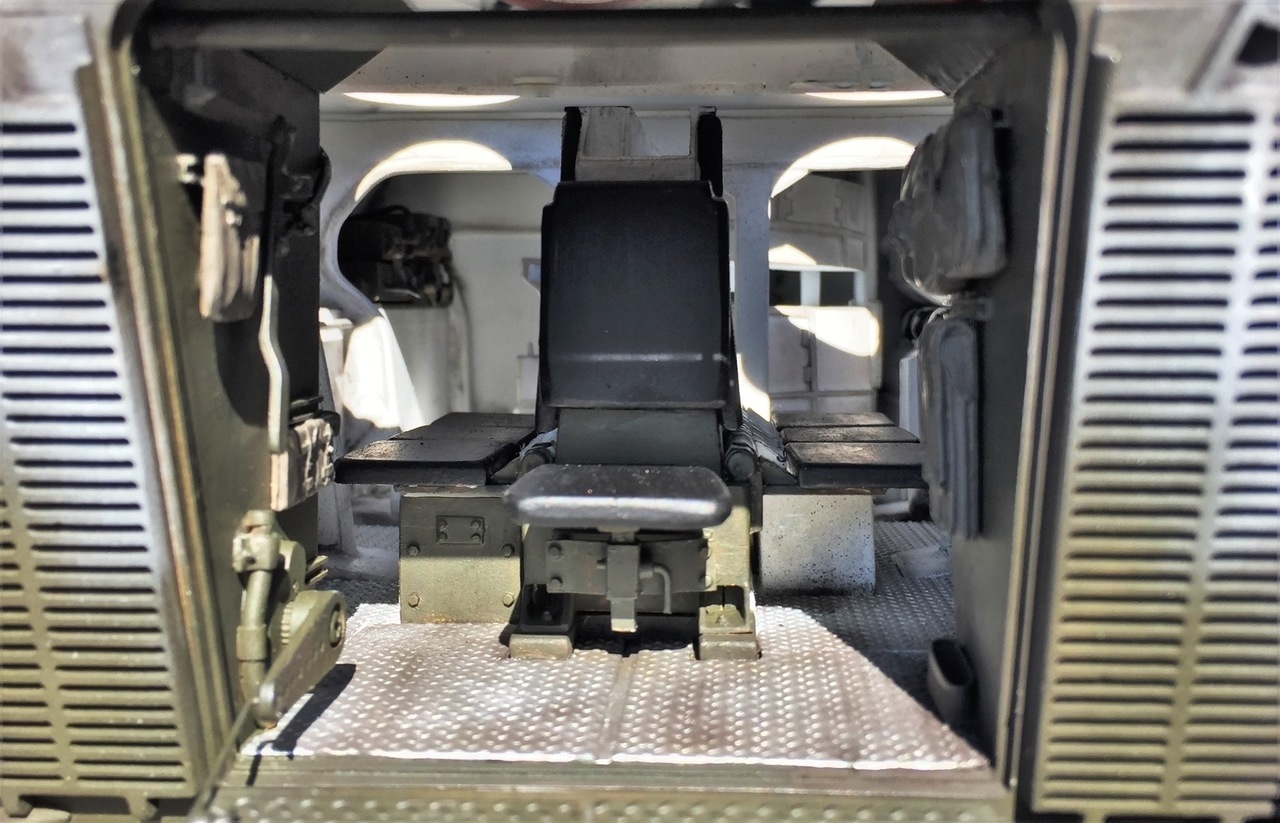

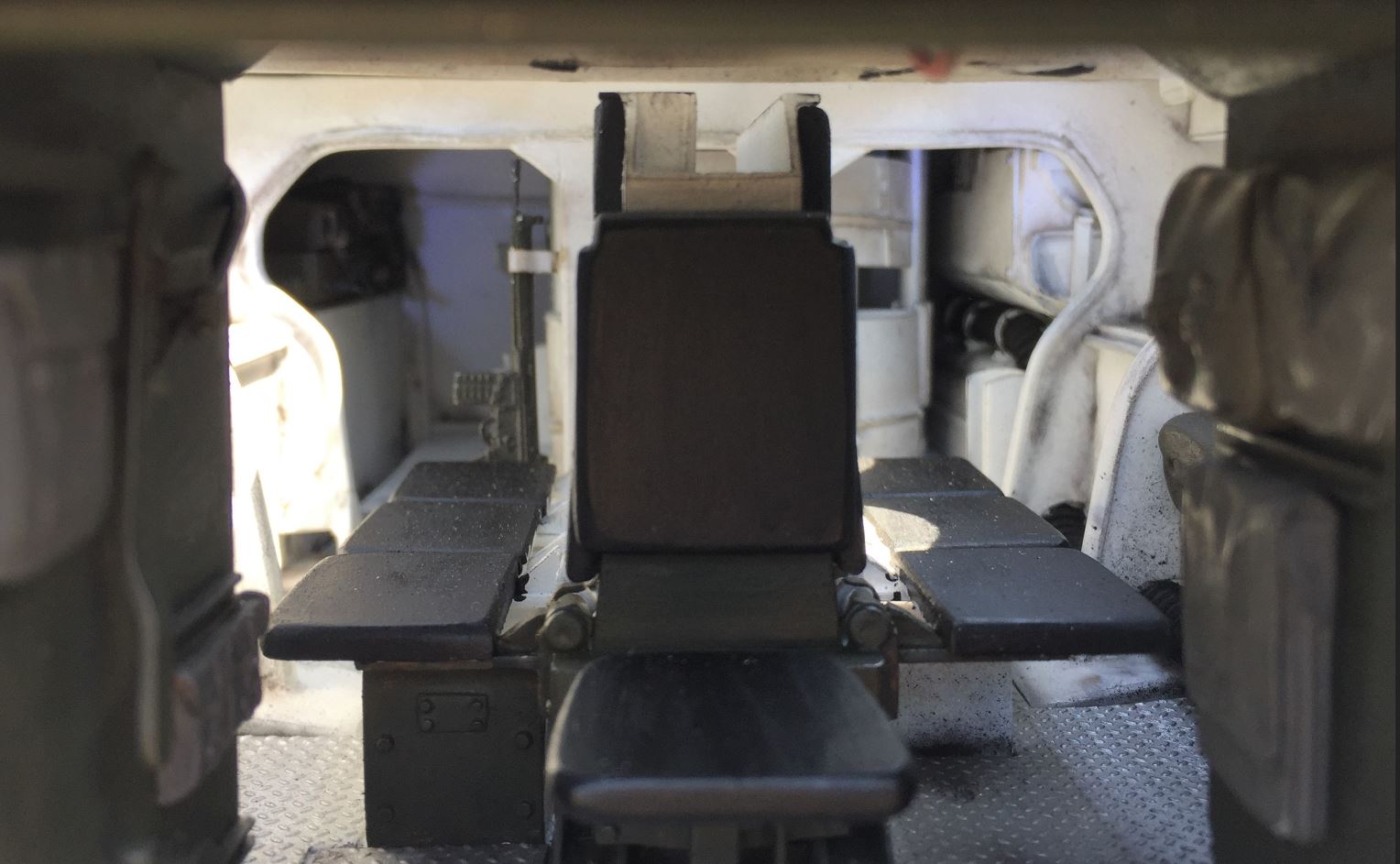

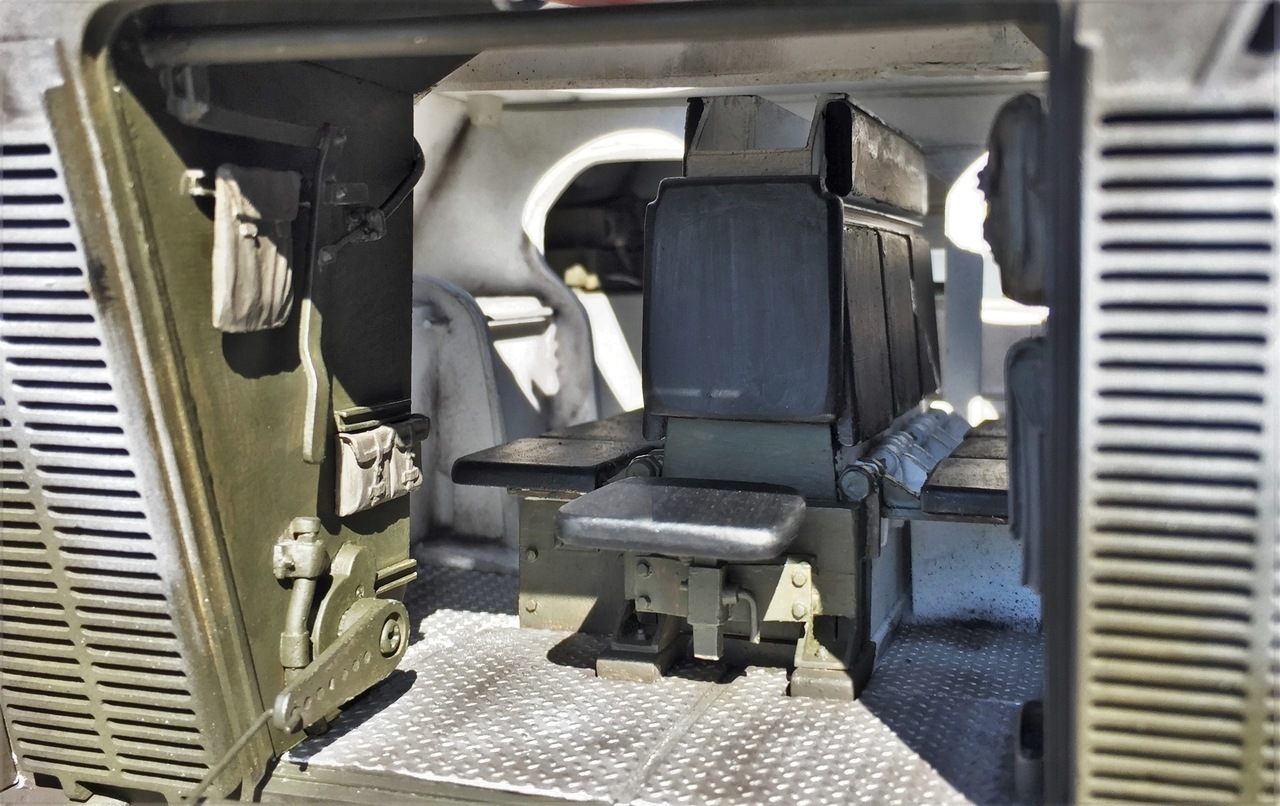

Interior is complete. I am glad its over. It was quite a challenge.

: Ludwigs 1/16 RC Marder 1A1 MICV

: Ludwigs 1/16 RC Marder 1A1 MICV

: Ludwigs 1/16 RC Marder 1A1 MICV

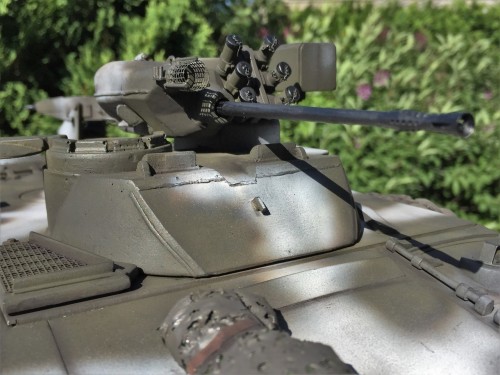

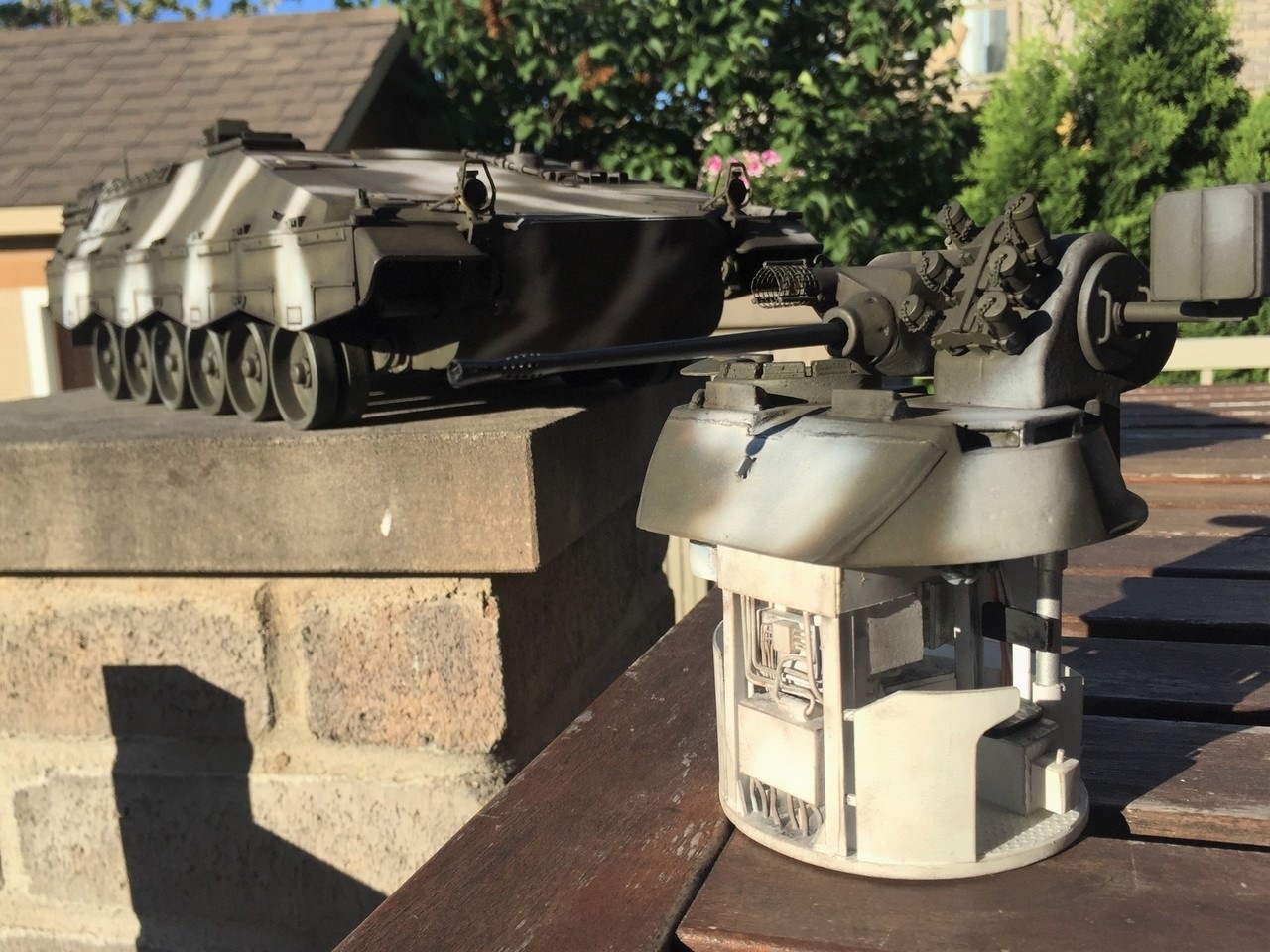

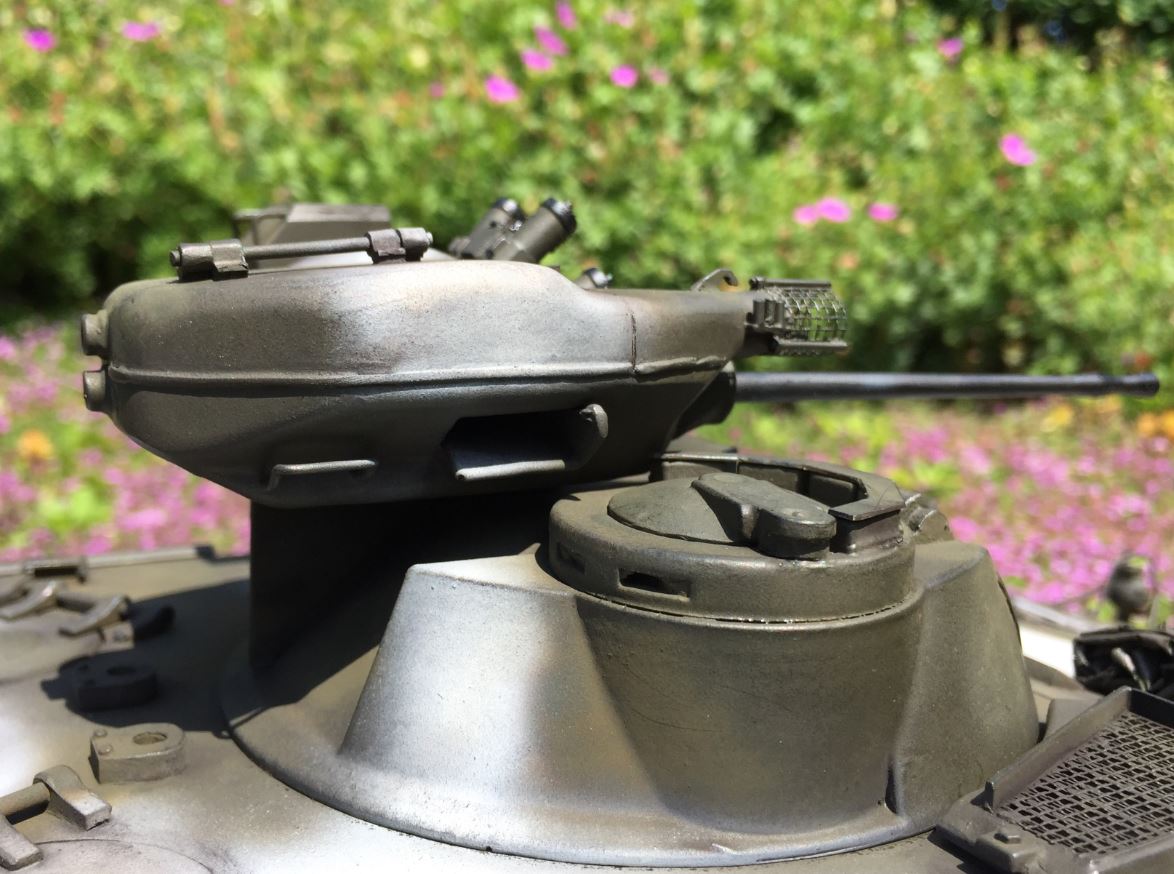

Turret still has minor details to paint.

: Ludwigs 1/16 RC Marder 1A1 MICV

Next big step is to install and configure the TK-60, speaker and finalize all the wiring, lots of them, big job. Although everything was tested during construction, I really hope all components still works as planned.

: Ludwigs 1/16 RC Marder 1A1 MICV

Regards, Louis

c.rainford73 · Post by **c.rainford73** » Sat Jun 09, 2018 11:32 pm

Man Louis

that rear hatch opened looks so damn realistic I'd swear it's full scale. You are one talented builder

lmcq11 · Post by **lmcq11** » Mon Jun 11, 2018 3:10 am

Hi,

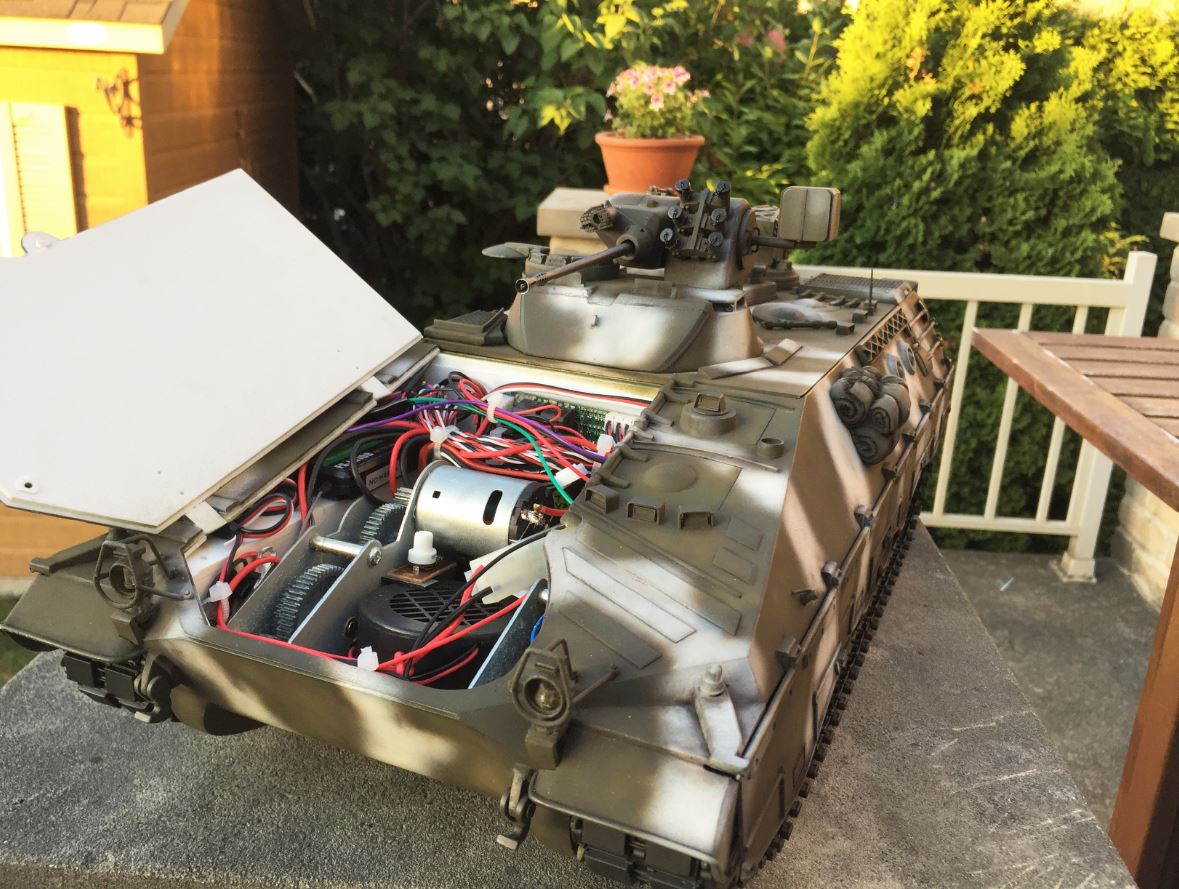

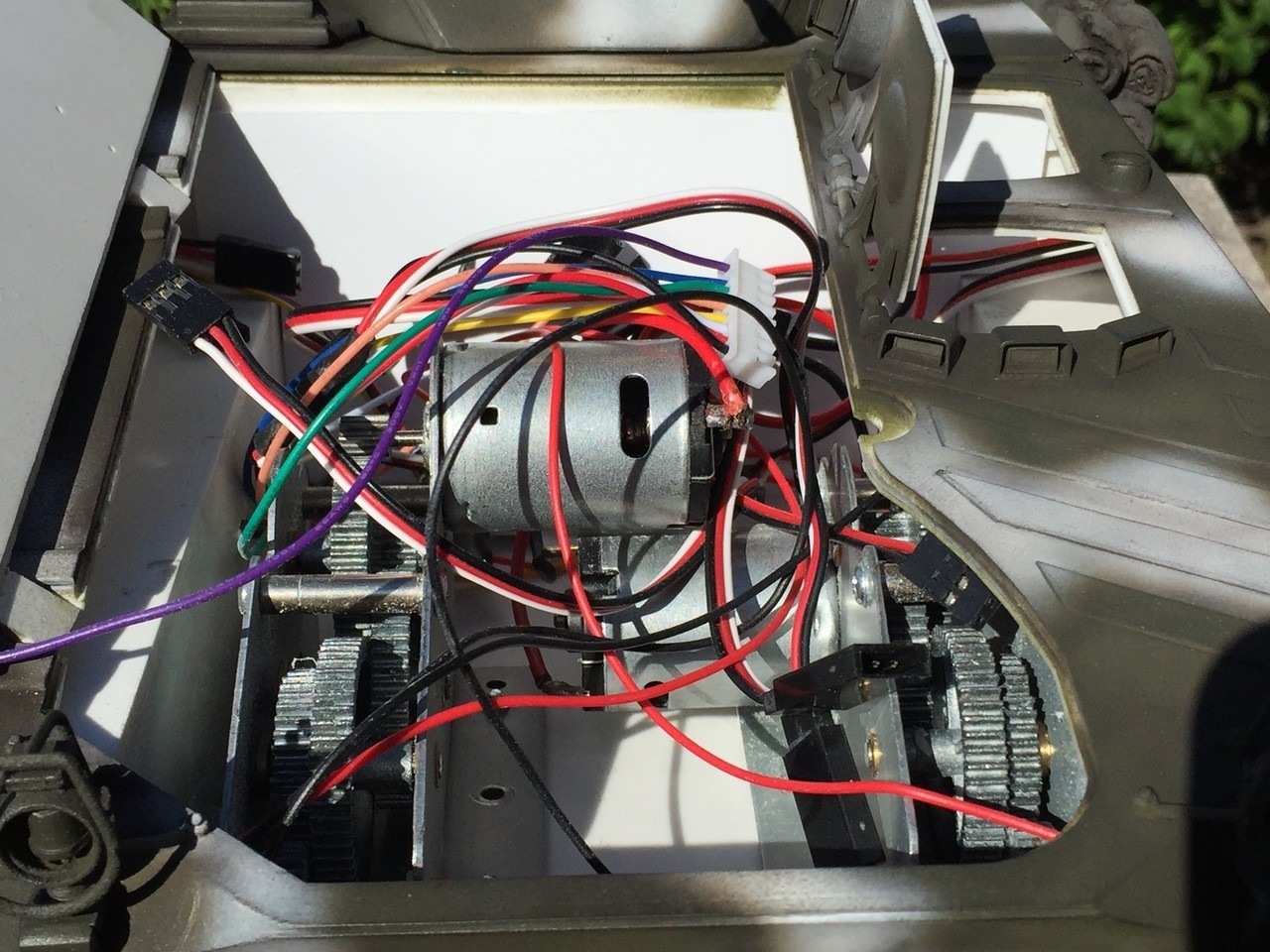

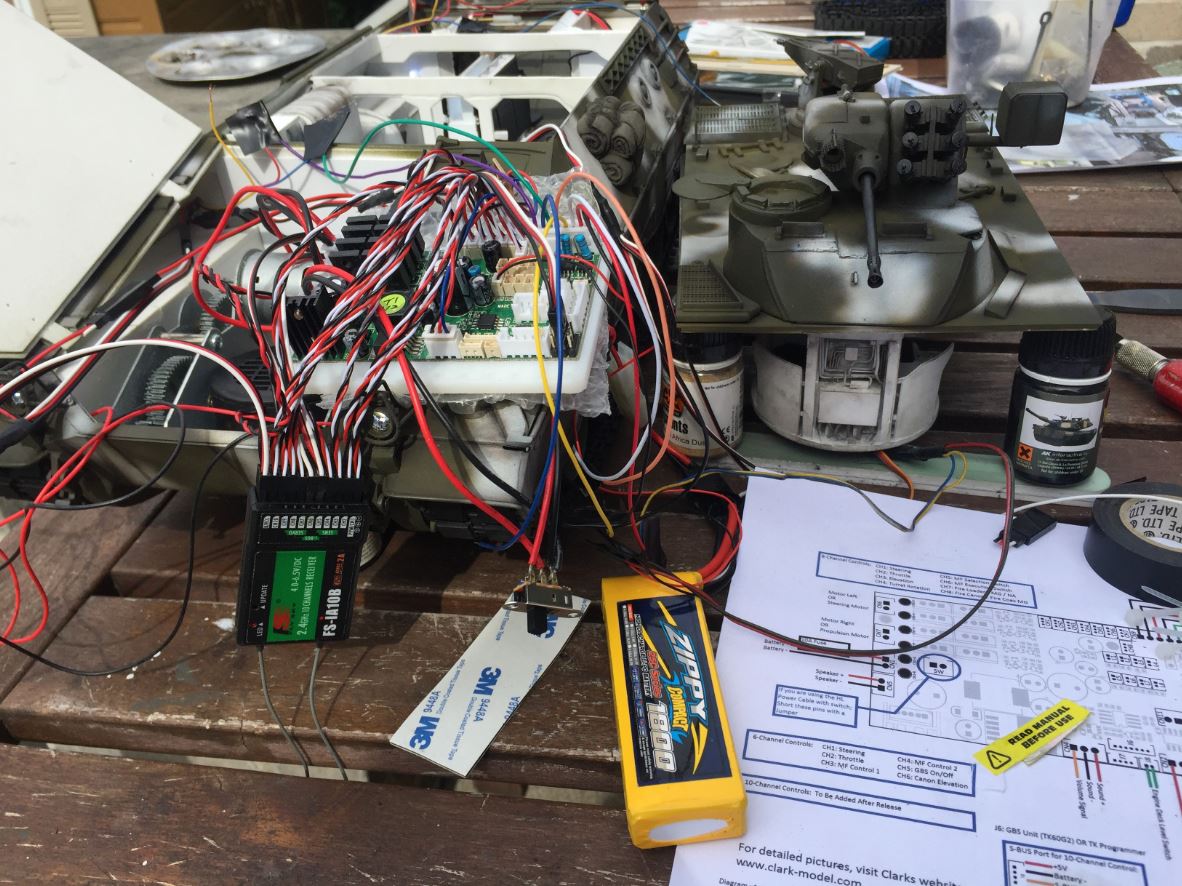

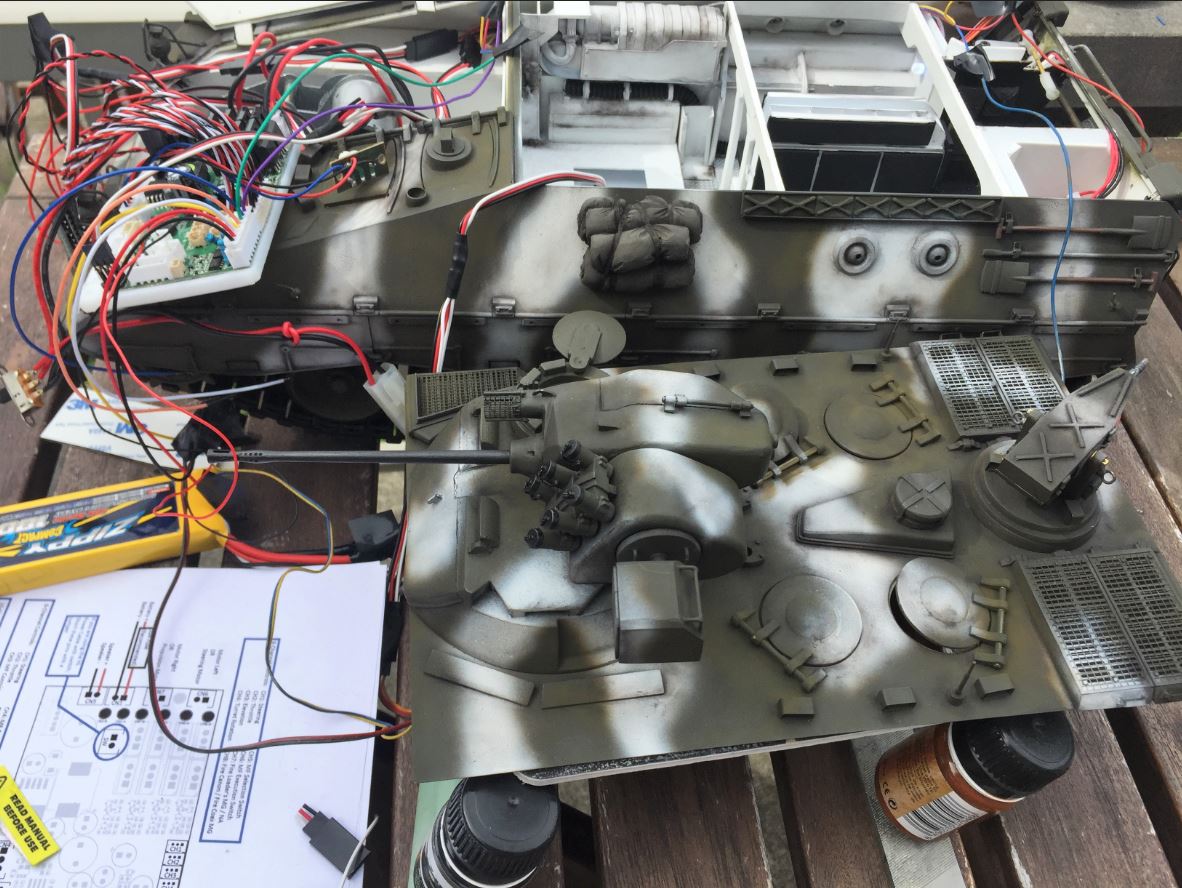

This is the installation of the electronics.

It took a couple of hours to sort out the wiring and test everything before soldering and final placement.
- Clark TK60 requiring 8 channels, I had to reconfigure the channels and switches
- Rear ramp opening
- Rear machine gun horizontal movement
- Headlights, tail lights and interior lights
- Main and auxiliary machine guns
- HL Engines
- HL speaker and Volume switch
- Battery and on/off switch
- Flysky 10 channel remote

: Ludwigs Marder 1A1 1/16 RC

: Ludwigs Marder 1A1 1/16 RC

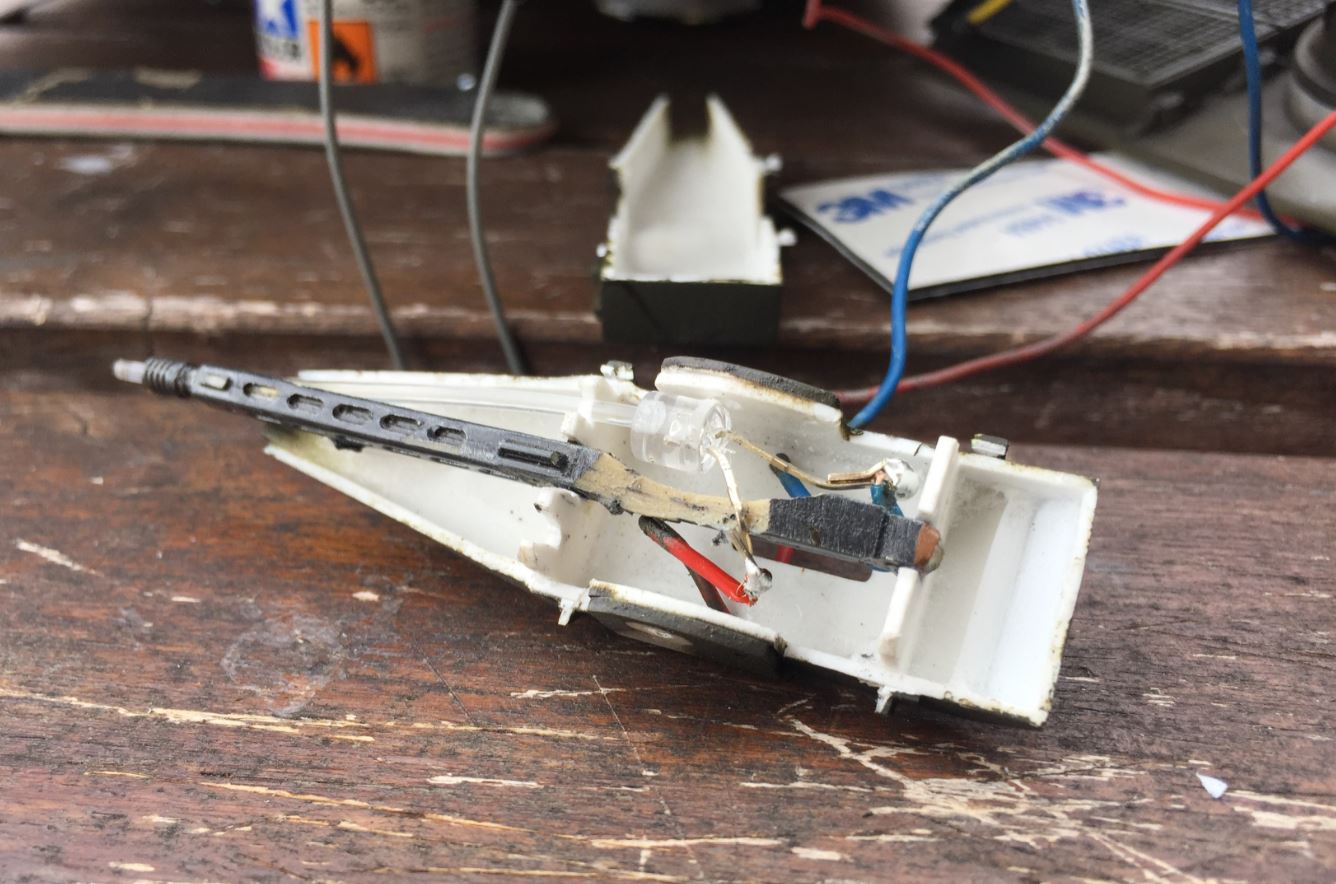

I had to redo the flasher on the rear machine gun. The original 3mm LED was not enough powerful to my liking. I installed a 5mm LED with a bigger fiber.

: Ludwigs Marder 1A1 1/16 RC

Looks better now. All fit in perfectly. Notice there is no smoker, I never liked these.

: Ludwigs Marder 1A1 1/16 RC

System testing started

: Ludwigs Marder 1A1 1/16 RC

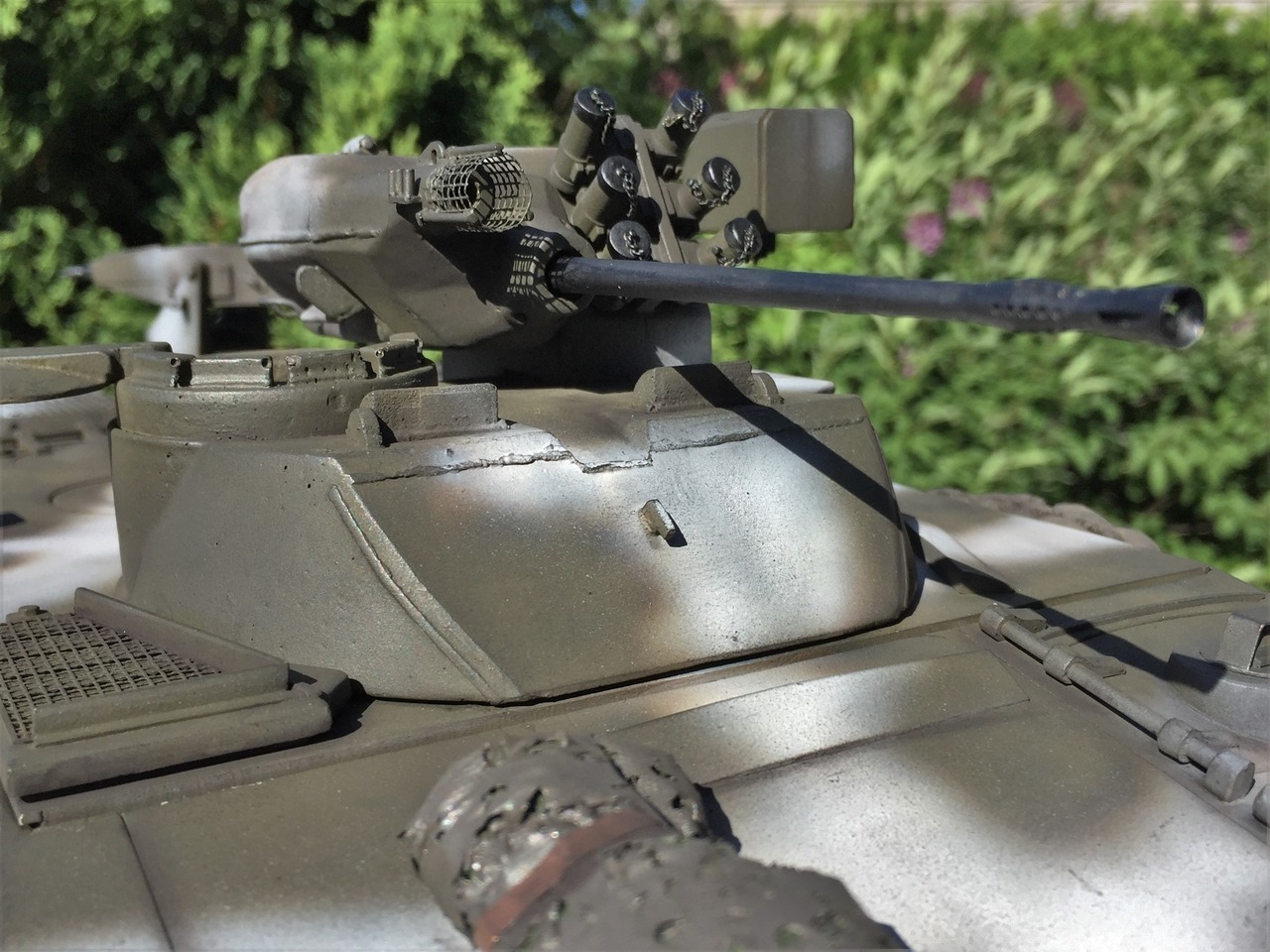

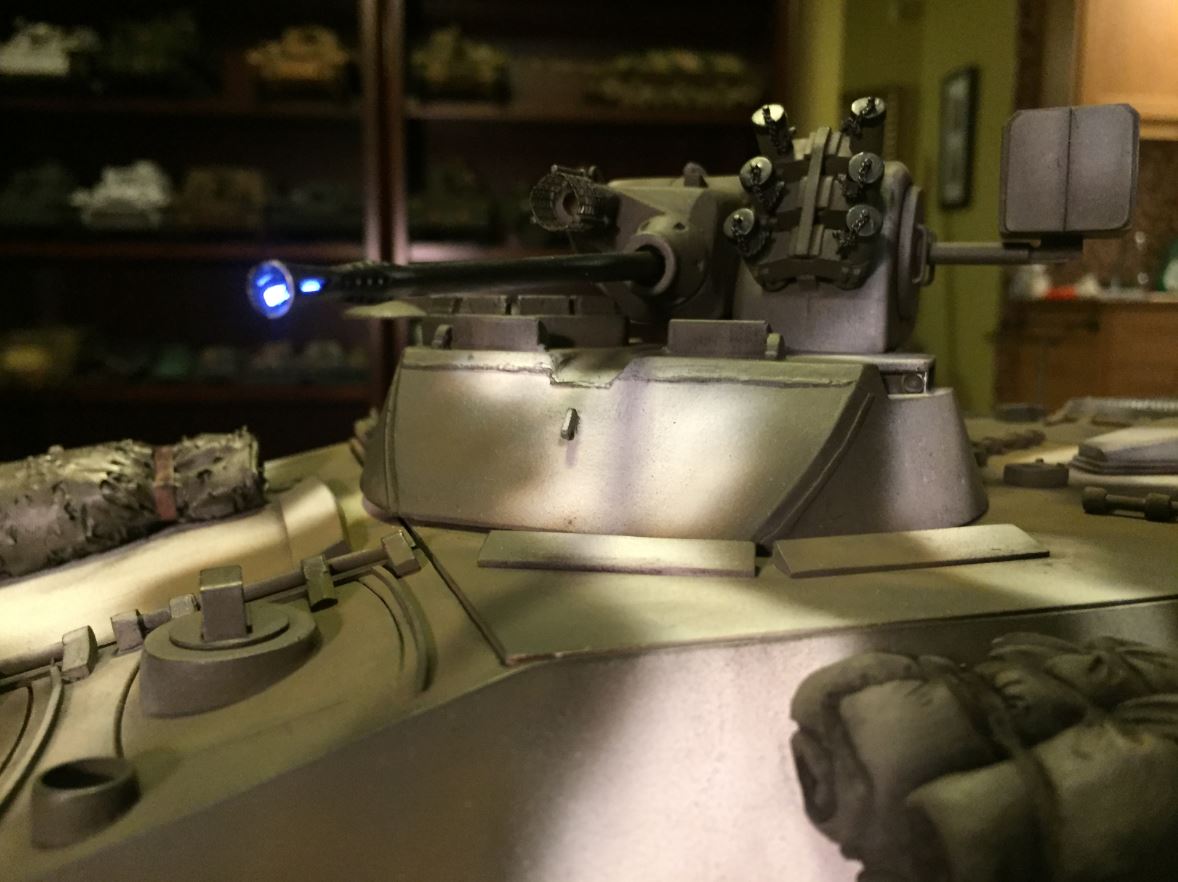

20mm cannon

: Ludwigs Marder 1A1 1/16 RC

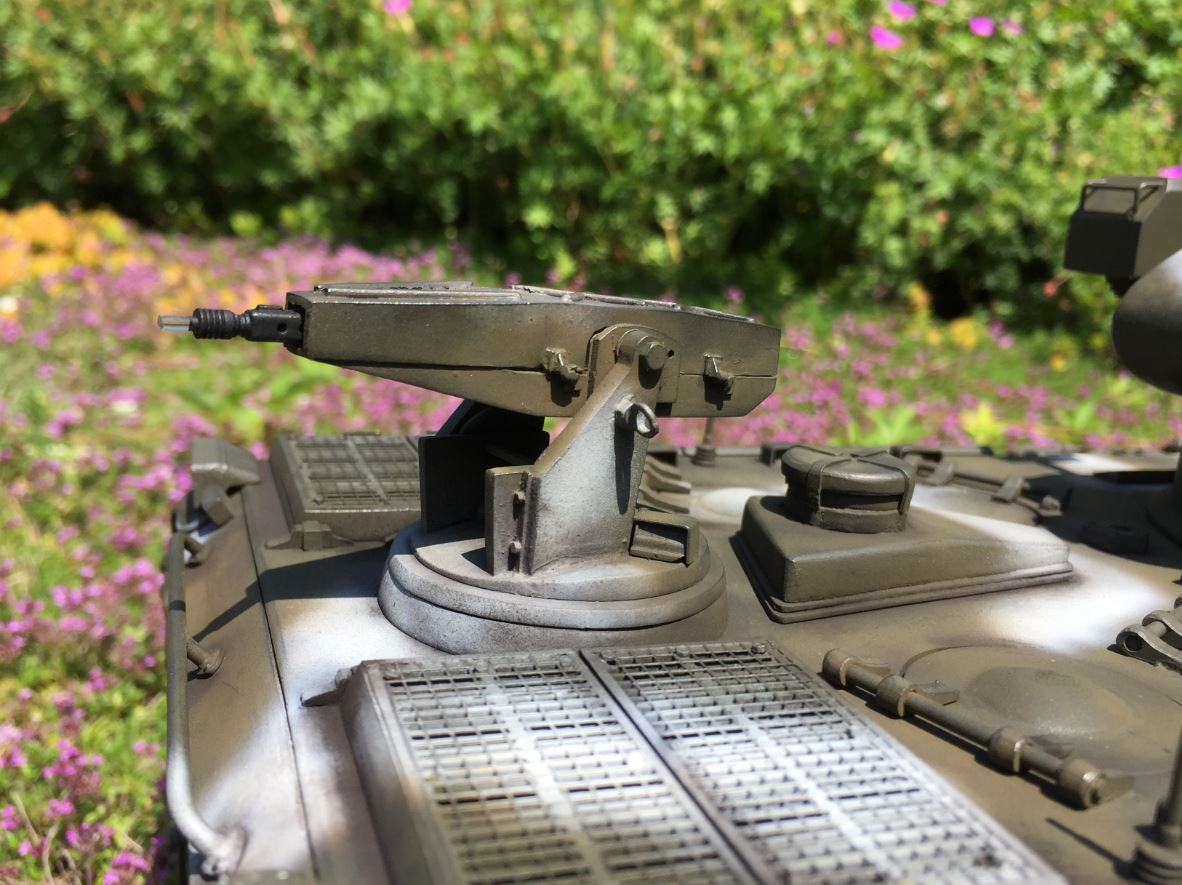

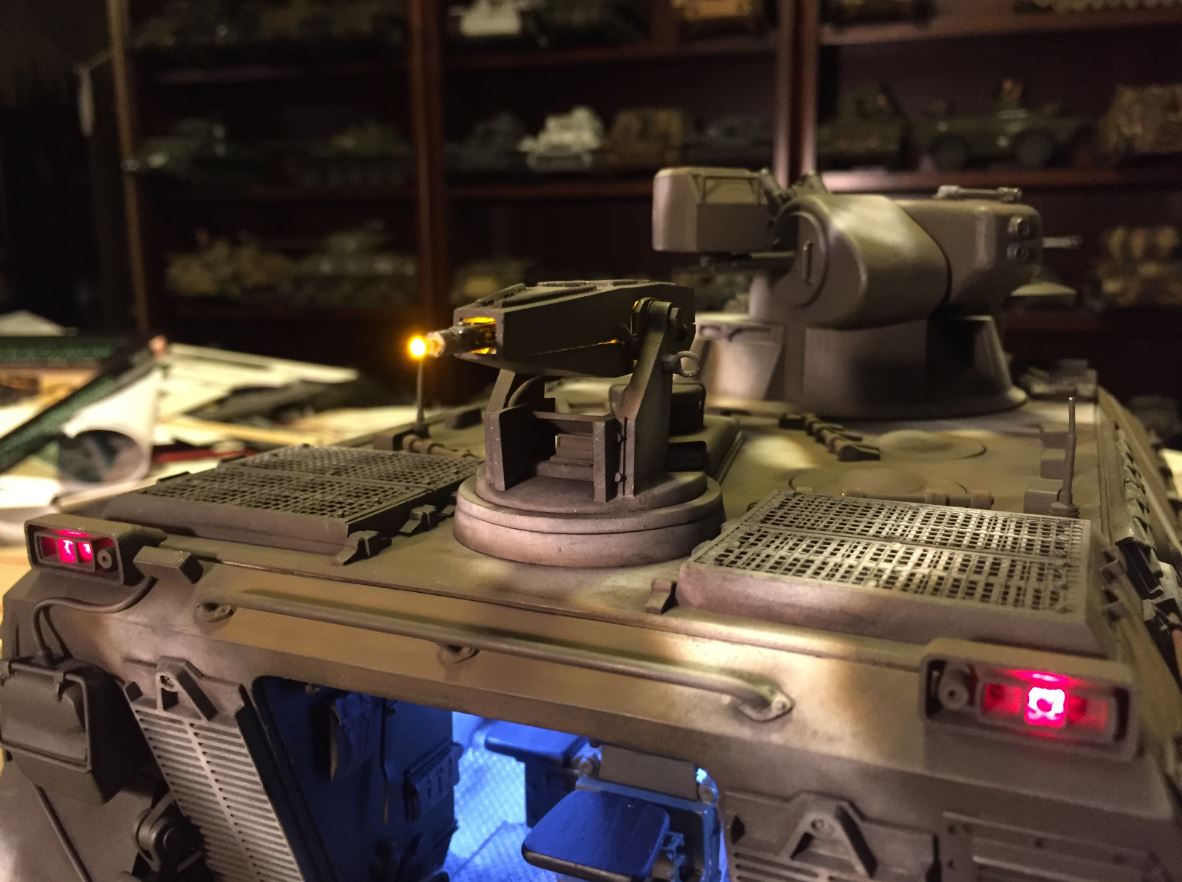

Rear 7.62mm MG-3 machine gun

: Ludwigs Marder 1A1 1/16 RC

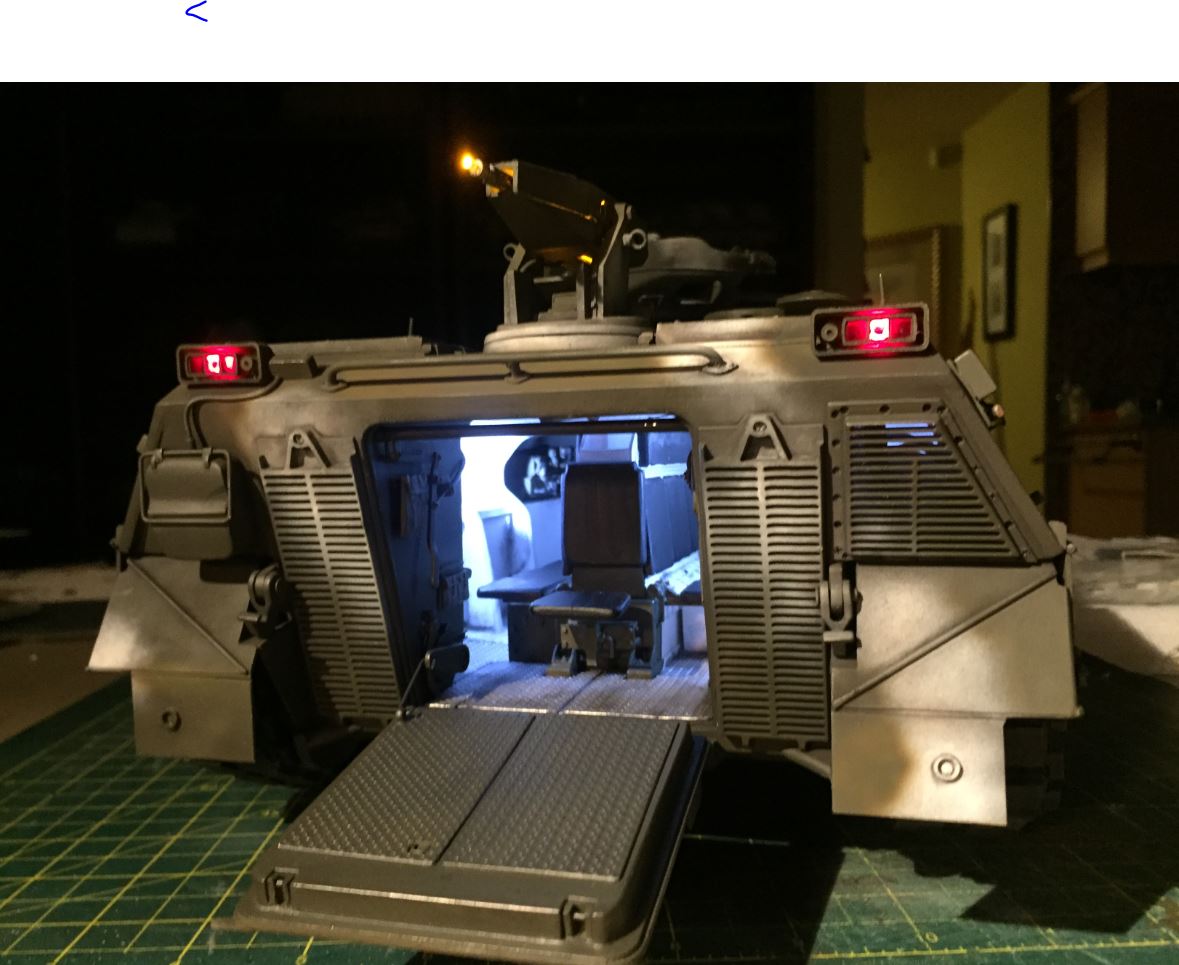

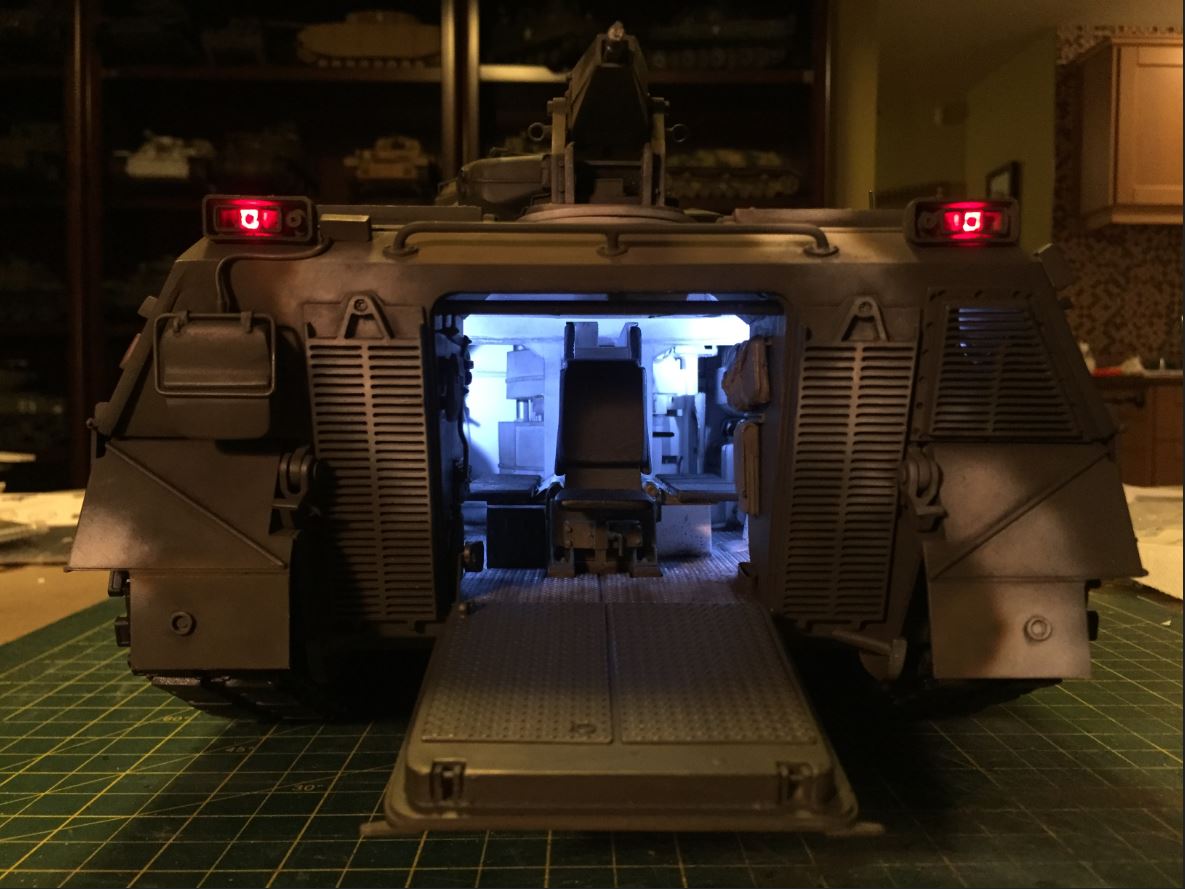

Ramp, rear lights, interior lights and turret rotation

: Ludwigs Marder 1A1 1/16 RC

: Ludwigs Marder 1A1 1/16 RC

: Ludwigs Marder 1A1 1/16 RC; Capture10.JPG (97.22 KiB) Viewed 4041 times

Here is a YOUTUBE video of System integration testing.

https://youtu.be/l73snokWFDg

Next step is engine and running tests.

Regards, Louis

lmcq11 · Post by **lmcq11** » Tue Jun 12, 2018 11:53 am

Hi,

Here is a YouTube video from the engine and running trial of the Marder. Everything is going well. I could improve a few things but the model is basically over, done, finito. I installed a few more items yesterday, such as the mirrors and some turret details. I was planning to put a figure in the turret but I realize the design and position of the hatch with the gun next to it does not allow for the regular upright standing Bundeswehr figure I had purchase. To be standing through the hatch, the commander needs to bend his torso to the right, so I closed the hatch.

I will wait for the decals to arrive and installed before I do a final photo shoot outside.

Running trials VIDEO

https://youtu.be/pMF31ei93Xs

Regards, Louis

wibblywobbly · Post by **wibblywobbly** » Tue Jun 12, 2018 1:00 pm

If anyone was given the 'take the bar to the next level' crown...you have taken it. This is a masterpiece of modelling.

lmcq11 · Post by **lmcq11** » Wed Jun 20, 2018 6:35 pm

Hi everyone,

Thank you for watching this build and for all your encouragements. The model is finished.

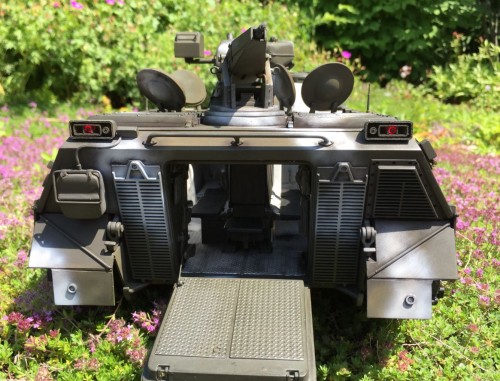

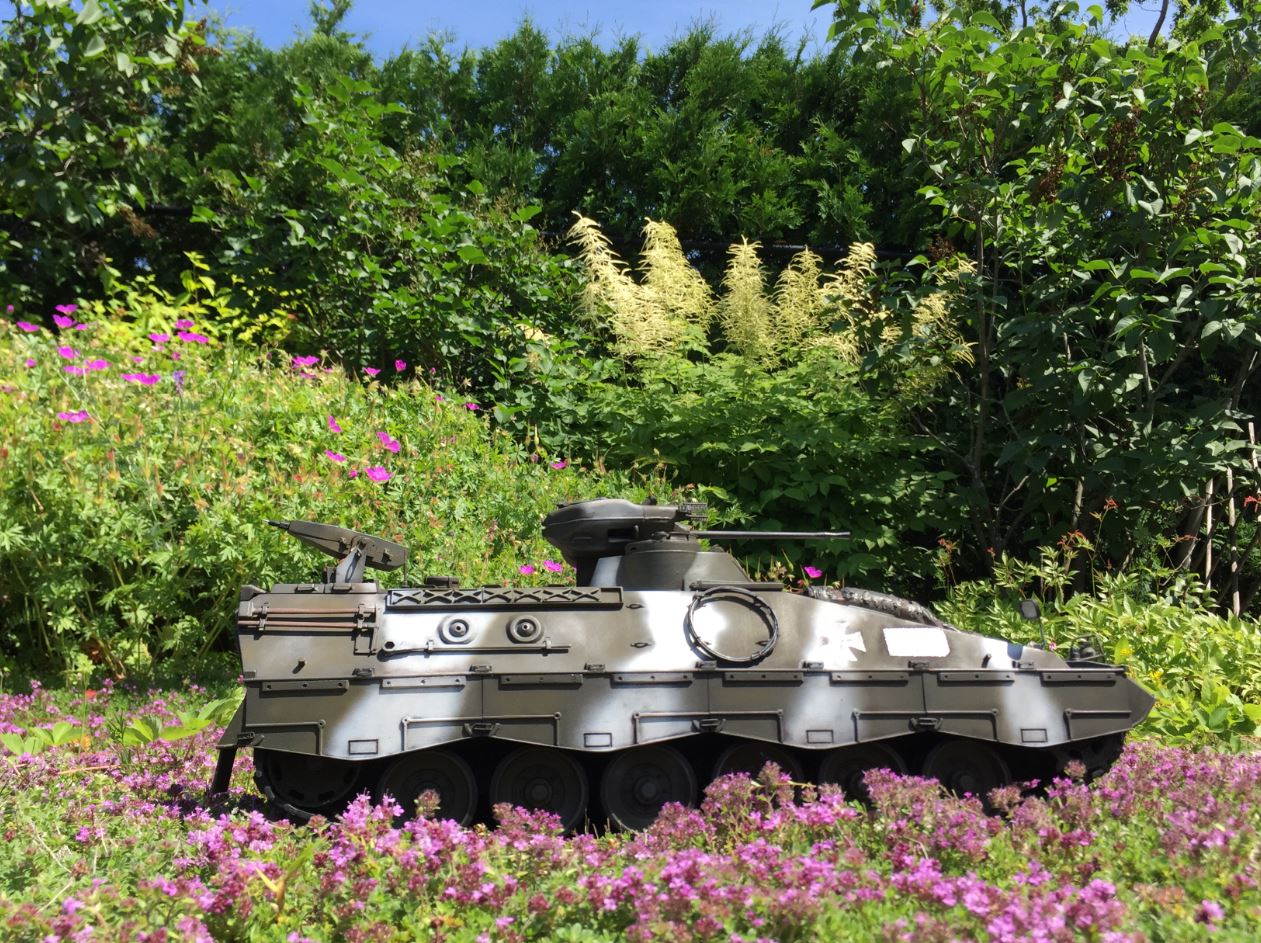

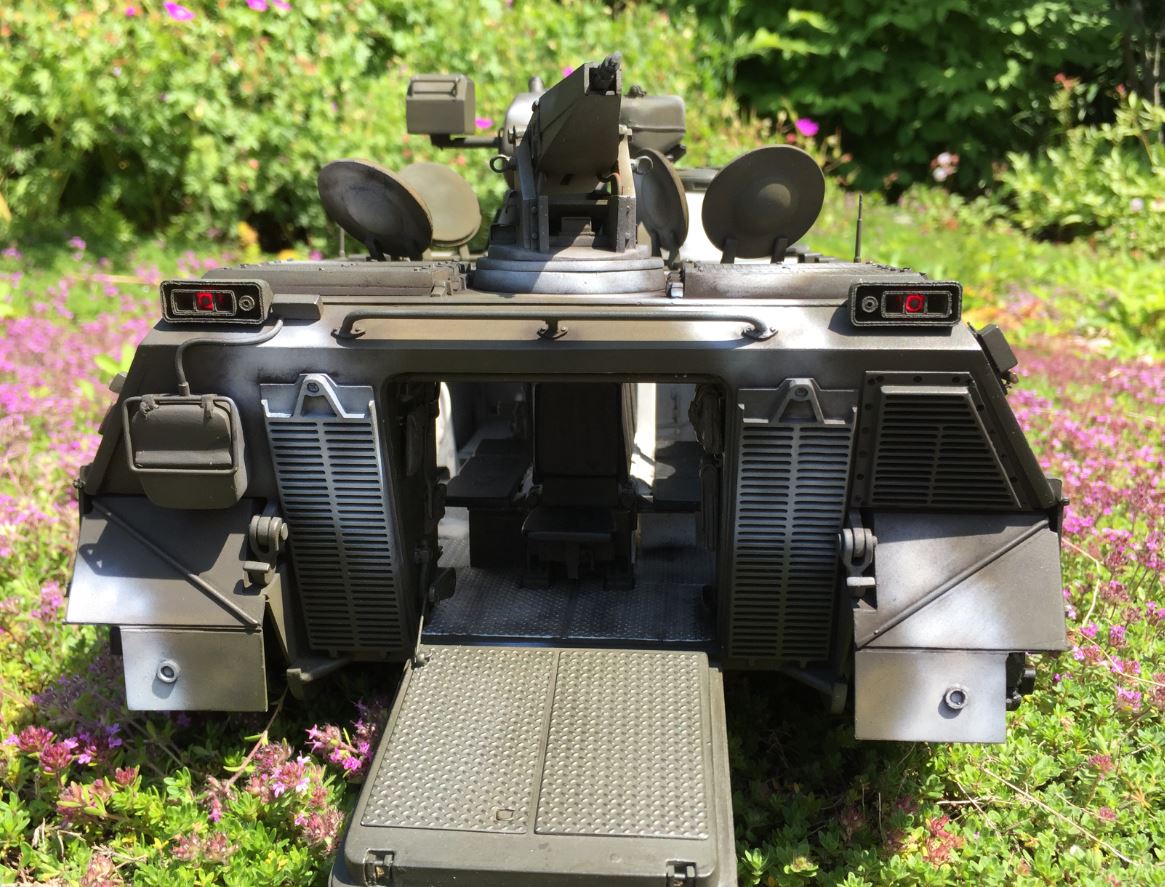

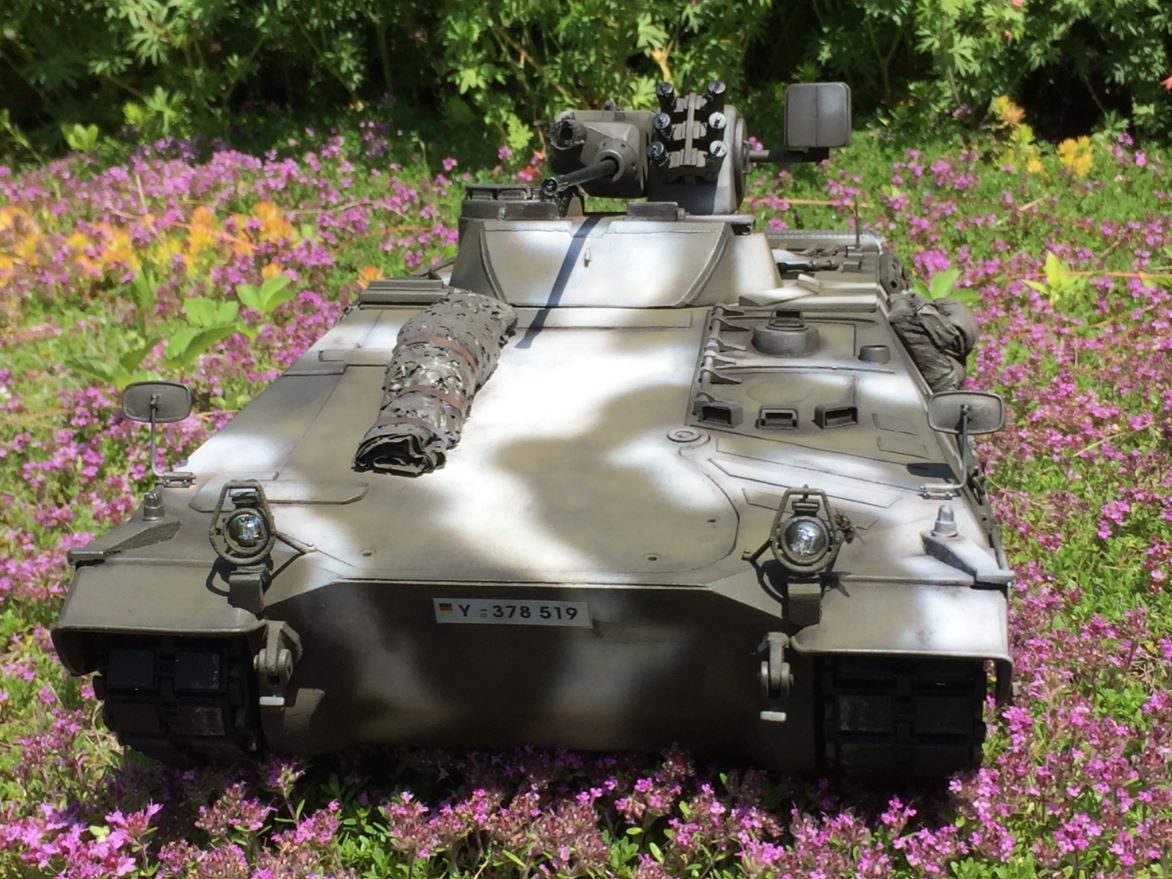

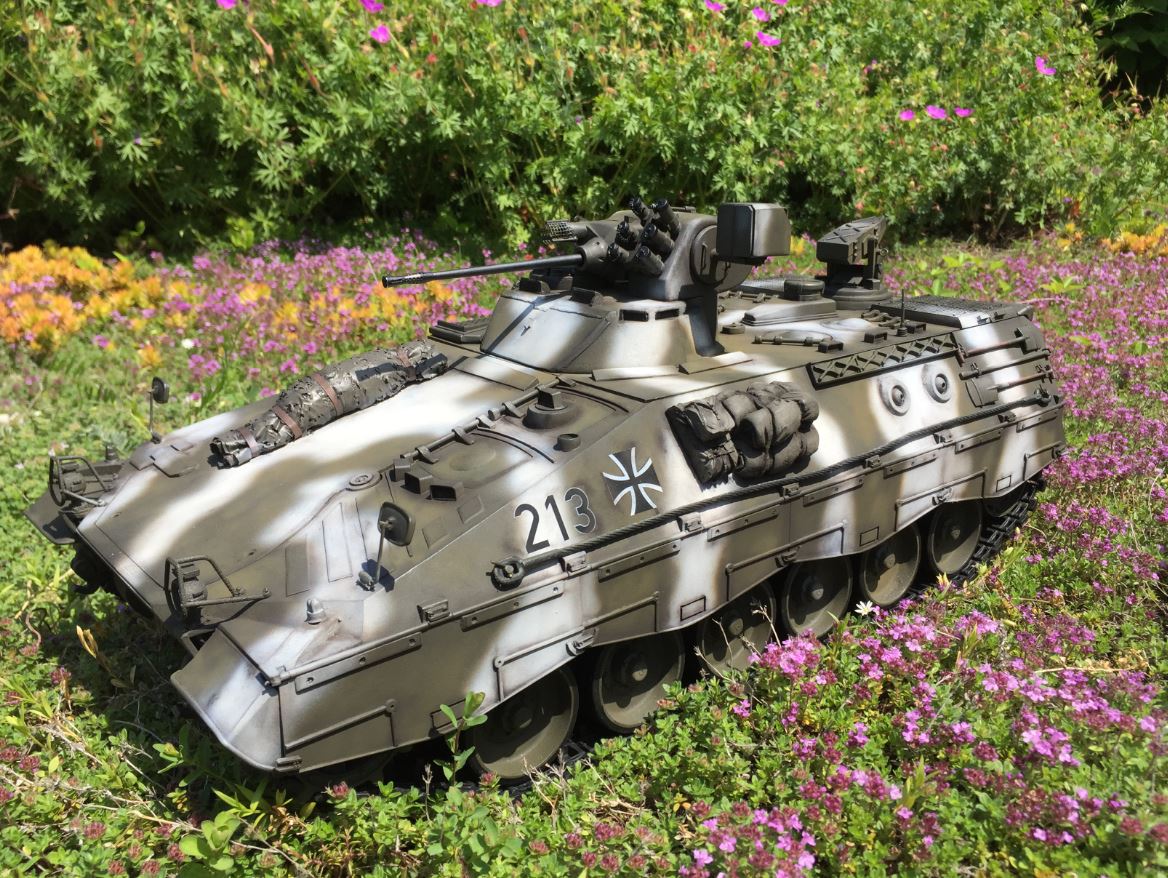

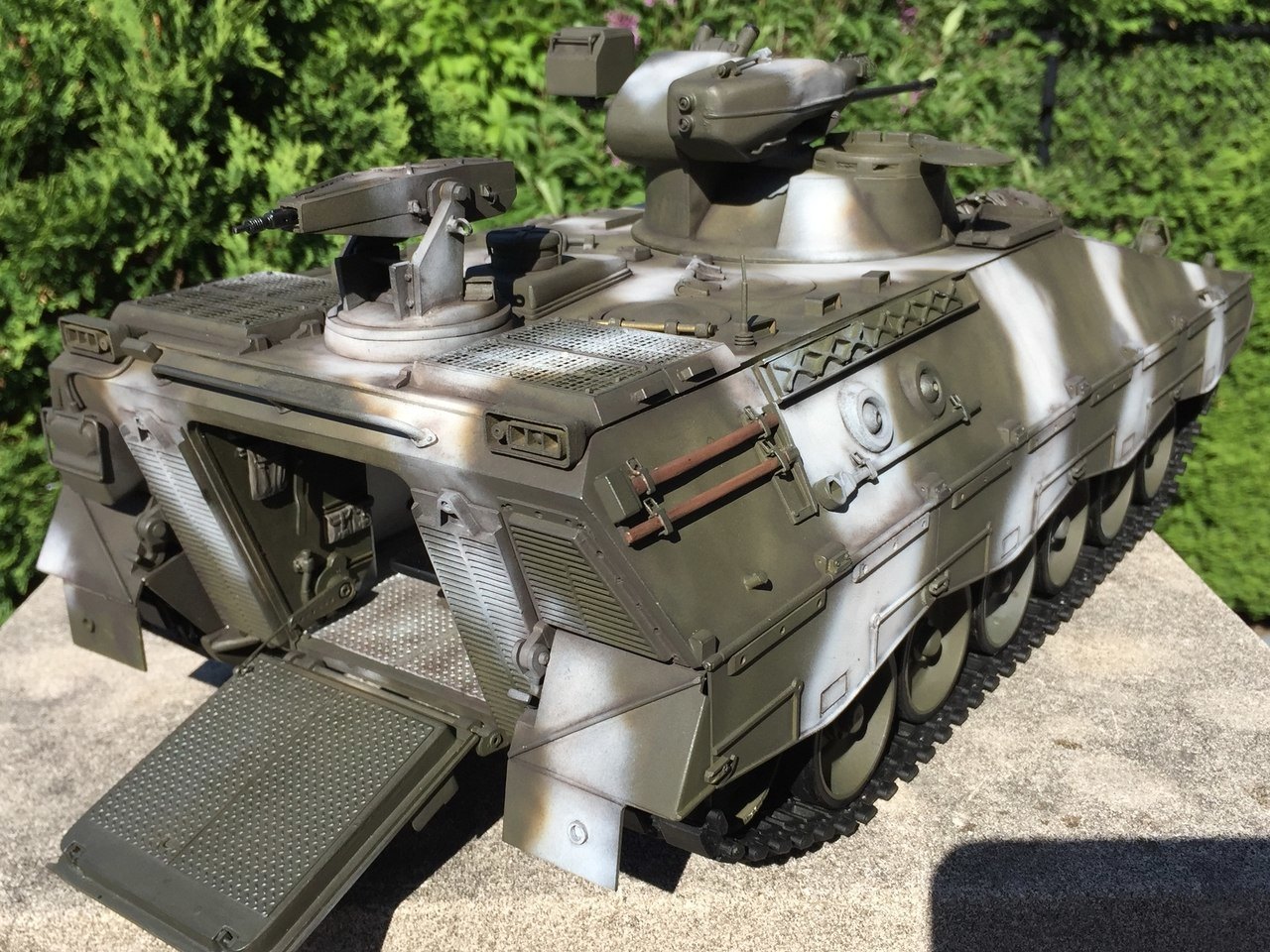

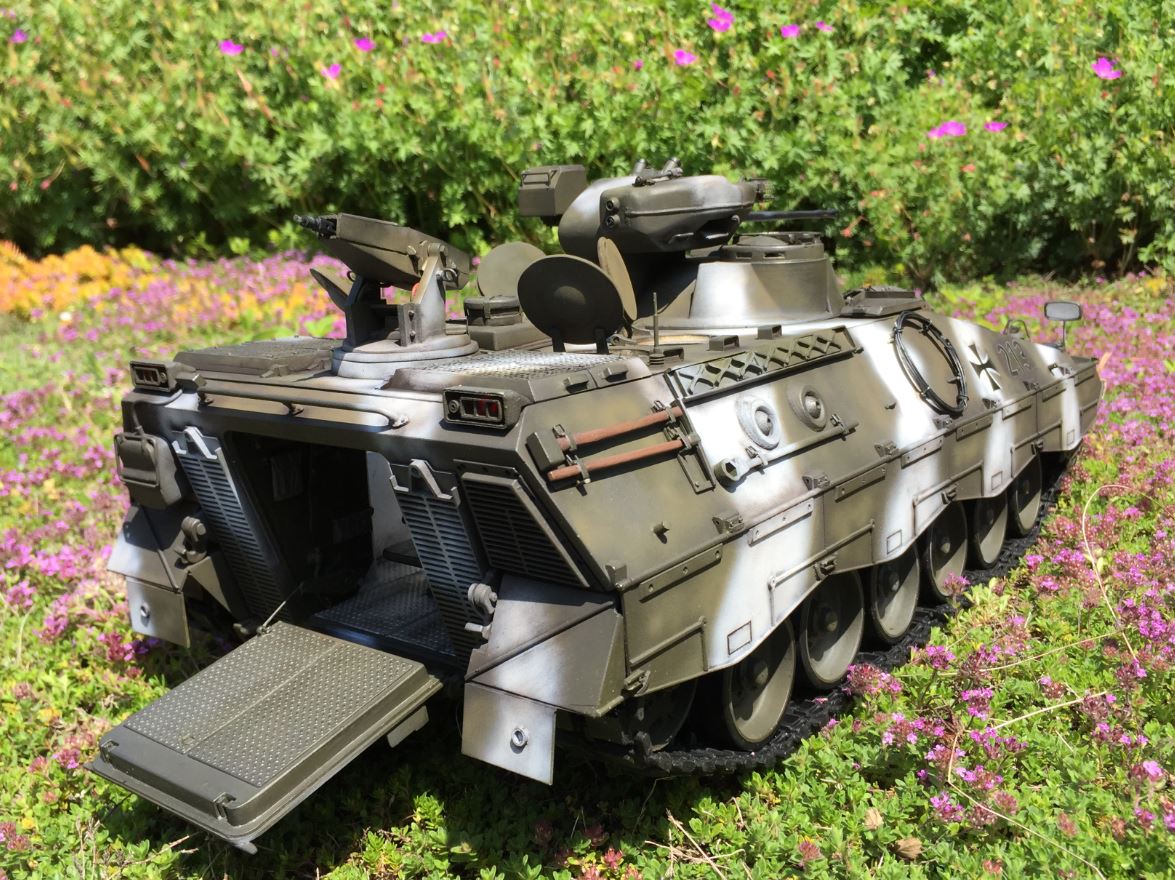

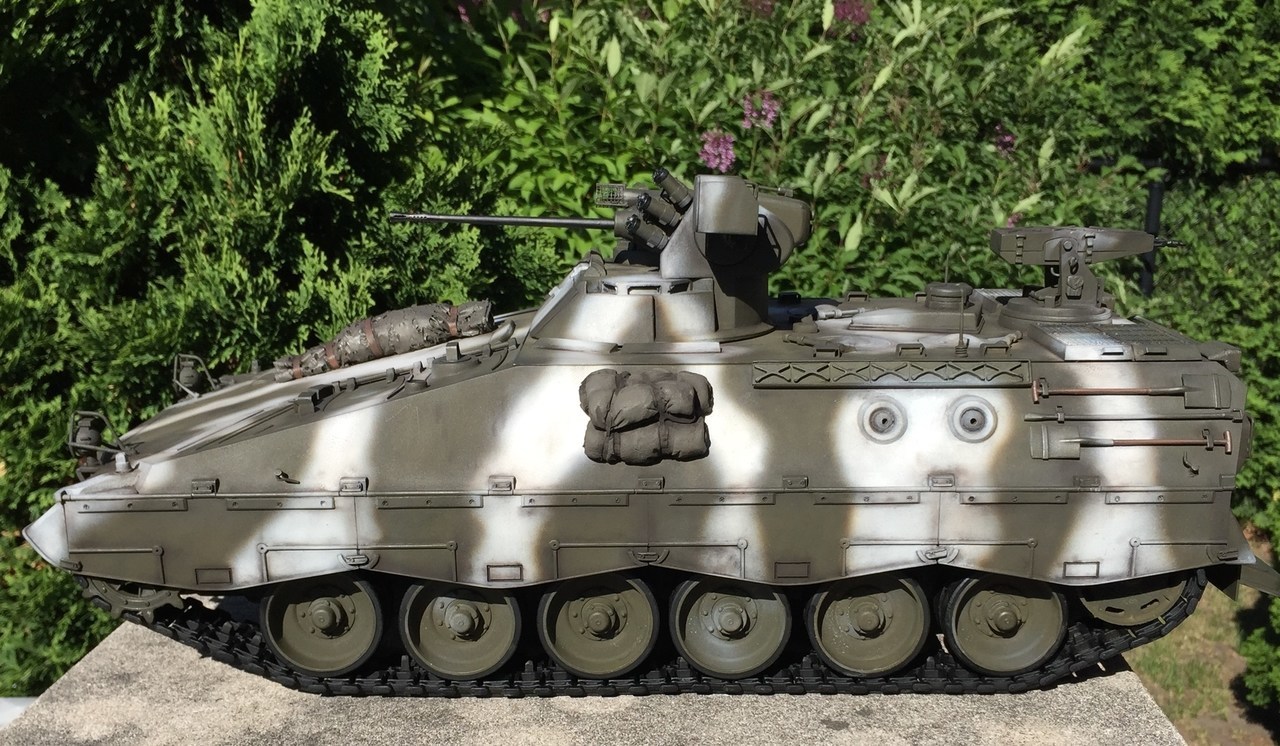

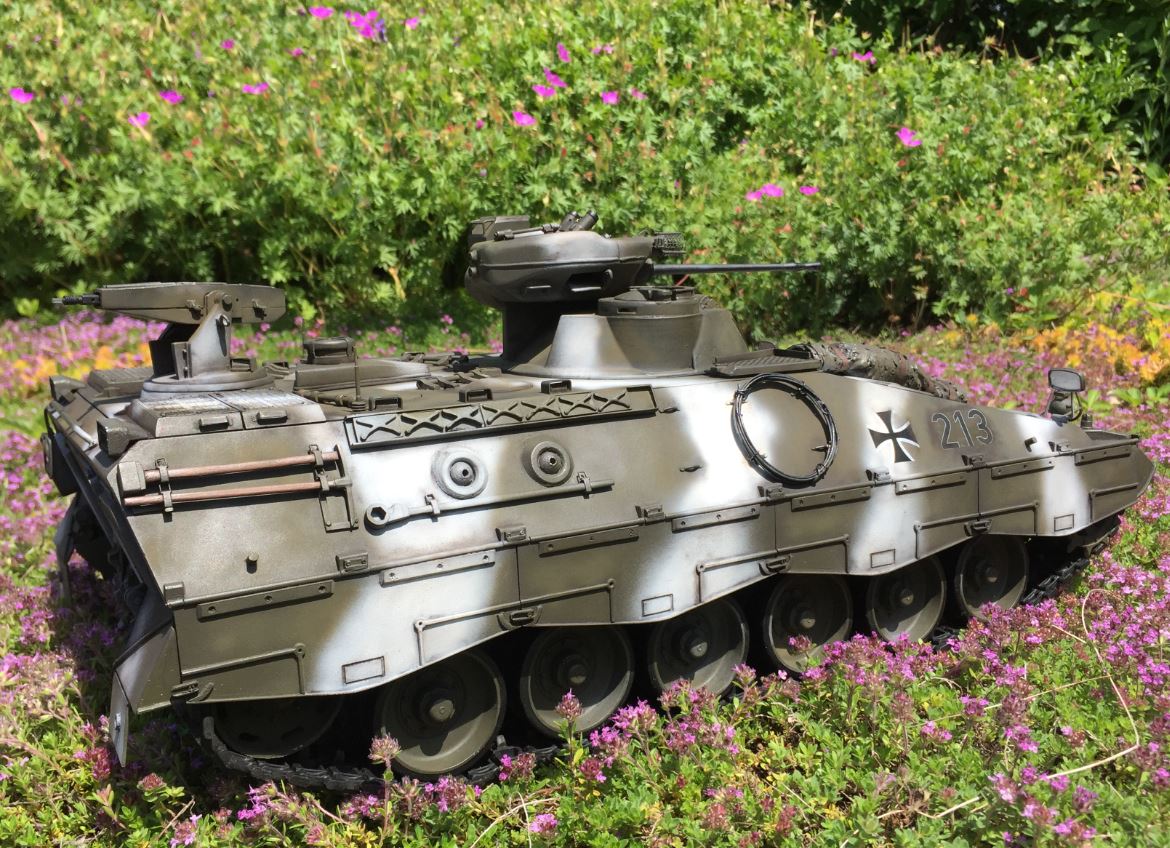

I proudly present the final photo shoot of the build. This was a very challenging model and I am happy with the results.

25 pictures to follow on 3 posts.

Regards, Louis
