1/16 Long Tom Project
Re: 1/16 Long Tom Project
Try adding a R 10mm (h 0.2mm) circle to each corner.
- jackalope
- Lieutenant
- Posts: 3882
- Joined: Fri Jun 20, 2014 7:42 pm
- Location: Communist State of Maryland, United States.
Re: 1/16 Long Tom Project
The last time I was at Aberdeen Proving Grounds before the armor museum was moved I remember the thing as being HUGE so you probly got it right.
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: 1/16 Long Tom Project
I will give that a go, the other alternative is spinning it upright so that there is a smaller contact area.Woz wrote:Try adding a R 10mm (h 0.2mm) circle to each corner.
@jackalope It sure is a big gun, I am just hoping that I can stay with this, and get it completed.
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- jackalope
- Lieutenant
- Posts: 3882
- Joined: Fri Jun 20, 2014 7:42 pm
- Location: Communist State of Maryland, United States.
Re: 1/16 Long Tom Project
I have no doubt you can handle it.
- AlwynTurner
- 2nd Lieutenant
- Posts: 2600
- Joined: Thu Oct 23, 2014 10:47 am
- Location: Chapel-en-le-Frith, Derbyshire
Re: 1/16 Long Tom Project
Coming along great, following on. Alwyn
YOU'RE NEVER TOO OLD TO HAVE A HAPPY CHILDHOOD!
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: 1/16 Long Tom Project

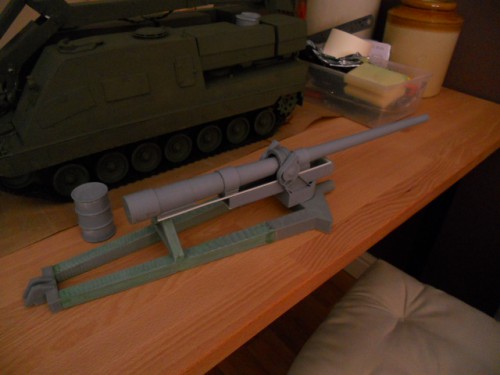

Currently doing the undercarriage, which I have had to split into four sections to fit onto the print bed, but yesterday I did the recoil blocks and fitted them. Amazingly they slot into the recoil bed and the whole barrel/blocks assembly slides back and forth. Bit of a shame that the gun will be built in transport mode, so the barrel will be locked down in the rearward position.
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: 1/16 Long Tom Project
Did the chassis today, redid the front tow hitch to both shorten the length and beef it up a bit so that nothing snaps off when towing. It is now in three sections all made as solid as can be with plastic weld. Woz was right, that stuff works perfectly on PLA plastic, it's as if it is all one solid object. Any fine detail will be done with styrene as there is a limit to what it is worth doing with the printer.
Next task is the front bogey, it's quite simple to do, but the wheels and tyres are a challenge. I could print wheels, but would never find tyres to fit, so I may as well find some Lego wheels and tyres, and design inserts to make them look the part. I can also print wheel adaptors so that they will go straight onto a steel rod.
I am getting to grips with Openscad now, it took a while, but it was worth it.
Next task is the front bogey, it's quite simple to do, but the wheels and tyres are a challenge. I could print wheels, but would never find tyres to fit, so I may as well find some Lego wheels and tyres, and design inserts to make them look the part. I can also print wheel adaptors so that they will go straight onto a steel rod.
I am getting to grips with Openscad now, it took a while, but it was worth it.
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- AlwynTurner
- 2nd Lieutenant
- Posts: 2600
- Joined: Thu Oct 23, 2014 10:47 am
- Location: Chapel-en-le-Frith, Derbyshire
Re: 1/16 Long Tom Project
Fantastic work Rob, it's almost magical watching this come together. The part about printing bits to marry technics wheels to metal spindles sounds like modern alchemy! Watching not just with interest but total amazement. This is one of my sources of big technics wheels
http://stores.ebay.co.uk/bagsobricks?_t ... 7675.l2563
don't know if these are too big
http://www.ebay.co.uk/itm/Lego-Technic- ... 0889010727?
pt=LH_DefaultDomain_3&hash=item58aec11227
Alwyn
http://stores.ebay.co.uk/bagsobricks?_t ... 7675.l2563
don't know if these are too big
http://www.ebay.co.uk/itm/Lego-Technic- ... 0889010727?
pt=LH_DefaultDomain_3&hash=item58aec11227
Alwyn
YOU'RE NEVER TOO OLD TO HAVE A HAPPY CHILDHOOD!
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: 1/16 Long Tom Project
Someone somewhere makes something that someone somewhere wishes that someone somewhere made.
http://proto-pic.co.uk/3mm-hexagonal-sh ... eels-pair/
http://proto-pic.co.uk/3mm-hexagonal-sh ... eels-pair/
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- AlwynTurner
- 2nd Lieutenant
- Posts: 2600
- Joined: Thu Oct 23, 2014 10:47 am
- Location: Chapel-en-le-Frith, Derbyshire
Re: 1/16 Long Tom Project
Ooooh brilliant find Rob - this would have saved me enormous problems on the bedford build. On your long tom build though you could use technics axles to save the adapters, I did on the 5.5 inch howitzer. If you pm me what you need I may have some I can send you. Alwyn
