Building an M-60 is not like building a Tiger for the X time. I am learning a lot about the M-60 during this build, sometimes through mistakes, but overall, its not going too bad. I think the frontal hull ERA with its complicated setup is not looking too bad. I have determined the ERA on the glacis is a bit too high. A process i will correct for the turret ERA.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 11.jpg (196.25 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 12.jpg (170.64 KiB) Viewed 780 times

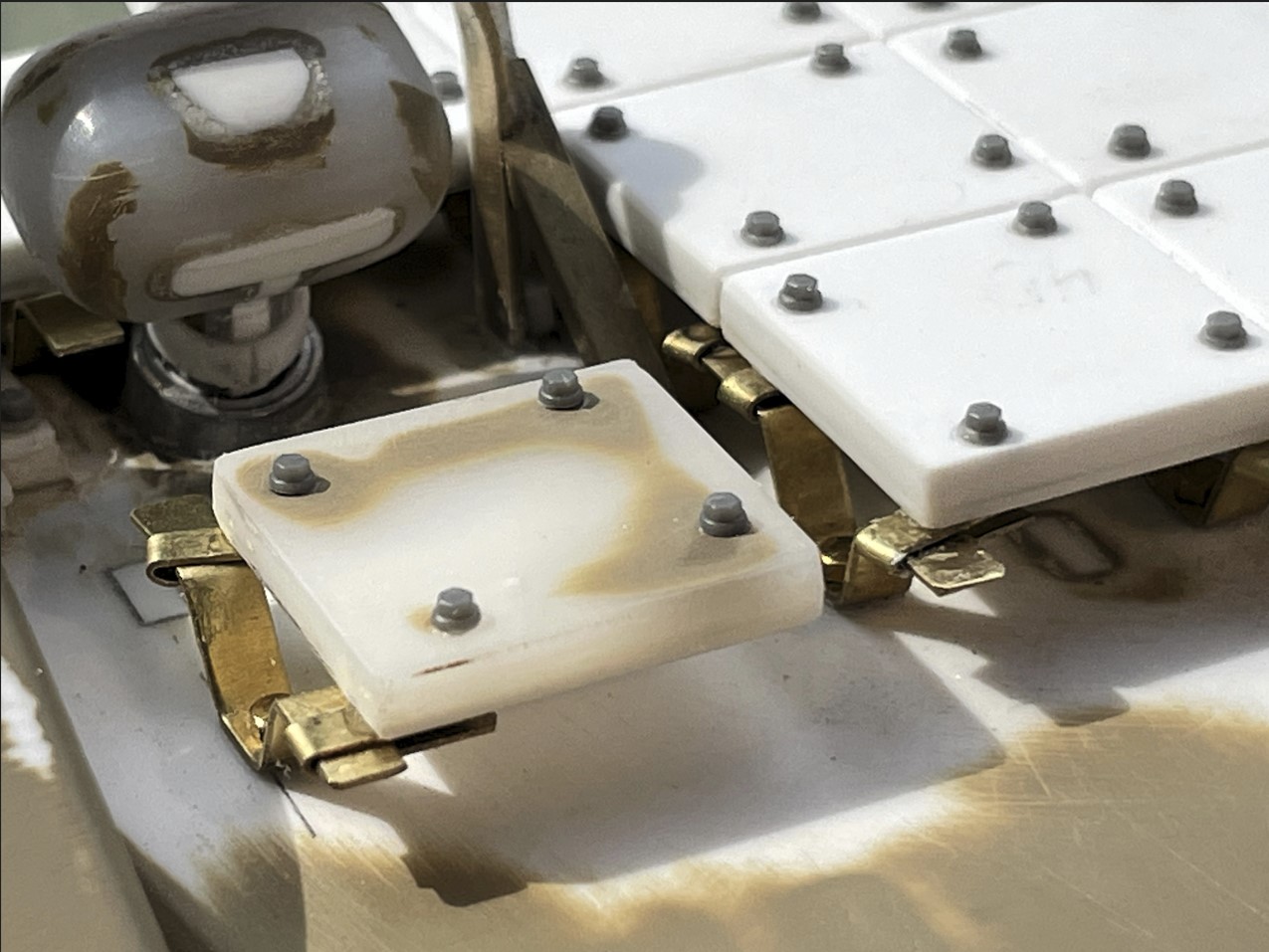

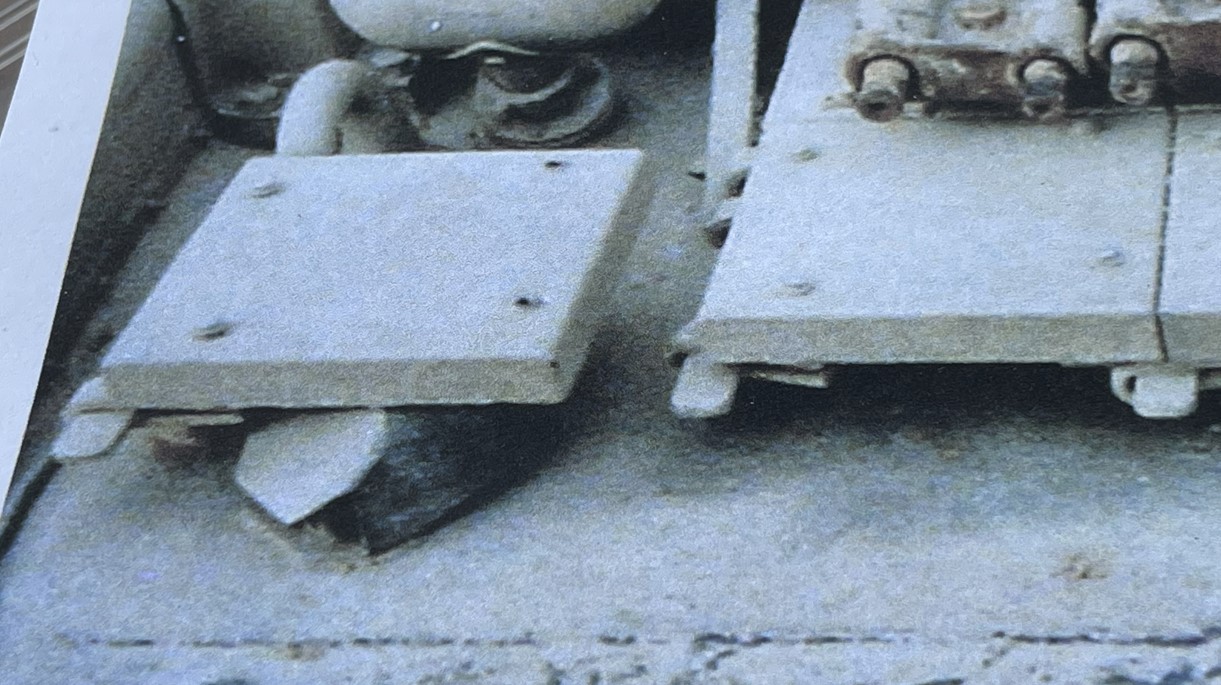

The single ERA block on the left side is only attached with one bracket. Pictures show that the other 2 bolts holes are empty and the ERA block actually sits on top of the fire extinguisher handle cover. I will deal with it later.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 13.jpg (229.9 KiB) Viewed 780 times

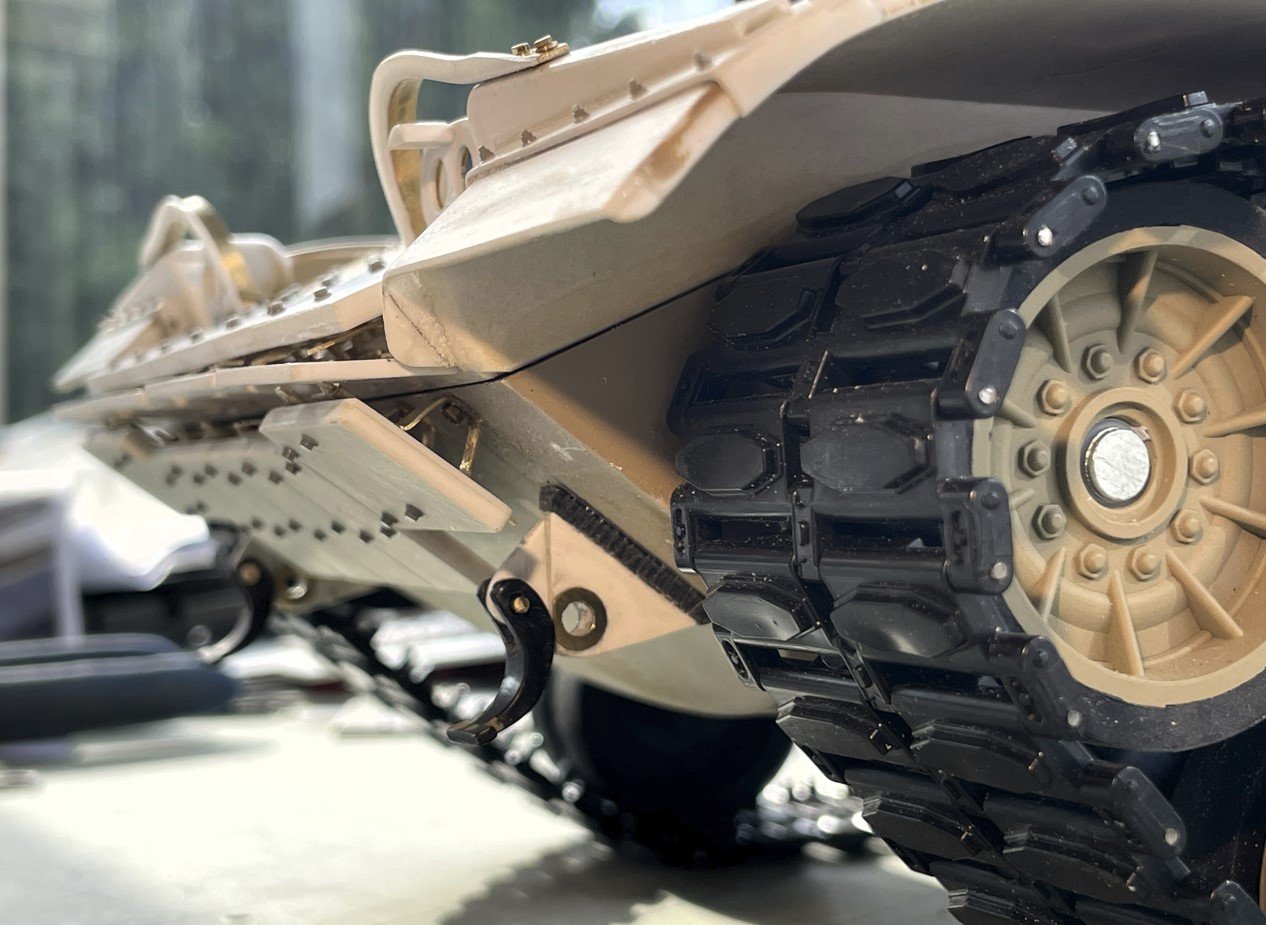

Notice i had to remove the lifting hooks that were previously installed on the glacis. I determined that they were not positioned correctly in relation to the ERA blocks. The positioning holes coming with the model for the TONGDE hooks therefore needed to be filled and polished. I will re-install the hooks after i am finished with the glacis. This picture also show an issue on the armor surface that i will need to correct.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 14.jpg (194.21 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 15.jpg (203.77 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 15a.jpg (141.38 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 16.jpg (230.35 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 17.jpg (212.36 KiB) Viewed 780 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 18.jpg (162.89 KiB) Viewed 780 times

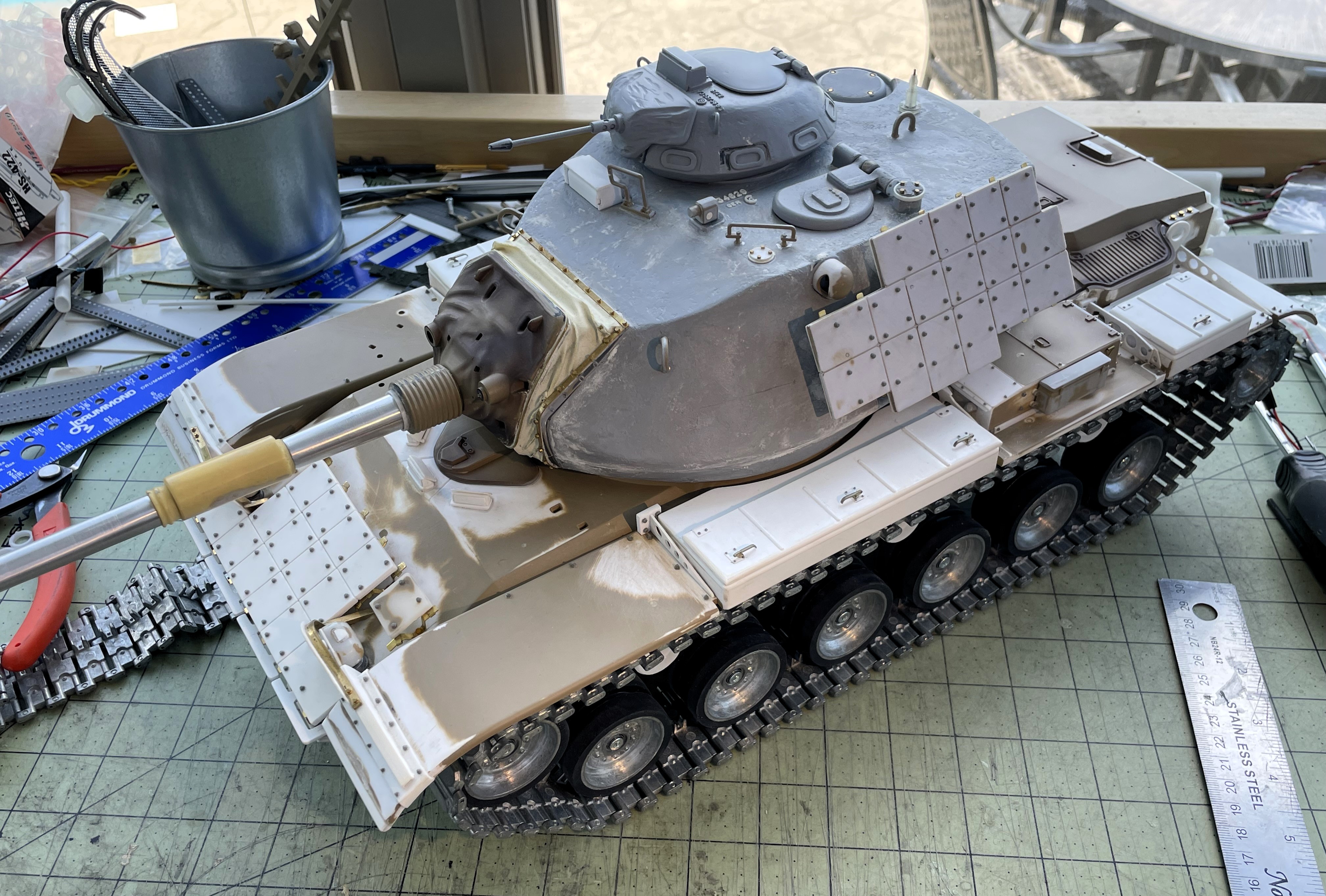

The model as it stands today.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 19.jpg (249.59 KiB) Viewed 780 times

Next step, some additional ERA blocks on the hull and the turret ERA.

Regards, Louis

[Estnische]

A testament to your patience and skills. Another beauty nearing completion.

[Ecam]

A testament to your patience and skills. Another beauty nearing completion.

I second that, looking fantastic. Your builds remind me to never undertake that kind of detail. They probably wouldn't let me have any tools in the padded room.

[Herr Dr. Professor]

On May 3rd, Mr. Chef noted: "But damn some of you seem more like masochists to me than adventurous." Hey, Mr. Chef: I just became a masochist. Only I think it's addiction. I did hold out for six months.

[lmcq11]

Hi everyone,

This build is taking longer than anticipated. It's just that whenever i decide to spend a few hours on it, it takes me two weeks to recover.

Just got the TONGDE M-60 Metal upgrade kit from DKLM. Shipping express from Hong Kong costs a fortune but its really heavy with the metal tracks, metal wheels and metal gearbox, and i did not find any alternatives so no way around it if i wanted to finish this model.

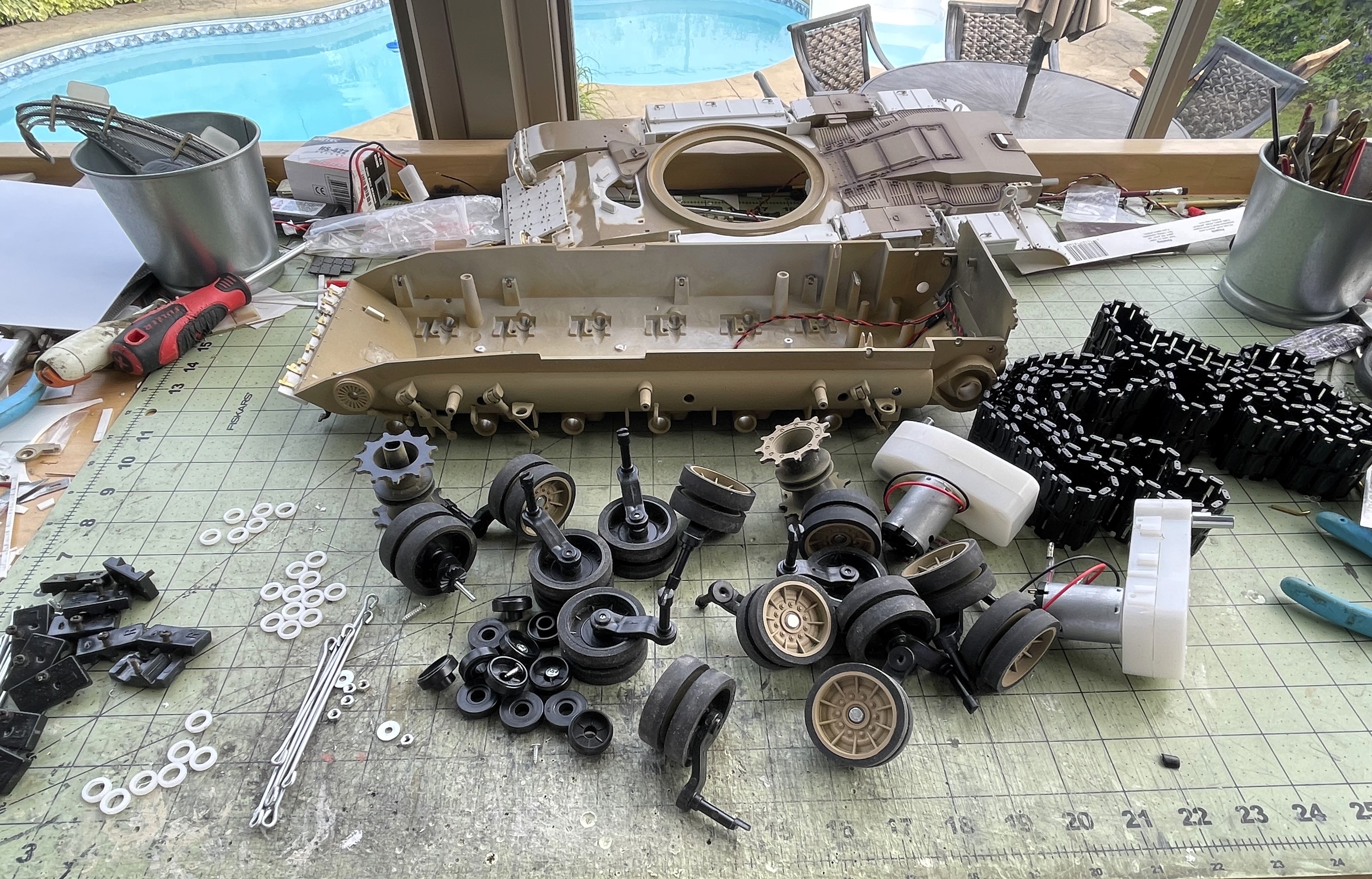

First tasks was to strip everything from the lower hull.

1/16 RC USMC M-60A1 US tank with ERA - Build


Its when i removed the white plastic roundels acting as the ball bearings that i noticed they were all cracked, just by manipulating the model during the build. I did not even run it...

1/16 RC USMC M-60A1 US tank with ERA - Build


Plastic crap suspension arms are going strait to the garbage bin. Four of them broke just by manipulating the model.

1/16 RC USMC M-60A1 US tank with ERA - Build


The replacement metal wheels came in a different model, which made me realise the M-60 can have two different set of wheel types.

1/16 RC USMC M-60A1 US tank with ERA - Build


The type coming with the plastic kit seem to be of a much rarer as i could only find one picture of them in my referrences. But they do exist.

1/16 RC USMC M-60A1 US tank with ERA - Build


The metal suspension arms are a must.

1/16 RC USMC M-60A1 US tank with ERA - Build


The metal upgrade kit also comes with idler, metal adjuster and sprocket.

1/16 RC USMC M-60A1 US tank with ERA - Build


The metal tracks are much improved and more realistic compared to the plastic type, although the connectors are still not independent and painting the rubber pads in black will be a pain.

1/16 RC USMC M-60A1 US tank with ERA - Build


Also comes with four spare track links. No spares were provided with the basic model for the plastic tracks.

1/16 RC USMC M-60A1 US tank with ERA - Build


The new gearbox has steel gears.

1/16 RC USMC M-60A1 US tank with ERA - Build


Continuing on following post

[lmcq11]

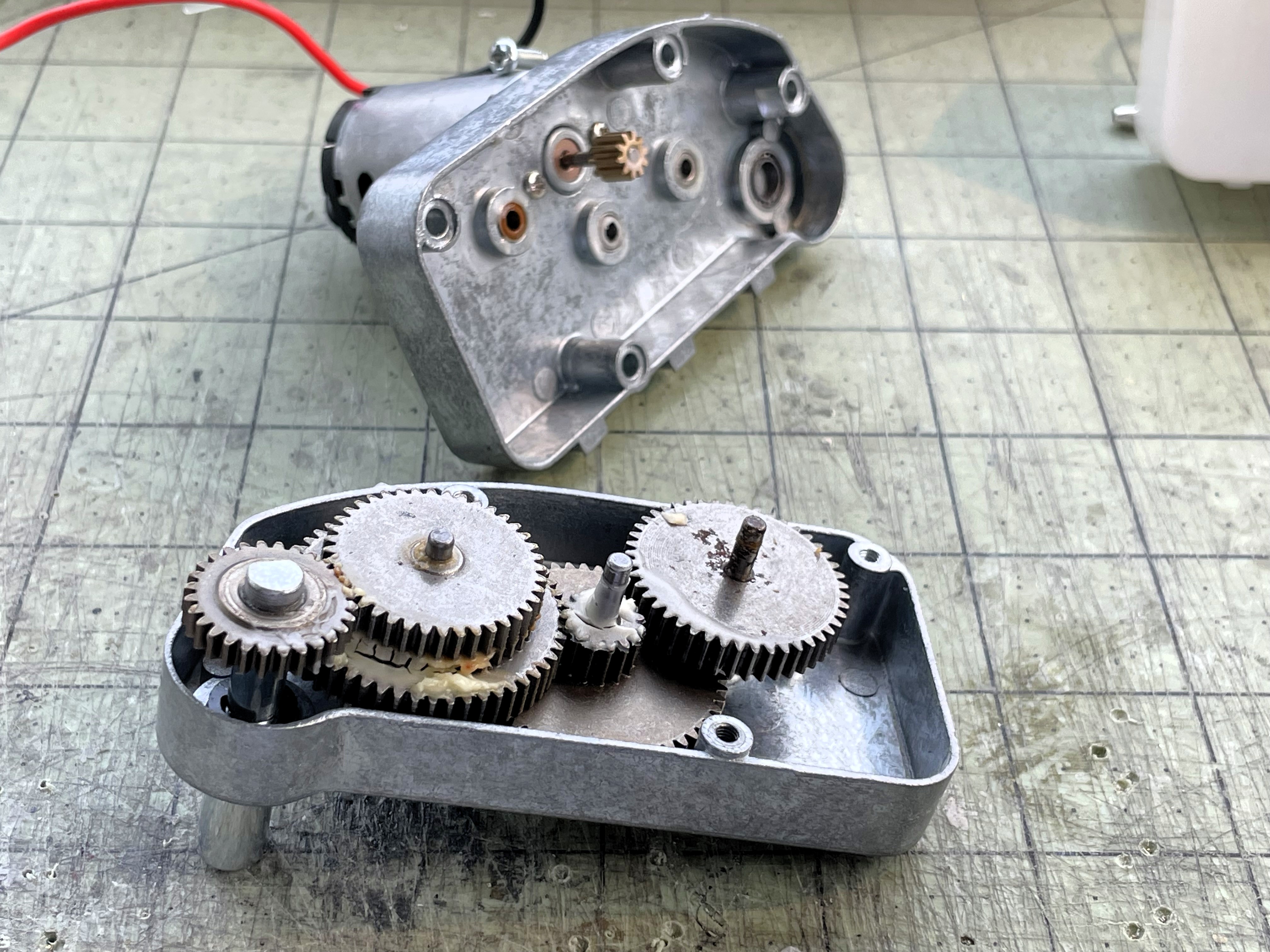

The metal gearbox is exactly the same as the plastic one, just all metal.

1/16 RC USMC M-60A1 US tank with ERA - Build


The fit of the cover is less than exciting. You would not see this with other brands.

1/16 RC USMC M-60A1 US tank with ERA - Build


What i thought were metal rollers are actually the same plastic ones provided with the base kit, but painted silver. I do not understand the purpose of this. But boy was i happy to see those ball bearings in the bag, well at least they provided something.

1/16 RC USMC M-60A1 US tank with ERA - Build


They are a basic replacement for the plastic roundels. However, someone planning to operate the model in the field should think of replacing these with better waterproof and sealed ball bearings. As these are attached to the external arms and partly exposed, i doubt they will last long with the dust that will hit them on first contact.

1/16 RC USMC M-60A1 US tank with ERA - Build


Comparing the rollers, the same.

1/16 RC USMC M-60A1 US tank with ERA - Build


Because the metal suspension arm slots are tighter on the torsion bar end than the plastic suspension arms, all the torsion bars adjustment need to be redone from scratch. Now, each torsion bar almost need to have its both connectors loop aligned with barely any twist, other than the ones at the front that needs more torque to keep the first road wheel down, and at the rear to support the gearbox and also the track down.

This takes a long time to get the proper height and balance. For some reason, one side was always higher than the other. Much finetuning is required by twisting each torsion bar a bit to the left, a bit to the right, no a bit more to the left... like 20 times each in order to get a tank that is balanced. What i thought would take me 1 hour was a six hour ordeal.

First task was to install the suspension arms on both ends, with the gearbox in place for the weight and get the chassis flat.

1/16 RC USMC M-60A1 US tank with ERA - Build


Then the middle suspension and torsion bars were added, ensuring each participate with the lift, but without changing the level of the suspension. When a torsion bar was too strong or not enough, it needs to be removed, twisted a bit using two sets of pliers, and retested... about 20 times each, while ensuring nothing has changed on the overall balance.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build

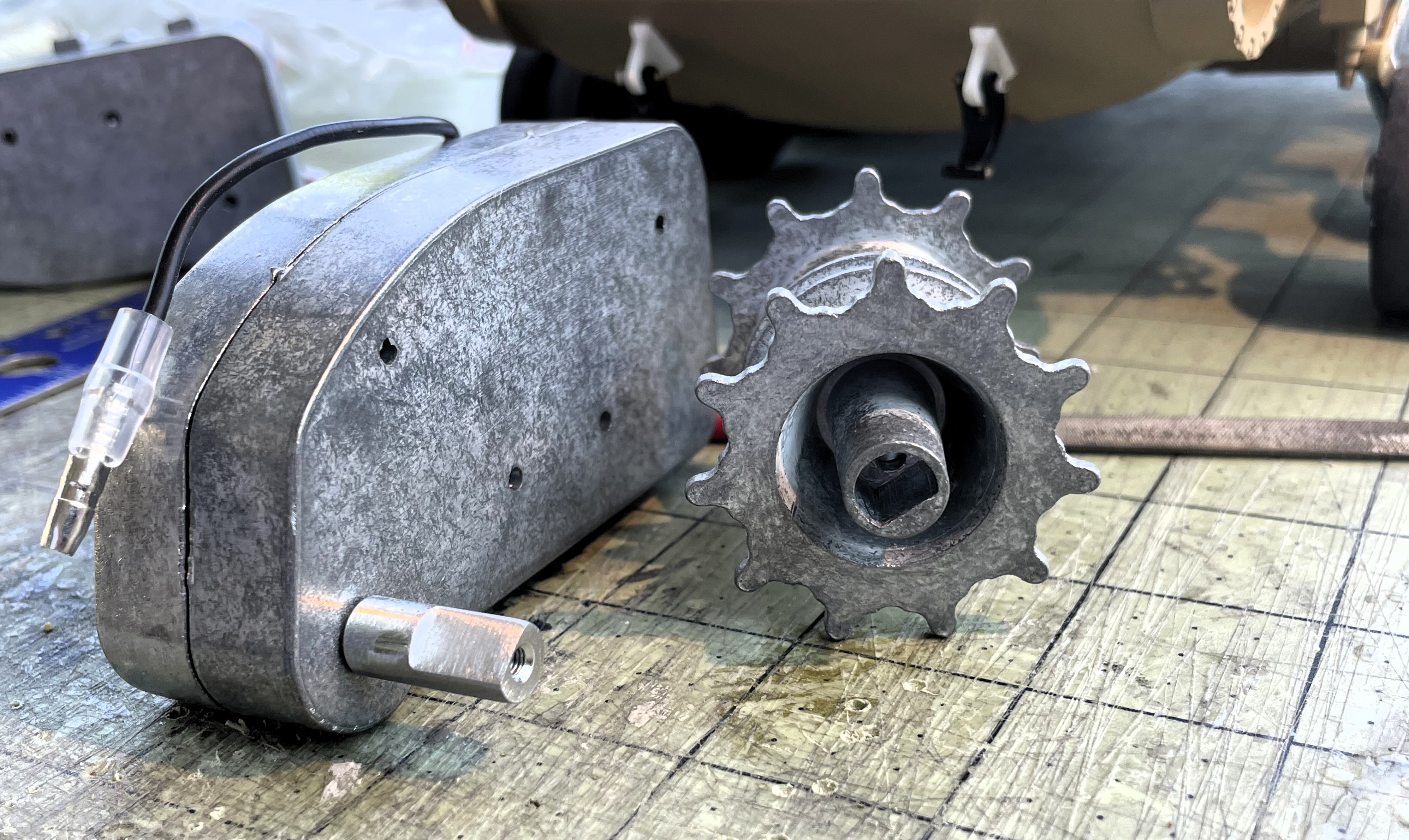

The shaft did not perfectly fit the sprocket. This is the kind of situation where you do not want to force it in as you will never be able to remove it. I had to file the shaft to make it fit.

1/16 RC USMC M-60A1 US tank with ERA - Build


Continuing on following post

[lmcq11]

The original screws below for installing the plastic gearbox need to be replaced with M3 Hex bolts, they are not provided with the upgrade kit.

1/16 RC USMC M-60A1 US tank with ERA - Build


I ordered from DKLM a OKMO M-60A2 turret for a future build. With the kit come a set of 3D upgrade parts for the hull. I wish i had seen these before starting the build months ago. I asked Carson to sell me an extra set of these for this M-60A1 build. For the cost, this is a great upgrade for any M-60. I am therefore planning to reuse these on this build, even if it means throwing away some of the scratch built parts that took me hours to build. Although not a replacement for everything, some are better, and the rest will same me weeks of work.

1/16 RC USMC M-60A1 US tank with ERA - Build


Each need cleaning but these are great and look accurate.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build

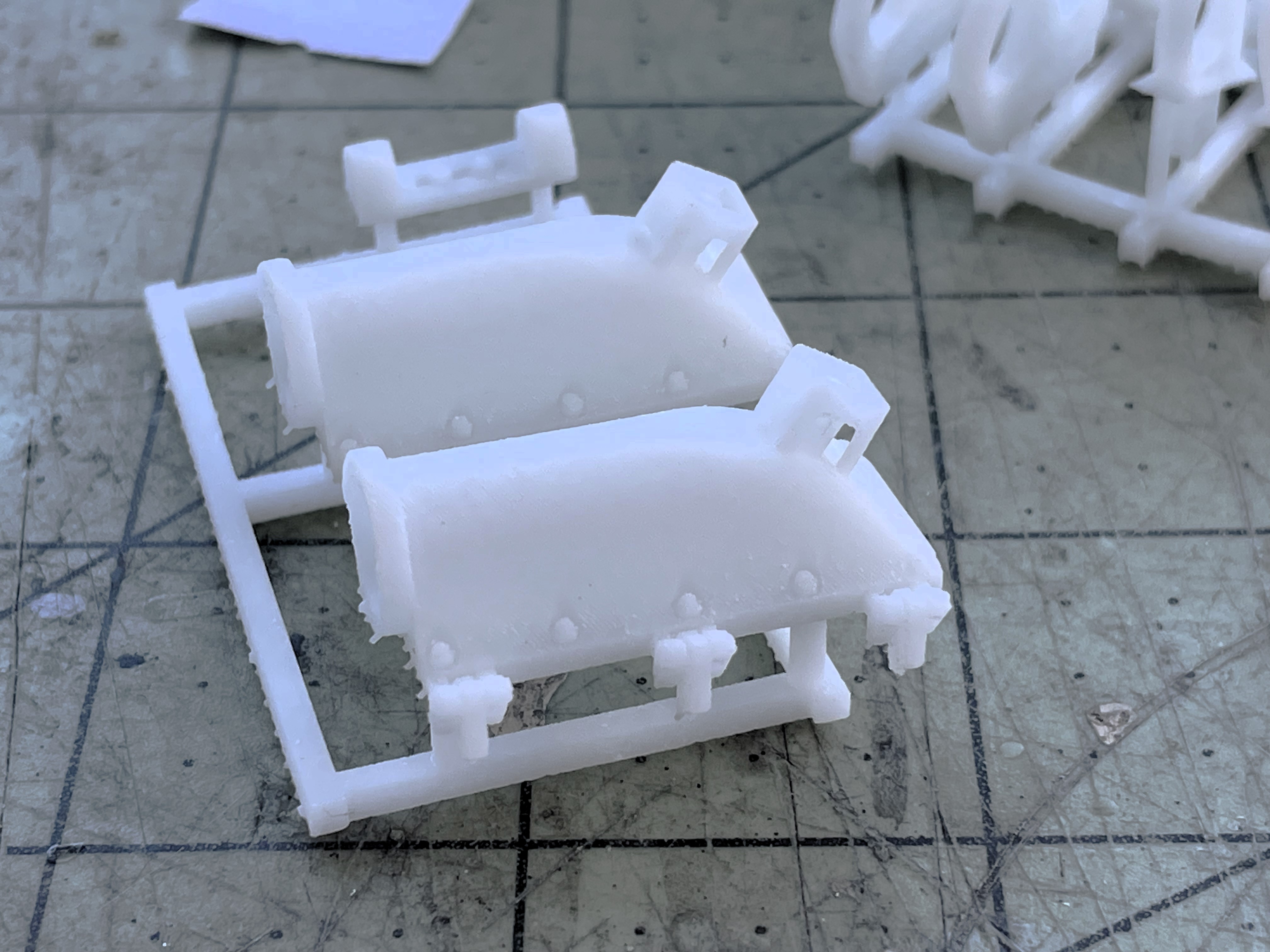

Air filter covers. Nice.

1/16 RC USMC M-60A1 US tank with ERA - Build


Even comes with bin handles but the base need to be thinned dramatically.

1/16 RC USMC M-60A1 US tank with ERA - Build

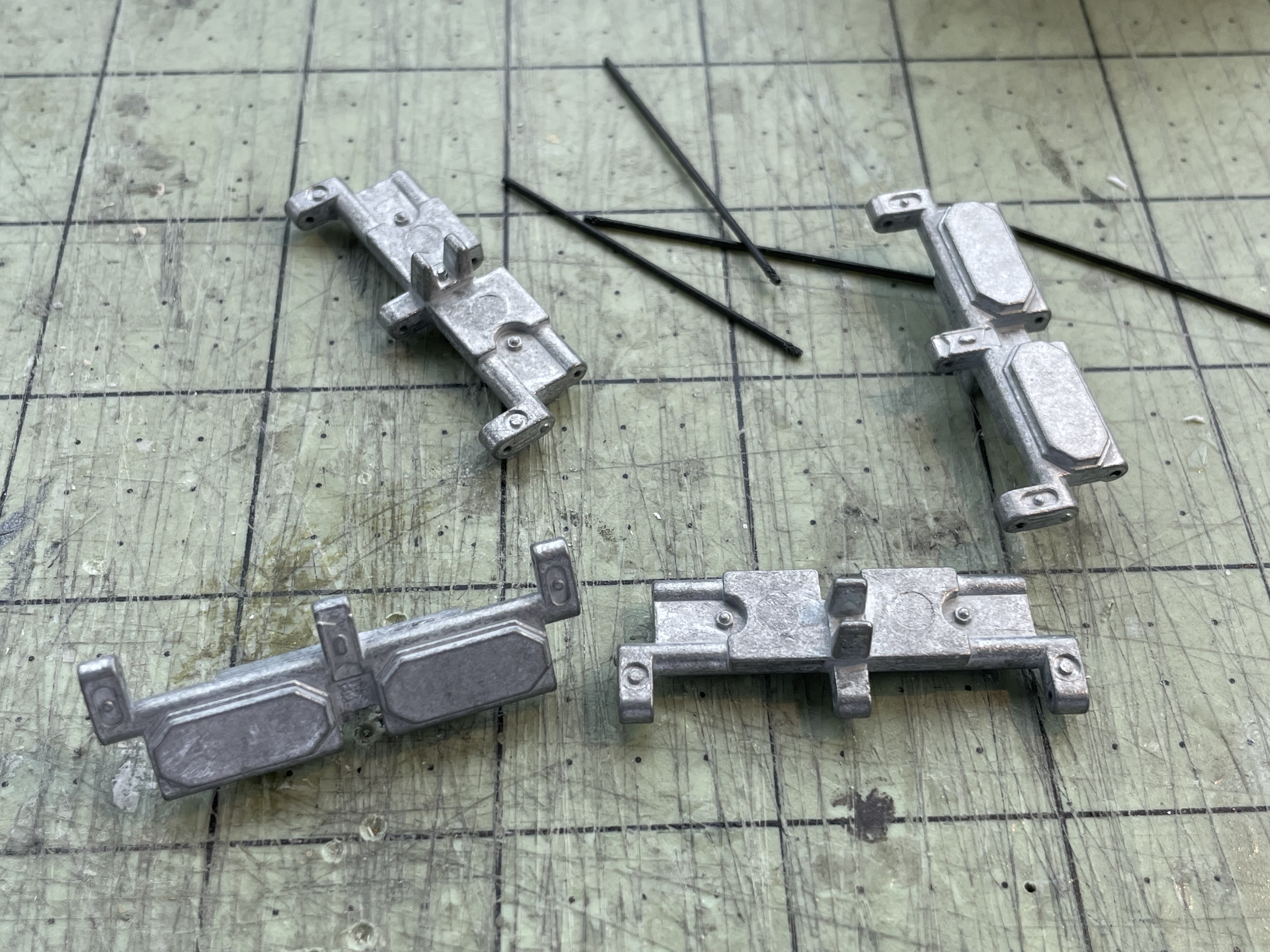

Tow hook and gun travel lock.

1/16 RC USMC M-60A1 US tank with ERA - Build


The turret kit has a new back engine grill plate, so much better than the original.

1/16 RC USMC M-60A1 US tank with ERA - Build


Really happy not having to rebuild that back plate.

1/16 RC USMC M-60A1 US tank with ERA - Build


Continuing on following post

[lmcq11]

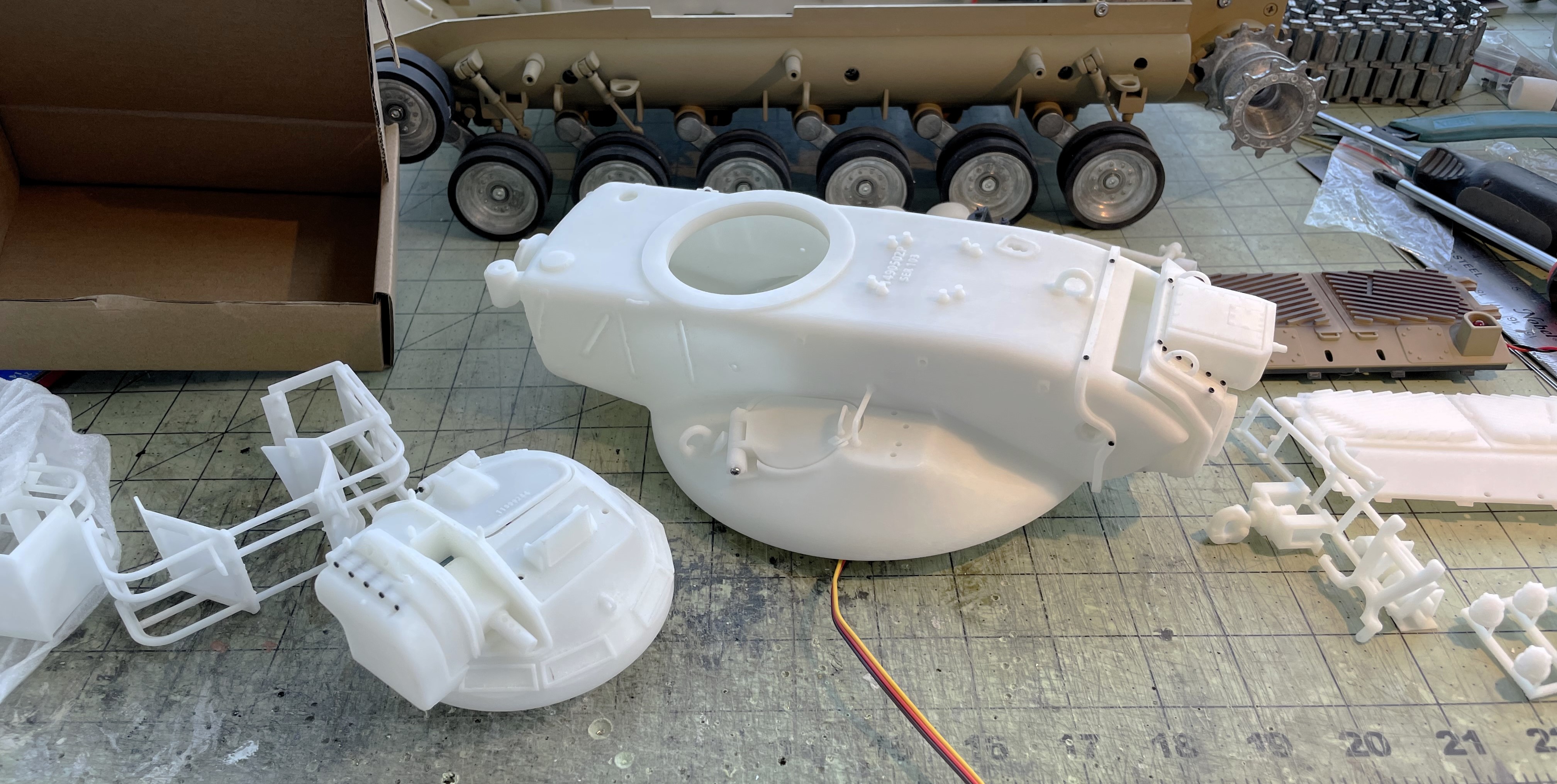

Showing the Okmo M-60A2 turret. You will see it again one day.

1/16 RC USMC M-60A1 US tank with ERA - Build

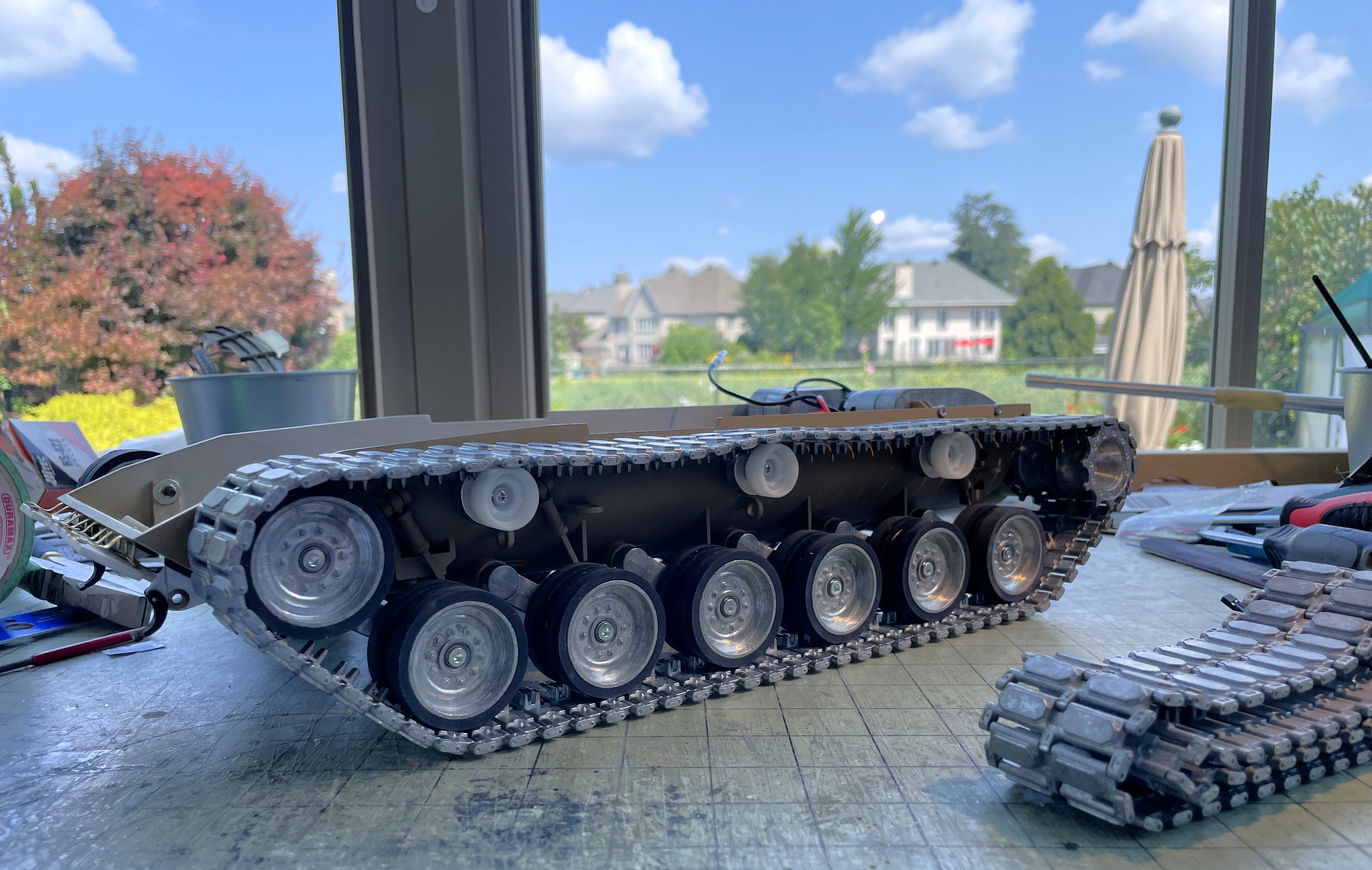

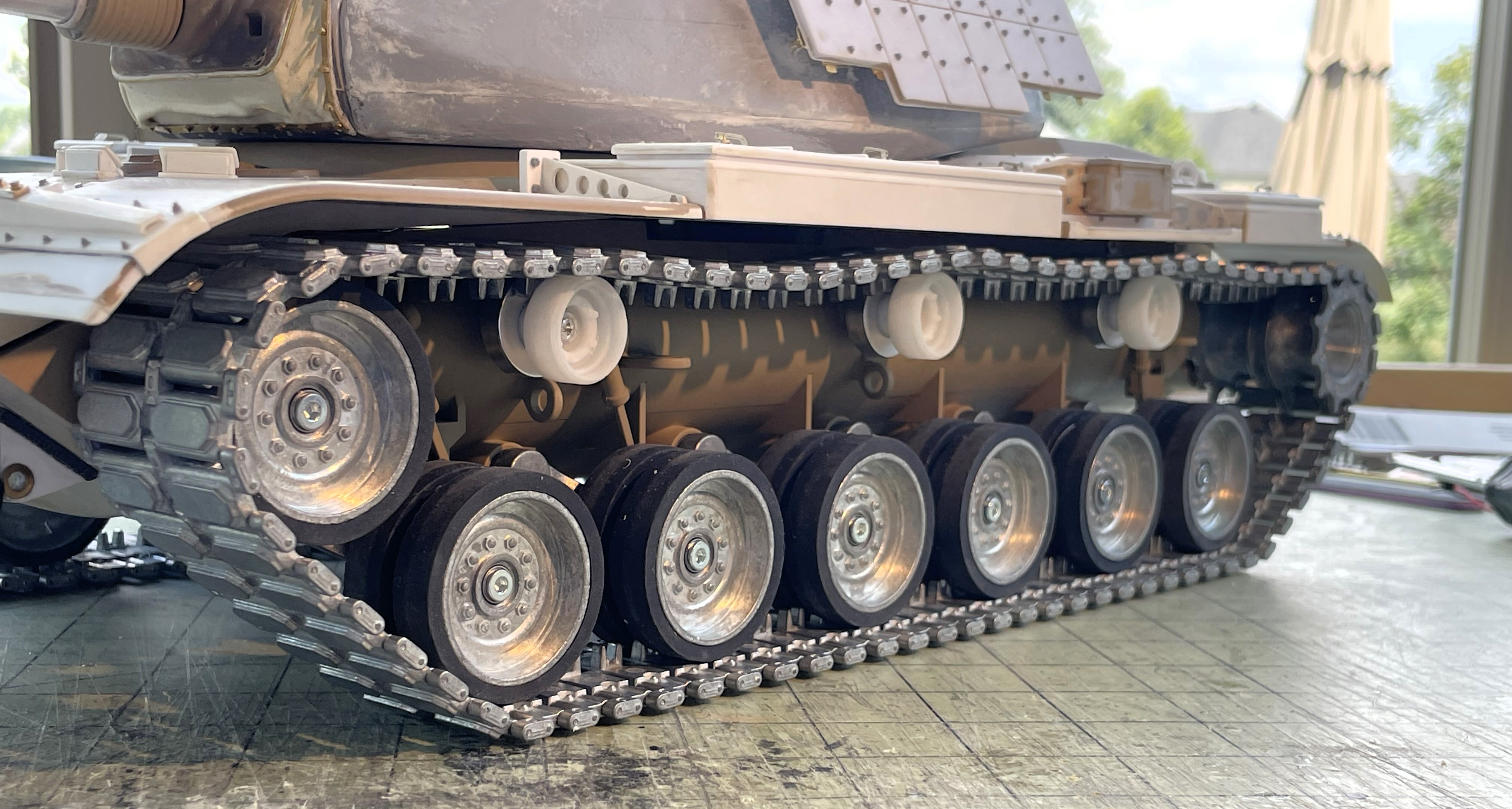

The new metal suspension, road wheels and tracks.

1/16 RC USMC M-60A1 US tank with ERA - Build


The new back plate. Note that the tail lights are not installed.

Because one of the TONGDE tracks base with 11 track link missing, i had to contact Carson of DKLM to fix this issue and send me the missing ones. Its something that could have beed avoided.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build


OKMO rollers, and hub cap for demo purposes.

1/16 RC USMC M-60A1 US tank with ERA - Build


TONGDE metal road wheel with plastic hub cap.

1/16 RC USMC M-60A1 US tank with ERA - Build


With upper hull.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build

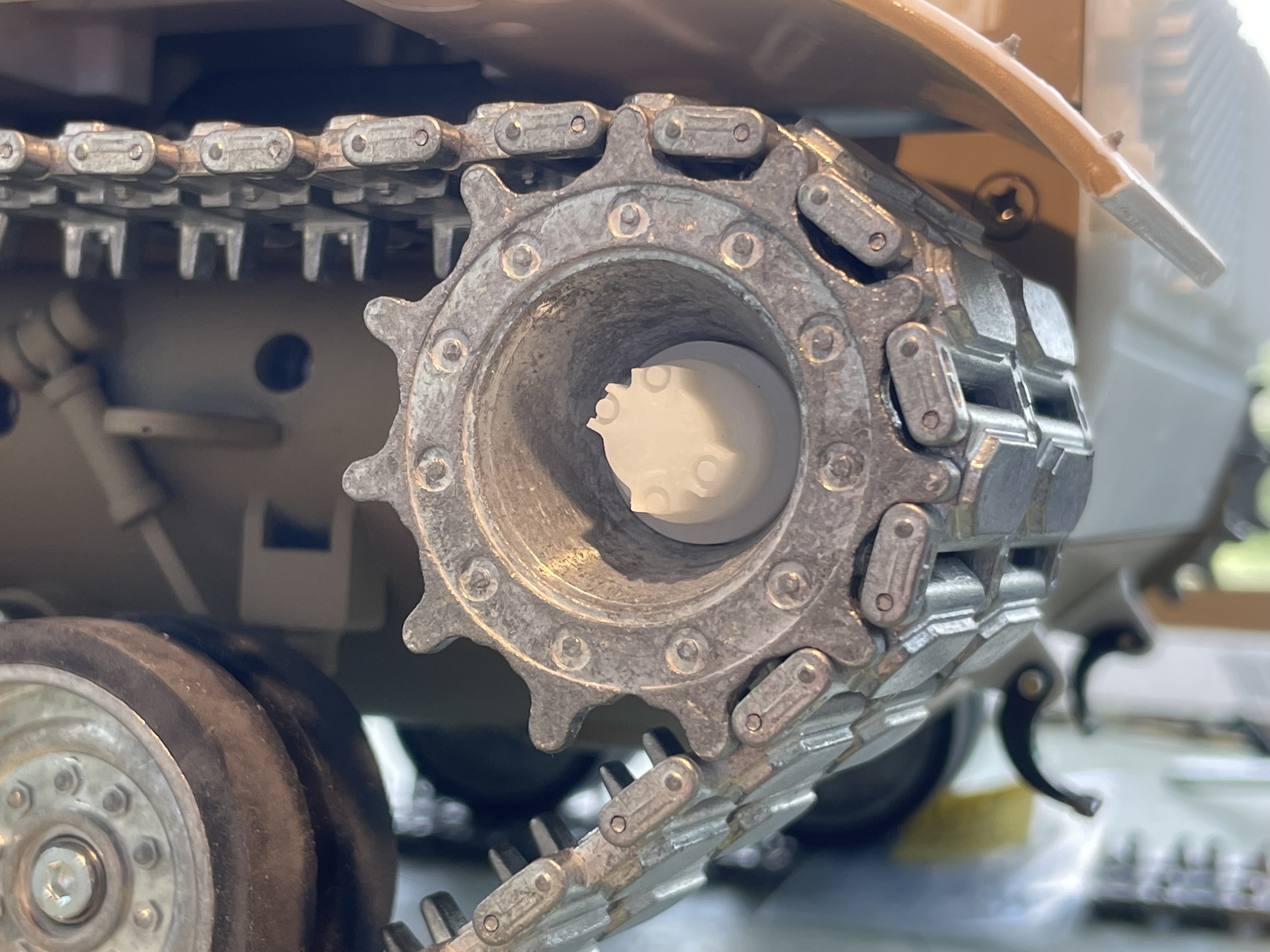

TONGDE sprocket with OKMO hub cap.

1/16 RC USMC M-60A1 US tank with ERA - Build


Now, time to go back to the ERA. First section that is attacked is the one at the rear left. Details of the mountings below.

1/16 RC USMC M-60A1 US tank with ERA - Build


Continuing on following post

[lmcq11]

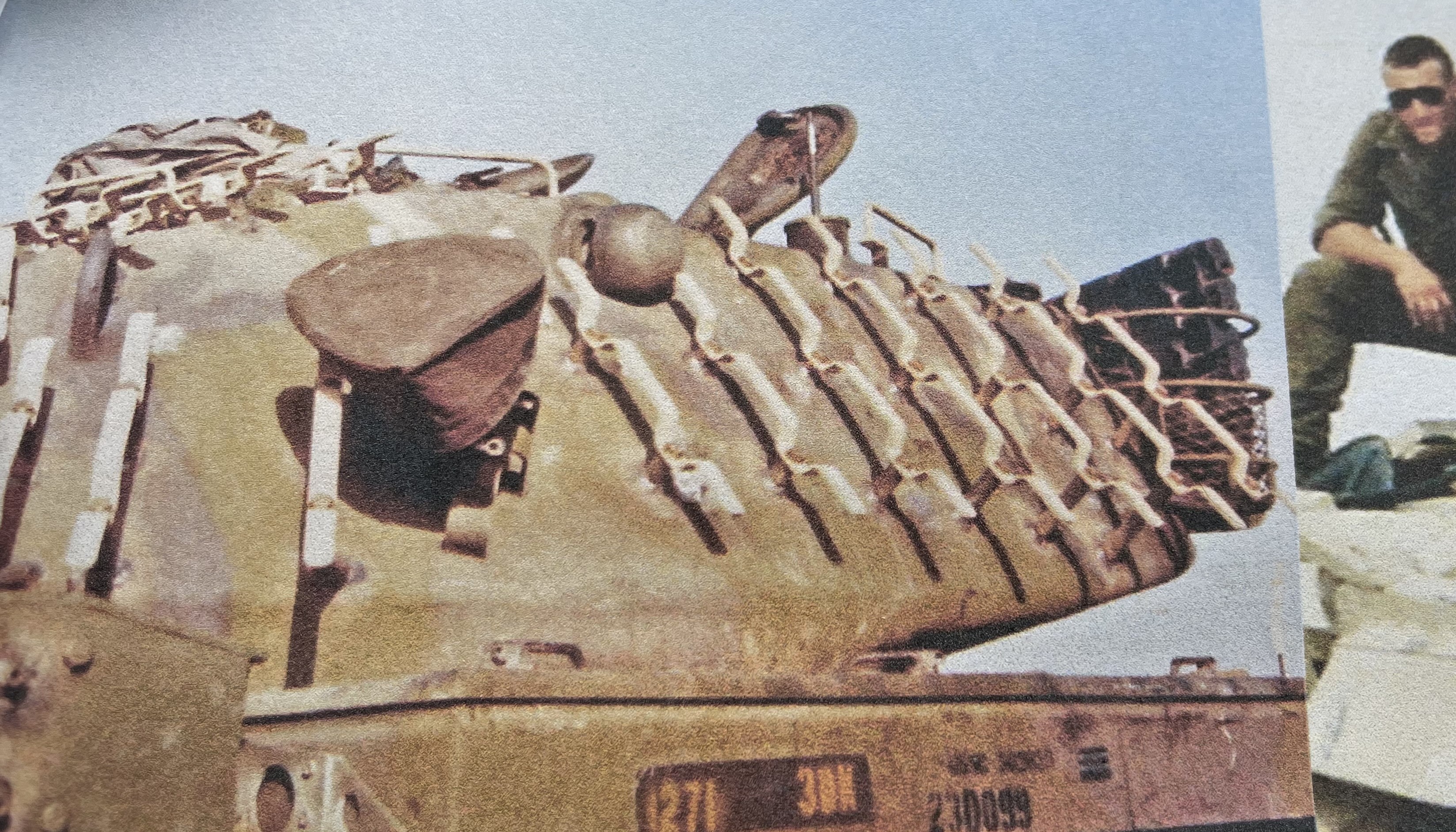

Back to the jig. Much analysis of references is required in order to get the basic design of the mounts under each ERA block group.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build

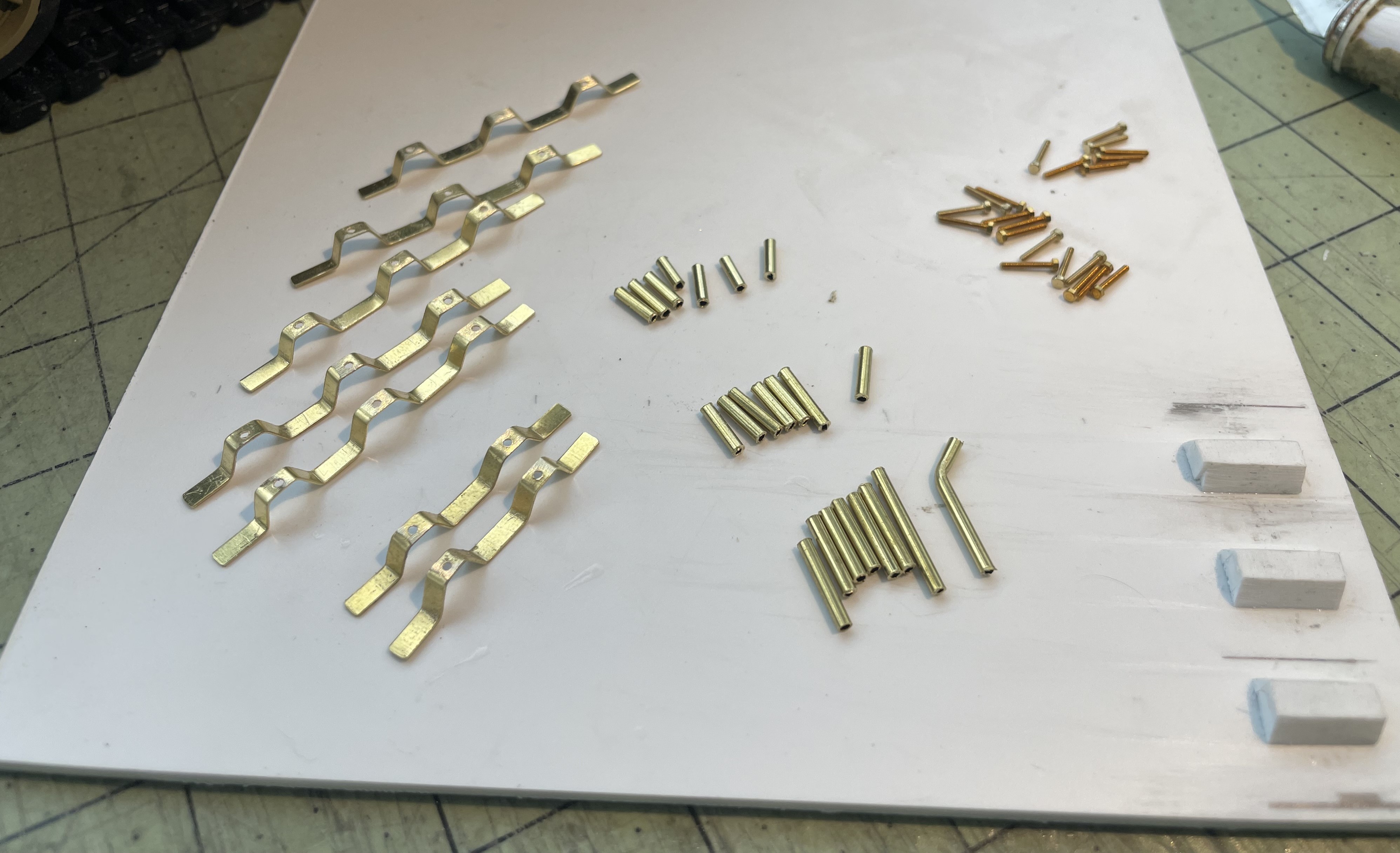

Parts made ready for assembly.

1/16 RC USMC M-60A1 US tank with ERA - Build

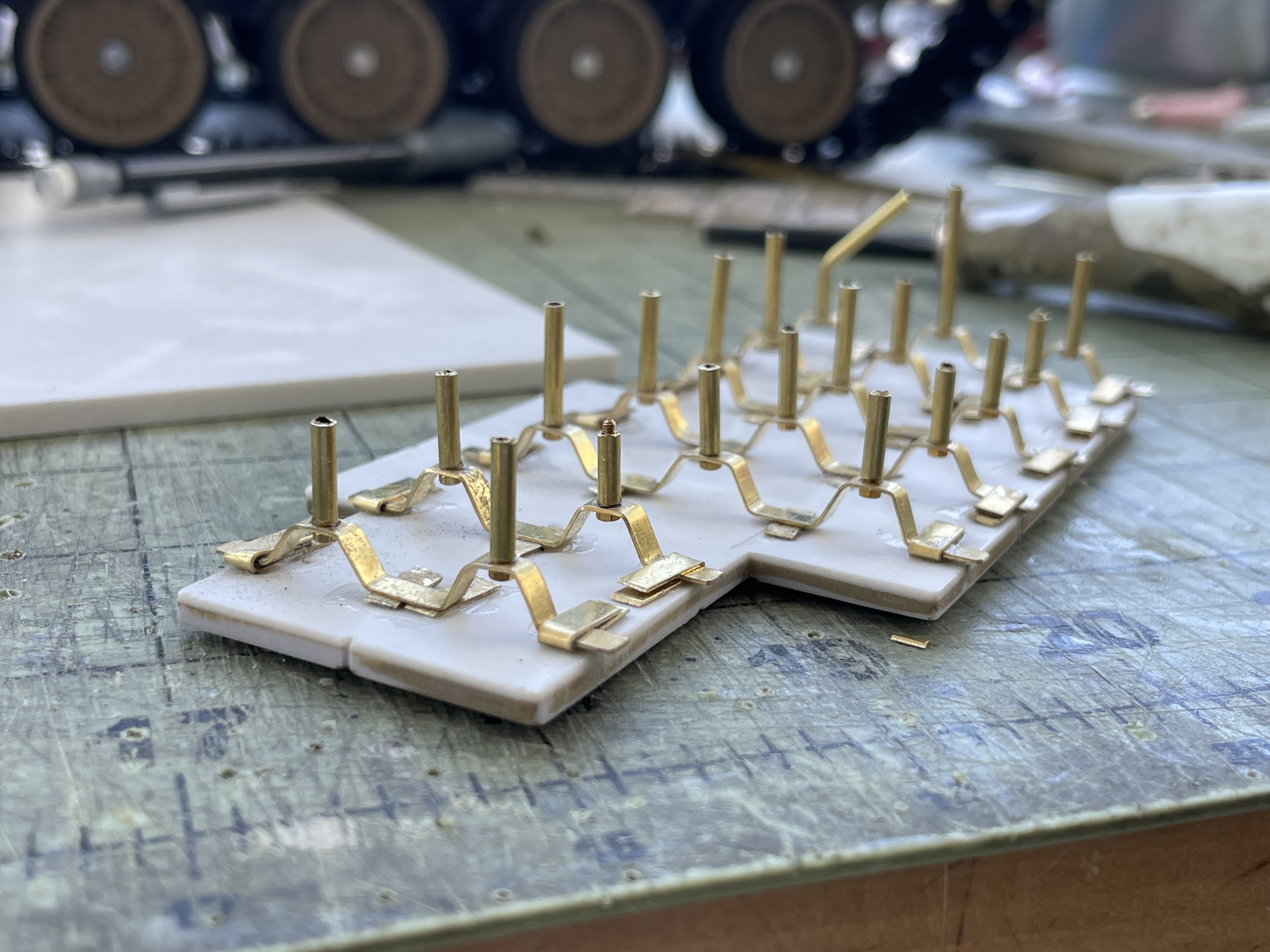

Mounts were pre-built.

1/16 RC USMC M-60A1 US tank with ERA - Build


For this first one, i decided to install the mount on the ERA back plate instead of mounting them separately. I will determine if this is something i want to continue with the others. Each rod will go into the turret, and will not be glued to the surface. This allows for easier positioning and adjustment of the ERA, and for the depth of the spacing.


There is always some compromise required depending on what is visible, and what is not.

1/16 RC USMC M-60A1 US tank with ERA - Build


It broke my heart to drill holes in my turret but no way around it if i want something solid, after much analysis and calculations for each rod.

1/16 RC USMC M-60A1 US tank with ERA - Build


Mounting of the first ERA block group on the turret.

1/16 RC USMC M-60A1 US tank with ERA - Build


1/16 RC USMC M-60A1 US tank with ERA - Build


Now you understand why the mounts are important, they are very visible because the M-60A1 ERA is spaced and not by a couple of inches, but sometimes in feet. Take note that i had to remove the rear basket for convenience during the installation of the ERA, but mostly to prevent any damage to it during manipulation of the turret.

1/16 RC USMC M-60A1 US tank with ERA - Build


The model as it stands today.

1/16 RC USMC M-60A1 US tank with ERA - Build


Now need another break...

Regards, Louis

[tankme]

Looking good. About the wheels...the ones with the ribs inside are the original type the M60 used made from aluminum hence the need for the ribs for strength. Later on, they decided to ditch the ribs and make the wheels from steel. A lot of M60 Slick (pre-A1, A2, and A3) had the ribbed wheels. As they were upgraded the wheels switched to the non-ribbed, but you can find either wheels on pretty much every variant of the M60 depending on how the vehicle started life. The ribbed wheels were seen a lot on the A1 and A2 versions. New production A3s got the new steel wheels, but some of the older upgraded A3s could have the ribbed wheels. A lot of the same rules go for the tracks as well, but the time the A3 came out the oval tracks were standard. You will see A2s with oval or chevron track. I choose to use the ribbed wheels and chevron track on my A2.
