Heng Long 1/16 RC Tank Mother Board Main Board 7.0

[mrmetallica]

the little red wire that comes out of the uit near l9 i think is that the wire that connects to the controller wirelessly ? so i can do away with the aerial on the tank ?
sorry but not done this before .

Yes Sir you can do away with the external aerial.
It should be routine enough to get the functions working if you get the plugs changed onto the respective wires for each operation, elevation, rotation and the drive motors, but BB will be the likely sticking point.
Be sure to add a loop wire into the Trigger socket. Just use an old cable, cut it down to an inch long off the plug, bare both wires & join them with solder & heat shrink-done.
That will give you cannon sound .

thank you for the answer would you have a pic of what you mean about the wire please

[mrmetallica]

the little red wire that comes out of the uit near l9 i think is that the wire that connects to the controller wirelessly ? so i can do away with the aerial on the tank ?
sorry but not done this before .

Yes Sir you can do away with the external aerial.
It should be routine enough to get the functions working if you get the plugs changed onto the respective wires for each operation, elevation, rotation and the drive motors, but BB will be the likely sticking point.
Be sure to add a loop wire into the Trigger socket. Just use an old cable, cut it down to an inch long off the plug, bare both wires & join them with solder & heat shrink-done.
That will give you cannon sound .

thank you for the answer would you have a pic of what you mean about the wire please

[Jofaur86]

the little red wire that comes out of the uit near l9 i think is that the wire that connects to the controller wirelessly ? so i can do away with the aerial on the tank ?
sorry but not done this before .

the small red wire (or black, sometimes?)
it is the antenna wire of the 2.4 Ghz reception part of the plate, must not be cut or lengthened, it doesn't connect to anything

[Jofaur86]

I think what Mr. Bix is ​​talking about? concerns the CN 6 socket, where it is necessary to shunt the two pins,( + / - ? ) to have the sound of the gun? but not being sure of me, and advised by him, more courteous, that he answer himself, will avoid possible errors

[HERMAN BIX]

I think what Mr. Bix is ​​talking about? concerns the CN 6 socket, where it is necessary to shunt the two pins,( + / - ? ) to have the sound of the gun? but not being sure of me, and advised by him, more courteous, that he answer himself, will avoid possible errors

Correct Mr Jofaur, CN6 needs to have a plug with a loop in it. simply a 2-core cable out of the the plug, cut an inch long, bare the ends,join, and solder together.
Voila!!

[mrmetallica]

I think what Mr. Bix is ​​talking about? concerns the CN 6 socket, where it is necessary to shunt the two pins,( + / - ? ) to have the sound of the gun? but not being sure of me, and advised by him, more courteous, that he answer himself, will avoid possible errors

Correct Mr Jofaur, CN6 needs to have a plug with a loop in it. simply a 2-core cable out of the the plug, cut an inch long, bare the ends,join, and solder together.
Voila!!

so basicly short the 2 pins ?

[mrmetallica]

I think what Mr. Bix is ​​talking about? concerns the CN 6 socket, where it is necessary to shunt the two pins,( + / - ? ) to have the sound of the gun? but not being sure of me, and advised by him, more courteous, that he answer himself, will avoid possible errors

thank you

[HERMAN BIX]

I think what Mr. Bix is ​​talking about? concerns the CN 6 socket, where it is necessary to shunt the two pins,( + / - ? ) to have the sound of the gun? but not being sure of me, and advised by him, more courteous, that he answer himself, will avoid possible errors

Correct Mr Jofaur, CN6 needs to have a plug with a loop in it. simply a 2-core cable out of the the plug, cut an inch long, bare the ends,join, and solder together.
Voila!!

so basicly short the 2 pins ?

yip, thats it.

[mrmetallica]

Correct Mr Jofaur, CN6 needs to have a plug with a loop in it. simply a 2-core cable out of the the plug, cut an inch long, bare the ends,join, and solder together.
Voila!!

so basicly short the 2 pins ?

yip, thats it.

sounds a bit dodgy to me you sure it says cn6 is a trigger switch ?

[Jofaur86]

on the diagram it is indicated: CN 6 Trigger Switch? indeed, seen that marked +/- it can be confusing ?

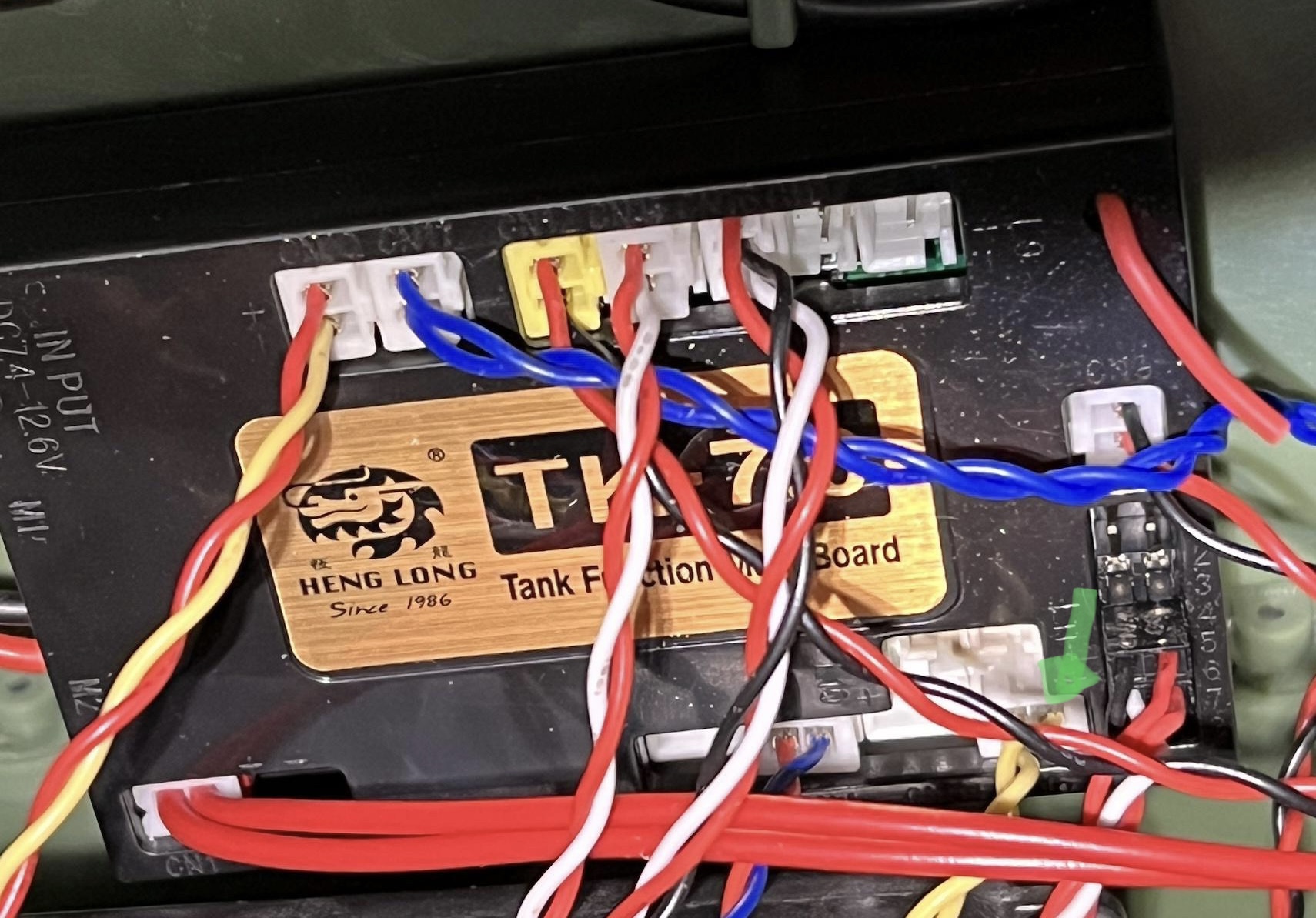

Look at the attached link, on the TK 6-1 for example, is the Micro switch Trigger in CN 6 well drawn? moreover, I think that if Mr. Bix indicates this manipulation? he is quite competent, not to say nonsense, I am also attaching a photo of a TK 7.0 and a video, where you can clearly see 2 wires from CN 6 to the recoil switch, ( Green arrow )
http://www.rc-panzer-shop.de/rc-tank-in ... fo-rc-tank


Hoping to have brought some help?
