Re: Sturm-Infanteriegeschütz 33B

Post by lmcq11 »

Estnische wrote:Louis, could I trouble you to give me the dimensions of the four sides of the top plates, and the roof?
Sure

Front plate; Bottom front is 175mm wide, top 139mm, 63mm in height from the lowest part
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B

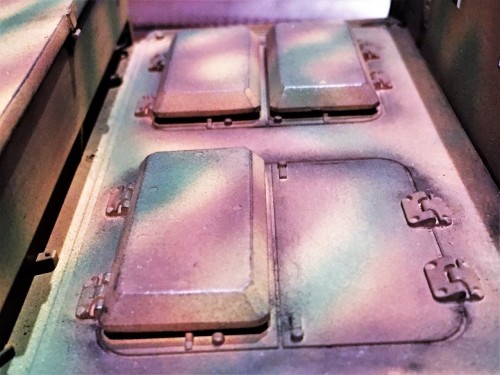

Back plate is same as the front but the deck is 40mm from the top. Those 2 hatches are 25x27mm.
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Side; Length is 142mm at the bottom, 130mm at the top, height is 60 at the back, 66 at the front. The inclination is all on the front armored plate, the back plate is strait. The top hatch is 26x30mm, the oval part is 38x21.
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Profiline 1/16 Sturm-Infanteriegeschütz 33B
Regards, Louis
User avatar
Estnische
Warrant Officer 2nd Class
Posts: 1086
Joined: Tue Jun 07, 2016 11:52 pm
Location: Wollongong, Australia

Re: Sturm-Infanteriegeschütz 33B

Post by Estnische »

Merci beaucoup!

That’s perfect.
User avatar
Jnewboy
Sergeant
Posts: 502
Joined: Fri Feb 21, 2014 5:24 am
Location: California

Re: Sturm-Infanteriegeschütz 33B

Post by Jnewboy »

The conversion came out fairly well. It's a cool tank and it fits nicely between the sig33b on the pnz1 chassis and the brummbar.
User avatar
Estnische
Warrant Officer 2nd Class
Posts: 1086
Joined: Tue Jun 07, 2016 11:52 pm
Location: Wollongong, Australia

Re: Sturm-Infanteriegeschütz 33B

Post by Estnische »

Jnewboy wrote:The conversion came out fairly well. It's a cool tank and it fits nicely between the sig33b on the pnz1 chassis and the brummbar.

I read it was also known as the Sturmpanzer, along the lines of the Sturmtiger.
User avatar
Jnewboy
Sergeant
Posts: 502
Joined: Fri Feb 21, 2014 5:24 am
Location: California

Re: Sturm-Infanteriegeschütz 33B

Post by Jnewboy »

Estnische wrote:
Jnewboy wrote:The conversion came out fairly well. It's a cool tank and it fits nicely between the sig33b on the pnz1 chassis and the brummbar.

I read it was also known as the Sturmpanzer, along the lines of the Sturmtiger.
Yes these tanks had a specific Infantry support role. From the Panzer 1 with the Sig 33 B to this vehicle with the same gun then onto the brummbar and finally the Sturm tiger. These vehicles were meant for destroying enemy infantry strongholds and buildings being used as defensive strong points sometimes at point blank range.
User avatar
c.rainford73
Major
Posts: 6104
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Re: Sturm-Infanteriegeschütz 33B

Post by c.rainford73 »

I came across this interesting build about a year ago to be exact and now I must add it looks even better now my friend :thumbup: always been a fan of these large gunned armoured beasts. Louis as usual you have taken it to a whole new level of detail

Cheers
Tanks alot.... :wave:
User avatar
wibblywobbly
Major
Posts: 6396
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley
Contact:

Re: Sturm-Infanteriegeschütz 33B

Post by wibblywobbly »

Very nicely done, Profiline do some very nice kits. :thumbup:
