sponges challenger 2 build

[atcttge]

The gun looks soooooooooooooooooo much better with the clutch gaiter. Is that a standard size? If not, can you tell me wot size it is? I'm gonna look for something similar over here even when I don't have a Challenger yet hahahahaha!

[spongehoobtank82]

Will thought I would dry fit everything today and see how it all went together so here's a few photos-

Extended the power switch and roughly installed the switch in the rear plate also if you look closely you can see the feed for the 12v fan spliced in AFTER the power switch and a 360 turet ring



Here's the fan buried behind the gearboxes and blowing over the IBU2 / TPA


So here is the wiring jungle! All roughly placed to see how it goes, made a speaker box for the turret speaker but forgot to take a pic of this! Need to make brackets for the IBU2 and the hull speaker is temporary until I get some more plasticard to make a box for the other visaton frs7 I have


Also removed the CIP panel and sanded down


Dry fitted the accessories too there's alot!



And a little comparison shot with my Leo


Just waiting on me postman to bring my jp480 and I can pretty much finalise the internals and make it all nice and neat, then onto paint! May also install the 2 volumes somewhere! And a charging socket.

[atcttge]

The clutch gaiter makes all the difference to that main gun. Impressive. I will be copying that, I just need to find one.

[spongehoobtank82]

The clutch gaiter makes all the difference to that main gun. Impressive. I will be copying that, I just need to find one.

Ebay dude 75mm' motorcycle clutch boot' it's was like £1.80p, you have to cut it abit and put a load of grease/ lube in the barrel to stop it sticking, hope that helps.I can get you a link if you need it

[spongehoobtank82]

Worked out you tube! So here's a couple of videos!

https://m.youtube.com/watch?v=GXZpKhYhHbg

https://m.youtube.com/watch?v=GXZpKhYhHbg

[Ad Lav]

Big beasty!

Hard to fathom that these new mbt weigh about the same as a King tiger yet are so much better armed and armoured. Armour technology eh

[spongehoobtank82]

Yeah guess you would of thought they would of got smaller and better armoured! But big is always better as the saying goes! Just wish I could afford 1/6 or 1/8 scale! Maybe for my 40th!

[spongehoobtank82]

Cheers Paul, will see if I can do some more later dude!

[spongehoobtank82]

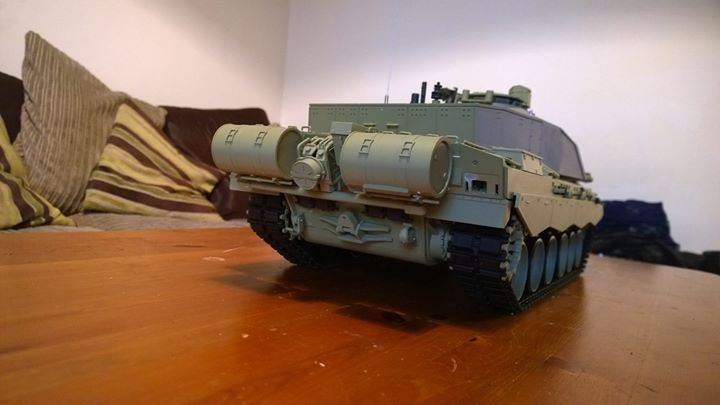

Moment of genius! Mounted power switch and charging port in rear pull drums!

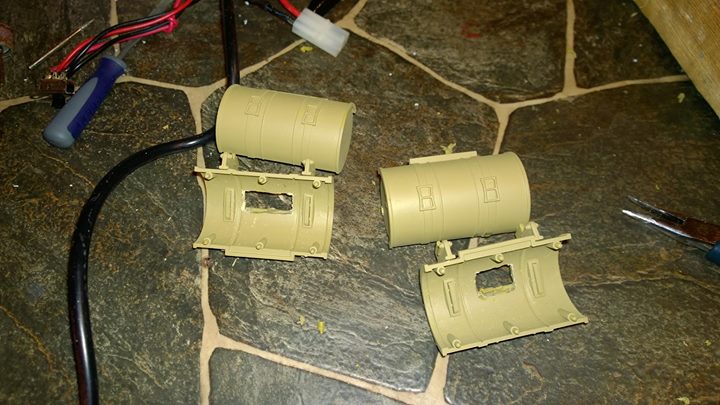

Grind it out

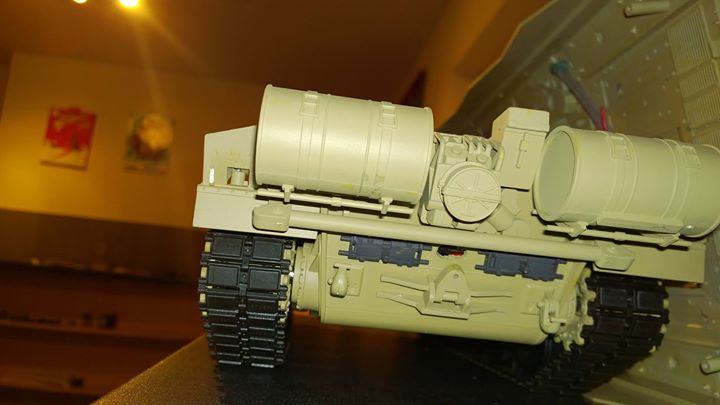

And voilà!


Although now I have to fill the hole I cut in the rear plate for the power switch and make new ones behind the oil drums!

[greengiant]

Really like the recoil action. nice and quick almost like a real one would be.
