Re: STUG III Asiatam Heng long

Post by Jakeand »

Hi,

Cast mantlet?

http://cgi.ebay.de/Panzer-1-16-Stug-3-A ... 518f8c2679

Regards

Jake
Top
User avatar
xrad
Warrant Officer 2nd Class
Posts: 1075
Joined: Tue Aug 18, 2009 2:15 am
Location: Ohio, USA

Re: STUG III Asiatam Heng long

Post by xrad »

OOPs, there is a dealer. Nice details too! but for 90$ plus shipping, I will probably make the remote MG mount and cast mantlet and travel lock myself.
Top
User avatar
xrad
Warrant Officer 2nd Class
Posts: 1075
Joined: Tue Aug 18, 2009 2:15 am
Location: Ohio, USA

Re: STUG III Asiatam Heng long

Post by xrad »

Some more pics:
Attachments

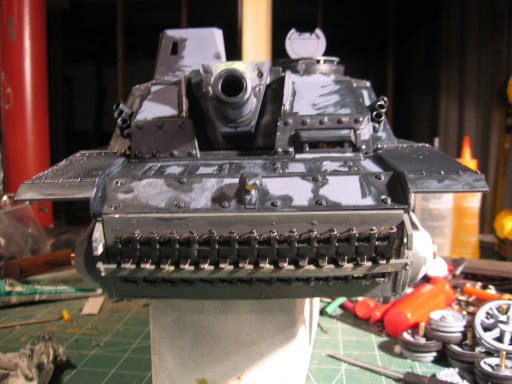

want extra protection, add some track to hull front. In this case, copper wire and epoxy secure Asiatam PIII track links to through holes in bronze hull plate. PITA. looks good though...
want extra protection, add some track to hull front. In this case, copper wire and epoxy secure Asiatam PIII track links to through holes in bronze hull plate. PITA. looks good though...
every joint and weld and nook gets thinned testors gunmetal .
every joint and weld and nook gets thinned testors gunmetal .
needed to add 3x3mm rounded head allen bolts and lock nuts through hull to hold rear hull wall in place (extra security for tensioners)
needed to add 3x3mm rounded head allen bolts and lock nuts through hull to hold rear hull wall in place (extra security for tensioners)
swithc can go here. make sure to place off to side otherwise wires interfere with gun movement.
swithc can go here. make sure to place off to side otherwise wires interfere with gun movement.

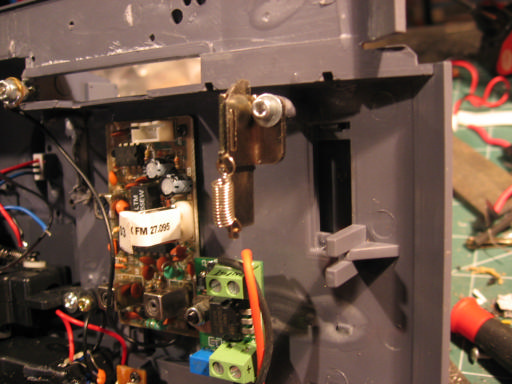

Antenna mount (top left corner of pic...threaded rod bent with x2 90 degree angles and epoxied. passes through HL antenna mount and antenna threads to it on outside. On inside, two lock nuts hold washer with antenna soldered to it. Rear asiatam mount (i only use one..it's easier to open)
Antenna mount (top left corner of pic...threaded rod bent with x2 90 degree angles and epoxied. passes through HL antenna mount and antenna threads to it on outside. On inside, two lock nuts hold washer with antenna soldered to it. Rear asiatam mount (i only use one..it's easier to open)
Asiatam front top mount. One extra washer needed underneath for proper spacing. I use longer allen head wood screw and lock washer.
Asiatam front top mount. One extra washer needed underneath for proper spacing. I use longer allen head wood screw and lock washer.
Asiatam front mount. countersunk 3mm screws and lock nuts.
Asiatam front mount. countersunk 3mm screws and lock nuts.
Top
971wright
2nd Lieutenant
Posts: 2733
Joined: Tue Jul 22, 2008 8:16 pm
Location: nelson Lancashire

Re: STUG III Asiatam Heng long

Post by 971wright »

Hi You Can test the I.R. emitter with out another tank to shoot all you need is a digital camera with a screen ,just look at the I.R.emmitter while looking through the camera ,and fire the tank it should show up as a blueish light,it works with all my tanks easy way to check they are working.


regards pete
Top
User avatar
xrad
Warrant Officer 2nd Class
Posts: 1075
Joined: Tue Aug 18, 2009 2:15 am
Location: Ohio, USA

Re: STUG III Asiatam Heng long

Post by xrad »

Great post. will try!
Top
User avatar
tankmad
Warrant Officer 2nd Class
Posts: 1335
Joined: Tue Jan 27, 2009 10:02 pm
Location: glasgow
Contact:
Contact tankmad

Re: STUG III Asiatam Heng long

Post by tankmad »

Excellent work on the stug this is going to be a nice bit of kit when its done. :thumbup:
Stevie
Top
User avatar
littletankman
Warrant Officer 1st Class
Posts: 1762
Joined: Mon Jan 12, 2009 1:15 pm
Location: Peterborough , Cambs , UK

Re: STUG III Asiatam Heng long

Post by littletankman »

Hi Xrad . Thanks for the tips Ive made my pot cast mantlet from milliput . Making it in sections so it drys better . I shaved of the edges of the square armoured mantlet . I did this before I read your posts . I have also removed ( but broken :/ ) the IR LED from the front . I did pull the cables through into the tank . Ive managed to do this without removing the mantlet . Although I did have to loosen it to remove the IR LED . Theres a link on one of the Stug posts from a German eBay sight and a guy has a resin slide on pot cast mantlet , the later loaders(?) hatch and RC MG , mount and gun . I have also removed the incorect track guard mounted light , jib mounting points and the fold down MG shield . looking forward to more of your work its very good. The working light on the fronts very nice :thumbup: .

All the best Andy (Litlletankman)
Top
User avatar
xrad
Warrant Officer 2nd Class
Posts: 1075
Joined: Tue Aug 18, 2009 2:15 am
Location: Ohio, USA

Re: STUG III Asiatam Heng long

Post by xrad »

Thanks guys! Good Idea with the Milliput...i have some on the bench but forgot about it (buried under three projects!)

there is quite group of Stug builders here. I think this is a good kit to build because you can add much detail in a little space and time and of course , all the variants...so hard to go wrong. I am sure most of us can find something to like in the different variants.
Top
User avatar
xrad
Warrant Officer 2nd Class
Posts: 1075
Joined: Tue Aug 18, 2009 2:15 am
Location: Ohio, USA

Re: STUG III Asiatam Heng long

Post by xrad »

More pics:

Schurzen frame. still have to do lower retainers. Scratch built from brass.

Thanks H.L.Doyle!!

NOTE: my frame side rails are backwards...easier to solder like this..but not accurate!
Attachments
Last edited by xrad on Fri Jan 08, 2010 3:35 am, edited 1 time in total.
Top
User avatar
littletankman
Warrant Officer 1st Class
Posts: 1762
Joined: Mon Jan 12, 2009 1:15 pm
Location: Peterborough , Cambs , UK

Re: STUG III Asiatam Heng long

Post by littletankman »

Hi looking good like the skirt mounting frames , very good work.

Andy-
