Grad 21 IR Battler

[Panzermechaniker]

Just got my Grad 21 back from MichaelC after he has installed the Clark board and all the mods to make this thing quite a vehicle. It is set up to take 1 hit and can be taken out by MG fire and has a 3 second reload time for firing. However it's main job will be to roam the field controlled by the referee in battles where we have our 3 minute artillery rule to stop people just sitting in one location and sniping in effect. So in those battles it will be running without it's apple in place so it can hit but not take hits and will be able to fire to get people/teams to move rather than staying in one place. Mike also installed servos to control the elevation and rotation of the rocket firing tube cluster. Also a speaker was installed. Radio is a FlySky FS-i6. This vehicle is a lot of fun

Changed location of battery to allow board and rx to be placed in the engine compartment

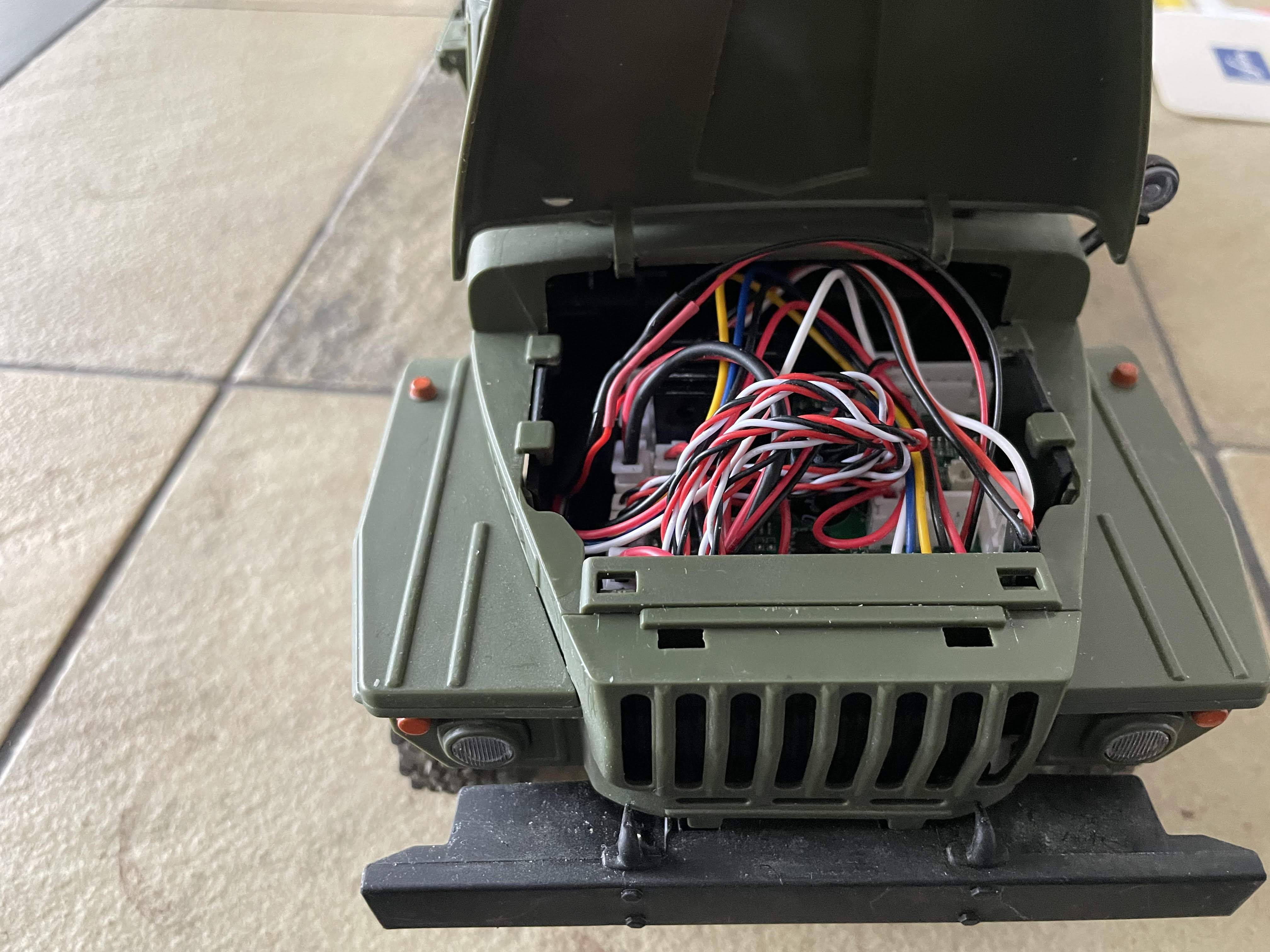

Clark Board and receiver location.jpg (965.73 KiB) Viewed 441 times

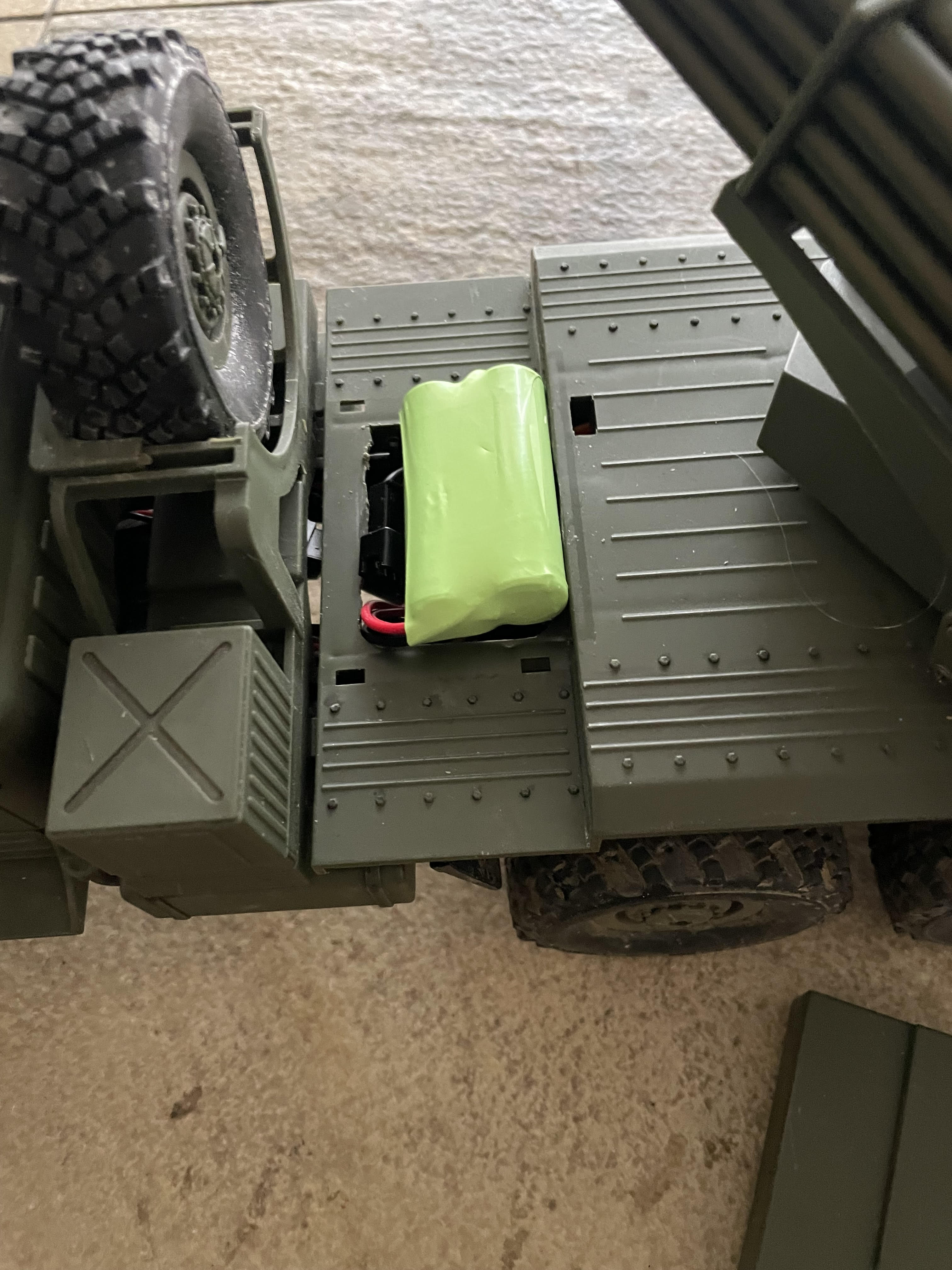

Grad battery.jpg (1.04 MiB) Viewed 441 times

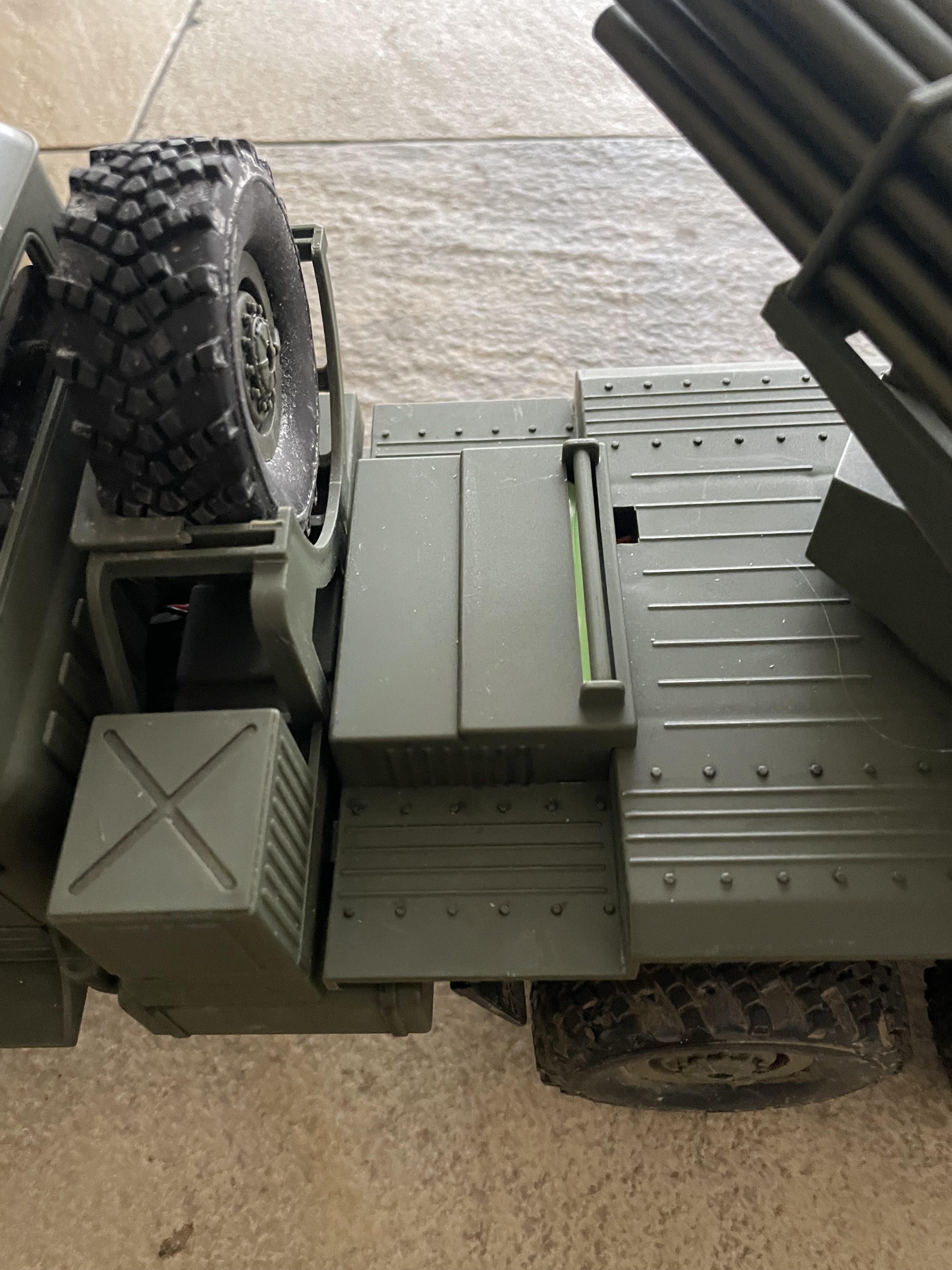

Grad battery cover.jpg (1.03 MiB) Viewed 441 times

Servos to control elevation and rotation and speaker added. Metal upgrades to drivetrain to come later

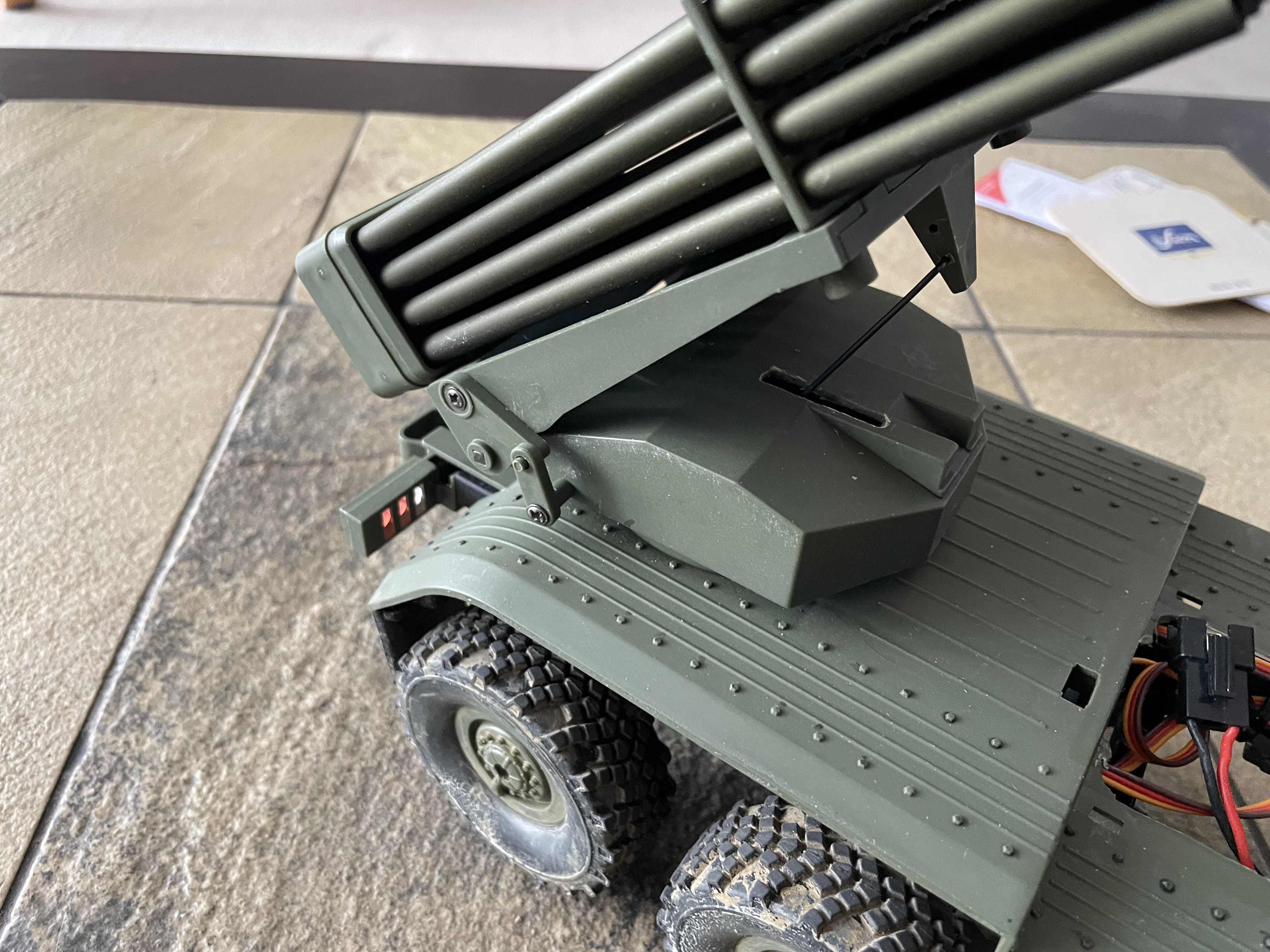

elevation servo.jpg (1.23 MiB) Viewed 441 times

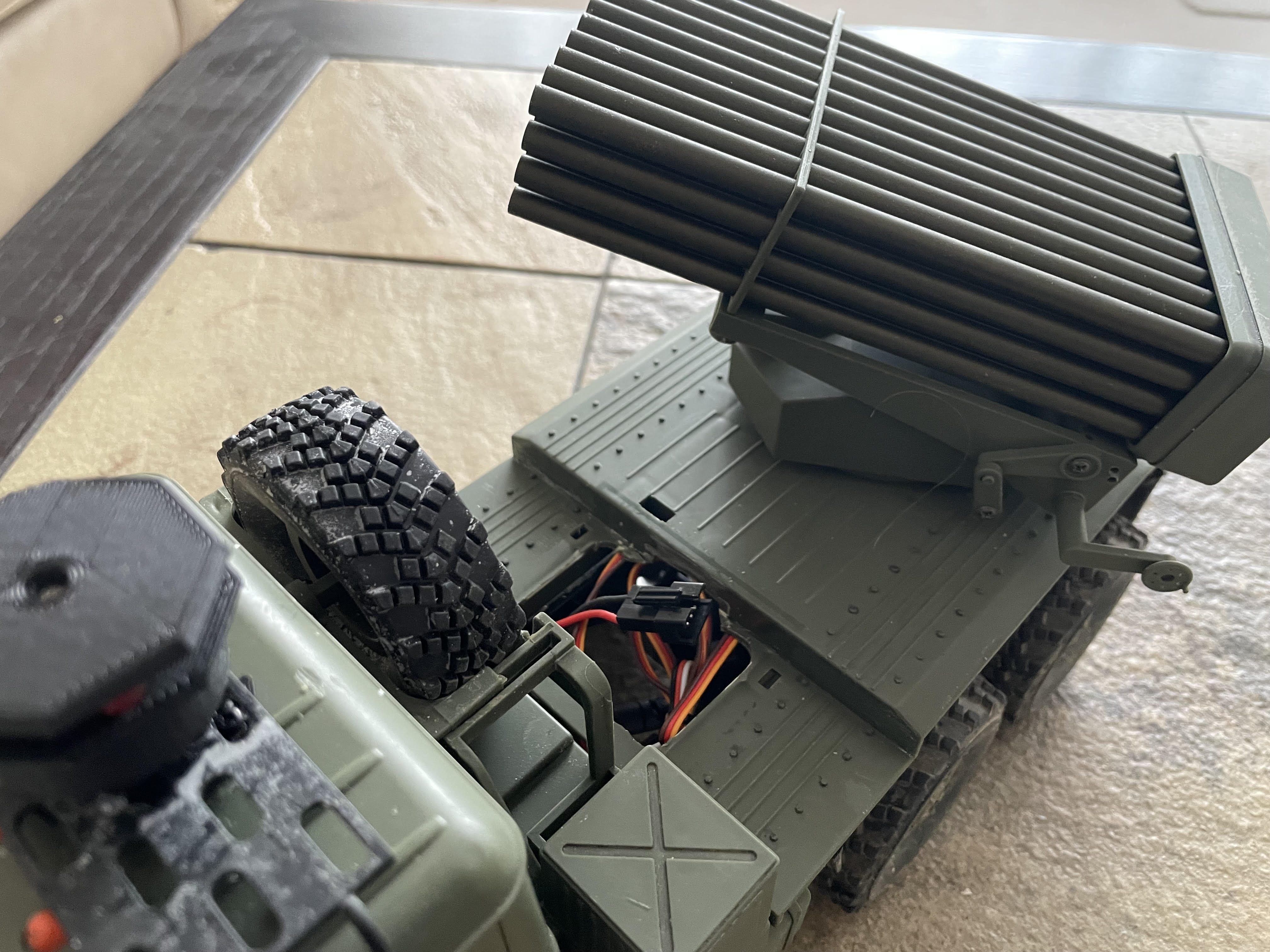

rotation by servo.jpg (900.15 KiB) Viewed 441 times

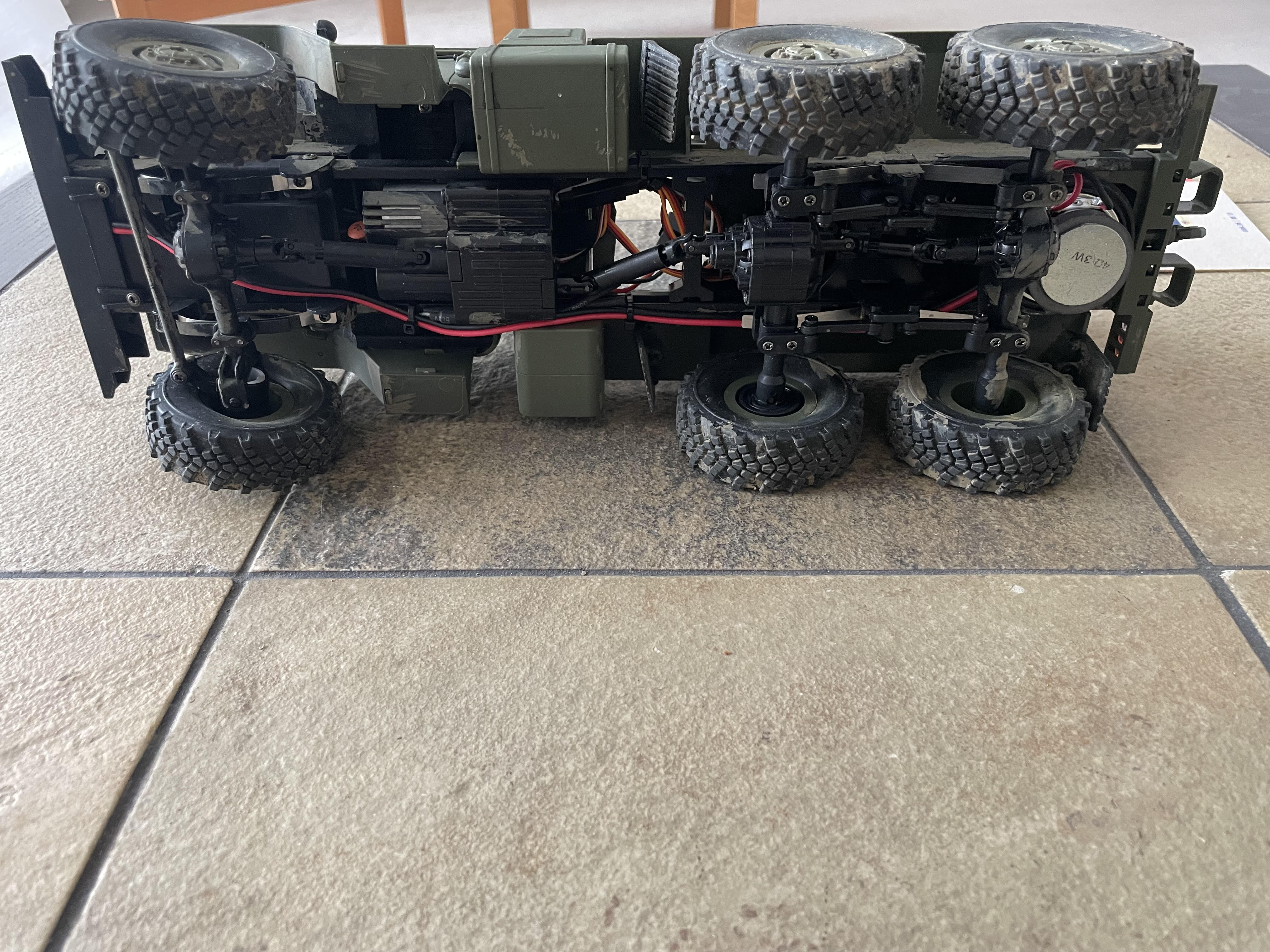

Grad 21 underside speaker.jpg (1.29 MiB) Viewed 441 times

[Panzermechaniker]

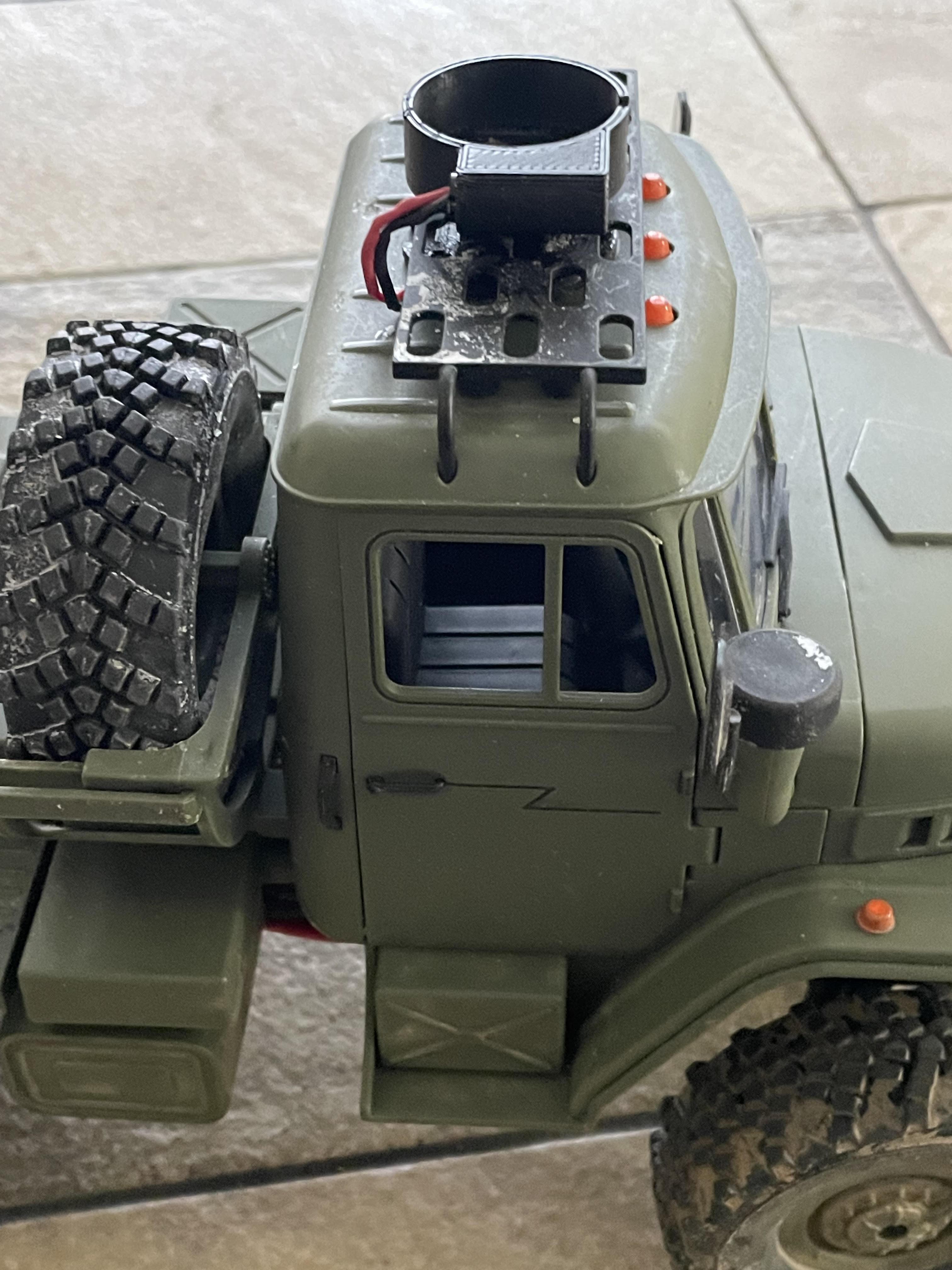

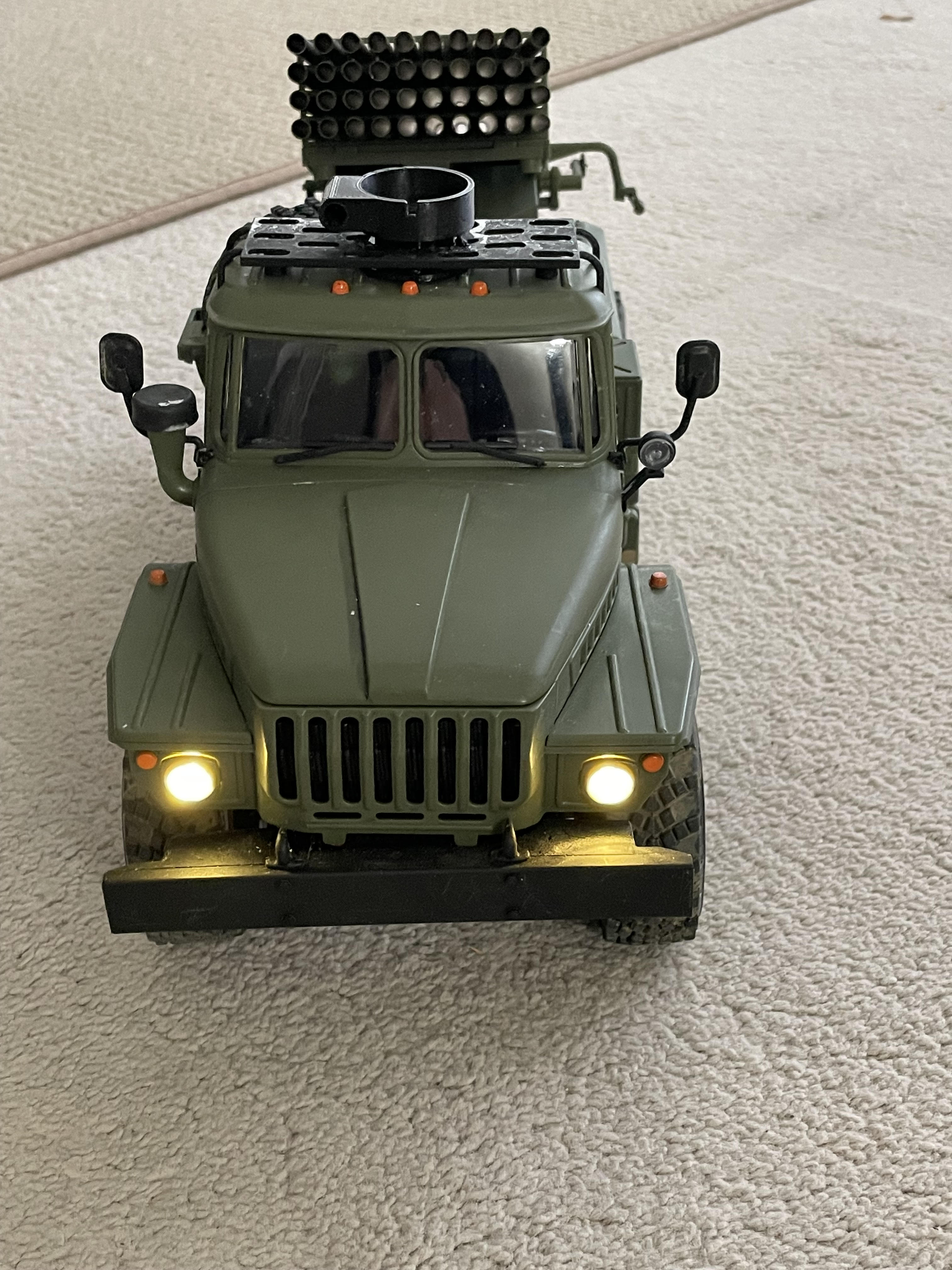

Grad with Apple and emitter housing.jpg[/attachment]The IR battle base and emitter installed on roof with some mod to the rack. When IR emitter and apple not installed can be covered with a tarp etc.

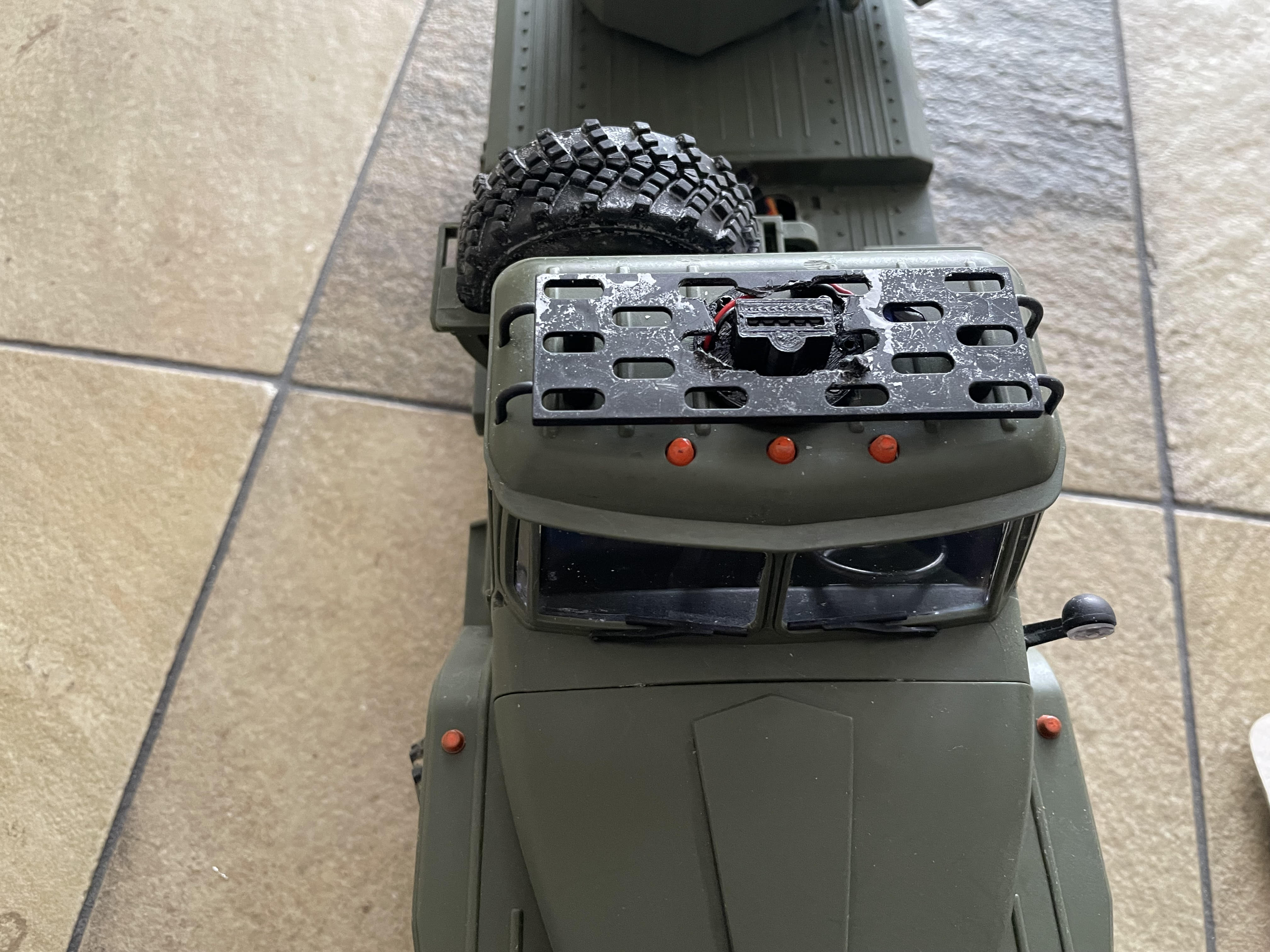

Grad 21 TBU base.jpg (1.07 MiB) Viewed 437 times

Enforcer 1 front.jpg (1.25 MiB) Viewed 437 times

Enforcer1 side.jpg (985.68 KiB) Viewed 437 times

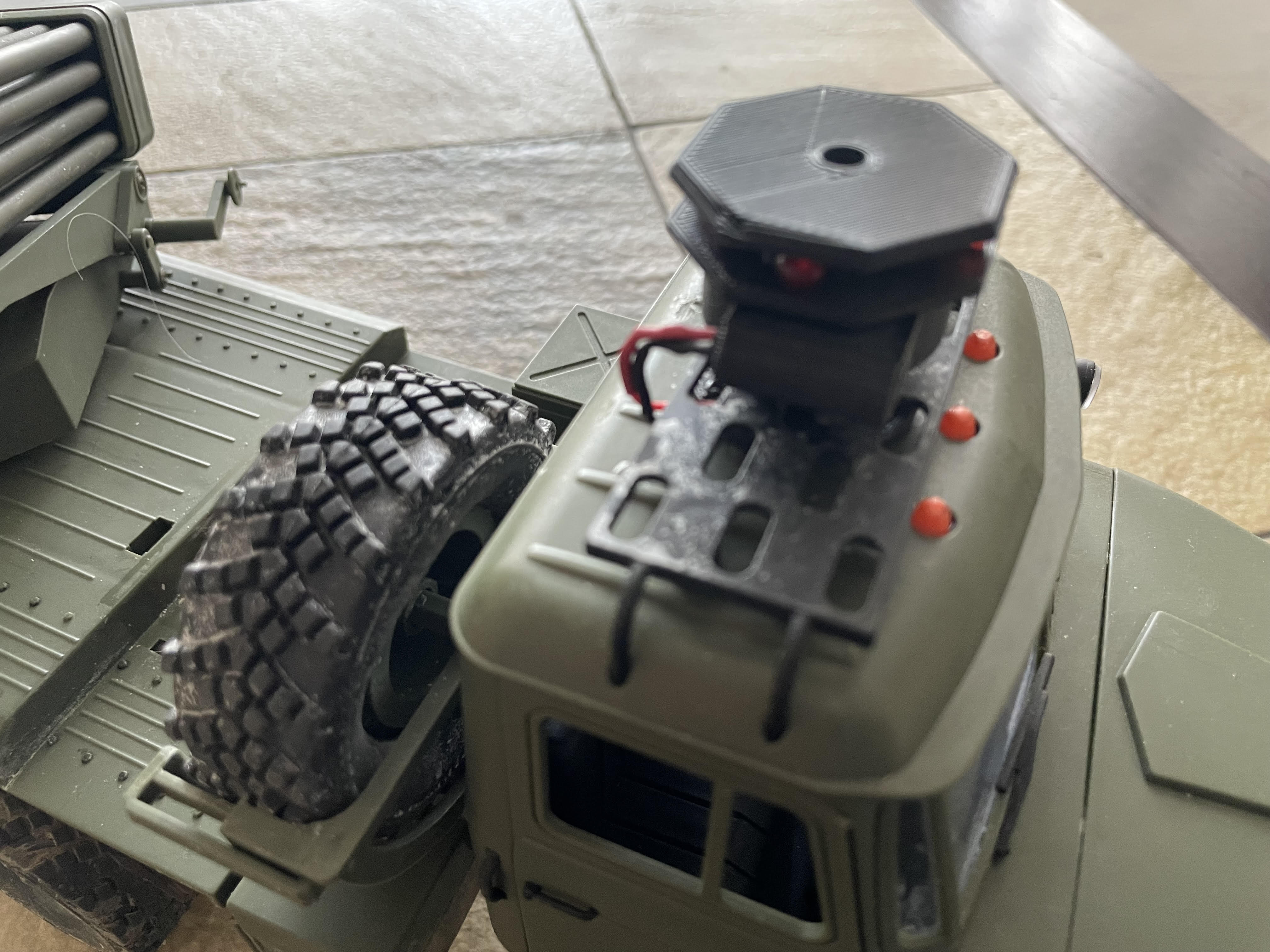

Grad with Apple and emitter housing.jpg (810.29 KiB) Viewed 437 times

[Stormbringer]

Pretty cool mod

[HERMAN BIX]

That’s well smart.
Just needs a load of printed rockets in the tubes

[tankme]

Nice mod. I am considering something similar, but I was going to put my emitter in one of the tubes.

[Panzermechaniker]

Nice mod. I am considering something similar, but I was going to put my emitter in one of the tubes.

The emitter in one of the tubes was my original intention but if the tubes are sitting horizontal to the ground you are going to be firing into the back of the cab unless you rotate the tubes. In firing position you would be just firing the IR beam into the sky. But the top of the cab turned out to be the best position as the wires just come from the board through the cab firewall. This truck is an absolute hoot to drive around with

[tankme]

Nice mod. I am considering something similar, but I was going to put my emitter in one of the tubes.

The emitter in one of the tubes was my original intention but if the tubes are sitting horizontal to the ground you are going to be firing into the back of the cab unless you rotate the tubes. In firing position you would be just firing the IR beam into the sky. But the top of the cab turned out to be the best position as the wires just come from the board through the cab firewall. This truck is an absolute hoot to drive around with

I wanted the IR LED mounted in the tubes so that the trucker would have to have some skill moving that set of tubes around kinda like the way a tank has to aim it's turret. To me it evens the field a bit because the truck has some decent speed. The IR beam would probably fire through the rear window and then through the front windshield...

[HERMAN BIX]

Assume by the size of a Clark board I could do a similar thing with an H/L V7'.1 then ?
