Obtaining a return roller for my panther ausf G

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).
Forum rules
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
Post Reply
User avatar
TechnotheTigard
Recruit
Posts: 4
Joined: Tue Aug 12, 2025 11:53 am

Obtaining a return roller for my panther ausf G

Post by TechnotheTigard »

I've recently got my panther ausf G from henglong, it's great, it's so cool and I love it! the only problems I've had are with the Styrofoam it was packed with falling into the glycerin hole (which is irrelevant to the current topic)
And with the tracks, I brought it to a friends and she adjusted them for me, however they frequently catch/stutter when going at slower speeds, and I realised that the henglong panther G is missing the tiny return roller positioned behind the sprocket wheel, preventing the tracks from smoothly moving and causing them to catch, it also has the byproduct of any adjustment being either too tight or too loose
I've looked every where for one, the only information I've found pertaining to it involves a forum in which someone mentions that the taigen (Or tamiya) panther Gs have the return roller, nothing beyond that
I'm either gonna end up making or buying one, I'd prefer to buy it but if that's not an option Ilm make it myself with what I can get. Im a Sucher for little details and now everytime I look at my panther G I notice the missing roller.
Any information on where I can obtaining one, put it in or make it would be very much appreciated.
Sorry for how long this Post is but I've been looking for one of these frequently for the last 2 weeks.
Thank you for taking the time to read this.
john1970
Corporal
Posts: 392
Joined: Sun Jun 02, 2013 2:29 pm

Re: Obtaining a return roller for my panther ausf G

Post by john1970 »

https://www.forgebeartanks.com/store/p1 ... _tank.html

Taigen Panther G front transmission covers

If they fit on the heng long is another question, someone might be able to answer that for you.
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7677
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Obtaining a return roller for my panther ausf G

Post by PainlessWolf »

Good Morning,
From the Website: "They fit the Taigen Panther G metal base, but could be made to fit Heng Long" Sounds like a little modeling will be called for but in the end, they will do the job. Back when I was detailing my Panther G and adding these wheels, I just drilled and added wheels that I got from a Website, either RCTanks.de or Welsh Dragon *Spotty old Wolf memory* Next time around, I am just going to get the Taigen metal Lower and paint it to match the Upper. Have fun and take Pics, Techno!
regards,
Painless

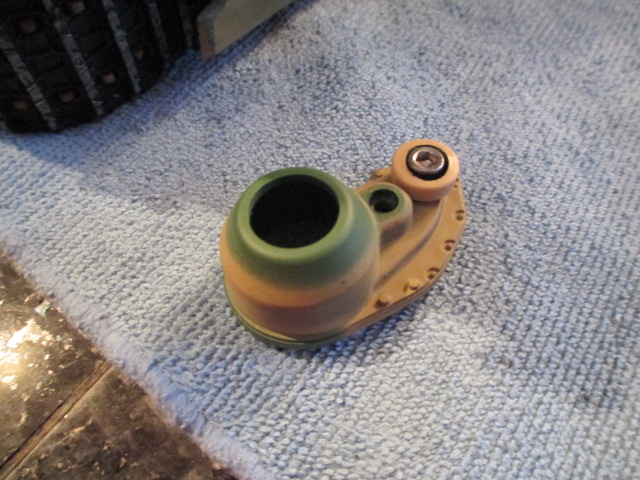

Correct fit.JPG
Correct fit.JPG (136.42 KiB) Viewed 206 times

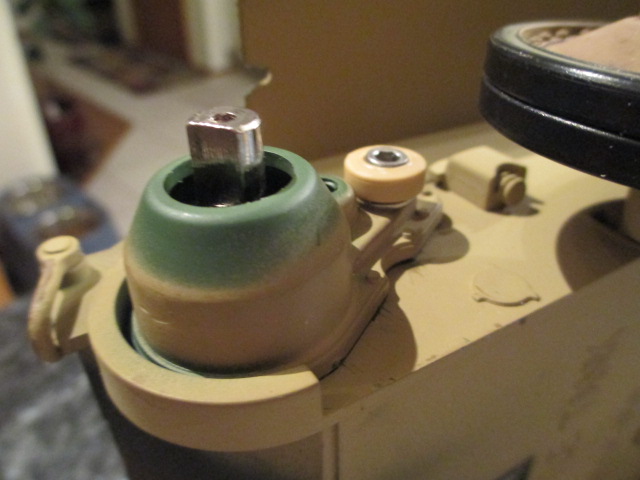

Pieces in place.JPG
Pieces in place.JPG (85.7 KiB) Viewed 206 times
...Here for the Dawn...
ColemanCollector
Warrant Officer 2nd Class
Posts: 1140
Joined: Sat Jan 14, 2023 8:50 pm
Location: Ontario, Canada

Re: Obtaining a return roller for my panther ausf G

Post by ColemanCollector »

The return roller was to prevent the track from getting wedged by the sprocket when reversing on the real tank. Replaced by a simple skid later in the war to save rubber and assembly time. It really won't do anything on your Panther.

If you are having issues with your tracks kinking and jumping teeth, look for any links that aren't pivoting on the track pins freely. And see if your track tension has any effect as you suggest.

Nothing wrong with going for the detail, but it won't solve your track issues.

Mike.
Elbows up
