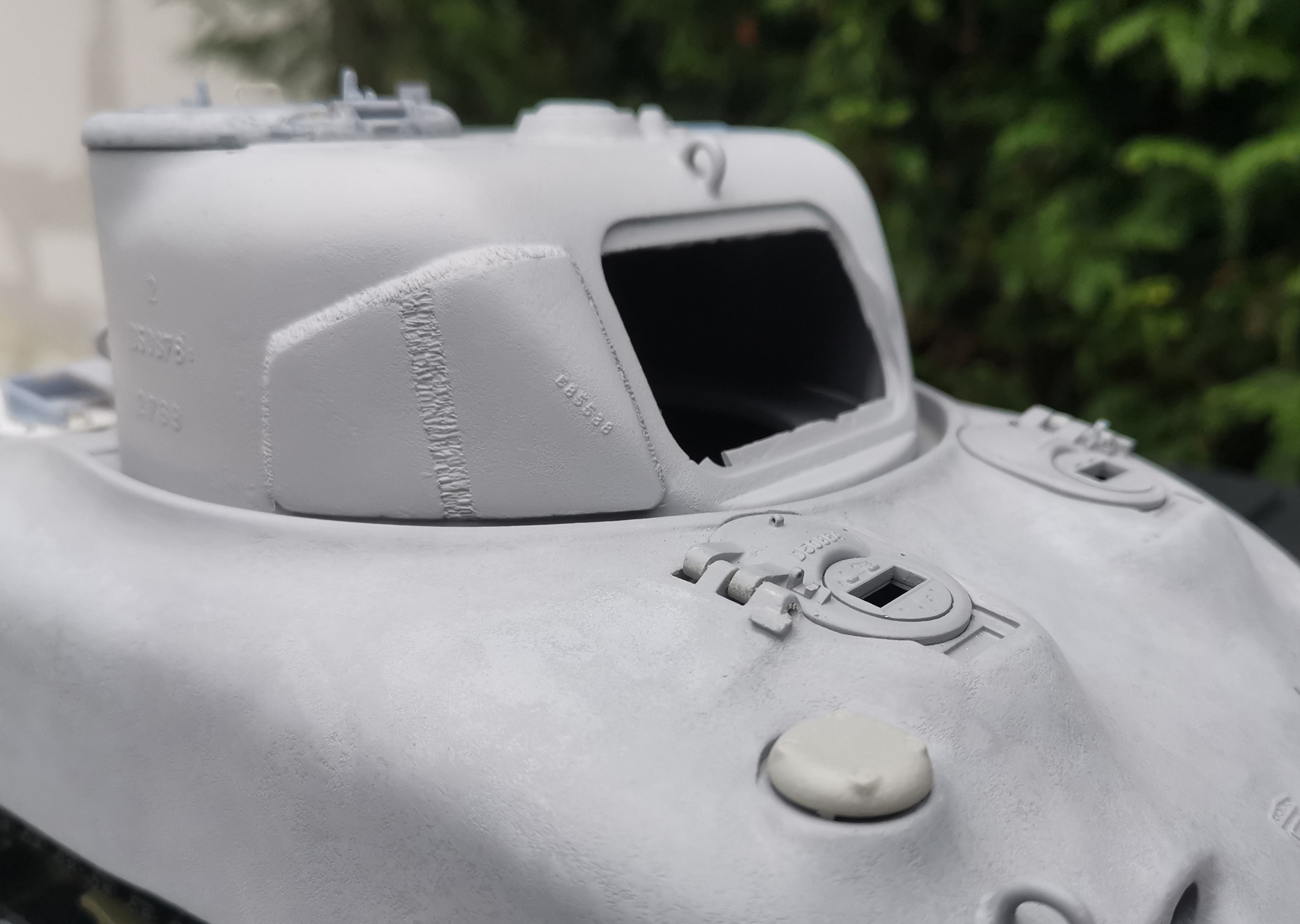

Sherman M4A1 with cast in appliqué armor using photogrammetry

[MonsieurTox]

Absolutely stunning work, Mssr. Tox! Some next-level accuracy and authenticity, I love seeing the marriage of classic and modern modelling techniques. Everything's so crisp and well-textured!

Monsieur Tox: I continue to admire your work and its results in this, my lasting image of the Sherman, an image affixed over a half-century ago in my 13-year-old pea brain. Thank you for the photos. Great cheers to you for your design and building patience, skill, and knowledge,

Thank you both !

The Sherman always has been one of my fav, I've seen so many of them since I'm a kid with all my annual trip to Normandie. And the little Heller kit (with LCM !) I built as a kid, so many memories !

I'm planning to mold and cast the turret so for my next Sherman (M4A4 probably), it won't be as much work. And maybe I'll do another turret with no applique armor to make a North African M4A1 in the future !

[MonsieurTox]

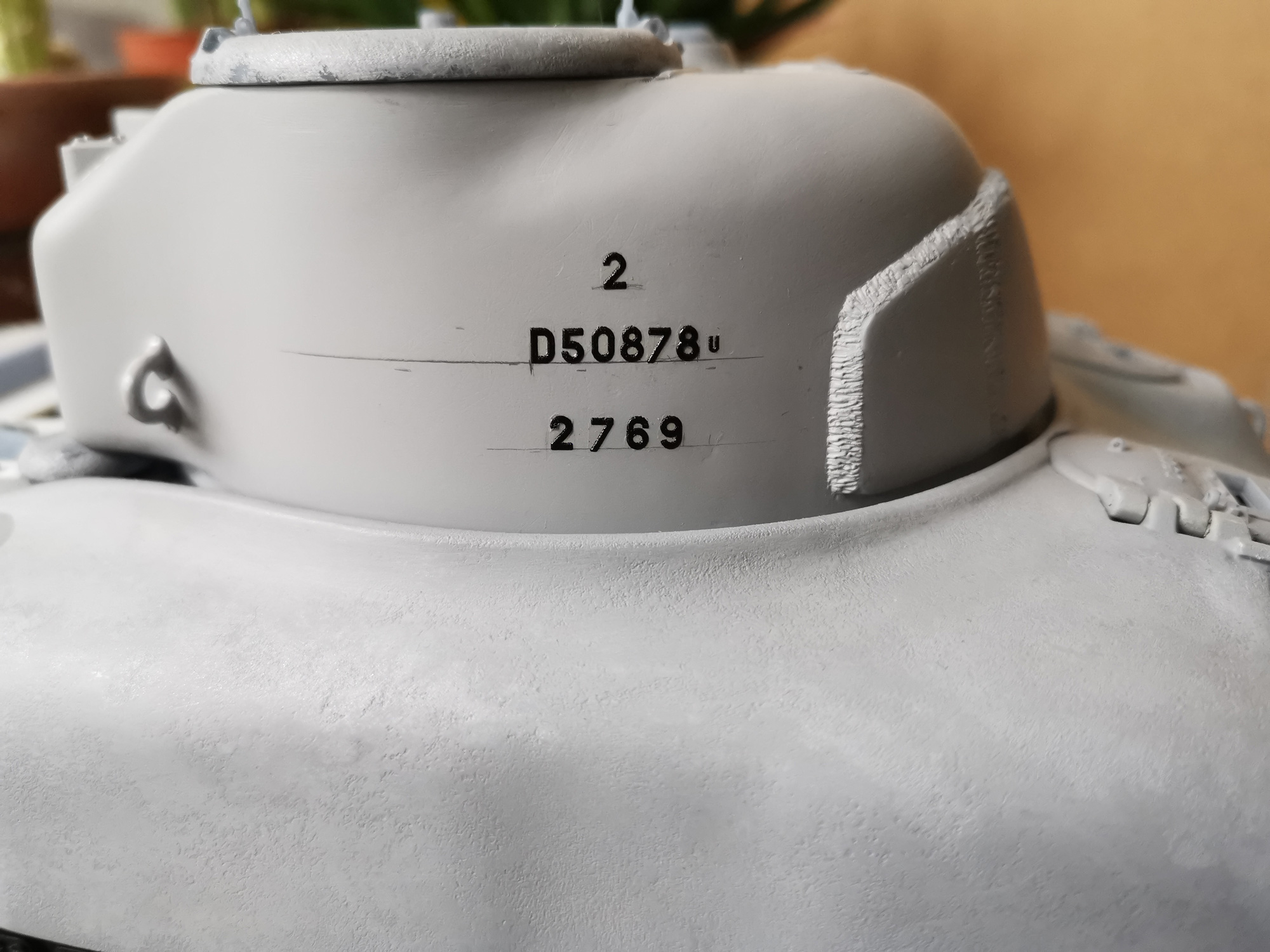

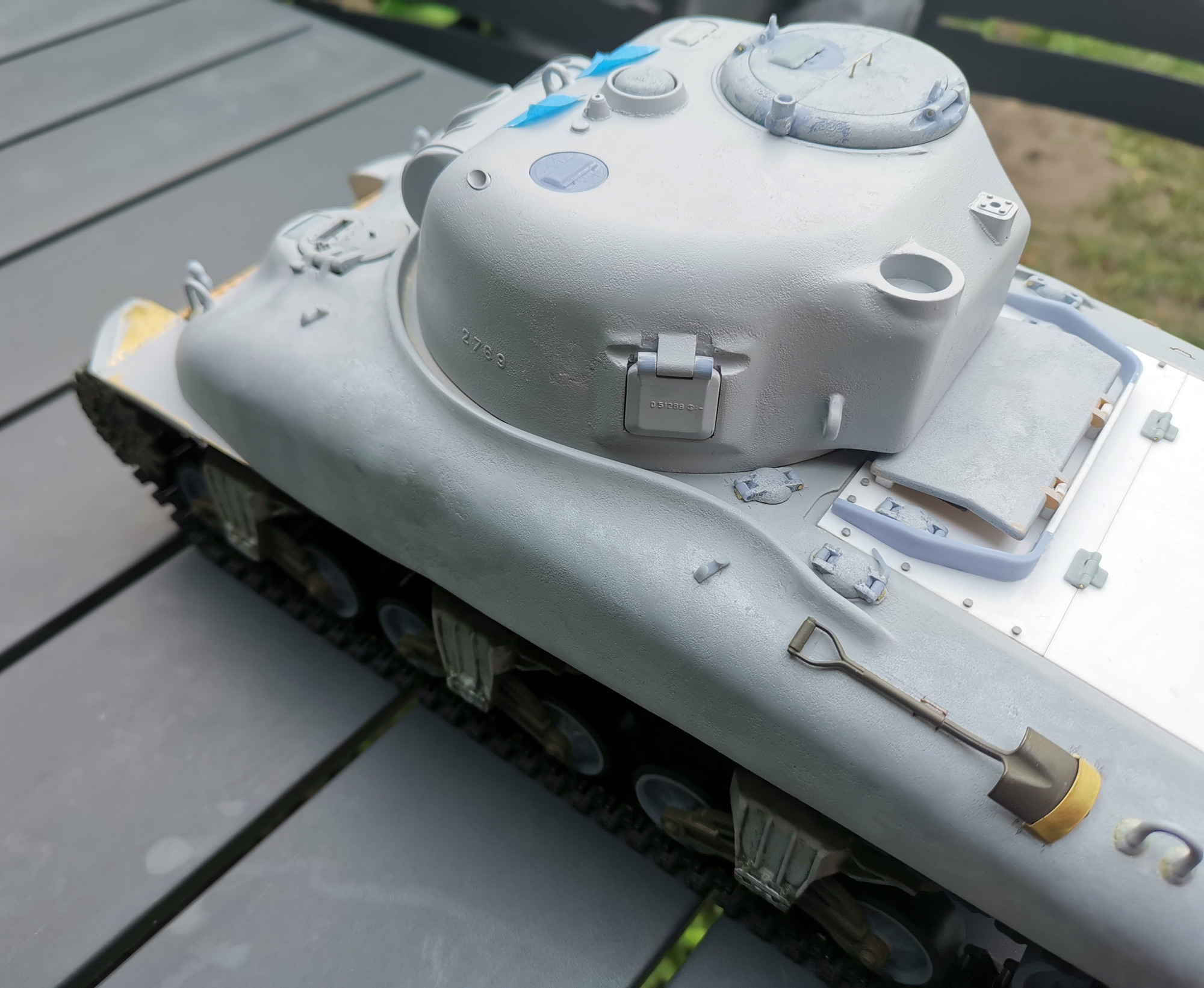

I continued the work on the turret. I made some casting part numbers and serial for the turret and appliquée armor. I used Archer resin decals that were kindly given to me by Blimp, thanks again mate, they worked like a charm !

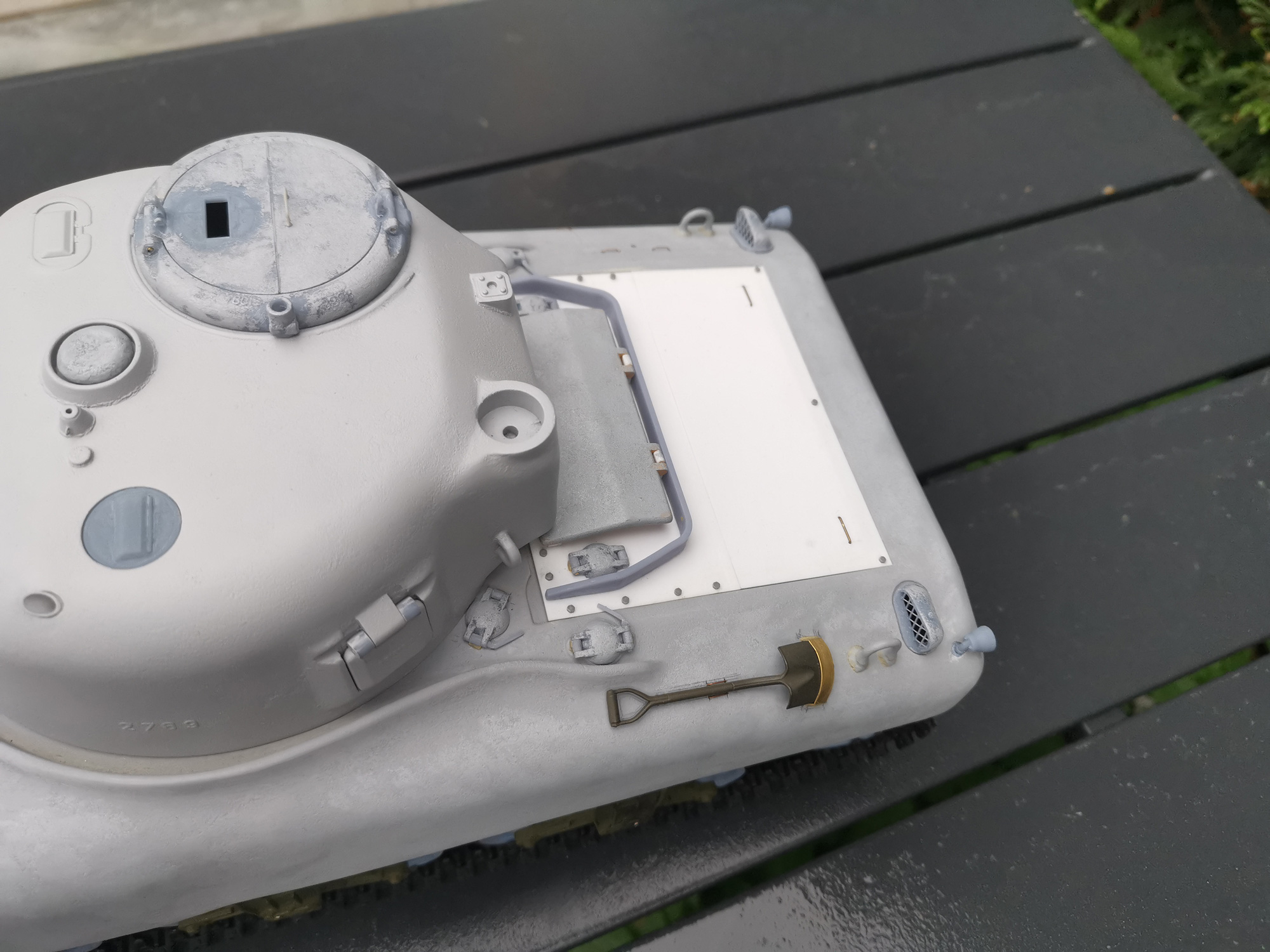

I also made some more details on the hull : rear lights, tie-down loops, fuel-water-oil caps etc.


[MonsieurTox]

Some updates.

Lots of small jobs done, but that the most time consuming as I'm modelling every parts in 3D even if they're not 3D printed.

This is the ball mount and the shield of the bow gun. It's made like the original and thus can move the same way.

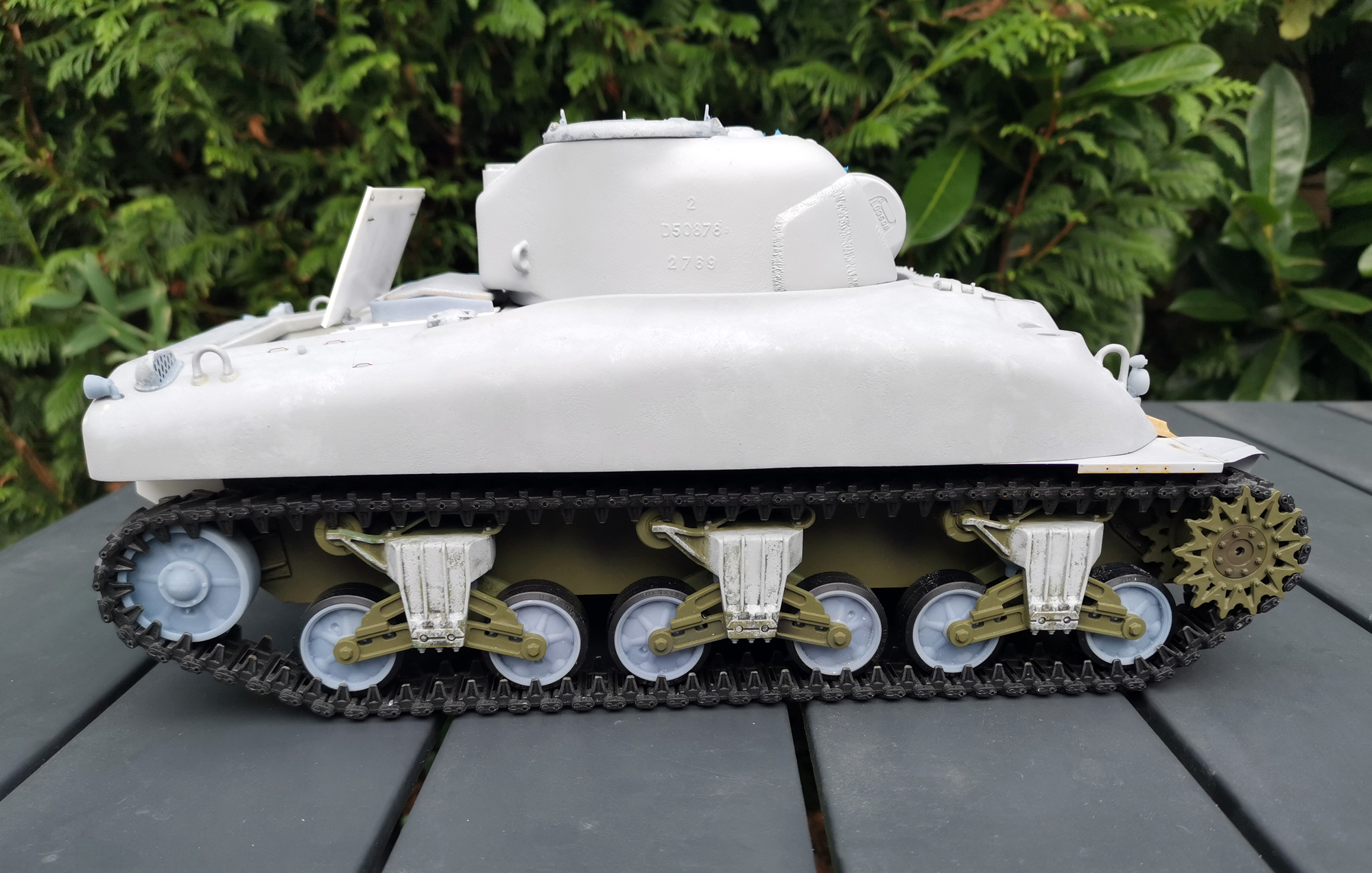

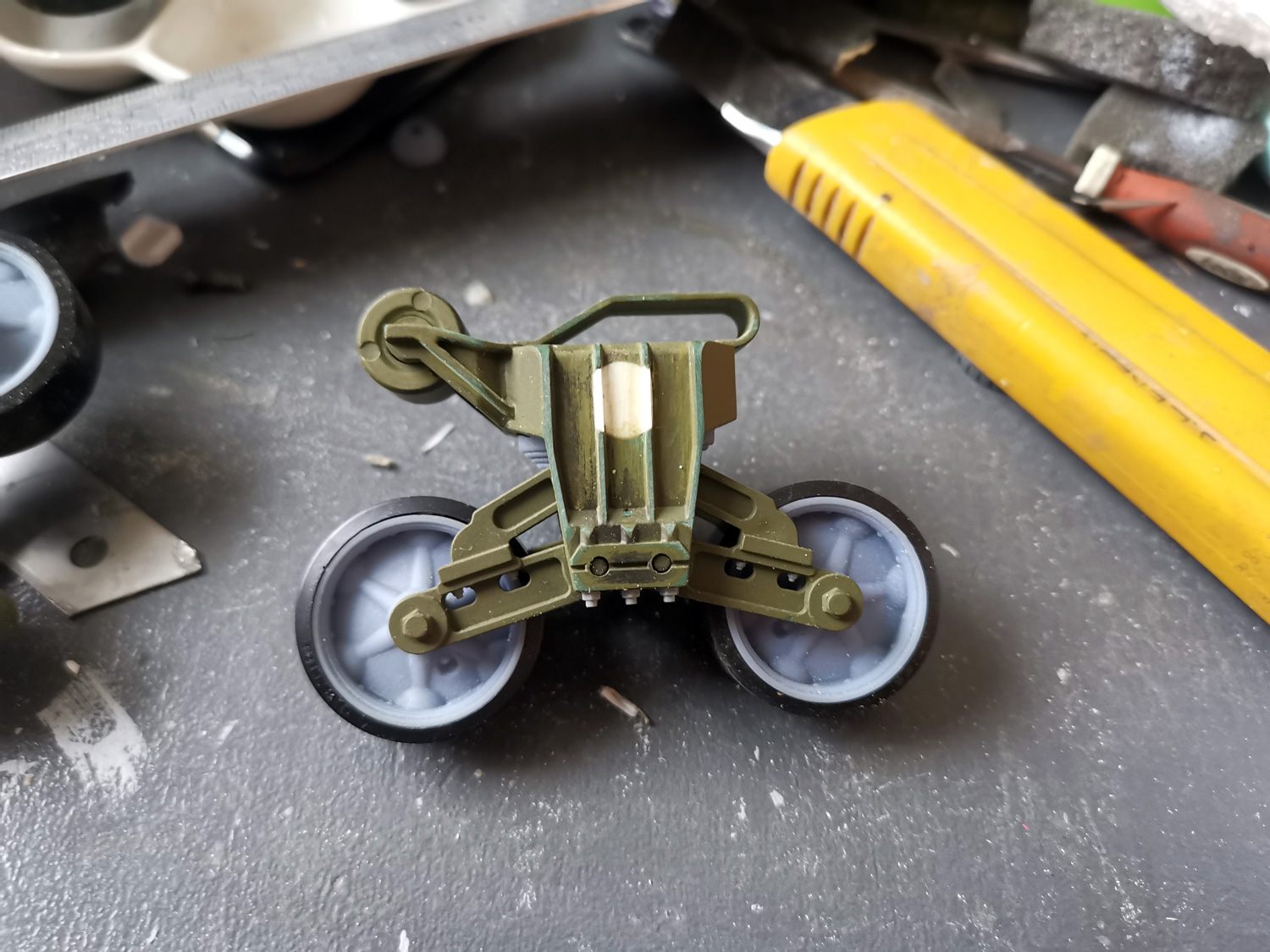

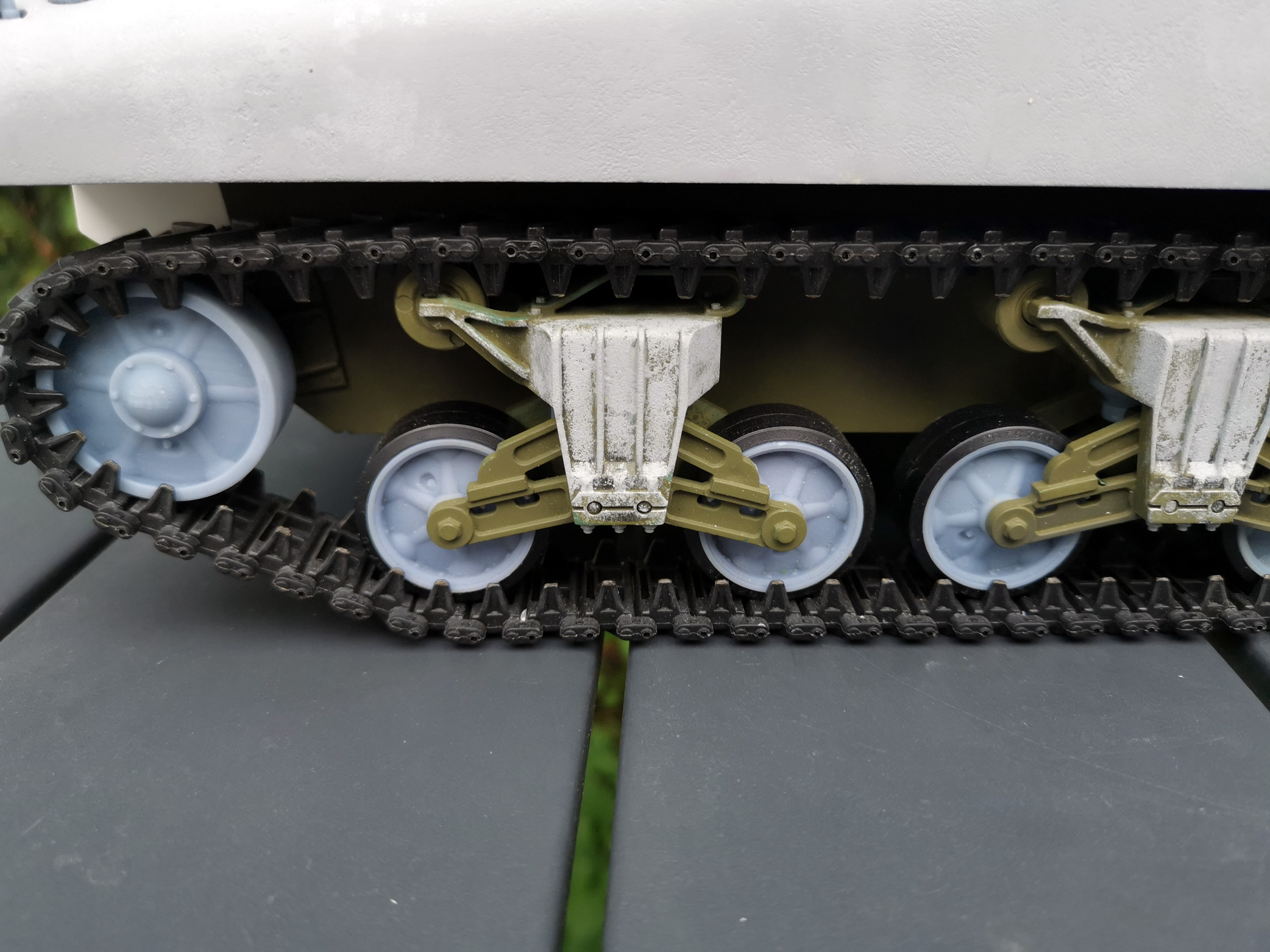

I spent some time on the HL suspension units. They're far from perfect so I thought I could improve them a bit. First step was to fill the screw hole. They will be permanently glued to the chassis. Then I added several bolts and nuts, and easy way to make them look better. I designed some fake volute springs to conceal a bit the crappy spring of the HL suspensions.



They were textured and 4 holes have been drilled to the front (because there was no right or left casting but only one and the return roller brackets could be bolted either way).

The 1/16 Archer resin casting numbers were too big for the foundry casting numbers of the suspension units so I ordered the 1/35 version to see if I can use them. Maybe they'll be too small, I don't know, I haven't received them as of yet.

[MonsieurTox]

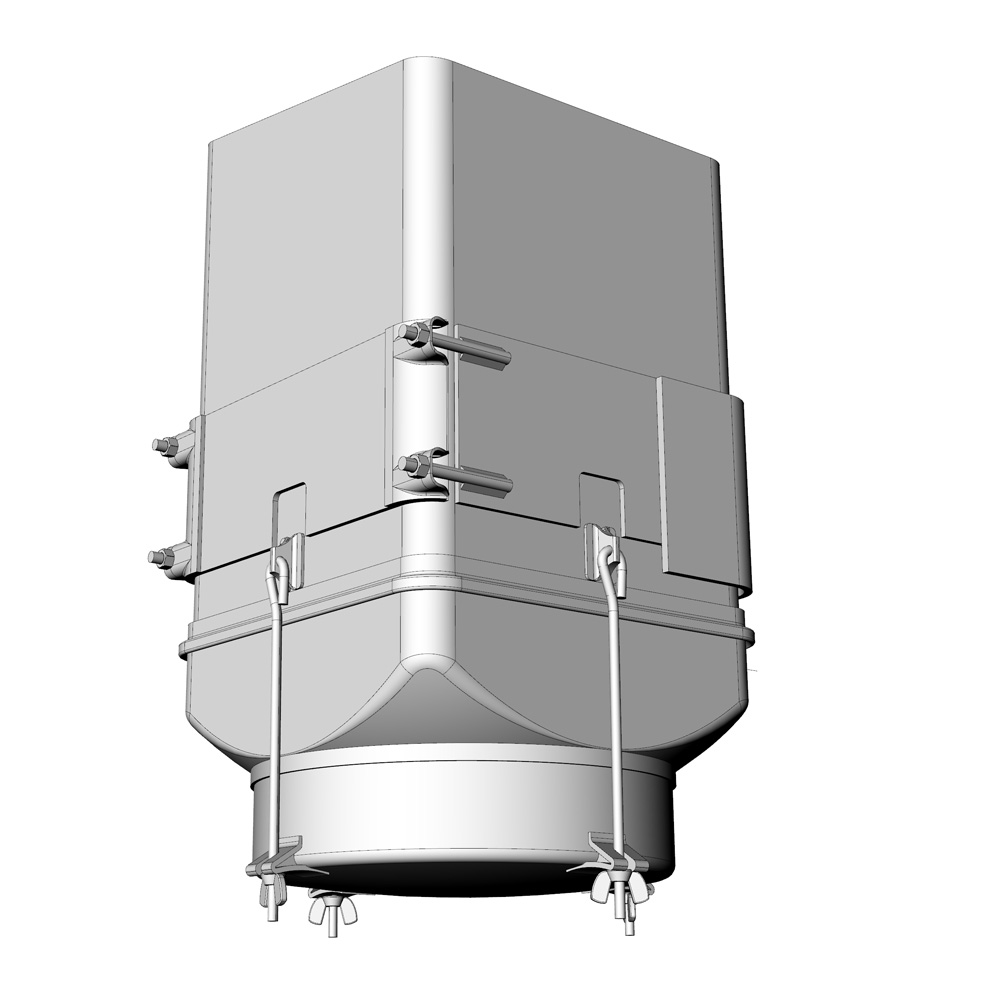

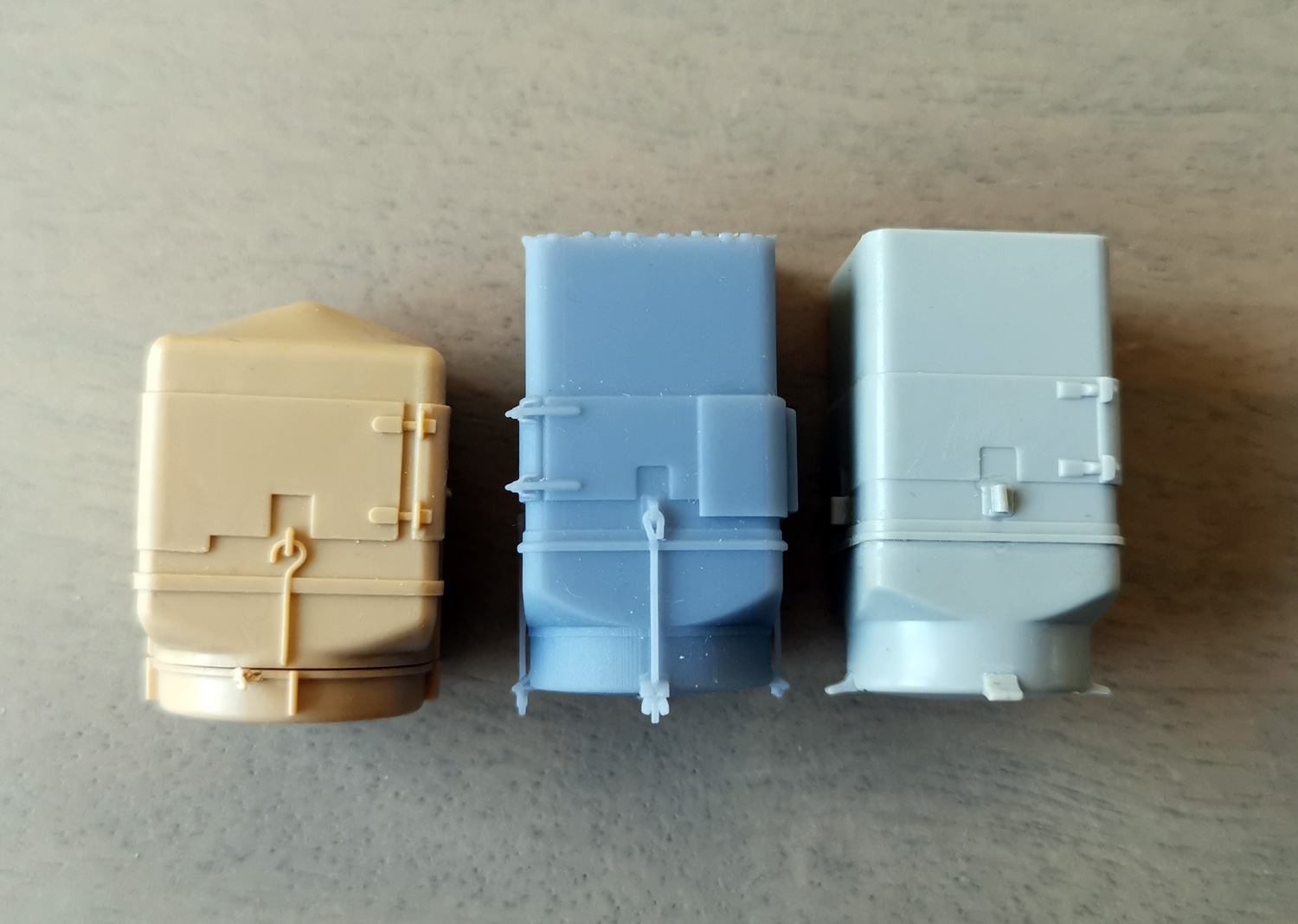

I 3D modeled and 3D printed the square air cleaners. The Tamiya ones (tan) were too big and the Trumpeter/I Love Kit not detailled enough to my taste.

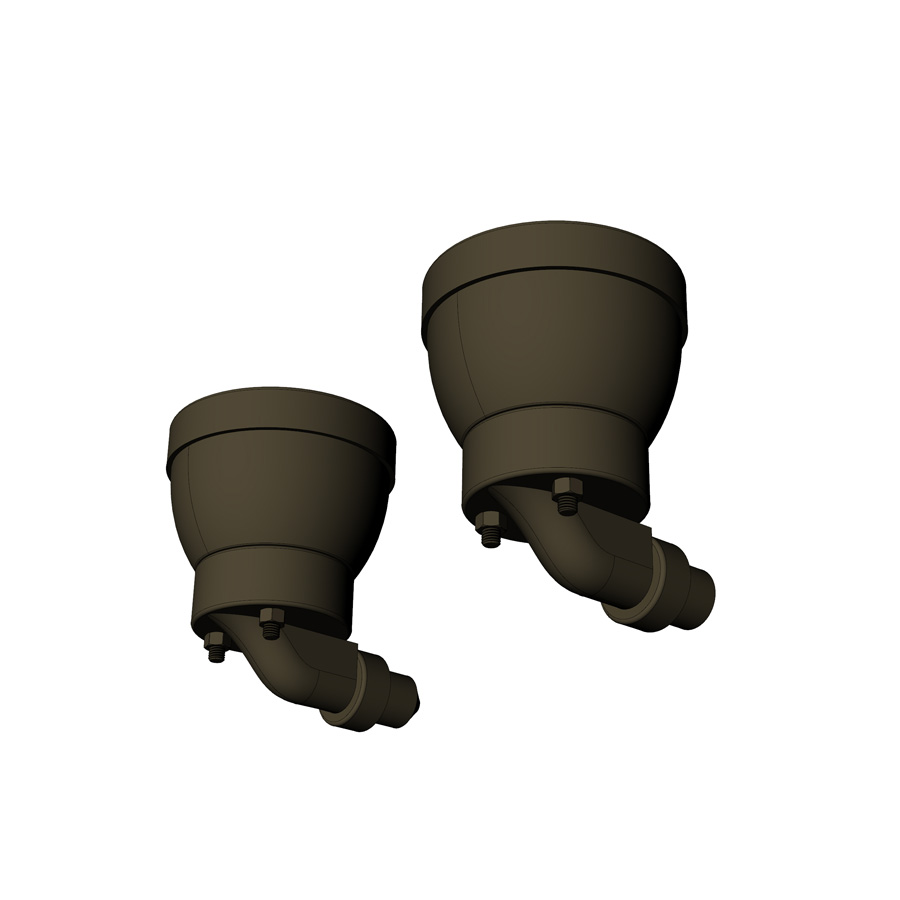

I've also designed some other parts like the exhaust and mufflers :

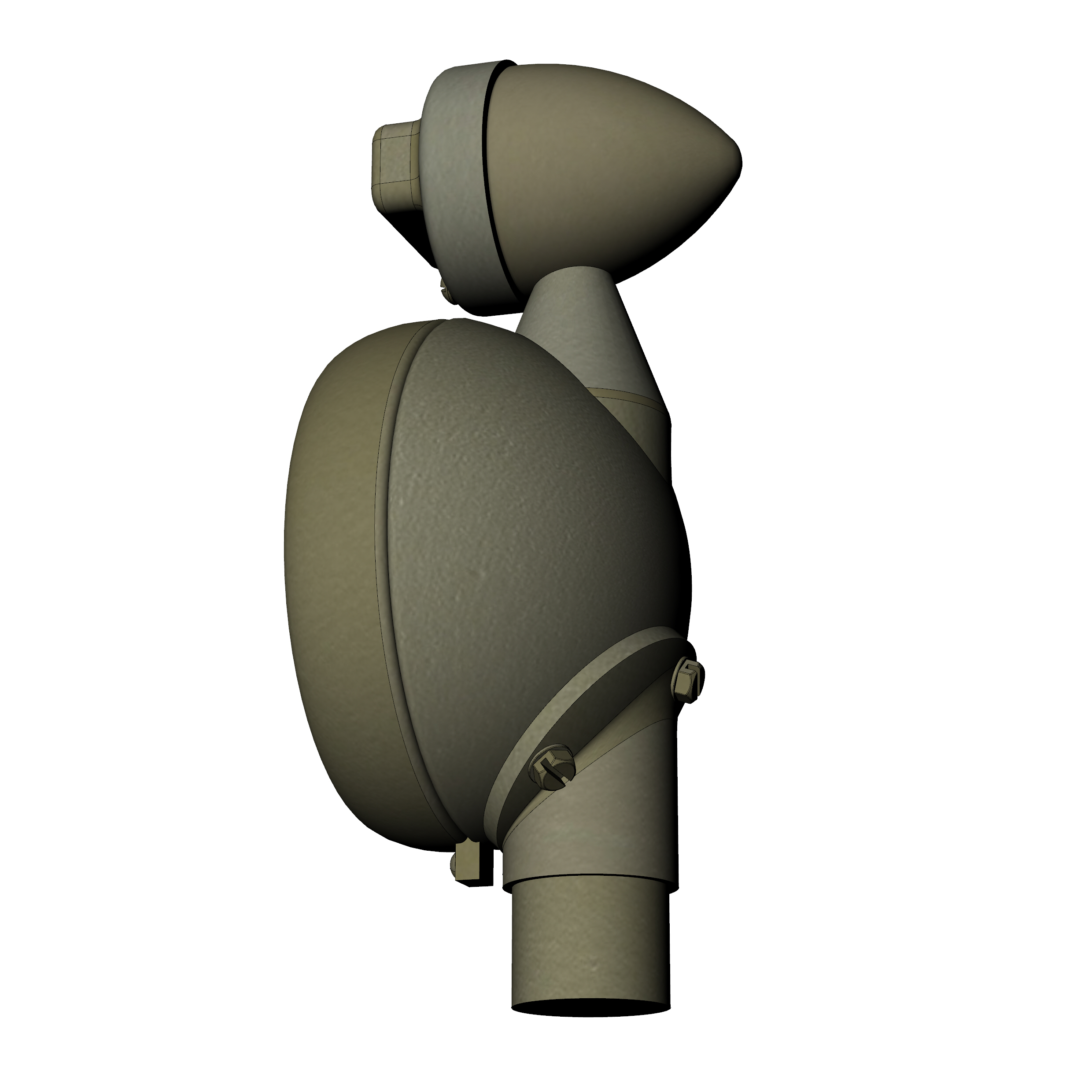

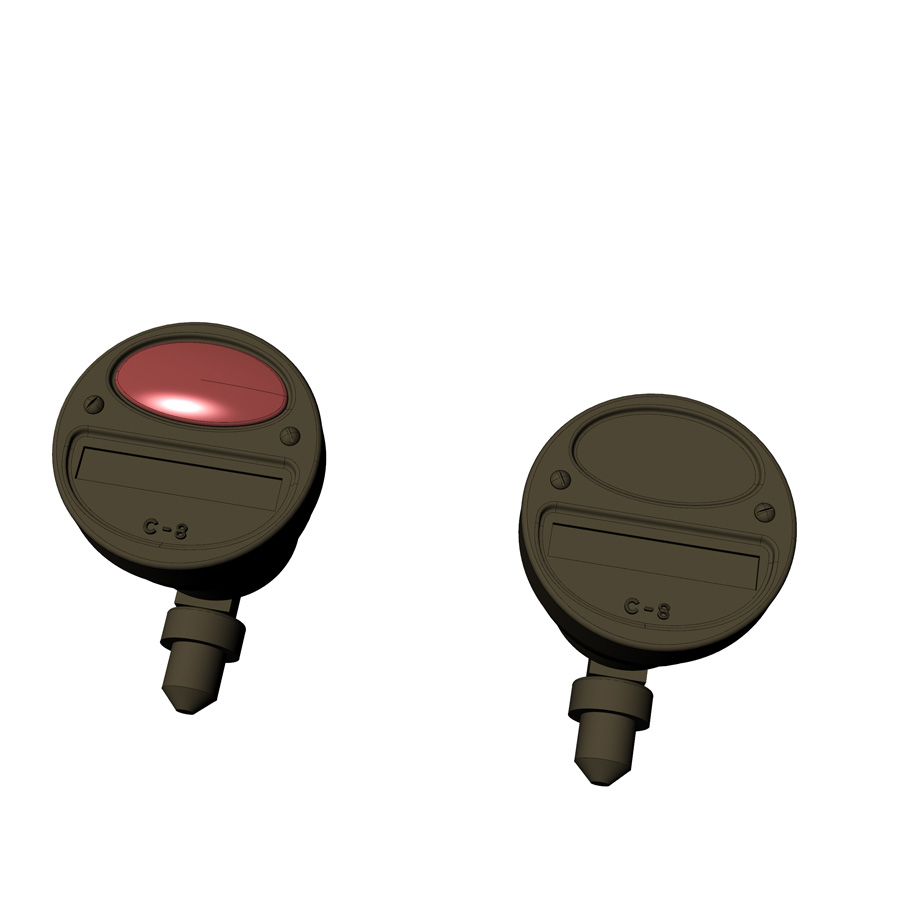

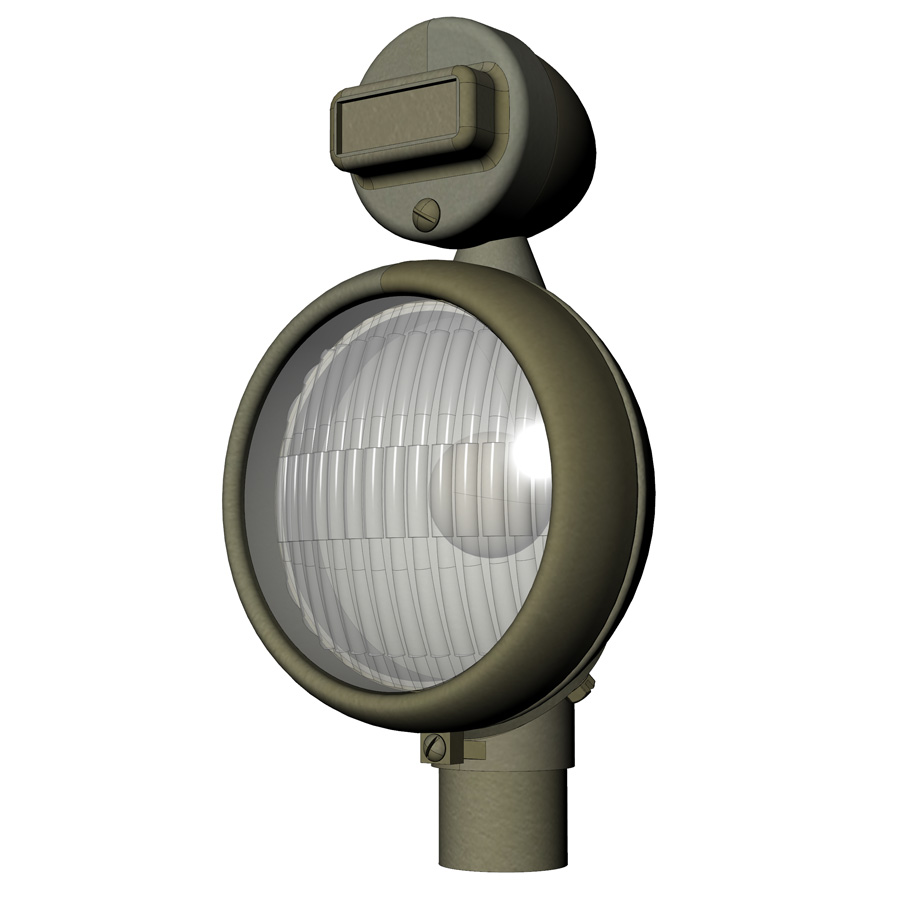

Rear and head lights :

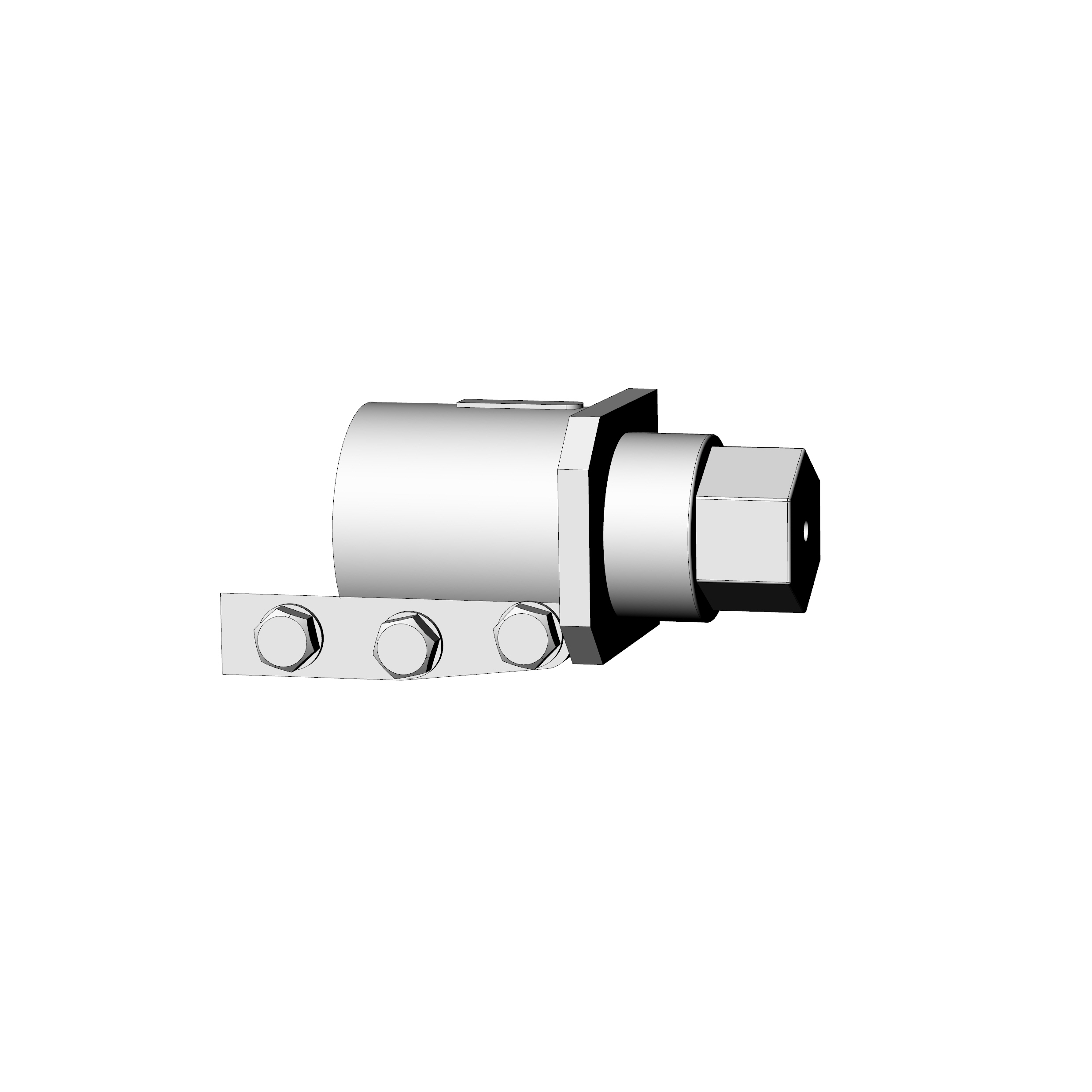

And a replacement for the HL track tensioner :


[MonsieurTox]

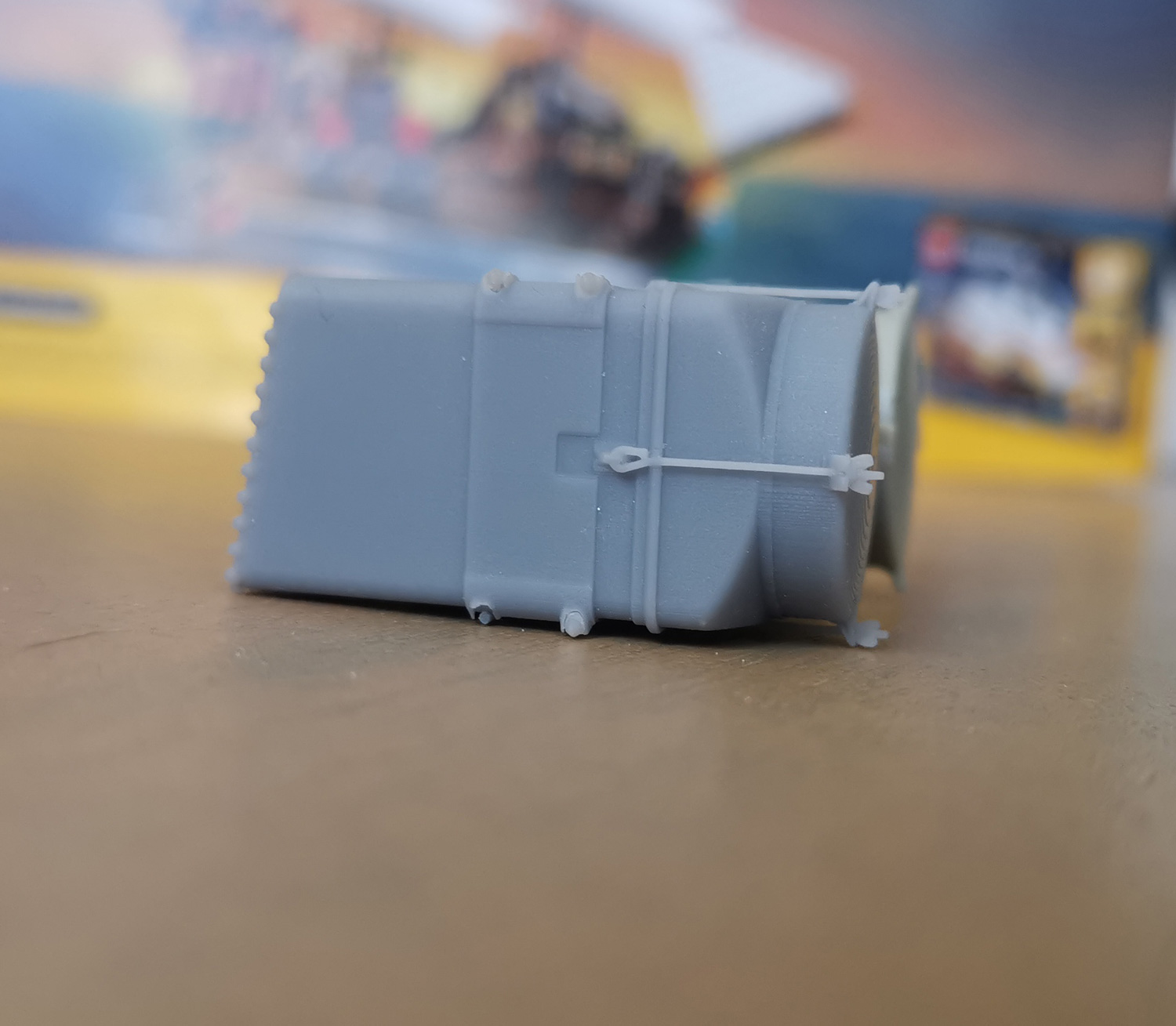

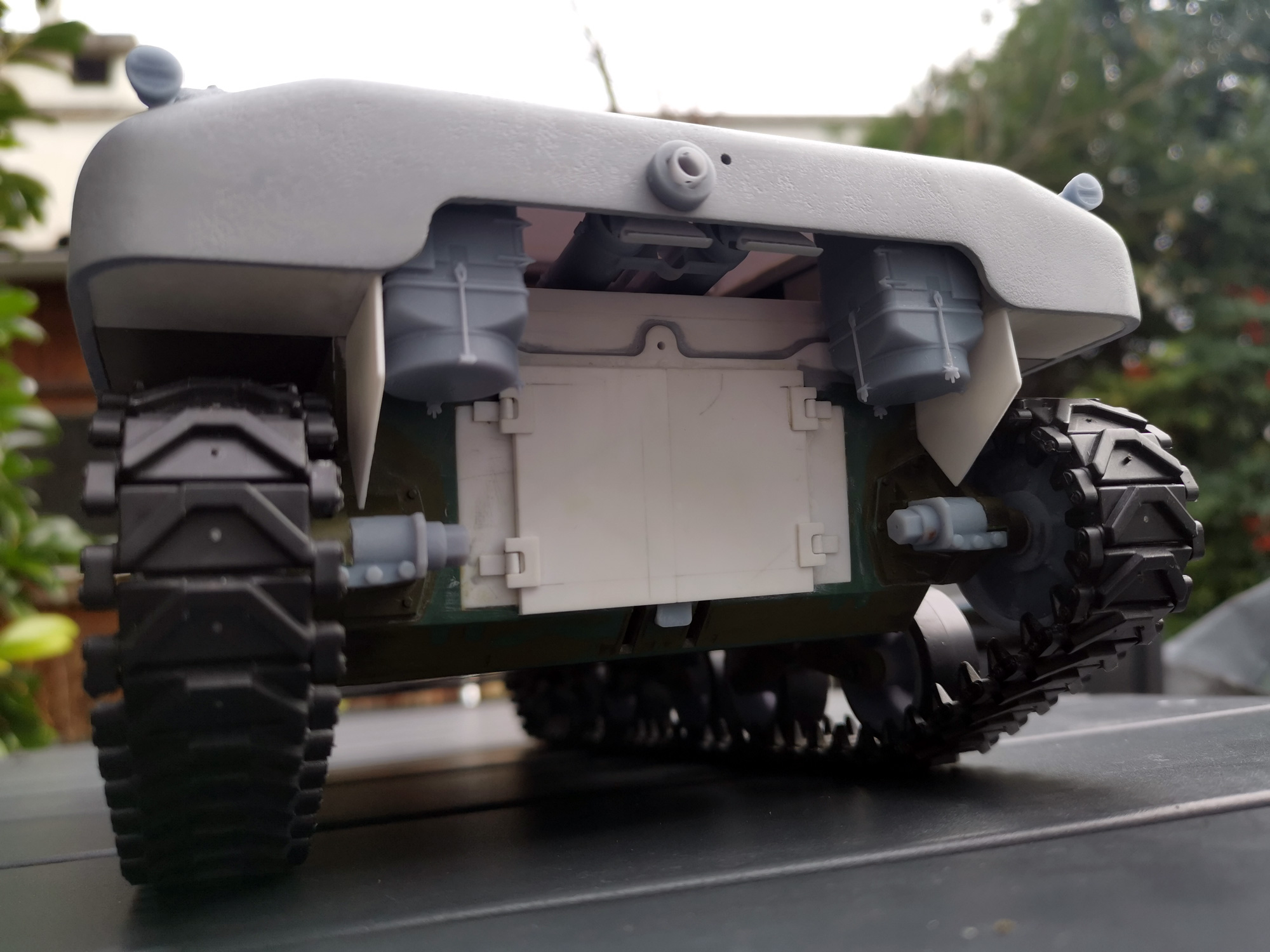

The air cleaners and mufflers in place :



The Muffler turned out pretty well but were tricky to print because of the very small thickness of the walls (0.15mm).

They are hollow and can be plugged to a smoker but to be honest I don't like smokers, it just doesn't like realistic enough to me. But I designed them this way in case I changed my mind and find one that produce realistic smoke.

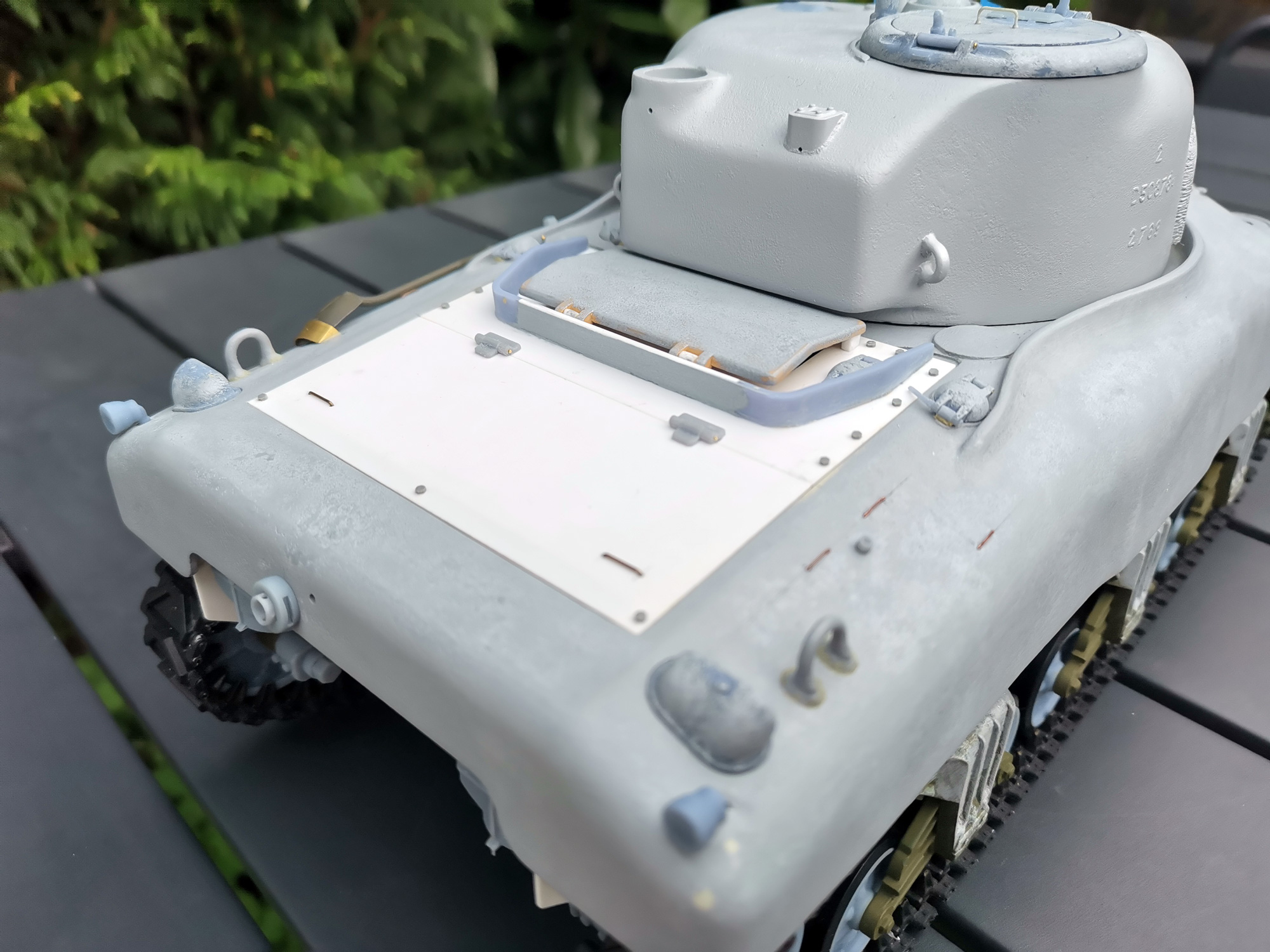

I worked on the engine deck doors. They are now permanently attached to the hull. I designed scale hinged so the rear door can be opened :

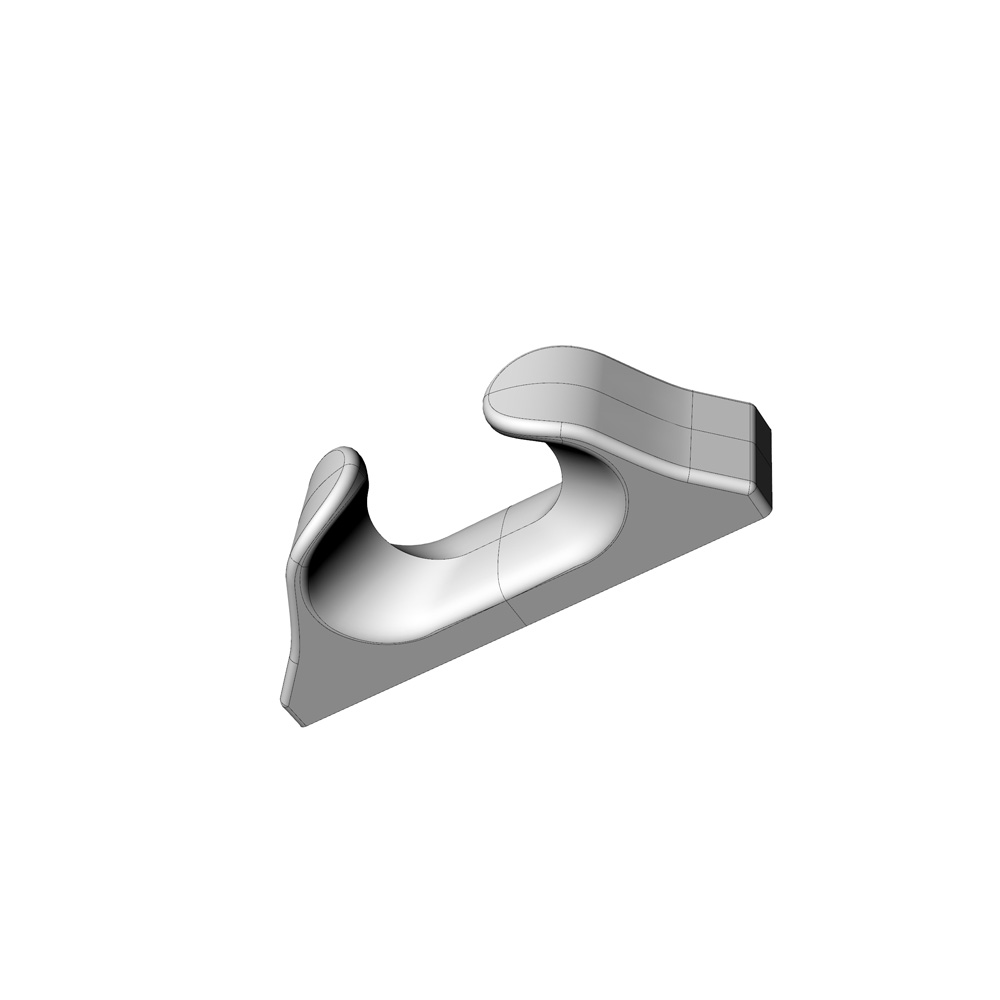

I 3D modeler and 3D printed the "cable hooks", I don't know how it's called, I tried to reproduce it faithfully :



[MonsieurTox]

The American Steel Foundries Granite City Works symbol (the "G" in a octogon) is 3D printed. Maybe it stands out a bit too proudly but I could not do a lot thinner and they are pretty raised on the original.


I then milled the recessed area in front of the driver and gunner hatches of the hull. I made them 1 mm shorted and I was not able to fit the episcope covers.

I love to machine hulls or turrets, it feels like what they were doing on the 1:1 castings when they were machining every opening and mating surface. But that's a bit stressful.


Episcope covers in place :


[MonsieurTox]

Now the lights and siren guards.

Once again they were designed in 3D then I produce 2D plans out of them.

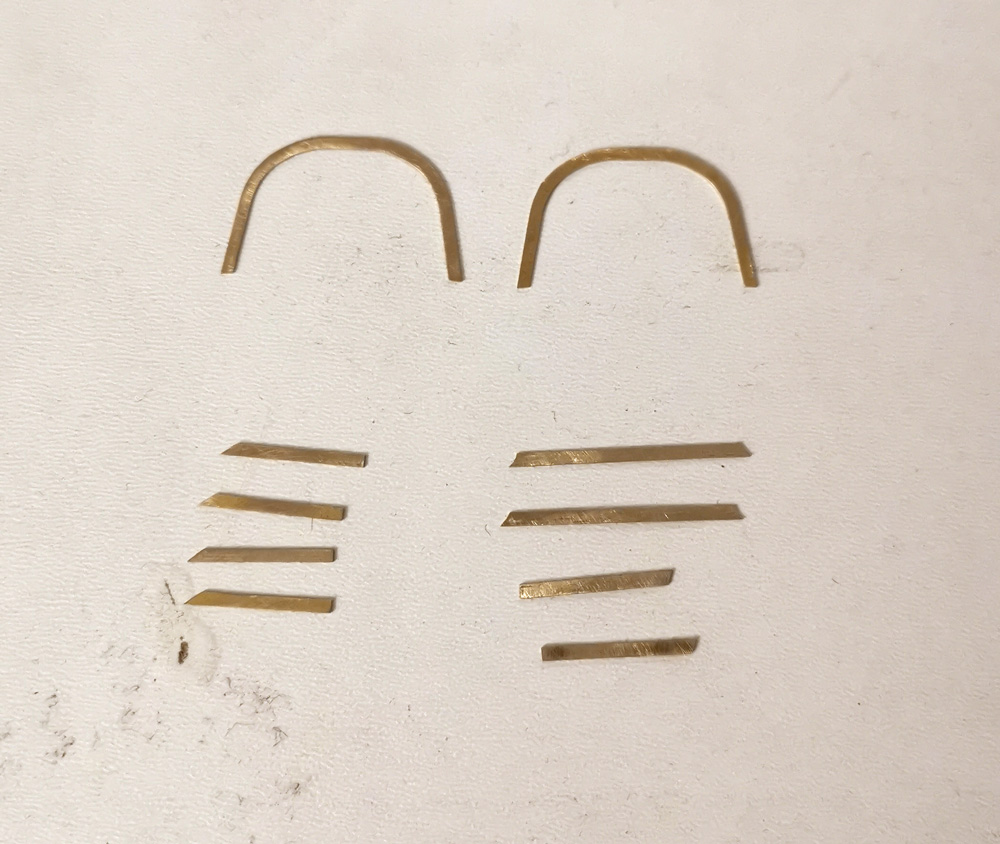

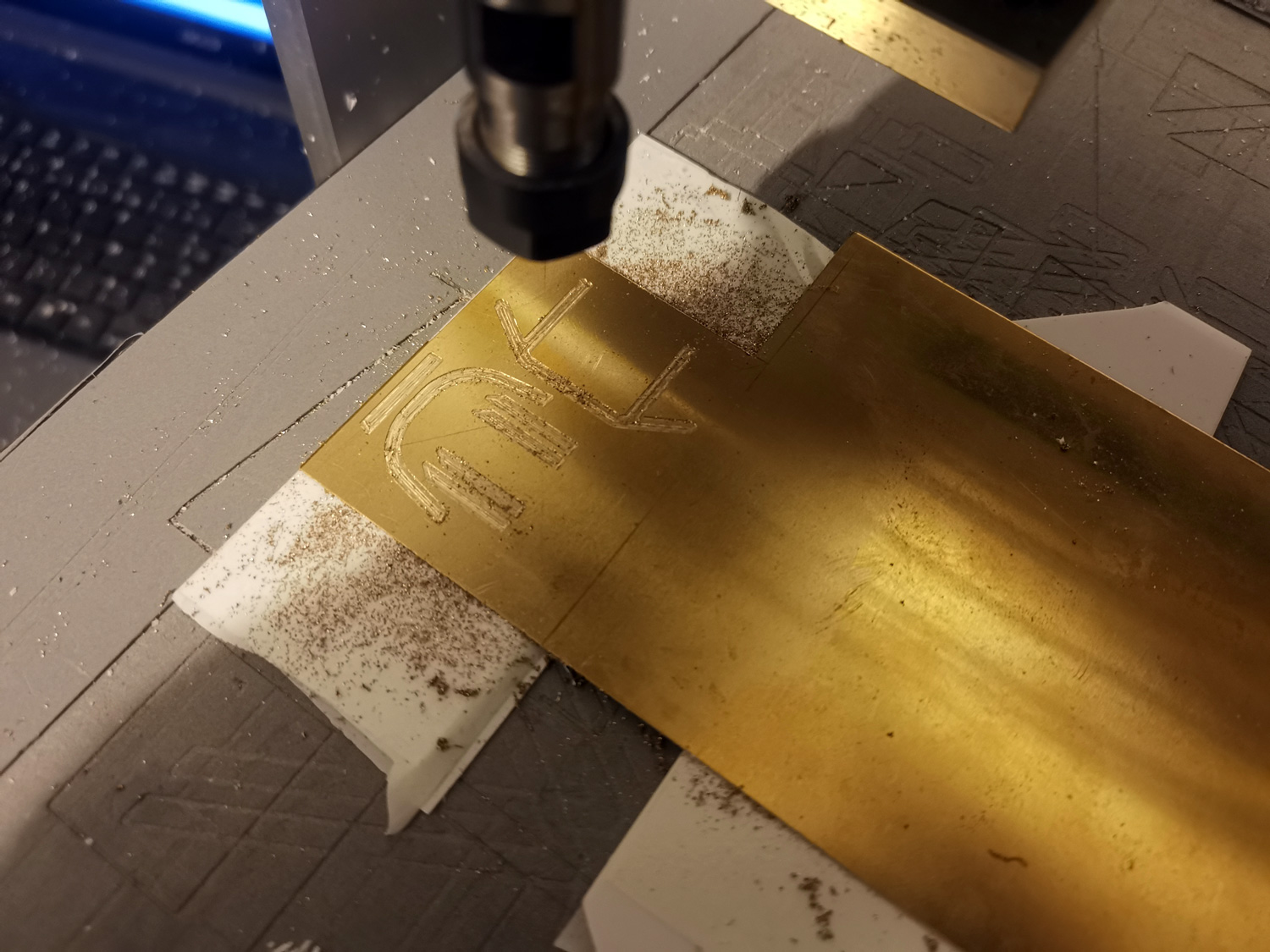

They were milled with my CNC. I used a 1mm milling bit so the work was very slow. Almost 2 hours (yeah because I did not have the right thickness so I had to surface the brass to get it to the correct thickness, from 0.5 to 0.37mm.

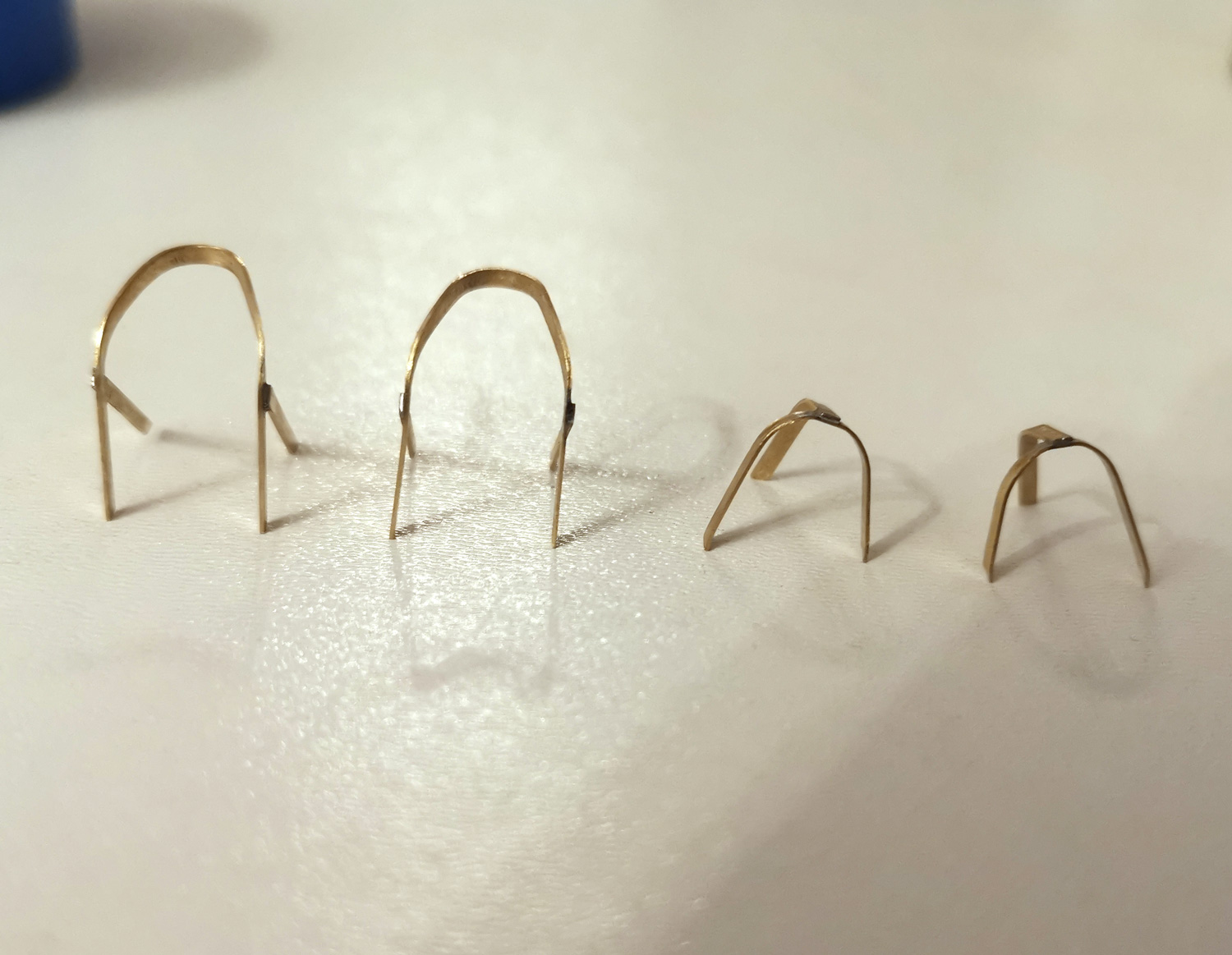

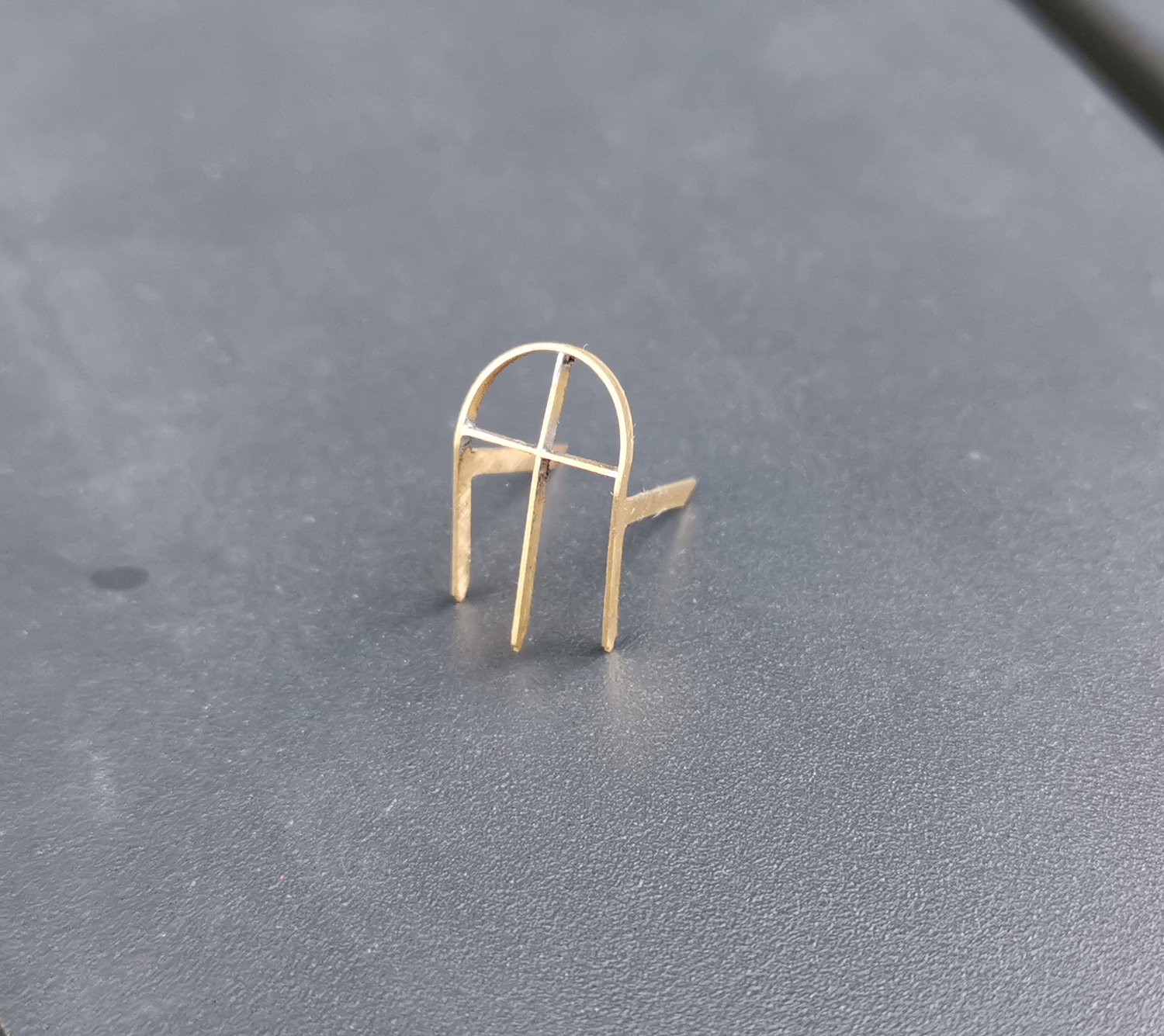

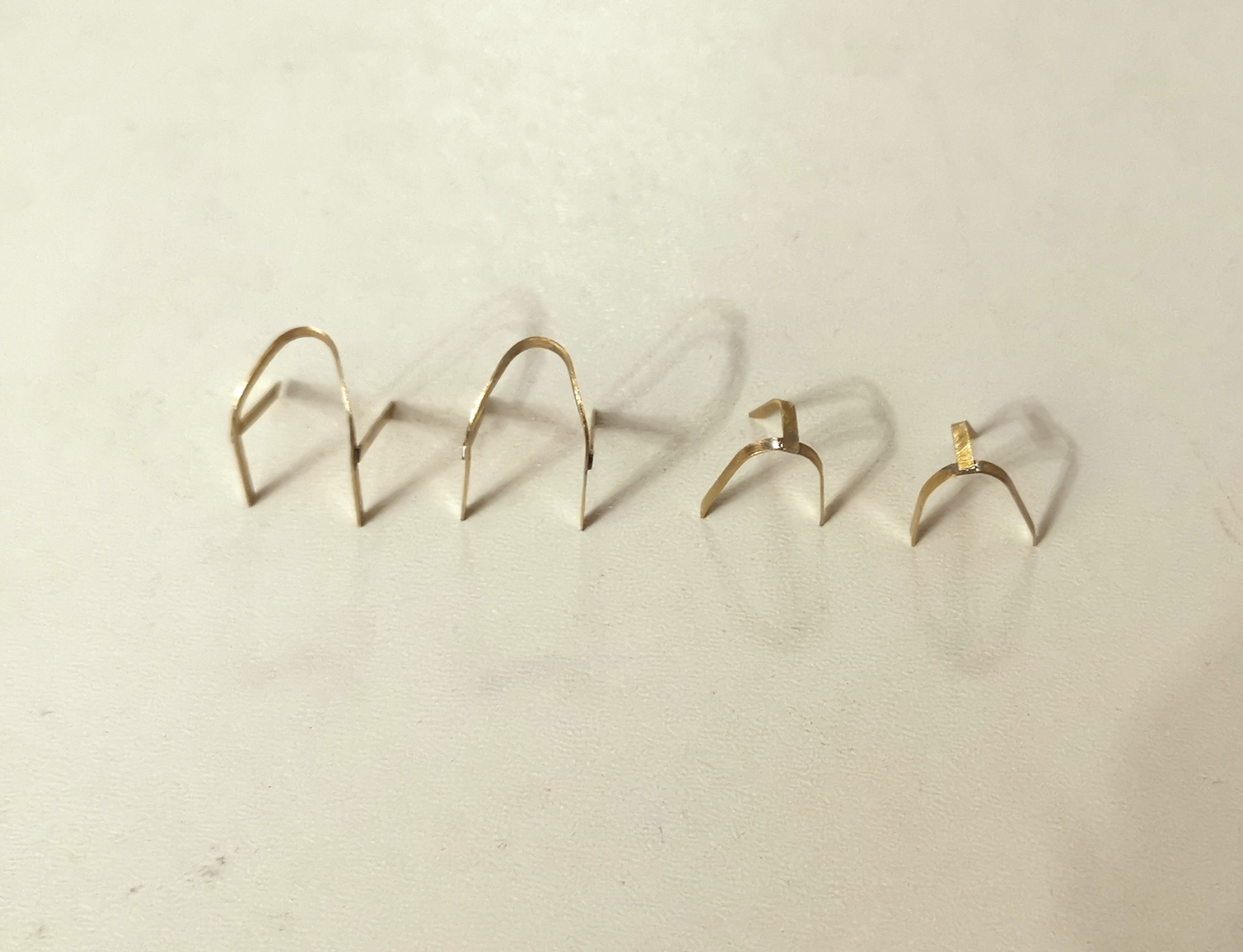

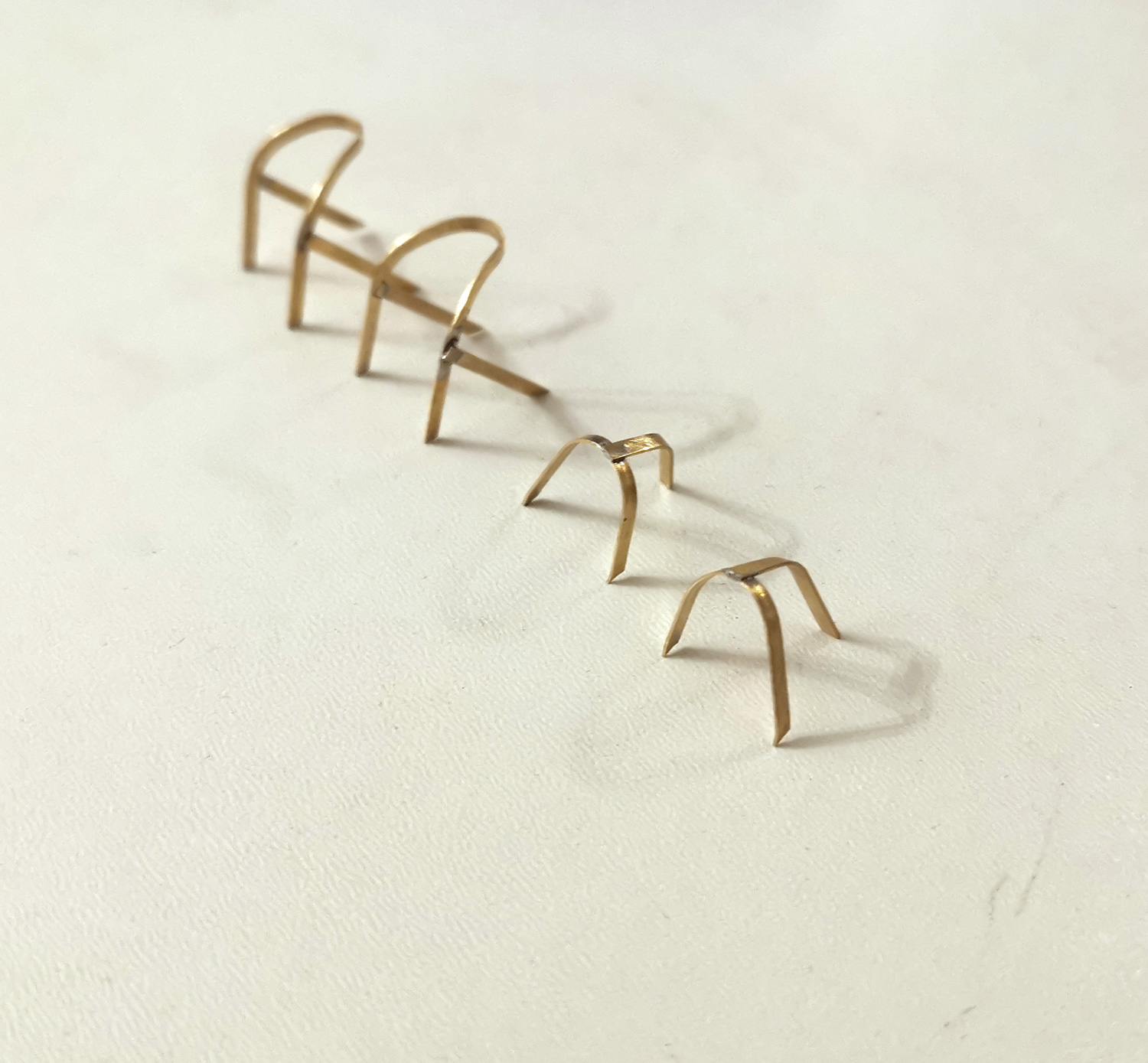

Parts were cleaning and sanded in order to be soldered and bent to the correct shape.







[MonsieurTox]

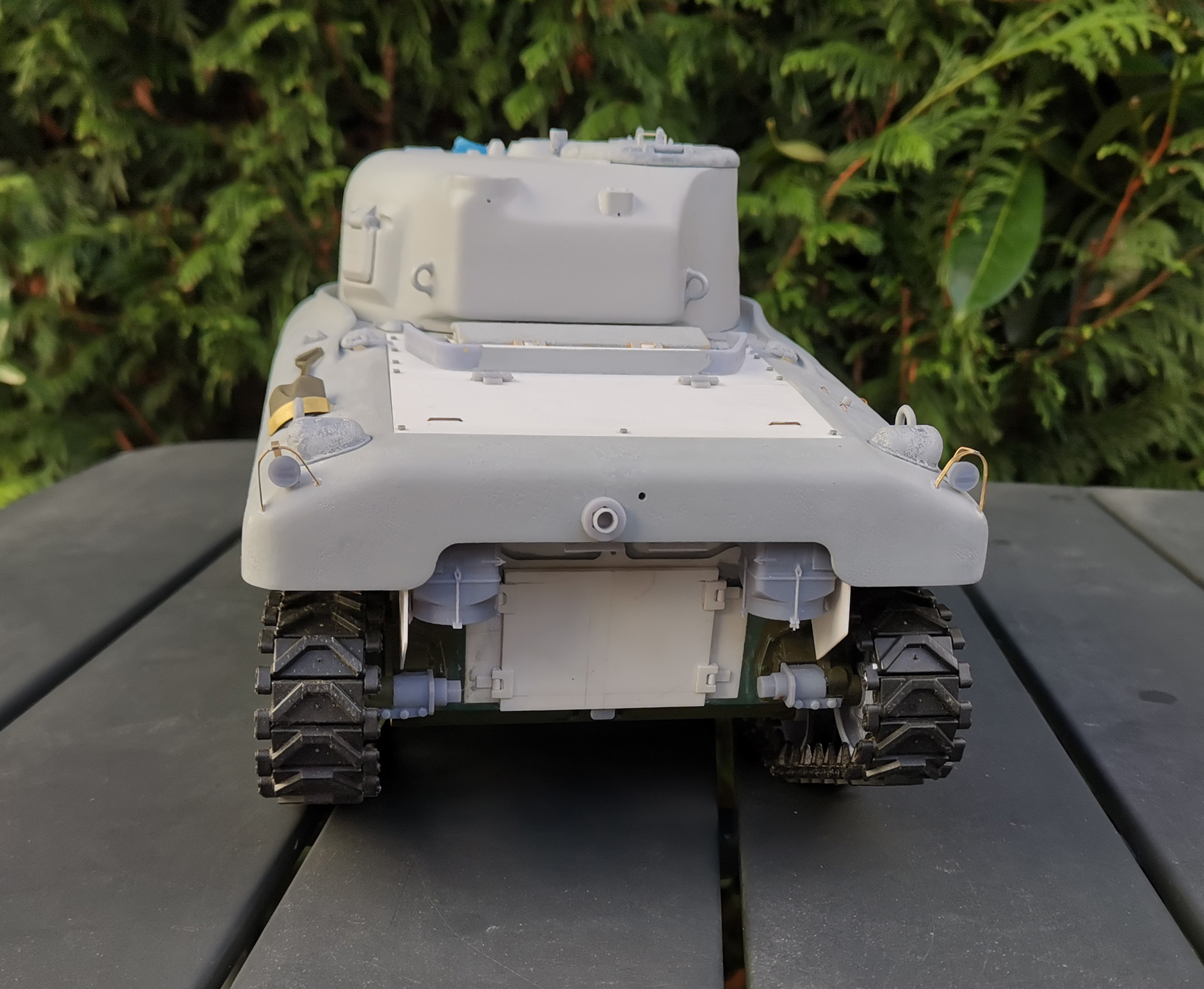

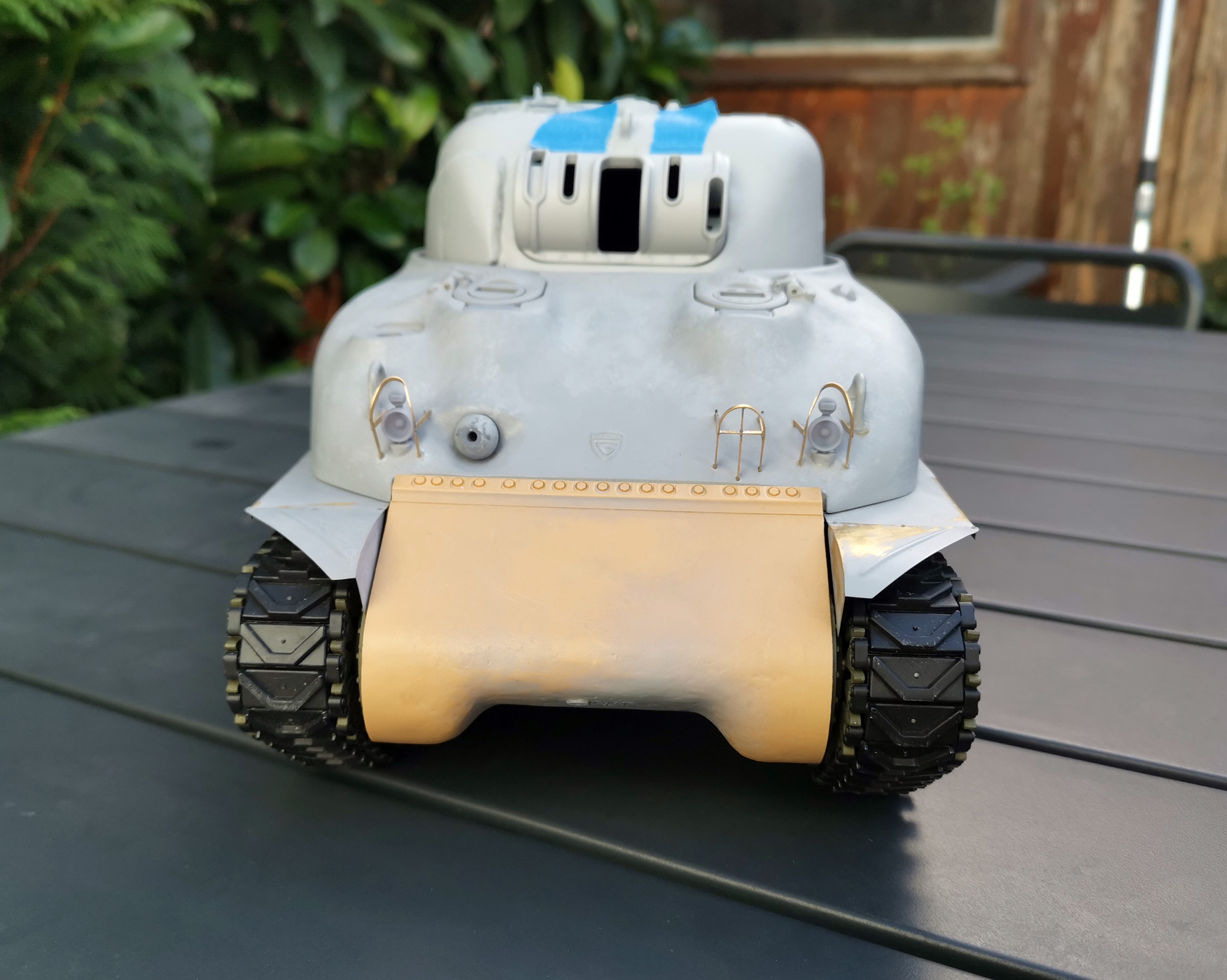

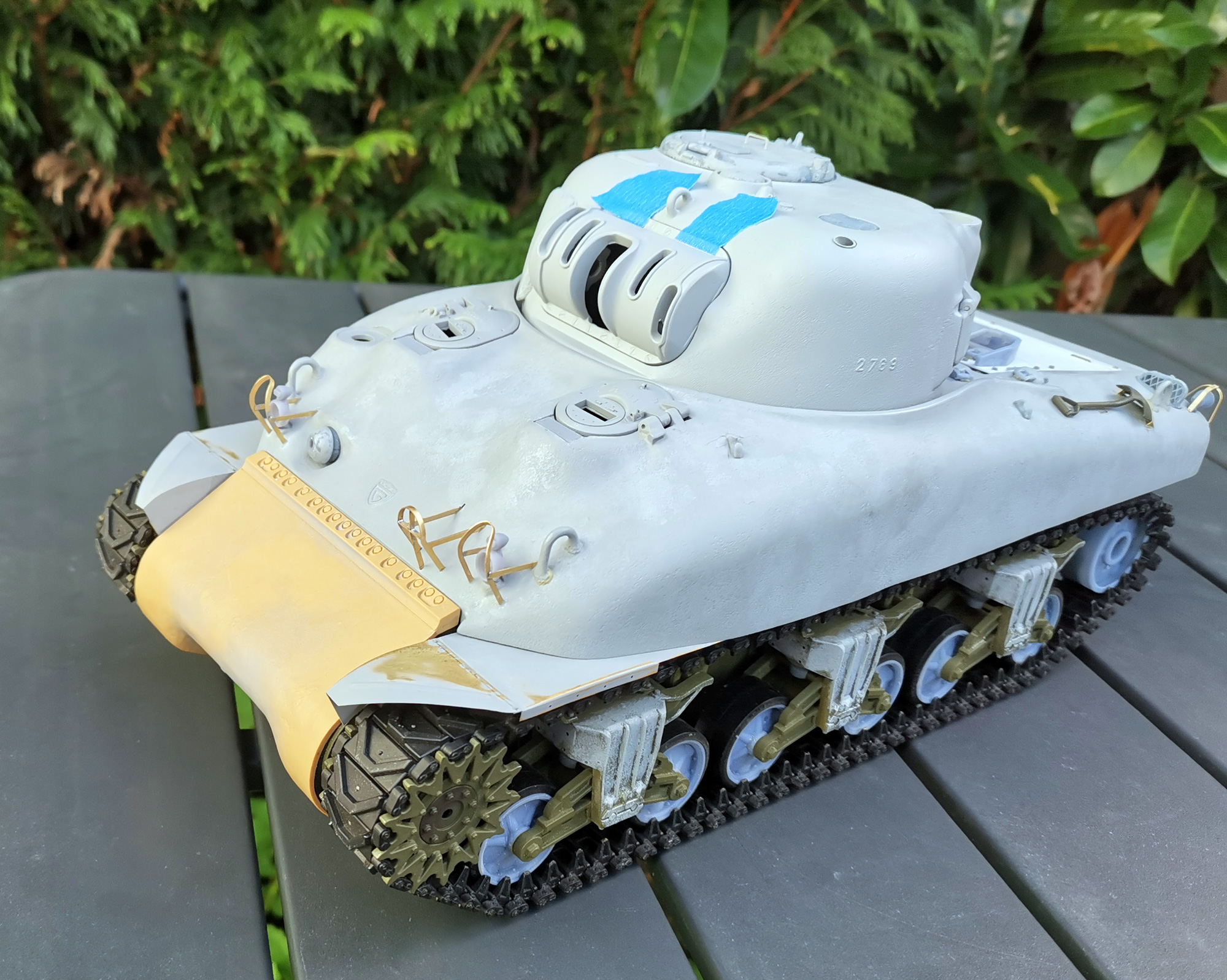

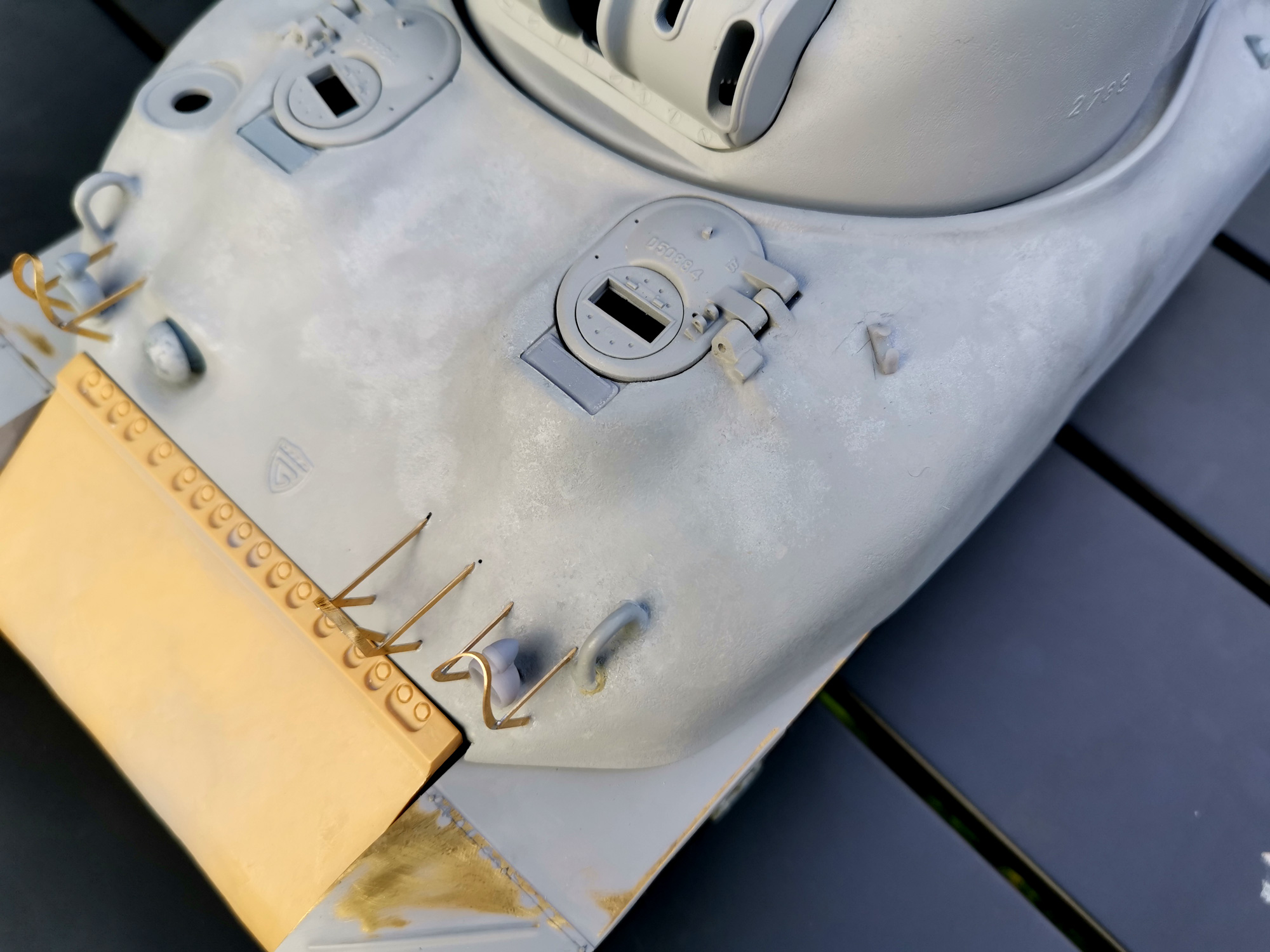

They were glued on the hull.

I did pre holes on the hull excatly where the original where welded, unfortunatly they were crooky welded lol so I straightened them a bit when I glued mine. I now have to fill some unused holes and make the weld beads.

Since this is the late iteration of the early M4A1 hull (does that make sense ?), the siren was not on the left mud guard but mounted on the glacis.

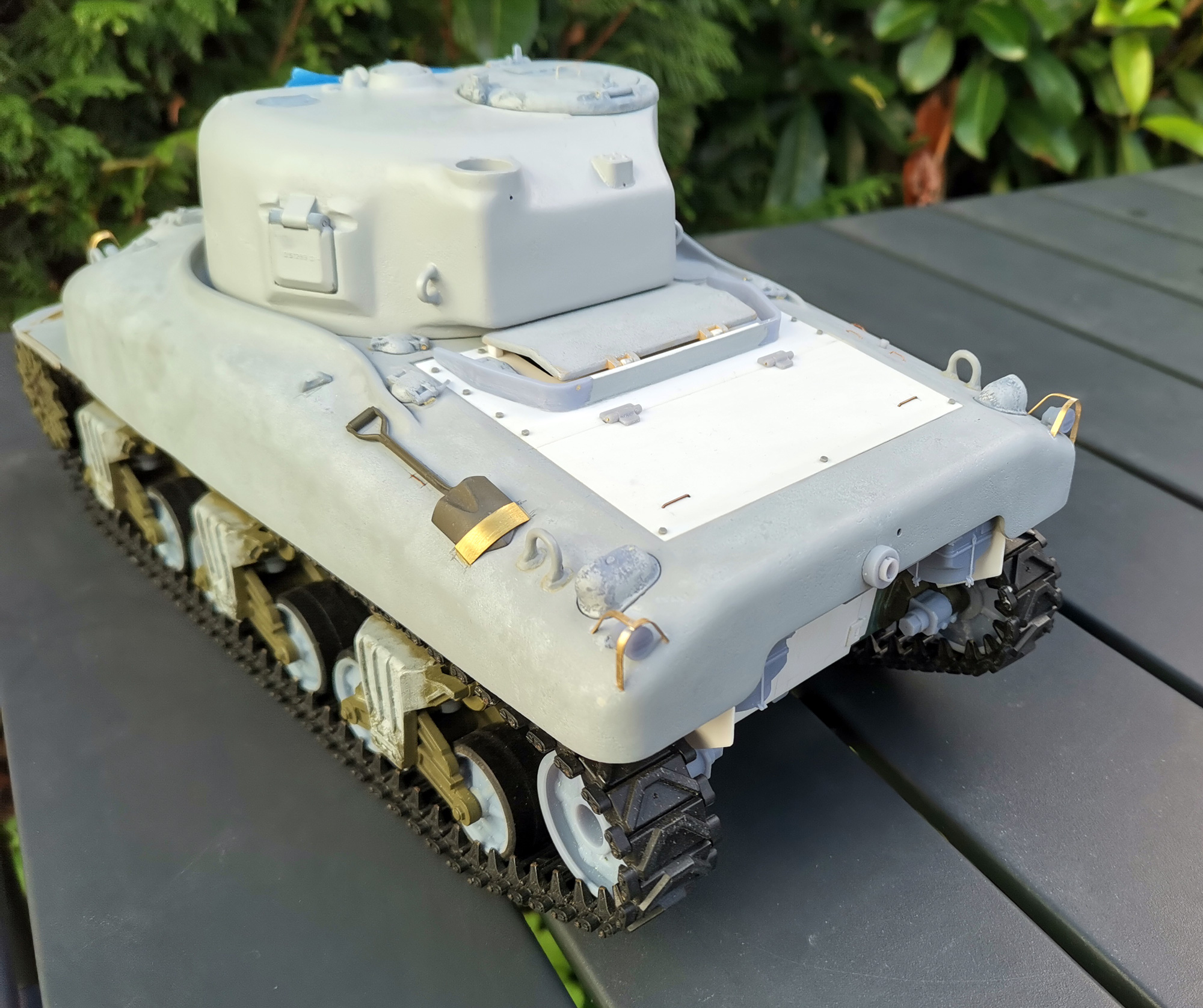

That's all for now ! Thanks for watching.
