Clark TK60 Help

[Tankinstein]

Hello, recently i have had a resistor burn out on my Clark Tk60 marked in red in my attached image.

my tank still functions fine. the only thing affected was turret horizontal movement "doesn't rotate" the horizontal motor still works too.
i am needing help identifying what replacement resistor i need to purchase & where i can purchase it in the UK,

markings brown/brown/gold/gold?

any help will be appreciated thanks.

Clark TK60.jpg (45.87 KiB) Viewed 1953 times

[Rad_Schuhart]

If the colors are correct, it is a 1.1 Ohms 5%.

But I suspect that replacing a resistor wont fix the issue. Probably one of those mosfets is toasted by now. You can replace them though.

[tomhugill]

If the colors are correct, it is a 1.1 Ohms 5%.

But I suspect that replacing a resistor wont fix the issue. Probably one of those mosfets is toasted by now. You can replace them though.

Usually the resistors pop before the FETs, especially on the large form boards I've repaired a few

[Tankinstein]

aye they seem fine, i tested with a multi meter with a tutorial online.
gonna have a search now for the 1.1 Ohms 5% resistor
thanks

[Jofaur86]

Hello, here is an easy solution to know the value of a resistor,
https://fr.farnell.com/calculatrice-cod ... resistance
Sorry, but in French

[Tankinstein]

does anyone know what the wattage is for the 1.1 Ohms 5% resistor on the tk60? just wanting to make sure i order the correct one cheers

[Jofaur86]

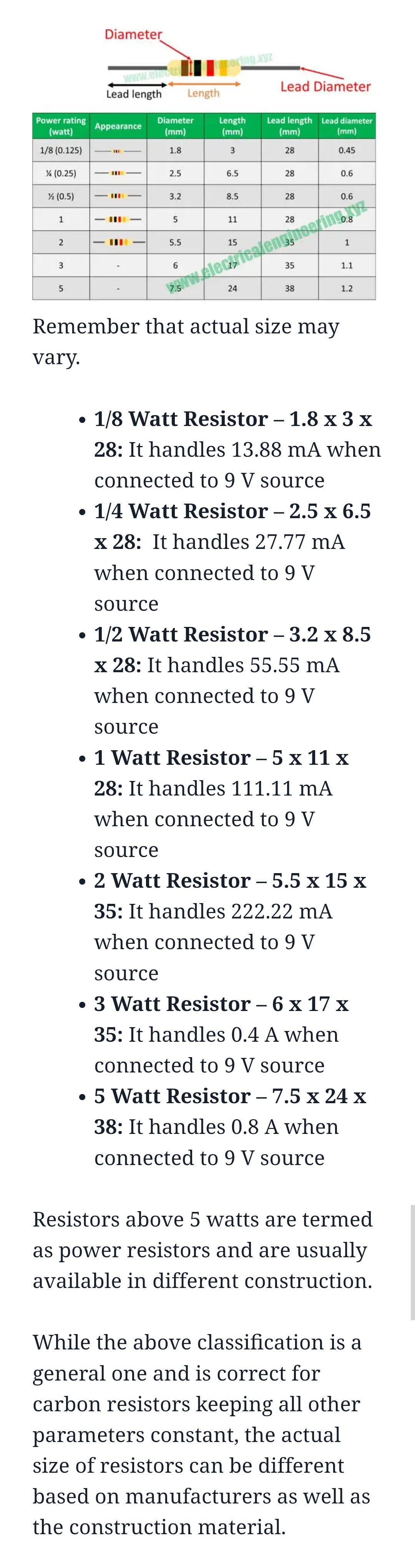

I would say 1/2 watts diameter 2.5 mm Length 6.5 mm
1 watt diameter 3.2 mm Length 12 mm, approximate dimensions according to the manufacturer? but in doubt? 1 watt would be more favorable, it's only a question of dissipation, so who can do more? can the least
as "Rad" says, not sure if there is only resistance? Let's see....

[Son of a gun-ner]

The wattage is important if the resistor doubles as a fuse. Dimensions do vary slightly between manufacturers.

[Tankinstein]

Thankyou all for your help, I am still having issues trying to find where to buy the exact replacement.

[Jofaur86]

Thankyou all for your help, I am still having issues trying to find where to buy the exact replacement.

Bonjour, do you get paid? Isn't it electronic, in your country? Depanneur, sinon on the Internet to develop a revenue, with a volume of 10 units, as many as three cents of the time.
