Schamlturm for 3d printing

[jee]

looks very good!

[Edumardo]

Thanks for the feedback

Let's go with the details of the turret, I don't have a resin printer and I have to settle for the filament one, but I like to print everything to check the assembly and fit. The only part I haven't printed are the losterkennungstafeln, or poison gas detection panels.

Note: what you see in the photos is not a final version ready to paint, but rather a "proof of concept" that everything is where it should be

The assembly of the outer disc with two screws, and the small tab to fix the barrel guard in place:

Imagen de WhatsApp 2023-10-18 a las 22.46.45_f783109a.jpg (86.87 KiB) Viewed 2202 times

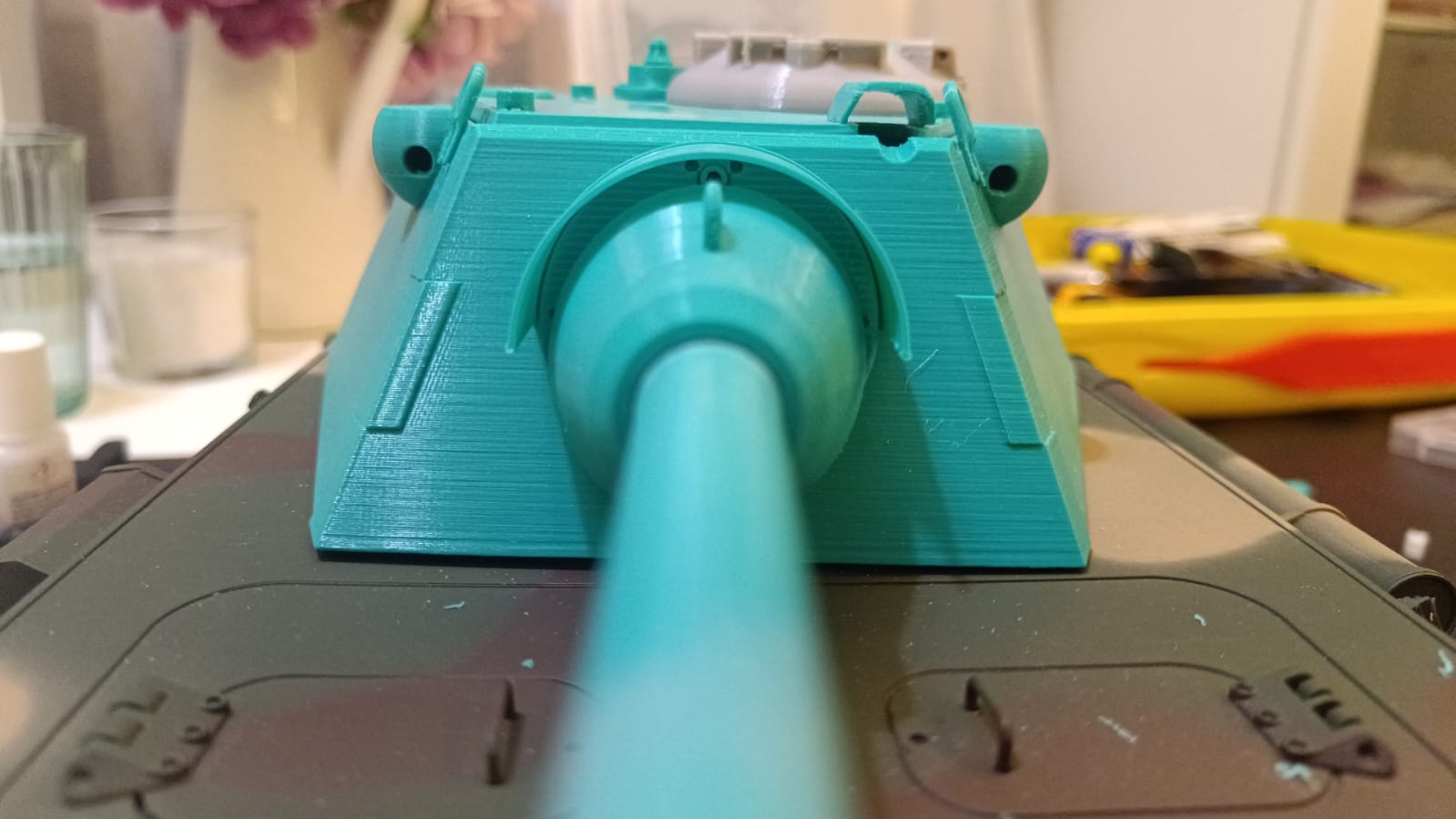

Front and sides:

Imagen de WhatsApp 2023-10-18 a las 23.18.25_04f491f1.jpg (107.22 KiB) Viewed 2202 times

Imagen de WhatsApp 2023-10-18 a las 23.18.53_f4682437.jpg (103.46 KiB) Viewed 2202 times

Imagen de WhatsApp 2023-10-18 a las 23.18.01_5f35c3b8.jpg (116.91 KiB) Viewed 2202 times

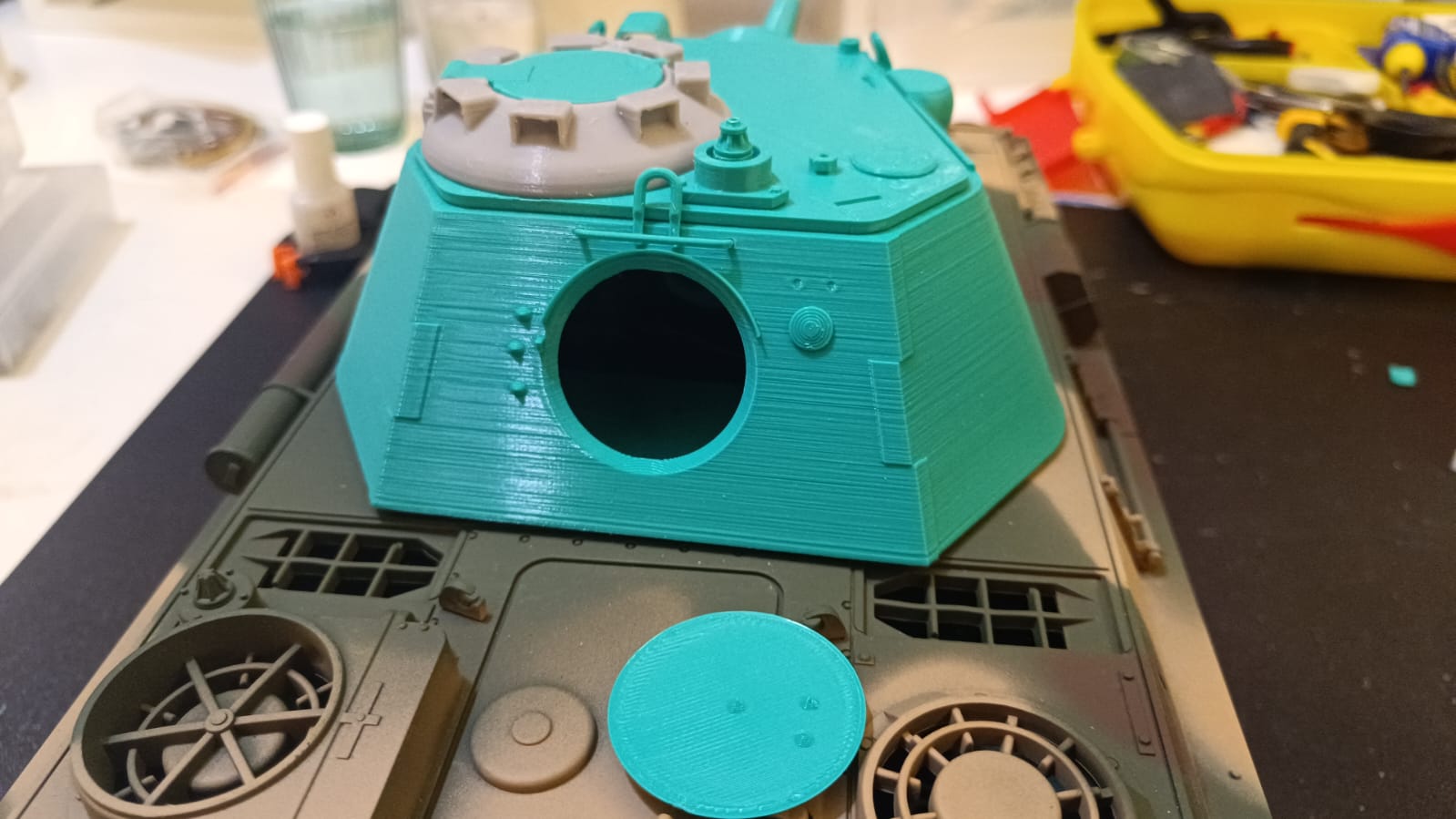

Historically correct or not, I used the rear hatch to put the barrel in place

Imagen de WhatsApp 2023-10-18 a las 23.17.42_d8c34330.jpg (127.34 KiB) Viewed 2202 times

Cheers

[Ecam]

Amazing work! I really need to learn the 3D printing thing. Am I old school or just old?

[Edumardo]

Amazing work! I really need to learn the 3D printing thing. Am I old school or just old?

3-4 years ago I didn't know anything about 3D printing or CAD design, it's never too late to learn something new
