7TP in 1/6 scale

[osa]

I decided to build this model after watching a video on YouTube by the user builtbyWikander, whom I cordially greet, and with whom I have not yet had the opportunity to exchange even a word.
I started searching the internet about tanks used by the Polish Army in WWII and came across 7TP. Enchanted by his um... strange silhouette for me, I started looking for photos, sketches, etc.

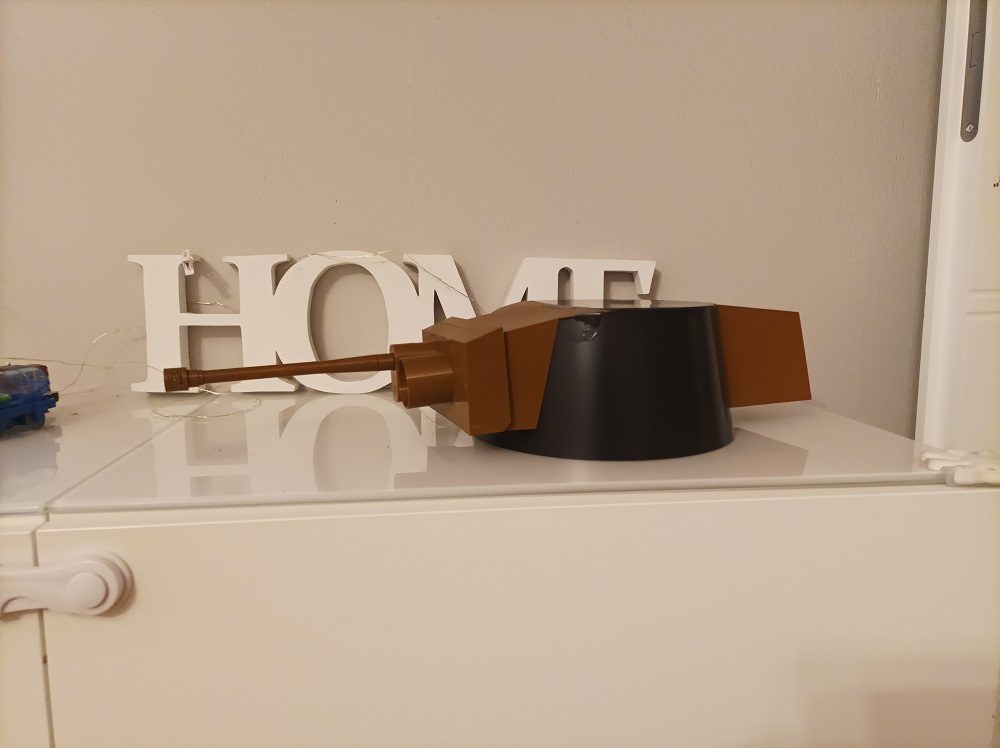

Then, in DesignSpark Mechanical, I made some sketches and created STL solids for printing on a 3D printer.
The bathtub was made of 3mm ABS boards as it used to be...

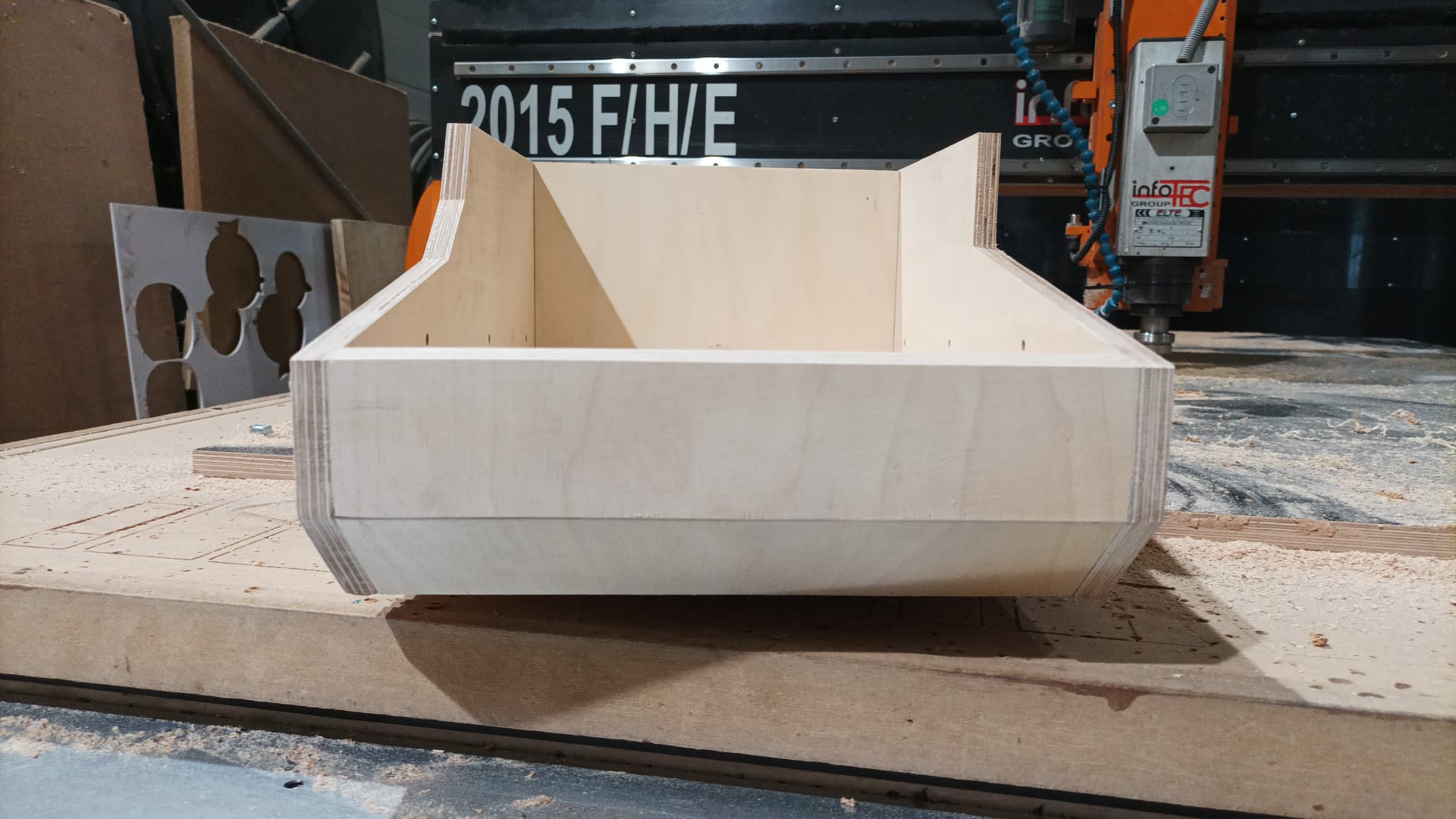

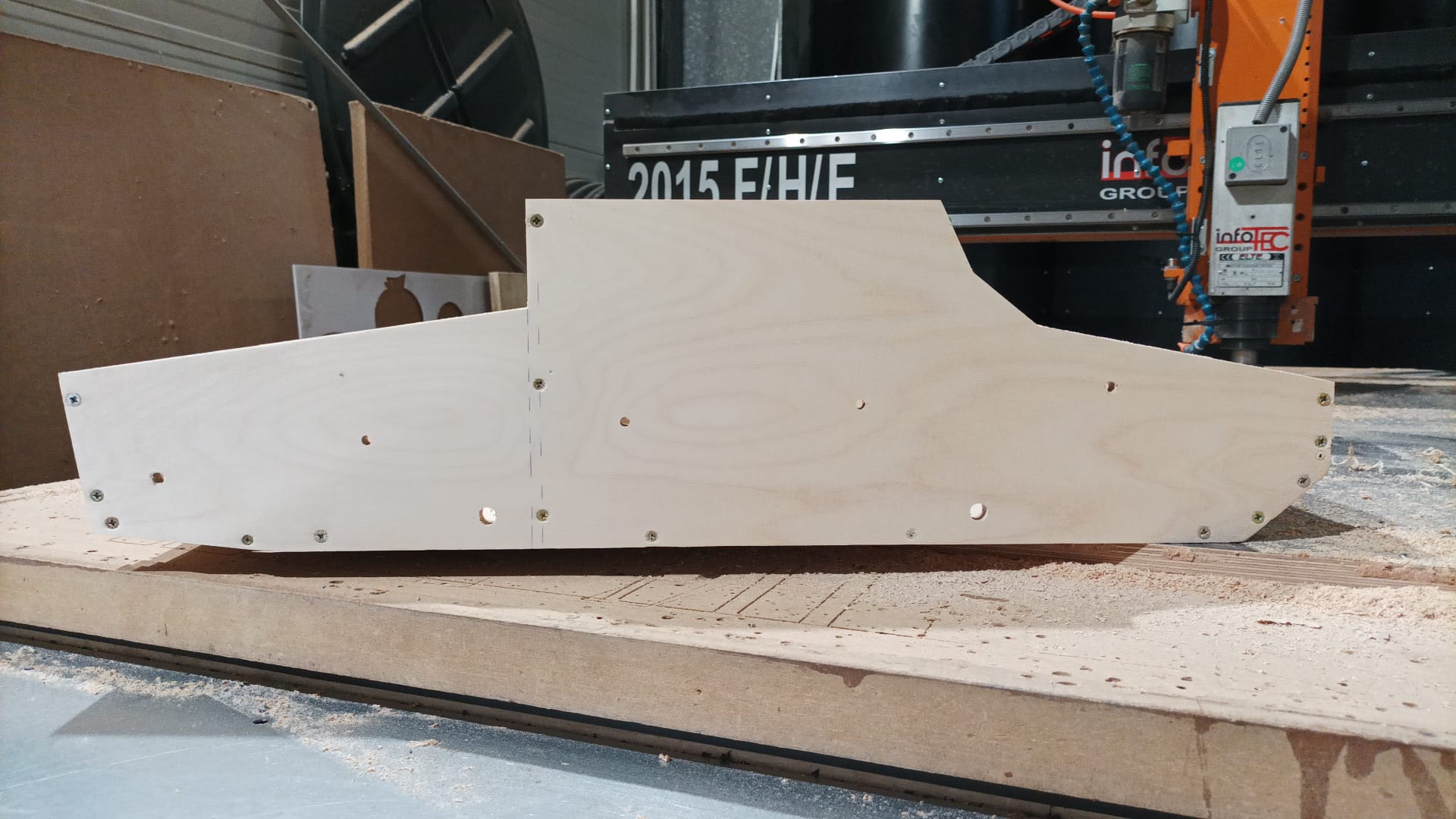

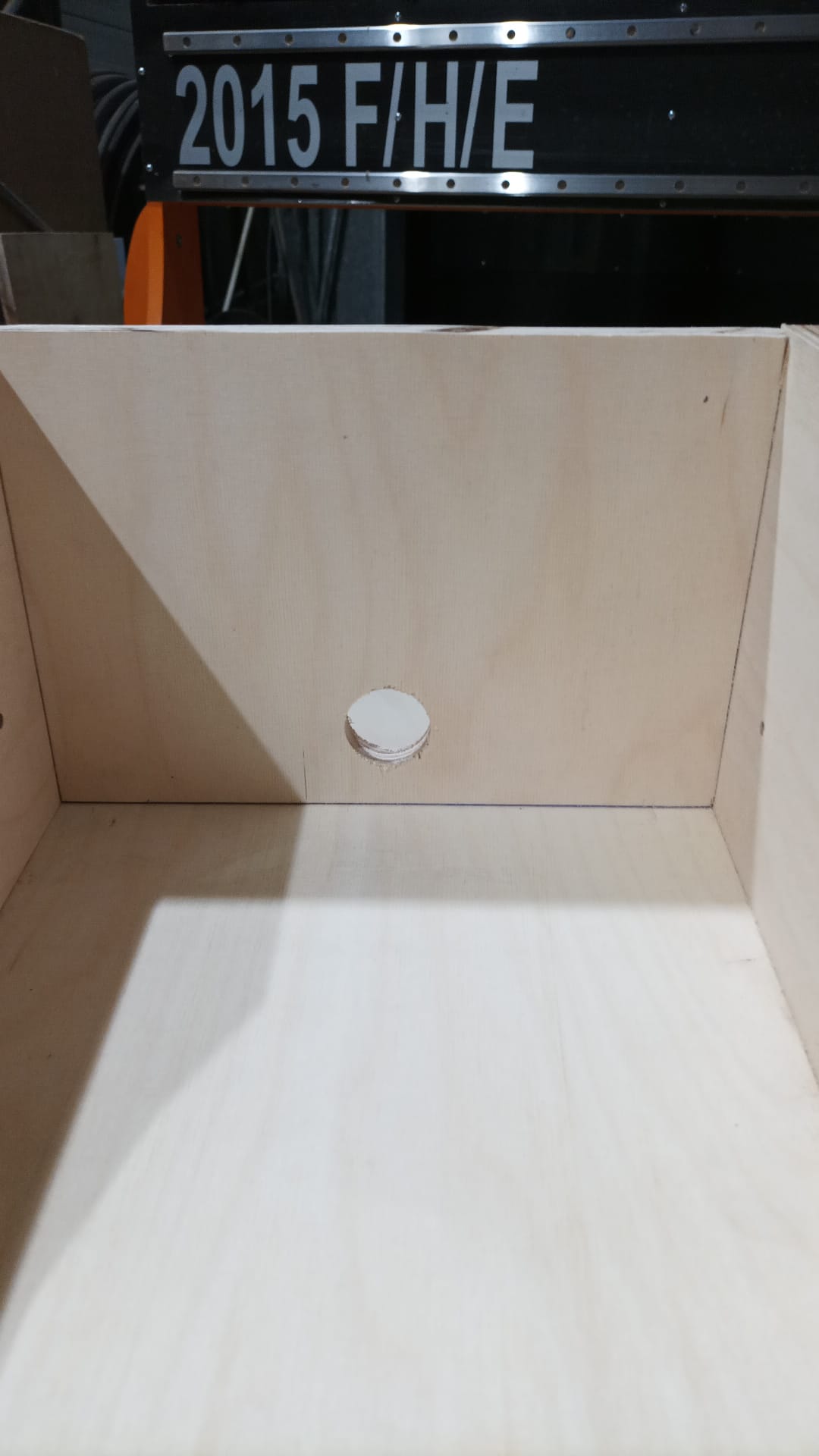

Obecnie zmieniam wannę na sklejkę 12 mm żeby wszystko było bardziej sztywne i ułatwiało montaż

WhatsApp Image 2023-08-22 at 08.10.43.jpeg (209.42 KiB) Viewed 1450 times

WhatsApp Image 2023-08-22 at 08.10.34.jpeg (80.68 KiB) Viewed 1450 times

WhatsApp Image 2023-08-22 at 08.10.21.jpeg (194.64 KiB) Viewed 1450 times

WhatsApp Image 2023-08-22 at 08.10.09.jpeg (201.7 KiB) Viewed 1450 times

[Herr Dr. Professor]

I see some interesting aspects of this 7TP project: there appears to be a wooden hull pattern and a hexagonal wrench (known in the US as an Allen Wrench), maybe for a sprocket drive axle. I would think that a hexagonal axle from a final drive gear through the hull, fitted through ball bearings could help make a strong drive assembly.

[osa]

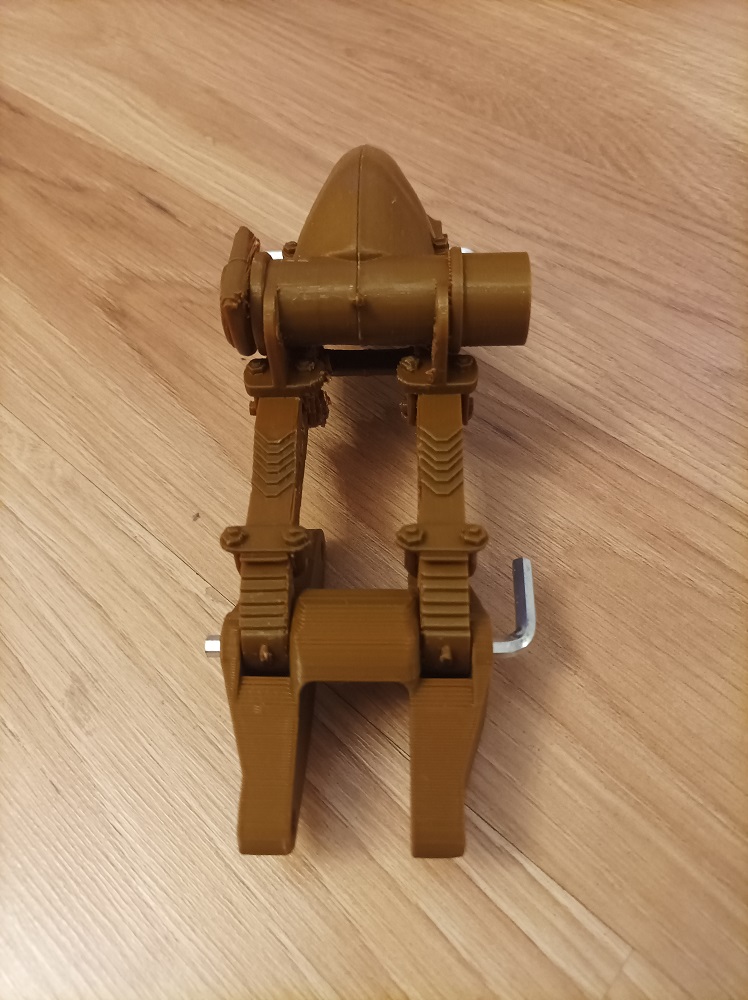

The visible Allen key served as a temporary axle to hold the cart together.
An M8 hexagonal bolt was to be inserted into the drive wheel as an axle and locked on the other side with a CNC clutch. Next to the clutch was the transmission.
I am currently trying to imitate the bolts and reinforcements of the rear fuselage.
0.8mm sheet metal and pointed rivets.

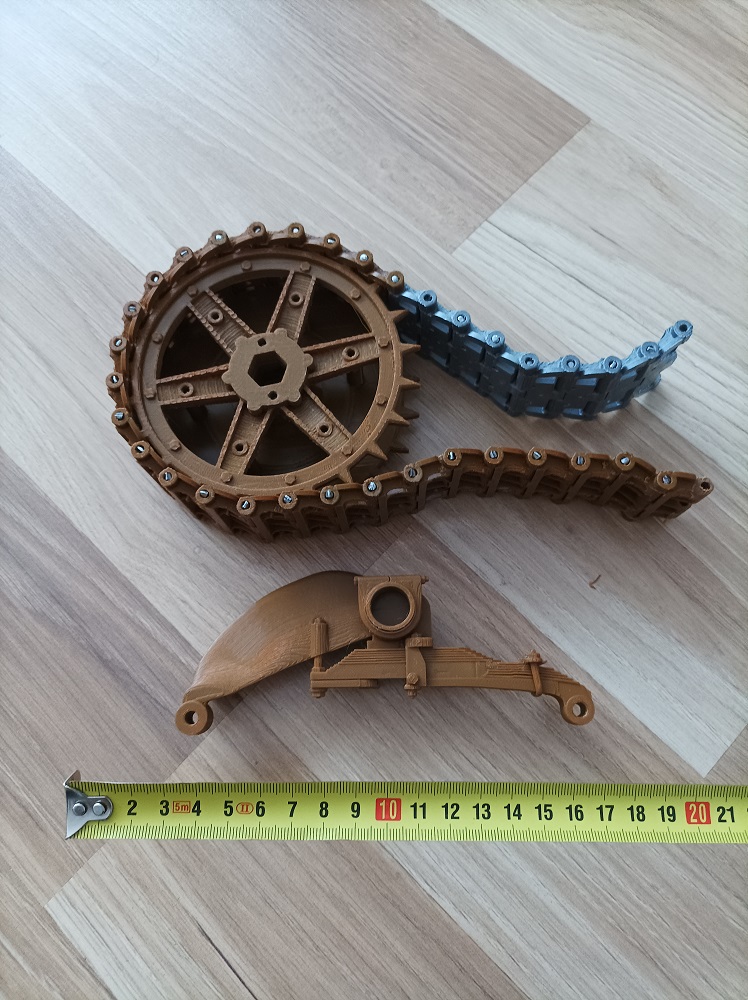

WhatsApp Image 2023-08-24 at 09.27.01.jpeg (39.95 KiB) Viewed 1381 times

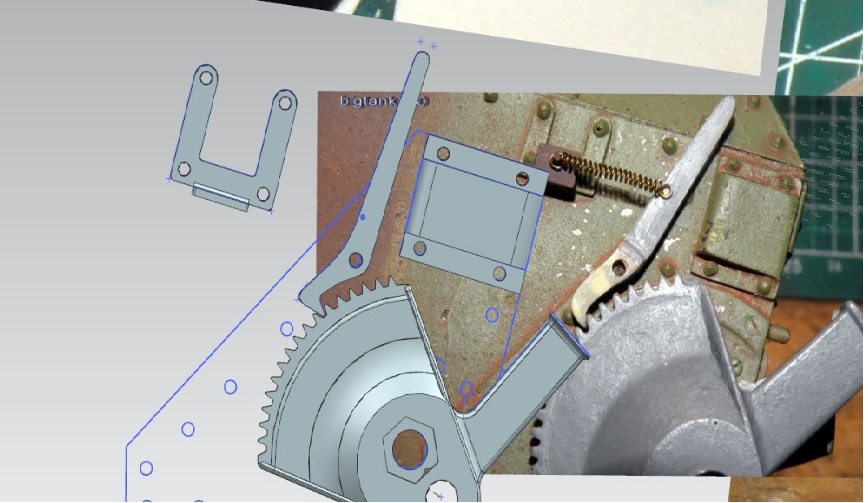

I would like to stretch the tracks almost like in the original
