Taigen IR board

[leopardgreece]

Hello everybody, can anyone show me the Wiring diagram of this board IR but without use the 360° slip ring?

????? ?? SM-N950F ???????????? Tapatalk

[Jofaur86]

yes, think the attached photo should suffice

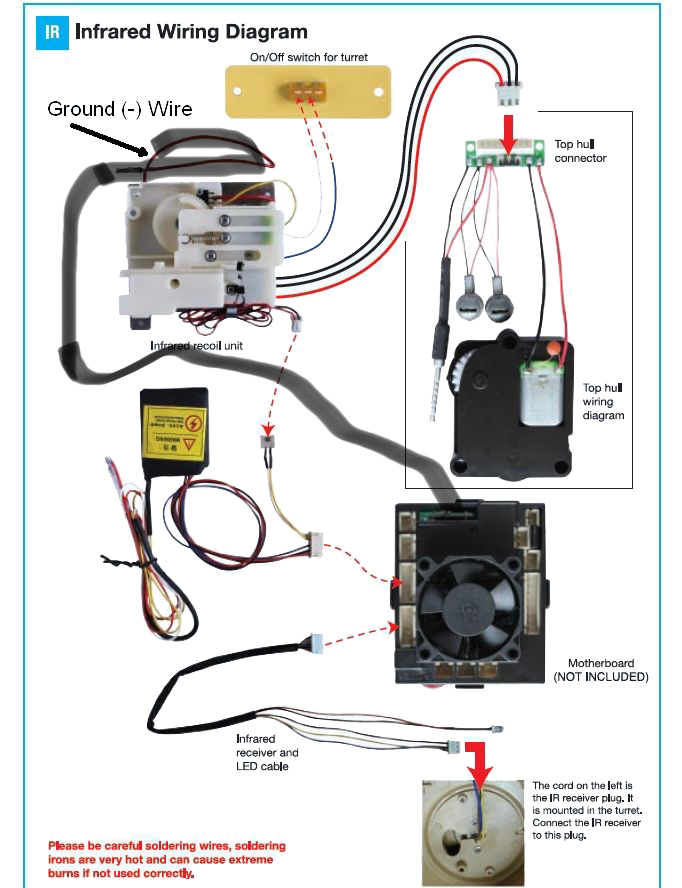

Disconnected connectors together (red circle) and connected directly to the plate, in the corresponding plugs


the black wire alone on the Asiatam recoil is a minus, and connects with the right black of the plate black wire alone on the Asiatam recoil is a minus, and connects with the right black of the plate

[Jofaur86]

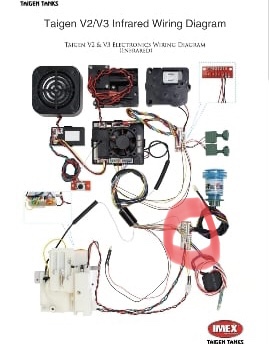

Could this be easier to understand?

[leopardgreece]

Ok i understand i just wonder if it will work with V2/3 board. I have noticed the V1 wiring diagram. Thank you very much

????? ?? SM-N950F ???????????? Tapatalk

[Jofaur86]

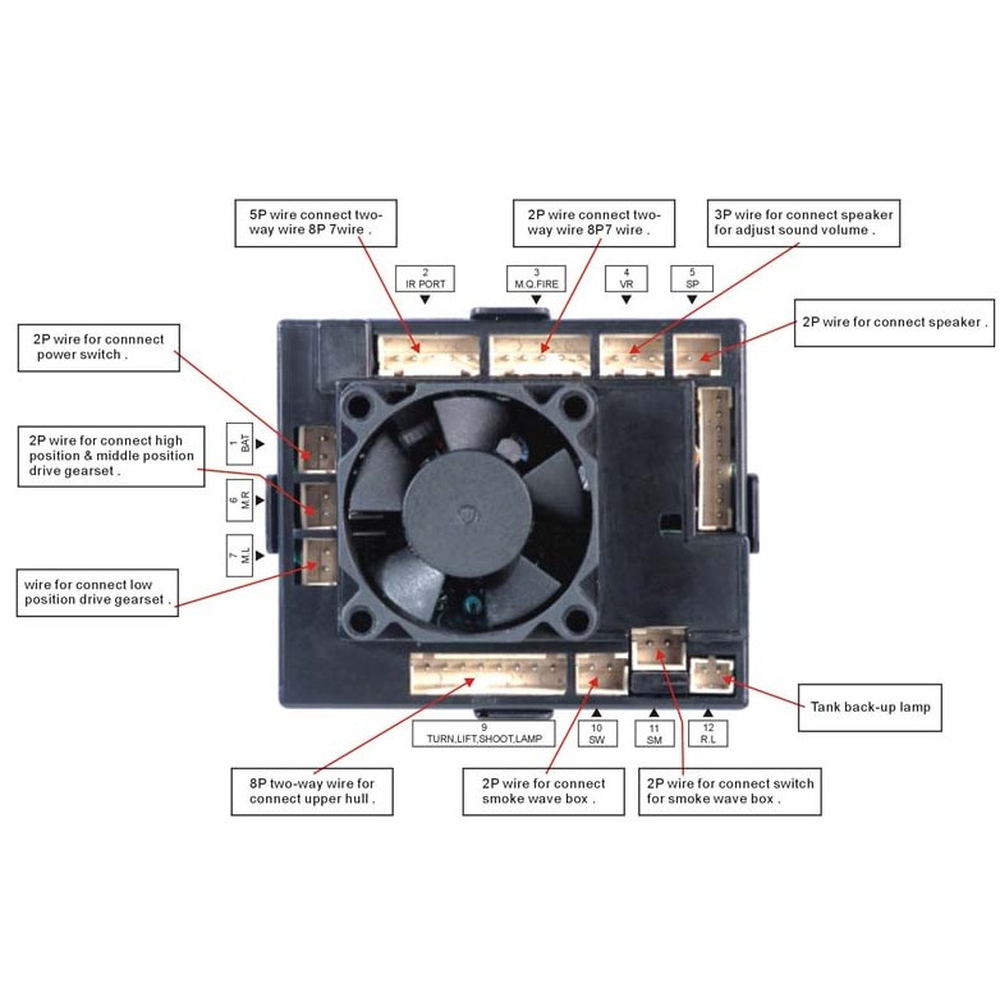

Bjr, no worries it will work, if you connect the cord of the IR mushroom on the plate in CN2 (IR Port)
you have to use this cord, the led goes in the hole that must exist on the manteler of the barrel, to check the operation, use your laptop in camera function, otherwise nothing visible.
https://www.rctank.de/Connection-system ... -HL-Taigen

[Jofaur86]

no worries, V1/2/3 works perfectly, provided you use an identical plate on the other tank

[leopardgreece]

I will try. Thank you very much
